INFINITI QX50 2023 Owners Manual

•The wireless charging process will not be
started when a USB (Universal Serial Bus)
cable is connected to the smartphone. The
indicator may illuminate in orange or blink
if the smartphone is put on the wireless
charger with a USB cable connected. How-
ever, charging is not performed.
• Depending on the type of the smartphone,
the indicator may remain illuminated in or-
ange even when the charging process has
been completed.
FCC ID: BEJWC500MNM
IC: 2703H-WC500MNM
This device complies with part 15 of the FCC
Rules and RSS-Gen of IC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment. RF Radiation Exposure Statement: This
equipment complies with FCC RF Radiation
exposure limits set forth for an uncontrolled
environment.
This device and its antenna must not be co-
located or operating in conjunction with any
other antenna or transmitter.
This equipment should be installed and oper-
ated with a minimum distance of 15cm be-
tween the radiator and your body.
ISED Compliance Statement
This device complies with RSS-Gen of IC
Rules
Operation is subject to the following two
conditions:
(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications made to this de-
vice, not expressly approved by LG Vehicle
Components Company, will void the user’s
authority to operate the equipment.
ISED RF Radiation Exposure Statement:
This equipment complies with ISED RF
Radiation exposure limits set forth for an
uncontrolled environment. This device and
its antenna must not be co-located or oper-
ating in conjunction with any other antenna
or transmitter. This equipment should be in-
stalled to operate with a minimum distance
of 15 cm between the radiator and the end-
user’s body and arms.
Instruments and controls2-57

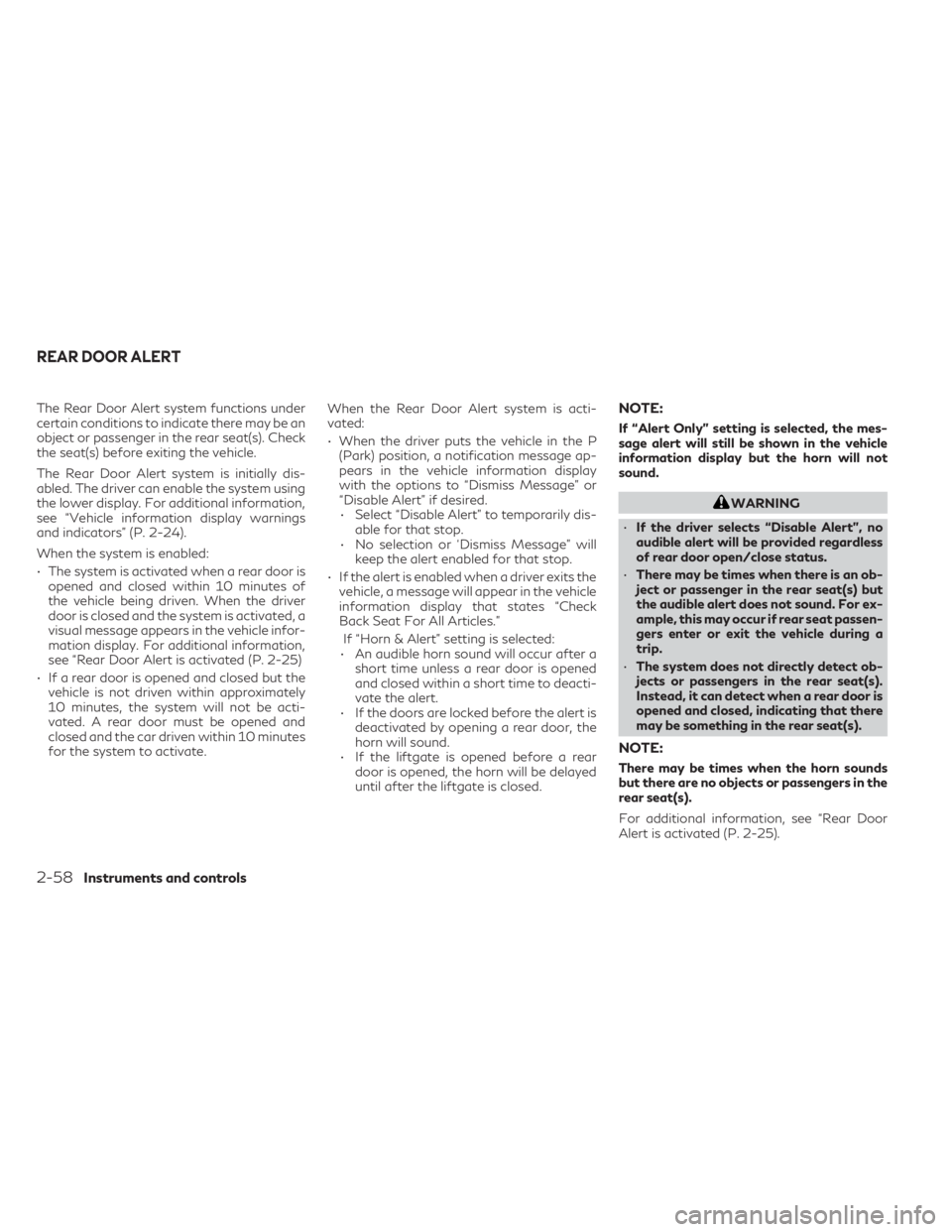

The Rear Door Alert system functions under
certain conditions to indicate there may be an
object or passenger in the rear seat(s). Check
the seat(s) before exiting the vehicle.
The Rear Door Alert system is initially dis-
abled. The driver can enable the system using
the lower display. For additional information,
see “Vehicle information display warnings
and indicators” (P. 2-24).
When the system is enabled:
• The system is activated when a rear door isopened and closed within 10 minutes of
the vehicle being driven. When the driver
door is closed and the system is activated, a
visual message appears in the vehicle infor-
mation display. For additional information,
see “Rear Door Alert is activated (P. 2-25)
• If a rear door is opened and closed but the vehicle is not driven within approximately
10 minutes, the system will not be acti-
vated. A rear door must be opened and
closed and the car driven within 10 minutes
for the system to activate. When the Rear Door Alert system is acti-
vated:
• When the driver puts the vehicle in the P
(Park) position, a notification message ap-
pears in the vehicle information display
with the options to “Dismiss Message” or
“Disable Alert” if desired.• Select “Disable Alert” to temporarily dis- able for that stop.
• No selection or ‘Dismiss Message” will keep the alert enabled for that stop.
• If the alert is enabled when a driver exits the vehicle, a message will appear in the vehicle
information display that states “Check
Back Seat For All Articles.”
If “Horn & Alert” setting is selected:
• An audible horn sound will occur after a short time unless a rear door is opened
and closed within a short time to deacti-
vate the alert.
• If the doors are locked before the alert is deactivated by opening a rear door, the
horn will sound.
• If the liftgate is opened before a rear door is opened, the horn will be delayed
until after the liftgate is closed.NOTE:
If “Alert Only” setting is selected, the mes-
sage alert will still be shown in the vehicle
information display but the horn will not
sound.
WARNING
• If the driver selects “Disable Alert”, no
audible alert will be provided regardless
of rear door open/close status.
• There may be times when there is an ob-
ject or passenger in the rear seat(s) but
the audible alert does not sound. For ex-
ample, this may occur if rear seat passen-
gers enter or exit the vehicle during a
trip.
• The system does not directly detect ob-
jects or passengers in the rear seat(s).
Instead, it can detect when a rear door is
opened and closed, indicating that there
may be something in the rear seat(s).
NOTE:
There may be times when the horn sounds
but there are no objects or passengers in the
rear seat(s).
For additional information, see “Rear Door
Alert is activated (P. 2-25).
REAR DOOR ALERT
2-58Instruments and controls

12V OUTLETS
The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.
The instrument panel and luggage area
power outlets are powered only when the
ignition switch is in the AUTO ACC or ON
position.
CAUTION
• The outlet and plug may be hot during or
immediately after use.
• Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
that you visit an INFINITI retailer for ad-
ditional information.
• Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw. •
Do not use double adapters or more than
one electrical accessory.
• Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
• Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
• Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned off.
• Push the plug in as far as it will go. If good
contact is not made, the plug may over-
heat or the internal temperature fuse
may open.
• When not in use, be sure to close the cap.
Do not allow water or any other liquid to
contact the outlet.
LIC5072
Instrument Panel
LIC3833
Cargo Area
POWER OUTLETS
Instruments and controls2-59

The extended storage switch is used when
shipping the vehicle. It is located in the fuse
panel on the driver’s side of the instrument
panel. If any electrical equipment does not
operate, ensure the extended storage switch
is pushed fully in place, as shown.
To inspect the extended storage switch, en-
sure the ignition switch and headlight switch
are off, remove the fuse box cover
OAusing a
suitable tool in combination with a cloth to
avoid damaging the trim.
LIC3359LIC3266
OFF position
LIC3268
ON position
EXTENDED STORAGE SWITCH
2-60Instruments and controls

FRONT-DOOR POCKETSSEATBACK POCKETS
The seatback pockets may be located on the
back of the driver’s and/or passenger’s seats.
The pockets can be used to store maps.
WARNING
To ensure proper operation of the driver’s
and/or front passenger's INFINITI Ad-
vanced Air Bag System (if so equipped),
please observe the following items:
• Do not allow a passenger in the rear seat
to push or pull on the seatback pocket or
head restraint/head rest.
• Do not place heavy loads heavier than
9.1 lbs. (4 kg) on the seatback, head
restraint/head rest or in the seatback
pocket.
LIC3834LIC1328
STORAGE
Instruments and controls2-61

STORAGE TRAYS
WARNING
Do not place sharp objects in the trays to
help prevent injury in an accident or sudden
stop.
GLOVE BOX
Open the glove box by pulling the handle. Use
the master key when locking
O1or unlocking
O2the glove box.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a sud-
den stop.
CONSOLE BOX
To open the console box, press down on the
latch. The latch will release.
To close, push the lid down until the lock
latches.
LIC2214
Rear armrest
LIC3902LIC3836
2-62Instruments and controls

OVERHEAD SUNGLASSES
STORAGE
To open the sunglasses holder, pushO1and
release.
Only store one pair of sunglasses in the
holder.
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
CAUTION
• Do not use for anything other than
sunglasses.
• Do not leave sunglasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the sunglasses.
CUP HOLDERS
The front console cup holders are equipped
with a rubber mat, which may be removed.
LIC3837LIC5073
Front console
Instruments and controls2-63

CAUTION
• Do not recline the rear seatback when
you use the cup holders on the rear arm-
rest. Doing so may cause the beverages
to spill over, and if they are hot, they may
scald the passengers.
• Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it can
scald you or your passenger.
• Use only soft cups in the cup holder. Hard
objects can injure you in an accident.CAUTION
• Do not use bottle holder for any other
objects that could be thrown about in the
vehicle and possibly injure people during
sudden braking or an accident.
• Do not use bottle holder for open liquid
containers.
LIC2212
Rear
LIC3839
Bottle holder — front
LIC3840
Bottle holder — rear
2-64Instruments and controls

CARGO AREA STORAGE BIN
To access the floor storage area, pull up on
the handle
O1to lift the luggage board.
LUGGAGE HOOKS
When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a single
hook.
The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.
The luggage hooks can be used to secure
cargo with ropes or other types of straps.
WARNING
• Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
• Use suitable ropes and hooks to secure
cargo.
• Never allow anyone to ride in the lug-
gage area. It is extremely dangerous to
ride in a cargo area inside of a vehicle. In a
collision, people riding in these areas are
more likely to be seriously injured or
killed.
• Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts.
• The child restraint top tether strap may
be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.
• Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
LIC2244LIC4172
Instruments and controls2-65

COAT HOOKS
The coat hooks, located on the rear assist
grips, may be used to store coats and other
articles of clothing.
CAUTION
Do not apply a total load of more than 7.3
lbs. (3.3 kg) to the side pillar coat hook or
33 lbs. (15 kg) to the rear assist grip coat
hook.
ROOF RACK (if so equipped)
WARNING
• Always install the crossbars onto the
roof side rails before loading cargo of
any kind. Loading cargo directly onto the
roof side rails or the vehicle’s roof may
cause vehicle damage.
• Roof rack cross bars should be evenly
distributed.
• Do not exceed maximum roof rack cross-
bars load capacity and always distribute
the load uniformly. •
Heavy loading of the crossbars has the
potential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.
•
Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal injury.
•Drive extra carefully when the vehicle is
loaded at or near the cargo carrying ca-
pacity, especially if the significant portion
of that load is carried on the crossbars.
CAUTION
• Use care when placing or removing items
from the roof rack. If you cannot com-
fortably lift the items onto the roof rack
from the ground, use a ladder or a stool.
Do not apply any load directly to the roof side
rails
OA. CrossbarsOBmust be installed be-
fore applying load/cargo/luggage to the
roof of the vehicle.
LIC4173LIC4202
2-66Instruments and controls
