0 Illustrated table of contents
Air bags, seat belts and child restraints........... 0-2
Exterior front ................................... 0-3
Exterior rear .................................... 0-4
Passenger compartment ........................ 0-5 Instrument panel
................................ 0-6
Engine compartment check locations ............ 0-8
Warning/indicator lights ........................ 0-9

2.0L 4 cylinder (KR20DDET engine model)
1. Engine coolant reservoir (P. 8-5)
2. Drive belt location (P. 8-15)3. Air cleaner (P. 8-16)
4. Brake fluid reservoir (P. 8-10)
5. Battery (P. 8-12)6. Fuse/Fusible link box (P. 8-20)
7. Windshield-washer fluid reservoir
(P. 8-11)
8. Engine oil filler cap (P. 8-6)
9. Engine oil dipstick (P. 8-6)
NOTE:
Your vehicle may not be equipped with an
engine cover.
Refer to the page number indicated in paren-
theses for operating details.
LDI3173
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

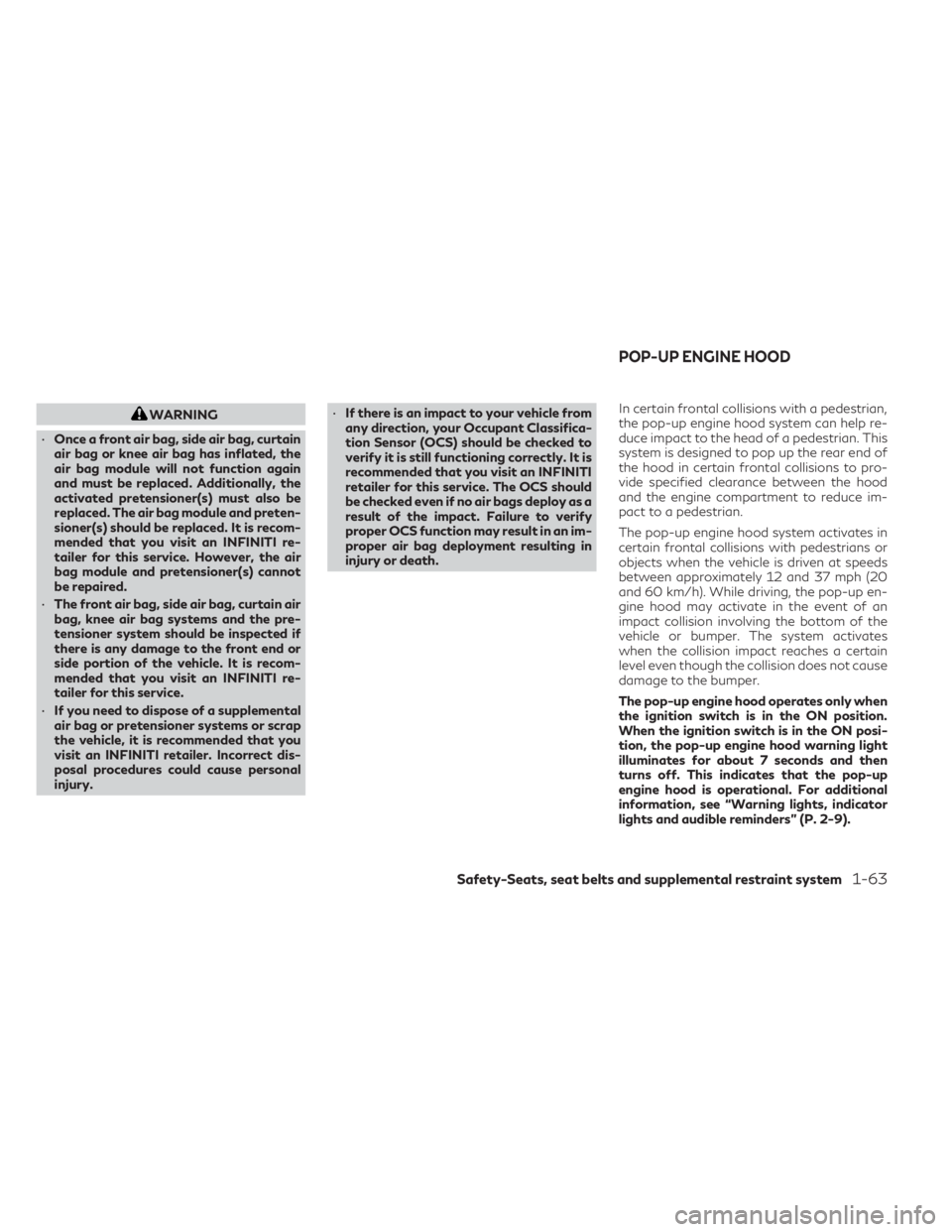

WARNING
• Once a front air bag, side air bag, curtain
air bag or knee air bag has inflated, the
air bag module will not function again
and must be replaced. Additionally, the
activated pretensioner(s) must also be
replaced. The air bag module and preten-
sioner(s) should be replaced. It is recom-
mended that you visit an INFINITI re-
tailer for this service. However, the air
bag module and pretensioner(s) cannot
be repaired.
• The front air bag, side air bag, curtain air
bag, knee air bag systems and the pre-
tensioner system should be inspected if
there is any damage to the front end or
side portion of the vehicle. It is recom-
mended that you visit an INFINITI re-
tailer for this service.
• If you need to dispose of a supplemental
air bag or pretensioner systems or scrap
the vehicle, it is recommended that you
visit an INFINITI retailer. Incorrect dis-
posal procedures could cause personal
injury. •
If there is an impact to your vehicle from
any direction, your Occupant Classifica-
tion Sensor (OCS) should be checked to
verify it is still functioning correctly. It is
recommended that you visit an INFINITI
retailer for this service. The OCS should
be checked even if no air bags deploy as a
result of the impact. Failure to verify
proper OCS function may result in an im-
proper air bag deployment resulting in
injury or death. In certain frontal collisions with a pedestrian,
the pop-up engine hood system can help re-
duce impact to the head of a pedestrian. This
system is designed to pop up the rear end of
the hood in certain frontal collisions to pro-
vide specified clearance between the hood
and the engine compartment to reduce im-
pact to a pedestrian.
The pop-up engine hood system activates in
certain frontal collisions with pedestrians or
objects when the vehicle is driven at speeds
between approximately 12 and 37 mph (20
and 60 km/h). While driving, the pop-up en-
gine hood may activate in the event of an
impact collision involving the bottom of the
vehicle or bumper. The system activates
when the collision impact reaches a certain
level even though the collision does not cause
damage to the bumper.
The pop-up engine hood operates only when
the ignition switch is in the ON position.
When the ignition switch is in the ON posi-
tion, the pop-up engine hood warning light
illuminates for about 7 seconds and then
turns off. This indicates that the pop-up
engine hood is operational. For additional
information, see “Warning lights, indicator
lights and audible reminders” (P. 2-9).
POP-UP ENGINE HOOD
Safety-Seats, seat belts and supplemental restraint system1-63

WARNING
• The pop-up engine hood will not activate
in the event of a side impact, rear impact
or rollover collision.
• The pop-up engine hood may not acti-
vate in the event of a corner impact col-
lision of the front bumper.
• No unauthorized changes should be
made to any components including hood
and front bumper, or wiring of the
pop-up engine hood system. This is to
prevent accidental or improper activa-
tion, or damage to the pop-up engine
hood system.
•
It is recommended that work performed
around or on the pop-up engine hood
system should be done by an INFINITI
retailer. The wiring of the pop-up engine
hood system should not be modified or
disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the pop-up engine
hood system. This could affect proper op-
eration of the pop-up engine hood and
cause accidental and improper activation.
• Do not pull the hood lock release handle
or push the hood down after the pop-up
engine hood system activates. Doing so
could cause personal injury or damage to
the hood because the hood cannot be
closed manually after the system is acti-
vated. When the pop-up engine hood ac-
tivates, it is recommended that you visit
an INFINITI retailer.
• If you need to dispose of the pop-up en-
gine hood system, or scrap the vehicle, it
is recommended that you visit an
INFINITI retailer. Correct pop-up engine
hood system disposal procedures are set
forth in the appropriate INFINITI Service
Manual. Incorrect disposal procedures
could cause personal injury.
•
The pop-up engine hood cannot be reused
after activation. It is recommended that
you visit an INFINITI retailer for replace-
ment. If the vehicle becomes involved in a
frontal collision but the pop-up engine
hood system is not activated, it is recom-
mended that you have the pop-up engine
hood system checked and, if necessary,
replaced by an INFINITI retailer.
• Immediately after the pop-up engine
hood has been activated, do not touch
the components because the lifters will
be hot. You may severely burn yourself.
POP-UP ENGINE HOOD
ACTIVATION CONDITIONS
When the pop-up engine hood will activate
The pop-up engine hood activates in certain
frontal collisions with pedestrians or objects
when the vehicle is driven at speeds between
approximately 12 and 37 mph (20 and 60
km/h).
The pop-up engine hood activates when the
collision impact reaches a certain level even if
the collision does not cause damage to the
front bumper. In addition, it may activate
when the vehicle collides with small animals,
lumps of snow or any other objects, depend-
ing on the condition and speed of collision.
When the vehicle receives an impact to the
undercarriage or a lower part of the front
bumper, the pop-up engine hood may also
activate. Reduce speed and be careful when
driving on a road surface that seems likely to
impact the undercarriage or a lower part of
the front bumper. Some examples are shown
in the following illustrations.
1-64Safety-Seats, seat belts and supplemental restraint system

2 Instruments and controls
Instrument panel.................................2-2
Meters and gauges ..............................2-4
Speedometer and odometer ...................2-4
Tachometer ..................................2-6
Engine coolant temperature gauge ............2-6
Fuel gauge ...................................2-7
Distance To Empty (DTE) .....................2-7
Variable Compression Turbo ..................2-8
Warning lights, indicator lights and audible
reminders ........................................2-9
Checking lights .............................. 2-10
Warning/Indicator lights (red) ...............2-10
Warning/Indicator lights (yellow) ............2-13
Warning/Indicator lights (other) ..............2-17
Audible reminders ........................... 2-18
Vehicle information display .....................2-19
How to use the vehicle information
display ...................................... 2-20
Startup display .............................. 2-20
Trip computer ............................... 2-21
Resetting the trip computer .................2-23
Tire Pressure Information (Display
Settings) .................................... 2-23
Oil control system ........................... 2-24
Vehicle information display warnings and
indicators ................................... 2-24Security systems
............................... 2-33
Vehicle security system ......................2-33
INFINITI Vehicle Immobilizer System .........2-34
Wiper and washer switch ......................2-36
Switch operation ............................ 2-36
Rain-sensing auto wiper system (if so
equipped) ................................... 2-37
Rear switch operation ....................... 2-38
Rear window defroster, outside mirror
defroster (if so equipped), and wiper deicer
(if so equipped) switch ......................... 2-39
Headlight switch ............................... 2-40
Headlight control switch ....................2-40
LED Daytime Running Lights (DRL)
system ..................................... 2-45
Instrument brightness control ................2-46
Turn signal switch ........................... 2-46
Fog light switch (if so equipped) .............2-47
Horn .......................................... 2-47
Climate
controlled seat switches (if so
equipped) ...................................... 2-48
Heated seats (if so equipped) ...................2-49
Heated 2nd row seat switches (if so equipped) . . 2-50
Steering Assist switch ........................... 2-51

Warning/Indicator light (red)Warning/Indicator light (yellow) Warning/Indicator light (other)
Security indicator lightRear Automatic Braking (RAB) system
warning light
Supplemental air bag warning lightSlip indicator light
Vehicle Dynamic Control (VDC) OFF
indicator light
CHECKING LIGHTS
With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if so
equipped) will come on:
,,,,or,
The following lights (if so equipped) come on
briefly and then go off:
or,,,,,or,,,
If any light fails to come on or operate in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunc-
tion. Have the system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
Some indicators and warnings are also dis-
played in the vehicle information display be-
tween the speedometer and tachometer. For
additional information, see “Vehicle informa-
tion display” (P. 2-19).WARNING/INDICATOR LIGHTS
(red)
For additional information, see “Vehicle in-
formation display” (P. 2-19).
orBrake warning
light
This light functions for the foot brake system.
2-10Instruments and controls

Low brake fluid warning light
When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine is
running, with the parking brake not applied,
stop the vehicle and perform the following:
1. Check the brake fluid level. Add brake fluidas necessary. For additional information,
see “Brake fluid” (P. 8-10).
2. If the brake fluid level is correct, have the warning system checked. It is recom-
mended that you visit an INFINITI retailer
for this service.
WARNING
• Your brake system may not be working
properly if the warning light is on. Driv-
ing could be dangerous. If you judge it to
be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driving
it could be dangerous.
• Pressing the brake pedal with the engine
stopped and/or a low brake fluid level
may increase your stopping distance and
braking will require greater pedal effort
as well as pedal travel. •
If the brake fluid level is below the MINI-
MUM or MIN mark on the brake fluid
reservoir, do not drive until the brake
system has been checked. It is recom-
mended that you visit an INFINITI re-
tailer for this service.
Charge warning light
If this light comes on while the engine is run-
ning, it may indicate the charging system is
not functioning properly. Turn the engine
off and check the generator belt. If the belt
is loose, broken, or missing or if the light
remains on, have the system checked. It is
recommended that you visit an INFINITI
retailer for this service.
CAUTION
Do not continue driving if the generator
belt is loose, broken or missing.
Electric shift control system
warning light
This light illuminates when a malfunction
occurs in the electric shift control system.
When the master warning light illuminates,
the chime sounds and the following message is displayed in the vehicle information display:
“When parked apply parking brake”.
When the ignition is placed in the OFF posi-
tion, the chime sounds continuously. Ensure
the parking brake is applied
Have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
orElectronic parking
brake indicator
light
This light illuminates when the electronic
parking brake system is operating.
When the ignition switch is placed in the
ON position, the electronic parking brake
warning light illuminates. When the engine is
started and the parking brake is released, the
warning light turns off.
If the parking brake is not released, the elec-
tronic parking brake warning light remains
illuminated. Ensure the electronic parking
brake warning light has turned off before
driving.
If the electronic parking brake warning light
illuminates or flashes while the electronic
parking brake system warning light
or
Instruments and controls2-11

(yellow) illuminates, it may indicate that
the electronic parking brake system is not
functioning properly. Have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
For additional information, see “Electronic
parking brake” (P. 5-24).
Engine oil pressure warning
light
This light warns of low engine oil pressure. If
the light flickers or comes on during normal
driving, pull off the road in a safe area, stop
the engine immediately and call an INFINITI
retailer or other authorized repair shop.
The engine oil pressure warning light is not
designed to indicate a low oil level. Use the
dipstick to check the oil level. For additional
information, see “Engine oil” (P. 8-6).
CAUTION
Running the engine with the engine oil
pressure warning light on could cause seri-
ous damage to the engine almost immedi-
ately. Such damage is not covered by war-
ranty. Turn off the engine as soon as it is
safe to do so.
Master warning light
When the ignition switch is in the ON posi-
tion, the master warning light illuminates if
any of the following (if so equipped) are dis-
played on the vehicle information display:
• Parking brake warning
• Door warning (when vehicle is moving)
• Shift position warning
• Low battery warning
• Handle Release warning
For additional information, see “Vehicle in-
formation display” (P. 2-19).
Pop-up engine hood
warning light
When the ignition switch is in the ON posi-
tion, the pop-up engine hood warning light
illuminates for about 7 seconds and then
turns off. This indicates the pop-up engine
hood system is operational.
If any of the following conditions occur, the
pop-up engine hood system may need servic-
ing. Have the system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
• The pop-up engine hood warning light re- mains illuminated after about 7 seconds. • The pop-up engine hood warning light
flashes intermittently.
• The pop-up engine hood warning light does not come on at all.
The pop-up engine hood may not function
properly unless checked and/or repaired.
For additional information, see “Pop-up en-
gine hood” (P. 1-63).
Seat belt warning light and
chime
The light and chime remind you to fasten your
seat belts. The light illuminates whenever the
ignition switch is placed in the ON position
and remains illuminated until the driver's seat
belt is fastened. At the same time, the chime
sounds for about 6 seconds unless the driv-
er's seat belt is securely fastened.
The seat belt warning light may also illumi-
nate if the front passenger's seat belt is not
fastened when the front passenger's seat is
occupied. For 7 seconds after the ignition
switch is placed in the ON position, the sys-
tem does not activate the warning light for
the front passenger.
The rear seats may be also equipped with a
seat belt warning light.
For additional information, see “Seat belts”
(P. 1-12).
2-12Instruments and controls

Security indicator light
This light blinks when the ignition switch is
placed in the OFF or LOCK position.
The blinking security indicator light indicates
that the security systems equipped on the
vehicle are operational.
For additional information, see “Security sys-
tems” (P. 2-33).
Supplemental air bag
warning light
When the ignition switch is placed in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag, and
pretensioner seat belt systems need servicing:
• The supplemental air bag warning light re-mains on after approximately 7 seconds.
• The supplemental air bag warning light flashes intermittently.
• The supplemental air bag warning light does not come on at all.
It is recommended that you visit an INFINITI
retailer for these services. Unless checked and repaired, the supplemen-
tal restraint system (air bag system) and/or
the pretensioners may not function properly.
For additional information, see “Supplemen-
tal Restraint System (SRS)” (P. 1-41).
WARNING
If the supplemental air bag warning light is
on, it could mean that the front air bag, side
air bag, curtain air bag and/or preten-
sioner systems will not operate in an acci-
dent. To help avoid injury to yourself or
others, have your vehicle checked as soon
as possible. It is recommended that you
visit an INFINITI retailer for this service.
WARNING/INDICATOR LIGHTS
(yellow)
For additional information, see “Vehicle in-
formation display” (P. 2-19).
orAnti-lock Braking
System (ABS)
warning light
When the ignition switch is placed in the ON
position, the ABS warning light illuminates
and then turns off. This indicates the ABS is
operational. If the ABS light comes on while the engine is
running, it may indicate the anti-lock braking
system is not functioning properly. Have the
system checked. It is recommended that you
visit an INFINITI retailer for this service.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock
assistance. For additional information, see
“Brake system” (P. 5-140).
orElectronic parking
brake warning light
The electronic parking brake system warning
light functions for the electronic parking
brake system. If the warning light illuminates,
it may indicate the electronic parking brake
system is not functioning properly. Have the
system checked. It is recommended that you
visit an INFINITI retailer for this service.
For additional information, see “Electronic
parking brake” (P. 5-24).
Instruments and controls2-13

Forward Emergency
Braking (FEB) with
Pedestrian Detection
system warning light
This light comes on when the ignition switch
is placed in the ON position. It turns off after
the engine is started.
This light illuminates when the FEB with
Pedestrian Detection system is set to OFF in
the lower display.
If the light illuminates when the FEB with
Pedestrian Detection system is on, it may
indicate that the system is unavailable. For
additional information, see “Forward Emer-
gency Braking (FEB) with Pedestrian Detec-
tion” (P. 5-109) and “Predictive Forward
Collision Warning (PFCW)” (P. 5-120).
Front passenger air bag
status light
The front passenger air bag status light will
be lit and the passenger front air bag will be
off depending on how the front passenger
seat is being used.
For additional information, see “Front pas-
senger air bag and status light” (P. 1-52).
Low tire pressure warning
light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the
tire pressure of all tires.
The low tire pressure warning light warns of
low tire pressure or indicates that the TPMS
is not functioning properly.
After the ignition switch is placed in the ON
position, this light illuminates for about 1 sec-
ond and turns off.
Low tire pressure warning
If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
“Tire Pressure Low - Add Air” warning also
appears in the vehicle information display.
When the low tire pressure warning light il-
luminates, you should stop and adjust the
tire pressure of all four tires to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label located in
the driver's door opening. The low tire pres-
sure warning light does not automatically
turn off when the tire pressure is adjusted.
After the tire is inflated to the recommended
pressure, the vehicle must be driven at
speeds above 16 mph (25 km/h) to activatethe TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge to
check the tire pressure.
The “Tire Pressure Low - Add Air” warning
appears each time the ignition switch is placed
in the ON position as long as the low tire
pressure warning light remains illuminated.
For additional information, see “Vehicle in-
formation display” (P. 2-19) and “Tire Pres-
sure Monitoring System (TPMS)” (P. 5-5) and
(P. 6-3).
TPMS malfunction
If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The light
will remain on after 1 minute. Have the sys-
tem checked. It is recommended that you visit
an INFINITI retailer for this service. The "Tire
Pressure Low — Add Air" warning does not
appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.
For additional information, see “Tire Pressure
Monitoring System (TPMS)” (P. 5-5) and “Tire
pressure” (P. 8-27).
2-14Instruments and controls
