•Pre-mix windshield-washer fluid con-
centrates with water to the manufactur-
er’s recommended levels before pouring
the fluid into the windshield-washer
fluid reservoir. Do not use the
windshield-washer fluid reservoir to mix
the windshield-washer fluid concentrate
and water.
NOTE:
If the windshield wiper operation is inter-
rupted by snow or ice, the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow or ice that is on and
around the wiper arms. In approximately 1
minute, turn the switch on again to operate
the wiper.
The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at
the following speed:
1Intermittent — intermittent operation can
be adjusted by turning the knob toward
OA(slower) orOB(faster). Also, the inter-
mittent operation speed varies in accor-
dance with the vehicle speed. (For ex-
ample, when the vehicle speed is high, the
intermittent operation speed will be faster.) Further, if so equipped, the rain-
sensing feature will adjust the speed of
the intermittent operation. For additional
information, see “Rain-sensing auto
wiper system” (P. 2-37).
2Low — continuous low speed operation
3High — continuous high speed operation
Push the lever up
O4to have one sweep
operation of the wiper.
Pull the lever toward you
O5to operate the
washer. The wiper will also operate several
times.
Drip Wipe:
A brief period of time after using the washer,
the wiper will perform a one sweep operation
automatically to clear any remaining
windshield-washer fluid from the windshield.
NOTE:
The Drip Wipe feature may be disabled. For
additional information, refer to the separate
INFINITI InTouch™ Owner’s Manual.
RAIN-SENSING AUTO WIPER
SYSTEM (if so equipped)
CAUTION
• Do not touch the rain sensor and around
it when the wiper switch is in the AUTO
position and the ignition switch is in the
ON position. The wipers may operate
unexpectedly and cause an injury or may
damage a wiper.
LIC3817
Instruments and controls2-37

•The rain-sensing auto wipers are in-
tended for use during rain. If the switch is
left in the AUTO position, the wipers
may operate unexpectedly when dirt,
fingerprints, oil film or insects are stuck
on or around the sensor. The wipers may
also operate when exhaust gas or mois-
ture affect the rain sensor.
• When the windshield glass is coated with
water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is
small.
• Be sure to turn off the rain-sensing auto
wiper system when you use a car wash.
• The rain-sensing auto wipers may not
operate if rain does not hit the rain sen-
sor even if it is raining.
• Using Genuine NISSAN wiper blades is
recommended for proper operation of
the rain-sensing auto wiper system. For
additional information, see “Windshield
wiper blades” (P. 8-17). The rain-sensing auto wiper system can au-
tomatically turn on the wipers and adjust the
wiper speed depending on the rainfall and the
vehicle speed by using the rain sensor located
on the upper part of the windshield.
To set the rain-sensing auto wiper system,
place the lever in the AUTO position
O1. The
wiper will sweep once while the ignition
switch is in the ON position.
The rain sensor sensitivity level can be ad-
justed by turning the knob toward the front
O2(High) or toward the rearO3(Low).
– High — High sensitive operation
– Low — Low sensitive operation
To turn the rain-sensing auto wiper system
off, rotate the lever to the OFF position, or
rotate the lever to the low or high position.
The rain-sensing feature may be disabled.
For additional information, refer to the sepa-
rate INFINITI InTouch™ Owner’s Manual.
REAR SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the rear window and
obscure your vision which may lead to an
accident. Warm the rear window with the
defroster before you wash the rear
window.
LIC4244
2-38Instruments and controls

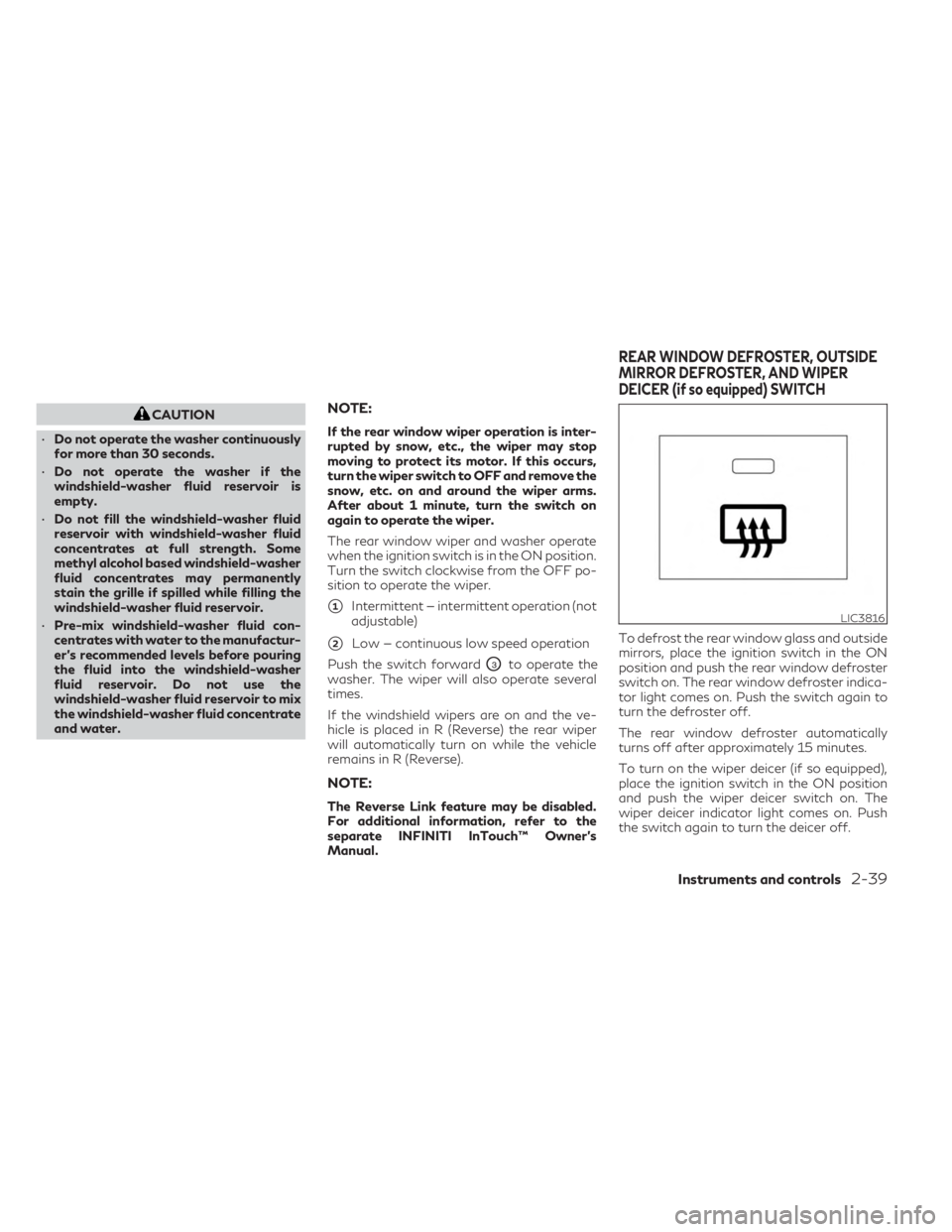

CAUTION
• Do not operate the washer continuously
for more than 30 seconds.
• Do not operate the washer if the
windshield-washer fluid reservoir is
empty.
• Do not fill the windshield-washer fluid
reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-washer
fluid concentrates may permanently
stain the grille if spilled while filling the
windshield-washer fluid reservoir.
• Pre-mix windshield-washer fluid con-
centrates with water to the manufactur-
er’s recommended levels before pouring
the fluid into the windshield-washer
fluid reservoir. Do not use the
windshield-washer fluid reservoir to mix
the windshield-washer fluid concentrate
and water.NOTE:
If the rear window wiper operation is inter-
rupted by snow, etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to OFF and remove the
snow, etc. on and around the wiper arms.
After about 1 minute, turn the switch on
again to operate the wiper.
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF po-
sition to operate the wiper.
1Intermittent — intermittent operation (not
adjustable)
2Low — continuous low speed operation
Push the switch forward
O3to operate the
washer. The wiper will also operate several
times.
If the windshield wipers are on and the ve-
hicle is placed in R (Reverse) the rear wiper
will automatically turn on while the vehicle
remains in R (Reverse).
NOTE:
The Reverse Link feature may be disabled.
For additional information, refer to the
separate INFINITI InTouch™ Owner’s
Manual. To defrost the rear window glass and outside
mirrors, place the ignition switch in the ON
position and push the rear window defroster
switch on. The rear window defroster indica-
tor light comes on. Push the switch again to
turn the defroster off.
The rear window defroster automatically
turns off after approximately 15 minutes.
To turn on the wiper deicer (if so equipped),
place the ignition switch in the ON position
and push the wiper deicer switch on. The
wiper deicer indicator light comes on. Push
the switch again to turn the deicer off.
LIC3816
REAR WINDOW DEFROSTER, OUTSIDE
MIRROR DEFROSTER, AND WIPER
DEICER (if so equipped) SWITCH
Instruments and controls2-39

–When the vehicle is equipped with
non-original brake or suspension
parts
– When an object that obstructs the
camera unit detection range is
attached
– When excessively heavy baggage is
loaded in the rear seat or luggage
area of your vehicle
– When the vehicle load capacity is
exceeded
• Excessive noise will interfere with the
warning chime sound, and the beep may
not be heard.
• For the ProPILOT Assist system to oper-
ate properly, the windshield in front of
the camera must be clean. Replace worn
wiper blades. The correct size wiper
blades must be used to help make sure
the windshield is kept clean. Only use
Genuine INFINITI wiper blades, or
equivalent wiper blades, that are specifi-
cally designed for use on your vehicle
model and model year. It is recommended
that you visit your INFINITI retailer for
the correct parts for your vehicle.Steering Assist temporary standby
Automatic standby due to driving operation:
When the driver activates the turn signal, the
Steering Assist is temporarily placed in a
standby mode. (The Steering Assist restarts
automatically when the operating conditions
are met again.)
Automatic standby:
In the following cases, a warning message is
displayed along with the chime, and the
Steering Assist is placed in a temporary
standby mode. (The Steering Assist restarts
automatically when the operating conditions
are met again.)
• When lane markers on both sides are no longer detected
• When a vehicle ahead is no longer detected under approximately 37 mph (60 km/h)
Steering Assist cancel
Under the following conditions, the Steering
Assist cancels, and the Steering Assist status
indicator and the Steering Assist indicator
turn off: • When unusual lane markers appear in the
traveling lane or when the lane marker can-
not be correctly detected for some time due
to certain conditions (for example, a snow
rut, the reflection of light on a rainy day, the
presence of several unclear lane markers)
• When the windshield wiper operates in the high (HI) speed operation (the Steering As-
sist is disabled when the wiper operates for
more than approximately 10 seconds)
NOTE:
For vehicles with auto wipers, the wipers
may automatically switch to LO or HI. If the
auto wipers remain in LO or HI for longer
than 10 seconds, the steering assist will
cancel.
Action to take:
Turn the ICC system off using the CANCEL
switch. When the conditions listed above are
no longer present, turn the ICC system on
again.
Steering Assist malfunction
When the system malfunctions, it turns off
automatically. The Steering Assist status
warning illuminates (orange). A chime may
sound depending on the situation.
Starting and driving5-99

IN-CABIN MICROFILTER
The in-cabin microfilter restricts the entry of
airborne dust and pollen particles and re-
duces some objectionable outside odors. The
filter is located behind the glove box. For
additional information on change intervals,
see the "Maintenance and schedules" section
of this manual.
If replacement is required, it is recommended
that you visit an INFINITI retailer for this
service.
CLEANING
If your windshield is not clear after using the
windshield-washer or if a wiper blade chat-
ters when running, wax or other material may
be on the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form when
rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild deter-
gent. Then rinse the blades with clear water.
If your windshield is still not clear after clean-
ing the blades and using the wiper, replace
the blades.
CAUTION
Worn windshield wiper blades can damage
the windshield and impair driver vision.
REPLACING
Replace the wiper blades if they are worn.
To replace the windshield wiper blades, fol-
low the procedure below:
1. When the ignition switch is ON or within 60 seconds after placing the ignition
switch from the ON to OFF position,
place the windshield wiper and washer
lever into the OFF position.
2. Rapidly lift the windshield wiper and washer lever
OAupwards twice within 0.5
seconds. This action will cause the wipers
to automatically take the service position.
LDI3250
WINDSHIELD WIPER BLADES
Do-it-yourself8-17

3. Once the wipers are in the service posi-tion, push the release tab
OC.
4. Move the wiper blade down
OBand
remove.
5. Insert the new wiper blade onto the wiper arm until it clicks into place.
6. Rotate the wiper blade so the dimple is in the groove. 7. Finally, lift the windshield wiper and
washer lever to the mist position
ODonce
and release, or lower the lever down to
operate at any speed. This action will
cause the wipers to resume the set
position.
CAUTION
• After wiper blade replacement, return
the wiper arm to its original position;
otherwise it may be damaged when the
hood is opened.
• Make sure the wiper blades contact the
glass; otherwise the arms may be dam-
aged from wind pressure. If you wax the surface of the hood, be careful
not to let wax get into the washer nozzle
OF.
This may cause clogging or improper
windshield-washer operation. If wax gets
into the nozzle, remove it with a needle or
small pin
OE.
LDI2785LDI3251
LDI3189
8-18Do-it-yourself

Parking brake:Check the parking brake op-
eration regularly. The vehicle should be se-
curely held on a fairly steep hill with only the
parking brake applied. If the parking brake
does not securely hold the vehicle, it is recom-
mended that you visit an INFINITI retailer for
service.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, anchors,
adjusters and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc., to en-
sure they operate smoothly and all latches
lock securely in every position. Check that the
head restraints/headrests move up and
down smoothly and the locks (if so equipped)
hold securely in all latched positions.
Steering wheel: Check for changes in the
steering system, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure all
warning lights and chimes are operating
properly.
Windshield defroster: Check that the air
comes out of the defroster outlets properly and in sufficient quantity when operating the
heater or air conditioner.
Windshield wiper and washer*:
Check that
the wipers and washer operate properly and
that the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery (for maintenance free batteries)*:
This vehicle is equipped with a sealed main-
tenance free battery. It is recommended that
you visit an INFINITI retailer for this service.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electronic accessories that consume battery power
when the engine is not running (Phone
chargers, GPS, DVD players, etc.).
2. Vehicle is not driven regularly and/or only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health. Brake fluid level*:
Make sure that the brake
fluid level is between the MAX and MIN lines
on the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belt*: Make sure the drive belt is
not frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level spot and turning off the
engine. Wait more than 15 minutes for the oil
to drain back into the oil pan.
Exhaust system: Make sure there are no
loose supports, cracks or holes. If the sound
of the exhaust seems unusual or there is a
smell of exhaust fumes, immediately have the
exhaust system inspected. It is recommended
that you visit an INFINITI retailer for this
service. For additional information, see “Ex-
haust gas (carbon monoxide)” (P. 5-4).
Fluid leaks: Check under the vehicle for fuel,
oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping
from the air conditioner after use is normal. If
you should notice any leaks or if fuel fumes
are evident, check for the cause and have it
corrected immediately.
9-4Maintenance and schedules

2.0L 4 CYLINDER (KR20DDET
engine model)
The following shows the maintenance
schedule.
Choose the maintenance schedule needed
based on your vehicle driving conditions.
After 90,000 miles (144,000 km)/144
months, continue maintenance at the same
mileage/time interval.
NOTE:
For information regarding coolant or spark
plug replacement, see “Additional informa-
tion” (P. 9-25).
3,750 miles/(6,000 km)/6 months
Perform at number of miles, kilometers or
months, whichever comes first.
Standard maintenance:
• Not applicable. Proceed to next interval.
Severe use maintenance:
Inspections:
• Brake pads & rotors
• Exhaust system
• Propeller shaft (AWD models)
• Drive shaft boots
• Steering gear and linkage
• Axle & suspension parts
• Horn, lights, signals, wipers, rear hatch/hood lift supports
• All fluids inspected (engine, wiper, brake, power steering, coolant)
• Engine drive belts
• Hose inspections
• Engine air filter
• Suspension components (shocks, sub- frame, tie rods)
• Battery terminals and cables, battery test
• Tire pressure, treadwear and depth
• Differential oil (AWD models)
7,500 miles/(12,000 km)/12 months
Perform at number of miles, kilometers or
months, whichever comes first.
Standard maintenance:
Inspections:
• Brake lines & cables
• Brake pads & rotors
• CVT fluid
• Propeller shaft (AWD models)
• Drive shaft boots
• Transfer case oil (AWD models)
• Differential oil (AWD models)
• Horn, lights, signals, wipers, rear hatch/ hood lift supports
• All fluids inspected (engine, wiper, brake, power steering, coolant)
• Engine drive belts
• Hose inspections
• Engine air filter
• Suspension components (shocks, sub- frame, tie rods)
• Battery terminals and cables, battery test
• Tire pressure, treadwear and depth
Essentials:
• Replace engine oil & filter (1)
• Tire rotation
Maintenance and schedules9-9

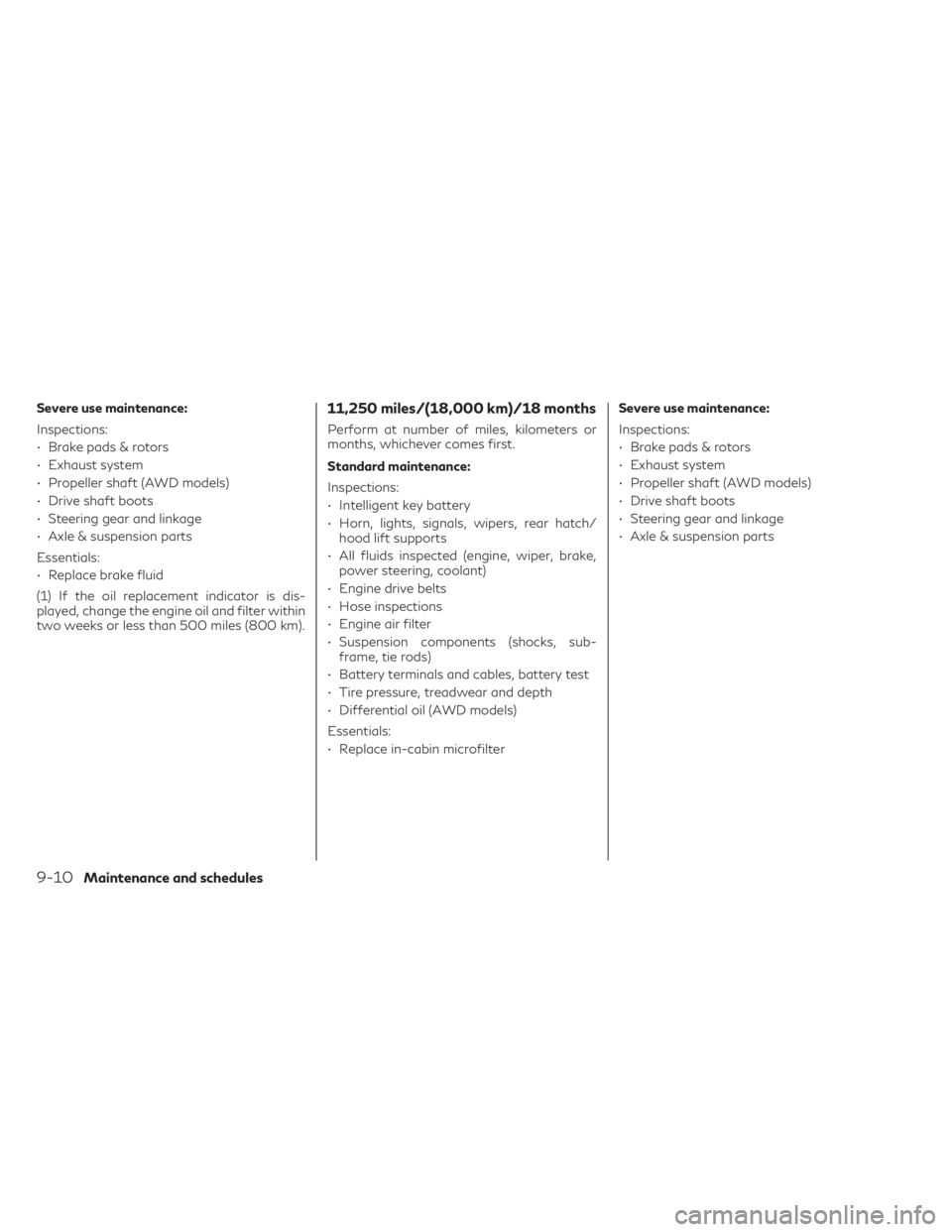

Severe use maintenance:
Inspections:
• Brake pads & rotors
• Exhaust system
• Propeller shaft (AWD models)
• Drive shaft boots
• Steering gear and linkage
• Axle & suspension parts
Essentials:
• Replace brake fluid
(1) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).11,250 miles/(18,000 km)/18 months
Perform at number of miles, kilometers or
months, whichever comes first.
Standard maintenance:
Inspections:
• Intelligent key battery
• Horn, lights, signals, wipers, rear hatch/hood lift supports
• All fluids inspected (engine, wiper, brake, power steering, coolant)
• Engine drive belts
• Hose inspections
• Engine air filter
• Suspension components (shocks, sub- frame, tie rods)
• Battery terminals and cables, battery test
• Tire pressure, treadwear and depth
• Differential oil (AWD models)
Essentials:
• Replace in-cabin microfilter Severe use maintenance:
Inspections:
• Brake pads & rotors
• Exhaust system
• Propeller shaft (AWD models)
• Drive shaft boots
• Steering gear and linkage
• Axle & suspension parts
9-10Maintenance and schedules

15,000 miles/(24,000 km)/
24 months
Perform at number of miles, kilometers or
months, whichever comes first.
Standard maintenance:
Inspections:
• Brake lines & cables
• Brake pads & rotors
• CVT fluid
• Fuel tank vapor vent system*
• Fuel lines/connections*
• Exhaust system
• Steering gear and linkage
• Axle & suspension parts
• Propeller shaft (AWD models)
• Drive shaft boots
• Transfer case oil (AWD models) (2)
• Differential oil (AWD models) (2)
• Horn, lights, signals, wipers, rear hatch/hood lift supports
• All fluids inspected (engine, wiper, brake, power steering, coolant)
• Engine drive belts
• Hose inspections
• Engine air filter • Suspension components (shocks, sub-
frame, tie rods)
• Battery terminals and cables, battery test
• Tire pressure, treadwear and depth
Essentials:
• Replace engine oil & filter (1)
• Tire rotation
• Replace brake fluid
Severe use maintenance:
Inspections:
• Brake pads & rotors
• Exhaust system
• Propeller shaft (AWD models)
• Drive shaft boots
• Steering gear and linkage
• Axle & suspension parts
Essentials:
• Replace brake fluid
(1) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).
(2) If using a car-top carrier, or driving on
rough or muddy roads, change (not just in-
spect) oil every 20,000 miles (32,000 km) or
24 months. * Maintenance items and intervals with“*”
are recommended by INFINITI for reliable
vehicle operation. The owner need not per-
form such maintenance in order to maintain
the emission warranty or manufacturer recall
liability. Other maintenance items and inter-
vals are required.
Maintenance and schedules9-11
