GW-66
POWER WINDOW SYSTEM
Revision: August 20072004 QX56
Rear Power Vent Window Motor RH Circuit CheckEIS002VD
1. CHECK REAR POWER VENT WINDOW SWITCH RH SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear power vent window motor RH.
3. Turn ignition switch ON.
4. Check voltage between rear power vent window motor RH connector B150 terminal 1, 2 and ground.
OK or NG
OK >> Replace rear power vent window motor RH.
NG >> Repair or replace harness.
Rear Power Vent Window Relay (OPEN) CheckEIS002VE
1. CHECK REAR POWER VENT WINDOW RELAY (OPEN) POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear power vent window relay (OPEN).
3. Turn ignition switch ON.
4. Check voltage between rear power vent window relay (OPEN) connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
2. CHECK REAR POWER VENT WINDOW RELAY (OPEN)
Check continuity between rear power vent window relay (OPEN) terminals 3 and 4, 3 and 5.
OK or NG
OK >> GO TO 3.
NG >> Replace rear power vent window relay (OPEN).
ConnectorTerminals (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
B1501 (BR)
GroundOpening Battery voltage
Closing 0
2 (R)Opening 0
Closing Battery voltage
WIIA0290E
ConnectorTerminals (Wire color)
Voltage (V)
(Approx.)
(+) (-)
M871 (W/L)
Ground Battery voltage
5 (W/R)
LIIA1565E
Terminal Condition Continuity
3412V direct current supply
between terminals 1 and 2No
No current supply Yes
3512V direct current supply
between terminals 1 and 2Ye s
No current supply No
WIIA0291E
Page 2202 of 3371
POWER WINDOW SYSTEM
GW-67
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
3. CHECK REAR POWER VENT WINDOW RELAY (OPEN) GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between rear power vent window relay (OPEN)
connector M87 terminal 4 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK REAR POWER VENT WINDOW RELAY (OPEN) CIRCUIT
1. Disconnect rear power vent window switch.
2. Check continuity between rear power vent window relay (OPEN)
connector M87 terminal 2 and rear power vent window switch
connector R103 terminal 3.
OK or NG
OK >> Replace rear power vent window switch.
NG >> Repair or replace harness.
Rear Power Vent Window Relay (CLOSE) CheckEIS002VF
1. CHECK REAR POWER VENT WINDOW RELAY (CLOSE) POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear power vent window relay (CLOSE).
3. Turn ignition switch ON.
4. Check voltage between rear power vent window relay (CLOSE) connector and ground.
OK or NG
OK >> GO TO 2.

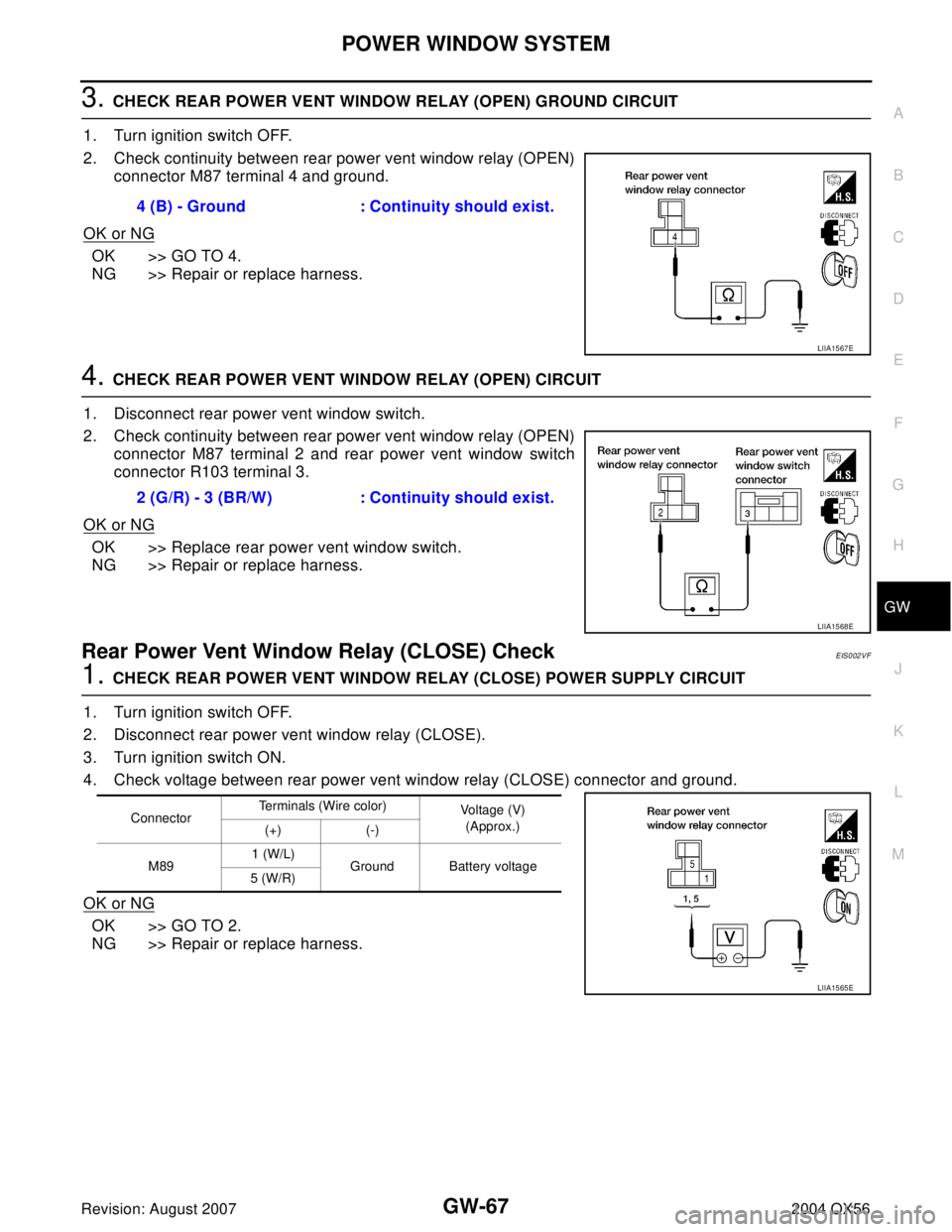

NG >> Repair or replace harness.4 (B) - Ground : Continuity should exist.
LIIA1567E
2 (G/R) - 3 (BR/W) : Continuity should exist.
LIIA1568E
ConnectorTerminals (Wire color)
Voltage (V)
(Approx.)
(+) (-)
M891 (W/L)
Ground Battery voltage
5 (W/R)
LIIA1565E
Page 2203 of 3371
GW-68
POWER WINDOW SYSTEM
Revision: August 20072004 QX56
2. CHECK REAR POWER VENT WINDOW RELAY (CLOSE)
Check continuity between rear power vent window relay (CLOSE) terminals 3 and 4, 3 and 5.
OK or NG
OK >> GO TO 3.
NG >> Replace rear power vent window relay (CLOSE).
3. CHECK REAR POWER VENT WINDOW RELAY (CLOSE) GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between rear power vent window relay
(CLOSE) connector M89 terminal 4 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK REAR POWER VENT WINDOW RELAY (CLOSE) CIRCUIT
1. Disconnect rear power vent window switch.
2. Check continuity between rear power vent window relay (CLOSE) connector M89 terminal 2 and rear
power vent window switch R103 terminal 4.
OK or NG
OK >> Replace rear power vent window switch.
NG >> Repair or replace harness.
Terminal Condition Continuity
3412V direct current supply
between terminals 1 and 2No
No current supply Yes
3512V direct current supply
between terminals 1 and 2Ye s
No current supply No
WIIA0291E
4 (B) - Ground : Continuity should exist.
LIIA1567E
2 (R/G) - 4 (V/W) : Continuity should exist.
LIIA1569E
Page 2213 of 3371
GW-78
REAR WINDOW DEFOGGER
Revision: August 20072004 QX56
REAR WINDOW DEFOGGERPFP:25350
Component Parts and Harness Connector LocationEIS002VM
1. IPDM E/R fuse layout 2. Fuse block (J/B) 3. Fuse and fusible link box
4. Fuse and relay box 5. Data link connector M22 6. BCM M18, M20
7. Front air control M49, M50 8. A. Rear window deffoger ground
connector D504
B. Rear window defogger connector
D4069. IPDM E/R E118, E120, E122, E124
10. Door miiror LH D4, door mirror RH
D107
LIIA2304E
Page 2214 of 3371
REAR WINDOW DEFOGGER
GW-79
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
System DescriptionEIS002VN
The rear window defogger system is controlled by BCM (body control module) and IPDM E/R (intelligent
power distribution module engine room).
The rear window defogger operates only for approximately 15 minutes.
Power is supplied at all times
through 15A fuses (No. 43, 46, and 47, located in the IPDM E/R)
to rear window defogger relay terminals 3 and 6 (located in the IPDM E/R)
through 50A fusible link (letter f , located in the fuse and fusible link box)
to BCM terminal 70.
With the ignition switch turned to ON or START position,
Power is supplied
through ignition switch
to rear window defogger relay (located in the IPDM E/R)
through 10A fuse (No. 59, located in the fuse and relay box)
to BCM terminal 38
through 10A fuse [No. 8, located in the fuse block (J/B)]
to front air control terminal 14.
Ground is supplied
to BCM terminal 67
to front air control terminal 1
through body grounds M57, M61 and M79
to IPDM E/R terminals 38 and 59
through body grounds E9, E15 and E24.
When front air control (rear window defogger switch) is turned to ON,
Ground is supplied
to BCM terminal 9
through front air control terminal 11
through front air control terminal 1
through body grounds M57, M61 and M79.
Then rear window defogger switch is illuminated.
Then BCM recognizes that rear window defogger switch is turned to ON.
Then it sends rear window defogger switch signals to IPDM E/R and display control unit via DATA LINE (CAN-
H, CAN-L).
When display control unit receives rear window defogger switch signals, and displays on the screen.
When IPDM E/R receives rear window defogger switch signals,
Ground is supplied
to rear window defogger relay (located in the IPDM E/R)
through IPDM E/R terminal 38
through IPDM E/R terminal 59
through body grounds E9, E15 and E24.
Then rear window defogger relay is energized.
With power and ground supplied, rear window defogger filaments heat and defog the rear window.
When rear window defogger relay is turned to ON,
Power is supplied
through heated mirror relay (located in the IPDM E/R)
through IPDM E/R terminal 23
to door mirror defogger (LH and RH) terminal 10.
Door mirror defogger (LH and RH) is grounded through body grounds M57, M61 and M79.
With power and ground supplied, rear window defogger filaments heat and defog the rear window and door
mirror defogger filaments heat and defog the mirror.
Page 2224 of 3371
REAR WINDOW DEFOGGER
GW-89
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
BCM Power Supply and Ground Circuit CheckEIS002VW
1. CHECK FUSES AND FUSIBLE LINK
Check 10A fuse (No. 8, located in the fuse block (J/B)]
Check 10A fuse (No. 59, located in the fuse and relay box)
Check 50A fusible link (letter f , located in the fuse and fusible link box)
NOTE:
Refer to GW-78, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
4, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M18, M20 terminals 38, 70
and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM.
3. Check continuity between BCM connector M20 terminal 67 and ground.
OK or NG
OK >> BCM power supply and ground circuit is OK.
NG >> Repair or replace harness.70 (W/B) - Ground : Battery voltage
38 (W/L) - Ground : Battery voltage
LIIA0914E
67 (B) - Ground : Continuity should exist.
LIIA0915E
Page 2226 of 3371
REAR WINDOW DEFOGGER
GW-91
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
3. CHECK BCM OUTPUT SIGNAL
1. Connect BCM.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M18 terminal 9 and
ground.
OK or NG
OK >> Replace front air control.
NG >> Replace BCM.
Rear Window Defogger Power Supply Circuit CheckEIS002VY
1. CHECK FUSE
Check if any of the following fuses in IPDM E/R are blown.
NOTE:
Refer to GW-78, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to GW-
78, "Component Parts and Harness Connector Location" .
2. CHECK REAR WINDOW DEFOGGER RELAY OUTPUT SIGNAL
Check voltage between IPDM E/R connector E124 terminal 60 and ground.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair or replace harness.9 (Y/B) - Ground : Approx. 5
LIIA0402E
COMPONENT PARTS AMPERE FUSE NO.
IPDM E/R15A 46
15A 47
60 (B) - Ground : Battery voltage
WIIA0525E
Page 2241 of 3371
IDX-4
ALPHABETICAL INDEX
Driver air bag .................................................. SRS-45
DTC work support ............................................ EC-113
DTRL - Wiring diagram ....................................... LT-37
Duct and grilles .............................................. ATC-157
DVD Player ........................................................ AV-59
E
ECM input/output signal ..................................... EC-96
ECM power supply ............................. EC-128, EC-361
ECM relay ........................................................ EC-128
ECM/PW - Wiring diagram ............................... EC-362
ECTS - Wiring diagram .................................... EC-167
Electric sunroof .................................................. RF-10
Electric throttle control actuator ......... EC-365, EC-367
Electrical load signal circuit .............................. EC-612
Electrical units location ...................................... PG-64
Electronic ignition (EI) system ........................... EC-28
Engine control circuit diagram ........................... EC-94
Engine control component parts location ........... EC-88
Engine control module (ECM) .......................... EC-351
Engine control system diagram and chart ......... EC-23
Engine coolant .................................................... CO-8
Engine coolant temperature sensor (ECTS) ... EC-165,
EC-178
Engine fail-safe system ...................................... EC-77
Engine oil ............................................................. LU-7
Engine oil filter replacement ............................. MA-16
Engine oil precautions .......................................... GI-7
Engine oil replacement ..................................... MA-16
Engine removal ................................................. EM-70
Engine room cover ............................................ EM-11
Engine serial number .......................................... GI-48
ETC1 - Wiring diagram .................................... EC-368
ETC2 - Wiring diagram .................................... EC-375
ETC3 - Wiring diagram .................................... EC-379
EVAP canister .................................................. EC-636
EVAP canister purge volume control solenoid valve ....
EC-285
, EC-496
EVAP canister vent control valve ....... EC-292, EC-504
EVAP control system (small leak) diagnosis .. EC-276,
EC-316
, EC-324
EVAP control system pressure sensor .... EC-299, EC-
302, EC-308
EVAP control system purge flow monitoring diagnosis
EC-271
EVAP vapor lines inspection ............................. MA-19
Evaporative emission (EVAP) system ............. EC-633
Evaporator ..................................................... ATC-175
Exhaust manifold .............................................. EM-19
Exhaust system ................................................... EX-3
Exhaust system inspection .................................. EX-3
Expansion valve ............................................. ATC-177
F
F/FOG - Wiring diagram ..................................... LT-71
F/PUMP - Wiring diagram ................................ EC-602
Final drive pre-inspection .................. FFD-15, RFD-12
Final drive removal and installation ... FFD-12, RFD-10
Flow charts .......................................................... GI-27
Fluid temperature sensor (A/T) ........................ AT-131
Fluids ................................................................ MA-10
Fluorescent leak detector .............................. ATC-178
Fog lamp, front ................................................... LT-69
Foot lamp ......................................................... LT-129
Freeze frame data ............................... EC-54, EC-107
Front brake solenoid valve ................. AT-151, AT-154
Front bumper ...................................................... EI-13
Front case (Transfer) ....................................... TF-125
Front combination lamp removal and installation LT-33
Front door ............................. BL-129, BL-132, GW-69
Front Door Trim ................................................... EI-31
Front drive shaft (Transfer) .............................. TF-115
Front fog lamp .................................................... LT-69
Front passenger air bag .................................. SRS-50
Front seat ........................................................... SE-96
Front seat belt ...................................................... SB-3
Front seat belt pre-tensioner ............... SRS-3, SRS-57
Front washer ...................................................... WW-4
Front wiper ......................................................... WW-4
FTTS - Wiring diagram ...................... EC-227, EC-232
Fuel cut control (at no load high engine speed) EC-30
Fuel filter replacement ......................................... FL-5
Fuel gauge ............................................................ DI-5
Fuel injection system (Bank 1) .......... EC-208, EC-217
Fuel injection system (Bank 2) .......... EC-208, EC-217
Fuel injector and fuel tube ................................. EM-29
Fuel level sensor ................. EC-334, EC-336, EC-338
Fuel line inspection .............................................. FL-3
Fuel precautions ................................................... GI-5
Fuel pressure check .......................................... EC-46
Fuel pressure release ....................................... EC-46
Fuel pump ....................................................... EC-601
Fuel pump and gauge .......................................... FL-5
Fuel system .......................................................... FL-3
Fuel tank .............................................................. FL-9
Fuel tank temperature sensor ........... EC-225, EC-231
Fuel tank vacuum relief valve ......................... EC-636
FUELB1 - Wiring diagram ................. EC-210, EC-219
FUELB2 - Wiring diagram ................. EC-211, EC-220
Fuse ...................................................... PG-67, PG-77
Fuse and fusible link box .................................. PG-77
Fuse block ......................................................... PG-76
Fusible link ............................................ PG-67, PG-77
G
Garage jack and safety stand ............................. GI-40
Gauges ................................................................. DI-5
Generator .......................................................... SC-17
Generic scan tool (GST) ................................. EC-116
Glass ...................................... GW-11, GW-69, GW-72
Glove box lamp ................................... LT-152, LT-153
GPS antenna ..................................................... AV-62
Grease .............................................................. MA-10
Ground distribution ............................................ PG-30
Page 2244 of 3371
IDX-7
A
C
D
E
F
G
H
I
J
K
L B
IDX
ALPHABETICAL INDEX
Rear axle ........................................................... RAX-5
Rear bumper ....................................................... EI-15
Rear case (Transfer) ........................................ TF-112
Rear combination lamp removal and installation ... LT-
122
Rear cover packing replacement diff. .............. RFD-23
Rear door ........................................... BL-129, GW-72
Rear seat ......................................................... SE-103
Rear seat belt ...................................................... SB-6
Rear suspension ............................................. RSU-25
Rear view monitor ............................................... DI-72
Rear washer .................................................... WW-33
Rear window defogger ..................................... GW-78
Rear wiper ....................................................... WW-33
Refrigerant connection precaution .................... ATC-7
Refrigerant discharging evacuating charging ATC-162
Refrigerant general precaution .......................... ATC-6
Refrigerant lines ........... ATC-162, ATC-170, ATC-171
Refrigerant pressure sensor ............ EC-607, ATC-173
Relay box .......................................................... PG-78
Remote keyless entry system ............................ BL-44
Removal and installation (A/T) ........... AT-255, AT-258
Removal and installation (Transfer) ................. TF-109
Revolution sensor (A/T) ................................... AT-112
Ring gear diff. inspection ................................. RFD-12
Road wheel size ................................................. GI-49
Rocker cover ..................................................... EM-33
Room lamp ....................................................... LT-129
Room lamp - See Interior lamp ........................ LT-129
ROOM/L - Wiring diagram ................................ LT-135
RP/SEN - Wiring diagram ............................... EC-608
S
SEAT - Wiring diagram ..................................... SE-88
Seat belt inspection ............................... SB-10, MA-31
Seat belt pre-tensioner .................................... SRS-57
Seat belt, front ..................................................... SB-3
Seat belt, rear ...................................................... SB-6
Seat, front .......................................................... SE-96
Seat, rear ........................................................ SE-103
Self-diagnosis (Transfer) .................................... TF-27
SEN/PW - Wiring diagram ............................... EC-425
SHIFT - Wiring diagram ................................... AT-237
Shift lock system .............................................. AT-236
Shock absorber (front) .................................... FSU-10
Shock absorber (rear) ..................................... RSU-34
Side air bag (satellite) sensor .......................... SRS-56
Side bearing preload diff. ................................ RFD-18
Side curtain air bag ......................................... SRS-53
Side trim .............................................................. EI-34
SMJ (super multiple junction) ............................ PG-74
SONAR - Wiring diagram .................................... DI-62
Spare tire size .................................................... GI-49
Spark plug ......................................................... EM-27
Spark plug replacement .................................... MA-17
Specification value .......................................... EC-123
Speedometer ......................................................... DI-5
Spiral cable ..................................................... SRS-47
SROOF - Wiring diagram .................................. RF-13
SRS - See Supplemental Restraint System ...... SRS-5
SRS - Wiring diagram ...................................... SRS-12
SRS Trouble diagnoses ..................................... SRS-8
Stabilizer bar (front) ......................................... FSU-12
Stabilizer bar (rear) ......................................... RSU-41
Stall test (A/T) .................................................... AT-58
Standardized relay ............................................. PG-72
START - Wiring diagram ................................... SC-11
Starting system .................................................. SC-10
Steering gear, linkage and transfer gear inspection .....
MA-28
Steering linkage ................................................. PS-15
Steering wheel and column ................................. PS-7
Step lamp ......................................................... LT-129
Stop lamp ......................................................... LT-103
Stop lamp switch ............................... EC-551, EC-621
STOP/L - Wiring diagram ................................. LT-104
Strut (front) ...................................................... FSU-10
Sun gear (Transfer) .......................................... TF-127
Sun roof, electric ................................................ RF-10
Sunload sensor .............................................. ATC-131
Sunroof .............................................................. RF-24
Supplemental Restraint System ........................ SRS-5
Supplemental restraint system - Wiring diagram . SRS-
12
Symbols and abbreviations ..................... GI-10, GI-22
Symptom matrix chart ........................................ EC-84
System readiness test (SRT) code .................... EC-55
T
T/TOW - Wiring diagram ................................... LT-126
Tachometer .......................................................... DI-5
Tail lamp ........................................................... LT-108
TAIL/L - Wiring diagram .................................... LT-111
TCM circuit diagram .......................................... AT-51
TCM inspection table ......................................... AT-90
TCS - Wiring diagram ..................................... BRC-16
TCS (traction control system) ........................... BRC-7
TCS component parts and connector location BRC-14
TCS wheel sensors ........................................ BRC-14
Thermometer ...................................................... DI-26
Three way catalyst ............................................. EM-19
Three way catalyst function (Bank 1) .............. EC-267
Three way catalyst function (Bank 2) .............. EC-267
Three way catalyst precautions ............................ GI-5
Throttle control motor ...................................... EC-378
Throttle control motor relay .............................. EC-373
Throttle position sensor (TPS) ... EC-171, EC-236, EC-
420, EC-422, EC-569
Throttle valve closed position learning .............. EC-44
Tie-rod ............................................................... PS-15
Timing chain ...................................................... EM-35
Tire rotation ....................................................... MA-27
Tire size .............................................................. GI-49
Tooth contact diff. ............................................ RFD-19
Torque converter installation AT-256, AT-257, AT-259,
AT-260
Page 2245 of 3371
IDX-8
ALPHABETICAL INDEX
Torque convertor clutch solenoid valve ... AT-118, AT-
121
Tow truck towing ................................................. GI-42
Towing point ....................................................... GI-43
TPS1 - Wiring diagram .................................... EC-238
TPS2 - Wiring diagram .................................... EC-173
TPS3 - Wiring diagram .................................... EC-571
Traction control system - Wiring diagram ....... BRC-16
Transfer control device .................................... TF-104
Transfer control unit inspection table ................. TF-55
Transfer dropping resistor .................................. TF-96
Transfer fluid temperature sensor ...................... TF-95
Transfer motor ................................................. TF-106
Transfer motor relay .......................................... TF-97
Transfer oil replacement ................................... MA-24
Transfer serial number ........................................ GI-48
Transmission serial number ................................ GI-48
Tread-FR&RR (Dimensions) ............................... GI-49
Trim ..................................................................... EI-34
TRNSCV - Wiring diagram ............................... BL-157
Trouble diagnoses .............................................. GI-11
Turbine revolution sensor ................................ AT-134
TURN - Wiring diagram ...................................... LT-83
Turn signal lamp ................................................. LT-80
Two trip detection logic ...................................... EC-49
Two-pole lift ........................................................ GI-41
V
Vacuum hose (brake system) ............................ BR-20
Vacuum hose drawing (Engine control) ............. EC-24
Valve clearance ................................................ EM-52
Valve guide ....................................................... EM-66
Vanity mirror lamp ............................................. LT-129
VDC (vehicle dynamics control) ........................ BRC-7
VDC -Wiring diagram ...................................... BRC-16
Vehicle identification number .............................. GI-47
Vehicle recovery (freeing a stuck vehicle) .......... GI-43
Vehicle speed sensor (VSS) ............................ EC-340
VEHSEC - Wiring diagram ................................. BL-80
VENT/V - Wiring diagram .................. EC-294, EC-506
Video Monitor ..................................................... AV-60
Viscosity number (SAE) .................................... MA-11
W
W/ANT - Wiring diagram .................................... AV-49
Wait detection switch ......................................... TF-96
WARN - Wiring diagram ..................................... DI-32
Warning chime .................................................... DI-43
Warning lamps .................................................... DI-31
Washer, front ..................................................... WW-4
Washer, rear .................................................... WW-33
Water pump ...................................................... CO-15
Water temperature gauge ..................................... DI-5
Wheel alignment (front) ..................................... FSU-6
Wheel alignment (rear) ................................... RSU-27
Wheel balance .................................................. MA-25
Wheel bearing (front) ......................................... FAX-5
Wheel bearing (rear) ......................................... RAX-5
Wheel hub (rear) ............................................... RAX-5
Wheel size .......................................................... GI-49
Wheelbase (Dimensions) .................................... GI-49
Width (Dimensions) ............................................. GI-49
WINDOW - Wiring diagram .............................. GW-22
Window, door ...................................... GW-69, GW-72
Windshield ....................................................... GW-11
WIP/R - Wiring diagram ................................... WW-37
WIPER - Wiring diagram .................................... WW-9
Wiper, front ........................................................ WW-4
Wiper, rear ....................................................... WW-33
Wiring Diagram (Cell code) list ......................... PG-61
Wiring diagram (Transfer) .................................. TF-18
Wiring diagrams .................................................. GI-15
WT-T/WARN - Wiring diagram .......................... WT-10
