INFINITI QX56 2004 Factory Service Manual

EC-120Revision: August 2007
TROUBLE DIAGNOSIS
2004 QX56
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ from
ECM terminals voltage signal.HO2S2 HTR (B1)
HO2S2 HTR (B2)

Engine speed is below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no loadON

Engine speed: Above 3,600 rpm OFF
I/P PULLY SPD

Vehicle speed: More than 20 km/h (12 MPH)Almost the same speed as the
tachometer indication
VEHICLE SPEED

Turn drive wheels and compare the CONSULT-II value with speedometer
indication.Almost the same speed as the
speedometer indication
TRVL AFTER MIL

Ignition switch: ONVehicle has traveled after MIL has
turned ON.0 - 65,535 km
(0 - 40,723 miles)
AC PRESS SEN

Ignition switch: ON (Engine stopped) Approx. 0V

Engine: Idle

Air conditioner switch: OFF1.0 - 4.0V
VEH SPEED SE

Turn drive wheels and compare the CONSULT-II value with speedometer
indication.Almost the same speed as the
speedometer indication
SET VHCL SPD

Engine: Running ASCD: Operating.The preset vehicle speed is
displayed.
MAIN SW

Ignition switch: ONON/OFF(MAIN) switch: Pressed ON
ON/OFF(MAIN) switch: Released OFF
CANCEL SW

Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW

Ignition switch: ONACCEL/RESUME switch: Pressed ON
ACCEL/RESUME switch: Released OFF
SET SW

Ignition switch: ONCOAST/SET switch: Pressed ON
COAST/SET switch: Released OFF
DIST SW

Ignition switch: ONDISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
BRAKE SW1

Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
CRUISE LAMP

Ignition switch: ONON/OFF(MAIN) switch: Pressed at the
1st time → at the 2nd timeON → OFF
SET LAMP

CRUISE switch: ON

When vehicle switch is between
40 km/h (25 MPH) and 144 km/h
(89 MPH).COAST/SET switch: Pressed ON
COAST/SET switch: Released OFF MONITOR ITEM CONDITION SPECIFICATION

TROUBLE DIAGNOSIS
EC-121
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
Major Sensor Reference Graph in Data Monitor ModeUBS00H08
The following are the major sensor reference graphs in “DATA MONITOR” mode.
CLSD THL POS, ACCEL SEN 1, THRTL SEN 1
Below is the data for “CLSD THL POS”, “ACCEL SEN 1” and “THRTL SEN 1” when depressing the accelera-
tor pedal with the ignition switch ON and with selector lever in D position.
The signal of “ACCEL SEN 1” and “THRTL SEN 1” should rise gradually without any intermittent drop or rise
after “CLSD THL POS” is changed from “ON” to “OFF”.

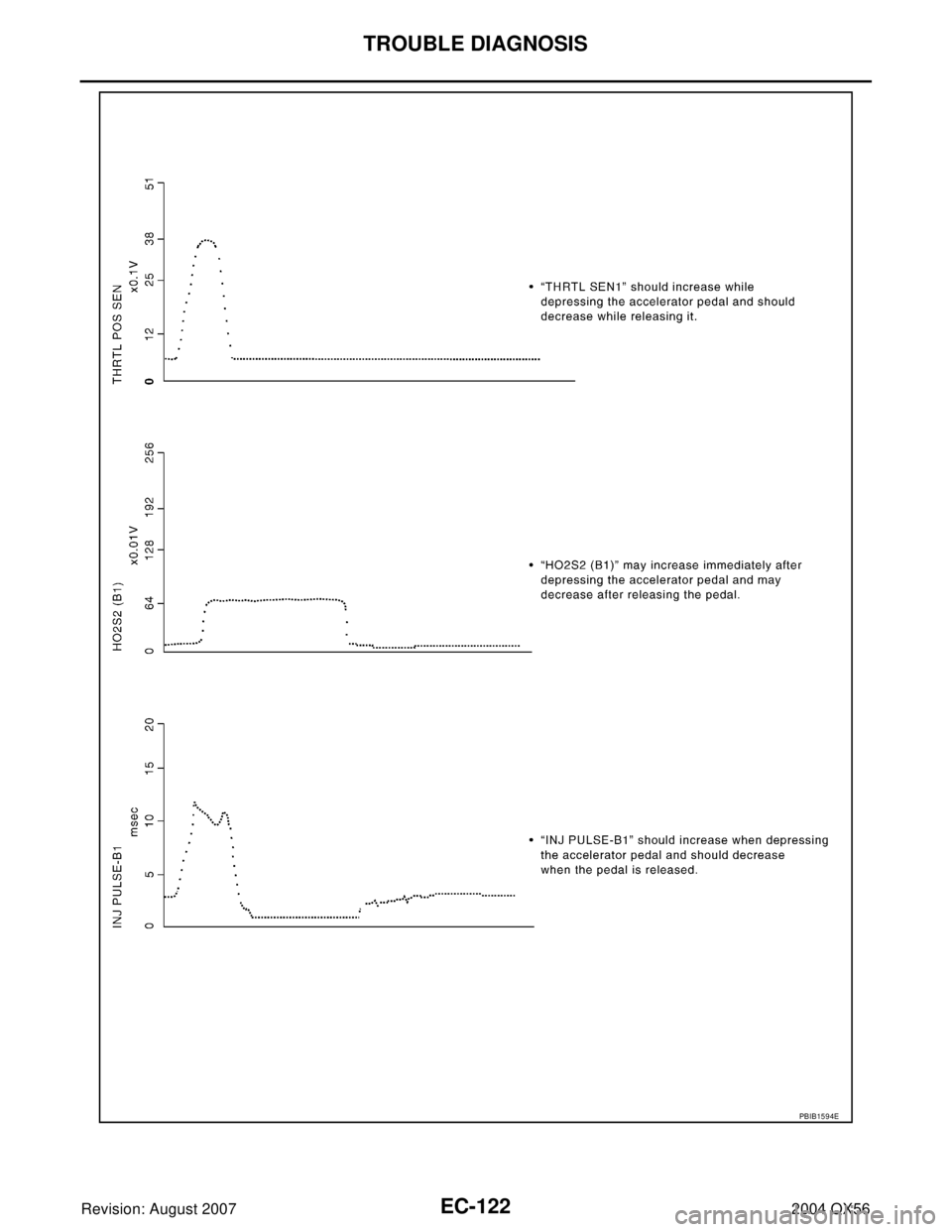

ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), INJ PULSE-B1
Below is the data for “ENG SPEED”, “MAS A/F SE-B1”, “THRTL SEN 1”, “HO2S2 (B1)”, and “INJ PULSE-B1”
when revving engine quickly up to 4,800 rpm under no load after warming up engine sufficiently.
Each value is for reference, the exact value may vary.
PBIB0198E
SEF 2 41 Y

EC-122Revision: August 2007
TROUBLE DIAGNOSIS
2004 QX56
PBIB1594E

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-123
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionUBS00H09
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:

B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)

A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)

MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionUBS00H0A

Vehicle driven distance: More than 5,000 km (3,017 miles)

Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)

Atmospheric temperature: 20 - 30°C (68 - 86°F)

Engine coolant temperature: 75 - 95°C (167 - 203°F)

Transmission: Warmed-up*1

Electrical load: Not applied*2

Engine speed: Idle
*1: After the engine is warmed up to normal operating temperature, drive vehicle until “FLUID TEMP SE” (A/T
fluid temperature sensor signal) indicates more than 60°C (140°F).
*2: Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
Inspection ProcedureUBS00H0B
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-79, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2”
and “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode with
CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-124, "
Diagnostic Procedure" .
SEF 6 01 Z

EC-124Revision: August 2007
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
2004 QX56

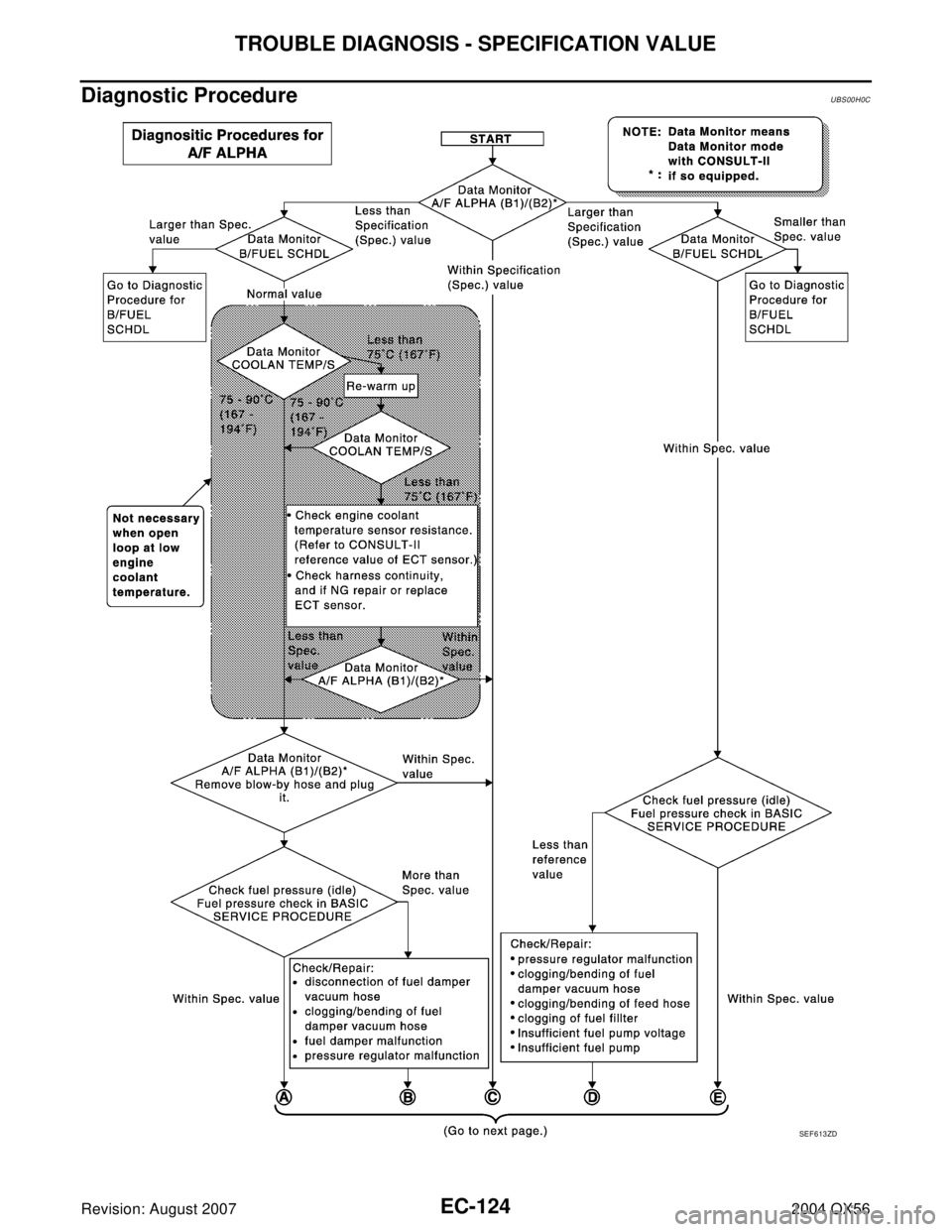

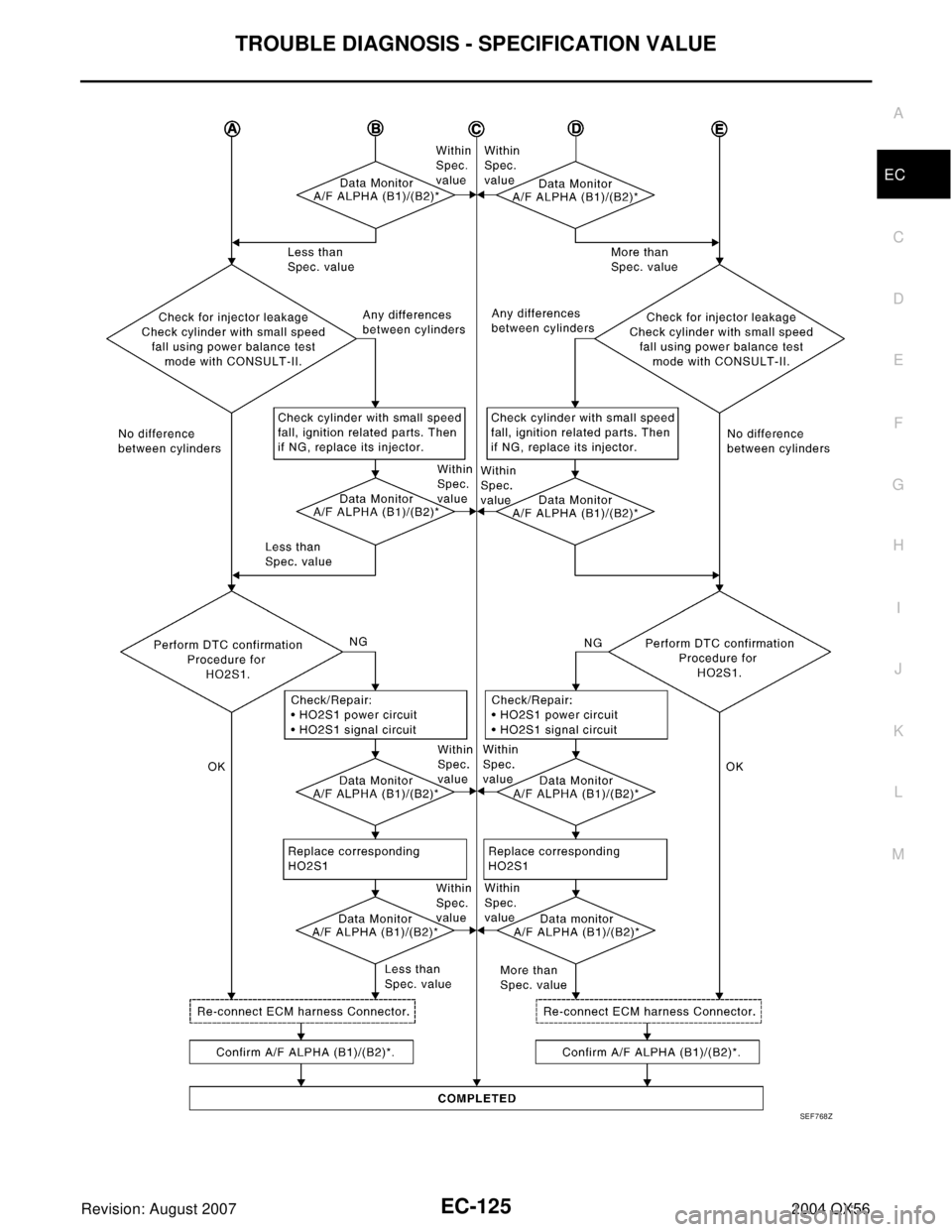

Diagnostic ProcedureUBS00H0C
SEF 6 13 ZD

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-125
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56

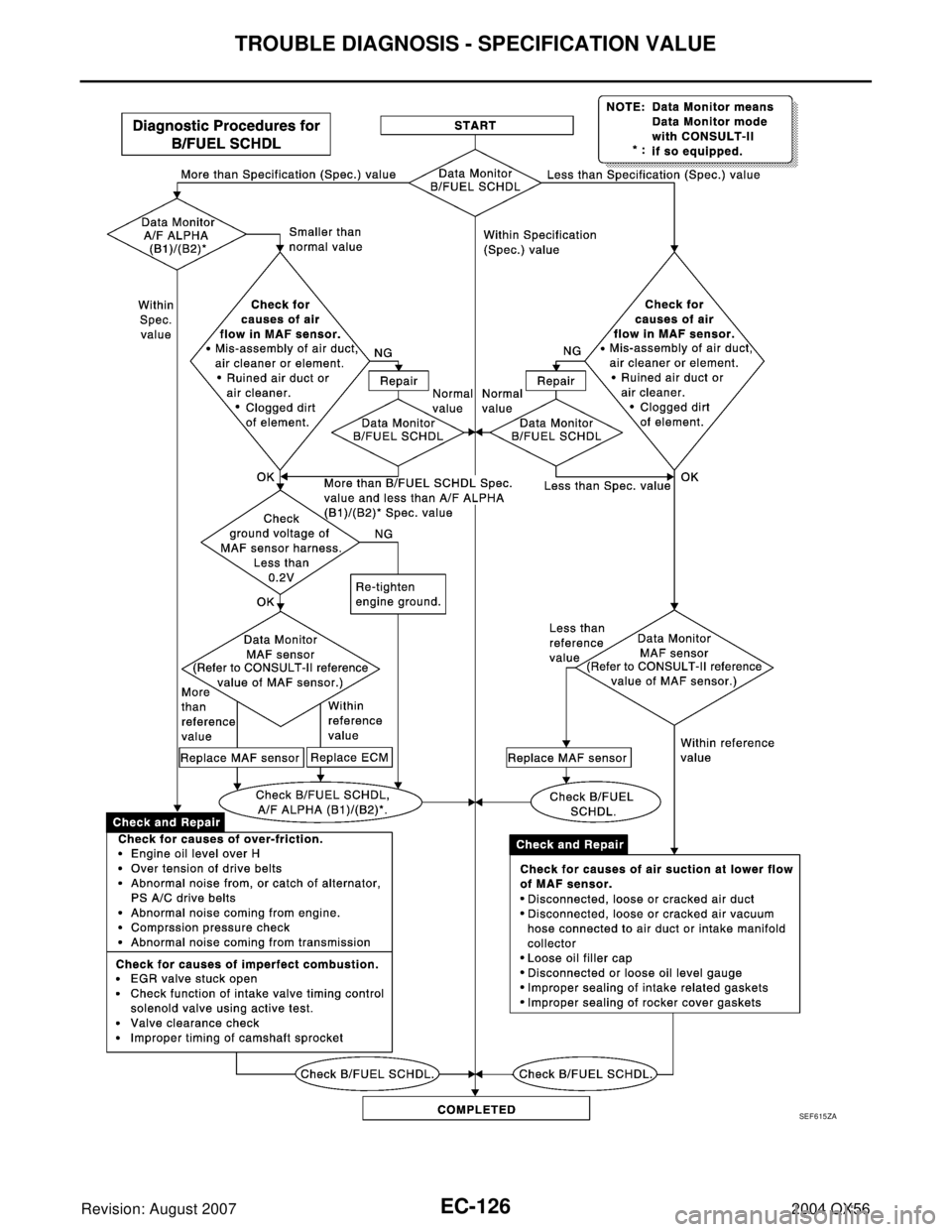

SEF 7 68 Z

EC-126Revision: August 2007
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
2004 QX56
SEF 6 15 ZA

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
EC-127
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006
DescriptionUBS00H0D
Intermittent incidents (I/I) may occur. In many cases, the malfunction resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the customer's
complaint often do not recur on (1st trip) DTC visits. Realize also that the most frequent cause of I/I occur-
rences is poor electrical connections. Because of this, the conditions under which the incident occurred may
not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may not indicate the
specific malfunctioning area.
Common I/I Report Situations
Diagnostic ProcedureUBS00H0E
1. INSPECTION START
Erase (1st trip) DTCs. Refer to EC-62, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMA-
TION" .
>> GO TO 2.
2. CHECK GROUND TERMINALS
Check ground terminals for corroding or loose connection.
Refer to GI-27, "
How to Perform Efficient Diagnosis for an Electrical Incident" , “CIRCUIT INSPECTION”,
“Ground Inspection”.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. SEARCH FOR ELECTRICAL INCIDENT
Perform GI-27, "
How to Perform Efficient Diagnosis for an Electrical Incident" , “INCIDENT SIMULATION
TESTS”.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace.
4. CHECK CONNECTOR TERMINALS
Refer to GI-24, "
How to Check Terminal" , “HOW TO PROBE CONNECTORS”, “How to Check Enlarged Con-
tact Spring of Terminal”.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace connector.
STEP in Work Flow Situation
II The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than [0] or [1t].
III The symptom described by the customer does not recur.
IV (1st trip) DTC does not appear during the DTC Confirmation Procedure.
VI The Diagnostic Procedure for PXXXX does not indicate the malfunctioning area.

EC-128Revision: August 2007
POWER SUPPLY AND GROUND CIRCUIT
2004 QX56
POWER SUPPLY AND GROUND CIRCUITPFP:24110
Wiring DiagramUBS00H0F
BBWA11 55 E

POWER SUPPLY AND GROUND CIRCUIT
EC-129
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureUBS00H0G
1. INSPECTION START
Start engine.
Is engine running?
Ye s o r N o
Yes >> GO TO 9.
No >> GO TO 2.
2. CHECK 10A FUSE
1. Turn ignition switch OFF.
2. Check 10A fuse (No. 59, located in the fuse and relay box).
OK or NG
OK >> Reinstall fuse. GO TO 3.
NG >>

Repair harness or connectors

Replace fuse
3. CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 109 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1 B ECM ground[Engine is running]

Idle speedBody ground
109 B/R Ignition switch[Ignition switch: OFF]0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
111 W / BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 5
11 6B
B/WECM ground[Engine is running]

Idle speedBody ground
11 9
120BR
BRPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
Voltage: Battery voltage
MBIB0015E
