Page 753 of 3371
BCS-8
BCM (BODY CONTROL MODULE)
Revision: August 20072004 QX56
CAN Communication System DescriptionEKS007GF
Refer to LAN-5, "CAN COMMUNICATION" .
Power supply (BAT) to power window and
sunroofBattery power supply Power supply to power window and sunroof system
Panic alarm
Key switch
KeyfobIPDM E/R
Auto light system
Auto light sensor
Combination switchIPDM E/R
Battery saver control
Ignition switch
Combination switch
Front door switch LH
Front door switch RHIPDM E/R
Headlamp Combination switch IPDM E/R
Tail lamp Combination switch IPDM E/R
Fog lamp Combination switch IPDM E/R
Turn signal lamp Combination switch
Turn signal lamp
Combination meter
Hazard lamp Hazard switch
Turn signal lamp
Combination meter
Room lamp timer
Key switch
Keyfob
Main power window and door
lock/unlock switch
Front door lock assembly LH
(key cylinder switch)
All door switchInterior room lamp
Key warning chime
Key switch
Front door switch LHCombination meter (warning buzzer)
Light warning chime
Combination switch
Key switch
Front door switch LHCombination meter (warning buzzer)
Vehicle-speed-sensing intermittent wiper
Combination switch
Combination meterIPDM E/R
Rear window defogger Rear window defogger switch IPDM E/R
Air conditioner switch signal Front air control ECM
Blower fan switch signal Front air control ECM
Low tire pressure warning system Remote keyless entry receiver
Combination meter
Display control unit
Trailer tow Combination switch Trailer turn signal lamp
Vehicle security system
Remote keyless entry receiver
(Keyfob)
Main power window and door
lock/unlock switch
Power window and door lock/
unlock switch RH
Front door lock assembly LH
(key cylinder switch)
All door switch
Glass hatch ajar switch
IPDM E/R
Security indicator lamp System Input Output
Page 756 of 3371
BCM (BODY CONTROL MODULE)
BCS-11
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: August 20072004 QX56
CONSULT-II Function (BCM)EKS007GH
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With ignition switch OFF, connect CONSULT-II and CONSULT-II
CONVERTER to data link connector and turn ignition switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “BCM” on “SELECT SYSTEM” screen.
If "BCM" is not indicated, go to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnostic
test itemDiagnostic mode Content
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The results of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
BCIA0030E
Page 757 of 3371
BCS-12
BCM (BODY CONTROL MODULE)
Revision: August 20072004 QX56
4. Select item to be diagnosed on “SELECT TEST ITEM” screen.
ITEMS OF EACH PART
NOTE:
CONSULT-II will only display systems the vehicle possesses.
WORK SUPPORT
Operation Procedure
1. Touch "BCM" on "SELECT TEST ITEM" screen.
2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
3. Touch "RESET SETTING VALUE" on "SELECT WORK ITEM" screen.
4. Touch "START".
5. "RESET SETTING VALUE OK?" is displayed, and touch "YES".
6. The setting will be changed and "COMPLETED" will be displayed.
7. Touch "END".
LKIA0183E
System and itemCONSULT-II
displayDiagnostic test mode (Inspection by part)
WORK
SUPPORTSELF−DIAG
RESULTSCAN DIAG
SUPPORT
MNTRDATA
MONITORECU
PA R T
NUMBERACTIVE
TESTCONFIG-
URA-
TION
BCM BCM×× × × ×
Power door lock sys-
temDOOR LOCK×××
Rear defoggerREAR
DEFOGGER××
Warning chime BUZZER××
Room lamp timer INT LAMP×××
Remote keyless
entry systemMULTI
REMOTE ENT×××
Headlamp HEAD LAMP×××
Wiper WIPER××
Turn signal lamp
Hazard lampFLASHER××
Blower fan switch
signal
Air conditioner
switch signalAIR
CONDITIONER×
Combination switch COMB SW×
IVIS (NATS) IMMU××
Interior lamp battery
saverBATTERY
SAVER×××
Back door BACK DOOR××
Retained power con-
trolRETAINED
PWR×××
Page 758 of 3371
BCM (BODY CONTROL MODULE)
BCS-13
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: August 20072004 QX56
Display Item List
CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)EKS007GI
1. SELF-DIAGNOSTIC RESULT CHECK
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Connect to CONSULT-II, and select “BCM” on “SELECT SYSTEM” screen.
2. Select “BCM” on “SELECT TEST ITEM” screen, and select “SELF-DIAG RESULTS”.
3. Check display content in self-diagnostic results.
Contents displayed
No malfunction>>Inspection End
Malfunction in CAN communication system>>After printing the monitor items, go to LAN-5, "
CAN COMMU-
NICATION" .
ConfigurationEKS007GJ
DESCRIPTION
CONFIGURATION has two functions as follows:
READ CONFIGURATION is the function to confirm vehicle configuration of current BCM.
WRITE CONFIGURATION is the function to write vehicle configuration on BCM.
CAUTION:
When replacing BCM, you must perform WRITE CONFIGURATION with CONSULT-II.
Complete the procedure of WRITE CONFIGURATION in order.
If you set incorrect WRITE CONFIGURATION, incidents will occur.
Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
READ CONFIGURATION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With ignition switch OFF, connect CONSULT-II and CONSULT-II
CONVERTER to data link connector and turn ignition switch ON.
Item Description
RESET SETTING VALUE Return a value set with WORK SUPPORT of each system to a default value in factory shipment.
CONSULT-II display code Diagnosis item
U1000INITIAL DIAG
TRANSMIT DIAG
ECM
IPDM E/R
METER/M&A
I-KEY
BBIA0369E
Page 762 of 3371
BCM (BODY CONTROL MODULE)
BCS-17
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: August 20072004 QX56

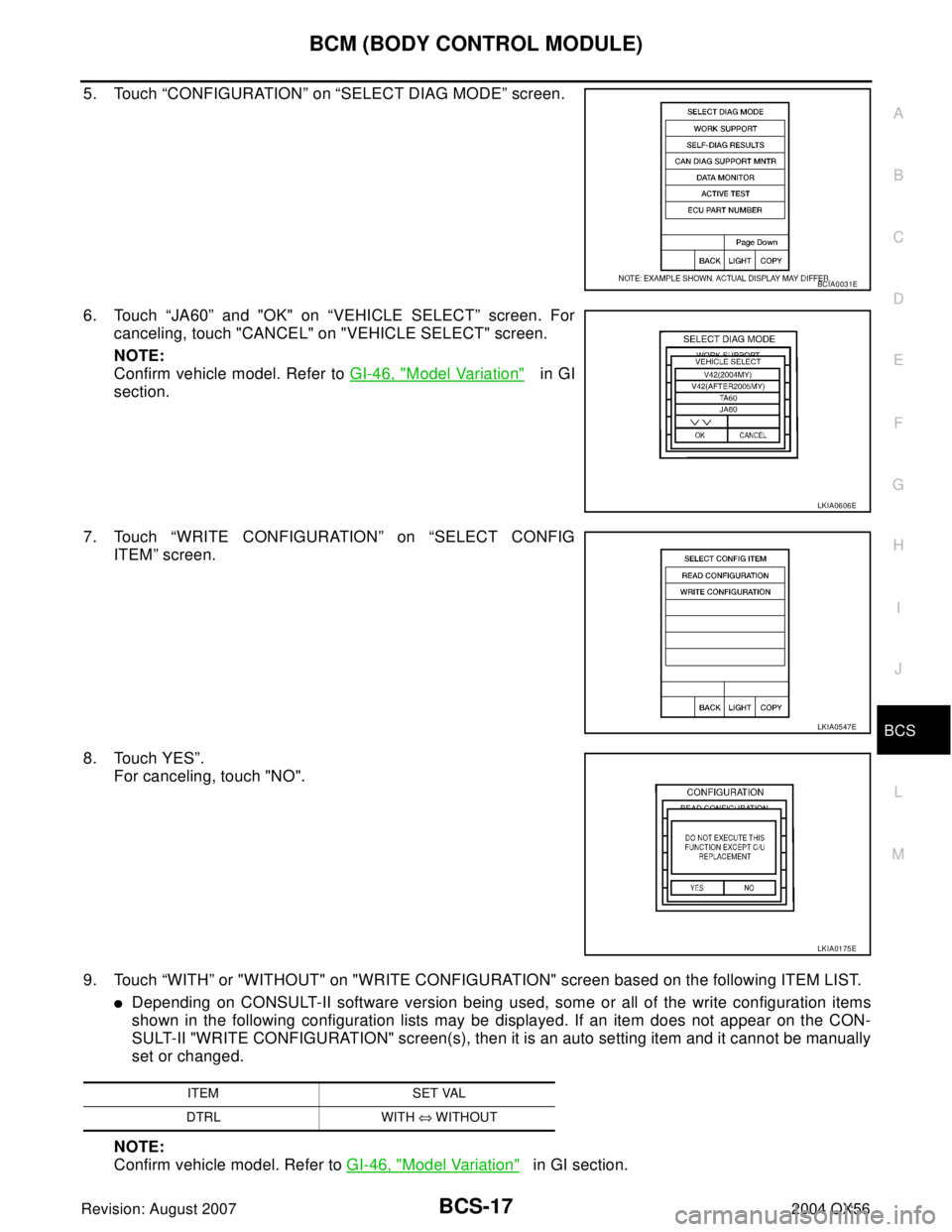

5. Touch “CONFIGURATION” on “SELECT DIAG MODE” screen.
6. Touch “JA60” and "OK" on “VEHICLE SELECT” screen. For
canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
NOTE:
Confirm vehicle model. Refer to GI-46, "
Model Variation" in GI
section.
7. Touch “WRITE CONFIGURATION” on “SELECT CONFIG
ITEM” screen.
8. Touch YES”.
For canceling, touch "NO".
9. Touch “WITH” or "WITHOUT" on "WRITE CONFIGURATION" screen based on the following ITEM LIST.
Depending on CONSULT-II software version being used, some or all of the write configuration items
shown in the following configuration lists may be displayed. If an item does not appear on the CON-
SULT-II "WRITE CONFIGURATION" screen(s), then it is an auto setting item and it cannot be manually
set or changed.
NOTE:
Confirm vehicle model. Refer to GI-46, "
Model Variation" in GI section.
BCIA0031E
LKIA0606E
LKIA0547E
LKIA0175E
ITEM SET VAL
DTRL WITH ⇔ WITHOUT
Page 791 of 3371
BL-26
POWER DOOR LOCK SYSTEM
Revision: August 20072004 QX56
CONSULT–II Function (BCM)EIS002RE
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT–II INSPECTION PROCEDURE
CONSULT-II can display each diagnostic item using the following diagnostic test modes: data monitor, active
test, and CAN diagnostic support monitor through data reception and command transmission via the BCM
communication line.
"DOOR LOCK"
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)”.
BCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the
BCM for setting the status suitable for required operation, input/output sig-
nals are received from the BCM and received date is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive signal to
them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication can be
read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
Page 820 of 3371
REMOTE KEYLESS ENTRY SYSTEM
BL-55
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
CONSULT-II Function (BCM)EIS002RV
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II Inspection ProcedureEIS002RW
CONSULT-II can display each diagnostic item using the following diagnostic test modes: work support, data
monitor, active test, and CAN diagnostic support monitor through data reception and command transmission
via the BCM communication line.
“MULTI REMOTE ENT”
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)".
BCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the
BCM for setting the status suitable for required operation, input/output sig-
nals are received from the BCM and received date is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive signal to
them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication can be
read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
Page 851 of 3371
BL-86
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: August 20072004 QX56
Terminals and Reference Value for IPDM E/REIS002SJ
*1: when horn reminder is ON.
*2: L/W is for USA.
*3: Y is for Canada.
CONSULT-II Function (BCM)EIS002SK
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
Terminal Wire
ColorItem ConditionVoltage (V)
(Approx.)
38 B Ground — 0
39 W CAN-H — —
40 R CAN-L — —
41 Y/B Hood switchHood closed OFF Battery voltage
Hood open ON 0V
45 G/W Horn relayWhen doors locks are operated
using keyfob (OFF → ON) *1Battery voltage → 0V
52 L Headlamp low (LH)Ignition
SW ONLighting
switch
2ND posi-
tionOFF 0V
ON Battery voltage
54 R/Y Headlamp low (RH)Ignition
SW ONLighting
switch
2ND posi-
tionOFF 0V
ON Battery voltage
55 G Headlamp high (LH)Ignition
SW ONLighting
switch
HIGH or
PA S S
positionOFF 0V
ON Battery voltage
56L/W *2
Y *3Headlamp high (RH)Ignition
SW ONLighting
switch
HIGH or
PA S S
positionOFF 0V
ON Battery voltage
59 B Ground — 0
BCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the
BCM for setting the status suitable for required operation, input/output sig-
nals are received from the BCM and received date is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive signal to
them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication can be
read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Page 911 of 3371
BL-146
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56
Trouble DiagnosesEIS002TT
SYMPTOM MATRIX CHART 1
Self-diagnosis related item
*: When IVIS (NATS) detects trouble, the security indicator lights up while ignition key is in the “ON” position.SymptomDisplayed “SELF-DIAG
RESULTS” on CON-
SULT-II screen.Diagnostic Procedure
(Reference page)System
(Malfunctioning part or
mode)Reference Part No. Of
Illustration On System
Diagram
Security indicator
lighting up*
Engine cannot be
startedCHAIN OF ECM-IMMU
[P1612]PROCEDURE 1
(BL-148
)In rare case, “CHAIN OF
ECM-IMMU” might be
stored during key regis-
tration procedure, even if
the system is not mal-
functioning.—
Open circuit in battery
voltage line of BCM cir-
cuitC1
Open circuit in ignition
line of BCM circuitC2
Open circuit in ground
line of BCM circuitC3
Open or short circuit
between BCM and ECM
communication lineC4
ECM B
BCM A
DIFFERENCE OF KEY
[P1615]PROCEDURE 2
(BL-149
)Unregistered key D
BCM A
CHAIN OF IMMU-KEY
[P1614]PROCEDURE 5
(BL-152
)Malfunction of key ID
chipE5
Communication line
between ANT/ AMP and
BCM:
Open circuit or short cir-
cuit of battery voltage
line or ground lineE1
E2
Open circuit in power
source line of ANT/ AMP
circuitE3
Open circuit in ground
line of ANT/ AMP circuitE4
NATS antenna amp. E6
BCM A
ID DISCORD, IMM-ECM
[P1611]PROCEDURE 3
(BL-150
)System initialization has
not yet been completed.F
ECM B
LOCK MODE
[P1610]PROCEDURE 4
(BL-151
)LOCK MODE D
Security indicator light-
ing up*DON'T ERASE
BEFORE CHECKING
ENG DIAGWORK FLOW
(BL-145
)Engine trouble data and
IVIS (NATS) trouble data
have been detected in
ECM—
Page 912 of 3371
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-147
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
SYMPTOM MATRIX CHART 2
Non self-diagnosis related item
*: CONSULT-II self-diagnostic results display screen “no malfunction is detected”.
DIAGNOSTIC SYSTEM DIAGRAM
SymptomDiagnostic Procedure
(Reference page)System
(Malfunctioning part or mode)Reference Part No. Of Illustra-
tion On System Diagram
Security indicator does not light
up*.PROCEDURE 6
(BL-155
)Combination meter (security
indictor lamp)—
Open circuit between fuse and
BCM—
BCM A
WIIA0550E
