INFINITI QX56 2004 Factory Service Manual

PG-32
GROUND CIRCUIT
Revision: August 20072004 QX56
WKIA3527E

GROUND CIRCUIT
PG-33
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: August 20072004 QX56

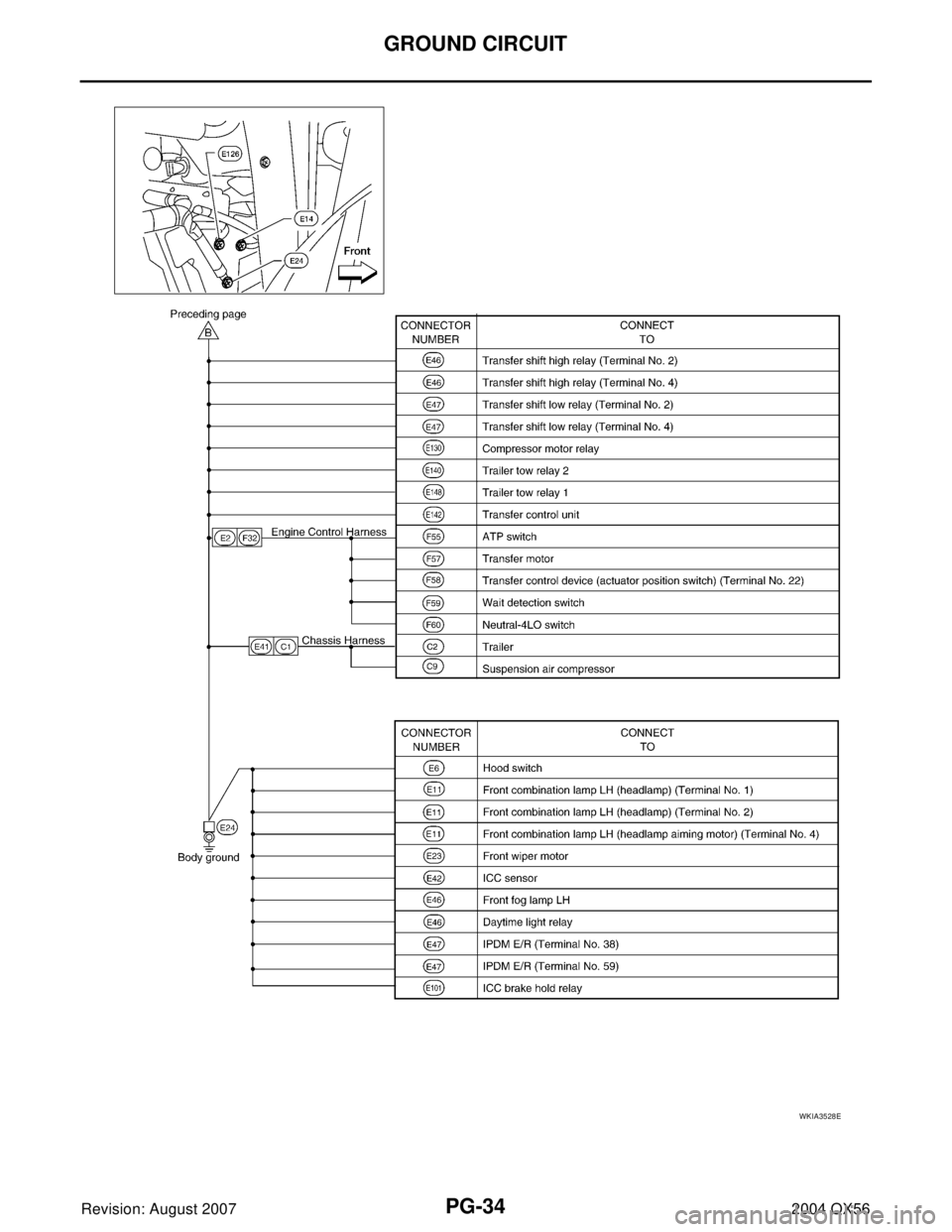

ENGINE ROOM HARNESS
WKIA4232E

PG-34

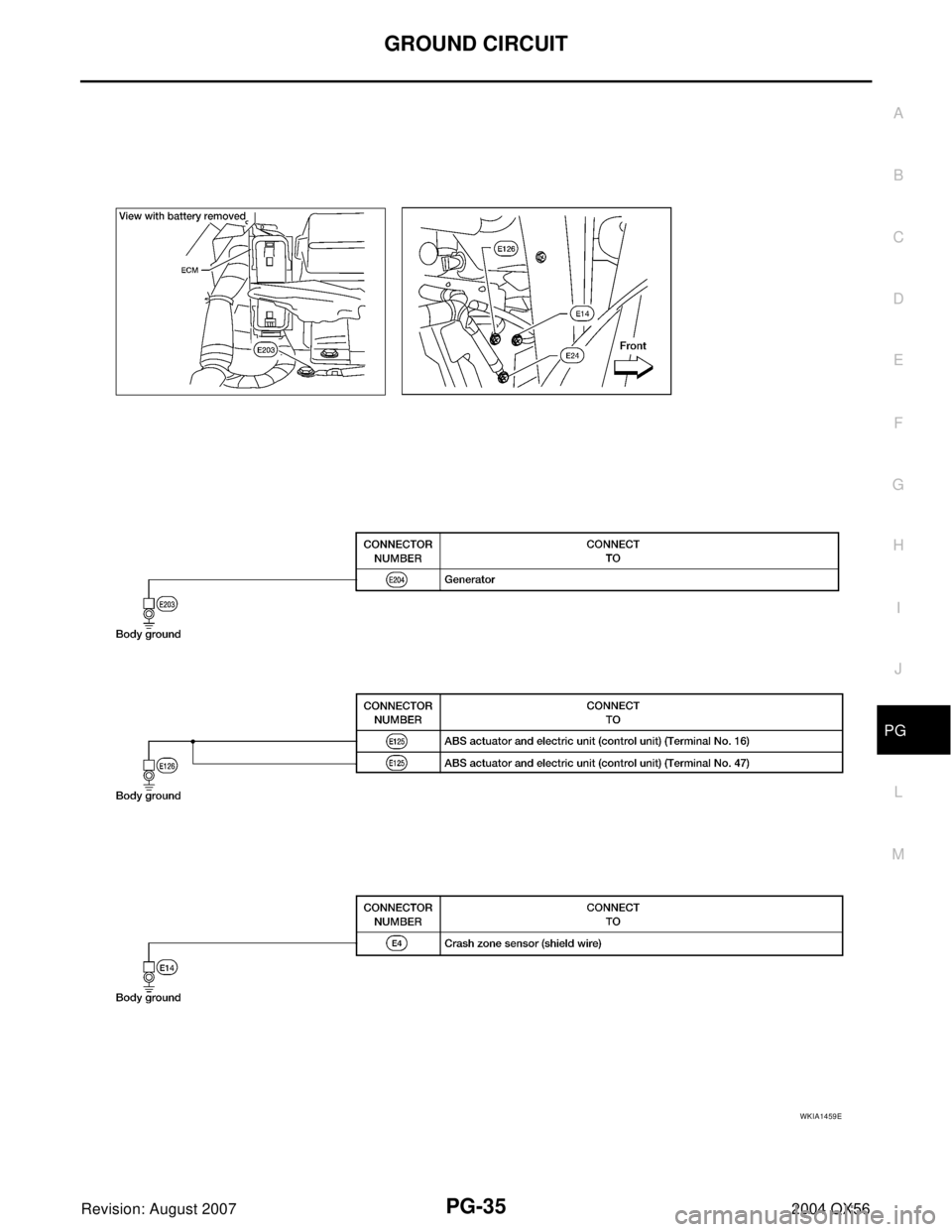

GROUND CIRCUIT
Revision: August 20072004 QX56
WKIA3528E

GROUND CIRCUIT
PG-35
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: August 20072004 QX56
WKIA1459E

PG-36
GROUND CIRCUIT
Revision: August 20072004 QX56

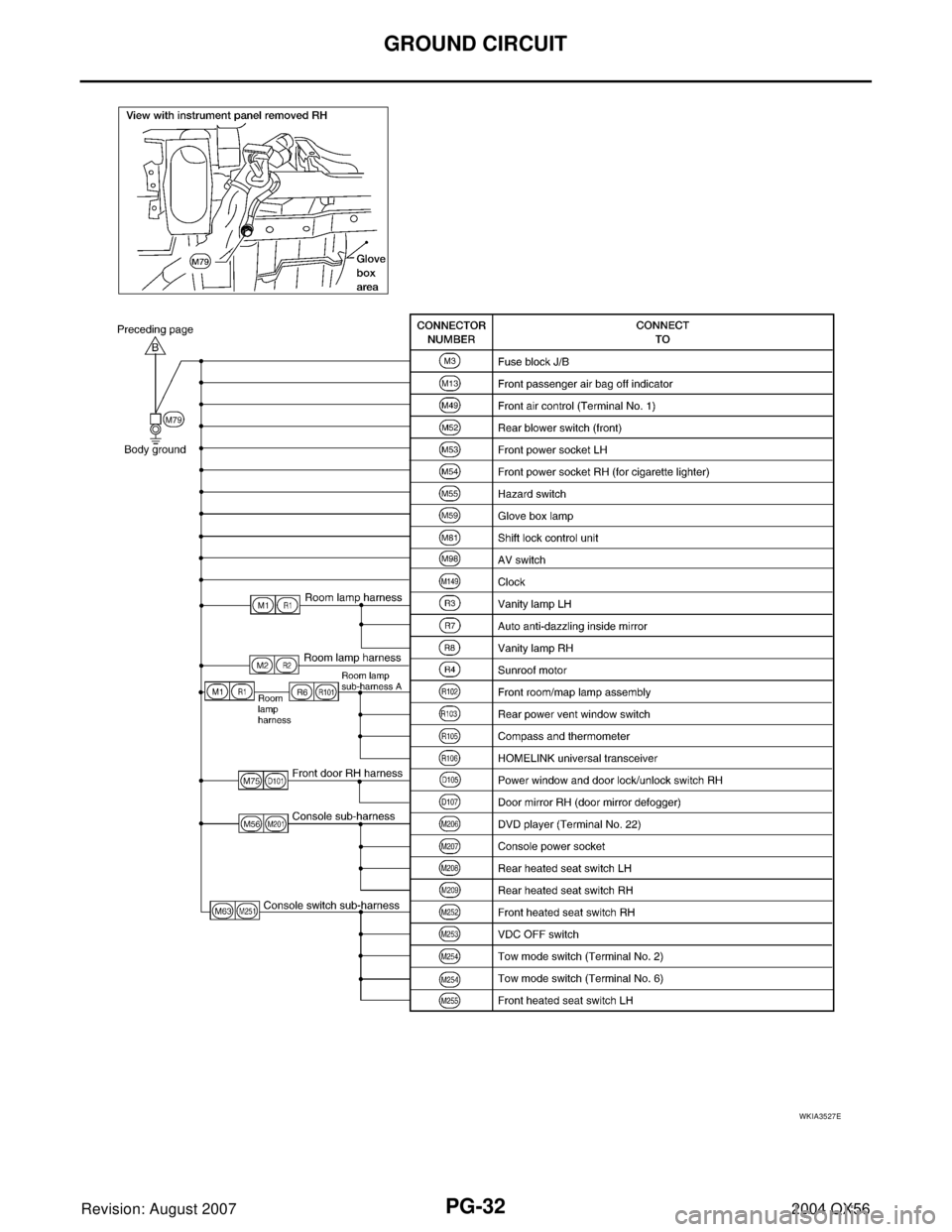

ENGINE CONTROL HARNESS
WKIA1460E

GROUND CIRCUIT
PG-37
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: August 20072004 QX56
BODY HARNESS
WKIA1991E

PG-38
GROUND CIRCUIT
Revision: August 20072004 QX56
BODY NO. 2 HARNESS
WKIA4250E

GROUND CIRCUIT
PG-39
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: August 20072004 QX56

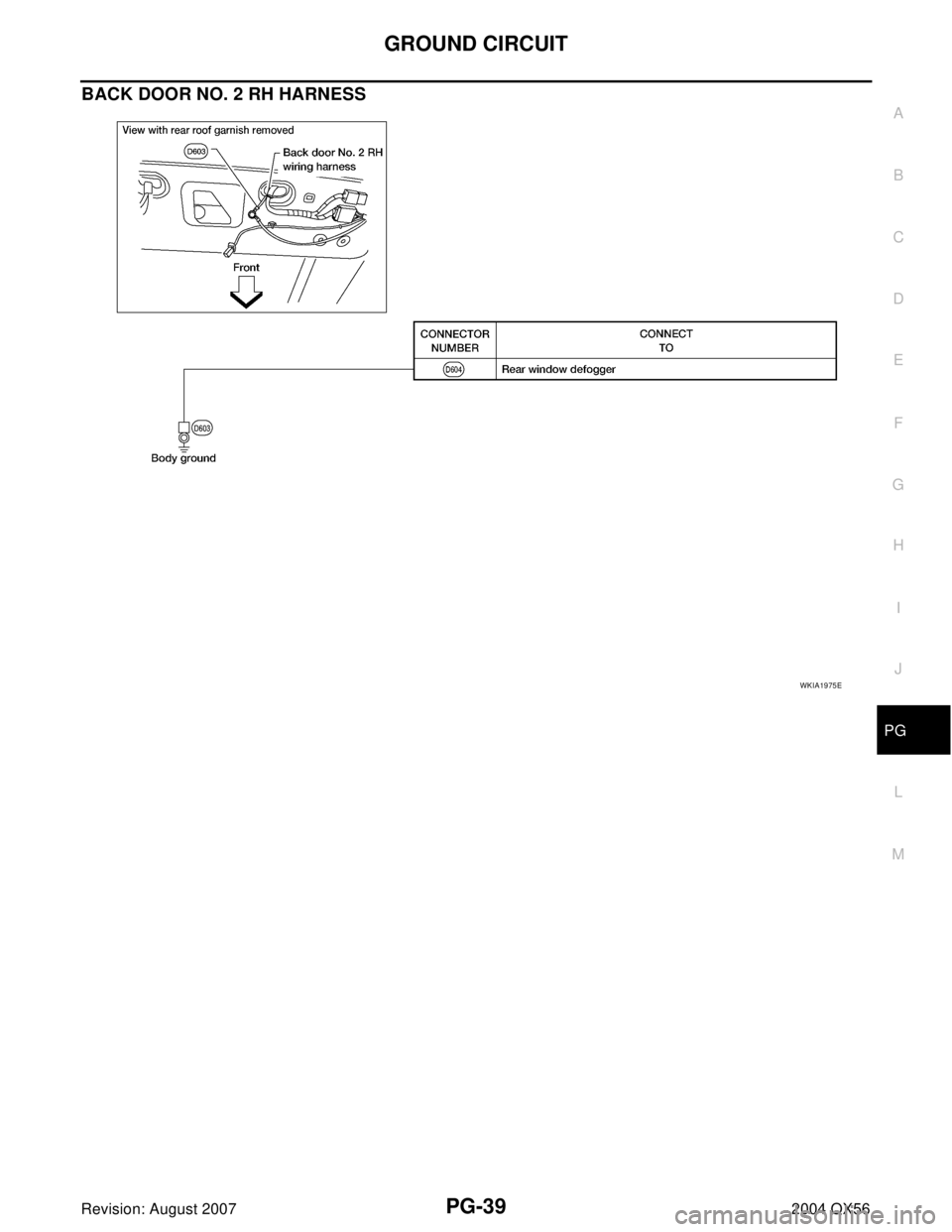

BACK DOOR NO. 2 RH HARNESS
WKIA1975E

PG-40
HARNESS
Revision: August 20072004 QX56
HARNESSPFP:24010
Harness LayoutEKS007NY
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:

Main Harness

Engine Room Harness LH View (Engine Compartment)

Engine Room Harness RH View (Engine Compartment)

Engine Control Harness

Chassis Harness

Body Harness

Body No. 2 Harness
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated below.
SEL252V
Connector typeWater proof type Standard type
Male Female Male Female

Cavity: 4 or Less

Relay connector

Cavity: From 5 to 8

Cavity: 9 or More

Ground terminal etc.
—

HARNESS
PG-41
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: August 20072004 QX56

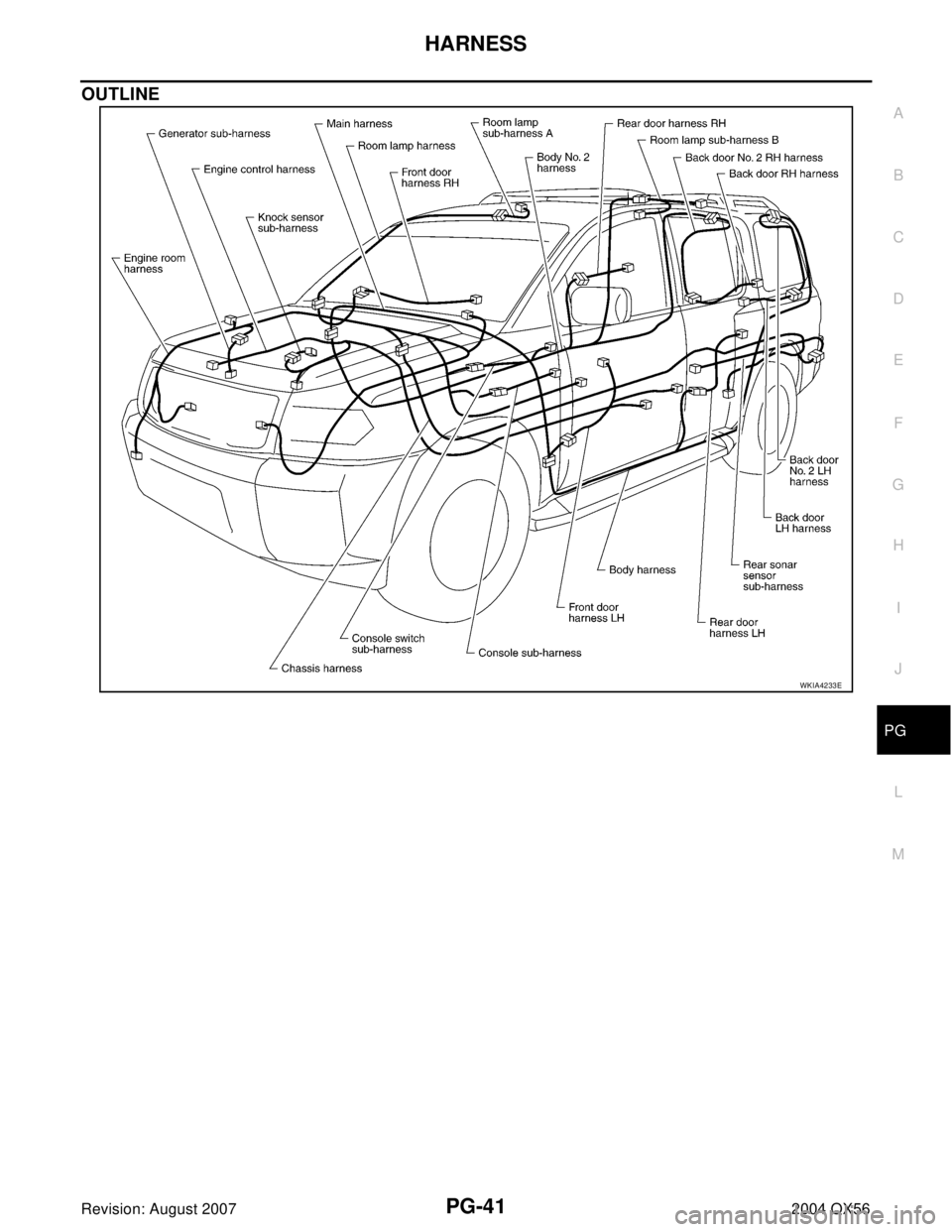

OUTLINE
WKIA4233E
