INFINITI QX56 2004 Factory Service Manual

SRS-10
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
SRS Components Parts LocationEHS000WB
1. Side curtain air bag modules 2. Front RH side air bag module 3. Belt tension sensor
4. RH side air bag (satellite) sensor 5. Front RH seat belt pre-ten-
sioner6. Seat belt buckle pre-tensioner assembly
RH
7. Occupant classification system sen-
sor8. Occupant classification system
control unit9. Front passenger air bag off indicator
10. Front passenger air bag module 11. Crash zone sensor 12. Air bag warning lamp
13. Spiral cable 14. Driver air bag module 15. LH side air bag (satellite) sensor
16. Front LH seat belt pre-tensioner 17. Air bag diagnosis sensor unit 18. Front LH side air bag module
WHIA0216E

TROUBLE DIAGNOSIS
SRS-11
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: August 20072004 QX56
SchematicEHS000WC
WHWA0178E

SRS-12
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
Wiring Diagram — SRS —EHS000WD
WHWA0179E

TROUBLE DIAGNOSIS
SRS-13
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: August 20072004 QX56

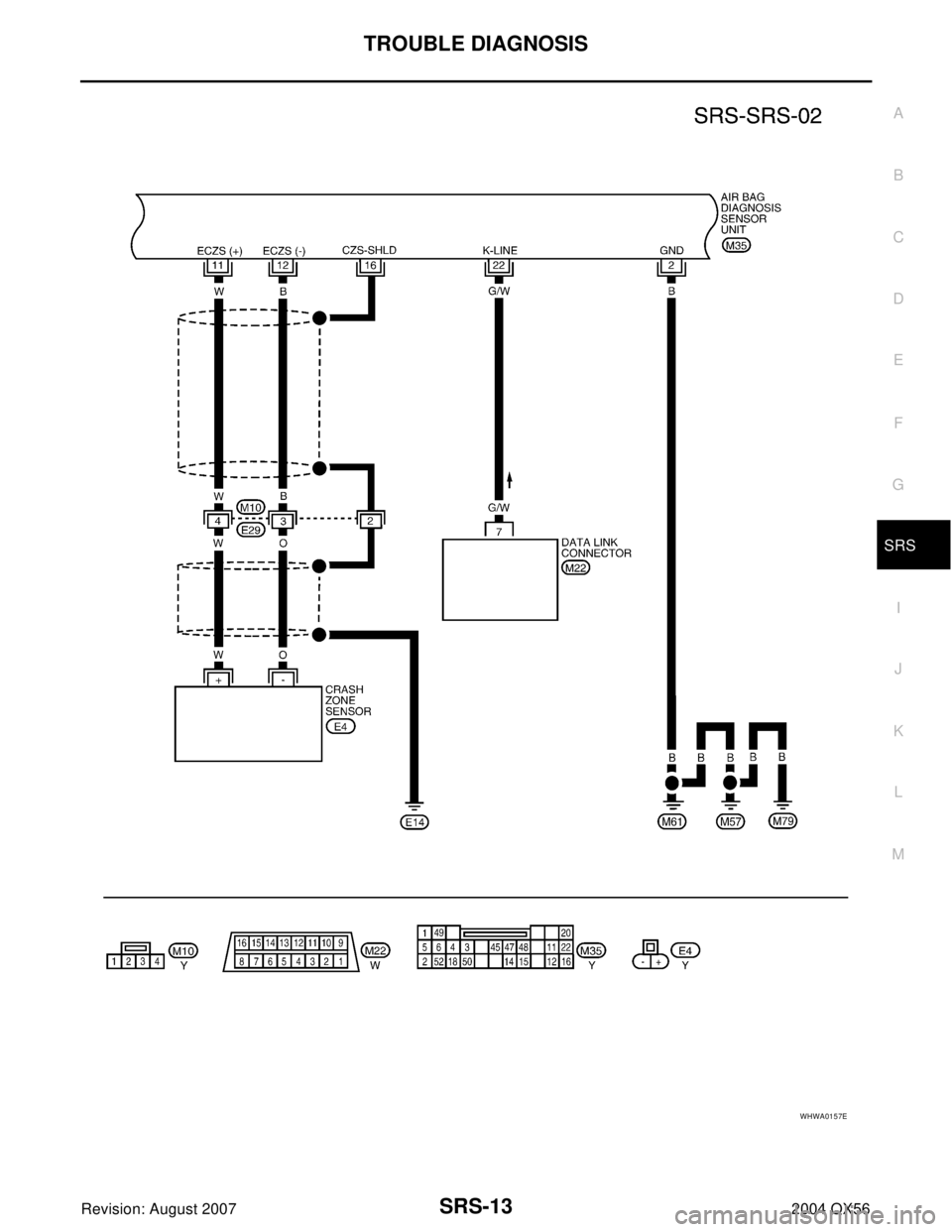

WHWA0157E

SRS-14
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56

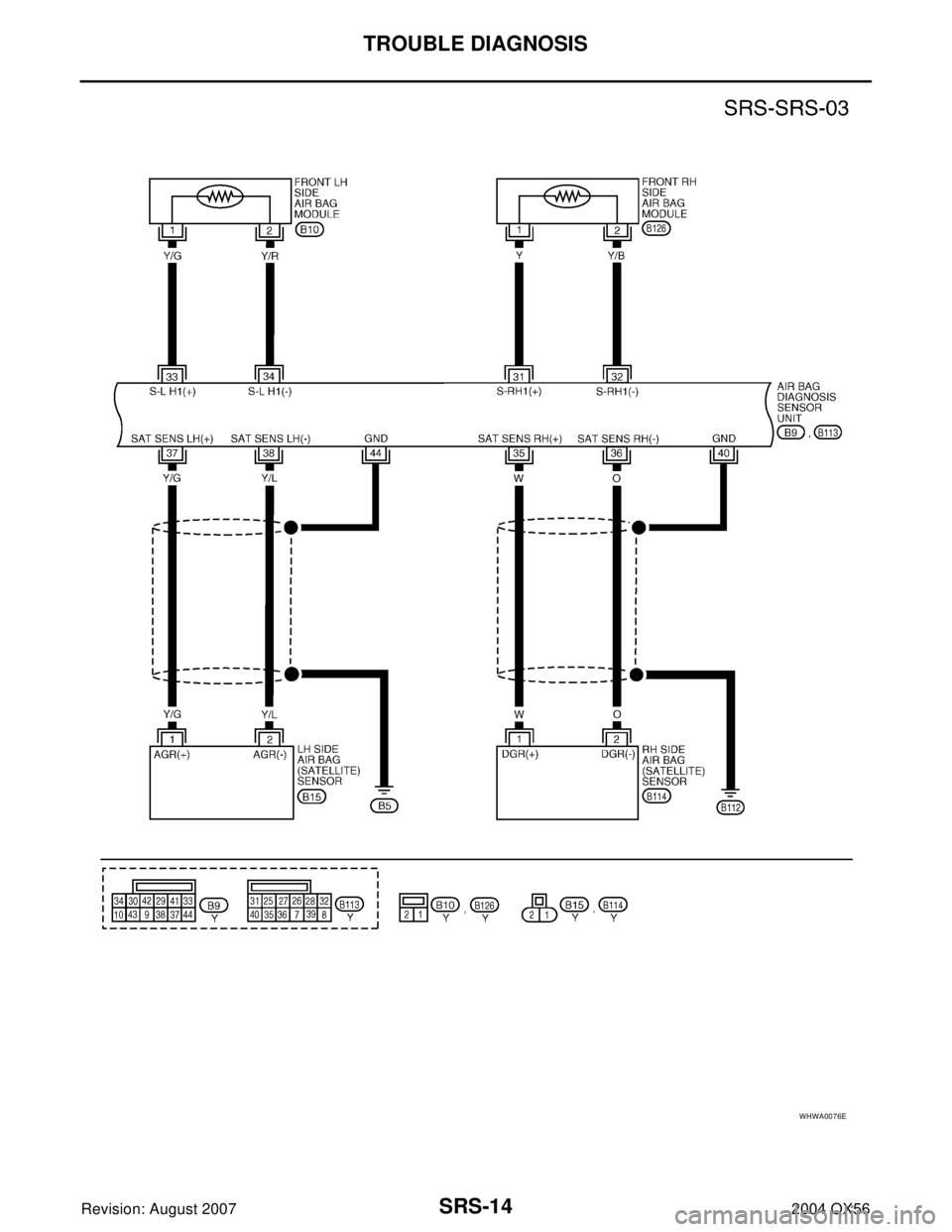

WHWA0076E

TROUBLE DIAGNOSIS
SRS-15
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: August 20072004 QX56

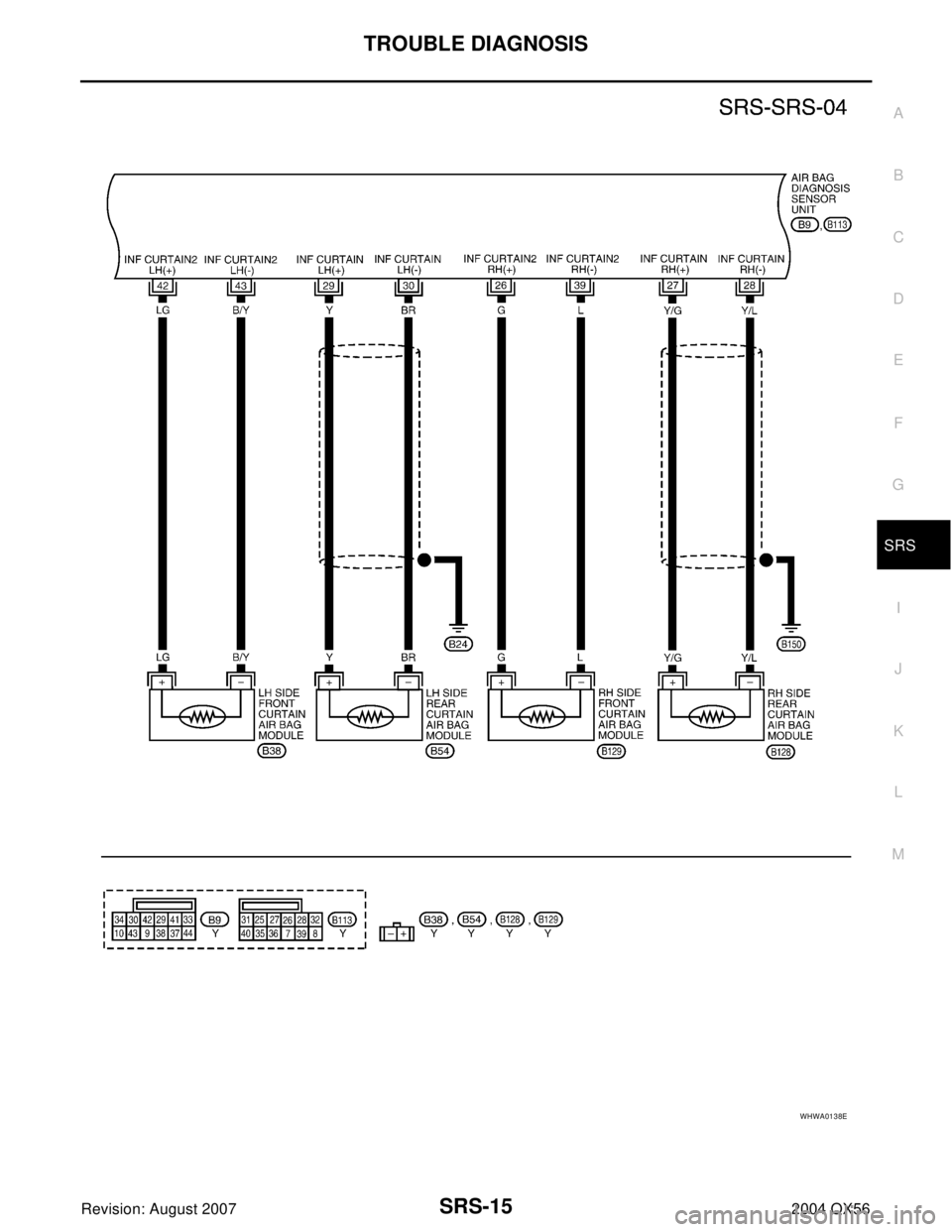

WHWA0138E

SRS-16
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
WHWA0065E

TROUBLE DIAGNOSIS
SRS-17
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: August 20072004 QX56

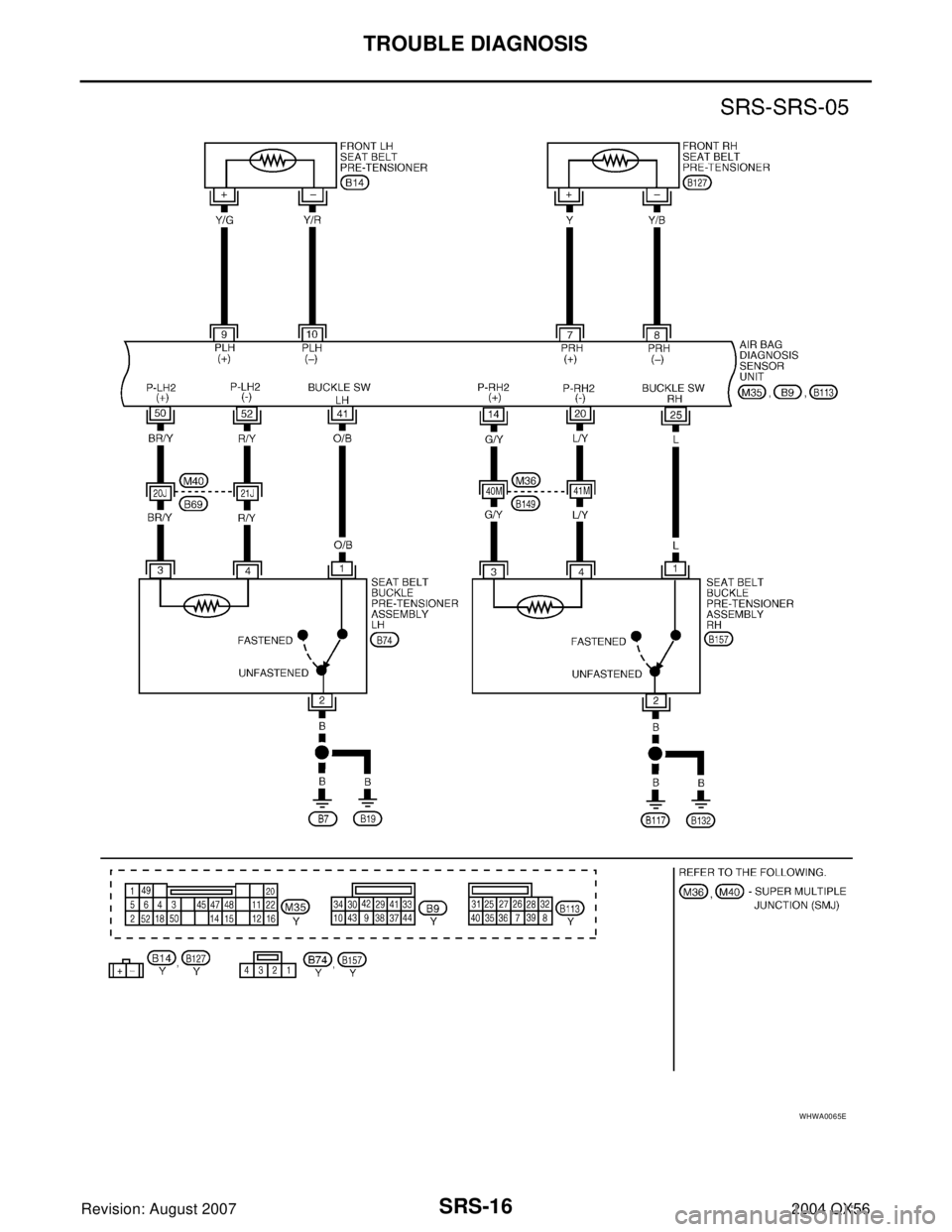

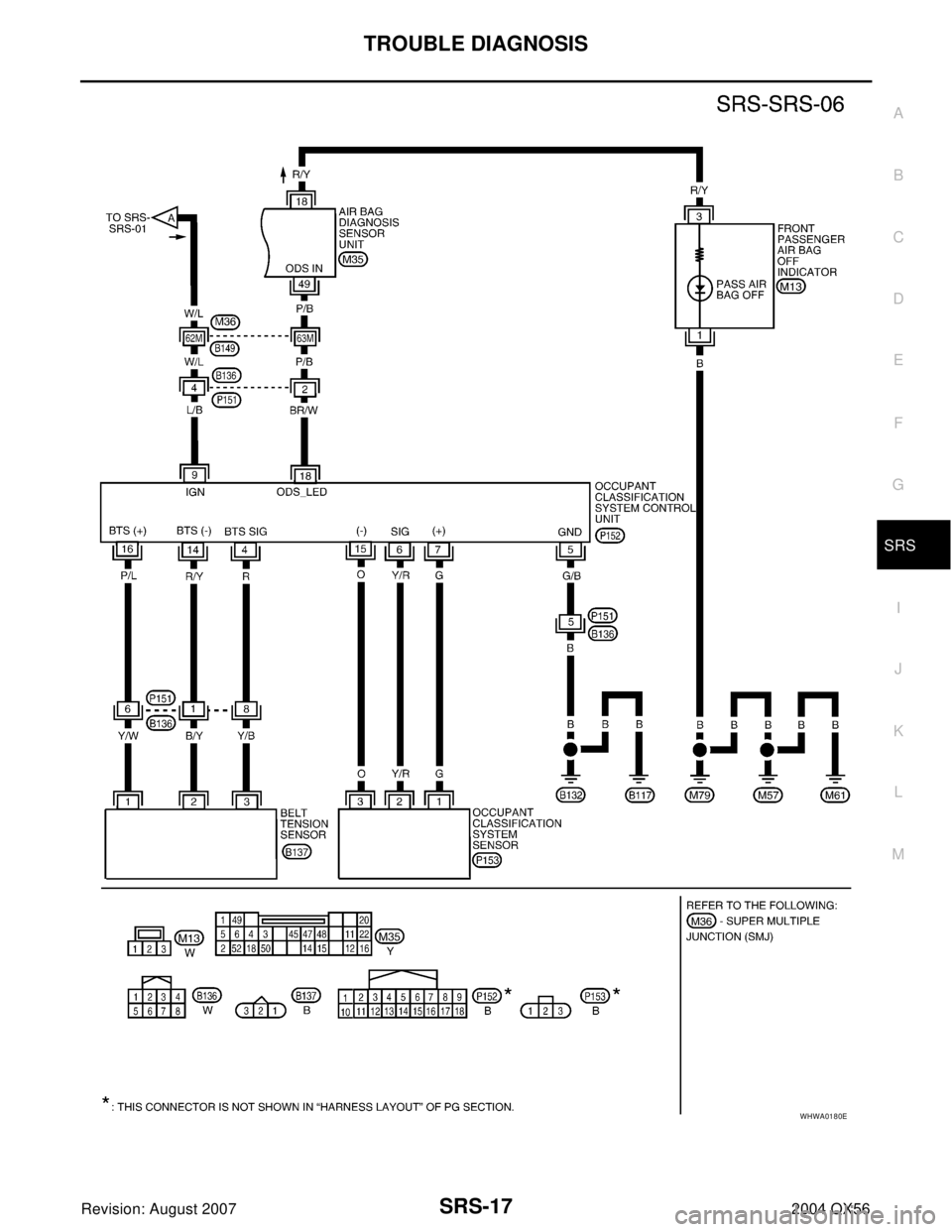

WHWA0180E

SRS-18
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
CONSULT-II Function (AIR BAG)EHS001BB
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II FunctionEHS000WE
HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-II
From User Mode to Diagnosis Mode
After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagnosis
mode.
From Diagnosis Mode to User Mode
To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears, Diagnosis mode automatically changes to User mode.
AIR BAG diagnostic mode Description
SELF-DIAG [CURRENT]A current Self-diagnosis result (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-II screen in real time. This refers to a malfunctioning part requir-
ing repairs.
SELF-DIAG [PAST]Diagnosis results previously stored in the memory are displayed on the CONSULT-II screen. The
stored results will remain until memory erasing is executed.
TROUBLE DIAG RECORDWith TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be dis-
played on the CONSULT-II screen.
ECU DISCRIMINATED NO.The air bag diagnosis sensor unit for each vehicle
model is assigned with its own, individual classifi-
cation number. This number will be displayed on
the CONSULT-II screen, as shown. When replac-
ing the air bag diagnosis sensor unit, refer to the
part number for the compatibility. After installation,
replacement with a correct unit can be checked by
confirming this classification number on the CON-
SULT-II screen.
For INFINITI MODEL JA60, the air bag diagno-
sis sensor unit discriminated number assigned
is F615.
ARS3 66
SRS8 03
SRS8 04

TROUBLE DIAGNOSIS
SRS-19
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: August 20072004 QX56
HOW TO ERASE SELF-DIAGNOSIS RESULTS

“SELF-DIAG [CURRENT]”
A current self-diagnosis result is displayed on the CONSULT-II
screen in real time.
After the malfunction is repaired completely, no malfunction is
detected on “SELF-DIAG [CURRENT]”.

“SELF-DIAG [PAST]”
Return to the “SELF-DIAG [CURRENT]” CONSULT-II screen by
touching “BACK” key of CONSULT-II and select “SELF-DIAG
[PAST]” in SELECT DIAG MODE. Touch “ERASE” in “SELF-
DIAG [PAST]” mode.
NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is
not erased, the User mode will continue to show the system
malfunction by the operation of the warning lamp even if
the malfunction is repaired completely.

“TROUBLE DIAG RECORD”
The memory of “TROUBLE DIAG RECORD” cannot be erased.
Self-Diagnosis Function (Without CONSULT-II)EHS000WF

The reading of these results is accomplished using one of two modes — “User mode” and “Diagnosis
mode”.

After a malfunction is repaired, turn the ignition switch OFF for at least one second, then back ON. Diag-
nosis mode returns to the User mode. At that time, the self-diagnostic result is cleared.
HOW TO CHANGE SELF-DIAGNOSIS MODE
SRS7 01
SRS7 02
SHIA0183E
