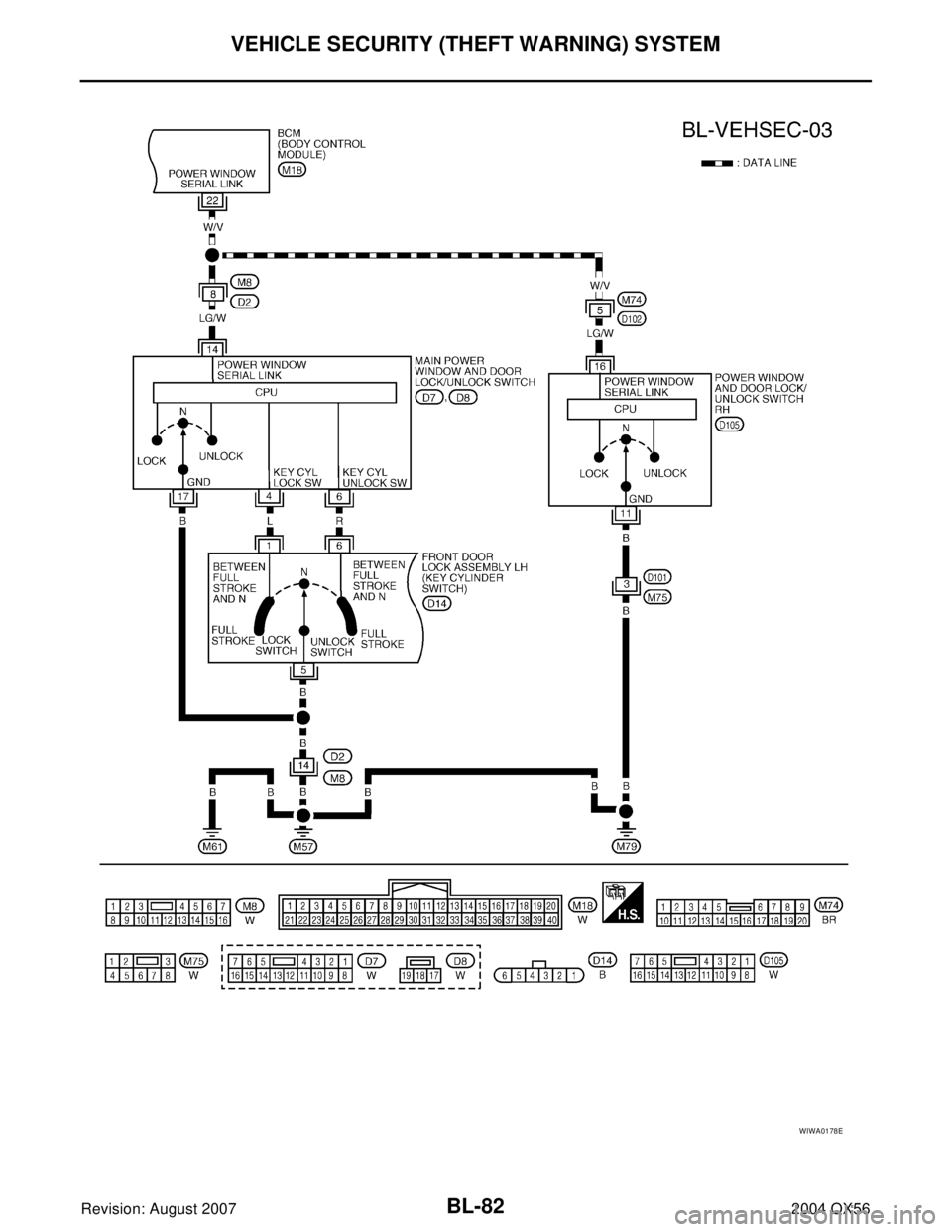

BL-82
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: August 20072004 QX56
WIWA0178E

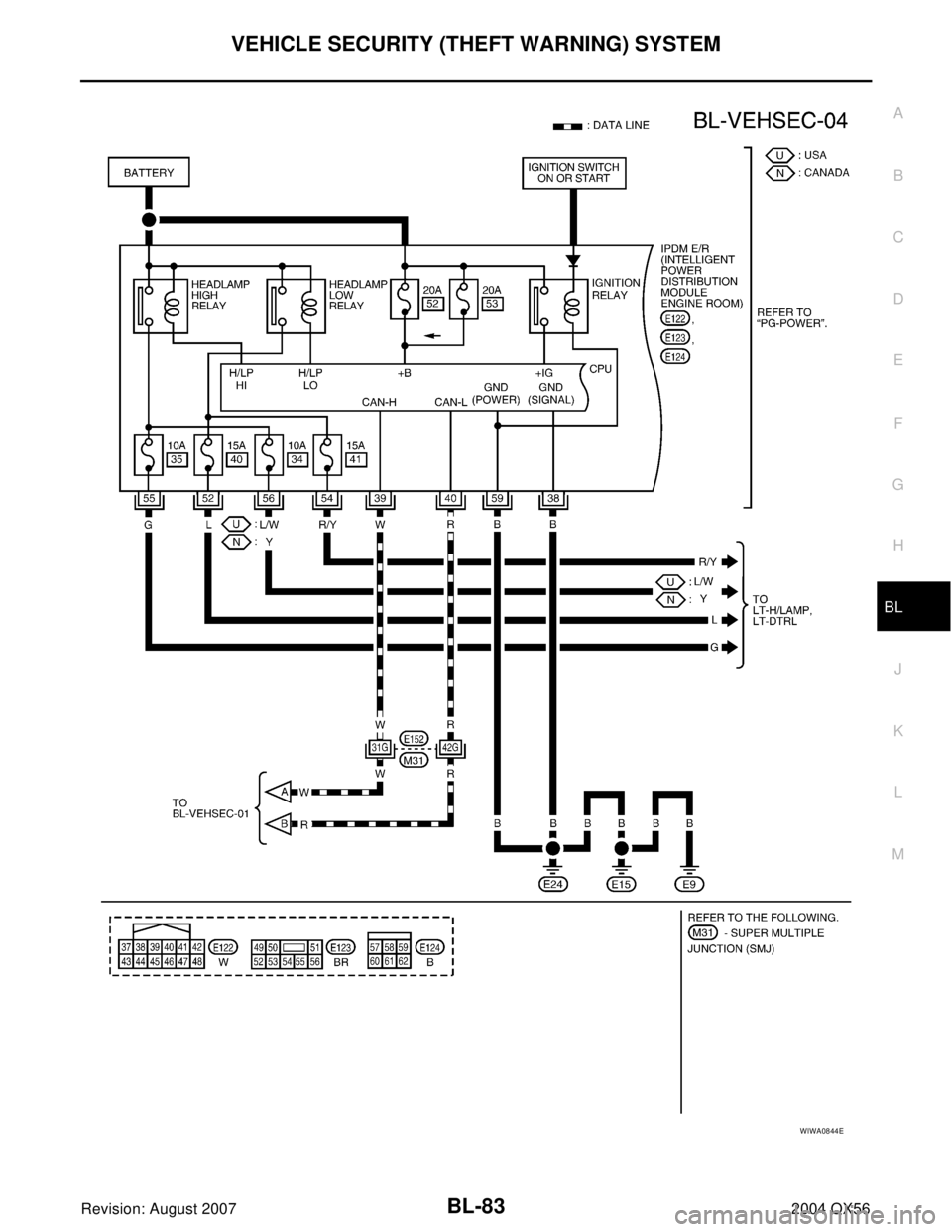

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-83
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
WIWA0844E

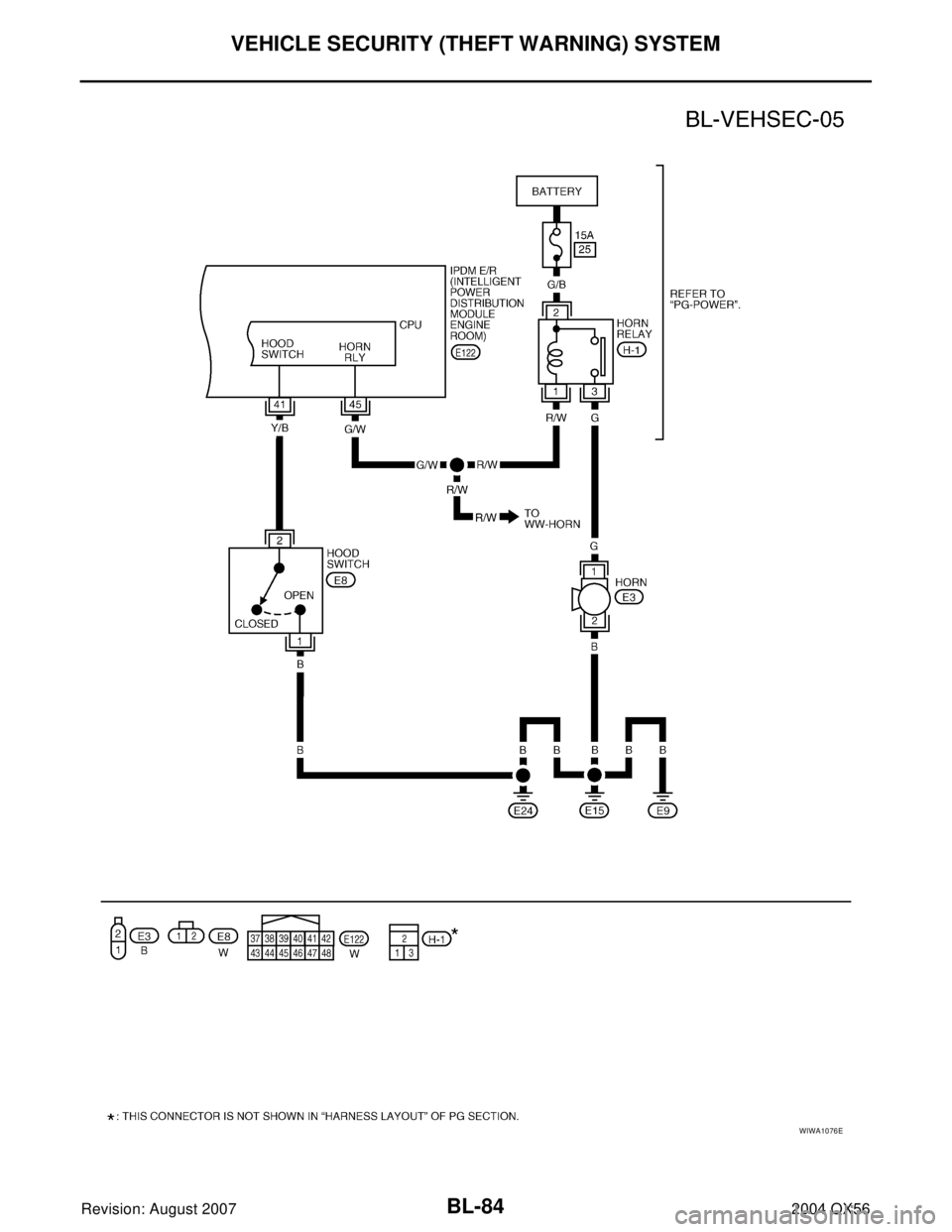

BL-84
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: August 20072004 QX56
WIWA1076E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-85
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
Terminals and Reference Value for BCMEIS002SI
Te r m i n a l Wire
ColorItem ConditionVoltage (V)
(Approx.)
11 O Ignition switch (ACC or ON) Ignition switch (ACC or ON position) Battery voltage
12 R/L Front door switch RH Door open (ON) → Door close (OFF) 0 → Battery voltage
13 GR Rear door switch RH Door open (ON) → Door close (OFF) 0 → Battery voltage
22 W/V Power window serial linkWhen ignition switch is ON or power
window timer operates
23 G/OCombination meter (security
indicator lamp)Goes off → Illumiates (Every 2.4 sec-
onds) Battery voltage → 0
39 W CAN-H — —
40 R CAN-L — —
42 GR Glass hatch ajar switchGlass hatch open (ON) → Glass
hatch close (OFF)Battery voltage → 0
43 R/BBack door latch (door ajar
switch)Door open (ON) → Door close (OFF) 0 → Battery voltage
47 SB Front door switch LH Door open (ON) → Door close (OFF) 0 → Battery voltage
48 R/Y Rear door switch LH Door open (ON) → Door close (OFF) 0 → Battery voltage
57 Y/R Battery power supply — Battery voltage
67 B Ground — 0
70 W/B Battery power supply — Battery voltage
PIIA2344E

BL-86
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: August 20072004 QX56
Terminals and Reference Value for IPDM E/REIS002SJ
*1: when horn reminder is ON.
*2: L/W is for USA.
*3: Y is for Canada.
CONSULT-II Function (BCM)EIS002SK
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
Terminal Wire
ColorItem ConditionVoltage (V)
(Approx.)
38 B Ground — 0
39 W CAN-H — —
40 R CAN-L — —
41 Y/B Hood switchHood closed OFF Battery voltage
Hood open ON 0V
45 G/W Horn relayWhen doors locks are operated
using keyfob (OFF → ON) *1Battery voltage → 0V
52 L Headlamp low (LH)Ignition
SW ONLighting
switch
2ND posi-
tionOFF 0V
ON Battery voltage
54 R/Y Headlamp low (RH)Ignition
SW ONLighting
switch
2ND posi-
tionOFF 0V
ON Battery voltage
55 G Headlamp high (LH)Ignition
SW ONLighting
switch
HIGH or
PA S S
positionOFF 0V
ON Battery voltage
56L/W *2
Y *3Headlamp high (RH)Ignition
SW ONLighting
switch
HIGH or
PA S S
positionOFF 0V
ON Battery voltage
59 B Ground — 0
BCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the
BCM for setting the status suitable for required operation, input/output sig-
nals are received from the BCM and received date is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive signal to
them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication can be
read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-87
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
CONSULT-II INSPECTION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)".
5. Touch “BCM”.
If "BCM" is not indicated, refer to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
6. Touch “THEFT ALM” on the "SELECT TEST ITEM" screen.
BBIA0369E
BCIA0029E
BCIA0030E
LIIA1552E

BL-88
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: August 20072004 QX56
7. Select diagnosis mode.
“DATA MONITOR”, “ACTIVE TEST” and “WORK SUPPORT”
are available.
BCIA0031E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-89
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
CONSULT-II APPLICATION ITEM
Data Monitor
Active Test
Work Support
Monitored Item Description
DOOR SW-AS Indicates [ON/OFF] condition of front door switch RH.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch LH.
BACK DOOR SW Indicates [ON/OFF] condition of back door latch.
TRNK OPEN MNTR Indicates [ON/OFF] condition of glass hatch ajar switch.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
KEYLESS UNLOCK Indicates [ON/OFF] condition of unlock signal from keyfob.
KEYLESS LOCK Indicates [ON/OFF] condition of lock signal from keyfob.
KEY CYL LK-SW Indicates [ON/OFF] condition of lock signal from door key cylinder switch.
KEY CYL UN-SW Indicates [ON/OFF] condition of unlock signal from door key cylinder switch.
KEYLESS PBD Indicates [ON/OFF] condition of unlock signal from door key cylinder switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from lock/unlock switch.
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from lock/unlock switch.
HOOD SW Indicates [ON/OFF] condition of hood switch.
Test Item Description
THEFT INDThis test is able to check security indicator lamp operation. The lamp will be turned on when “ON”
on CONSULT-II screen is touched.
HEADLAMP (HI)This test is able to check vehicle security lamp operation. The highbeam headlamps will be acti-
vated for 0.5 seconds after “ON” on CONSULT-II screen is touched.
VEHICLE SECURITY HORNThis test is able to check vehicle security horn operation. The horns will be activated for 0.5 sec-
onds after “ON” on CONSULT-II screen is touched.
Test Item Description
SECURITY ALARM SET This mode can confirm and change security alarm ON-OFF setting.
THEFT ALM TRGThe switch which triggered vehicle security alarm is recorded. This mode is able to confirm and
erase the record of vehicle security alarm. The trigger data can be erased by touching “CLEAR”
on CONSULT-II screen.

BL-90
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: August 20072004 QX56
Trouble DiagnosisEIS002SL
WORK FLOW

“POWER DOOR LOCK SYSTEM” Diagnosis refer to BL-16, "POWER DOOR LOCK SYSTEM" .

“REMOTE CONTROL SYSTEM” Diagnosis refer to BL-44, "REMOTE KEYLESS ENTRY SYSTEM" .
WIIA0599E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-91
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
Preliminary CheckEIS002SM
The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED
in the following flow chart.
After performing preliminary check, go to symptom chart.
WIIA0627E
