Page 971 of 3371
BL-206
BODY REPAIR
Revision: August 20072004 QX56
WIIA0636E
Page 972 of 3371
BODY REPAIR
BL-207
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
REAR SIDE MEMBER
WIIA0637E
Page 973 of 3371
BL-208
BODY REPAIR
Revision: August 20072004 QX56
REAR FLOOR REAR
WIIA0638E
Page 974 of 3371
BODY REPAIR
BL-209
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
CRUSH HORN
Work after 1st crossmember has been removed.
Portions to be welded:
A. Inner side rail crush horn, inner side rail crush horn and outer side rail crush horn.
B. Outer side rail crush horn, outer side rail crush horn and inner side rail crush horn.
LIIA1083E
Page 975 of 3371
BL-210
BODY REPAIR
Revision: August 20072004 QX56
Removal Notes
Scribe a straight line on the outer side rail crush horn and inner side rail crush horn along the hole center
as shown in the figure.
Cut off outer side rail crush horn and inner side rail crush horn along scribed line A. Do not cut on the hole.

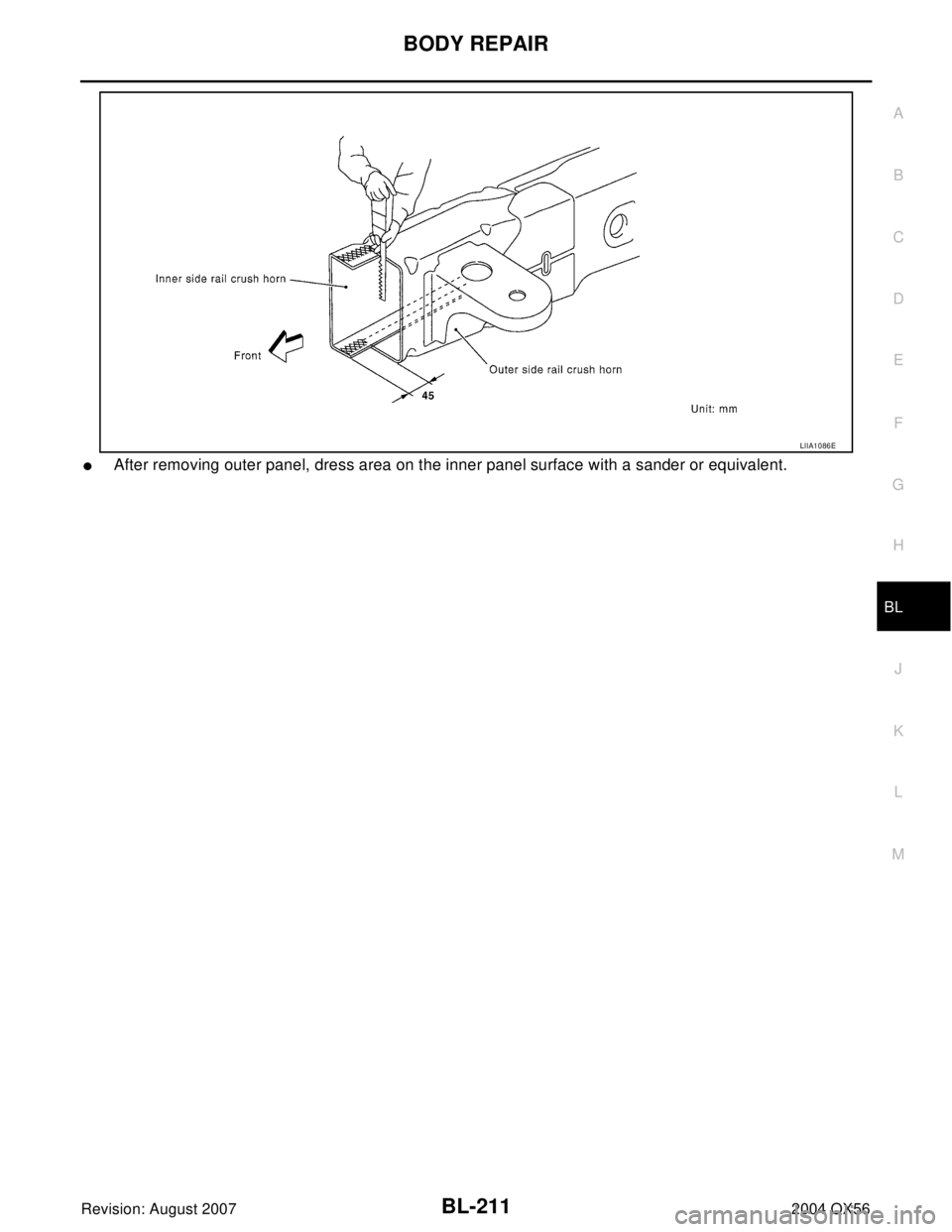

Cut inner side rail crush horn at 45 mm backward cut position of cut line A. (along line B)
LIIA1084E
LIIA1085E
Page 976 of 3371
BODY REPAIR
BL-211
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
After removing outer panel, dress area on the inner panel surface with a sander or equivalent.
LIIA1086E
Page 977 of 3371
BL-212
BODY REPAIR
Revision: August 20072004 QX56
Installation Notes
Scribe a straight line on the inner side rail crush horn along the hole center as shown in the figure. Cut off
inner side rail crush horn along scribed line.
Scribe a straight line on the outer side rail crush horn along the hole center as shown in the figure. Cut off
outer side rail crush horn along scribed line.
LIIA1087E
LIIA1088E
Page 978 of 3371
BODY REPAIR
BL-213
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56

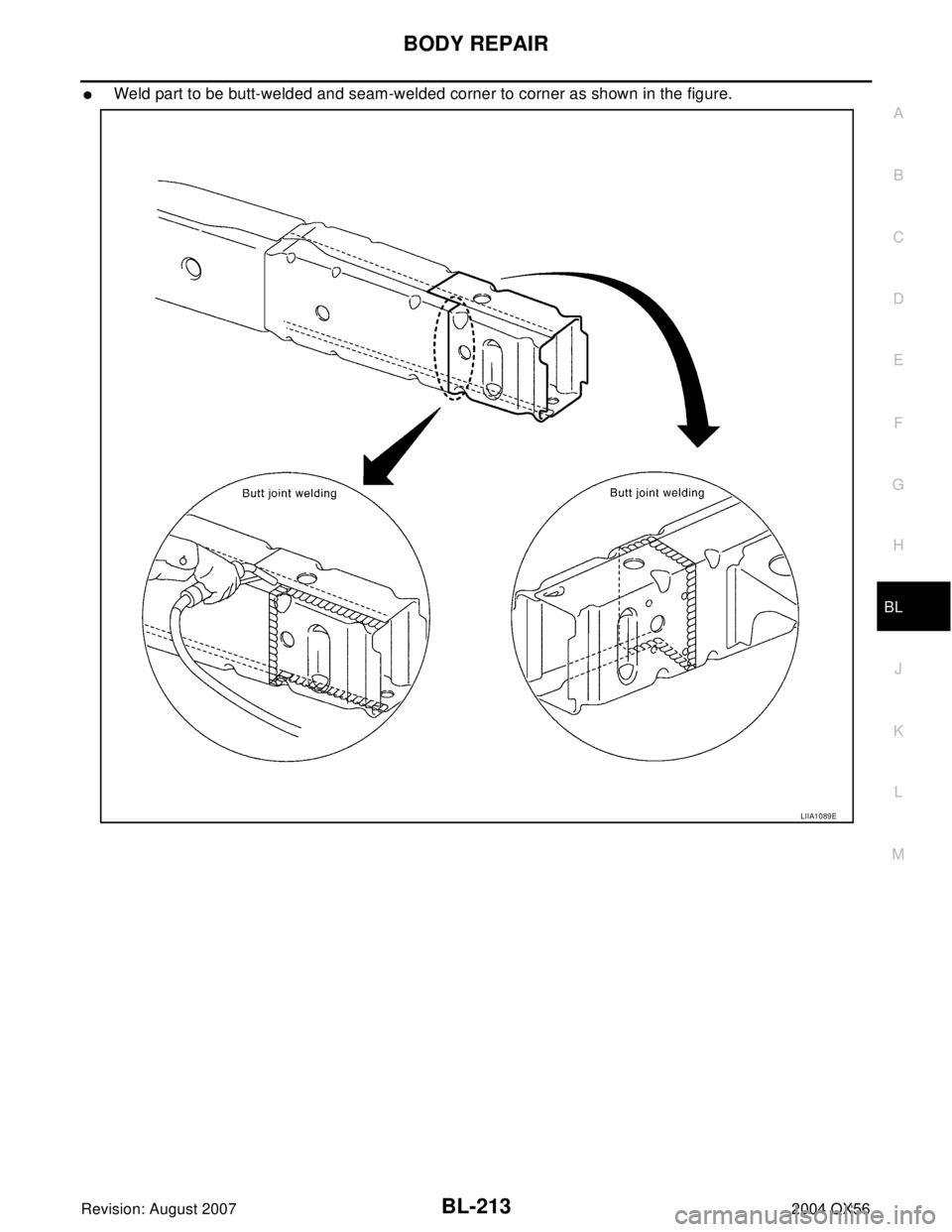

Weld part to be butt-welded and seam-welded corner to corner as shown in the figure.
LIIA1089E
Page 979 of 3371
BL-214
BODY REPAIR
Revision: August 20072004 QX56
Page 980 of 3371
BR-1
BRAKE SYSTEM
F BRAKES
CONTENTS
C
D
E
G
H
I
J
K
L
M
SECTION BR
A
B
BR
Revision: August 20072004 QX56 PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for Brake System .................................. 3
PREPARATION ........................................................... 4
Special Service Tool ................................................. 4
Commercial Service Tools ........................................ 4
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 5
NVH Troubleshooting Chart ..................................... 5
BRAKE PEDAL .......................................................... 6
Inspection and Adjustment ....................................... 6
INSPECTION ........................................................ 6
ADJUSTMENT ...................................................... 7
Removal and Installation .......................................... 8
REMOVAL ............................................................. 8
INSPECTION AFTER REMOVAL ......................... 9
INSTALLATION ..................................................... 9
BRAKE FLUID .......................................................... 10
On-board Inspection ............................................... 10
LEVEL CHECK ................................................... 10
Drain and Refill ....................................................... 10
Bleeding Brake System ...........................................11
BRAKE PIPING AND HOSE .................................... 12
Hydraulic Circuit ..................................................... 12
Removal and Installation of Front Brake Hose ....... 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 13
Removal and Installation of Rear Brake Hose ....... 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
Inspection After Installation .................................... 14
BRAKE MASTER CYLINDER .................................. 15
On-board Inspection ............................................... 15
LEAK INSPECTION ............................................ 15
Removal and Installation ........................................ 15
REMOVAL ........................................................... 15INSTALLATION ................................................... 16
Disassembly and Assembly .................................... 16
DISASSEMBLY ................................................... 16
ASSEMBLY ......................................................... 16
BRAKE BOOSTER ................................................... 17
On-Vehicle Service ................................................. 17
OPERATING CHECK .......................................... 17
AIRTIGHT CHECK .............................................. 17
Removal and Installation ........................................ 18
REMOVAL ........................................................... 18
INSPECTION AFTER REMOVAL ....................... 18
INSTALLATION ................................................... 19
VACUUM LINES ....................................................... 20
Removal and Installation ........................................ 20
Inspection ............................................................... 20
VISUAL INSPECTION ......................................... 20
CHECK VALVE INSPECTION ............................. 20
FRONT DISC BRAKE ............................................... 21
On-vehicle Inspection ............................................. 21
PAD WEAR INSPECTION ................................... 21
Components ........................................................... 21
Removal and Installation of Brake Pad .................. 22
REMOVAL ........................................................... 22
INSTALLATION ................................................... 22
Removal and Installation of Brake Caliper and Disc
Rotor ....................................................................... 22
REMOVAL ........................................................... 22
INSTALLATION ................................................... 23
Disassembly and Assembly of Brake Caliper
Assembly ................................................................ 23
DISASSEMBLY ................................................... 23
CALIPER INSPECTION ...................................... 24
ASSEMBLY ......................................................... 24
DISC ROTOR INSPECTION ............................... 25
BRAKE BURNISHING PROCEDURE ................. 25
REAR DISC BRAKE ................................................. 27
On-vehicle Inspection ............................................. 27
PAD WEAR INSPECTION ................................... 27
Components ........................................................... 27
Removal and Installation of Brake Pad .................. 28
