QUICK REFERENCE CHART: QX56
Disc Brake - Repair LimitsELS000ZU
Unit: mm (in)
Brake PedalELS000ZV
Unit: mm (in)
Refill CapacitiesELS000YO
Brake model CLZ31VC (Front) AD14VE (Rear)
Brake PadStandard thickness (new) 11.88 (0.468) 12.13 (0.478)
Repair limit thickness 1.0 (0.039) 1.0 (0.039)
Disc rotor Standard thickness (new) 26.0 (1.024) 14.0 (0.551)
Repair limit thickness 24.5 (0.965) 12.0 (0.472)
Maximum uneven wear (measured at 8 positions) 0.015 (0.0006) 0.015 (0.0006)
Runout limit (with it attached to the vehicle) 0.04 (0.0016) 0.05 (0.0020)
Brake pedal height (from dash lower panel top surface) 182.3
− 192.3 (7.18 − 7.57)
Depressed pedal height [under a force of 490 N (50 kg, 110 lb) with engine running] More than 90.3 (3.55)
Clearance between stopper rubber and the threaded end of stop lamp switch 0.74 − 1.96 (0.029 − 0.077)
Pedal play 3 − 11 (0.12 − 0.43)
Description Capacity (Approximate)
Metric US measure Imp measure
Fuel 105.8 28 gal 23 1/4 gal
Engine oil
Drain and refill With oil filter change
6.2 6 1/2 qt 5 1/2 qt
Without oil filter change 5.9 6 1/4 qt 5 1/4 qt
Dry engine (engine overhaul) 7.6 8 qt 6 3/4 qt
Cooling system With reservoir at MAX level 14.4 3 3/4 gal 3 1/8 gal
Automatic transmission fluid (ATF) 10.6 11 1/4 qt 9 3/8 qt
Rear final drive oil 1.75 3 3/4 pt 3 1/8 pt
Transfer fluid 3.0 3 1/8 qt 2 5/8 qt
Front final drive oil 1.6 3 3/8 pt 2 7/8 pt
Power steering fluid (PSF) 1.0 1 1/8 qt 7/8 qt
Windshield washer fluid 4.5 1 1/4 gal 1 gal
Air conditioning system refrigerant 1.08 ± 0.05 kg 2.38 ± 0.11 lb 2.38 ± 0.11 lb
Air conditioning system lubricants 290 m9.8 fl oz 10.2 fl oz
Page 72 of 3371
AT-1
AUTOMATIC TRANSMISSION
C TRANSMISSION/TRANSAXLE
CONTENTS
D
E
F
G
H
I
J
K
L
M
SECTION AT
A
B
AT
Revision: August 20072004 QX56 INDEX FOR DTC ........................................................ 5
Alphabetical Index .................................................... 5
DTC No. Index ......................................................... 6
PRECAUTIONS .......................................................... 7
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 7
Precautions for On Board Diagnostic (OBD) System
of A/T and Engine .................................................... 7
Precautions .............................................................. 8
Service Notice or Precautions .................................. 9
Wiring Diagrams and Trouble Diagnosis .................. 9
PREPARATION ......................................................... 10
Special Service Tools ............................................. 10
Commercial Service Tools ...................................... 12
A/T FLUID ................................................................. 13
Changing A/T Fluid ................................................ 13
Checking A/T Fluid ................................................. 13

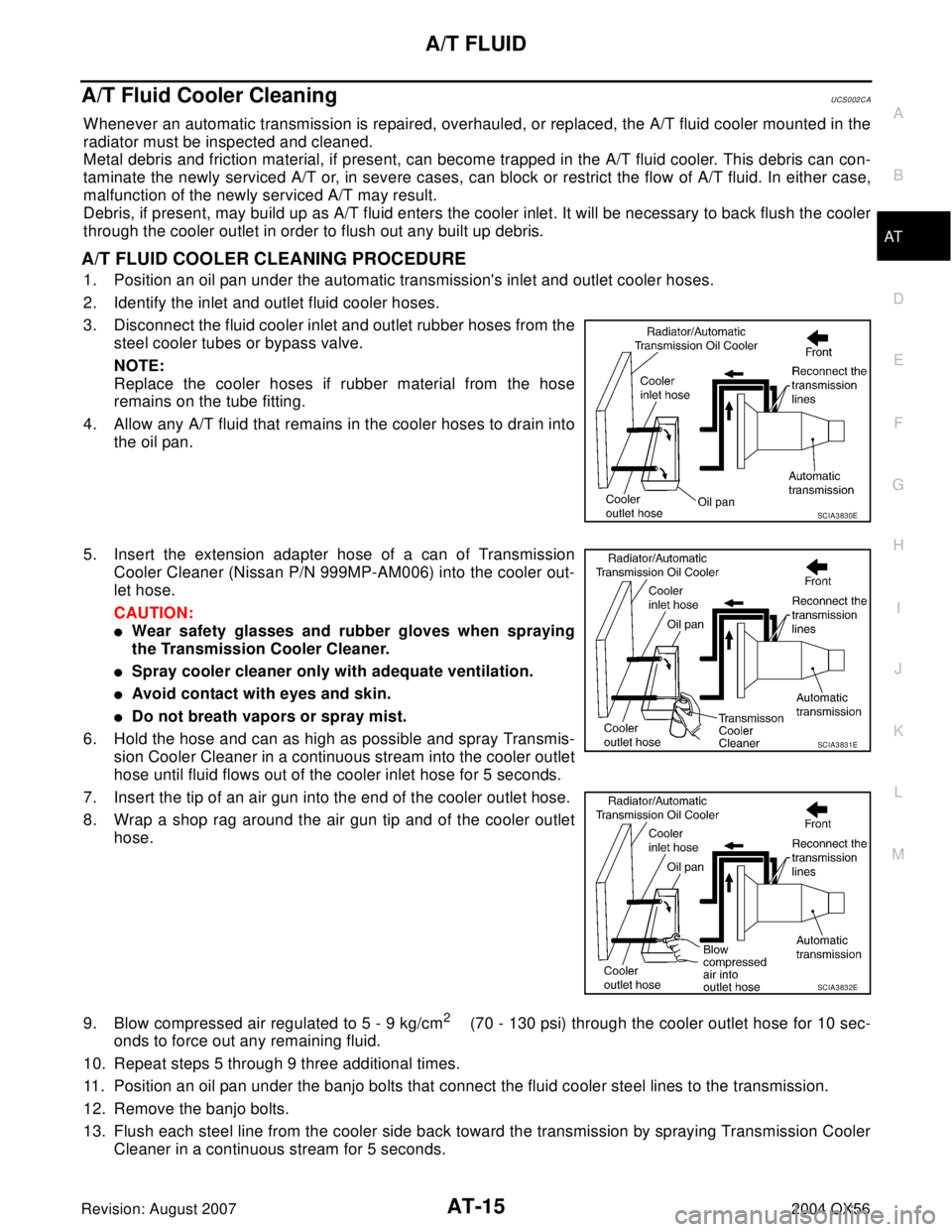

A/T Fluid Cooler Cleaning ...................................... 15
A/T CONTROL SYSTEM .......................................... 18
Cross-Sectional View (2WD models) ..................... 18
Cross-Sectional View (4WD models) ..................... 19
Shift Mechanism ..................................................... 20
TCM Function ......................................................... 31
CAN Communication .............................................. 32
Input/Output Signal of TCM .................................... 32
Line Pressure Control ............................................ 33
Shift Control ........................................................... 34
Lock-up Control ...................................................... 35
Engine Brake Control ............................................. 37
Control Valve .......................................................... 37
ON BOARD DIAGNOSTIC (OBD) SYSTEM ............ 39
Introduction ............................................................ 39
OBD-II Function for A/T System ............................. 39
One or Two Trip Detection Logic of OBD-II ............ 39
OBD-II Diagnostic Trouble Code (DTC) ................. 39
Malfunction Indicator Lamp (MIL) ........................... 42
TROUBLE DIAGNOSIS ............................................ 43
DTC Inspection Priority Chart ................................ 43
Fail-Safe ................................................................. 43How To Perform Trouble Diagnosis For Quick and
Accurate Repair ...................................................... 45
A/T Electrical Parts Location .................................. 50
Circuit Diagram ....................................................... 51
Wiring Diagram — AT — ........................................ 52
Inspections Before Trouble Diagnosis .................... 58
Check Before Engine is Started .............................. 62
Check at Idle ........................................................... 62
Cruise Test - Part 1 ................................................. 63
Cruise Test - Part 2 ................................................. 65
Cruise Test - Part 3 ................................................. 66
Vehicle Speed When Shifting Gears ...................... 67
Vehicle Speed When Performing and Releasing
Complete Lock-up .................................................. 67
Vehicle Speed When Performing and Releasing
Slip Lock-up ............................................................ 67
Symptom Chart ....................................................... 68
TCM Input/Output Signal Reference Values ........... 90
CONSULT-II Function (A/T) .................................... 91
DTC U1000 CAN COMMUNICATION LINE ............103
Description ............................................................103
On Board Diagnosis Logic ....................................103
Possible Cause .....................................................103
DTC Confirmation Procedure ...............................103
Diagnostic Procedure ...........................................104
DTC P0615 START SIGNAL CIRCUIT ...................105
Description ............................................................105
CONSULT-II Reference Value ..............................105
On Board Diagnosis Logic ....................................105
Possible Cause .....................................................105
DTC Confirmation Procedure ...............................105
Diagnostic Procedure ...........................................106
DTC P0700 TCM .....................................................108
Description ............................................................108
On Board Diagnosis Logic ....................................108
Possible Cause .....................................................108
DTC Confirmation Procedure ...............................108
Diagnostic Procedure ...........................................108
DTC P0705 PARK/NEUTRAL POSITION SWITCH .109
Description ............................................................109
Page 73 of 3371
AT-2Revision: August 20072004 QX56 CONSULT-II Reference Value ..............................109
On Board Diagnosis Logic ....................................109
Possible Cause .....................................................109
DTC Confirmation Procedure ...............................109
Diagnostic Procedure ...........................................110
DTC P0720 VEHICLE SPEED SENSOR A/T (REV-
OLUTION SENSOR) ...............................................112
Description ............................................................112
CONSULT-II Reference Value ..............................112
On Board Diagnosis Logic ....................................112
Possible Cause .....................................................112
DTC Confirmation Procedure ...............................112
Diagnostic Procedure ...........................................113
DTC P0725 ENGINE SPEED SIGNAL ...................115
Description ............................................................115
CONSULT-II Reference Value ..............................115
On Board Diagnosis Logic ....................................115
Possible Cause .....................................................115
DTC Confirmation Procedure ...............................115
Diagnostic Procedure ...........................................115
DTC P0740 TORQUE CONVERTER CLUTCH
SOLENOID VALVE .................................................118
Description ............................................................118
CONSULT-II Reference Value ..............................118
On Board Diagnosis Logic ....................................118
Possible Cause .....................................................118
DTC Confirmation Procedure ...............................118
Diagnostic Procedure ...........................................119
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP) .121
Description ............................................................121
CONSULT-II Reference Value ..............................121
On Board Diagnosis Logic ....................................121
Possible Cause .....................................................121
DTC Confirmation Procedure ...............................121
Diagnostic Procedure ...........................................122
DTC P0745 LINE PRESSURE SOLENOID VALVE .124
Description ............................................................124
CONSULT-II Reference Value ..............................124
On Board Diagnosis Logic ....................................124
Possible Cause .....................................................124
DTC Confirmation Procedure ...............................124
Diagnostic Procedure ...........................................125
DTC P1702 TRANSMISSION CONTROL MODULE
(RAM) ......................................................................127
Description ............................................................127
On Board Diagnosis Logic ....................................127
Possible Cause .....................................................127
DTC Confirmation Procedure ...............................127
Diagnostic Procedure ...........................................127
DTC P1703 TRANSMISSION CONTROL MODULE
(ROM) ......................................................................128
Description ............................................................128
On Board Diagnosis Logic ....................................128
Possible Cause .....................................................128
DTC Confirmation Procedure ...............................128
Diagnostic Procedure ...........................................128
DTC P1705 THROTTLE POSITION SENSOR .......129
Description ............................................................129
CONSULT-II Reference Value ..............................129On Board Diagnosis Logic .................................... 129
Possible Cause ..................................................... 129
DTC Confirmation Procedure ................................ 129
Diagnostic Procedure ............................................ 129
DTC P1710 A/T FLUID TEMPERATURE SENSOR
CIRCUIT .................................................................. 131
Description ............................................................ 131
CONSULT-II Reference Value ............................... 131
On Board Diagnosis Logic .................................... 131
Possible Cause ..................................................... 131
DTC Confirmation Procedure ................................ 131
Diagnostic Procedure ............................................ 132
Component Inspection .......................................... 133
DTC P1716 TURBINE REVOLUTION SENSOR .... 134
Description ............................................................ 134
CONSULT-II Reference Value ............................... 134
On Board Diagnosis Logic .................................... 134
Possible Cause ..................................................... 134
DTC Confirmation Procedure ................................ 134
Diagnostic Procedure ............................................ 135
DTC P1721 VEHICLE SPEED SENSOR MTR ....... 136
Description ............................................................ 136
CONSULT-II Reference Value ............................... 136
On Board Diagnosis Logic .................................... 136
Possible Cause ..................................................... 136
DTC Confirmation Procedure ................................ 136
Diagnostic Procedure ............................................ 137
DTC P1730 A/T INTERLOCK ................................. 139
Description ............................................................ 139
On Board Diagnosis Logic .................................... 139
Possible Cause ..................................................... 139
DTC Confirmation Procedure ................................ 139
Judgement of A/T Interlock ................................... 140
Diagnostic Procedure ............................................ 140
DTC P1731 A/T 1ST ENGINE BRAKING ............... 142
Description ............................................................ 142
CONSULT-II Reference Value ............................... 142
On Board Diagnosis Logic .................................... 142
Possible Cause ..................................................... 142
DTC Confirmation Procedure ................................ 142
Diagnostic Procedure ............................................ 143
DTC P1752 INPUT CLUTCH SOLENOID VALVE .. 145
Description ............................................................ 145
CONSULT-II Reference Value ............................... 145
On Board Diagnosis Logic .................................... 145
Possible Cause ..................................................... 145
DTC Confirmation Procedure ................................ 145
Diagnostic Procedure ............................................ 146
DTC P1754 INPUT CLUTCH SOLENOID VALVE
FUNCTION .............................................................. 148
Description ............................................................ 148
CONSULT-II Reference Value ............................... 148
On Board Diagnosis Logic .................................... 148
Possible Cause ..................................................... 148
DTC Confirmation Procedure ................................ 148
Diagnostic Procedure ............................................ 149
DTC P1757 FRONT BRAKE SOLENOID VALVE ... 151
Description ............................................................ 151
CONSULT-II Reference Value ............................... 151
Page 75 of 3371
AT-4Revision: August 20072004 QX56 A/T Does Not Shift: 2nd gear → 1st gear .............227
Vehicle Does Not Decelerate By Engine Brake ....230
SHIFT CONTROL SYSTEM ....................................233
Control Device Removal and Installation ..............233
Adjustment of A/T Position ...................................234
Checking of A/T Position ......................................234
A/T SHIFT LOCK SYSTEM .....................................236
Description ............................................................236
Shift Lock System Electrical Parts Location .........236
Wiring Diagram — A/T — SHIFT ..........................237
Shift Lock Control Unit Reference Values .............238
Component Inspection ..........................................239
ON-VEHICLE SERVICE ..........................................241
Control Valve With TCM and A/T Fluid Temperature
Sensor 2 ...............................................................241
Rear Oil Seal ........................................................252
AIR BREATHER HOSE ...........................................253
Removal and Installation ......................................253
TRANSMISSION ASSEMBLY ................................255
Removal and Installation (4x2) .............................255
Removal and Installation (4x4) .............................258
OVERHAUL .............................................................261
Components .........................................................261
Oil Channel ...........................................................269
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings ..........................271
DISASSEMBLY .......................................................273
Disassembly .........................................................273REPAIR FOR COMPONENT PARTS ...................... 290
Oil Pump ............................................................... 290
Front Sun Gear, 3rd One-Way Clutch ................... 292
Front Carrier, Input Clutch, Rear Internal Gear ..... 295
Mid Sun Gear, Rear Sun Gear, High and Low
Reverse Clutch Hub .............................................. 300
High and Low Reverse Clutch .............................. 305
Direct Clutch ......................................................... 307
ASSEMBLY ............................................................. 309
Assembly (1) ......................................................... 309
Adjustment ............................................................ 322
Assembly (2) ......................................................... 324
SERVICE DATA AND SPECIFICATIONS (SDS) .... 331
General Specifications .......................................... 331
Vehicle Speed When Shifting Gears ..................... 331
Vehicle Speed When Performing and Releasing
Complete Lock-up ................................................. 332
Vehicle Speed When Performing and Releasing
Slip Lock-up .......................................................... 332
Stall Speed ............................................................ 332
Line Pressure ........................................................ 332
A/T Fluid Temperature Sensor .............................. 332
Turbine Revolution Sensor .................................... 332
Vehicle Speed Sensor A/T (Revolution Sensor) ... 332
Reverse brake ....................................................... 333
Total End Play ....................................................... 333
Page 84 of 3371
A/T FLUID
AT-13
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
A/T FLUIDPFP:KLE40
Changing A/T FluidUCS002C8
1. Increase ATF temperature by 80°C (176°F) once.
2. Stop engine.
3. Remove the tightening bolt for ATF level gauge.
4. Drain ATF from drain plug and refill with new ATF. Always refill same volume with drained fluid.
To replace the ATF, pour in new fluid at the charging pipe with the engine idling and at the same time
drain the old fluid from the radiator cooler hose return side.
When the color of the fluid coming out is about the same as the color of the new fluid, the replacement
is complete. The amount of new transmission fluid to use should be 30 to 50% increase of the stipu-
lated amount.
CAUTION:
Use only Genuine NISSAN ATF Matic Fluid J. Do not mix with other fluid.
Using automatic transmission fluid other than Genuine NISSAN ATF Matic Fluid J will cause
deterioration in driveability and automatic transmission durability, and may damage the auto-
matic transmission, which is not covered by the warranty.
When filling ATF, take care not to scatter heat generating parts such as exhaust.
5. Increase ATF temperature by 80°C (176°F) once.
6. Check fluid level and condition. Refer to AT-13, "
Checking A/T Fluid" . If fluid is still dirty, repeat step 2.
through 5.
7. Install the removed ATF level gauge in the fluid charging pipe.
Checking A/T FluidUCS002C9
1. Warm up engine.
2. Check for fluid leakage.
3. Remove the tightening bolt for ATF level gauge.
4. Before driving, fluid level can be checked at fluid temperatures of 30° to 50°C (86° to 122°F) using
“COLD” range on ATF level gauge as follows.
a. Park vehicle on level surface and set parking brake.
b. Start engine and move selector lever through each gear position. Leave selector lever in “P” position.
c. Check fluid level with engine idling.
d. Remove ATF level gauge and wipe clean with lint-free paper.
CAUTION:
When wiping away the fluid level gauge, always use lint-free paper, not a cloth one.
e. Re-insert ATF level gauge into charging pipe as far as it will go.
CAUTION:
To check fluid level, insert the ATF level gauge until the cap contacts the end of the charging pipe,
with the gauge reversed from the normal attachment conditions.
f. Remove ATF level gauge and note reading. If reading is at low side of range, add fluid to the charging
pipe.
CAUTION:
Do not overfill.
5. Increase ATF temperature by 80°C (176°F) once. ATF: NISSAN Matic Fluid J
Fluid capacity: 10.6 (11-1/4 US qt, 9-3/8 lmp qt)
Drain plug:
: 34 N·m (3.5 kg-m, 25 ft-lb)
Level gauge bolt:
: 5.1 N·m (0.52 kg-m, 45 in-lb)
Page 86 of 3371
A/T FLUID
AT-15
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
A/T Fluid Cooler CleaningUCS002CA
Whenever an automatic transmission is repaired, overhauled, or replaced, the A/T fluid cooler mounted in the
radiator must be inspected and cleaned.
Metal debris and friction material, if present, can become trapped in the A/T fluid cooler. This debris can con-
taminate the newly serviced A/T or, in severe cases, can block or restrict the flow of A/T fluid. In either case,
malfunction of the newly serviced A/T may result.
Debris, if present, may build up as A/T fluid enters the cooler inlet. It will be necessary to back flush the cooler
through the cooler outlet in order to flush out any built up debris.
A/T FLUID COOLER CLEANING PROCEDURE
1. Position an oil pan under the automatic transmission's inlet and outlet cooler hoses.
2. Identify the inlet and outlet fluid cooler hoses.
3. Disconnect the fluid cooler inlet and outlet rubber hoses from the
steel cooler tubes or bypass valve.
NOTE:
Replace the cooler hoses if rubber material from the hose
remains on the tube fitting.
4. Allow any A/T fluid that remains in the cooler hoses to drain into
the oil pan.
5. Insert the extension adapter hose of a can of Transmission
Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-
let hose.
CAUTION:
Wear safety glasses and rubber gloves when spraying
the Transmission Cooler Cleaner.
Spray cooler cleaner only with adequate ventilation.
Avoid contact with eyes and skin.
Do not breath vapors or spray mist.
6. Hold the hose and can as high as possible and spray Transmis-
sion Cooler Cleaner in a continuous stream into the cooler outlet
hose until fluid flows out of the cooler inlet hose for 5 seconds.
7. Insert the tip of an air gun into the end of the cooler outlet hose.
8. Wrap a shop rag around the air gun tip and of the cooler outlet
hose.
9. Blow compressed air regulated to 5 - 9 kg/cm
2 (70 - 130 psi) through the cooler outlet hose for 10 sec-
onds to force out any remaining fluid.
10. Repeat steps 5 through 9 three additional times.
11. Position an oil pan under the banjo bolts that connect the fluid cooler steel lines to the transmission.
12. Remove the banjo bolts.
13. Flush each steel line from the cooler side back toward the transmission by spraying Transmission Cooler
Cleaner in a continuous stream for 5 seconds.
SCIA3830E
SCIA3831E
SCIA3832E
Page 87 of 3371
AT-16
A/T FLUID
Revision: August 20072004 QX56
14. Blow compressed air regulated to 5 - 9 kg/cm2 (70 - 130 psi) through each steel line from the cooler side
back toward the transmission for 10 seconds to force out any remaining fluid.
15. Ensure all debris is removed from the steel cooler lines.
16. Ensure all debris is removed from the banjo bolts and fittings.
17. PerformAT-16, "
A/T FLUID COOLER DIAGNOSIS PROCEDURE" .
A/T FLUID COOLER DIAGNOSIS PROCEDURE
NOTE:
Insufficient cleaning of the cooler inlet hose exterior may lead to inaccurate debris identification.
1. Position an oil pan under the automatic transmission's inlet and outlet cooler hoses.
2. Clean the exterior and tip of the cooler inlet hose.
3. Insert the extension adapter hose of a can of Transmission
Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-
let hose.
CAUTION:
Wear safety glasses and rubber gloves when spraying
the Transmission Cooler Cleaner.
Spray cooler cleaner only with adequate ventilation.
Avoid contact with eyes and skin.
Do not breath vapors or spray mist.
4. Hold the hose and can as high as possible and spray Transmis-
sion Cooler Cleaner in a continuous stream into the cooler outlet
hose until fluid flows out of the cooler inlet hose for 5 seconds.
5. Tie a common white, basket-type coffee filter to the end of the
cooler inlet hose.
6. Insert the tip of an air gun into the end of the cooler outlet hose.
7. Wrap a shop rag around the air gun tip and end of cooler outlet
hose.
8. Blow compressed air regulated to 5 - 9 kg/cm
2 (70 - 130 psi)
through the cooler outlet hose to force any remaining A/T fluid
into the coffee filter.
9. Remove the coffee filter from the end of the cooler inlet hose.
10. Perform AT - 1 7 , "
A/T FLUID COOLER INSPECTION PROCE-
DURE" .
