IDX-4
ALPHABETICAL INDEX
E
ECM input/output signal ..................... EC-105
, EC-129
ECM power supply ............................. EC-145, EC-453
ECM relay ........................................................ EC-145
ECM/PW - Wiring diagram ............................... EC-454
ECTS - Wiring diagram .................................... EC-194
Electric sunroof .................................................. RF-10
Electric throttle control actuator ......... EC-534, EC-545
Electrical load signal circuit .............................. EC-596
Electrical units location ...................................... PG-65
Electronic ignition (EI) system ........................... EC-26
Engine control circuit diagram ......................... EC-103
Engine control component parts location ........... EC-96
Engine control module (ECM) .......................... EC-457
Engine control system diagram ......................... EC-23
Engine coolant .................................................. CO-10
Engine coolant temperature sensor (ECTS) ... EC-192,
EC-205
Engine fail-safe system ...................................... EC-91
Engine oil ............................................................. LU-7
Engine oil filter replacement ............................. MA-17
Engine oil precautions .......................................... GI-7
Engine oil replacement ..................................... MA-17
Engine removal ................................................. EM-74
Engine room cover ............................................ EM-12
Engine serial number .......................................... GI-49
ETC1 - Wiring diagram .................................... EC-535
ETC2 - Wiring diagram .................................... EC-530
ETC3 - Wiring diagram .................................... EC-541
EVAP canister .................................................... EC-35
EVAP canister purge volume control solenoid valve ....
EC-373
, EC-381
EVAP canister vent control valve ....... EC-388, EC-395
EVAP control system (small leak) diagnosis .. EC-365,
EC-419
, EC-427
EVAP control system pressure sensor .... EC-402, EC-
405, EC-411
EVAP control system purge flow monitoring diagnosis
EC-360
EVAP vapor lines inspection ............................. MA-20
Evaporative emission (EVAP) system ............... EC-32
Evaporator ..................................................... ATC-184
Exhaust manifold .............................................. EM-21
Exhaust system ................................................... EX-3
Exhaust system inspection .................................. EX-3
Expansion valve ............................................. ATC-186
F
F/FOG - Wiring diagram ..................................... LT-71
F/PUMP - Wiring diagram ................................ EC-605
Final drive pre-inspection ................................. FFD-15
Final drive removal and installation .. FFD-12, RFD-13
Flow charts ......................................................... GI-28
Fluid temperature sensor (A/T) ........................ AT-127
Fluids ................................................................ MA-11
Fluorescent leak detector .............................. ATC-187
Fog lamp, front .................................................... LT-69
Fog lamp, front, removal and installation ........... LT-79
Foot lamp ......................................................... LT-135
Freeze frame data ............................... EC-53, EC-118
Front brake solenoid valve ................. AT-143, AT-145
Front bumper ...................................................... EI-13
Front case (Transfer) .......................... TF-149, TF-176
Front combination lamp removal and installation LT-31
Front door ............................. BL-128, BL-131, GW-65
Front Door Trim ................................................... EI-32
Front drive shaft (Transfer) ................. TF-149, TF-176
Front fog lamp .................................................... LT-69
Front fog lamp removal and installation ............. LT-79
Front passenger air bag .................................. SRS-50
Front seat ........................................................... SE-91
Front seat belt ...................................................... SB-3
Front seat belt pre-tensioner ............... SRS-3, SRS-57
Front washer ...................................................... WW-4
Front wiper ......................................................... WW-4
FTS - Wiring diagram ....................................... AT-128
FTTS - Wiring diagram ...................... EC-311, EC-316
Fuel cut control (at no load high engine speed) EC-27
Fuel filter replacement ......................................... FL-6
Fuel gauge ............................................................ DI-5
Fuel injection system (Bank 1) .......... EC-288, EC-299
Fuel injection system (Bank 2) .......... EC-288, EC-299
Fuel injector .................................................... EC-598
Fuel injector and fuel tube ................................. EM-31
Fuel level sensor ................. EC-436, EC-438, EC-440
Fuel line inspection .............................................. FL-4
Fuel precautions ................................................... GI-5
Fuel pressure check .......................................... EC-80
Fuel pressure release ....................................... EC-80
Fuel pump ....................................................... EC-604
Fuel pump and gauge .......................................... FL-6
Fuel system .......................................................... FL-4
Fuel tank ............................................................ FL-10
Fuel tank temperature sensor ........... EC-309, EC-315
Fuel tank vacuum relief valve ........................... EC-35
FUELB1 - Wiring diagram ................. EC-290, EC-301
FUELB2 - Wiring diagram ................. EC-292, EC-303
Fuse ...................................................... PG-17, PG-77
Fuse and fusible link box .................................. PG-77
Fuse block ......................................................... PG-76
Fusible link ............................................ PG-17, PG-77
G
Garage jack and safety stand ............................. GI-41
Gauges ................................................................. DI-5
Generator .......................................................... SC-17
Generic scan tool (GST) ................................. EC-127
Glass ...................................... GW-11, GW-65, GW-68
Glove box lamp ................................................ LT-158
GPS antenna ..................................................... AV-85
Grease .............................................................. MA-11
Ground distribution ............................................ PG-31

IDX-5
A
C
D E
F
G H
I
J
K L
B
IDX
ALPHABETICAL INDEX
H
H/AIM - Wiring diagram ...................................... LT-66
H/LAMP - Wiring diagram .................................... LT-9
Handling precautions for plastics ..................... BL-187
Harness connector ............................................ PG-68
Harness layout .................................................. PG-41
Hazard warning lamp ......................................... LT-80
Headlamp ............................................................. LT-5
Headlamp aiming control ................................... LT-66
Headlamp leveler - See Headlamp aiming control . LT-
66
Headlamp removal and installation .................... LT-31
Heated oxygen sensor 2 (bank 1) .... EC-253, EC-264,
EC-277
Heated oxygen sensor 2 (bank 2) .... EC-253, EC-264,
EC-277
Heated oxygen sensor 2 heater (bank 1) ........ EC-163
Heated oxygen sensor 2 heater (bank 2) ........ EC-163
Heated seat ....................................................... SE-84
Heater and cooling unit (Heater core) . ATC-153, ATC-
156
Heater unit (heater core) ............... ATC-153, ATC-156
Height (Dimensions) ........................................... GI-50
HFC134a (R134a) system identification ........... ATC-6
HFC134a (R134a) system precaution ............... ATC-5
HFC134a (R134a) system service procedure ATC-171
HFC134a (R134a) system service tools ......... ATC-14
HFC134a system service equipment precaution ATC-
11
High and low reverse clutch solenoid valve .... AT-151,
AT-153
Homelink universal transceiver ........................ BL-156
Horn ................................................................ WW-55
HORN - Wiring diagram .................................. WW-55
How to erase DTC for OBD system .................. EC-61
HSEAT - Wiring diagram ................................... SE-86
I
IATS - Wiring diagram ..................................... EC-189
ICC - Wiring diagram ....................................... ACS-20
ICC/BS - Wiring diagram ................................. EC-504
ICC/SW - Wiring diagram ................................ EC-489
ICCBOF - Wiring diagram ............................... EC-611
Identification plate .............................................. GI-48
Idle air volume learning ..................................... EC-78
Idle speed .............................................. EC-71, EC-76
Idle speed control (ISC) .................... EC-444, EC-446
Ignition coil .......................................... EM-28, EC-618
Ignition control system .................................... EC-618
Ignition key hole illumination ............................ LT-134
Ignition timing ........................................ EC-71, EC-76
IGNSYS - Wiring diagram ............................... EC-619
ILL - Wiring diagram ......................................... LT-163
Illumination ....................................................... LT-157
In vehicle sensor ........................... ATC-137, ATC-146
In-cabin Microfilter ............................................. MA-21
INJECT - Wiring diagram ................................ EC-599
Injector ............................................................. EC-598
Input clutch solenoid valve ................. AT-139, AT-141
Instrument panel .................................................. IP-10
Intake air temperature sensor ............ EC-188, EC-208
Intake door control linkage adjustment . ATC-85, ATC-
88
Intake door motor ........................... ATC-83, ATC-160
Intake manifold .................................................. EM-17
Intake sensor ................................ ATC-142, ATC-148
Integrated homelink transmitter - See Homelink univer-
sal tranceiver .................................................... BL-156
Intelligent cruise control (ICC) system ............... ACS-6
Interior ................................................................. EI-35
Interior lamp ...................................................... LT-134
Interior lamp on-off control ................................ LT-135
Internal gear (Transfer) ....................... TF-149, TF-176
IPDM (Intelligent power distribution module engine
room) ................................................................. PG-18
IVIS (Infiniti vehicle immobilizer system) .......... BL-137
IVIS (Infiniti vehicle immobilizer system) precautions ...
GI-3
J
Jacking points ..................................................... GI-41
Junction box (J/B) .............................................. PG-76
K
Key illumination ................................................ LT-135
KEYLES - Wiring diagram .................................. BL-49
Knock sensor (KS) ........................................... EC-335
KS - Wiring diagram ........................................ EC-336
L
Laser beam aiming adjustment ....................... ACS-12
Length (Dimensions) .......................................... GI-50
License lamp .................................................... LT-111
Lifting points ....................................................... GI-42
Line pressure solenoid valve ........................... AT-122
Line pressure switch (Transfer) .......... TF-154, TF-167
Line pressure test (A/T) ..................................... AT-52
Location of electrical units ................................. PG-65
Low coast brake solenoid valve .......... AT-155, AT-157
Low tire pressure warning system ...................... WT-8
Low tire pressure warning system - trouble diagnoses
WT-11
Low tire pressure warning system - Wiring diagram .....
WT-11
Lubricant (R134a) A/C ..................................... ATC-22
Lubricants .......................................................... MA-11
Lubrication circuit (engine) .................................. LU-5
Lubrication oil A/C ........................................... ATC-22
Lubrication-locks, hinges and hood latches ....... MA-31
M
MAFS - Wiring diagram ..................... EC-174
, EC-182

IDX-6
ALPHABETICAL INDEX
Magnet clutch ............................... ATC-115, ATC-176
MAIN - Wiring diagram ...................... EC-145, AT-167
Main oil pump (Transfer) ..................... TF-154, TF-167
Mainshaft (Transfer) ........................... TF-154, TF-167
Maintenance (engine)Schedule 1 ....................... MA-7
Maintenance (engine)Schedule 2 ....................... MA-9
Major overhaul (Final drive) ............................. FFD-14
Major overhaul (Transfer) ................................ TF-146
Malfunction indicator lamp (MIL) ........................ EC-63
Map lamp .......................................................... LT-135
Mass air flow sensor (MAFS) ............. EC-171, EC-180
Meter ..................................................................... DI-5
METER - Wiring diagram .................................... DI-10
MIL data link connectors circuit ....................... EC-635
MIL/DL - Wiring diagram .................................. EC-635
MIRROR - Wiring diagram ................................ GW-93
Misfire .............................................................. EC-327
Mode door control linkage adjustment ............. ATC-66
Mode door motor ............................ ATC-64, ATC-161
Model variation ................................................... GI-47
Multiport fuel injection (MFI) system .................. EC-24
Multiport fuel injection precautions ....................... GI-6
Multi-remote control system - See Remote keyless entry
system ............................................................... BL-44
N
NATS - Wiring diagram .................................... BL-140
NAVI - Wiring diagram ....................................... AV-89
NAVI Control Unit .............................................. AV-86
Navigation system ............................................. AV-84
Neutral-4LO switch ............................................ TF-62
NONDTC - Wiring diagram .............................. AT-176
NVH troubleshooting (AX) ................................. FAX-4
NVH troubleshooting (EM) ................................ EM-10
NVH troubleshooting (Final drive) ..................... RFD-7
NVH troubleshooting (Propeller shaft) ................. PR-3
NVH troubleshooting (RAX) .............................. RAX-4
NVH troubleshooting (RSU) .............................. RSU-5
NVH troubleshooting (ST) .................................... PS-5
NVH troubleshooting (Transfer) ......................... TF-10
NVH troubleshooting (WT)NVH troubleshooting (WT) .
WT-4
NVIS (Nissan vehicle immobilizer system) precautions
GI-3
O
O2H2B1 - Wiring diagram ................................ EC-165
O2H2B2 - Wiring diagram ................................ EC-167
O2S2B1 - Wiring diagram ... EC-256, EC-267, EC-280
O2S2B2 - Wiring diagram ... EC-258, EC-269, EC-282
Oil cooler (engine) ............................................. LU-11
Oil filter ............................................................... LU-10
Oil filter (Transfer) ............................................ TF-143
Oil pan (engine) ................................................ EM-24
Oil pressure (engine) ........................................... LU-7
Oil pressure relief valve (engine) ......................... LU-5
Oil pump (engine) .............................................. LU-13
Oil seal replacement (engine) ........................... EM-60
Oil seal replacement (front of final drive) FFD-8, RFD-9
Oil seal replacement (side of final drive) ......... RFD-11
On board diagnostic system ............................. EC-48
ORVR (On-board Refueling Vapor Recovery) .. EC-39
Overheat ......................................................... EC-473
P
P/SCKT - Wiring diagram ................................. WW-53
Pantograph jack .................................................. GI-41
Park/Neutral position switch ............................ EC-465
Parking brake control ........................................... PB-4
PCV (positive crankcase ventilation) ................ EC-45
Periodic maintenance ......................................... MA-7
Personal lamp .................................................. LT-135
PGC/V - Wiring diagram ................... EC-375, EC-383
PHASE - Wiring diagram ................................ EC-349
PHONE - Wiring diagram ................................... AV-67
Pinion bearing preload diff. ............................. RFD-26
Piston pin inspection ......................................... EM-94
Piston ring inspection ........................................ EM-95
Piston to bore clearance ................................... EM-99
Planetary carrier (Transfer) ................. TF-149, TF-176
PNP/SW - Wiring diagram ... EC-467, AT-105, AT-106
POS - Wiring diagram ..................................... EC-342
POWER - Wiring diagram ................................... PG-6
Power door lock ................................................. BL-16
Power seat ......................................................... SE-83
Power steering fluid level .................................. MA-29
Power steering gear ........................................... PS-15
Power steering oil pump .................................... PS-21
Power steering pressure (PSP) sensor ........... EC-448
Power steering system bleeding .......................... PS-6
Power supply routing .......................................... PG-4
Power window .................................................. GW-15
PRE/SE - Wiring diagram ................. EC-407, EC-413
Precautions (General) ........................................... GI-4
Precautions in repairing high strength steel ..... BL-190
Pressure switch 1 ............................... AT-145, AT-159
Pressure switch 2 ............................................. AT-157
Pressure switch 3 ............................... AT-141, AT-161
Pressure switch 5 ............................... AT-149, AT-163
Pressure switch 6 ............................... AT-153, AT-165
Pressure test (A/T) ............................................. AT-52
Propeller shaft ........................................... PR-4, PR-8
Propeller shaft inspection .................................. MA-25
Propeller shaft on vehicle service ....................... PR-8
Propeller shaft vibration ............................ PR-4, PR-8
PS/SEN - Wiring diagram ............................... EC-449
R
R/VIEW - Wiring diagram .................................... DI-76
Radiator ............................................................ CO-14
Rear Audio Remote Control Unit ......................... AV-8
Rear axle ........................................................... RAX-5
Rear bumper ....................................................... EI-15
Rear case (Transfer) ........................... TF-148, TF-181

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
DE
F
G H
I
J
K L
M
SECTION
A
LU
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions for Liquid Gasket ............................. ..... 2
REMOVAL OF LIQUID GASKET SEALING ..... ..... 2
LIQUID GASKET APPLICATION PROCEDURE ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tool .................................... ..... 4
LUBRICATION SYSTEM ....................................... ..... 5
Lubrication Circuit ............................................... ..... 5
System Drawing ....................................................... 6
ENGINE OIL .......................................................... ..... 7
Inspection ............................................................ ..... 7
OIL LEVEL ............................................................ 7
OIL APPEARANCE .......................................... ..... 7
OIL LEAKAGE .................................................. ..... 7
OIL PRESSURE CHECK ...................................... 7
Changing Engine Oil ........................................... ..... 8
OIL FILTER ............................................................ ... 10
Removal and Installation ..................................... ... 10
REMOVAL ........................................................ ... 10
INSTALLATION ................................................ ... 10
INSPECTION AFTER INSTALLATION ............ ... 10OIL COOLER .........................................................
... 11
Removal and Installation ..................................... ... 11
REMOVAL ........................................................ ... 11
INSPECTION AFTER REMOVAL .................... ... 11
INSTALLATION ................................................ ... 12
INSPECTION AFTER INSTALLATION ............. ... 12
OIL PUMP .............................................................. ... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSTALLATION ................................................ ... 13
INSPECTION AFTER INSTALLATION ............. ... 14
Disassembly and Assembly ................................. ... 14
DISASSEMBLY ................................................ ... 14
INSPECTION AFTER DISASSEMBLY ............. ... 14
ASSEMBLY ...................................................... ... 15
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 16
Standard and Limit ............................................... ... 16
OIL PRESSURE ............................................... ... 16
OIL PUMP ........................................................ ... 16
REGULATOR VALVE ....................................... ... 16
ENGINE OIL CAPACITY (APPROXIMATE) ..... ... 16

PREPARATIONLU-3
C
DE
F
G H
I
J
K L
M A
LU
Revision: November 2009 2006 QX56
PREPARATIONPFP:00002
Special Service ToolsEBS00LMO
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool name Description
ST25051001
(J-25695-1)
Oil pressure gauge Measuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg/cm
2 , 356 psi)
ST25052000
(J-25695-2)
Hose Adapting oil pressure gauge to cylinder block
KV10111100
(J-37228)
Seal cutter Removing steel oil pan and rear timing chain
case
KV10115801
(J-38956)
Oil filter wrench Removing and installing oil filter
a: 64.3 mm (2.531 in)
WS39930000
(—)
Tube presser Pressing the tube of liquid gasket
S-NT050
S-NT559
NT046
S-NT375
S-NT052

LUBRICATION SYSTEMLU-5
C
DE
F
G H
I
J
K L
M A
LU
Revision: November 2009 2006 QX56
LUBRICATION SYSTEMPFP:15010

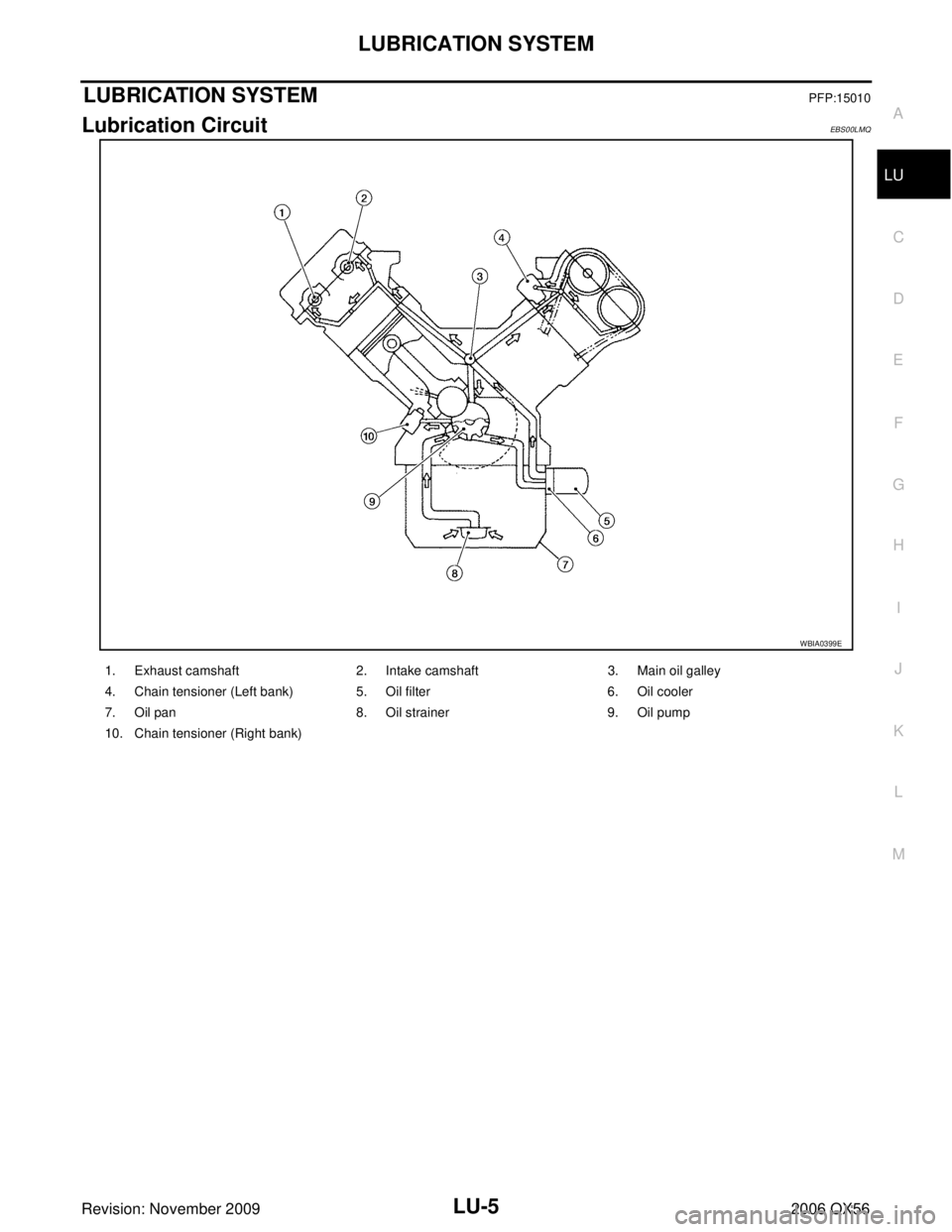

Lubrication CircuitEBS00LMQ
WBIA0399E
1. Exhaust camshaft2. Intake camshaft3. Main oil galley
4. Chain tensioner (Left bank) 5. Oil filter 6. Oil cooler
7. Oil pan 8. Oil strainer9. Oil pump
10. Chain tensioner (Right bank)

ENGINE OILLU-7
C
DE
F
G H
I
J
K L
M A
LU
Revision: November 2009 2006 QX56
ENGINE OILPFP:KLA92
InspectionEBS00LMS
OIL LEVEL

Before starting the engine make sure the vehicle is parked on a
flat and level surface, then check the oil level. If the engine is
already running, turn it off and allow 10 minutes before check-
ing.

Check that the oil level is within the low (L) and high (H) range
as indicated on the dipstick.

If the engine oil level is out of range, add oil as necessary. Refer
to GI-46, "
Recommended Chemical Products and Sealants" .
OIL APPEARANCE

Check the engine oil for a white milky appearance or excessive contamination.

If the engine oil is milky, it is highly probable that it is contaminated with engine coolant. Repair the broken
parts.
OIL LEAKAGE
Check for oil leakage around the following areas:

Oil pan

Oil pan drain plug

Oil pressure sensor

Oil filter

Oil cooler

Intake valve timing control cover

Intake valve timing control solenoid valve

Front cover

Mating surface between cylinder block and cylinder head

Mating surface between cylinder head and rocker cover

Crankshaft oil seal (front and rear)
OIL PRESSURE CHECK
CAUTION:

Be careful not to burn yourself, as engine oil may be hot.

Put the selector lever in the Park “P” position.
1. Check the engine oil level. Refer to LU-7, "
OIL LEVEL" .
2. Remove engine front undercover using power tool.
3. Disconnect the oil pressure sensor harness connector.
4. Remove the oil pressure sensor.
SMA954C
WBIA0538E

ENGINE OILLU-9
C
DE
F
G H
I
J
K L
M A
LU
Revision: November 2009 2006 QX56
Engine oil capacity (Approximate):
Unit: (US qt, Imp qt)
CAUTION:

The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.

Always use the oil level gauge to determine when the proper amount of engine oil is in the
engine.
8. Warm up engine and check area around drain plug and oil filter for oil leakage.
9. Stop engine and wait for 10 minutes.
10. Check engine oil level. Refer to LU-7, "
OIL LEVEL" .
Drain and refill With oil filter change
6.2 (6 1/2, 5-1/2)
Without oil filter change 5.9 (6-1/4, 5-1/4)
Dry engine (engine overhaul) 7.6 (8, 6-3/4)

LU-10Revision: November 2009
OIL FILTER
2006 QX56
OIL FILTERPFP:15208
Removal and InstallationEBS00LMU
REMOVAL
1. Remove the engine front undercover using power tool.
2. Remove the oil filter using Tool.WARNING:

The oil filter is provided with a relief valve.
Use Genuine NISSAN oil filter or equivalent.

When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.

Do not allow engine oil to adhere to the drive belts.

Completely wipe off any engine oil that adheres to the
engine and the vehicle.
CAUTION:

Be careful not to get burned when the engine and engine oil are hot.
INSTALLATION
1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply engine oil to the oil seal circumference of the new oil filter.
3. Screw the oil filter manually until it touches the installation sur- face, then tighten it by 2/3 turn. Or tighten to specification.
4. Inspect the engine for oil leakage. Refer to LU-10, "
INSPEC-
TION AFTER INSTALLATION" .
5. Install the engine front undercover using power tool.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level. Refer to LU-7, "OIL LEVEL" .
2. Start the engine and check for engine oil leakage.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level and add engine oil as required. Tool number : KV10115801 (J-38956)
WBIA0388E
SMA010
Oil filter : 17.7 N·m (1.8 kg-m, 13 ft-lb)
SMA229B

OIL COOLERLU-11
C
DE
F
G H
I
J
K L
M A
LU
Revision: November 2009 2006 QX56
OIL COOLERPFP:21305
Removal and InstallationEBS00LMV
CAUTION:
Be careful not to burn yourself, as the engine oil and engine coolant are hot.
REMOVAL
1. Remove engine front undercover using power tool.
2. Disconnect water hoses, pinching hoses near oil cooler to prevent engine coolant from spilling.
CAUTION:
Do not spill engine coolant on the drive belt.
3. Remove oil filter. Refer to LU-10, "
Removal and Installation" .
CAUTION:
Do not spill engine oil on the drive belts.
4. Remove connector bolt, and remove oil cooler.
INSPECTION AFTER REMOVAL
Oil Cooler
Check oil cooler for cracks. Check oil cooler for clogging by blowing compressed air through engine coolant
inlet. If necessary, replace oil cooler assembly.
Relief Valve
Inspect relief valve for movement, cracks and breaks by pushing the ball. If replacement is necessary, remove
valve by prying it out using a suitable tool. Install a new valve in place by tapping it.
WBIA0414E
1. Oil pan 2. Water hose3. Water pipe
4. Water hose 5. Oil cooler bolt6. Oil filter
7. Oil cooler 8. O-ring9. Relief valve
10. Water hose 11. Connector pipe12. Gasket
