diagram INFINITI QX56 2006 Factory Service Manual

GI-48
IDENTIFICATION INFORMATION
Revision: November 20092006 QX56
Identification NumberEAS001G3
VEHICLE IDENTIFICATION NUMBER ARRANGEMENT
1. Emission control information label 2. Tire placard3. F.M.V.S.S. certification label
4. Vehicle identification number plate 5. Vacuum hose diagram
WAIA0053E
Position Character Qualifier Definition
1 5N3 Manufacturer 5N3: USA produced multi-purpose vehicle
2
3
4 A Engine type A: VK56DE
5 A Vehicle line A: Infiniti QX56
6 0 Model change (0-9)
7 8 Body type 8: 4 door wagon
8A Gross vehicle
weight ratingA: 2WD, 4-wheel ABS, Class E
B: 4WD, 4-wheel ABS, Class E
9 * Check digit (0 to 9 or X) The code for the check digit is determined by a mathematical
computation.
10 6 Model year 2006
11 NManufacturing
plant N: Canton Mississippi
12
XXXXXVehicle serial num-
ber Chassis number
13
14
15
16
17

GW-1
GLASSES, WINDOW SYSTEM & MIRRORS
I BODY
CONTENTS
C
DE
F
G H
J
K L
M
SECTION
A
B
GW
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Handling for Adhesive and Primer ...................... ..... 3
PREPARATION ...................................................... ..... 4
Special Service Tool ............................................ ..... 4
Commercial Service Tool .................................... ..... 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ................................................................ 5 CUSTOMER INTERVIEW ................................ ..... 5
DUPLICATE THE NOISE AND TEST DRIVE .. ..... 6
CHECK RELATED SERVICE BULLETINS ...... ..... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ................................................. ..... 6
REPAIR THE CAUSE ...................................... ..... 6
CONFIRM THE REPAIR .................................. ..... 7
Generic Squeak and Rattle Troubleshooting ...... ..... 7
INSTRUMENT PANEL ..................................... ..... 7
CENTER CONSOLE ........................................ ..... 7
DOORS ............................................................ ..... 7
TRUNK ............................................................. ..... 8
SUNROOF/HEADLINER .................................. ..... 8
OVERHEAD CONSOLE (FRONT AND REAR) ..... 8
SEATS .............................................................. ..... 8
UNDERHOOD .................................................. ..... 8
Diagnostic Worksheet ......................................... ..... 9
WINDSHIELD GLASS ........................................... ....11
Removal and Installation ..................................... .... 11
REMOVAL ........................................................ .... 11
INSTALLATION ................................................ .... 11
REAR WINDOW GLASS AND MOLDING ............ ... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSTALLATION ................................................ ... 14
POWER WINDOW SYSTEM ................................. ... 15
Component Parts and Harness Connector Location ... 15
System Description ............................................. ... 16
MANUAL OPERATION .................................... ... 16
AUTO OPERATION ......................................... ... 18POWER WINDOW SERIAL LINK ....................
... 18
POWER WINDOW LOCK ................................ ... 19
RETAINED POWER OPERATION ................... ... 19
ANTI-PINCH SYSTEM ..................................... ... 19
POWER WINDOW CONTROL BY THE FRONT
DOOR LOCK ASSEMBLY LH (KEY CYLINDER
SWITCH) .......................................................... ... 19
CAN Communication System Description ........... ... 19
Schematic ............................................................ ... 20
Wiring Diagram — WINDOW — ............................. 22
Terminal and Reference Value for Main Power Win-
dow and Door Lock/Unlock Switch ...................... ... 30
Terminal and Reference Value for Power Window
and Door Lock/Unlock Switch RH .......................... 30
Terminal and Reference Value for BCM .............. ... 32
Work Flow ............................................................... 33
CONSULT-II Function (BCM) .............................. ... 33
CONSULT-II INSPECTION PROCEDURE ....... ... 33
ACTIVE TEST ..................................................... 34
WORK SUPPORT ............................................ ... 34
DATA MONITOR .............................................. ... 34
Trouble Diagnoses Symptom Chart .................... ... 35
BCM Power Supply and Ground Circuit Check ... ... 37
Main Power Window and Door Lock/Unlock Switch
Power Supply and Ground Circuit Check ............ ... 38
Power Window and Door Lock/Unlock Switch RH
Power Supply and Ground Circuit Check ............ ... 39
Front Power Window Motor LH Circuit Check ..... ... 40
Front Power Window Motor RH Circuit Check ....... 41
Limit Switch Circuit Check Front LH .................... ... 41
Limit Switch Circuit Check Front RH ................... ... 43
Encoder Circuit Check Front LH .......................... ... 44
Encoder Circuit Check Front RH ......................... ... 46
Door Switch Check ................................................. 48
Front Door Lock Assembly LH (Key Cylinder Switch)
Check .................................................................. ... 49
Power Window Serial Link Check Front LH and RH ... 51
Rear Power Window Control Unit LH or RH Power
Supply and Ground Circuit Check ....................... ... 53
Rear Power Window Switch LH or RH Power Supply

GW-2Revision: November 20092006 QX56
and Ground Circuit Check ...................................
... 54
Rear Power Window Motor LH Circuit Check ......... 54
Rear Power Window Motor RH Circuit Check ..... ... 55
Limit Switch Circuit Check Rear LH and RH ........ ... 56
Encoder Circuit Check Rear LH or RH ................ ... 58
Power Window Serial Link Check Rear LH or RH ... 59
Rear Power Vent Window Switch Circuit Check .. ... 60
Rear Power Vent Window Motor LH Circuit Check ... 61
Rear Power Vent Window Motor RH Circuit Check ... 61
Rear Power Vent Window Relay (OPEN) Check . ... 62
Rear Power Vent Window Relay (CLOSE) Check ... 63
FRONT DOOR GLASS AND REGULATOR .......... ... 65
Removal and Installation ..................................... ... 65
FRONT DOOR GLASS .................................... ... 65
FRONT DOOR GLASS REGULATOR ............. ... 66
SETTING AFTER INSTALLATION ................... ... 66
REAR DOOR GLASS AND REGULATOR ............ ... 68
Removal and Installation ..................................... ... 68
REAR DOOR GLASS ....................................... ... 68
REAR DOOR GLASS REGULATOR ................ ... 69
SETTING AFTER INSTALLATION ................... ... 70
SIDE WINDOW GLASS ............................................ 71 Removal and Installation ..................................... ... 71
REMOVAL ........................................................ ... 71
INSTALLATION ................................................. ... 71
INSIDE MIRROR ....................................................... 72 Wiring Diagram — I/MIRR — .............................. ... 72
Removal and Installation ..................................... ... 73
INSIDE MIRROR .............................................. ... 73
REAR WINDOW DEFOGGER ............................... ... 74
Component Parts and Harness Connector Location ... 74
System Description .............................................. ... 75
CAN Communication System Description ........... ... 75Schematic ............................................................
... 76
Wiring Diagram — DEF — ................................... ... 77
Terminal and Reference Value for BCM ............... ... 80
Terminal and Reference Value for IPDM E/R ....... ... 80
Work Flow ............................................................ ... 80
CONSULT-II Function (BCM) ............................... ... 81
CONSULT-II BASIC OPERATION PROCEDURE ... 81
DATA MONITOR ............................................... ... 82
ACTIVE TEST ................................................... ... 82
Trouble Diagnoses Symptom Chart ..................... ... 82
BCM Power Supply and Ground Circuit Check ... ... 84
Rear Window Defogger Switch Circuit Check ...... ... 85
Rear Window Defogger Circuit Check ................. ... 86
Door Mirror Defogger Power Supply Circuit Check ... 87
Door Mirror LH (Door Mirror Defogger) Circuit Check ... 89
Door Mirror RH (Door Mirror Defogger) Circuit
Check ................................................................... ... 90
Rear Window Defogger Signal Check ................. ... 90
Filament Check .................................................... ... 91
Filament Repair .................................................... ... 92
REPAIR EQUIPMENT ...................................... ... 92
REPAIRING PROCEDURE .............................. ... 92
DOOR MIRROR ...................................................... ... 93
Wiring Diagram — MIRROR — ........................... ... 93
Door Mirror Assembly .......................................... ... 94
REMOVAL ......................................................... ... 94
INSTALLATION ................................................. ... 94
Door Mirror Glass ................................................. ... 94
REMOVAL ......................................................... ... 94
INSTALLATION ................................................. ... 95

GW-22
POWER WINDOW SYSTEM
Revision: November 20092006 QX56

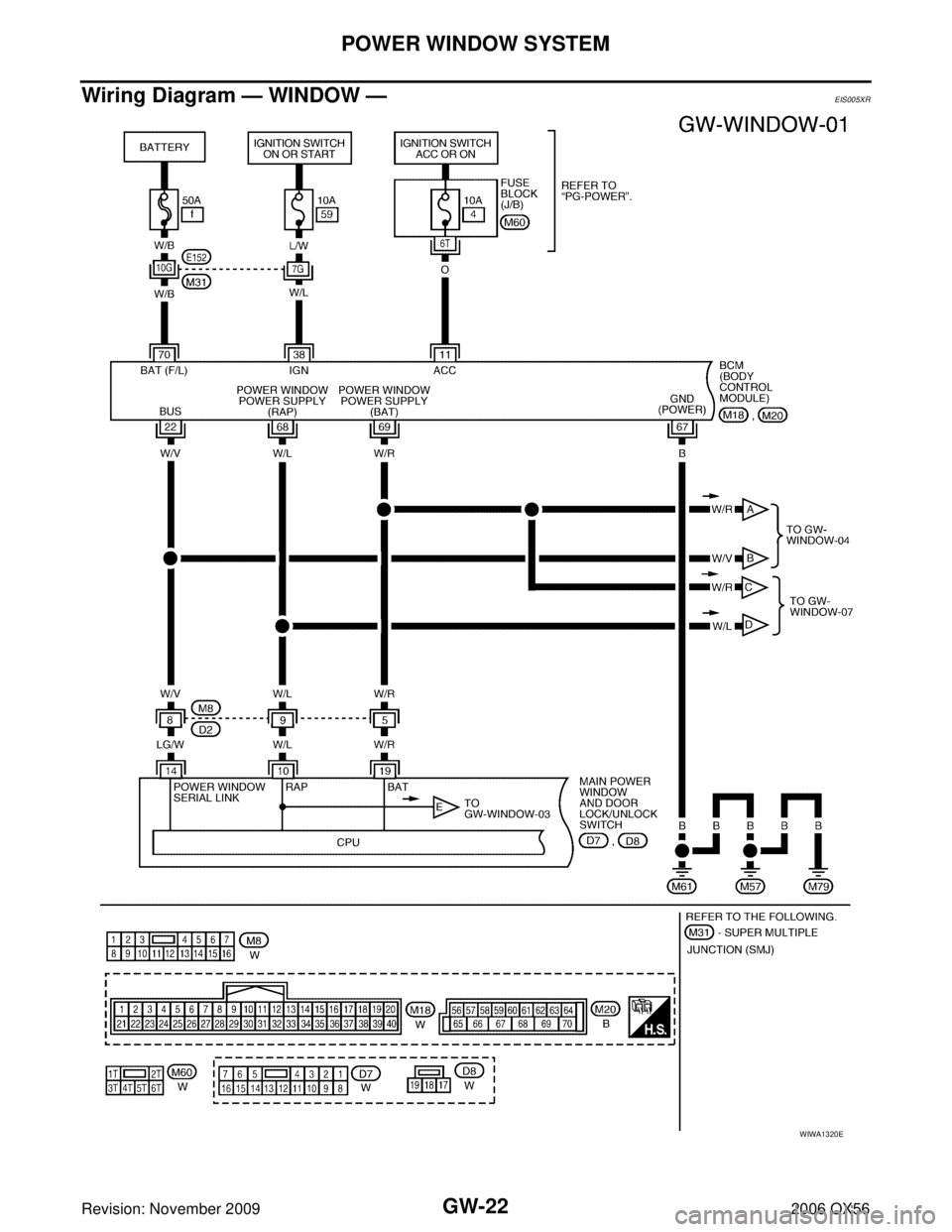

Wiring Diagram — WINDOW —EIS005XR
WIWA1320E

GW-72
INSIDE MIRROR
Revision: November 20092006 QX56
INSIDE MIRRORPFP:96321
Wiring Diagram — I/MIRR —EIS004UT
WIWA2214E

REAR WINDOW DEFOGGERGW-77
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56

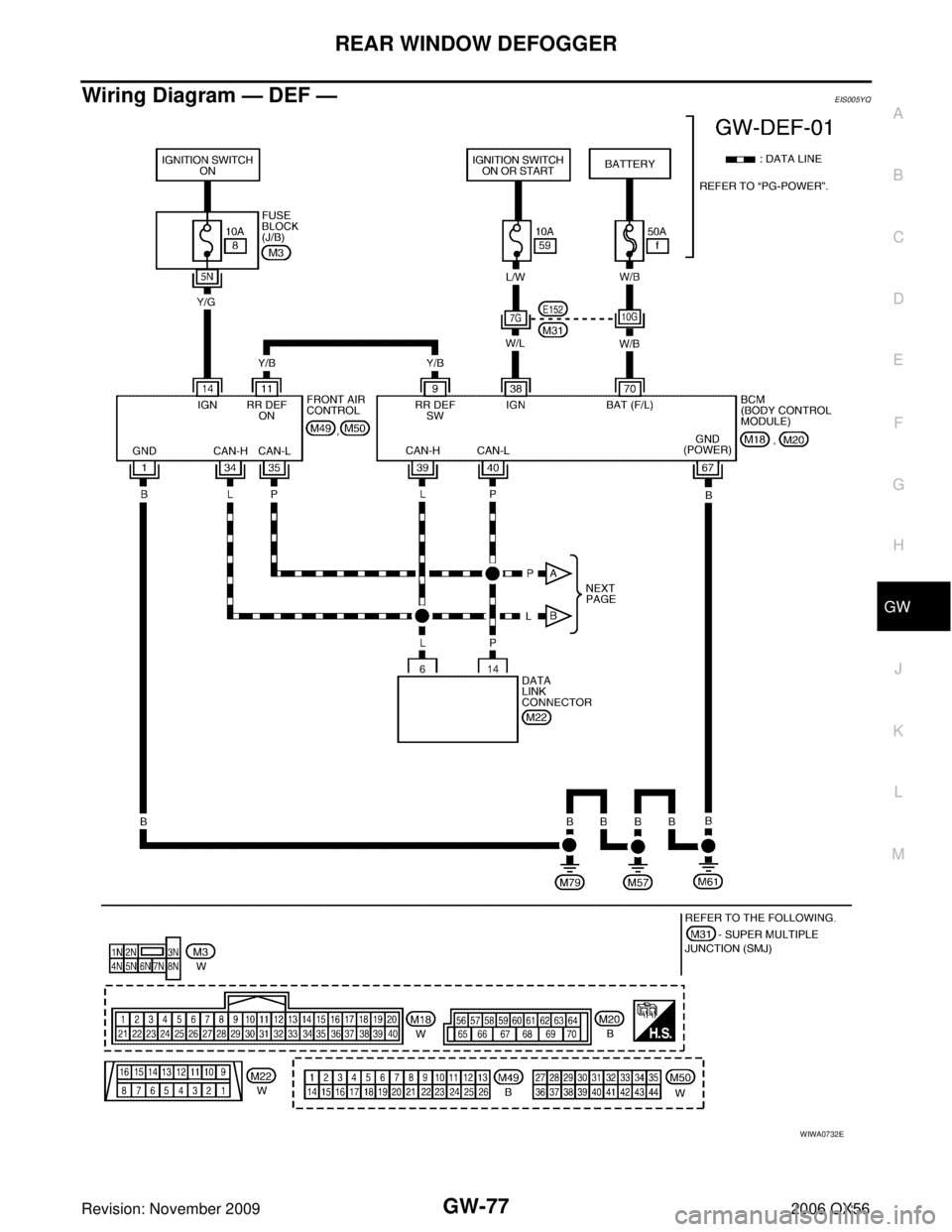

Wiring Diagram — DEF —EIS005YQ
WIWA0732E

DOOR MIRRORGW-93
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
DOOR MIRRORPFP:96301

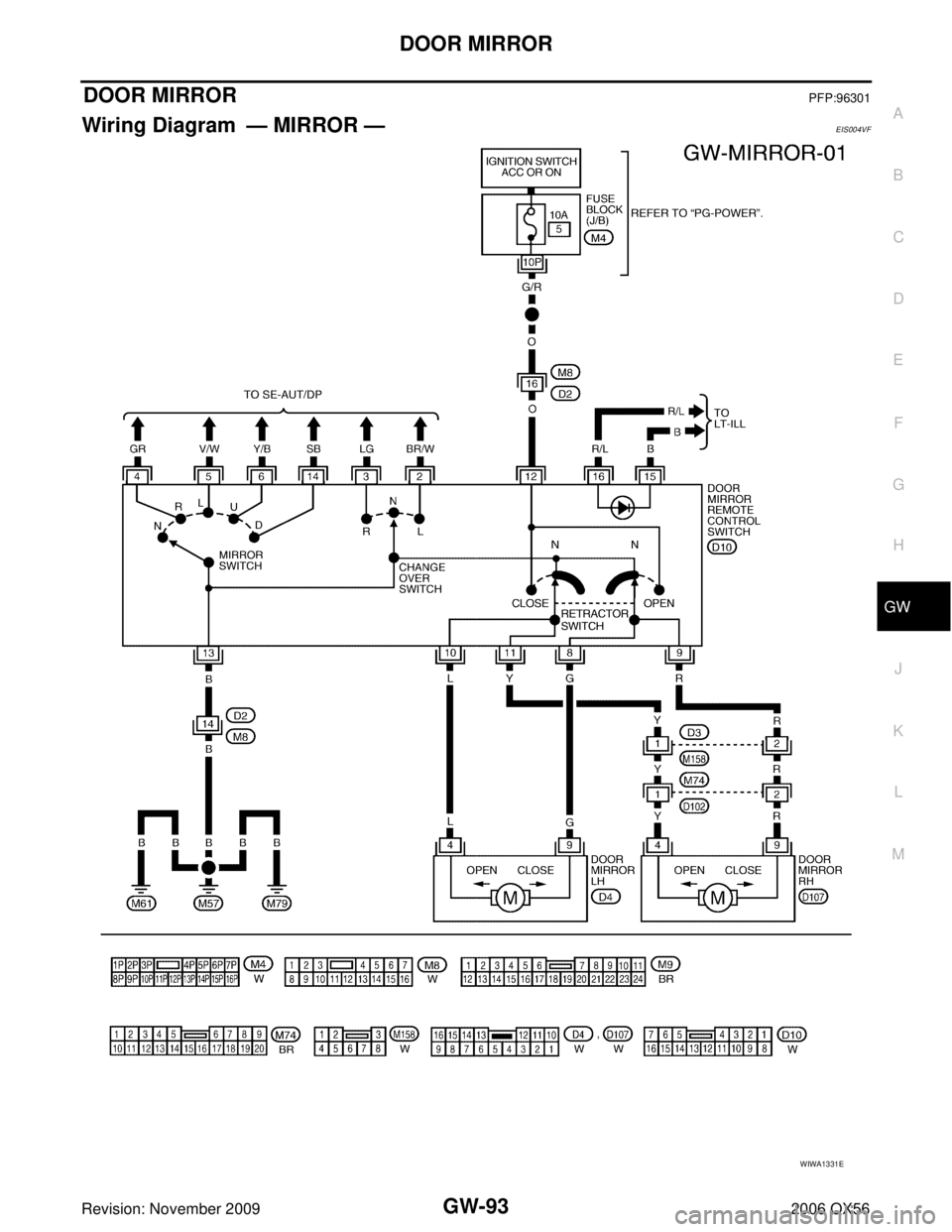

Wiring Diagram — MIRROR —EIS004VF
WIWA1331E

IDX-2
ALPHABETICAL INDEX
Numerics
2-4WD shift solenoid valve ..... TF-94
, TF-154, TF-167
4WD - Wiring diagram ....................................... TF-24
4WD shift switch ................................................ TF-66
4WD solenoid valve ................ TF-90, TF-154, TF-167
4WD system description .................................... TF-15
4WD system diagram ........................................ TF-19
A
A/C air flow ...................................................... ATC-30
A/C compressor clutch removal and installation .. ATC-
176
A/C compressor mounting ............................. ATC-175
A/C compressor precaution ............................. ATC-11
A/C compressor special service tool ................ ATC-14
A/C control operation (auto A/C) ...................... ATC-27
A/C diagnostic work flow (auto A/C) .............. ATC-130
A/C evaporator ............................................... ATC-184
A/C HFC134a (R134a) system identification ..... ATC-6
A/C HFC134a (R134a) system precaution ........ ATC-5
A/C HFC134a (R134a) system service procedure ATC-
171
A/C HFC134a (R134a) system service tools ... ATC-14
A/C HFC134a system service equipment precaution ...
ATC-11
A/C lubricant (R134a) ...................................... ATC-22
A/C lubrication oil ............................................. ATC-22
A/C operational check ....................... ATC-58, ATC-60
A/C self-diagnoses (auto A/C) ........ ATC-56, ATC-130
A/C service data specification ........................ ATC-191
A/C trouble diagnoses (auto A/C) .................... ATC-34
A/C, A - Wiring diagram ................................... ATC-44
A/T fluid checking ...................... AT-12, AT-51, MA-22
A/T fluid cooler cleaning .................................... AT-14
A/T fluid replacement ............................. AT-12, MA-24
A/T fluid temperature sensor ........................... AT-127
A/T IND - Wiring diagram .................................... DI-41
A/T indicator ........................................................ DI-41
A/T shift lock system ........................................ AT-221
A/T trouble diagnoses ........................................ AT-42
ABS - Wiring diagram ..................................... BRC-16
ABS (anti-lock brake system) ........................... BRC-7
Accelerator control system ............................... ACC-3
Accelerator pedal position (APP) sensor . EC-547, EC-
553, EC-567
Accelerator pedal released position learning ..... EC-78
AF1B1-Wiring diagram EC-216, EC-225, EC-234, EC-
244, EC-577
AF1B2-Wiring diagram EC-218, EC-227, EC-236, EC-
246, EC-579
AF1HB1-Wiring diagram .................................. EC-157
AF1HB2-Wiring diagram .................................. EC-159
Aiming adjustment .................................. LT-29, LT-78
Air bag .............................................................. SRS-3
Air bag precautions .............................................. AV-4
Air cleaner and air duct ..................................... EM-15
Air cleaner filter replacement ................ EM-16, MA-16
Air conditioner cut control ................................. EC-28
Air flow meter - See Mass air flow sensor EC-171, EC-
180
Air fuel ratio sensor 1 .. EC-213, EC-223, EC-232, EC-
241, EC-575
Air fuel ratio sensor 1 heater ........................... EC-156
Air mix. door motor .......................................... ATC-70
Ambient sensor ............................. ATC-134, ATC-145
Angular tightening application ............................. EM-4
Antenna .............................................................. AV-60
APPS1 - Wiring diagram ................................. EC-549
APPS2 - Wiring diagram ................................. EC-555
APPS3 - Wiring diagram ................................. EC-569
ASC/BS - Wiring diagram ............................... EC-513
ASC/SW - Wiring diagram .............................. EC-496
ASCBOF - Wiring diagram .............................. EC-587
ASCD ................................................................ EC-29
ASCD (automatic speed control device) ........... ACS-3
ASCD brake switch ........................... EC-511, EC-586
ASCD indicator lamp ....................................... EC-593
ASCD steering switch ..................................... EC-494
ASCIND - Wiring diagram ............................... EC-594
ATP switch ............................ TF-107, TF-110, TF-115
Audio .................................................................... AV-6
AUDIO - Wiring diagram .................................... AV-11
AUT/DP - Wiring diagram .................................. SE-16
Auto air conditioner - Wiring diagram .............. ATC-44
Auto anti-dazzling inside mirror ........... GW-72, GW-73
Autolamp ............................................................ LT-47
Automatic amplifier ......................................... ATC-61
Automatic drive positioner .................................. SE-11
Automatic transmission number .......................... GI-49
B
Back door ........................................................... BL-99
Back door trim ..................................................... EI-32
Back sonar .......................................................... DI-60
BACK/L - Wiring diagram ................................. LT-109
Back-up lamp ................................................... LT-109
Ball joint (front) ................................................ FSU-15
Basic inspection ................................................ EC-71
Battery ................................................................. SC-4
Battery/Starting/Charging System Tester SC-6, SC-12,
SC-19
BCM (Body control module) ................ BCS-3, AV-109
Block heater ...................................................... EM-78
Blower motor ................................... ATC-93, ATC-149
Body alignment ................................................ BL-172
Body component parts ..................................... BL-161
Body construction ............................................ BL-171
Body exterior paint color .................................. BL-160
Body mounting ................................................. BL-159
Body repair ....................................................... BL-160
Body sealing .................................................... BL-168
Bose speaker amp. .............................................. AV-8
Brake booster .................................................... BR-17
Brake fluid level ................................................. MA-28
Brake hydraulic line ........................................... BR-12

IDX-3
A
C
D E
F
G H
I
J
K L
B
IDX
ALPHABETICAL INDEX
Brake inspection ................................................
MA-28
Brake lines and cables inspection ..................... MA-28
Brake master cylinder ....................................... BR-15
Brake switch ...................................... EC-511, EC-523
BRK/SW - Wiring diagram ............................... EC-524
Bulb specifications ........................................... LT-175
Bumper, front ...................................................... EI-13
Bumper, rear ....................................................... EI-15
C
Cabin air filter .................................................... MA-21
Camshaft ........................................................... EM-46
Camshaft inspection .......................................... EM-50
Camshaft position sensor (PHASE) ................ EC-347
CAN - Wiring diagram EC-152, AT-96, AT-97, LAN-28,
LAN-39
, LAN-57, LAN-79, LAN-98
CAN communication EC-31, EC-151, EC-154, TF-113,
RSU-6
Canister-See EVAP canister ............................. EC-35
Center case (Transfer) ....................... TF-154, TF-167
CHARGE - Wiring diagram ............................... SC-18
Charging system ............................................... SC-17
Chassis and body maintenance ........................ MA-21
Chassis and body maintenanceSchedule 1 ........ MA-8
Chassis and body maintenanceSchedule 2 ...... MA-10
CHIME - Wiring diagram ..................................... DI-46
Circuit breaker ................................................... PG-17
Clock ................................................................... DI-71
CLOCK - Wiring diagram .................................... DI-71
Closed loop control ............................. EC-25, EC-470
Closed loop control (Bank 1) ........................... EC-470
Closed loop control (Bank 2) ........................... EC-470
Clutch drum (Transfer) ....................... TF-154, TF-167
Clutch pressure switch (Transfer) ...... TF-154, TF-167
Coil spring (front) ............................................. FSU-10
Collision diagnosis .......................................... SRS-60
Combination lamp, front, removal and installation . LT-
31
Combination lamp, rear, removal and installation .. LT-
125
Combination meter ................................................ DI-5
Combination switch .......................................... LT-100
COMBSW - Wiring diagram ............................. LT-100
COMM - Wiring diagram ................................... AV-97
COMPAS - Wiring diagram ................................. DI-27
Compass ............................................................. DI-26
Component Location (auto A/C) ...................... ATC-40
Compressor clutch removal and installation . ATC-176
Compressor mounting ................................... ATC-175
Compressor precaution ................................... ATC-11
Compressor special service tool ..................... ATC-14
Condenser ..................................................... ATC-182
Connecting rod .................................................. EM-96
Connecting rod bearing clearance .................... EM-96
Connecting rod bushing clearance .................... EM-96
Console box - See Instrument panel ................... IP-10
CONSULT for VDC ......................................... BRC-28
CONSULT-II for engine ................................... EC-114
Control units (terminal arrangement) ................. PG-71
Control valve (A/T) ............................................. AT-36
Control valve (Transfer) ...................... TF-154, TF-167
Converter housing installation ............ AT-245, AT-249
COOL/F - Wiring diagram ................................ EC-476
Coolant mixture ratio ......................................... MA-12
Coolant replacement ............................ CO-10, MA-13
Cooling circuit (engine) ........................................ CO-8
Cooling fan ........................................................ CO-17
Cooling fan control ........................................... EC-473
Cooling fan motor ............................................ EC-482
Cooling unit (A/C evaporator) ....... ATC-153, ATC-184
Corrosion protection ......................................... BL-165
Crankcase ventilation system - See Positive crankcase
ventilation .......................................................... EC-45
Crankshaft ......................................................... EM-79
Crankshaft position sensor (POS) ................... EC-340
Crash zone sensor .......................................... SRS-55
Cylinder block .................................................... EM-78
Cylinder block boring ......................................... EM-99
D
D/LOCK - Wiring diagram ................................... BL-19
Data link connector for Consult ......... EC-116, EC-128
Daytime light system .......................................... LT-33
Daytime running light - See Daytime light system .. LT-
33
DEF - Wiring diagram ....................................... GW-77
Diagnosis sensor unit ...................................... SRS-58
Diagnostic trouble code (DTC) for OBD system . EC-8,
EC-52
Diagnostic trouble code (DTC) inspection priority chart
EC-89
Differential carrier assembly ............................ RFD-15
Differential gear oil replacement ........................ MA-26
Dimensions ......................................................... GI-50
Direct clutch solenoid valve ................ AT-147, AT-149
Display and amp.assembly .............................. ATC-61
Display Control Unit ........................................... AV-86
Display Unit ....................................................... AV-86
Dome light - See Interior lamp .......................... LT-134
Door glass .......................................... GW-65, GW-68
Door lock .......................................................... BL-131
Door mirror lamp ............................................... LT-134
Door trim .............................................................. EI-32
Door, front ........................................... BL-128, GW-65
Door, rear ........................................... BL-128, GW-68
Drive belt ........................................................... EM-13
Drive chain (Transfer) ......................... TF-149, TF-176
Drive pinion diff. inspection .............................. RFD-18
Drive shaft (rear) ................................................ RAX-7
Driver air bag ................................................... SRS-46
DTC work support ............................................ EC-124
DTRL - Wiring diagram ....................................... LT-37
Duct and grilles .............................................. ATC-166
DVD - Wiring Diagram ....................................... AV-78
DVD Entertainment System ............................... AV-75
DVD Player ........................................................ AV-76

IDX-4
ALPHABETICAL INDEX
E
ECM input/output signal ..................... EC-105
, EC-129
ECM power supply ............................. EC-145, EC-453
ECM relay ........................................................ EC-145
ECM/PW - Wiring diagram ............................... EC-454
ECTS - Wiring diagram .................................... EC-194
Electric sunroof .................................................. RF-10
Electric throttle control actuator ......... EC-534, EC-545
Electrical load signal circuit .............................. EC-596
Electrical units location ...................................... PG-65
Electronic ignition (EI) system ........................... EC-26
Engine control circuit diagram ......................... EC-103
Engine control component parts location ........... EC-96
Engine control module (ECM) .......................... EC-457
Engine control system diagram ......................... EC-23
Engine coolant .................................................. CO-10
Engine coolant temperature sensor (ECTS) ... EC-192,
EC-205
Engine fail-safe system ...................................... EC-91
Engine oil ............................................................. LU-7
Engine oil filter replacement ............................. MA-17
Engine oil precautions .......................................... GI-7
Engine oil replacement ..................................... MA-17
Engine removal ................................................. EM-74
Engine room cover ............................................ EM-12
Engine serial number .......................................... GI-49
ETC1 - Wiring diagram .................................... EC-535
ETC2 - Wiring diagram .................................... EC-530
ETC3 - Wiring diagram .................................... EC-541
EVAP canister .................................................... EC-35
EVAP canister purge volume control solenoid valve ....
EC-373
, EC-381
EVAP canister vent control valve ....... EC-388, EC-395
EVAP control system (small leak) diagnosis .. EC-365,
EC-419
, EC-427
EVAP control system pressure sensor .... EC-402, EC-
405, EC-411
EVAP control system purge flow monitoring diagnosis
EC-360
EVAP vapor lines inspection ............................. MA-20
Evaporative emission (EVAP) system ............... EC-32
Evaporator ..................................................... ATC-184
Exhaust manifold .............................................. EM-21
Exhaust system ................................................... EX-3
Exhaust system inspection .................................. EX-3
Expansion valve ............................................. ATC-186
F
F/FOG - Wiring diagram ..................................... LT-71
F/PUMP - Wiring diagram ................................ EC-605
Final drive pre-inspection ................................. FFD-15
Final drive removal and installation .. FFD-12, RFD-13
Flow charts ......................................................... GI-28
Fluid temperature sensor (A/T) ........................ AT-127
Fluids ................................................................ MA-11
Fluorescent leak detector .............................. ATC-187
Fog lamp, front .................................................... LT-69
Fog lamp, front, removal and installation ........... LT-79
Foot lamp ......................................................... LT-135
Freeze frame data ............................... EC-53, EC-118
Front brake solenoid valve ................. AT-143, AT-145
Front bumper ...................................................... EI-13
Front case (Transfer) .......................... TF-149, TF-176
Front combination lamp removal and installation LT-31
Front door ............................. BL-128, BL-131, GW-65
Front Door Trim ................................................... EI-32
Front drive shaft (Transfer) ................. TF-149, TF-176
Front fog lamp .................................................... LT-69
Front fog lamp removal and installation ............. LT-79
Front passenger air bag .................................. SRS-50
Front seat ........................................................... SE-91
Front seat belt ...................................................... SB-3
Front seat belt pre-tensioner ............... SRS-3, SRS-57
Front washer ...................................................... WW-4
Front wiper ......................................................... WW-4
FTS - Wiring diagram ....................................... AT-128
FTTS - Wiring diagram ...................... EC-311, EC-316
Fuel cut control (at no load high engine speed) EC-27
Fuel filter replacement ......................................... FL-6
Fuel gauge ............................................................ DI-5
Fuel injection system (Bank 1) .......... EC-288, EC-299
Fuel injection system (Bank 2) .......... EC-288, EC-299
Fuel injector .................................................... EC-598
Fuel injector and fuel tube ................................. EM-31
Fuel level sensor ................. EC-436, EC-438, EC-440
Fuel line inspection .............................................. FL-4
Fuel precautions ................................................... GI-5
Fuel pressure check .......................................... EC-80
Fuel pressure release ....................................... EC-80
Fuel pump ....................................................... EC-604
Fuel pump and gauge .......................................... FL-6
Fuel system .......................................................... FL-4
Fuel tank ............................................................ FL-10
Fuel tank temperature sensor ........... EC-309, EC-315
Fuel tank vacuum relief valve ........................... EC-35
FUELB1 - Wiring diagram ................. EC-290, EC-301
FUELB2 - Wiring diagram ................. EC-292, EC-303
Fuse ...................................................... PG-17, PG-77
Fuse and fusible link box .................................. PG-77
Fuse block ......................................................... PG-76
Fusible link ............................................ PG-17, PG-77
G
Garage jack and safety stand ............................. GI-41
Gauges ................................................................. DI-5
Generator .......................................................... SC-17
Generic scan tool (GST) ................................. EC-127
Glass ...................................... GW-11, GW-65, GW-68
Glove box lamp ................................................ LT-158
GPS antenna ..................................................... AV-85
Grease .............................................................. MA-11
Ground distribution ............................................ PG-31
