diagram INFINITI QX56 2006 Factory Service Manual

LT-50
AUTO LIGHT SYSTEM
Revision: November 20092006 QX56

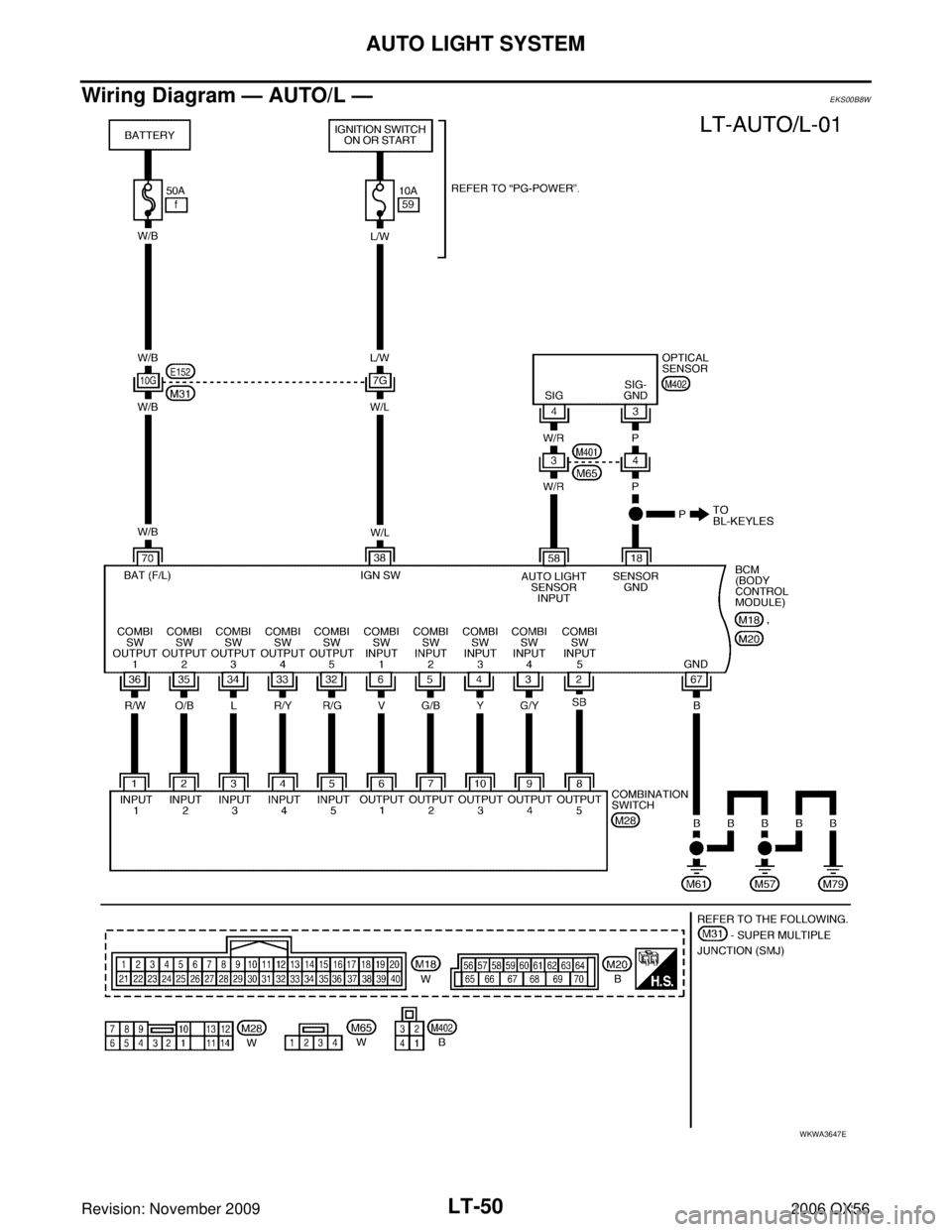

Wiring Diagram — AUTO/L —EKS00B8W
WKWA3647E

AUTO LIGHT SYSTEMLT-55
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
1 USA
2 Canada
How to Proceed With Trouble DiagnosisEKS00B8Z
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 4 8 , "
System Description" .
3. Carry out the Preliminary Check. Refer to LT- 5 5 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction. Refer to LT- 6 2 , "
Trouble Diagnosis Chart
by Symptom" .
5. Does the auto light system operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. Inspection End.
Preliminary CheckEKS00B90
SETTING CHANGE FUNCTIONS

Sensitivity of auto light system can be adjusted using CONSULT-II. Refer to LT- 5 8 , "WORK SUPPORT" .
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES OR FUSIBLE LINK
Check for blown fuses or fusible link.
Refer to LT- 5 0 , "
Wiring Diagram — AUTO/L —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse or fusible link. Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
56L/W1
Y2Headlamp high (RH) ON Lighting switch
HIGH or PASS
positionOFF
0V
ON Battery voltage
57 R/L Parking, license, and tail
lamp ON
Lighting switch
1ST position OFF
0V
ON Battery voltage
59 B Ground ON— 0V
Te r m i n a l
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
Unit
Power sourceFuse and fusible link No.
BCM Battery
f
Ignition switch ON or START position 59
IPDM E/R Battery 34
35
37
40
41
53

LT-66
HEADLAMP AIMING CONTROL
Revision: November 20092006 QX56
Wiring Diagram — H/AIM —EKS00B98
WKWA3650E

FRONT FOG LAMPLT-71
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

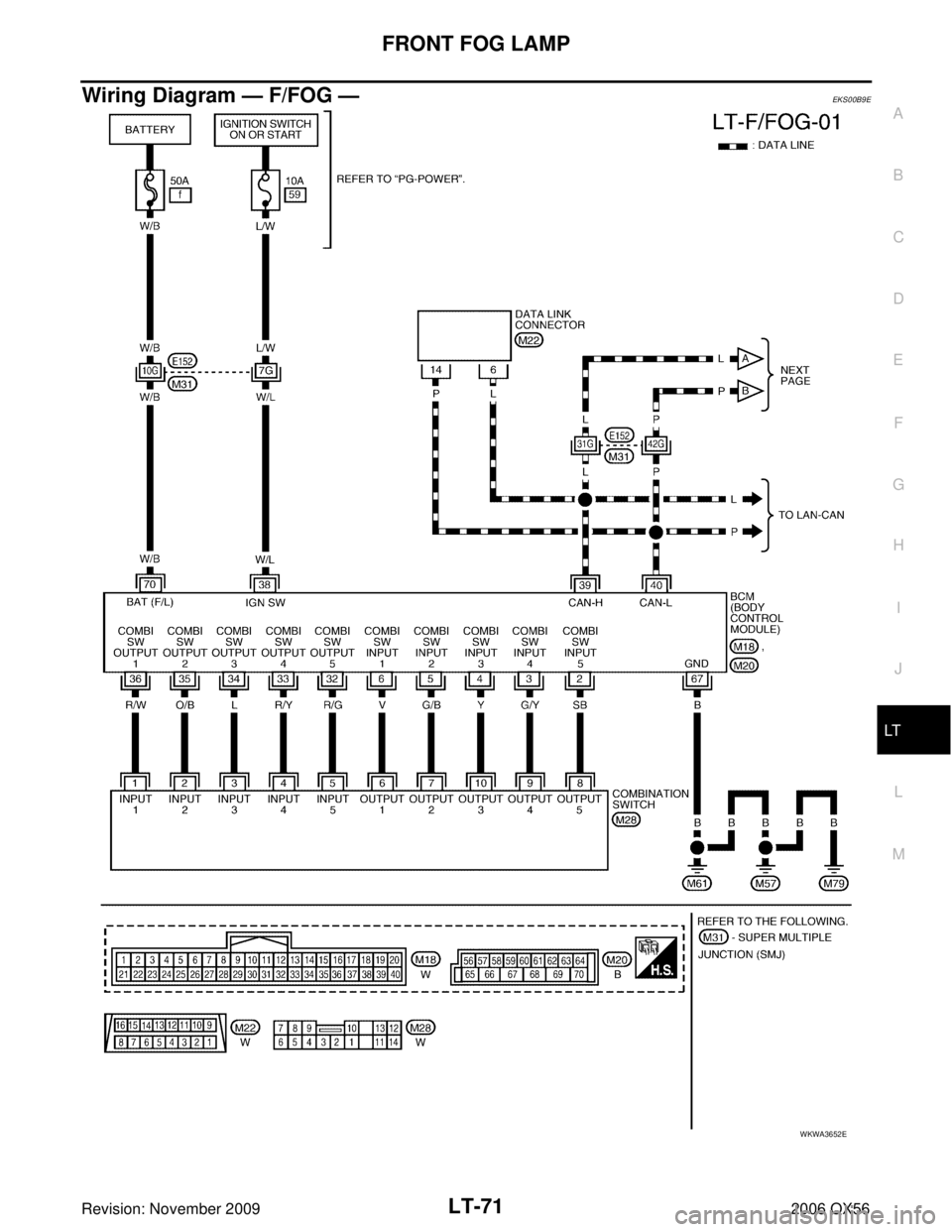

Wiring Diagram — F/FOG —EKS00B9E
WKWA3652E

FRONT FOG LAMPLT-75
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Preliminary CheckEKS00B9I
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES OR FUSIBLE LINK
Check for blown fuses or fusible link.
Refer to LT- 7 1 , "
Wiring Diagram — F/FOG —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse or fusible link. Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connectors.
2. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between BCM and fuse or fus- ible link.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> Inspection End.
NG >> Check ground circuit harness.
Unit Power sourceFuse and fusible link No.
BCM Battery
f
Ignition switch ON or START position 59
IPDM E/R Battery
53
Battery (Fog lamps ON) 56
BCMIgnition switch position
(+) (– )OFFACCON
Connector Terminal
M18 38 Ground0V 0V
Battery
voltage
M20 70 Battery
voltage Battery
voltage Battery
voltage
WKIA1436E
BCM Continuity
Connector Terminal
M20 67Ground Yes
LIIA0915E

LT-84
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: November 20092006 QX56

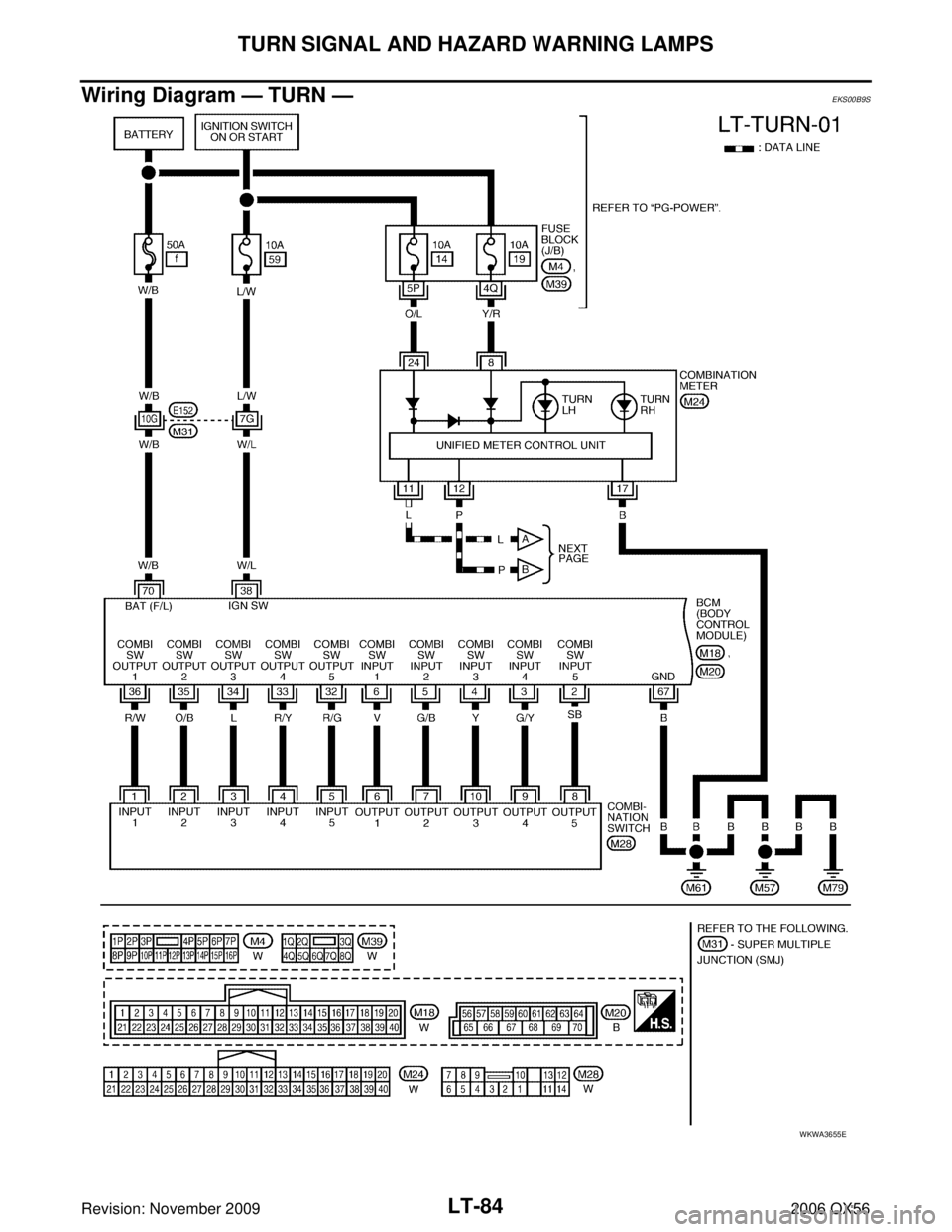

Wiring Diagram — TURN —EKS00B9S
WKWA3655E

TURN SIGNAL AND HAZARD WARNING LAMPSLT-89
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Preliminary CheckEKS00B9V
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES OR FUSIBLE LINK
Check for blown fuses or fusible link.
Refer to LT- 8 4 , "
Wiring Diagram — TURN —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse or fusible link. Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connectors.
2. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between BCM and fuse or fus- ible link.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> Inspection End.
NG >> Check ground circuit harness.
Unit Power sourceFuse and fusible link No.
BCM Battery
f
Ignition switch ON or START position 59
BCMIgnition switch position
(+) (– )OFFACCON
Connector Terminal
M18 38 Ground0V 0V
Battery
voltage
M20 70 Battery
voltage Battery
voltage Battery
voltage
WKIA1436E
BCM Continuity
Connector Terminal
M20 67Ground Yes
LIIA0915E

LT-100
COMBINATION SWITCH
Revision: November 20092006 QX56
COMBINATION SWITCHPFP:25567

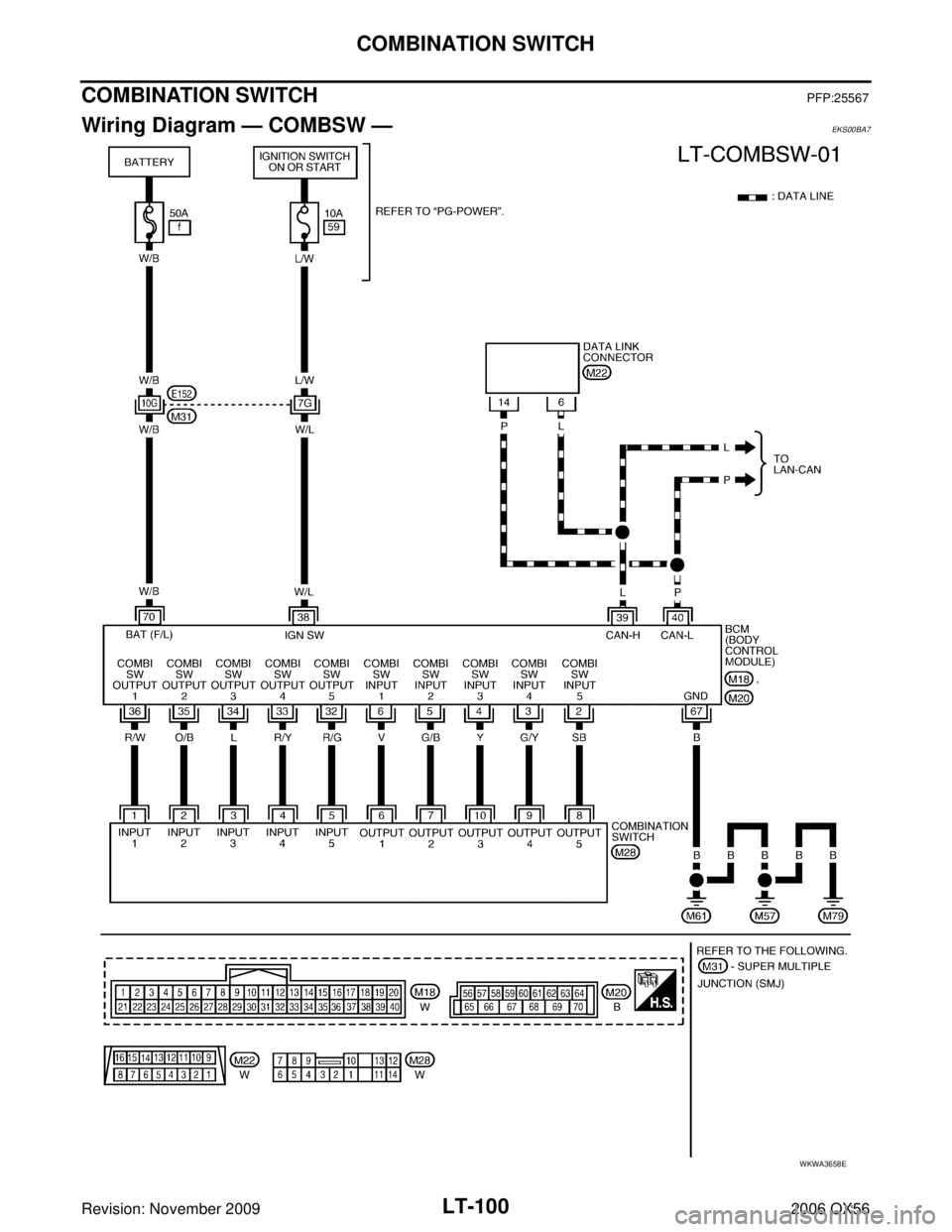

Wiring Diagram — COMBSW —EKS00BA7
WKWA3658E

STOP LAMPLT-107
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

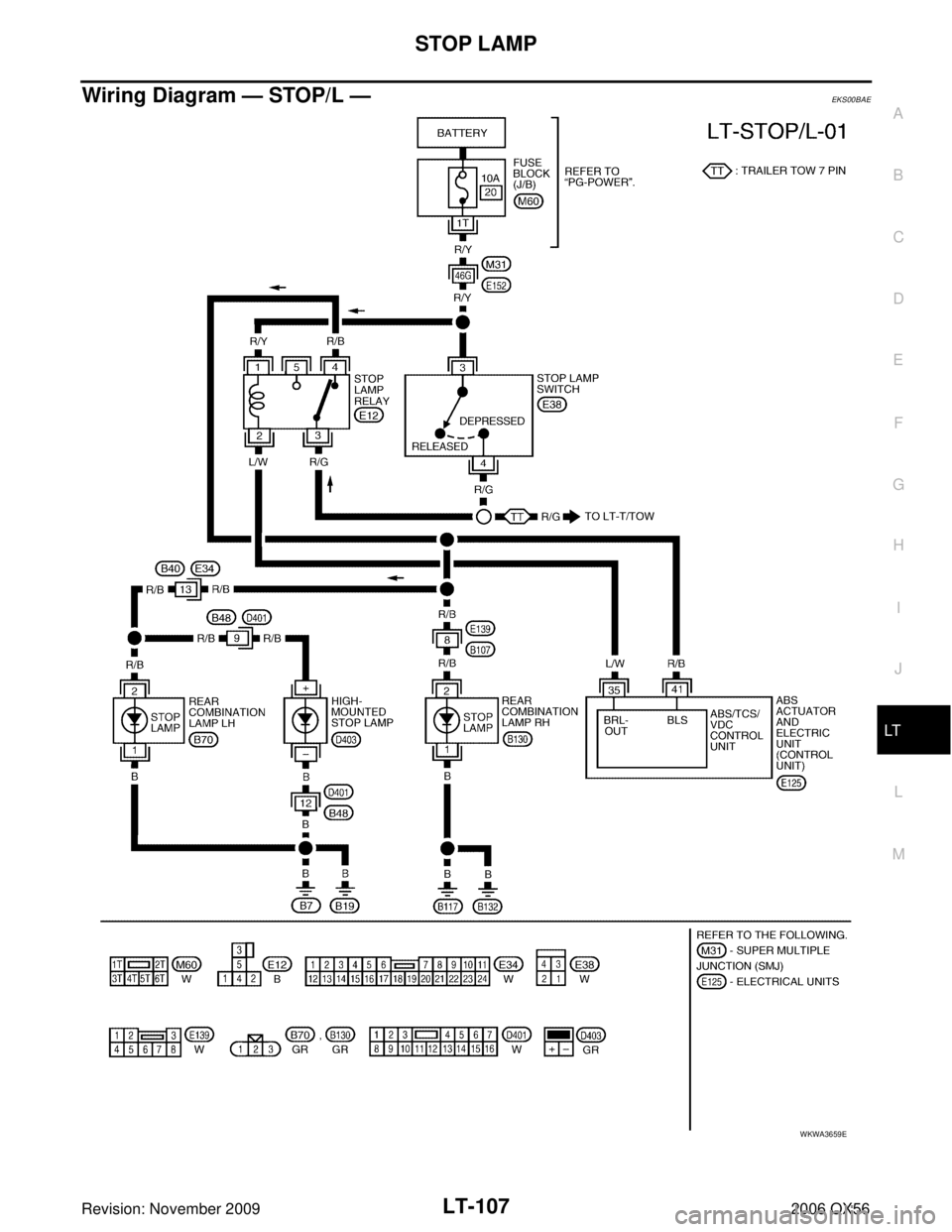

Wiring Diagram — STOP/L —EKS00BAE
WKWA3659E

BACK-UP LAMPLT-109
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
BACK-UP LAMPPFP:26550

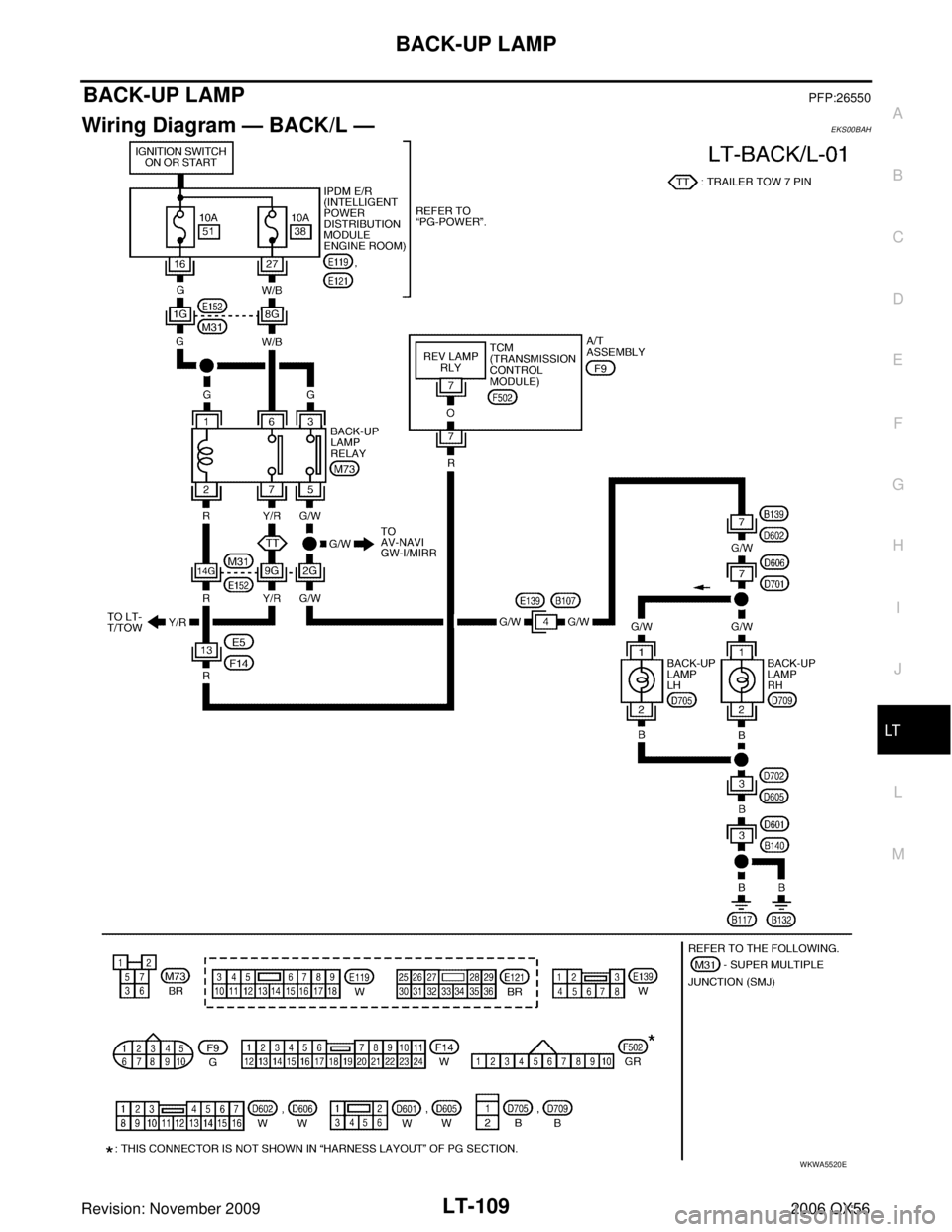

Wiring Diagram — BACK/L —EKS00BAH
WKWA5520E
