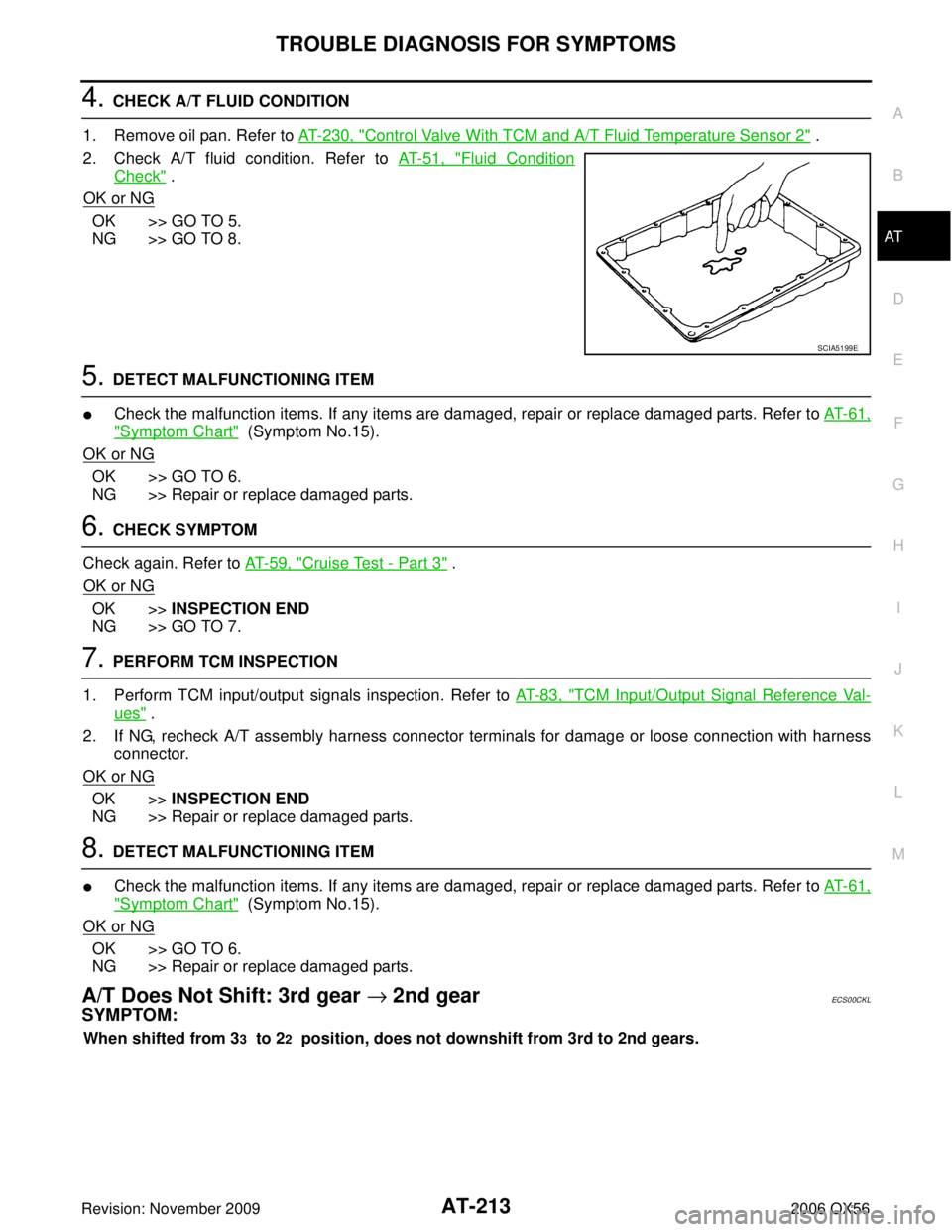

TROUBLE DIAGNOSIS FOR SYMPTOMSAT-213
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 0 , "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 1 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 8.
5. DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 1 ,
"Symptom Chart" (Symptom No.15).
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK SYMPTOM
Check again. Refer to AT- 5 9 , "
Cruise Test - Part 3" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
7. PERFORM TCM INSPECTION
1. Perform TCM input/output signals inspection. Refer to AT- 8 3 , "
TCM Input/Output Signal Reference Val-
ues" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
8. DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 1 ,
"Symptom Chart" (Symptom No.15).
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
A/T Does Not Shift: 3rd gear → 2nd gearECS00CKL
SYMPTOM:
When shifted from 33 to 22 position, does not downshift from 3rd to 2nd gears.
SCIA5199E

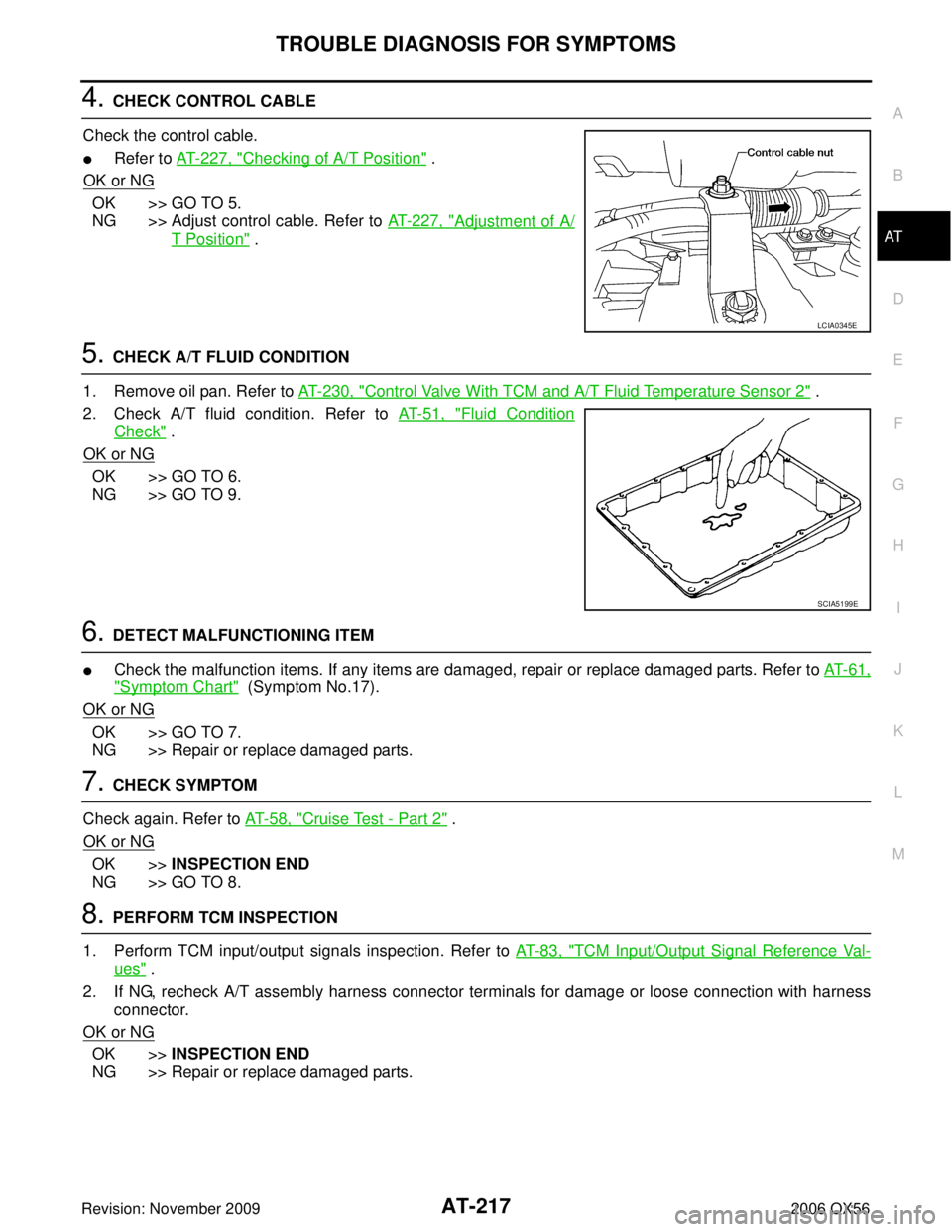

TROUBLE DIAGNOSIS FOR SYMPTOMSAT-217
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
4. CHECK CONTROL CABLE
Check the control cable.

Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 5.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 0 , "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 1 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 1 ,
"Symptom Chart" (Symptom No.17).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 5 8 , "
Cruise Test - Part 2" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 8.
8. PERFORM TCM INSPECTION
1. Perform TCM input/output signals inspection. Refer to AT- 8 3 , "
TCM Input/Output Signal Reference Val-
ues" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
LCIA0345E
SCIA5199E

TROUBLE DIAGNOSIS FOR SYMPTOMSAT-219
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
3. CHECK A/T FLUID LEVEL
Check the A/T fluid level. Refer to AT- 1 2 , "
Checking Automatic
Transmission Fluid (ATF)" .
OK or NG
OK >> GO TO 4.
NG >> Refill ATF.
4. CHECK CONTROL CABLE
Check the control cable.

Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 5.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 0 , "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 1 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 1 ,
"Symptom Chart" (Symptom No.53).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 5 9 , "
Cruise Test - Part 3" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 8.
SAT638A
LCIA0345E
SCIA5199E

AUTOMATIC SPEED CONTROL DEVICE (ASCD)EC-29
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
AUTOMATIC SPEED CONTROL DEVICE (ASCD)PFP:18930
System DescriptionUBS00KZC
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM through CAN communication line
BASIC ASCD SYSTEM
Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 144 km/h (89 MPH).
ECM controls throttle angle of electric throttle control actuator to regulate engine speed.
Operation status of ASCD is indicated by CRUISE indicator and SET indicator in combination meter. If any
malfunction occurs in ASCD system, it automatically deactivates control.
NOTE:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws.
SET OPERATION
Press MAIN switch. (The CRUISE indicator in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 144 km/h (89
MPH), press SET/COAST switch. (Then SET indicator in combination meter illuminates.)
ACCELERATE OPERATION
If the RESUME/ACCELERATE switch is pressed during cruise control driving, increase the vehicle speed until
the switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.
CANCEL OPERATION
When any of following conditions exist, cruise operation will be canceled.

CANCEL switch is pressed

More than 2 switches at ASCD steering switch are pressed at the same time (Set speed will be cleared)

Brake pedal is depressed

Selector lever is changed to N, P, R position

Vehicle speed decreased to 13 km/h (8 MPH) lower than the set speed

VDC system is operated
When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform
the driver by blinking indicator lamp.

Engine coolant temperature is slightly higher than the normal operating temperature, CRUISE lamp may
blink slowly.
When the engine coolant temperature decreases to the normal operating temperature, CRUISE lamp will
stop blinking and the cruise operation will be able to work by pressing SET/COAST switch or RESUME/
ACCELERATE switch.

Malfunction for some self-diagnoses regarding ASCD control: SET lamp will blink quickly.
If MAIN switch is turned to OFF during ASCD is activated, all of ASCD operations will be canceled and vehicle
speed memory will be erased.
Sensor Input signal to ECM ECM functionActuator
ASCD brake switch Brake pedal operation
ASCD vehicle speed controlElectric throttle control
actuator
Stop lamp switch
Brake pedal operation
ASCD steering switch ASCD steering switch operation
Park/Neutral position (PNP)
switch Gear position
Wheel sensor Vehicle speed*
TCM Powertrain revolution*

EC-30Revision: November 2009
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
2006 QX56
COAST OPERATION
When the SET/COAST switch is pressed during cruise control driving, decrease vehicle set speed until the
switch is released. And then ASCD will keep the new set speed.
RESUME OPERATION
When the RESUME/ACCELERATE switch is pressed after cancel operation other than pressing MAIN switch
is performed, vehicle speed will return to last set speed. To resume vehicle set speed, vehicle condition must
meet following conditions.

Brake pedal is released

A/T selector lever is in other than P and N positions

Vehicle speed is greater than 40 km/h (25 MPH) and less than 144 km/h (89 MPH)
Component DescriptionUBS00KZD
ASCD STEERING SWITCH
Refer to EC-494 .
ASCD BRAKE SWITCH
Refer to EC-511 , and EC-586 .
STOP LAMP SWITCH
Refer to EC-511 , EC-523 and EC-586 .
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EC-528 , EC-534 , EC-540 and EC-545 .
ASCD INDICATOR
Refer to EC-593 .

ASCD INDICATOREC-593
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
ASCD INDICATORPFP:24814
Component DescriptionUBS00HDT
ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE indicator illuminates when MAIN switch on ASCD steering switch is turned ON to indicate that ASCD
system is ready for operation.
SET indicator illuminates when following conditions are met.

CRUISE indicator is illuminated.

SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of
ASCD setting.
SET indicator remains lit during ASCD control.
Refer to EC-29, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeUBS00HDU
Specification data are reference value.
MONITOR ITEM CONDITIONSPECIFICATION
CRUISE LAMP

Ignition switch: ON
MAIN switch: Pressed at the 1st
time → at the 2nd time ON
→ OFF
SET LAMP

MAIN switch: ON

When vehicle speed is
between 40 km/h (25 MPH)
and 144 km/h (89 MPH)

ASCD: Operating ON

ASCD: Not operatingOFF

IDX-5
A
C
D E
F
G H
I
J
K L
B
IDX
ALPHABETICAL INDEX
H
H/AIM - Wiring diagram ...................................... LT-66
H/LAMP - Wiring diagram .................................... LT-9
Handling precautions for plastics ..................... BL-187
Harness connector ............................................ PG-68
Harness layout .................................................. PG-41
Hazard warning lamp ......................................... LT-80
Headlamp ............................................................. LT-5
Headlamp aiming control ................................... LT-66
Headlamp leveler - See Headlamp aiming control . LT-
66
Headlamp removal and installation .................... LT-31
Heated oxygen sensor 2 (bank 1) .... EC-253, EC-264,
EC-277
Heated oxygen sensor 2 (bank 2) .... EC-253, EC-264,
EC-277
Heated oxygen sensor 2 heater (bank 1) ........ EC-163
Heated oxygen sensor 2 heater (bank 2) ........ EC-163
Heated seat ....................................................... SE-84
Heater and cooling unit (Heater core) . ATC-153, ATC-
156
Heater unit (heater core) ............... ATC-153, ATC-156
Height (Dimensions) ........................................... GI-50
HFC134a (R134a) system identification ........... ATC-6
HFC134a (R134a) system precaution ............... ATC-5
HFC134a (R134a) system service procedure ATC-171
HFC134a (R134a) system service tools ......... ATC-14
HFC134a system service equipment precaution ATC-
11
High and low reverse clutch solenoid valve .... AT-151,
AT-153
Homelink universal transceiver ........................ BL-156
Horn ................................................................ WW-55
HORN - Wiring diagram .................................. WW-55
How to erase DTC for OBD system .................. EC-61
HSEAT - Wiring diagram ................................... SE-86
I
IATS - Wiring diagram ..................................... EC-189
ICC - Wiring diagram ....................................... ACS-20
ICC/BS - Wiring diagram ................................. EC-504
ICC/SW - Wiring diagram ................................ EC-489
ICCBOF - Wiring diagram ............................... EC-611
Identification plate .............................................. GI-48
Idle air volume learning ..................................... EC-78
Idle speed .............................................. EC-71, EC-76
Idle speed control (ISC) .................... EC-444, EC-446
Ignition coil .......................................... EM-28, EC-618
Ignition control system .................................... EC-618
Ignition key hole illumination ............................ LT-134
Ignition timing ........................................ EC-71, EC-76
IGNSYS - Wiring diagram ............................... EC-619
ILL - Wiring diagram ......................................... LT-163
Illumination ....................................................... LT-157
In vehicle sensor ........................... ATC-137, ATC-146
In-cabin Microfilter ............................................. MA-21
INJECT - Wiring diagram ................................ EC-599
Injector ............................................................. EC-598
Input clutch solenoid valve ................. AT-139, AT-141
Instrument panel .................................................. IP-10
Intake air temperature sensor ............ EC-188, EC-208
Intake door control linkage adjustment . ATC-85, ATC-
88
Intake door motor ........................... ATC-83, ATC-160
Intake manifold .................................................. EM-17
Intake sensor ................................ ATC-142, ATC-148
Integrated homelink transmitter - See Homelink univer-
sal tranceiver .................................................... BL-156
Intelligent cruise control (ICC) system ............... ACS-6
Interior ................................................................. EI-35
Interior lamp ...................................................... LT-134
Interior lamp on-off control ................................ LT-135
Internal gear (Transfer) ....................... TF-149, TF-176
IPDM (Intelligent power distribution module engine
room) ................................................................. PG-18
IVIS (Infiniti vehicle immobilizer system) .......... BL-137
IVIS (Infiniti vehicle immobilizer system) precautions ...
GI-3
J
Jacking points ..................................................... GI-41
Junction box (J/B) .............................................. PG-76
K
Key illumination ................................................ LT-135
KEYLES - Wiring diagram .................................. BL-49
Knock sensor (KS) ........................................... EC-335
KS - Wiring diagram ........................................ EC-336
L
Laser beam aiming adjustment ....................... ACS-12
Length (Dimensions) .......................................... GI-50
License lamp .................................................... LT-111
Lifting points ....................................................... GI-42
Line pressure solenoid valve ........................... AT-122
Line pressure switch (Transfer) .......... TF-154, TF-167
Line pressure test (A/T) ..................................... AT-52
Location of electrical units ................................. PG-65
Low coast brake solenoid valve .......... AT-155, AT-157
Low tire pressure warning system ...................... WT-8
Low tire pressure warning system - trouble diagnoses
WT-11
Low tire pressure warning system - Wiring diagram .....
WT-11
Lubricant (R134a) A/C ..................................... ATC-22
Lubricants .......................................................... MA-11
Lubrication circuit (engine) .................................. LU-5
Lubrication oil A/C ........................................... ATC-22
Lubrication-locks, hinges and hood latches ....... MA-31
M
MAFS - Wiring diagram ..................... EC-174
, EC-182

LAN-32
[CAN]
CAN COMMUNICATION
Revision: November 20092006 QX56

Ty p e 2
Input/output signal chart
T: Transmit R: Receive
PKIC3015E
SignalsECM
TCM
ICC sensor
*1
ICC unit
*1
Driver seat control unit Combination meter
Display control unit BCM
Steering angle sensor Front air control
ABS actuator and electric unit (control unit) IPDM E/R
A/C compressor request signal T R
Accelerator pedal position signal T RR R
ASCD CRUISE lamp signal TR
ASCD OD cancel request signal T R
ASCD operation signal T R
ASCD SET lamp signal TR
Battery voltage signal T R
Closed throttle position signal T R R
Cooling fan speed request signal T R
Engine coolant temperature signal TRR
Engine speed signal T RRR R R R
Engine status signal TR
Fuel consumption monitor signal TR
TR
ICC steering switch signal TR
Malfunction indicator lamp signal TR
Wide open throttle position signal T R
A/T CHECK indicator lamp signal TR

LAN-36
[CAN]
CAN COMMUNICATION
Revision: November 20092006 QX56
ASCD CRUISE lamp signalTR
ASCD OD cancel request signal T R
ASCD operation signal T R
ASCD SET lamp signal TR
Battery voltage signal T R
Closed throttle position signal T R R
Cooling fan speed request signal T R
Engine coolant temperature signal TRR
Engine speed signal T RRR R R R R
Engine status signal TR
Fuel consumption monitor signal TR
TR
ICC steering switch signal TR
Malfunction indicator lamp signal TR
Wide open throttle position signal T R
A/T CHECK indicator lamp signal TR
A/T fluid temperature sensor signal TR
A/T position indicator lamp signal TR R R
A/T self-diagnosis signal R T
Current gear position signal TR R
Output shaft revolution signal R TR R
P range signal TR R R
Turbine revolution signal R TR
ICC sensor signal T R
Buzzer output signal TR
RT
ICC OD cancel request signal R RT
ICC operation signal R RT
ICC system display signal TR
System setting signal TR
RT
1st position switch signal RT
4th position switch signal RT
Distance to empty signal T R
Signals
ECM
TCM
ICC sensor
*1
ICC unit
*1
Driver seat control unit Combination meter
Display control unit BCM
Steering angle sensor Front air control
Transfer control unit
ABS actuator and electric unit (control unit) IPDM E/R

HARNESSPG-63
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
HORNWW Horn
HSEAT SE Heated Seat
ICC ACS Intelligent Cruise Control
ICCBOF EC ICC Brake Switch
ICC/BS EC ICC Steering Switch
ICC/SW EC ICC Brake Switch
I/MIRR GW Inside Mirror (Auto Anti-Dazzling Mirror)
IATS EC Intake Air Temperature Sensor
IGNSYS EC Ignition System
ILL LT Illumination
INJECT EC Injector
INT/L LT Room/Map, Vanity, Cargo, Personal, Foot, Step, and Puddle Lamps
KEYLES BL Remote Keyless Entry System
KS EC Knock Sensor
MAFS EC Mass Air Flow Sensor
MAIN EC Main Power Supply and Ground Circuit
METER DI Speedometer, Tachometer, Temp. and Fuel Gauges
MIL/DL EC Malfunction Indicator Lamp
MIRROR GW Door Mirror
NATS BL Nissan Anti-Theft System
NAVI AV Navigation System
O2H2B1 EC Rear Heated Oxygen Sensor 2 Heater Bank 1
O2H2B2 EC Rear Heated Oxygen Sensor 2 Heater Bank 2
O2S2B1 EC Heated Oxygen Sensor 2 Bank 1
O2S2B2 EC Heated Oxygen Sensor 2 Bank 2
P/SCKT WW Power Socket
PGC/V EC EVAP Canister Purge Volume Control Solenoid Valve
PHASE EC Camshaft Position Sensor (PHASE) (Bank 1)
PNP/SW EC Park/Neutral Position Switch
POS EC Crankshaft Position Sensor (POS)
POWER PG Power Supply Routing
PRE/SE EC EVAP Control System Pressure Sensor
PS/SEN EC Power Steering Pressure Sensor
R/VIEW DI Rear View Monitor
RP/SEN EC Refrigerant Pressure Sensor
SEN/PW EC Sensor Power Supply
SHIFT AT A/T Shift Lock System
SONAR DI Rear Sonar System
SROOF RF Sunroof
SRS SRS Supplemental Restraint System
START SC Starting System
STOP/L LT Stop Lamp
T/TOW LT Trailer Tow
T/WARN WT Low Tire Pressure Warning System
TAIL/L LT Parking, License and Tail Lamps
T/F TFTransfer Case
TPS1 EC Throttle Position Sensor
TPS2 EC Throttle Position Sensor
TPS3 EC Throttle Position Sensor
TRNSCV BL HOMELINK® Universal Transceiver
TURN LT Turn Signal and Hazard Warning Lamps
VDC BRC Vehicle Dynamic Control System
