DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-FIRE
EC-331
C
D E
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
7. CHECK SPARK PLUG
Check the initial spark plug for fouling, etc.
OK or NG
OK >> Replace spark plug(s) with standard type one(s). For spark plug type, refer to EM-29, "
SPARK PLUG (PLATI-
NUM-TIPPED TYPE)" .
NG >> 1. Repair or clean spark plug.
2. GO TO 8.
8. CHECK FUNCTION OF IGNITION COIL-III
1. Reconnect the initial spark plugs.
2. Crank engine for about 3 seconds, and recheck whether spark is generated between the spark plug and the grounded portion.
OK or NG
OK >> INSPECTION END
NG >> Replace spark plug(s) with standard type one(s). For spark plug type, refer to MA-18, "
Changing
Spark Plugs" .
9. CHECK COMPRESSION PRESSURE
Check compression pressure. Refer to EM-63, "
CHECKING COMPRESSION PRESSURE" .
OK or NG
OK >> GO TO 10.
NG >> Check pistons, piston rings, valves, valve seats and cylinder head gaskets.
10. CHECK FUEL PRESSURE
1. Install all removed parts.
2. Release fuel pressure to zero. Refer to EC-80, "
FUEL PRESSURE RELEASE" .
3. Install fuel pressure gauge and check fuel pressure. Refer to EC-82, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.

Fuel pump and circuit (Refer to EC-604, "FUEL PUMP" .)

Fuel pressure regulator (Refer to EC-82, "FUEL PRESSURE CHECK" .)

Fuel lines

Fuel filter for clogging
>> Repair or replace.
SEF156I
Spark should be generated.
At idle: Approximately 350 kPa (3.57 kg/cm
2 , 51 psi)

DTC P0420, P0430 THREE WAY CATALYST FUNCTIONEC-357
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
5. CHECK FUEL INJECTOR
1. Stop engine and then turn ignition switch ON.
2. Check voltage between ECM terminals 21, 22, 23, 40, 41, 42, 44, 63 and ground with CONSULT-II or tester.
Refer to Wiring Diagram for fuel injector, EC-599, "
Wiring Dia-
gram" .
OK or NG
OK >> GO TO 6.
NG >> Perform EC-600, "
Diagnostic Procedure" .
6. CHECK FUNCTION OF IGNITION COIL-I
CAUTION:
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Remove fuel pump fuse in IPDM E/R to release fuel pressure. NOTE:
Do not use CONSULT-II to release fuel pressure, or fuel pres-
sure applies again during the following procedure.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel pressure.
5. Turn ignition switch OFF.
6. Remove all ignition coil harness connectors to avoid the electri- cal discharge from the ignition coils.
7. Remove ignition coil and spark plug of the cylinder to be checked.
8. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
9. Connect spark plug and harness connector to ignition coil.
10. Fix ignition coil using a rope etc. with gap of 13 - 17 mm between the edge of the spark plug and grounded metal portion
as shown in the figure.
11. Crank engine for about 3 seconds, and check whether spark is generated between the spark plug and the grounded metal por-
tion.
CAUTION:

Do not approach to the spark plug and the ignition coil
within 50cm. Be careful not to get an electrical shock
while checking, because the electrical discharge voltage
becomes 20kV or more.

It might cause to damage the ignition coil if the gap of more than 17 mm is taken.
NOTE:
When the gap is less than 13 mm, the spark might be generated even if the coil is malfunctioning.
OK or NG
OK >> GO TO 10.
NG >> GO TO 7. Battery voltage should exist.
PBIB1527E
Spark should be generated.
BBIA0380E
PBIB2325E

DTC P0441 EVAP CONTROL SYSTEMEC-361
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and let it idle for at least 70 seconds.
4. Select “PURG FLOW P0441 ” of “EVAPORATIVE SYSTEM ” in “DTC CONFIRMATION ” mode with CON-
SULT-II.
5. Touch “START”.
If “COMPLETED” is displayed, go to step 7.
6. When the following conditions are met, “TESTING” will be displayed on the CONSULT-II screen. Maintain
the conditions continuously until “TESTING” changes to “COMPLETED ”. (It will take at least 35 seconds.)
If “TESTING” is not changed for a long time, retry from step 2.
7. Make sure that “OK ” is displayed after touching “SELF-DIAG RESULTS ”. If “NG” is displayed, refer to EC-
362, "Diagnostic Procedure" .
Overall Function CheckUBS00H4M
Use this procedure to check the overall monitoring function of the EVAP control system purge flow monitoring.
During this check, a 1st trip DTC might not be confirmed.
WITH GST
1. Lift up drive wheels.
2. Start engine (VDC switch OFF) and warm it up to normal operating temperature.
3. Turn ignition switch OFF, wait at least 10 seconds.
4. Start engine and wait at least 70 seconds.
5. Set voltmeter probes to ECM terminals 32 (EVAP control system
pressure sensor signal) and ground.
6. Check EVAP control system pressure sensor value at idle speed and note it.
7. Establish and maintain the following conditions for at least 1 minute.
8. Verify that EVAP control system pressure sensor value stays 0.1V less than the value at idle speed (mea- sured at step 6) for at least 1 second.
Selector lever Suitable position
VHCL SPEED SE 32 - 120 km/h (20 - 75 MPH)
ENG SPEED 500 - 3,000 rpm
B/FUEL SCHDL 1.0 - 12.0 msec
COOLAN TEMP/S 70 - 100°C (158 - 212° F)
PBIB0826E
Air conditioner switch ON
Headlamp switch ON
Rear window defogger switch ON
Engine speed Approx. 3,000 rpm
Gear position Any position other than P, N or R
PBIB1109E

DTC P0442 EVAP CONTROL SYSTEMEC-365
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC P0442 EVAP CONTROL SYSTEMPFP:14950
On Board Diagnosis LogicUBS00H4O
This diagnosis detects leaks in the EVAP purge line using engine intake manifold vacuum.
If pressure does not increase, the ECM will check for leaks in the line between the fuel tank and EVAP canister
purge volume control solenoid valve, under the following “Va c u u m t e s t” conditions.
The EVAP canister vent control valve is closed to shut the EVAP purge line off. The EVAP canister purge vol-
ume control solenoid valve will then be opened to depressurize the EVAP purge line using intake manifold
vacuum. After this occurs, the EVAP canister purge volume control solenoid valve will be closed.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0442
0442 EVAP control system
small leak detected
(negative pressure) EVAP control system has a leak, EVAP
control system does not operate prop-
erly.

Incorrect fuel tank vacuum relief valve

Incorrect fuel filler cap used

Fuel filler cap remains open or fails to close.

Foreign matter caught in fuel filler cap.

Leak is in line between intake manifold and
EVAP canister purge volume control solenoid
valve.

Foreign matter caught in EVAP canister vent
control valve.

EVAP canister or fuel tank leaks

EVAP purge line (pipe and rubber tube) leaks

EVAP purge line rubber tube bent

Loose or disconnected rubber tube

EVAP canister vent control valve and the circuit

EVAP canister purge volume control solenoid
valve and the circuit

Fuel tank temperature sensor

O-ring of EVAP canister vent control valve is
missing or damaged

EVAP canister is saturated with water

EVAP control system pressure sensor

Fuel level sensor and the circuit

Refueling EVAP vapor cut valve

ORVR system leaks
PBIB1026E

DTC P0442 EVAP CONTROL SYSTEMEC-371
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
13. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Stop engine.
3. Disconnect vacuum hose to EVAP canister purge volume control solenoid valve at EVAP service port.
4. Start engine and let it idle for at least 80 seconds.
5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm.
OK or NG
OK >> GO TO 16.
NG >> GO TO 14.
14. CHECK VACUUM HOSE
Check vacuum hoses for clogging or disconnection. Refer to EC-102, "
Vacuum Hose Drawing" .
OK or NG
OK >> GO TO 15.
NG >> Repair or reconnect the hose.
15. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-386, "
Component Inspection" .
OK or NG
OK >> GO TO 16.
NG >> Replace EVAP canister purge volume control solenoid valve.
16. CHECK FUEL TANK TEMPERATURE SENSOR
Refer to EC-314, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Replace fuel level sensor unit.
17. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-404, "
Component Inspection" .
OK or NG
OK >> GO TO 18.
NG >> Replace EVAP control system pressure sensor.
18. CHECK EVAP PURGE LINE
Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks or improper connection.
Refer to EC-33, "
EVAPORATIVE EMISSION LINE DRAWING" .
OK or NG
OK >> GO TO 19.
NG >> Repair or reconnect the hose.
19. CLEAN EVAP PURGE LINE
Clean EVAP purge line (pipe and rubber tube) using air blower.
>> GO TO 20.
Vacuum should exist.

EC-406Revision: November 2009
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
2006 QX56
DTC Confirmation ProcedureUBS00H5F
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5°C (41 °F) or more.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “DATA MONITOR ” mode with CONSULT-II.
5. Make sure that “FUEL T/TMP SE ” is more than 0°C (32 °F).
6. Start engine and wait at least 20 seconds. If 1st trip DTC is detected, go to EC-408, "
Diagnostic Procedure"
.
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Check that voltage between ECM terminal 107 (Fuel tank tem-
perature sensor signal) and ground is less than 4.2V.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and wait at least 20 seconds.
5. Select Service $07 with GST. If 1st trip DTC is detected, go to EC-408, "
Diagnostic Procedure"
.
SEF194Y
PBIB1110E

EC-412Revision: November 2009
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
2006 QX56
DTC Confirmation ProcedureUBS00H5M
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5°C (41 °F) or more.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “DATA MONITOR ” mode with CONSULT-II.
5. Make sure that “FUEL T/TMP SE ” is more than 0°C (32 °F).
6. Start engine and wait at least 20 seconds.
7. If 1st trip DTC is detected, go to EC-414, "
Diagnostic Procedure"
.
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Check that voltage between ECM terminal 107 (Fuel tank tem-
perature sensor signal) and ground is less than 4.2V.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and wait at least 20 seconds.
5. Select Service $07 with GST. If 1st trip DTC is detected, go to EC-414, "
Diagnostic Procedure"
.
SEF194Y
PBIB1110E

DTC P0455 EVAP CONTROL SYSTEMEC-419
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC P0455 EVAP CONTROL SYSTEMPFP:14950
On Board Diagnosis LogicUBS00H5Q

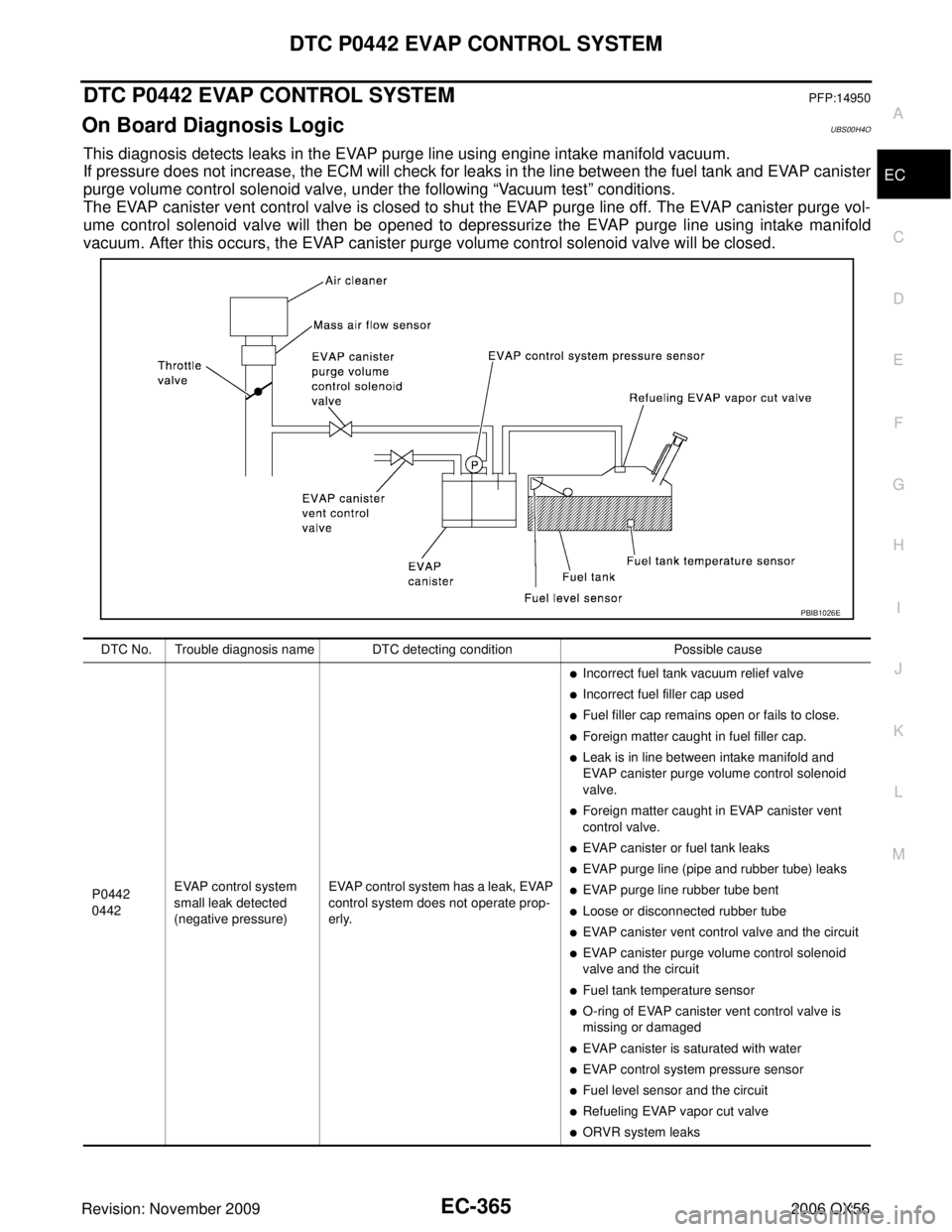

This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and
EVAP canister purge volume control solenoid valve.
CAUTION:

Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used,
the MIL may come on.

If the fuel filler cap is not tightened properly, the MIL may come on.

Use only a genuine NISSAN rubber tube as a replacement.
PBIB1026E
DTC No. Trouble diagnosis nameDTC detecting condition Possible cause
P0455
0455 EVAP control system
gross leak detected EVAP control system has a very large leak
such as fuel filler cap fell off, EVAP control
system does not operate properly.

Fuel filler cap remains open or fails to
close.

Incorrect fuel tank vacuum relief valve

Incorrect fuel filler cap used

Foreign matter caught in fuel filler cap.

Leak is in line between intake manifold and
EVAP canister purge volume control sole-
noid valve.

Foreign matter caught in EVAP canister
vent control valve.

EVAP canister or fuel tank leaks

EVAP purge line (pipe and rubber tube)
leaks

EVAP purge line rubber tube bent.

Loose or disconnected rubber tube

EVAP canister vent control valve and the
circuit

EVAP canister purge volume control sole-
noid valve and the circuit

Fuel tank temperature sensor

O-ring of EVAP canister vent control valve
is missing or damaged.

EVAP control system pressure sensor

Refueling EVAP vapor cut valve

ORVR system leaks

EC-422Revision: November 2009
DTC P0455 EVAP CONTROL SYSTEM
2006 QX56
5. CHECK EVAP PURGE LINE
Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks, improper connection or
disconnection.
Refer to EC-33, "
EVAPORATIVE EMISSION LINE DRAWING" .
OK or NG
OK >> GO TO 6.
NG >> Repair or reconnect the hose.
6. CLEAN EVAP PURGE LINE
Clean EVAP purge line (pipe and rubber tube) using air blower.
>> GO TO 7.
7. CHECK EVAP CANISTER VENT CONTROL VALVE
Check the following.

EVAP canister vent control valve is installed properly.
Refer to EC-36, "
Removal and Installation" .

EVAP canister vent control valve.
Refer to EC-393, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace EVAP canister vent control valve and O-ring.
8. INSTALL THE PRESSURE PUMP
To locate the EVAP leak, install EVAP service port adapter and pres-
sure pump to EVAP service port securely.
NOTE:
Improper installation of the EVAP service port adapter to the
EVAP service port may cause leaking.
With CONSULT-II>>GO TO 9.
Without CONSULT-II>>GO TO 10.
BBIA0366E
SEF916U

EC-426Revision: November 2009
DTC P0455 EVAP CONTROL SYSTEM
2006 QX56
17. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-404, "
Component Inspection" .
OK or NG
OK >> GO TO 18.
NG >> Replace EVAP control system pressure sensor.
18. CHECK EVAP/ORVR LINE
Check EVAP/ORVR line between EVAP canister and fuel tank for clogging, kink, looseness and improper con-
nection. For location, refer to EC-39, "
ON BOARD REFUELING VAPOR RECOVERY (ORVR)" .
OK or NG
OK >> GO TO 19.
NG >> Repair or replace hoses and tubes.
19. CHECK RECIRCULATION LINE
Check recirculation line between filler neck tube and fuel tank for clogging, kink, cracks, looseness and
improper connection.
OK or NG
OK >> GO TO 20.
NG >> Repair or replace hose, tube or filler neck tube.
20. CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to EC-43, "
Component Inspection" .
OK or NG
OK >> GO TO 21.
NG >> Replace refueling EVAP vapor cut valve with fuel tank.
21. CHECK INTERMITTENT INCIDENT
Refer to EC-144, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
