VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-73
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
*1: Make sure the system is in the armed phase.
Door Switch CheckINFOID:0000000003532949
1.CHECK DOOR SWITCHES INPUT SIGNAL
With CONSULT-II
Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR", "BACK DOOR
SW", "TRNK OPN MNTR") in DATA MONITOR mode with CONSULT–II.Refer to BL-70, "
CONSULT-II Func-
tion (BCM)".
• When doors are open:
• When doors are closed:
Without CONSULT-II
3*1 Vehicle security
system does not
alarm when ····Any door, hood or glass hatch is
opened.Refer to BL-73, "
Door Switch Check".
Refer to BL-75, "
Hood Switch Check".
If the above systems are “OK”, replace BCM. Refer to BCS-24, "
BCM".
4Vehicle security
alarm does not ac-
tivate.Horn alarmRefer to BL-79, "
Vehicle Security Horn Alarm Check" .
If the above systems are “OK”, check horn system.
Refer to WW-43
.
Headlamp alarmRefer to BL-79, "
Vehicle Security Headlamp Alarm Check".
If the above systems are “OK”, replace BCM. Refer to BCS-24, "
BCM".
5Vehicle security
system cannot be
canceled by ····Door outside keyRefer to BL-77, "
Front Door Lock Assembly LH (Key Cylinder Switch)
Check" .
If the above systems are “OK”, check main power window and door lock/
unlock switch.
KeyfobCheck remote keyless entry function. Refer to BL-52, "
Keyfob Battery and
Function Check".
If the above systems are “OK”, replace BCM. Refer to BCS-24, "
BCM" . SYMPTOM PROCEDURE Diagnostic procedure
DOOR SW-DR : ON
DOOR SW-AS : ON
DOOR SW-RL : ON
DOOR SW-RR : ON
BACK DOOR SW : ON
TRNK OPN MNTR : ON
DOOR SW-DR : OFF
DOOR SW-AS : OFF
DOOR SW-RL : OFF
DOOR SW-RR : OFF
BACK DOOR SW : OFF
TRNK OPN MNTR : OFF
WIIA0466E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-77
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
2. Check voltage between BCM harness connector M18 terminal
23 and ground.
OK or NG
OK >> Security indicator lamp is OK.
NG >> GO TO 2.
2.SECURITY INDICATOR LAMP CHECK
Check security indicator lamp condition.
Refer to DI-5
.
OK or NG
OK >> GO TO 3.
NG >> Replace combination meter (security indicator lamp). Refer to DI-5
.
3.CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and combination meter (security indicator lamp).
3. Check continuity between BCM connector (A) M18 terminal 23
and combination meter (security indicator lamp) harness con-
nector (B) M24 terminal 28.
4. Check continuity between BCM connector (A) M18 terminal 23
and ground.
OK or NG
OK >> Check the following:
• 10A fuse [No. 19, located in fuse block (J/B)]
• Harness for open or short between combination meter (security indicator lamp) and fuse
NG >> Repair or replace harness.
Front Door Lock Assembly LH (Key Cylinder Switch) CheckINFOID:0000000003532952
1.CHECK FRONT DOOR LOCK ASSEMBLY LH (KEY CYLINDER SWITCH)
With CONSULT-II
Check front door lock assembly LH (key cylinder switch) ("KEY CYL LK-SW") and ("KEY CYL UN-SW) in
DATA MONITOR mode in CONSULT–II.Refer to BL-70, "
CONSULT-II Function (BCM)".
• When key inserted in front key cylinder is turned to LOCK:
• When key inserted in front key cylinder is turned to UNLOCK:
Without CONSULT-II
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M18 23 GroundON 0
OFFBattery volt-
age
LIIA0523E
23 - 28 : Continuity should exist.
23 - ground : Continuity should not exist.
LIIA2253E
KEY CYL LK-SW : ON
KEY CYL UN-SW : ON
LIIA0188E

BL-78
< SERVICE INFORMATION >
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Check voltage between main power window and door lock/unlock switch connector D7 terminals 4, 6 and
ground.
OK or NG
OK >> Front door lock assembly LH (key cylinder switch) signal is OK.
NG >> GO TO 2.
2.CHECK DOOR KEY CYLINDER SWITCH LH GROUND HARNESS
Check continuity between front door lock assembly LH (key cylinder
switch) connector (A) D14 terminal 5 and body ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK DOOR KEY CYLINDER SWITCH LH
Check continuity between front door lock assembly LH (key cylinder
switch) terminals.
OK or NG
OK >> GO TO 4.
NG >> Replace front door lock assembly LH (key cylinder switch). Refer to BL-110, "
Removal and Instal-
lation".
4.CHECK DOOR KEY CYLINDER HARNESS
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (–)
D74
GroundNeutral/Unlock 5
Lock 0
6Neutral/Lock 5
Unlock 0
LIIA0566E
Connector Terminals Continuity
D14 5 – Ground Yes
WIIA0755E
Terminals Condition Continuity
1 – 5 Key is turned to UNLOCK or neutral. No
Key is turned to LOCK. Yes
5 – 6Key is turned to LOCK or neutral. No
Key is turned to UNLOCK. Yes
LIIA1573E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-79
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
Check continuity between main power window and door lock/unlock
switch connector (A) D7 terminals 4, 6 and front door lock assembly
LH (key cylinder switch) connector (B) D14 terminals 1, 6 and body
ground.
OK or NG
OK >> Replace main power window and door lock/unlock switch.
NG >> Repair or replace harness.
Vehicle Security Horn Alarm CheckINFOID:0000000003532953
1.CHECK HORN OPERATION
Check if horn sounds with horn switch.
Does horn operate?
YES >> Check harness for open or short between IPDM E/R and horn relay.
NO >> Check horn circuit. Refer to WW-43
.
Vehicle Security Headlamp Alarm CheckINFOID:0000000003532954
1.CHECK VEHICLE SECURITY HEADLAMP ALARM OPERATION
Check if headlamps operate with lighting switch.
Do headlamps come on when turning switch ON?
YES >> Headlamp alarm is OK.
NO >> Check headlamp system. Refer to LT- 5
or LT- 2 4.
Door Lock/Unlock Switch CheckINFOID:0000000003532955
1.CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL
Check if power door lock operates with door lock/unlock switch.
Do doors lock/unlock when using each door lock/unlock switch?
YES >> Door lock/unlock switch is OK.
NO >> Refer to "Door Lock/Unlock Switch Check ".
Connector Terminals Connector Terminals Continuity
A: Main
power win-
dow and
door lock/
unlock
switch4 B: Front
door lock
assembly
LH (key
cylinder
switch)1Yes
66Yes
4, 6 Ground No
WIIA0756E

AUTOMATIC BACK DOOR SYSTEM
BL-81
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
The automatic back door system must be initialized by fully closing the back door anytime the battery
power is lost to the back door control unit.
The automatic back door system consists of a one piece unit that combines the back door control unit along
with the back door motor, back door clutch and the back door encoder. The back door latch contains a lock
function that can control the two functions of automatic back door latch closure and electrical opener with a
single motor when you close the back door to the halfway-state.
• Back door auto closure
When the back door is closed to the halfway state (half-latch) position, the motor automatically drives to
rotate the latch lever and pull it in from half latched to full latched.
• Power back door
With the back door closed, press the power liftgate switch or press the keyfob button, or pull the back door
handle with the back door unlocked, the back door latch motor opens the locking plate and releases the
latch. The back door motor then raises the door to the full open position.
With the back door fully open, press the power liftgate switch, keyfob button or the back door close switch,
the back door motor closes the door to the half-latch state. The back door latch motor then drives the latch to
the full close position.
At the onset of each power open or power close application, the hazard lamps will flash 3 times and the
warning chime will sound 3 times lasting a total of 2 seconds.
OPERATION DESCRIPTION
Power Liftgate Switch Operation (Fully Closed → Fully Open Operation)
• When the power liftgate switch is pressed, back door control unit terminal 23 receives the signal.
• The back door control unit checks the A/T selector lever (P position) through terminal 18, vehicle speed
through terminal 21, ignition status through terminal 7, glass hatch is closed through terminal 17 and battery
voltage is present through terminal 3.
• When the back door control unit receives the signal, if the auto back door operating enable conditions are
met, it sends a 5 volt signal through terminal 6 and grounds terminal 9 to sound the warning chime, sends a
signal to the BCM through terminal 4 to flash the hazard lamps and unlocks the back door latch through ter-
minal 12.
• The back door control unit supplies power to the magnetic clutch and the back door motor and moves the
back door in the open direction. (At this time, it also executes speed control, input reverse, and anti-pinch
detection control.)
• When the back door is opened to the full-open position, the full-open position is detected by the encoder,
and the back door control unit switches the back door motor OFF and the magnetic clutch is pulsed and then
turned OFF.
• The back door is held in the fully open position by the gas stays.
Remote Keyless Entry Operation (Fully Closed → Fully Open Operation)
• When the keyfob button is pressed for at least 0.5 seconds, back door control unit terminal 21 receives the
signal.
• The back door control unit checks the A/T selector lever (P position) through terminal 18, vehicle speed
through terminal 21, ignition status through terminal 7, glass hatch is closed through terminal 17 and battery
voltage is present through terminal 3.
• When the back door control unit receives the signal, if the auto back door operating enable conditions are
met, it sends a 5 volt signal through terminal 6 and grounds terminal 9 to sound the warning chime, sends a
signal to the BCM through terminal 4 to flash the hazard lamps and unlocks the back door latch through ter-
minal 12.
• The back door control unit supplies power to the magnetic clutch and the back door motor and moves the
back door in the open direction. (At this time, it also executes speed control, input reverse, and anti-pinch
detection control.)
• When the back door is opened to the full-open position, the full-open position is detected by the encoder,
and the back door control unit switches the back door motor OFF and the magnetic clutch is pulsed and then
turned OFF.
• The back door is held in the fully open position by the gas stays.
Back Door Handle Switch Operation (Fully Closed → Fully Open Operation)
• When the back door handle is pulled, back door control unit terminal 26 receives the signal.
• The back door control unit checks that the back door is unlocked and checks the A/T selector lever (P posi-
tion) through terminal 18, vehicle speed through terminal 21, ignition status through terminal 7, glass hatch is
closed, battery voltage and back door close switch position through terminal 13.
• When the back door control unit receives the signal, if all auto back door operating enable conditions are
met, it sends a 5 volt signal through terminal 6 and grounds terminal 9 to sound the warning chime, sends a

BL-82
< SERVICE INFORMATION >
AUTOMATIC BACK DOOR SYSTEM
signal to the BCM through terminal 4 to flash the hazard lamps and unlocks the back door latch through ter-
minal 12.
• The back door control unit supplies power to the magnetic clutch and the back door motor and moves the
back door in the open direction. (At this time, it also executes speed control, input reverse, and anti-pinch
detection control.)
• When the back door is opened to the full-open position, the full-open position is detected by the encoder,
and the back door control unit switches the back door motor OFF and the magnetic clutch is pulsed and then
turned OFF.
• The back door is held in the fully open position by the gas stays.
Power Liftgate Switch Operation (Fully Open → Fully Closed Operation)
• When the power liftgate switch is pressed, the back door control unit terminal 23 receives the signal.
• The back door control units checks door position through the rotary encoder.
• When the back door control unit receives the signal, if the auto back door operating enable conditions are
met, it sends a signal through terminal 6 and grounds terminal 9 to sound the warning chime and sends a
signal to the BCM through terminal 4 to flash the hazard lamps.
• The back door control unit supplies power to the magnetic clutch and the back door motor and move the
back door in the close direction. (At this time, it also executes speed control, input reverse, and anti-pinch
detection control.)
• When the back door reaches the half-latch state, the half-latch switch detects this and the signal is sent to
the back door control unit terminal 22.
• When the back door control unit receives the half latch switch signal, it switches OFF the back door motor
and the magnetic clutch and operates the cinch latch motor.
• When the back door latch operates and full close is detected through terminal 14 of the back door control
unit, the cinch latch motor reverses to the neutral position and the back door auto closure operation ends
and the door is fully closed.
Remote Keyless Entry Operation (Fully Open → Fully Closed Operation)
• When the keyfob switch is pressed for at least 0.5 seconds, the back door control unit terminal 21 receives
the signal.
• The back door control units checks door position through the rotary encoder.
• When the back door control unit receives the signal, if the auto back door operating enable conditions are
met, it sends a signal through terminal 6 and grounds terminal 9 to sound the warning chime and sends a
signal to the BCM through terminal 4 to flash the hazard lamps.
• The back door control unit supplies power to the magnetic clutch and the back door motor and move the
back door in the close direction. (At this time, it also executes speed control, input reverse, and anti-pinch
detection control.)
• When the back door reaches the half-latch state, the half-latch switch detects this and the signal is sent to
the back door control unit terminal 22.
• When the back door control unit receives the half latch switch signal, it switches OFF the back door motor
and the magnetic clutch and operates the cinch latch motor.
• When the back door latch operates and full close is detected through terminal 14 of the back door control
unit, the cinch latch motor reverses to the neutral position and the back door auto closure operation ends
and the door is fully closed.
Back Door Close Switch Operation (Fully Open → Fully Closed Operation)
• When the back door close switch is pressed, the back door control unit terminal 8 receives the signal.
• The back door control units checks back door close switch terminal 13 status and door position (must be
fully opened), through rotary encoder and battery voltage.
• When the back door control unit receives the signal, if the auto back door operating enable conditions are
met, it sends a signal through terminal 6 and grounds terminal 9 to sound the warning chime and sends a
signal to the BCM through terminal 4 to flash the hazard lamps.
• The back door control unit supplies power to the magnetic clutch and the back door motor and move the
back door in the close direction. (At this time, it also executes speed control, input reverse, and anti-pinch
detection control.)
• When the back door reaches the half-latch state, the half-latch switch detects this and the signal is sent to
the back door control unit terminal 22.
• When the back door control unit receives the half latch switch signal, it switches OFF the back door motor
and the magnetic clutch and operates the cinch latch motor.
• When the back door latch operates and full close is detected through terminal 14 of the back door control
unit, the cinch latch motor reverses to the neutral position and the back door auto closure operation ends
and the door is fully closed.

AUTOMATIC BACK DOOR SYSTEM
BL-83
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P Reversal
The door will reverse direction during power open or close operation if the automatic door main switch, keyfob
or back door close switch is operated. A chime will sound to announce the reversal.
Anti-Pinch Function
• During auto operation, if an object is detected in the door's path, a warning chime sounds and the back door
operates in the reverse direction to prevent pinching.
• During auto close operation, if an object is detected by the pinch strips in the door's path, a warning chime
sounds and the back door operates in the open direction until it is fully open.
Gas Stay Check
• During each power open operation, the back door control unit monitors motor current draw to determine if
the gas stays are functioning properly.
• If a malfunction of the gas stays is detected, the back door control unit will close the back door while sound-
ing the warning chime. The back door cannot be opened using the switches until the gas stay malfunction is
repaired.
Warning Functions
• The hazard warning lamps flash and a warning chime is sounded according to the back door operating state,
operations, and conditions.
Auto Back Door Operation Enable Conditions
Control When Operating Enable Conditions Not Met During Power Open/Close
Control When Operating Enable Conditions No Longer Met
Operation Power liftgate switch Remote keyless entry Back door handle switchBack door
close switch
Operating
directionFully closed →
openFully open →
closedFully closed →
openFully open →
closedFully closed →
openFully open →
closedFully open →
closed
Close
switchCANCEL or NEUTRAL NEUTRAL NEUTRAL
Vehicle stop
conditionA/T selector le-
ver in P or N
range and vehi-
cle speed less
than 2 km/h or
ignition switch
in OFF position—A/T selector le-
ver in P or N
range and vehi-
cle speed less
than 2 km/h or
ignition switch
in OFF position—A/T selector le-
ver in P or N
range and vehi-
cle speed less
than 2 km/h or
ignition switch in
OFF position——
Battery volt-
ageApprox. 11V or more
Back door
lock status————Unlocked——
Glass hatch Closed
Items Operation condition Not met case Control
A/T selector lever P positionP or N position with ignition ON
or any position with ignition OFFOtherContinue power open or close,
but sounds warning chime.
Back door close switch NEUTRAL CANCEL
Cancels power open/close op-
eration or door will release to
manual mode. Voltage drop 11V or more11 > V > 9
9 > V > reset voltage
reset voltage > V No power function available
Handle switch Normal (GND) Error (OPEN)No operation. Cancel power
open/close release to manual.
Glass hatch Closed OFFCancels power door open oper-
ation, door will release to manu-
al mode.

AUTOMATIC BACK DOOR SYSTEM
BL-93
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
Self-Diagnosis ProcedureINFOID:0000000003532964
INPUT SIGNAL CHECK MODE
Input signal check mode allows testing of switch input signal to the back door control unit.
To activate input signal check mode on the automatic back door, perform the following steps:
1. Turn ignition switch OFF.
2. Turn back door close switch to CANCEL (system cancelled).
3. Place A/T selector lever in P position.
4. Using the inside emergency release lever, open the back door.
5. Have an assistant press and hold the back door handle switch.
6. While the assistant continues to hold the back door handle switch, turn ignition switch ON (DO NOT start
engine).
7. After approximately 5 seconds, the back door warning chime will sound for 0.5 seconds.
8. Release the back door handle switch.
9. Within 8 seconds of the back door warning chime sounding, press and hold the power liftgate switch.
10. After approximately 5 seconds, the back door warning chime will sound for 1 second.
11. Release the power liftgate switch.
12. The input signal check mode is now initialized.
The input signal check mode can test the following inputs. The back door warning chime will sound for approx-
imately 0.5 seconds each time a switch signal input occurs. Use this test when one of these inputs is not
responding during normal automatic back door operation.
*Back door warning chime should sound as soon as vehicle moves.
Turn ignition switch OFF to end input signal check mode.
OPERATING CHECK MODE
Operating check mode allows self-diagnosis of the automatic back door system.
To activate operating check mode on the automatic back door, perform the following steps:
1. Turn ignition switch OFF.
2. Turn back door close switch to CANCEL (system cancelled).
3. Place A/T selector lever in P position.
4. Using the inside emergency release lever, open the back door.
5. Have an assistant press and hold the back door handle switch.
6. While the assistant continues to hold the back door handle switch, turn ignition switch ON (DO NOT start
engine).
7. After approximately 5 seconds, the back door warning chime will sound for 0.5 seconds.
8. Release the back door handle switch.
9. Within 8 seconds of the back door warning chime sounding, press the power liftgate switch 5 times in
rapid succession.
Switch signal Operation Refer to
Power liftgate switch OFF → ONBL-95
Back door close switch (CLOSE) OFF → ONBL-98
Back door close switch (CANCEL) OFF → ONBL-99
Back door handle switch OFF → ONBL-104
Glass switch OFF → ONBL-95
A/T device (park switch) P position → other than P positionAT- 6 0
Vehicle speed* Vehicle speed —
Remote keyless entry signal Keyfob switch OFF → ONBL-37
Door lock/unlock signal LOCK → UNLOCKBL-15
Pinch strip LH signal OFF → ONBL-100
Pinch strip RH signal OFF → ONBL-100

DOOR
BL-107
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

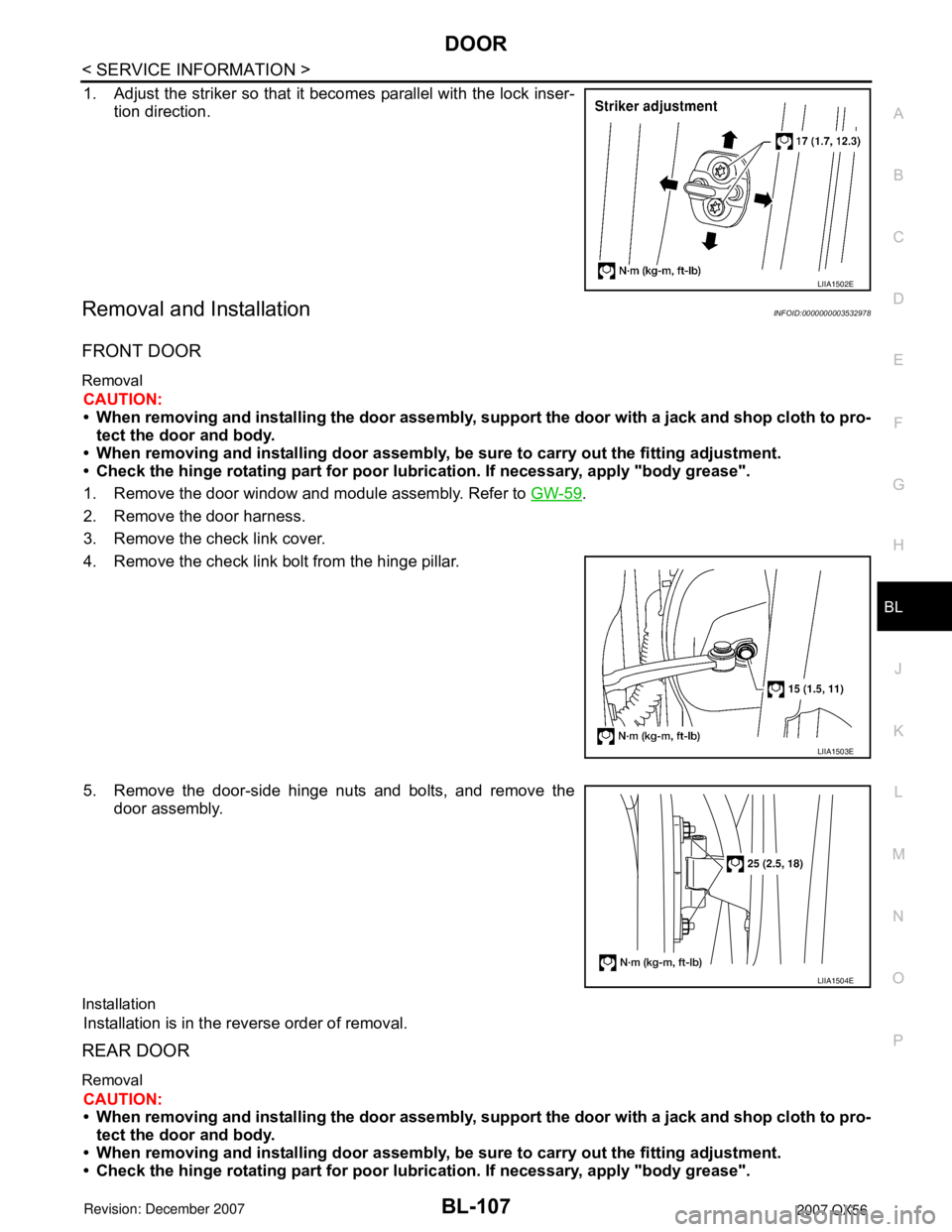

1. Adjust the striker so that it becomes parallel with the lock inser-
tion direction.
Removal and InstallationINFOID:0000000003532978
FRONT DOOR
Removal
CAUTION:
• When removing and installing the door assembly, support the door with a jack and shop cloth to pro-
tect the door and body.
• When removing and installing door assembly, be sure to carry out the fitting adjustment.
• Check the hinge rotating part for poor lubrication. If necessary, apply "body grease".
1. Remove the door window and module assembly. Refer to GW-59
.
2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.
5. Remove the door-side hinge nuts and bolts, and remove the
door assembly.
Installation
Installation is in the reverse order of removal.
REAR DOOR
Removal
CAUTION:
• When removing and installing the door assembly, support the door with a jack and shop cloth to pro-
tect the door and body.
• When removing and installing door assembly, be sure to carry out the fitting adjustment.
• Check the hinge rotating part for poor lubrication. If necessary, apply "body grease".
LIIA1502E
LIIA1503E
LIIA1504E

BL-108
< SERVICE INFORMATION >
DOOR
1. Remove the door window and module assembly. Refer to GW-62.
2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.
5. Remove the door-side hinge nuts and bolts, and remove the
door assembly.
Installation
Installation is in the reverse order of removal.
BACK DOOR
Removal
WARNING:
Always support back door when removing or replacing back door stays. Power back door opener will
not support back door with back door stays removed.
1. Remove the back door glass. Refer to GW-13
.
2. Remove the back door lock assembly. Refer to BL-114
.
3. Remove the rear wiper motor. Refer to WW-37, "
Rear Wiper Motor".
4. Remove the back door wire harness.
5. Remove the rear washer nozzle and hose from the back door. Refer to WW-39, "
Rear Washer Nozzle".
CAUTION:
Two technicians should be used to avoid damaging the back door during removal.
6. Support the back door.
7. Disconnect the power back door lift arm from the door.
8. Remove the back door stays.
LIIA1503E
LIIA1504E
