FUNCTION DIAGNOSIS
POWER WINDOW SYSTEM

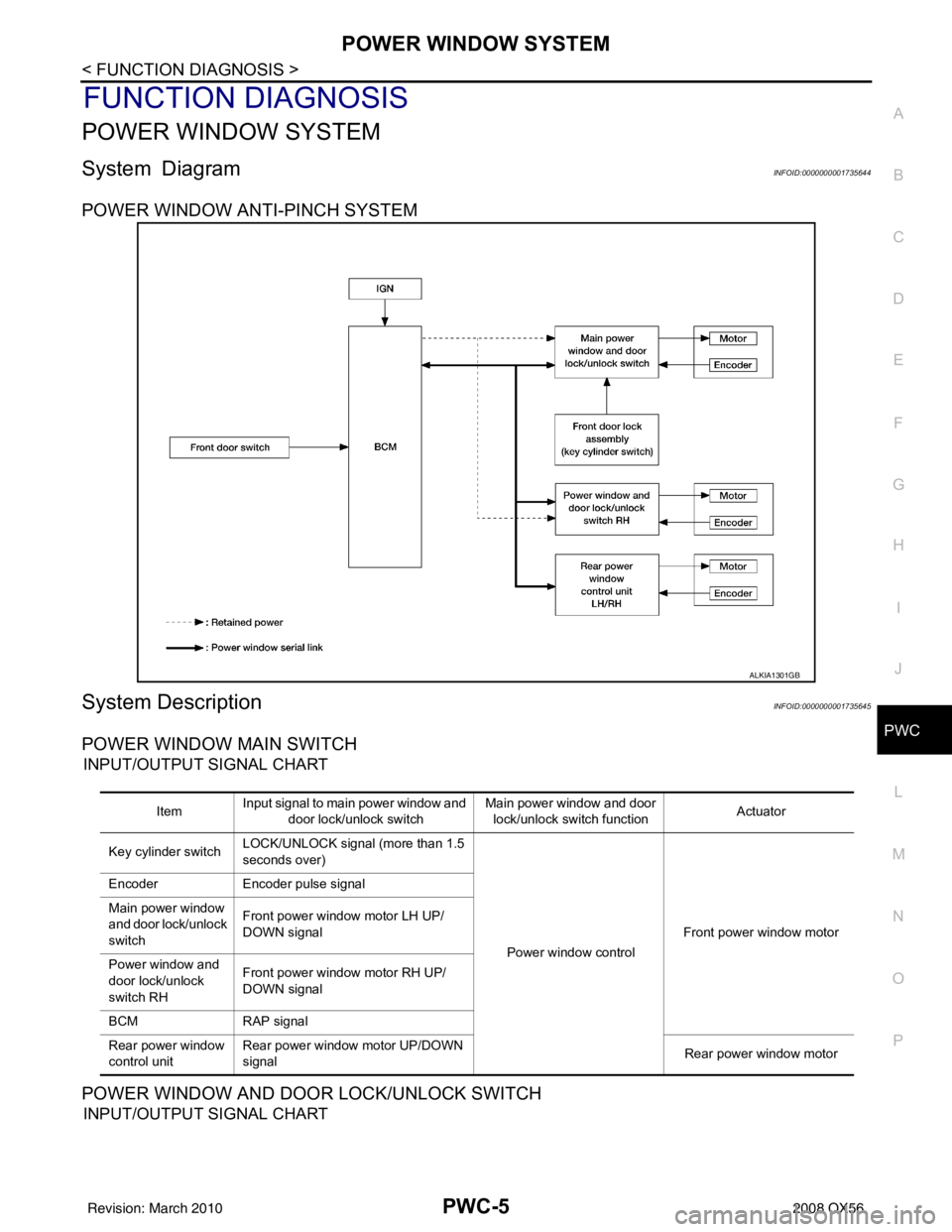

System DiagramINFOID:0000000001735644
POWER WINDOW ANTI-PINCH SYSTEM
System DescriptionINFOID:0000000001735645
POWER WINDOW MAIN SWITCH
INPUT/OUTPUT SIGNAL CHART
POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH
INPUT/OUTPUT SIGNAL CHART
ALKIA1301GB
Item Input signal to main power window and
door lock/unlock switch Main power window and door
lock/unlock switch function Actuator
Key cylinder switch LOCK/UNLOCK signal (more than 1.5
seconds over)
Power window controlFront power window motor
Encoder
Encoder pulse signal
Main power window
and door lock/unlock
switch Front power window motor LH UP/
DOWN signal
Power window and
door lock/unlock
switch RH Front power window motor RH UP/
DOWN signal
BCM RAP signal
Rear power window
control unit Rear power window motor UP/DOWN
signal
Rear power window motor
Revision: March 2010
2008 QX56

POWER WINDOW SYSTEMPWC-7
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
ANTI-PINCH OPERATION
• Pinch foreign material in the door glass during AUTO-U P operation, and it is the anti-pinch function that low-
ers the door glass 150 mm (5.91 in) or 2 seconds when detected.
• Encoder continues detecting the movement of power window motor and transmits to power window switch
as the encoder pulse signal while power window motor is operating.
• Resistance is applied to the power window motor rotation that changes the frequency of encoder pulse sig-
nal if foreign material is trapped in the door glass.
• Front power window switch LH/RH and rear power window control unit LH/RH controls to lower the window glass for 150 mm (5.91 in) or 2 seconds after it detects encoder pulse signal frequency change.
OPERATION CONDITION
• When all door glass AUTO-UP operation is performed ( anti-pinch function does not operate just before the
door glass closes and is fully closed)
NOTE:
Depending on environment and driving conditions, if a similar impact or load is applied to the door glass, it
may lower.
KEY CYLINDER SWITCH OPERATION
Hold the door key cylinder to the LOCK or UNLOCK dire ction for more than 1 second to OPEN or CLOSE front
power windows when ignition switch is OFF. In addition, it stops when key position is moved to NEUTRAL
when operating.
OPERATION CONDITION
• Ignition switch OFF
• Hold door key cylinder to LOCK position for more than 1 second to perform CLOSE operation of the door glass.
• Hold door key cylinder to UNLOCK position for more than 1 second to perform OPEN operation of the door glass.
KEYLESS POWER WINDOW DOWN OPERATION
Front power windows open when the unlock button on Intelligent Key is activated and kept pressed for more
than 3
(NOTE) seconds with the ignition switch OFF. The windows keep opening if the unlock button is continu-
ously pressed.
The power window opening stops when the following operations are performed:
• When the unlock button is kept pressed more than 15 seconds.
• When the ignition switch is turned ON while the power window opening is operated.
• When the unlock button is released.
While retained power operation is activated, ke yless power window down function cannot be operated.
NOTE:
Keyless power window down operation mode can be changed by “PW DOWN SET” mode in “WORK SUP-
PORT”. Refer to SEC-22, "
CONSULT-III Function (INTELLIGENT KEY)".
NOTE:
Use CONSULT-III to change settings.
MODE1 (3sec)/MODE2 (OFF)/MODE3 (5sec)
Revision: March 2010 2008 QX56

PWC-8
< FUNCTION DIAGNOSIS >
POWER WINDOW SYSTEM
Component Parts Location
INFOID:0000000001735646
Component DescriptionINFOID:0000000001735647
POWER WINDOW ANTI-PINCH SYSTEM
LIIA2715E
1. A. Steering column B. BCM M18, M19, M20 (view with
instrument panel removed) 2. A. Main power window and door
lock/unlock switch D7, D8
Power window and door lock/unlock
switch RH D105
B. Front door switch LH B8, RH B108
C. Front power win dow motor LH D9,
RH D104
D. Front door lock actuator LH (key
cylinder switch) 3. A. Rear power window switch LH
D203, RH D303
Rear power window control unit LH
D209, RH D309
B. Rear power window motor LH
D204, RH D304
4. A. Rear power vent window relay (CLOSE) M89
B. Rear power vent window relay
(OPEN) M87 5. Rear power vent window switch M95 6. A. Rear power vent window motor
LH B52, RH B150
B. Condenser-3 B119
Condenser-4 B120
Component Function
BCM • Supplies power supply to power window switch.
• Controls retained power.
Main power window and door lock/un-
lock switch • Directly controls all power window motor of all doors.
• Controls anti-pinch operation of front power window LH.
Power window and door lock/unlock
switch RH • Controls front power window motor RH.
• Controls anti-pinch operation of front power window RH.
Rear power window switch • Controls rear power window control units LH and RH.
Rear power window control unit • Controls rear power window motors LH and RH.
• Controls anti-pinch operation of rear power window LH/RH.
Revision: March 2010
2008 QX56

POWER WINDOW SYSTEMPWC-9
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
Front power window motor LH • Integrates the ENCODER POWER and WINDOW MOTOR.
• Starts operating with signals from main power window and door lock/unlock switch.
• Transmits power window motor rotation as a pulse signal to main power window and
door lock/unlock switch.
Front power window motor RH Starts operating with signals from main power window and door lock/unlock switch &
power window and door lock/unlock switch RH.
Rear power window motor Starts operating with signals from main power window and door lock/unlock switch &
rear power window switch.
Front door lock assembly LH (key cylin-
der switch) Transmits operation condition of key cylinder switch to power window main switch.
Front door switch LH or RH Detects door open/close condition and transmits to BCM.
Component
Function
Revision: March 2010 2008 QX56

PWC-10
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)INFOID:0000000004874941
APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.
RETAINED PWR
RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)INFOID:0000000004874944
Data monitor
Diagnosis mode Function Description
WORK SUPPORT Changes the setting for each system function.
SELF-DIAG RESULTS Displays the diagnosis results judged by BCM. Refer to BCS-50, "
DTCIndex".
CAN DIAG SUPPORT MNTR Monitors the reception status of CAN communication viewed from BCM.
DATA MONITOR The BCM input/output signals are displayed.
ACTIVE TEST The signals used to activate each device are forcibly supplied from BCM.
ECU IDENTIFICATION The BCM part number is displayed.
CONFIGURATION • Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.
System
Sub system selection item Diagnosis mode
WORK SUPPORT DATA MONITOR ACTIVE TEST
BCM BCM ×
Door lock DOOR LOCK ×××
Rear window defogger REAR DEFOGGER ×
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Exterior lamp HEAD LAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ××
Air conditioner AIR CONDITONER ×
Intelligent Key system INTELLIGENT KEY ×
Combination switch COMB SW ×
Immobilizer IMMU ××
Interior room lamp battery saver BATTERY SAVER ×××
Back door open TRUNK ××
RAP (retained accessory power) RETAINED PWR ×××
Signal buffer system SIGNAL BUFFER ××
TPMS (tire pressure monitoring sys-
tem) AIR PRESSURE MONITOR
×××
Vehicle security system PANIC ALARM ×
Revision: March 2010 2008 QX56

PWC-36
< COMPONENT DIAGNOSIS >
DOOR KEY CYLINDER SWITCH
DOOR KEY CYLINDER SWITCH
DescriptionINFOID:0000000001735687
Main power window and door lock/unlock switch detects condition of the door key cylinder and transmits to
BCM as the LOCK or UNLOCK signals.
Component Function CheckINFOID:0000000001735688
1. CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL
Check (“KEY CYL LK-SW”, “KEY CYL UN-SW”) in “DAT A MONITOR” mode for “POWER DOOR LOCK SYS-
TEM” with CONSULT-III. Refer to DLK-51, "
INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLI-
GENT KEY)".
Is the inspection result normal?
YES >> Key cylinder switch is OK.
NO >> Refer to PWC-36, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001735689
1. CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between main power window and door lock/ unlock switch connector and ground.
Is the measurement value within the specification?
YES >> Replace main power window and door lock/unlock switch.
NO >> GO TO 2
2. CHECK DOOR KEY CYLINDER SIGNAL CIRCUIT
Monitor item Condition
KEY CYL LK-SW Lock
: ON
Neutral / Unlock : OFF
KEY CYL UN-SW Unlock
: ON
Neutral / Lock : OFF
Te r m i n a l s
Key positionVoltage (V)
(Approx.)
(+)
(–)
Main power window
and door lock/unlock switch connector Te r m i n a l
D7 4
Ground Lock
0
Neutral/Unlock 5
6 Unlock
0
Neutral/Lock 5
ALKIA0309ZZ
Revision: March 2010 2008 QX56

DOOR KEY CYLINDER SWITCHPWC-37
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch and front door lock assembly LH (key cylinder switch).
3. Check continuity between main power window and door lock/ unlock switch connector (A) and front door lock assembly LH
(key cylinder switch) connector (B).
4. Check continuity between main power window and door lock/unlock switch connector (A) and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness.
3. CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT
Check continuity between front door lock assembly LH (key cylinder
switch) connector and ground.
Is the inspection result normal?
YES >> GO TO 4
NO >> Repair or replace harness.
4. CHECK DOOR KEY CYLINDER SWITCH
Check door key cylinder switch.
Refer to PWC-37, "
Component Inspection".
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-38, "Intermittent Incident".
NO >> Replace front door lock assembly LH (door key cylinder switch).
Component InspectionINFOID:0000000001735690
COMPONENT INSPECTION
1. CHECK DOOR KEY CYLINDER SWITCH
Main power window
and door lock/unlock switch connector Te r m i n a lFront door lock as-
sembly LH (key cylin-
der switch) connector Terminal Continuity
D7 (A) 4
D14 (B) 1
Ye s
66
Main power window and door lock/unlock switch connector Te r m i n a l
Ground Continuity
D7 (A) 4
No
6
ALKIA1025ZZ
Front door lock assembly LH (key
cylinder switch) connector Te r m i n a l
GroundContinuity
D14 5 Yes
LIIA1572E
Revision: March 2010 2008 QX56

PWC-38
< COMPONENT DIAGNOSIS >
DOOR KEY CYLINDER SWITCH
Check front door lock assembly LH (key cylinder switch).
Is the inspection result normal?
YES >> Key cylinder switch is OK.
NO >> Replace front door lock assembly LH (key cylinder switch).
Te r m i n a lKey positionContinuity
Front door lock assembly LH
(key cylinder switch) connector
6 5 Unlock
Yes
Neutral/Lock No
1 Lock
Yes
Neutral/Unlock No
LIIA1573E
Revision: March 2010 2008 QX56

POWER WINDOW SERIAL LINKPWC-39
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
POWER WINDOW SERIAL LINK
POWER WINDOW MAIN SWITCH
POWER WINDOW MAIN SWITCH : DescriptionINFOID:0000000001735691
Main power window and door lock/unlock switch, power window and door lock/unlock switch RH and BCM
transmit and receive the signal by power window serial link.
The signal mentioned below is transmitted from BCM to main power window and door lock/unlock switch and
power window and door lock/unlock switch RH
• Keyless power window down signal
The signal mentioned below is transmitted from main pow er window and door lock/unlock switch to power win-
dow and door lock/unlock switch RH
• Front door window RH operation signal
• Power window control by key cylinder switch signal
• Power window lock switch signal
• Retained power operation signal
POWER WINDOW MAIN SWITCH : Component Function CheckINFOID:0000000001735692
1. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL
Check (“CDL LOCK SW ”, “CDL UNLOCK SW”) in “D ATA MONITOR” mode for “POWER DOOR LOCK SYS-
TEM” with CONSULT-III. Refer to DLK-48, "
DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)".
Is the inspection result normal?
YES >> Power window serial link is OK.
NO >> Refer to PWC-39, "
POWER WINDOW MAIN SWITCH : Diagnosis Procedure".
POWER WINDOW MAIN SWITCH : Diagnosis ProcedureINFOID:0000000001735693
Power Window Serial Link Check
1. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL
1. Remove Intelligent Key or ignition key, and close front door LH and RH.
2. Check signal between BCM connector and ground with oscillo- scope when door lock and unlock switch (LH and RH) is turned
to “LOCK” or “UNLOCK”.
3. Check that signals which are shown in the figure below can be detected during 10 second just after door lock and unlock switch
(LH and RH) is turned to “LOCK” or “UNLOCK”.
Monitor item Condition
CDL LOCK SW LOCK
: ON
UNLOCK : OFF
CDL UNLOCK SW LOCK
: OFF
UNLOCK : ON
LIIA0391E
Revision: March 2010 2008 QX56
