BCM (BODY CONTROL MODULE)
Fail Safe
INFOID:0000000004221476
Fail-safe index
BCM performs fail-safe control when any DTC listed below is detected.
ABKIA0048GB
Revision: December 20092009 QX56

BCM (BODY CONTROL MODULE)SEC-77
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
DTC Inspection Priority ChartINFOID:0000000004221477
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
DTC IndexINFOID:0000000004221478
NOTE: Details of time display
• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-
tion switch OFF → ON again.
• 1 - 39: Displayed if any previous ma lfunction is present when current conditi on is normal. It increases like 1
→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter
remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF → ON after returning to the normal condi tion if the malfunction is detected again.
Display contents of CONSULT Fail-safe Cancellation
U1000: CAN COMM CIRCUIT I nhibit engine crankingWhen the BCM re-establishes communication with the other mod-
ules.
U1010: CONTROL UNIT (CAN) Inhibit engine cranking When the BCM re-start communicating with the other modules.
Priority DTC
1 • U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)
2 • B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2013: STRG COMM 1
• B2552: INTELLIGENT KEY
• B2590: NATS MALFUNCTION
3 • C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL
4 • C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL
Revision: December 20092009 QX56

SEC-78
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BCM (BODY CONTROL MODULE)
CONSULT display
Fail-safeIntelligent Key
warning lamp ON Tire pressure
monitor warning lamp ON Reference page
No DTC is detected.
further testing
may be required. ————
U1000: CAN COMM CIRCUIT ———BCS-30
U1010: CONTROL UNIT (CAN) ———BCS-31
B2190: NATS ANTENNA AMP ———SEC-27
B2191: DIFFERENCE OF KEY ———SEC-30
B2192: ID DISCORD BCM-ECM ———SEC-31
B2193: CHAIN OF BCM-ECM ———SEC-33
B2552: INTELLIGENT KEY ———SEC-35
B2590: NATS MALFUNCTION ———SEC-36
C1704: LOW PRESSURE FL ———WT-26
C1705: LOW PRESSURE FR ———WT-26
C1706: LOW PRESSURE RR ———WT-26
C1707: LOW PRESSURE RL ———WT-26
C1708: [NO DATA] FL ———WT-14
C1709: [NO DATA] FR ———WT-14
C1710: [NO DATA] RR ———WT-14
C1711: [NO DATA] RL ———WT-14
C1712: [CHECKSUM ERR] FL ———WT-16
C1713: [CHECKSUM ERR] FR ———WT-16
C1714: [CHECKSUM ERR] RR ———WT-16
C1715: [CHECKSUM ERR] RL ———WT-16
C1716: [PRESSDATA ERR] FL ———WT-18
C1717: [PRESSDATA ERR] FR ———WT-18
C1718: [PRESSDATA ERR] RR ———WT-18
C1719: [PRESSDATA ERR] RL ———WT-18
C1720: [CODE ERR] FL ———WT-16
C1721: [CODE ERR] FR ———WT-16
C1722: [CODE ERR] RR ———WT-16
C1723: [CODE ERR] RL ———WT-16
C1724: [BATT VOLT LOW] FL ———WT-16
C1725: [BATT VOLT LOW] FR ———WT-16
C1726: [BATT VOLT LOW] RR ———WT-16
C1727: [BATT VOLT LOW] RL ———WT-16
C1729: VHCL SPEED SIG ERR ———WT-19
C1735: IGNITION SIGNAL ————
Revision: December 20092009 QX56

INTELLIGENT KEY UNITSEC-79
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
INTELLIGENT KEY UNIT
Reference Value - Intelligent Key UnitINFOID:0000000004221485
TERMINAL LAYOUT
PHYSICAL VALUES
WIIA1168E
Te r m i n a lWire
Color Item Condition
Voltage (V)Approx.
Ignition
Switch Po- sition Operation or Conditions
1L/Y Steering lock sole-
noid power supply LOCK
— 5
2 L CAN-H —— —
3 P CAN-L —— —
4GR Intelligent Key warn-
ing buzzer (front of
vehicle) LOCK
Operate door request
switch. Buzzer OFF
Battery voltage
Buzzer ON 0
5B/W Front door request
switch LH —Press front door request switch LH.
0
Other than above Battery voltage
6 G/R Ignition switch (ON) ON —Battery voltage
7 B/R Key switch LOCKInsert mechanical key into ignition key
cylinder.
Battery voltage
Remove mechanical key from ignition
key cylinder. 0
8G Remote keyless en-
try receiver ground
—— 0
9GR Remote keyless en-
try receiver signal —When remote keyless entry receiver re-
ceives signal from keyfob.
Stand-by
11 Y Power source (Fuse) — —Battery voltage
12 B Ground —— 0
OCC3879D
Revision: December 20092009 QX56

SEC-80
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT
13 B/WInside key antenna 3
(front of center con-
sole) (+) signal
LOCK Any door open → all doors closed
14 W/G Inside key antenna 3
(front of center con-
sole) (-) signal
15 G Inside key antenna 1
(rear of center con-
sole) (+) signal
LOCK Any door open → all doors closed
16 L Inside key antenna 1
(rear of center con-
sole) (-) signal
17 W/L Rear bumper anten-
na (+) signal
LOCK Lift back door handle (close switch).
18 W/R Rear bumper anten-
na (-) signal
19 P Front outside anten-
na LH (+) signal
LOCK Press front door request switch LH.
20 V Front outside anten-
na LH (-) signal
21 B/W Remote keyless en-
try receiver RSSI sig-
nal ——
23 L/W Power back door out-
put —Power liftgate switch ON.
0
Power liftgate switch OFF. Battery voltage
25 P/L Front door request
switch RH —Press front door request switch RH.
0
Other than above Battery voltage
27 R/B Ignition knob switch — Press ignition switch.
Battery voltage
Return ignition switch to LOCK position. 0
28 R Unlock sensor
(driver side) —Door (driver si
de) is locked. 5
Door (driver side ) is unlocked. 0
29 LG/W Back door open
switch input —Back door handle switch ON.
0
Back door handle switch OFF. Battery voltage
Te r m i n a l
Wire
Color Item Condition
Voltage (V)Approx.
Ignition
Switch Po-
sition Operation or Conditions
PIIB7441E
PIIB7441E
SIIA1910J
SIIA1910J
PIIA2344E
Revision: December 20092009 QX56

INTELLIGENT KEY UNITSEC-81
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
30 G/B Remote keyless en-
try receiver power
supply
—— 5
32 L/O Steering lock sole-
noid communication
signal LOCKWhen Intelligent Key is inside vehicle,
press ignition knob switch.
Other than above
5
33 W Inside key antenna 4
(overhead console
area) (+) signal
LOCKPress ignition knob switch: ON (Ignition
knob switch)
34 BR Inside key antenna 4
(overhead console
area) (-) signal
35 O Inside key antenna 2
(luggage compart-
ment) (+) signal
LOCK Back door open → all doors closed
36 R Inside key antenna 2
(luggage compart-
ment) (-) signal
37 LG Front outside anten-
na (+) signal RH
LOCK Press front door request switch RH.
38 B/Y Front outside anten-
na (-) signal RH
39 L/R P range switch —Selector lever is in “P” position.
0
Other than above Battery voltage
40 V AS select unlock out-
put
—UNLOCK with rear door locks disabled.
0
Other than above Battery voltage
Te r m i n a l
Wire
Color Item Condition
Voltage (V)Approx.
Ignition
Switch Po-
sition Operation or Conditions
SIIA1911J
PIIB7441E
PIIB7441E
SIIA1910J
Revision: December 20092009 QX56

SEC-82
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT
Reference Value - Steering Lock Solenoid
INFOID:0000000004221486
TERMINAL LAYOUT
PHYSICAL VALUES
WIIA1169E
Te r m i n a l Wire
Color Signal Designation Condition
Voltage (V)Approx.
Ignition
Switch Posi- tion Operation or Conditions
1 G/Y Power source (fuse) LOCK —Battery voltage
2L/Y Steering lock solenoid
power supply LOCK
— 5
3L/O Steering lock solenoid
communication signal
LOCKWhen Intelligent Key is inside ve-
hicle, press ignition knob switch.
Other than the above
5
4B Steering lock solenoid
ground —— 0
SIIA1911J
Revision: December 20092009 QX56

INTELLIGENT KEY UNITSEC-83
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P

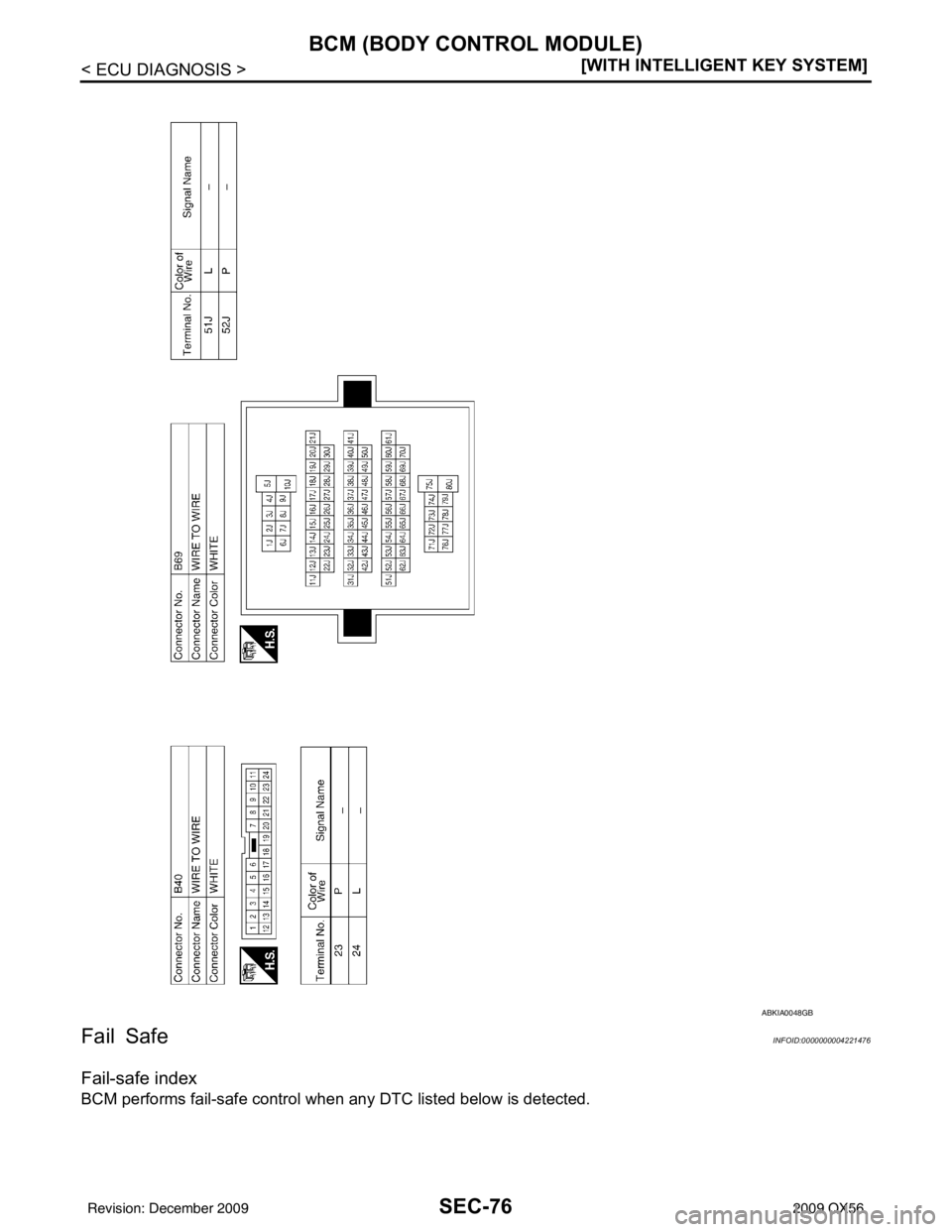

Wiring Diagram - INTE LLIGENT KEY SYSTEM/ENGINE START FUNCTION -
INFOID:0000000003775937
ABKWA0016GB
Revision: December 20092009 QX56

SEC-84
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT

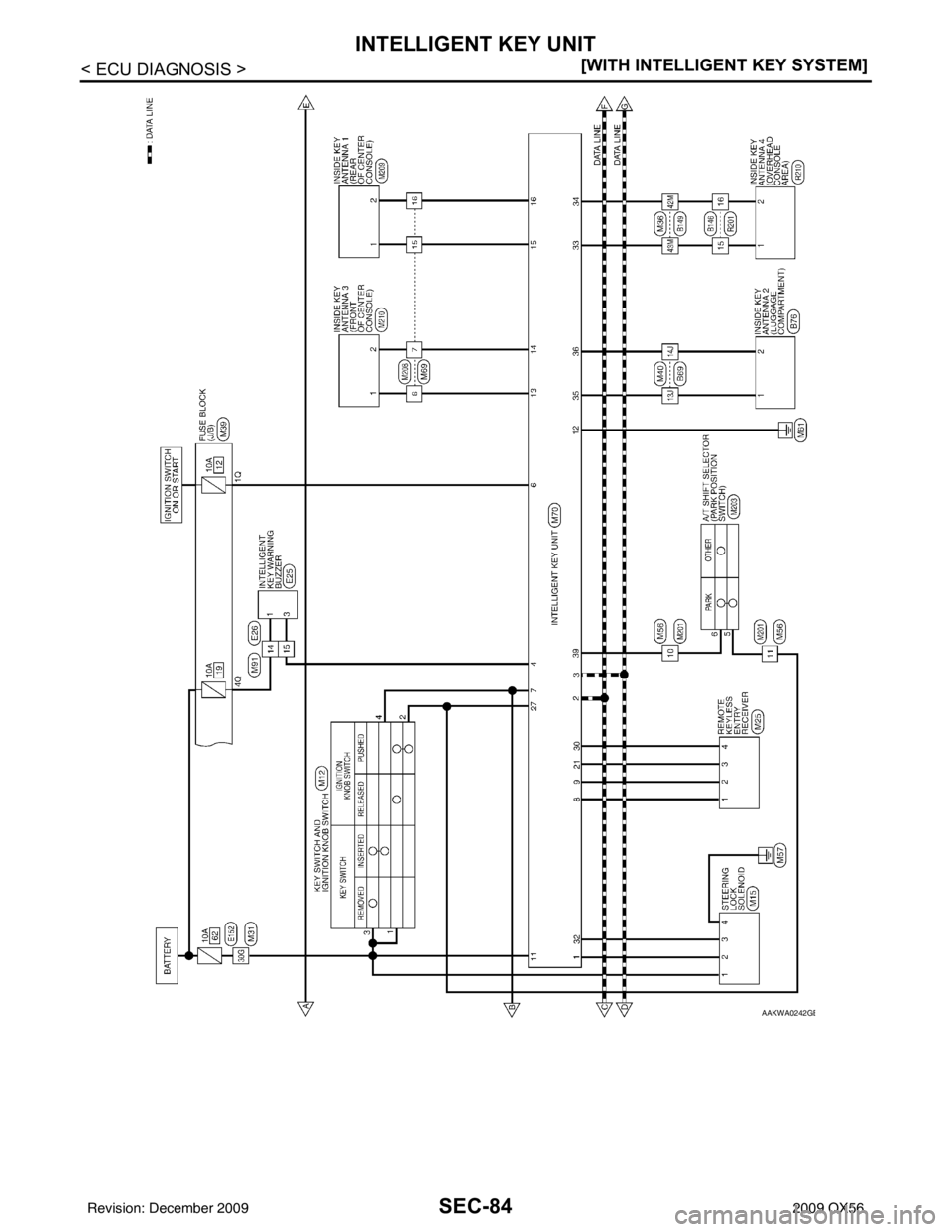

AAKWA0242GB
Revision: December 20092009 QX56

INTELLIGENT KEY UNITSEC-85
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P

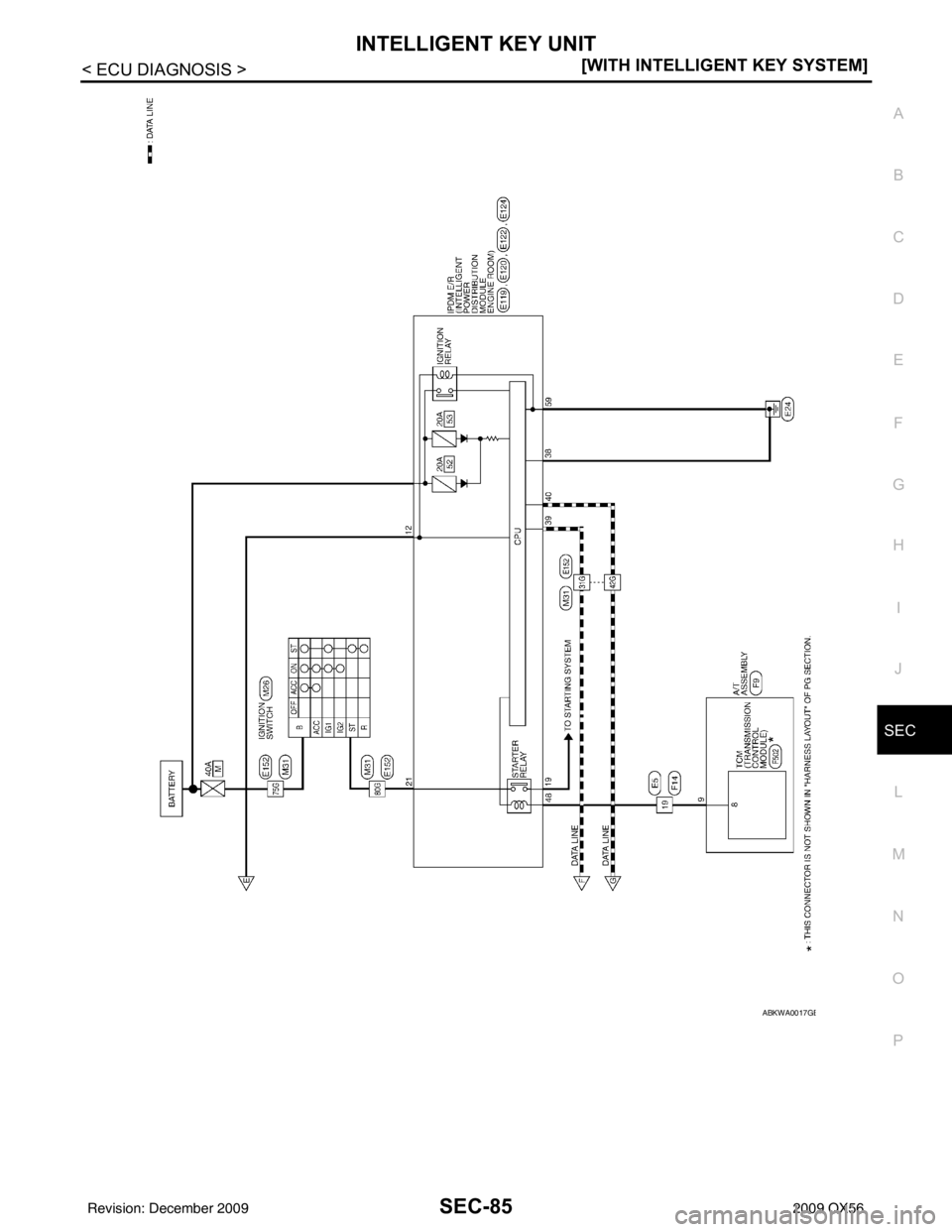

ABKWA0017GB
