BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY
C
DE
F
G H
I
J
L
M
SECTION DLK
A
B
DLK
N
O P
CONTENTS
DOOR & LOCK
WITH INTELLIGENT KEY SYSTEM
BASIC INSPECTION ....... .............................
6
DIAGNOSIS AND REPAIR WORKFLOW ..... .....6
Work Flow ........................................................... ......6
INSPECTION AND ADJUSTMENT .....................9
ADDITIONAL SERVICE WHEN REMOVING BAT-
TERY NEGATIVE TERMINAL ............................... ......
9
ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL : Description ......
9
ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL : Special Re-
pair Requirement ................................................. ......
9
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT .................................................... ......
9
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description ..................................
9
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement .......
9
FUNCTION DIAGNOSIS ..............................10
AUTOMATIC DOOR LOCKS ......................... ....10
System Diagram .................................................. ....10
System Description .................................................10
Component Parts Location ....................................12
Component Description ..........................................12
DOOR LOCK FUNCTION ..................................14
DOOR LOCK AND UNLOCK SWITCH ................. ....14
DOOR LOCK AND UNLOCK SWITCH : System
Diagram ...................................................................
14
DOOR LOCK AND UNLOCK SWITCH : System
Description ..............................................................
14
DOOR LOCK AND UNLOCK SWITCH :
Component Parts Location ....................................
15
DOOR LOCK AND UNLOCK SWITCH :
Component Description ..........................................
15
DOOR REQUEST SWITCH ................................... ....16
DOOR REQUEST SWITCH : System Diagram .......16
DOOR REQUEST SWITCH : System Description ....16
DOOR REQUEST SWITCH :
Component Parts Location ....................................
19
DOOR REQUEST SWITCH :
Component Description ..........................................
21
INTELLIGENT KEY ................................................ ....21
INTELLIGENT KEY : System Diagram ....................21
INTELLIGENT KEY : System Description ...............21
INTELLIGENT KEY : Component Parts Location ....24
INTELLIGENT KEY : Component Description ........25
BACK DOOR OPENER FUNCTION .................27
BACK DOOR OPENER SWITCH .......................... ....27
BACK DOOR OPENER SWITCH : System Dia-
gram ........................................................................
27
BACK DOOR OPENER SWITCH : System De-
scription ...................................................................
27
BACK DOOR OPENER SWITCH :
Component Parts Location ....................................
32
BACK DOOR OPENER SWITCH :
Component Description ..........................................
32
INTELLIGENT KEY ................................................ ....33
INTELLIGENT KEY : System Diagram ....................33
INTELLIGENT KEY : System Description ...............33
INTELLIGENT KEY : Component Parts Location ....35
INTELLIGENT KEY : Component Description ........36
WARNING FUNCTION ......................................38
System Description ..................................................38
Component Parts Location ....................................42
KEY REMINDER FUNCTION ............................44
System Description ..................................................44
Component Parts Location ....................................45
HAZARD AND BUZZER REMINDER FUNC-
TION ..................................................................
47
Revision: December 20092009 QX56

DLK-3
C
DE
F
G H
I
J
L
M A
B
DLK
N
O P
PASSENGER SIDE : Diagnosis Procedure ........
....
87
REAR LH ............................................................... ....88
REAR LH : Description ............................................88
REAR LH : Component Function Check ...............88
REAR LH : Diagnosis Procedure ............................88
REAR RH ............................................................... ....89
REAR RH : Description ...........................................89
REAR RH : Component Function Check ...............90
REAR RH : Diagnosis Procedure ............................90
BACK DOOR ......................................................... ....91
BACK DOOR : Description ......................................91
GLASS HATCH LOCK ACTUATOR ..................92
Diagnosis Procedure ...............................................92
PASSENGER SELECT UNLOCK RELAY .........93
Description .......................................................... ....93
Component Function Check ....................................93
Diagnosis Procedure ...............................................93
INTELLIGENT KEY WARNING BUZZER ..........95
Description .......................................................... ....95
Component Function Check ..................................95
Diagnosis Procedure ...............................................95
Component Inspection ............................................96
OUTSIDE KEY ANTENNA .................................97
Description .......................................................... ....97
Component Function Check ..................................97
Diagnosis Procedure ...............................................97
STEERING LOCK UNIT .....................................99
Diagnosis Procedure ........................................... ....99
A/T SHIFT SELECTOR (PARK POSITION
SWITCH) ...........................................................
101
Diagnosis Procedure ........................................... ..101
REMOTE KEYLESS ENTRY RECEIVER ........103
Description .......................................................... ..103
Component Function Check ................................103
Diagnosis Procedure .............................................103
INTELLIGENT KEY BATTERY AND FUNC-
TION .................................................................
106
Description .......................................................... ..106
Component Function Check ................................106
Diagnosis Procedure .............................................106
HORN FUNCTION ............................................108
Description .......................................................... ..108
Component Function Check ................................108
Diagnosis Procedure ............................................108
COMBINATION METER DISPLAY FUNC-
TION .................................................................
110
Description .......................................................... ..110
Component Function Check ................................110
Diagnosis Procedure .............................................110
WARNING CHIME FUNCTION .......................111
Description ........................................................... ..111
Component Function Check ................................111
Diagnosis Procedure .............................................111
HAZARD FUNCTION ......................................112
Description .............................................................112
Component Function Check ................................112
Diagnosis Procedure .............................................112
KEY SWITCH (INTELLIGENT KEY UNIT IN-
PUT) ................................................................
113
Diagnosis Procedure .............................................113
KEY SWITCH (BCM INPUT) ...........................115
Diagnosis Procedure .............................................115
IGNITION KNOB SWITCH ..............................116
Ignition Knob Switch Check ...................................116
HEADLAMP FUNCTION .................................118
Diagnosis Procedure .............................................118
MAP LAMP AND IGNITION KEYHOLE ILLU-
MINATION FUNCTION ...................................
119
Diagnosis Procedure .............................................119
KEYFOB ID SET UP WITH CONSULT-III ......120
ID Code Entry Procedure ......................................120
KEYFOB ID SET UP WITHOUT CONSULT-III .121
ID Code Entry Procedure .................................... ..121
AUTOMATIC BACK DOOR SELF-DIAGNO-
SIS PROCEDURE ...........................................
123
Self-Diagnosis Procedure ......................................123
POWER LIFTGATE SWITCH FUNCTION ......125
Diagnosis Procedure ........................................... ..125
GLASS HATCH SWITCH ................................127
Diagnosis Procedure .............................................127
GLASS HATCH AJAR SWITCH .....................129
Diagnosis Procedure .............................................129
BACK DOOR CLOSE (CLOSE) SWITCH
SYSTEM ..........................................................
131
Diagnosis Procedure ........................................... ..131
BACK DOOR CLOSE (CANCEL) SWITCH
SYSTEM ..........................................................
132
Diagnosis Procedure ........................................... ..132
PINCH STRIP SYSTEM ..................................133
Diagnosis Procedure .............................................133
BACK DOOR WARNING CHIME SYSTEM ....134
Diagnosis Procedure .............................................134
HALF-LATCH SWITCH SYSTEM ...................135
Diagnosis Procedure .............................................135
Revision: December 20092009 QX56

DLK-4
BACK DOOR OPEN SWITCH SYSTEM .........136
Diagnosis Procedure ........................................... ..136
BACK DOOR CLOSE SWITCH SYSTEM .......137
Diagnosis Procedure ........................................... ..137
BACK DOOR SWITCH ....................................138
Diagnosis Procedure ........................................... ..138
CINCH LATCH MOTOR SYSTEM ...................139
Diagnosis Procedure ........................................... ..139
INTELLIGENT KEY UNIT POWER BACK
DOOR INPUT SIGNAL ....................................
140
Description ........................................................... ..140
Diagnosis Procedure .............................................140
INTELLIGENT KEY UNIT POWER BACK
DOOR OUTPUT SIGNAL ................................
141
Description ........................................................... ..141
Diagnosis Procedure .............................................141
HOMELINK UNIVERSAL TRANSCEIVER ......142
Wiring Diagram .................................................... ..142
Description .............................................................143
Component Function Check ................................144
Diagnosis Procedure .............................................144
ECU DIAGNOSIS ..................................... ..146
BCM (BODY CONTROL MODULE) ............... .146
Reference Value .................................................. ..146
Terminal Layout .....................................................148
Physical Values .....................................................148
Wiring Diagram — POWER DOOR LOCK SYS-
TEM — ..................................................................
154
Fail Safe ................................................................168
DTC Inspection Priority Chart .............................169
DTC Index ........................................................... ..169
INTELLIGENT KEY UNIT ................................171
Reference Value - Intelligent Key Unit ................. ..171
Reference Value - Steering Lock Solenoid ............174
Wiring Diagram — INTELLIGENT KEY SYSTEM
— ......................................................................... ..
175
Fail Safe ................................................................192
BACK DOOR CONTROL UNIT .......................193
Reference Value .................................................. ..193
Wiring Diagram—AUTOMATIC BACK DOOR
SYSTEM— ............................................................
195
Fail Safe .............................................................. ..205
SYMPTOM DIAGNOSIS ............................206
INTELLIGENT KEY SYSTEM SYMPTOMS ... .206
Symptom Table ................................................... ..206
DOOR LOCK FUNCTION SYMPTOMS ..........207
DOOR LOCK AND UNLOCK SWITCH ................. ..207
DOOR LOCK AND UNLOCK SWITCH : Symptom
Table .....................................................................
207
INTELLIGENT KEY ................................................ .208
INTELLIGENT KEY : Symptom Table ..................208
BACK DOOR OPENER FUNCTION ................210
BACK DOOR OPENER SWITCH .......................... .210
BACK DOOR OPENER SWITCH : Symptom Ta-
ble ........................................................................ .
210
BACK DOOR HANDLE .......................................... .210
BACK DOOR HANDLE : Symptom Table .............211
INTELLIGENT KEY ................................................ .211
INTELLIGENT KEY : Symptom Table ..................211
WARNING FUNCTION SYMPTOMS ...............212
Symptom Table .................................................... .212
KEY REMINDER FUNCTION SYMPTOMS .....215
Symptom Table .................................................... .215
HAZARD FUNCTION ..................................... ..216
Symptom Table .................................................... .216
HORN FUNCTION ............................................217
Symptom Table .................................................... .217
HOMELINK UNIVERSAL TRANSCEIVER ......218
Symptom Table .................................................... .218
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................
219
Work Flow ............................................................ .219
Inspection Procedure ............................................221
Diagnostic Worksheet ...........................................223
PRECAUTION ...........................................225
PRECAUTIONS .............................................. ..225
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. .
225
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ................................
225
Precaution for work ...............................................226
PREPARATION .........................................227
PREPARATION .............................................. ..227
Special Service Tool ............................................ .227
Commercial Service Tool ......................................228
ON-VEHICLE REPAIR ..............................229
HOOD ............................................................. ..229
Fitting Adjustment ................................................ .229
Removal and Installation of Hood Assembly ........230
Removal and Installation of Hood Lock Control ....231
Hood Lock Control Inspection ...............................232
Hood Stay Disposal ............................................. .232
Revision: December 20092009 QX56

DLK-10
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
AUTOMATIC DOOR LOCKS
FUNCTION DIAGNOSIS
AUTOMATIC DOOR LOCKS
System DiagramINFOID:0000000004190626
System DescriptionINFOID:0000000004190627
DOOR LOCK FUNCTION
• The door lock and unlock switch (driver side) is built into power window main switch.
• The door lock and unlock switch (passenger side) is on door trim.
• Interlocked with the locking operation of door lock and
unlock switch, door lock actuators of all doors are
locked.
• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors are
unlocked.
Door Key Cylinder
• With the door key inserted in the door key cylinder on driver side, turning it to “LOCK”, will lock door lock
actuator of all doors.
• With the door key inserted in the door key cylinder on driver side, turning it to “UNLOCK” onc\
e unlocks the driver side door lock actuator; turning it to “UNLOCK” again within 5 seconds after the first unlock operation
unlocks all of the other doors. - (SELECTIVE UNLOCK OPERATION)
Selective unlock operation mode can be changed usi ng “DOOR LOCK-UNLOCK SET” mode in “WORK SUP-
PORT”. Refer to DLK-52, "
DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)".
AUTOMATIC DOOR LOCKS (LOCK OPERATION)
The automatic door locks function is the function that locks all doors linked with the vehicle speed.
Vehicle Speed Sensing Auto Door Lock*1
All doors are locked when the vehicle speed reaches 24 km/h (15 MPH) or more.
BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is turned ON, all
doors are closed and the vehicle speed received from the combination meter via CAN communication
becomes 15 MPH (24 km/h) or more.
ALKIA1482GB
Input SingleFunction Actuator
Door lock/unlock switch Door lock/unlock signal Door lock function
Each door lock actuator
Door key cylinder switch
Each door switch
Door open/close signal
Key reminder function
Combination meter Warning buzzer signal
Vehicle speed signal
Automatic door lock/unlock
function
TCM Shift position signal
Revision: December 20092009 QX56

DLK-16
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DOOR LOCK FUNCTION
DOOR REQUEST SWITCH

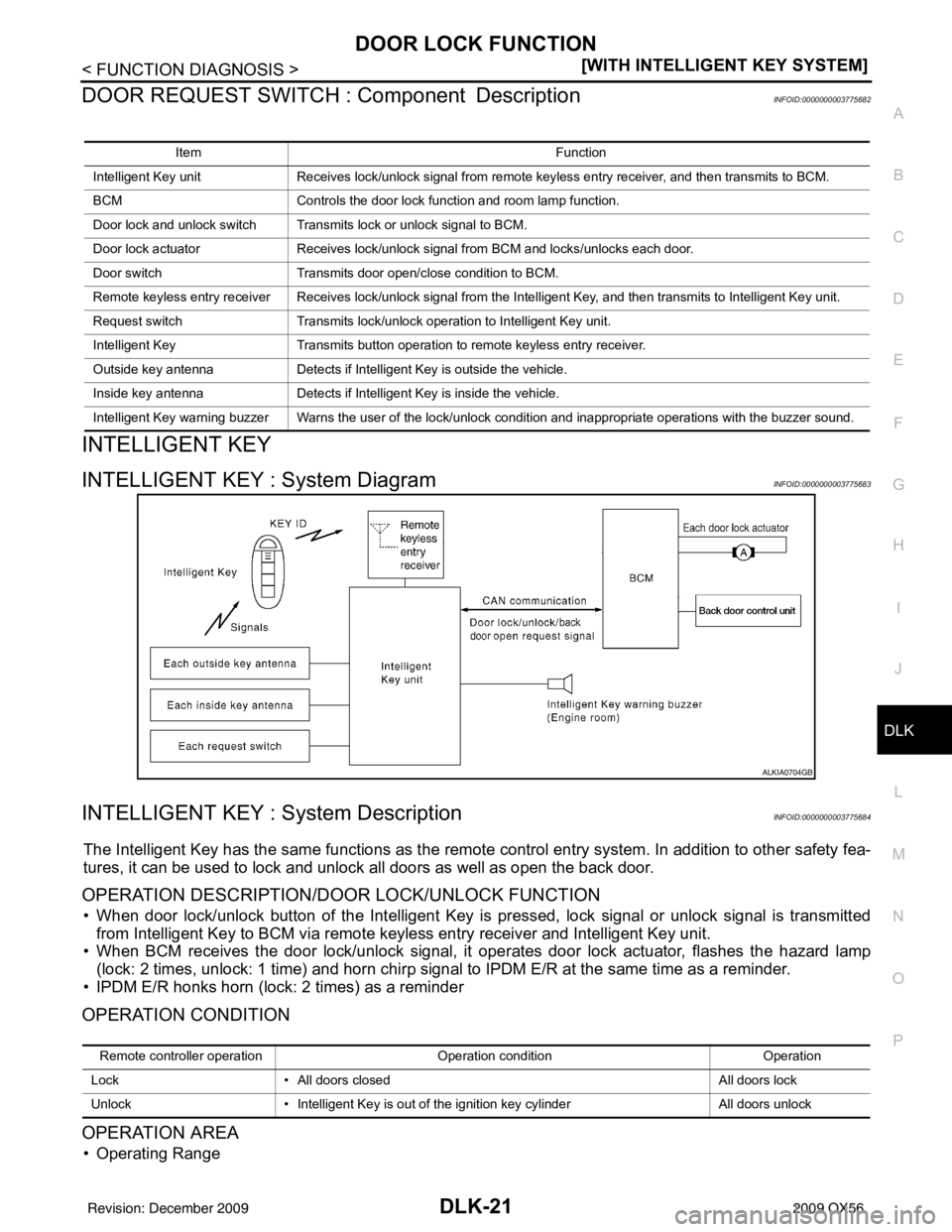

DOOR REQUEST SWITCH : System DiagramINFOID:0000000003775679
DOOR REQUEST SWITCH : System DescriptionINFOID:0000000003775680
Only when pressing the request switch, it is possible
to lock and unlock the door by carrying the Intelligent
Key.
• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/
unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communications between the Intelligent Key and the vehicle (BCM).
CAUTION:
The driver should always carry the Intelligent Key
• If an action that does not meet the operating conditions of the Intelligent Key system is taken, the buzzer
goes off to inform the driver (Warning chime function).
• When a door lock is locked or unlocked with request switch or remote controller button operation, the hazard
lamps flash and the Intelligent Key warning buzzer or horn sounds (Hazard and buzzer/horn reminder func-
tion).
• The settings for each function can be changed with the CONSULT-III.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be
registered.
• It is possible to perform a diagnosis on the system and register an Intelligent Key with the CONSULT-III.
OPERATION DESCRIPTION/DOOR LOCK/UNLOCK
• When the BCM detects that each door request switch is pressed, it starts the outside key antenna and inside
key antenna corresponding to the pressed door request swit ch and transmits the request signal to the Intelli-
gent Key. And then, check that t he Intelligent Key is near the door.
• If the Intelligent Key is within the outside key ant enna detection area, it receives the request signal and
transmits the key ID signal to the BCM via remote keyless entry receiver.
• BCM receives the key ID signal and compares it with the registered key ID.
• BCM sends the door lock/unlock signal and sounds Intelli gent Key buzzer warning (lock: 2 times, unlock: 1
time) at the same time as a reminder.
OPERATION CONDITION
If the following conditions are not satisfied, door lock/unlock operation is not performed even if the request
switch is operated.
Door switch Transmits door open/close condition to BCM.
Passenger select unlock relay Enables or disables the unlocking of rear doors when this Intelligent Key option is selected. Item
Function
ALKIA0704GB
Revision: December 20092009 QX56

DOOR LOCK FUNCTIONDLK-17
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.
OUTSIDE KEY ANTENNA DETECTION AREA
The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver and passenger door handles (1).
OUTSIDE KEY ANTENNA DETECTION AREA
The outside key antenna detection area of back door lock/unlock
function is in the range of approximately 80 cm (31.50 in) surround-
ing the back door handle (1).
SELECTIVE UNLOCK FUNCTION
When a LOCK signal is sent from door request switch (driver side or passenger side), all doors will be locked.
When an UNLOCK signal is sent from door request switch (driver side or passenger side) once, driver's door
will be unlocked.
Then, if an UNLOCK signal is sent from door request switch (driver side and passenger side) again within 5
seconds, all other doors will be unlocked.
HAZARD AND BUZZER REMINDER FUNCTION
During lock or unlock operation by each request switch, the hazard warning lamps and Intelligent Key warning
buzzer will blink or honk as a reminder.
When doors are locked, unlocked by each request switch, IPDM E/R honks Intelligent Key warning buzzer as
a reminder and transmits hazard request signal to BCM via CAN communication line.
BCM flashes hazard warning lamps as a reminder.
Operating function of hazard warning lamps and buzzer reminder
How to change hazard and buzzer reminder mode
Refer to DLK-55, "
INTELLIGENT KEY : CONSULT-III F unction (BCM - INTELLIGENT KEY)".
AUTO DOOR LOCK FUNCTION
Each request switch operation Operation condition
Lock operation • All doors are closed
• Ignition switch is in OFF position
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area
Unlock Operation • Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *
ALKIA0582ZZ
ALKIA0581ZZ
Operation
Hazard warning lamps flash Intelligent Key warning buzzer sounds
Unlock OnceOnce
Lock Twice Twice
Back door open —Four times
Revision: December 20092009 QX56

DLK-18
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DOOR LOCK FUNCTION
When all doors are locked, ignition switch is in OFF
position and key switch is OFF, doors are unlocked with
door request switch
When BCM does not receive the following signals within 60 seconds, all doors are locked.
• Door switch is ON (door is opened)
• Door is locked
• Ignition switch is ON (ignition switch is pressed)
• Key switch is ON
Auto door lock mode can be changed by “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to DLK-55,
"INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)".
ROOM LAMP OPERATION
When the following conditions are met:
• Condition of interior lamp switch is in DOOR position
• Door switch OFF (all the doors are closed)
Intelligent Key system turns on interior lamp (for up to 30 seconds maximum) by receiving UNLOCK signal
from door request switch. For detailed description, refer to DLK-14, "
DOOR LOCK AND UNLOCK SWITCH :
System Description".
LIST OF OPERATION RELATED PARTS
Parts marked with × are the parts related to operation.
Door lock function
Intelligent Key
Ignition key switch
Remote keyless entry receiver
Door switch
Door request switch (Driver, Passenger)
Door lock actuator
Inside key antenna
Outside key antenna (Driver, Passenger)
Intelligent Key warning buzzer
CAN communication system
BCM
Hazard warning lamp
Door lock/unlock function by request switch ×××××××× ××
Hazard and buzzer reminder function for door lock/unlock
operation ××××
Key reminder function ××××××××××××
Selective unlock function by request switch
(Driver side) ×
×××× ××
Selective unlock function by request switch
(Passenger side) ×
×××× ××
Auto door lock function ×× ×××××
Revision: December 20092009 QX56

DLK-20
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DOOR LOCK FUNCTION
ALKIA0579ZZ
1. Horn E3
(view with hood open) 2. IPDM E/R E122, E124
(view with cover removed) 3. Horn relay H-1
4. Remote keyless entry receiver M25 (view with instrume nt panel RH removed) 5. Intelligent key warning buzzer E25 6. Combination meter M23, M24
7. Intelligent Key unit M70 (view with instrument panel LH removed) 8. BCM M18, M19, M20
(view with instrument panel LH removed) 9. Steering lock solenoid M15
(view with steering column removed)
10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch) M203
(view with center console removed)12. Inside key antenna 3 (front of center
console) M210
(view with center console removed)
13. Inside key antenna 1 (rear of center con- sole) M209 14. Inside key antenna 4 (overhead console
area) R210
(view with overhead console removed) 15. Inside key antenna 2 (luggage com-
partment) B76
(view with rear carpet removed)
16. Rear bumper antenna C7 (view with rear bumper removed) 17. Back door latch D503
18. Front outside antenna LH D15
Front outside antenna RH D115
19. Front door request switch LH D16 Front door request switch RH D116 20. Front door lock assembly LH (door un-
lock sensor) D14 21. Front door switch LH B8
RH B108
22. Rear door switch LH B18 RH B116
Revision: December 20092009 QX56

DOOR LOCK FUNCTIONDLK-21
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
DOOR REQUEST SWITCH : Component DescriptionINFOID:0000000003775682
INTELLIGENT KEY
INTELLIGENT KEY : System DiagramINFOID:0000000003775683
INTELLIGENT KEY : System DescriptionINFOID:0000000003775684
The Intelligent Key has the same functions as the remote control entry system. In addition to other safety fea-
tures, it can be used to lock and unlock all doors as well as open the back door.
OPERATION DESCRIPTION/DOOR LOCK/UNLOCK FUNCTION
• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal is transmitted from Intelligent Key to BCM via remote keyless entry receiver and Intelligent Key unit.
• When BCM receives the door lock/unlock signal, it oper ates door lock actuator, flashes the hazard lamp
(lock: 2 times, unlock: 1 time) and horn chirp signal to IPDM E/R at the same time as a reminder.
• IPDM E/R honks horn (lock: 2 times) as a reminder
OPERATION CONDITION
OPERATION AREA
• Operating Range
Item Function
Intelligent Key unit Receives lock/unlock signal from re mote keyless entry receiver, and then transmits to BCM.
BCM Controls the door lock function and room lamp function.
Door lock and unlock switch Transmits lock or unlock signal to BCM.
Door lock actuator Receives lock/unlock signal from BCM and locks/unlocks each door.
Door switch Transmits door open/close condition to BCM.
Remote keyless entry receiver Receives lock/unlock signal from the Intelligent Key, and then transmits to Intelligent Key unit.
Request switch Transmits lock/unlock operation to Intelligent Key unit.
Intelligent Key Transmits button operation to remote keyless entry receiver.
Outside key antenna Detects if Intelligent Key is outside the vehicle.
Inside key antenna Detects if Intelligent Key is inside the vehicle.
Intelligent Key warning buzzer Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.
ALKIA0704GB
Remote controller operation Operation conditionOperation
Lock • All doors closed All doors lock
Unlock • Intelligent Key is out of the ignition key cylinder All doors unlock
Revision: December 20092009 QX56

DLK-22
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DOOR LOCK FUNCTION
• To ensure the Intelligent Key works effectively, us
e within 80 cm range of each doors, however the operable
range may differ according to surroundings.
SELECTIVE UNLOCK FUNCTION
When a LOCK signal is transmitted from Intelligent Key, all doors will be locked.
When an UNLOCK signal is transmitted from Inte lligent Key once, driver's door will be unlocked.
Then, if an UNLOCK signal is transmitted from Intell igent Key again within 5 seconds, all other doors will be
unlocked.
When a liftgate signal is transmitted from Intelligent Key for more than 0.5 second, the back door operates to
the full open position. After opening, another signal will cause the back door to close.
HAZARD AND HORN REMINDER FUNCTION
When doors are locked or unlocked by Intelligent Key, BCM flashes hazard warning lamps as a reminder and
sends horn chirp signal to IPDM E/R. IPDM E/R sounds horn as a reminder.
The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).
Operating function of hazard and horn reminder
Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).
How to change hazard and horn reminder mode
With CONSULT-III
Refer to DLK-56, "
CONSULT-III Function (INTELLIGENT KEY)".
Without CONSULT-III
Refer to Owner's Manual for instructions.
AUTO DOOR LOCK FUNCTION
Auto Door Lock Function
When all doors are locked, ignition switch is OFF (ignition switch is not pressed) and key switch is OFF, doors
are unlocked with Intelligent Key button. When BCM does not receive the following signals within 30 seconds,
all doors are locked.
• Door switch is ON (door is opened)
• Door is locked
• Ignition switch is ON
• Key switch is ON (mechanical key is inserted in ignition key cylinder)
Auto door lock mode can be changed by DOOR LOCK -UNLOCK SET mode in “WORK SUPPORT”. Refer to
DLK-52, "
DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)".
PANIC ALARM FUNCTION
When ignition switch is OFF (ignition switch is not pr essed) and key switch is OFF, BCM receives PANIC
ALARM signal from Intelligent Key through the remote keyless entry receiver and the Intelligent Key unit.
BCM turns on and off headlamp intermittently and transmits theft warning horn signal to IPDM E/R. Then,
IPDM E/R turns on and off horn intermittently.
The headlamp flashes and the horn sounds intermittently.
The alarm automatically turns off:
• After 25 seconds
• When BCM receives any signal from Intelligent Key
Panic alarm function mode can be changed by PANIC ALARM SET mode in “WORK SUPPORT”. Refer to
DLK-56, "
CONSULT-III Function (INTELLIGENT KEY)".
KEYLESS POWER WINDOW DOWN (OPEN) FUNCTION
Front power windows (with left and right front power window anti-pinch system) open when the unlock button
on Intelligent Key is activated and kept pressed for more than 3 seconds with the ignition switch OFF. The win-
dows keep opening if the unlock button is continuously pressed.
The power window opening stops when the following operations are performed:
• When the unlock button is kept pressed more than 15 seconds.
• When the ignition switch is turned ON while the power window opening is operated.
• When the unlock button is released.
C mode S mode
Intelligent Key operation Lock UnlockBack door
open Lock Unlock Back door
open
Hazard warning lamp flashTwice Once —Twice ——
Horns sound Once—————
