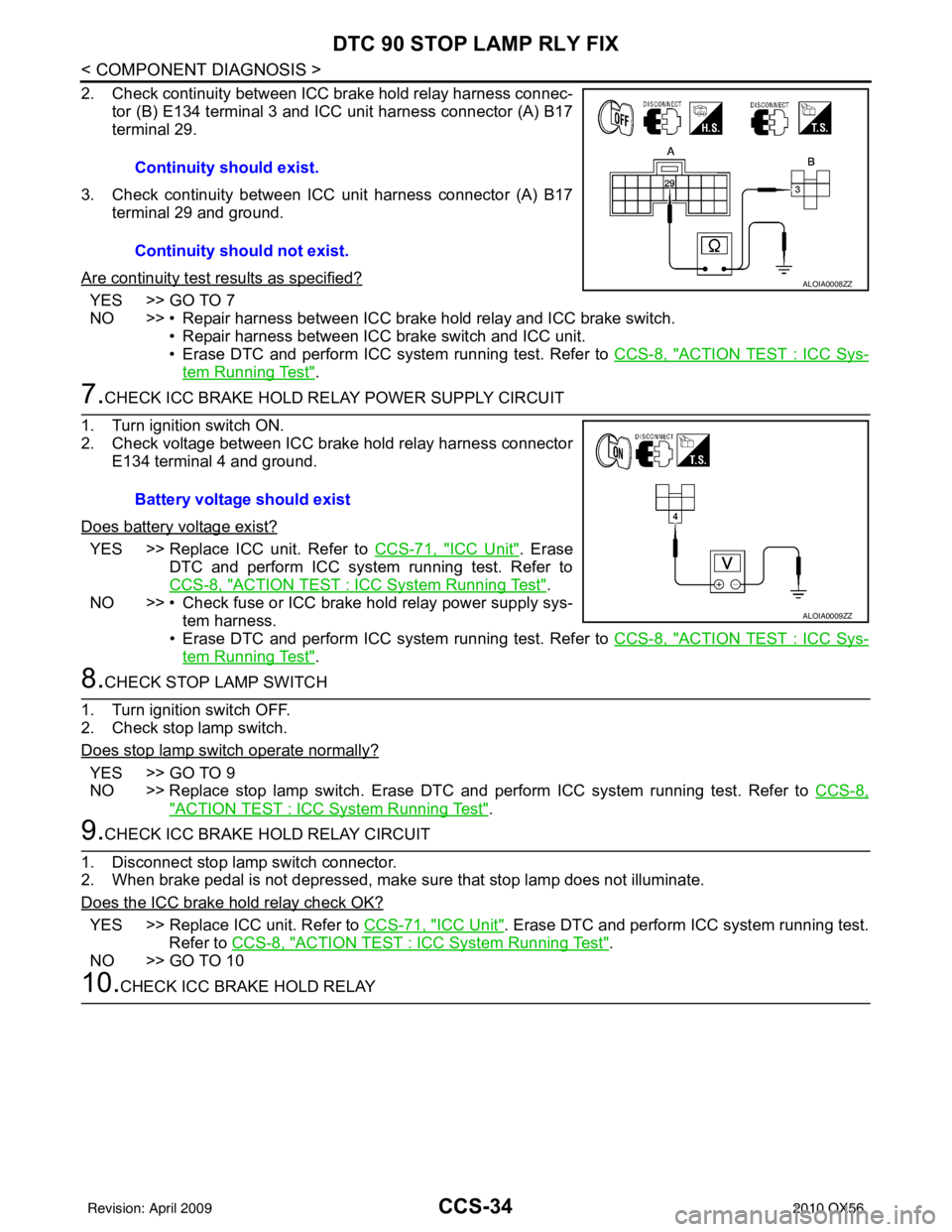

CCS-34
< COMPONENT DIAGNOSIS >
DTC 90 STOP LAMP RLY FIX
2. Check continuity between ICC brake hold relay harness connec-tor (B) E134 terminal 3 and ICC unit harness connector (A) B17
terminal 29.
3. Check continuity between ICC unit harness connector (A) B17 terminal 29 and ground.
Are continuity test results as specified?
YES >> GO TO 7
NO >> • Repair harness between ICC brake hold relay and ICC brake switch. • Repair harness between ICC brake switch and ICC unit.
• Erase DTC and perform ICC system running test. Refer to CCS-8, "
ACTION TEST : ICC Sys-
tem Running Test".
7.CHECK ICC BRAKE HOLD RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between ICC brake hold relay harness connector E134 terminal 4 and ground.
Does battery voltage exist?
YES >> Replace ICC unit. Refer to CCS-71, "ICC Unit". Erase
DTC and perform ICC system running test. Refer to
CCS-8, "
ACTION TEST : ICC System Running Test".
NO >> • Check fuse or ICC brake hold relay power supply sys- tem harness.
• Erase DTC and perform ICC system running test. Refer to CCS-8, "
ACTION TEST : ICC Sys-
tem Running Test".
8.CHECK STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Check stop lamp switch.
Does stop lamp switch operate normally?
YES >> GO TO 9
NO >> Replace stop lamp switch. Erase DTC and perform ICC system running test. Refer to CCS-8,
"ACTION TEST : ICC System Running Test".
9.CHECK ICC BRAKE HOLD RELAY CIRCUIT
1. Disconnect stop lamp switch connector.
2. When brake pedal is not depressed, make sure that stop lamp does not illuminate.
Does the ICC brake hold relay check OK?
YES >> Replace ICC unit. Refer to CCS-71, "ICC Unit". Erase DTC and perform ICC system running test.
Refer to CCS-8, "
ACTION TEST : ICC System Running Test".
NO >> GO TO 10
10.CHECK ICC BRAKE HOLD RELAY Continuity should exist.
Continuity should not exist.
ALOIA0008ZZ
Battery voltage should exist
ALOIA0009ZZ
