P2135 TP SENSOREC-375
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-85, "Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK THROTTLE POSITION SEN SOR POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle c ontrol actuator (1) harness connec-
tor.
- Illustration shows the view with intake air duct removed.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator (1) ter- minal 2 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3.CHECK THROTTLE POSITION SEN SOR POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric thrott le control actuator terminal 2 and ECM terminal 47.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit.
4.CHECK THROTTLE POSITION SEN SOR POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
BBIA0354E
BBIA0371E
Voltage: Approximately 5 V
PBIB2065E
Continuity should exist.
ECM terminalSensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 2
EC-435, "
Wiring Diagram - ENGINE
CONTROL SYSTEM -"91APP sensor terminal 6
Revision: April 20092010 QX56

EC-376
< COMPONENT DIAGNOSIS >[VK56DE]
P2135 TP SENSOR
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5.CHECK ACCELERATOR PEDAL POSITION SENSOR
Refer to EC-381, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
6.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace the accelerator pedal assembly.
2. Perform EC-18, "
Accelerator Pedal Released Position Learning".
3. Perform EC-18, "
Throttle Valve Closed Position Learning".
4. Perform EC-18, "
Idle Air Volume Learning".
>> INSPECTION END
7.CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric thrott le control actuator terminal 4 and ECM terminal 66.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 50 and elec tric throttle control actuator terminal 1, ECM
terminal 69 and electric throttle control actuator terminal 3.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK THROTTLE POSITION SENSOR
Refer to EC-377, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-18, "
Throttle Valve Closed Position Learning".
3. Perform EC-18, "
Idle Air Volume Learning".
>> INSPECTION END
11 .CHECK INTERMITTENT INCIDENT
Refer to GI-35, "
How to Check Terminal" and GI-38, "Intermittent Incident".
Continuity should exist.
Continuity should exist.
Revision: April 20092010 QX56

P2135 TP SENSOREC-377
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
>>
INSPECTION END

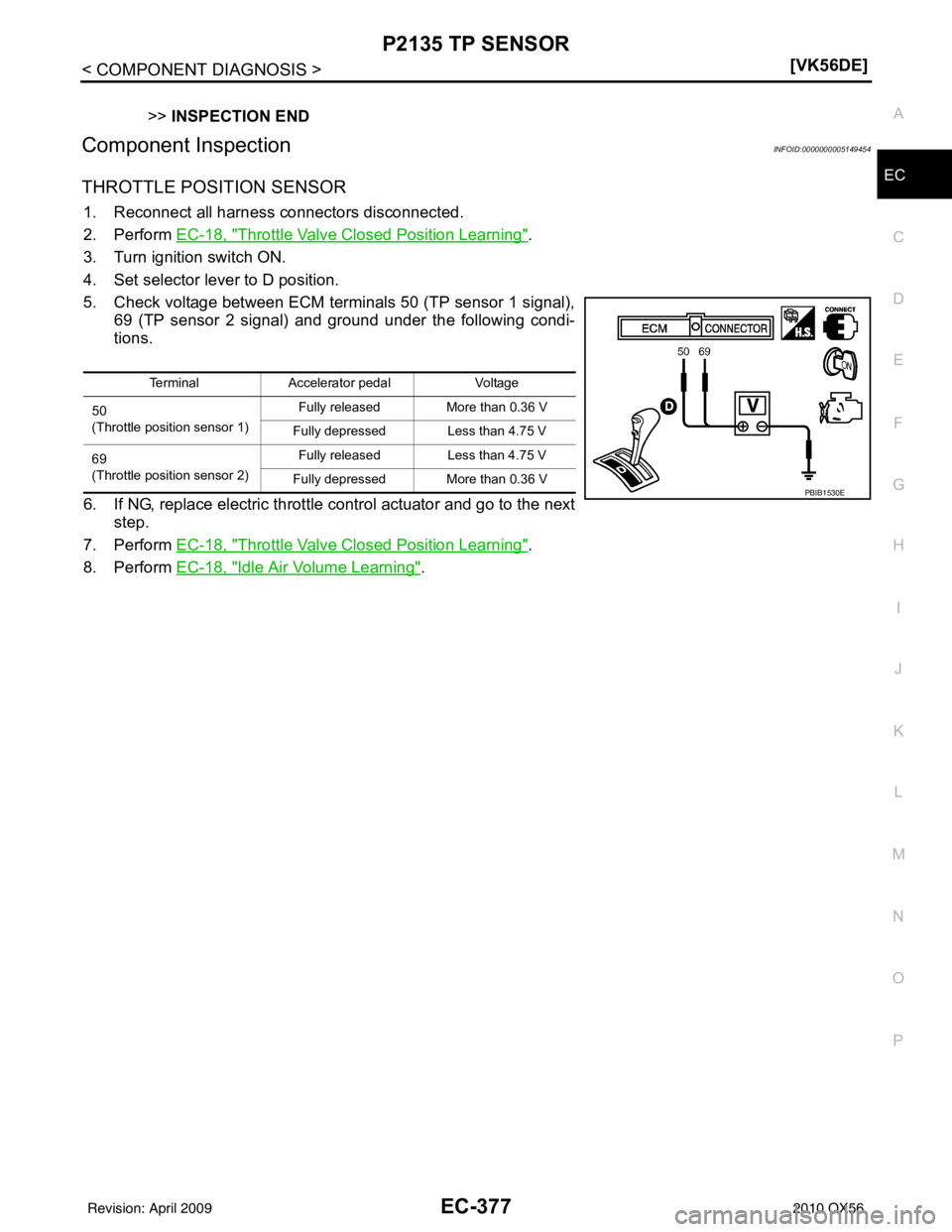

Component InspectionINFOID:0000000005149454
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-18, "
Throttle Valve Closed Position Learning".
3. Turn ignition switch ON.
4. Set selector lever to D position.
5. Check voltage between ECM terminals 50 (TP sensor 1 signal), 69 (TP sensor 2 signal) and ground under the following condi-
tions.
6. If NG, replace electric throttle control actuator and go to the next
step.
7. Perform EC-18, "
Throttle Valve Closed Position Learning".
8. Perform EC-18, "
Idle Air Volume Learning".
Terminal Accelerator pedal Voltage
50
(Throttle position sensor 1) Fully released
More than 0.36 V
Fully depressed Less than 4.75 V
69
(Throttle position sensor 2) Fully released
Less than 4.75 V
Fully depressed More than 0.36 V
PBIB1530E
Revision: April 20092010 QX56

EC-378
< COMPONENT DIAGNOSIS >[VK56DE]
P2138 APP SENSOR
P2138 APP SENSOR
Component DescriptionINFOID:0000000005149455
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
On Board Diagn
osis LogicINFOID:0000000005149456
This self-diagnosis has the one trip detection logic.
NOTE:
If DTC P2138 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-289
.
FA I L - S A F E M O D E
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000005149457
NOTE:
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next step.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-379, "
Diagnosis Procedure".
PBIB1741E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2138
2138 Accelerator pedal position
sensor circuit range/per-
formance Rationally incorrect voltage is sent to ECM
compared with the sign
als from APP sensor 1
and APP sensor 2. • Harness or connector
(APP sensor 1 and 2 circuit is open or
shorted.)
(TP sensor circuit is shorted.)
• Accelerator pedal position sensor 1 and 2
• Electric throttle control actuator
(TP sensor)
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Revision: April 20092010 QX56

EC-380
< COMPONENT DIAGNOSIS >[VK56DE]
P2138 APP SENSOR
4.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 6 and ECM terminal 91. Refer to Wiring Diagram.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit in harness or connectors.
5.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals
OK or NG
OK >> GO TO 6.
NG >> Repair short to ground or short to power in harness connectors.
6.CHECK THROTTLE POSITION SENSOR
Refer to EC-377, "
Component Inspection".
OK or NG
OK >> GO TO 12.
NG >> GO TO 7.
7.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-18, "
Throttle Valve Closed Position Learning".
3. Perform EC-18, "
Idle Air Volume Learning".
>> INSPECTION END
8.CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 82 and APP sensor terminal 1, ECM terminal 83 and APP sensor terminal 3.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 106 and APP sensor terminal 2, ECM terminal 98 and
APP sensor terminal 5.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power. Continuity should exist.
ECM terminal
Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 2
EC-435, "
Wiring Diagram - ENGINE
CONTROL SYSTEM -"91APP sensor terminal 6
Continuity should exist.
Continuity should exist.
Revision: April 20092010 QX56

P2138 APP SENSOREC-381
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK ACCELERATOR PE
DAL POSITION SENSOR
Refer to EC-381, "
Component Inspection".
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 .REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace the accelerator pedal assembly.
2. Perform EC-18, "
Accelerator Pedal Released Position Learning".
3. Perform EC-18, "
Throttle Valve Closed Position Learning".
4. Perform EC-18, "
Idle Air Volume Learning".
>> INSPECTION END
12.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "
How to Check Terminal" and GI-38, "Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000005149459
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly and go to next step.
5. Perform EC-18, "
Accelerator Pedal Released Position Learning".
6. Perform EC-18, "
Throttle Valve Closed Position Learning".
7. Perform EC-18, "
Idle Air Volume Learning".
Terminal Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1) Fully released
0.5 - 1.0 V
Fully depressed 4.2 - 4.8 V
98
(Accelerator pedal position
sensor 2) Fully released
0.25 - 0.5 V
Fully depressed 2.0 - 2.5 V
MBIB0023E
Revision: April 20092010 QX56

EC-382
< COMPONENT DIAGNOSIS >[VK56DE]
P2A00, P2A03 A/F SENSOR 1
P2A00, P2A03 A/F SENSOR 1
Component DescriptionINFOID:0000000005149460
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
sor. The sensor element of the
A/F sensor 1 is composed an elec-
trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusion layer at
the sensor cell. An electrode layer is applied voltage, and this current
relative oxygen density in lean. Also this current relative hydrocar-
bon density in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In addition, a heater is integrated in the
sensor to ensure the required operating temperature of about 800° C
(1,472° F).
On Board Diagn osis LogicINFOID:0000000005149461
To judge the malfunction, the A/F signal computed by ECM from the A/F sensor 1 signal is monitored not to be
shifted to LEAN side or RICH side.
DTC Confirmation ProcedureINFOID:0000000005149462
NOTE:
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next step.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
WITH CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CON-
SULT-III.
4. Clear the self-learning coef ficient by touching “CLEAR”.
PBIB3353E
PBIB3354E
DTC No. Trouble diagnosis name DTC detecting conditionPossible Cause
P2A00
2A00
(Bank 1) Air fuel ratio (A/F) sensor 1
circuit range/performance • The output voltage computed by ECM from the
A/F sensor 1 signal is shifted to the lean side for
a specified period.
• The A/F signal computed by ECM from the A/F
sensor 1 signal is shifted to the rich side for a
specified period. • A/F sensor 1
• A/F sensor 1 heater
• Fuel pressure
• Fuel injector
• Intake air leaks
P2A03
2A03
(Bank 2)
Revision: April 20092010 QX56

P2A00, P2A03 A/F SENSOR 1EC-385
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Disconnect A/F sensor 1 harness connector.
3. Check harness connector for water.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness connector.
6.CHECK A/F SENSOR 1 POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between A/F sensor 1 terminal 4 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E5, F14
• IPDM E/R harness connector E119
• 15A fuse (No. 54)
• Harness for open or short between A/F sensor 1 and fuse
>> Repair or replace harness or connectors.
8.CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows. Refer to Wiring Diagram.
4. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.Water should not exit.
BBIA0376E
Voltage: Battery voltage
PBIB3308E
A/F sensor 1 terminal
ECM terminal
Bank1 13
5
25 6
Bank 2 11
6
27 5
Continuity should exist.
Revision: April 20092010 QX56

EC-386
< COMPONENT DIAGNOSIS >[VK56DE]
P2A00, P2A03 A/F SENSOR 1
5. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK A/F SENSOR 1 HEATER
Refer to EC-97, "
Component Inspection".
OK or NG
OK >> GO TO 10.
NG >> GO TO 11.
10.CHECK INTERMITTENT INCIDENT
Perform GI-35, "
How to Check Terminal" and GI-38, "Intermittent Incident".
OK or NG
OK >> GO TO 11.
NG >> Repair or replace.
11 .REPLACE AIR FUEL RATIO (A/F) SENSOR 1
Replace malfunctioning air fuel ratio (A/F) sensor 1.
CAUTION:
• Discard any A/F sensor which has been dropped from a height of more than 0.5 m (1.6 ft) onto a hard surface such as a concrete floor; use a new one.
• Before installing new A/F sensor, clean exhau st system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
>> GO TO 12.
12.CONFIRM A/F ADJUSTMENT DATA
1. Turn ignition switch OFF and then ON.
2. Select “A/F ADJ-B1” and “” in “D ATA MONITOR” mode with CONSULT-III.
3. Make sure that “0.000” is displayed on CONSULT-III screen.
OK or NG
OK >> INSPECTION END
NG >> GO TO 13.
13.CLEAR THE SELF-LEARNING DATA
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-III.
3. Clear the self-learning control coefficient by touching “CLEAR”.
Without CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 13 511 6
25 627 5
Continuity should not exist.
Revision: April 20092010 QX56

EC-388
< COMPONENT DIAGNOSIS >[VK56DE]
ASCD BRAKE SWITCH
ASCD BRAKE SWITCH
Component DescriptionINFOID:0000000005149464
When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to
EC-33
for the ASCD function.
Diagnosis ProcedureINFOID:0000000005149465
1.CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DAT A MONITOR” mode with CONSULT-III.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-III
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the
following conditions.
OK or NG
OK >> INSPECTION END.
NG >> GO TO 2.
2.CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
BBIA0373E
CONDITION INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
CONDITIONVOLTAGE
Brake pedal: Slightly depressed Approximately 0 V
Brake pedal: Fully released Battery voltage
MBIB0061E
Revision: April 20092010 QX56
