QUICK REFERENCE CHART: QX56
QUICK REFERENCE CHART: QX56
Engine Tune-up DataINFOID:0000000001842581
GENERAL SPECIFICATIONS
Cylinder arrangementV- 8
Displacement cm
3(in3) 5,552 (338.80)
Bore and stroke mm (in) 98 x 92 (3.86 x 3.62)
Valve arrangement DOHC
Firing order 1-8-7-3-6-5-4-2
Number of piston rings Compression 2
Oil 1
Number of main bearings 5
Compression ratio 9.8:1
C o m p r e s s i o n p r e s s u r e k P a
(kg/cm
2, psi)/rpm Standard 1,520 (15.5, 220)/200
Minimum 1,324 (13.5, 192)/200
Differential limit between cylinders 98 (1.0, 14)/200
Cylinder number
Valve timing Unit: degree
abcde f
244 ° 232° -8° 60° 10° 54°
SEM957C
PBIC0187E

BR-6
< FUNCTION DIAGNOSIS >
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
FUNCTION DIAGNOSIS
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
NVH Troubleshooting ChartINFOID:0000000005147889
Use the chart below to help you find the cause of the sy mptom. If necessary, repair or replace these parts.
×: ApplicableReference page
BR-7
, BR-9
BR-7
, BR-9
BR-7
, BR-9
BR-7
, BR-9
BR-7
, BR-9
BR-7
, BR-9
BR-7
, BR-9
BR-7
, BR-9
BR-7
, BR-9
BR-7
, BR-9
DLN-184, "
NVH Troubleshooting Chart
" (2F1310),
DLN-194, "
NVH Troubleshooting Chart
" (2S1410)
DLN-208, "
NVH Troubleshooting Chart
" (FFD),
DLN-242, "
NVH Troubleshooting Chart
" (RFD)
FAX-5, "
NVH Troubleshooting Chart
" (FAX),
RAX-5, "
NVH Troubleshooting Chart
" (RAX)
FSU-5, "
NVH Troubleshooting Chart
" (FSU),
RSU-5, "
NVH Troubleshooting Chart
" (RSU)
WT-43, "
NVH Troubleshooting Chart
"
ST-12, "
NVH Troubleshooting Chart
"
Possible cause and
SUSPECTED PARTS
Pads - damaged
Pads - uneven wear
Shims damaged
Rotor imbalance
Rotor damage
Rotor runout
Rotor deformation
Rotor deflection
Rotor rust
Rotor thickness variation
PROPELLER SHAFT
DIFFERENTIAL
DRIVESHAFT
SUSPENSION
TIRES AND ROAD WHEEL
STEERING
Symptom Noise
××× × × × × ××
Shake ×× ××××
Shimmy, Shudder ××××××× × × ××
Revision: April 20092010 QX56

BRM-12
< SERVICE INFORMATION >
BODY REPAIR

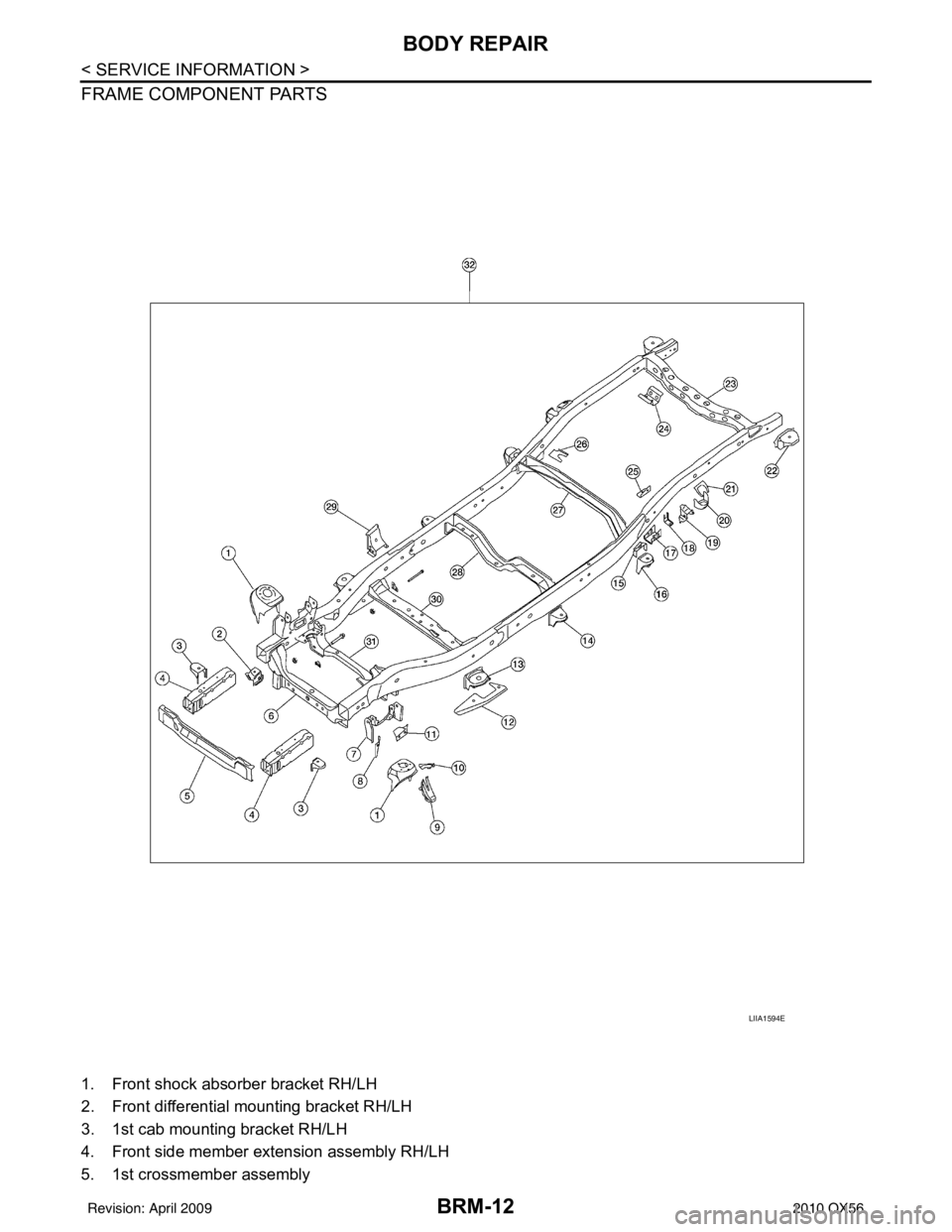

FRAME COMPONENT PARTS
1. Front shock absorber bracket RH/LH
2. Front differential mounting bracket RH/LH
3. 1st cab mounting bracket RH/LH
4. Front side member extension assembly RH/LH
5. 1st crossmember assembly
LIIA1594E
Revision: April 20092010 QX56

DLN-4
Commercial Service Tool ......................................193
SYMPTOM DIAGNOSIS ............................194
NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING ......................... .
194
NVH Troubleshooting Chart ................................ ..194
ON-VEHICLE REPAIR ...............................195
PROPELLER SHAFT ..................................... .195
On-Vehicle Service .............................................. ..195
REMOVAL AND INSTALLATION ..............196
PROPELLER SHAFT ..................................... .196
Removal and Installation ..................................... ..196
DISASSEMBLY AND ASSEMBLY ............199
PROPELLER SHAFT ..................................... .199
Disassembly and Assembly ................................. ..199
SERVICE DATA AND SPECIFICATIONS
(SDS) ........................................................ ..
201
SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................... .
201
General Specification .......................................... ..201
Snap Ring ..............................................................201
FRONT FINAL DRIVE: M205
PRECAUTION .............. ..............................
203
PRECAUTIONS .............................................. .203
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. ..
203
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .................................
203
Precaution for Servicing Front Final Drive .............204
PREPARATION ..........................................205
PREPARATION .............................................. .205
Special Service Tool ............................................ ..205
Commercial Service Tool ......................................207
SYMPTOM DIAGNOSIS ............................208
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ......................... .
208
NVH Troubleshooting Chart ................................ ..208
ON-VEHICLE MAINTENANCE ..................209
DIFFERENTIAL GEAR OIL ............................ .209
Changing Front Differential Gear Oil .....................209
Checking Front Differential Gear Oil .................... ..209
ON-VEHICLE REPAIR ...............................210
SIDE OIL SEAL .............................................. ..210
Removal and Installation .......................................210
FRONT OIL SEAL ............................................211
Removal and Installation .......................................211
CARRIER COVER .......................................... ..214
Removal and Installation .......................................214
REMOVAL AND INSTALLA TION .............215
FRONT FINAL DRIVE .................................... ..215
Removal and Installation .......................................215
DISASSEMBLY AND ASSEMBLY ...........217
FRONT FINAL DRIVE .................................... ..217
Disassembly and Assembly ................................. .217
SERVICE DATA AND SPECIFICATIONS
(SDS) ........ .................................................
234
SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................. ..
234
General Specification ........................................... .234
Inspection and Adjustment ....................................234
REAR FINAL DRIVE: R230
PRECAUTION ............... ............................
236
PRECAUTIONS .............................................. ..236
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. .
236
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ................................
236
Precaution for Servicing Rear Final Drive .............237
PREPARATION .........................................238
PREPARATION .............................................. ..238
Special Service Tool ............................................ .238
Commercial Service Tool ......................................240
SYMPTOM DIAGNOSIS ...........................242
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ......................... ..
242
NVH Troubleshooting Chart ..................................242
DESCRIPTION ................................................ ..243
Cross-Sectional View ........................................... .243
ON-VEHICLE MAINTENANCE .................244
DIFFERENTIAL GEAR OIL ..............................244
Changing Rear Differential Gear Oil .................... .244
Checking Rear Differential Gear Oil ......................244
ON-VEHICLE REPAIR ..............................245
FRONT OIL SEAL ............................................245
Revision: April 20092010 QX56

DLN-184
< SYMPTOM DIAGNOSIS >[PROPELLER SHAFT: 2F1310]
NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING
SYMPTOM DIAGNOSIS
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
NVH Troubleshooting ChartINFOID:0000000005148899
Use the chart below to help you find the cause of the sy mptom. If necessary, repair or replace these parts.
×: ApplicableReference page
DLN-185, "
On-Vehicle Service
"
DLN-185, "
On-Vehicle Service
"
DLN-185, "
On-Vehicle Service
"
DLN-208, "
NVH Troubleshooting Chart
"
RAX-5, "
NVH Troubleshooting Chart
"
RSU-5, "
NVH Troubleshooting Chart
"
WT-43, "
NVH Troubleshooting Chart
"
WT-43, "
NVH Troubleshooting Chart
"
RAX-10, "
Removal and Installation
"
BR-6, "
NVH Troubleshooting Chart
"
ST-12, "
NVH Troubleshooting Chart
"
Possible cause and suspected parts
Uneven rotation torque
Rotation imbalance
Excessive run out
Differential
Axle
Suspension
Tires
Road wheel
Drive shaft
Brakes
Steering
Symptom Noise
×××××××××××
Shake ×××××××
Vibration ××××××××
Revision: April 20092010 QX56

DLN-194
< SYMPTOM DIAGNOSIS >[PROPELLER SHAFT: 2S1410]
NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING
SYMPTOM DIAGNOSIS
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
NVH Troubleshooting ChartINFOID:0000000005148906
Use the chart below to help you find the cause of the sy mptom. If necessary, repair or replace these parts.
×: ApplicableReference page
DLN-195, "
On-Vehicle Service
"
DLN-195, "
On-Vehicle Service
"
DLN-195, "
On-Vehicle Service
"
DLN-242, "
NVH Troubleshooting Chart
"
RAX-5, "
NVH Troubleshooting Chart
"
RSU-5, "
NVH Troubleshooting Chart
"
WT-43, "
NVH Troubleshooting Chart
"
WT-43, "
NVH Troubleshooting Chart
"
RAX-5, "
NVH Troubleshooting Chart
"
BR-6, "
NVH Troubleshooting Chart
"
ST-12, "
NVH Troubleshooting Chart
"
Possible cause and suspected parts
Uneven rotation torque
Rotation imbalance
Excessive run out
Differential
Axle
Suspension
Tires
Road wheel
Drive shaft
Brakes
Steering
Symptom Noise
×××××××××××
Shake ×××××××
Vibration ××××××××
Revision: April 20092010 QX56

DLN-204
< PRECAUTION >[FRONT FINAL DRIVE: M205]
PRECAUTIONS
5. When the repair work is completed, return the ignition switch to the
″LOCK ″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of a ll control units using CONSULT-III.
Precaution for Servicing Front Final DriveINFOID:0000000005148912
• Before starting diagnosis of the vehicle, understand the symptoms well. Perform correct and systematic
operations.
• Check for the correct installation status prior to re moval or disassembly. When matching marks are required,
be certain they do not interfere with the function of the parts they are applied to.
• Overhaul should be done in a clean work area, a dust proof area is recommended.
• Before disassembly, completely remove sand and mud from the exterior of the unit, preventing them from
entering into the unit during disassembly or assembly.
• Always use shop paper for cleaning the inside of components.
• Avoid using cotton gloves or a shop cloth to prevent the entering of lint.
• Check appearance of the disassembled parts for dam age, deformation, and abnormal wear. Replace them
with new ones if necessary.
• Gaskets, seals and O-rings should be replaced any time the unit is disassembled.
• Clean and flush the parts sufficiently and blow them dry.
• Be careful not to damage sliding surfaces and mating surfaces.
• When applying sealant, remove the old sealant from the mating surface; then remove any moisture, oil, and
foreign materials from the application and mating surfaces.
• In principle, tighten nuts or bolts gradually in severa l steps working diagonally from inside to outside. If a
tightening sequence is specified, observe it.
• During assembly, observe the specified tightening torque.
• Add new differential gear oil, petroleum jelly, or multi-purpose grease, as specified.
Revision: April 20092010 QX56

DLN-208
< SYMPTOM DIAGNOSIS >[FRONT FINAL DRIVE: M205]
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING
SYMPTOM DIAGNOSIS
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
NVH Troubleshooting ChartINFOID:0000000005148915
Use the chart below to help you find the cause of the sy mptom. If necessary, repair or replace these parts.
×: ApplicableReference page
DLN-217, "
Disassembly and Assembly
"
DLN-217, "
Disassembly and Assembly
"
DLN-217, "
Disassembly and Assembly
"
DLN-234, "
Inspection and Adjustment
"
DLN-217, "
Disassembly and Assembly
"
DLN-209, "
Checking Front Differential Gear Oil
"
DLN-184, "
NVH Troubleshooting Chart
"
FA X - 5 , "
NVH Troubleshooting Chart
"
FSU-5, "
NVH Troubleshooting Chart
"
WT-43, "
NVH Troubleshooting Chart
"
WT-43, "
NVH Troubleshooting Chart
"
FA X - 5 , "
NVH Troubleshooting Chart
"
BR-6, "
NVH Troubleshooting Chart
"
ST-12, "
NVH Troubleshooting Chart
"
Possible cause and SUSPECTED PARTS
Gear tooth rough
Gear contact improper
Tooth surfaces worn
Incorrect backlash
Companion flange excessive runout
Gear oil improper
PROPELLER SHAFT
FRONT AXLE
FRONT SUSPENSION
TIRES
ROAD WHEEL
DRIVE SHAFT
BRAKES
STEERING
Symptom
Noise××××××××××××××
Revision: April 20092010 QX56

DIFFERENTIAL GEAR OILDLN-209
< ON-VEHICLE MAINTENANCE > [FRONT FINAL DRIVE: M205]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
ON-VEHICLE MAINTENANCE
DIFFERENTIAL GEAR OIL
Changing Front Differential Gear OilINFOID:0000000005148916
DRAINING
1. Stop the engine.
2. Remove the drain plug from the front final drive assembly to drain the differential gear oil.
3. Install the drain plug with sealant applied on the thr eads to the front final drive assembly. Tighten to the
specified torque. Refer to DLN-217, "
Disassembly and Assembly".
• Use High Performance Thread Sealant or equivalent. Refer to GI-15, "
Recommended Chemical Prod-
ucts and Sealants".
FILLING
1. Remove the filler plug from the front final drive assembly.
2. Fill the front final drive assembly with new differential gear oil
until the level reaches the specified level near the filler plug hole.
3. Install the filler plug with sealant applied on the threads to the front final drive assembly. Tighten to the specified torque. Refer
to DLN-217, "
Disassembly and Assembly".
• Use High Performance Thread Sealant or equivalent. Refer to GI-15, "
Recommended Chemical Products and Sealants".
Checking Front Differential Gear OilINFOID:0000000005148917
DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL
1. Make sure that differential gear oil is not leaking from the front final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as
shown.
CAUTION:
Do not start engine while checki ng differential gear oil level.
3. Install the filler plug with sealant applied on the threads to the front final drive assembly. Tighten to the specified torque. Refer
to DLN-217, "
Disassembly and Assembly".
• Use High Performance Thread Sealant or equivalent. Refer to GI-15, "
Recommended Chemical Products and Sealants".
Differential gear oil
grade and capacity
: Refer to
MA-13, "
Fluids
and Lubricants".
LDIA0176E
LDIA0176E
Revision: April 20092010 QX56

DLN-210
< ON-VEHICLE REPAIR >[FRONT FINAL DRIVE: M205]
SIDE OIL SEAL
ON-VEHICLE REPAIR
SIDE OIL SEAL
Removal and InstallationINFOID:0000000005148918
REMOVAL
1. Remove the front final drive assembly. Refer to
DLN-215, "Removal and Installation".
2. Remove the differential side shaft and differential side flange using suitable tool.
3. Place a small hole in the side oil seal case using suitable tool.
4. Remove the side oil seal using Tool as shown.
INSTALLATION
1. Apply multi-purpose grease to the lips of the new side oil seal. Then drive the new side oil seal in evenly to
the gear carrier using suitable tool.
CAUTION:
• Do not reuse side oil seal.
• Do not incline the new side oil seal when installing.
• Apply multi-purpose grease to the lips of the new side oil seal.
2. Installation of the remaining components is in the reverse order of removal. CAUTION:
Check the differential gear oil level after installation. Refer to DLN-209
.
BDIA0006E
LDIA0129E
Tool number : SP8P
LDIA0130E
Revision: April 20092010 QX56
