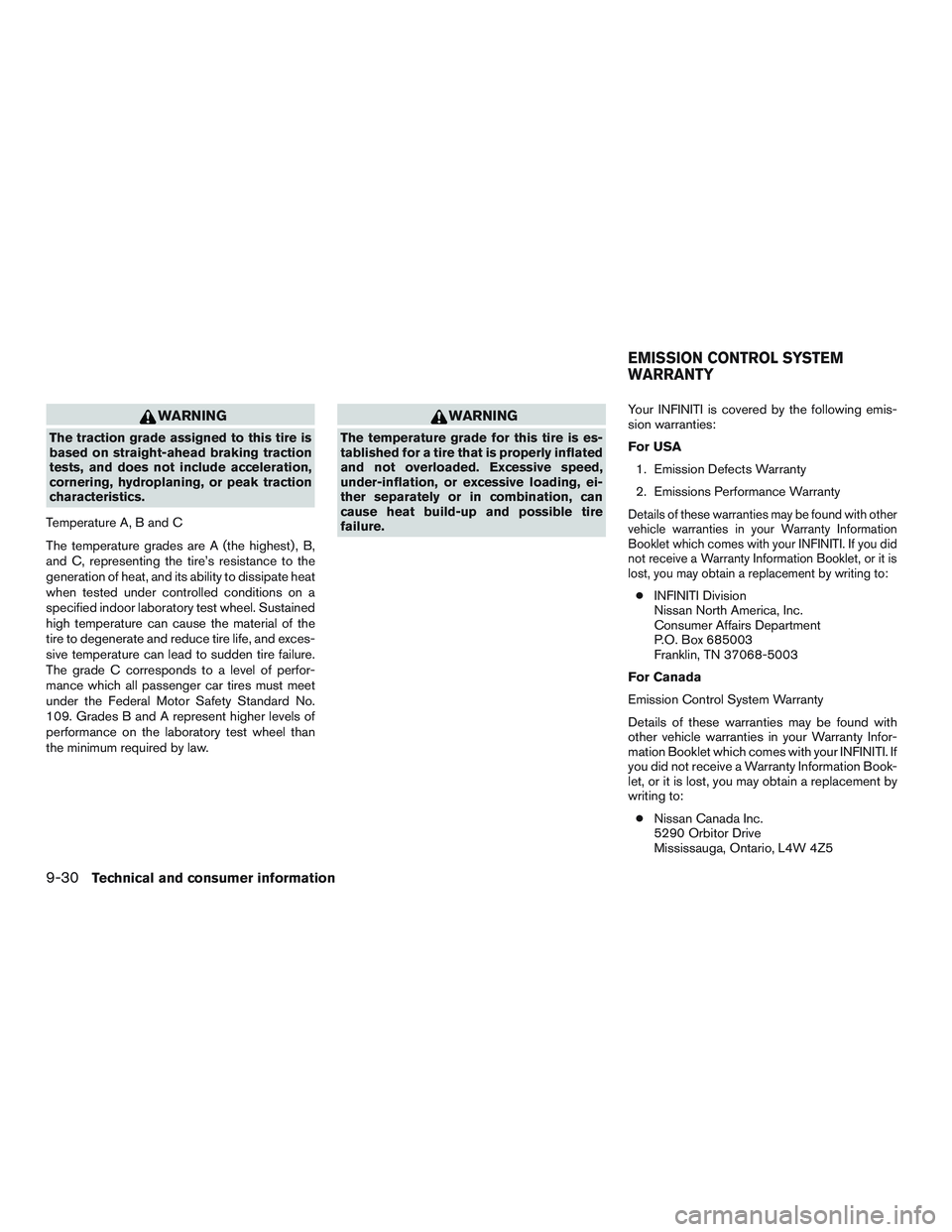

WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B and C
The temperature grades are A (the highest) , B,
and C, representing the tire’s resistance to the
generation of heat, and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Safety Standard No.
109. Grades B and A represent higher levels of
performance on the laboratory test wheel than
the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, ei-
ther separately or in combination, can
cause heat build-up and possible tire
failure. Your INFINITI is covered by the following emis-
sion warranties:
For USA
1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of these warranties may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your INFINITI. If you did
not receive a Warranty Information Booklet, or it is
lost, you may obtain a replacement by writing to:
● INFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada
Emission Control System Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty Infor-
mation Booklet which comes with your INFINITI. If
you did not receive a Warranty Information Book-
let, or it is lost, you may obtain a replacement by
writing to: ● Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5
EMISSION CONTROL SYSTEM
WARRANTY
9-30Technical and consumer information

For USA
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in addi-
tion to notifying INFINITI.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your retailer, or INFINITI.
To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.You may notify INFINITI by contacting our
Consumer Affairs Department, toll-free, at
1-800-662-6200.
For Canada
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform Transport Canada in addition
to notifying INFINITI.
If Transport Canada receives complaints,
it may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request that INFINITI con-
duct a recall campaign. However, Trans-
port Canada cannot become involved in
individual problems between you, your re-
tailer, or INFINITI.
You may contact Transport Canada’s De-
fect Investigations and Recalls Division
toll free at 1-800-333-0510. You may
also report safety defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec-Sur/
7/PCDB-BDPP/fc-cp.aspx?lang=eng
(English speakers) orhttps://wwwapps.tc.gc.ca/Saf-Sec-Sur/
7/PCDB-BDPP/fc-cp.aspx?lang=fra
(French speakers)
Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere
(French speakers) .
To notify INFINITI of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122.
REPORTING SAFETY DEFECTS
Technical and consumer information9-31

WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a two
wheel dynamometer (such as the dyna-
mometers used by some states for emis-
sions testing) , or similar equipment. Make
sure you inform the test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer.
Using the wrong test equipment may re-
sult in transmission damage or unex-
pected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle. If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20 sec-
onds and then blinks for 10 seconds , the I/M test
condition is “not ready”. If the MIL does not blink
after 20 seconds, the I/M test condition is
“ready”. Contact an INFINITI retailer to set the
“ready condition” or to prepare the vehicle for
testing.
This vehicle is equipped with an EDR. The main
purpose of an EDR is to record, in certain colli-
sion or near collision-like situations, such as an
air bag deployment or hitting a road obstacle,
data that will assist in understanding how a vehi-
cle’s systems performed. The EDR is designed to
record data related to vehicle dynamics and
safety systems for a short period of time, typically
30 seconds or less. The EDR in this vehicle is
designed to record such data as:
● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
These data can help provide a better understand-
ing of the circumstances in which collisions and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial collision situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and collision location)
are recorded. However, other parties, such as
law enforcement, could combine the EDR data
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR) (if
so equipped)
9-32Technical and consumer information

with the type of personally identifying data rou-
tinely acquired during a collision investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and INFINITI retailer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.Genuine INFINITI Service Manuals for this model
year and prior can be purchased. A Genuine
INFINITI Service Manual is the best source of
service and repair information for your vehicle.
This manual is the same one used by the factory-
trained technicians working at INFINITI retailer-
ships. Genuine INFINITI Owner’s Manuals can
also be purchased.
For USA
For current pricing and availability of Genuine
INFINITI Service Manuals, contact:
www.infiniti-techinfo.com
For current pricing and availability of Genuine
INFINITI Owner’s Manuals, contact:
1-800-247-5321
For Canada
To purchase a copy of a Genuine INFINITI Ser-
vice Manual or Owner’s Manual, for this model
year and prior, please contact your nearest
INFINITI retailer. For the phone number and loca-
tion of an INFINITI retailer in your area call the
INFINITI Satisfaction Center at 1-800-361-4792
and a bilingual INFINITI representative will assist
you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information9-33

MEMO
9-34Technical and consumer information

10 Index
2nd row bench seat adjustment......1-5,1-7
A
Aiming control, headlights ...........2-34
Air bag (See supplemental restraint
system) .....................1-48
Air bag system Front (See supplemental front impact
air bag system) ...............1-55
Airbagwarninglabels.............1-66
Airbagwarninglight...........1-66,2-12
Air bag warning light, supplemental . .1-66, 2-12
Air cleaner housing filter ............8-18
Air conditioner Air conditioner service ...........4-53
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner (automatic)
(if so equipped) ...............4-45
Heater and air conditioner controls ....4-46
Servicing air conditioner ..........4-53
Alarm system
(See vehicle security system) .........2-25
Anchor point locations .............1-31
Antenna .....................4-97
Anti-lock brake warning light ..........2-9
Anti-lock Braking System (ABS) ........5-95
Armrests .....................1-8
Around View™ Monitor .............4-27
Audible reminders ...............2-15 Audio system
..................4-53
AMradioreception.............4-54
Bluetooth®audio..............4-91
Compact disc (CD) player .........4-73
Digital Versatile Disc (DVD) Player
Operation ..................4-76
FM/AM/SAT radio with compact disc
(CD) player .................4-68
FMradioreception.............4-53
iPod® Player .............4-85,4-87
iPod® player operation .......4-85,4-87
Radio ....................4-53
Steering wheel audio control switch . . .4-95
USB interface ............4-80,4-81
USB (Universal Serial Bus) Connection
Port..................4-80,4-81
Autolight switch .................2-33
Automatic Automatic drive positioner .........3-34
Automatic power window switch .....2-55
Automatic anti-glare inside mirror .......3-32
Automatic door locks ..............3-6
Automatic drive positioner ...........3-34
B
Backup Collision Intervention (BCI)
system ......................5-44
Backup Collision Warning (BCW) system . .5-44
Battery .................5- 104, 8-14
Chargewarninglight.............2-9 Battery replacement
INFINITI Intelligent Key ...........8-25
Before starting the engine ...........5-16
Belt (See drive belt) ..............8-17
Blind Spot Intervention (BSI) system .....5-32
Block heater Engine ...................5-106
Bluetooth® audio ................4-91
Bluetooth® hands-free phone
system.................4- 109, 4-123
Boosterseats..................1-45
Brake Anti-lock Braking System (ABS) ......5-95
Brake fluid ..................8-13
Brakelight(Seestoplight).........8-27
Brake system ................5-94
Brakewarninglight..............2-9
Brakewearindicators........2-15,8-21
Parking brake operation ..........5-21
Self-adjusting brakes ............8-21
Brake fluid ....................8-13
Brakes ......................

8-21
Brake system ..................5-94
Break-inschedule ...............5-88
Brightness/contrast button ........4-9,4-18
Brightness control Instrument panel ..............2-35
Bulb check/instrument panel ..........2-8
Bulbreplacement................8-27

C
Capacities and recommended fuel/lubricants . .9-2
Cargoareastoragebin.............2-52
Cargolight....................2-60
Cargo(Seevehicleloadinginformation)....9-14
Car phone or CB radio .............4-109
CD care and cleaning ..............4-94
CD player (See audio system) .........4-73
Check tire pressure ...............2-24
Child restraints .......1-24,1-25,1-26,1-28
LATCH (Lower Anchors and Tethers for
CHildren) System ..............1-28
Precautions on child
restraints.........1-26,1-33,1-40,1-45
Top tether strap anchor point locations . .1-31
Child restraint with top tether strap .......1-30
Child safety rear door lock ............3-7
Chimes, audible reminders ...........2-15
Cleaningexteriorandinterior........7-2,7-4
Clock set/adjustment ...........4-8,4-16
C.M.V.S.S. certification label ..........9-11
Cold weather driving ..............5-104
Compact disc (CD) player ...........4-73
Consolebox...................2-50
Continuously Variable Transmission (CVT) . . .5-17 Continuously Variable Transmission (CVT)
fluid ......................8-12
Driving with Continuously Variable
Transmission (CVT) .............5-17
Control panel buttons ..............4-10
Brightness/contrast button ......4-9,4-18
Enterbutton...............4-4,4-10
Without navigation system ..........4-4Controls
Audio controls (steering wheel) .......4-95
Heater and air conditioner controls .....4-46
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changingenginecoolant...........8-8
Checking engine coolant level ........8-8
Engine coolant temperature gauge .....2-6
Corrosion protection ...............7-6
Cruisecontrol..................5-51
Cupholders...................2-48
D
Daytime running light system (Canada only) . .2-35
Defroster switch Rear window and outside mirror defroster
switch.....................2-31
Digital Versatile Disc (DVD) player .......4-76
Dimensionsandweights.............9-9
Dimmer switch for instrument panel ......2-35
Display controls
(seecontrolpanelbuttons) ........4-4,4-10
Distance Control Assist (DCA) system .....5-72
Door locks .....................3-5
Drive belt .....................8-17
Drive positioner, Automatic ...........3-34
Drive Sport Mode Selector ...........5-22
Driving Cold weather driving ............5-104
Driving with Continuously Variable
Transmission (CVT) .............5-17
Precautions when starting and driving ....5-4
Driving the vehicle ................5-17 Dual head restraint DVD system
........4-97
E
Economy-fuel..................5-90
Emission control information label .......9-11
Emission control system warranty .......9-30
Engine Before starting the engine ..........5-16
Blockheater ................5-106
Capacities and recommended
fuel/lubricants.................9-2
Changing engine coolant ...........8-8
Changingengineoil.............8-10
Changing engine oil filter ..........8-11
Checking engine coolant level ........8-8
Checking engine oil level ...........8-9
Engine

compartment check locations ....8-6
Engine coolant temperature gauge .....2-6
Engine cooling system ............8-7
Engineoil ...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil pressure warning light ......2-10
Engine oil viscosity ..............9-6
Engine serial number ............9-11
Engine specifications .............9-8
Starting the engine .............5-16
Engine coolant temperature gauge .......2-6
Enter button .................4-4,4-10
Event data recorders ..............9-32
Exhaust gas (Carbon monoxide) .........5-4
Explanation of maintenance items ........8-2
Extended storage switch ............8-23
Eyeglass case ..................2-47
10-2

F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-13
Capacities and recommended
fuel/lubricants .................9-2
Continuously Variable Transmission
(CVT) fluid ..................8-12
Engine coolant .................8-7
Engine oil ...................8-9
Power steering fluid .............8-12
Windshield-washerfluid...........8-14
F.M.V.S.S. certification label ...........9-11
Foglightswitch .................2-36
Forward Collision Warning system . . .5-82, 5-83
Front air bag system
(See supplemental restraint system) ......1-55
Front and rear sonar system ..........5-102
Front power seat adjustment ...........1-3
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-90
Fuel gauge ...................2-7
Fuel octane rating ...............9-5
Fuel recommendation .............9-4
Loose fuel cap warning ...........2-25
Fuel-filler door ..................3-27
Fuel gauge .....................2-7
Fuses.......................8-22
Fusible links ...................8-22 G
Garage door opener, HomeLink® Universal
Transceiver . .2-60, 2-61, 2-62, 2-63, 2-63, 2-64
Gauge Engine coolant temperature gauge .....2-6
Fuel gauge ...................2-7
Odometer ...................2-5
Speedometer .................2-5
Tachometer ..................2-6
Trip odometer .................2-5
General maintenance ...............8-2
Glovebox.....................2-50
Gloveboxlock..................2-50
H
Hands-free phone system,
Bluetooth®...............4- 109, 4-123
Hazard warning flasher switch ..........6-2
Headlight aiming control ............2-34
Headlight and turn signal switch ........2-31
Headlight control switch ............2-32
Headlights ....................8-26
Headlights, aiming control ............2-34
Head restraints ..................1-11
Heated seats ............2-37,2-38,2-40
Heated steering wheel .............2-41
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-45
Heater and air conditioner controls .....4-46
Heater operation ...............4-46
Heater and air conditioner (automatic) .....4-45Hill start assist system
.............5-101
HomeLink® Universal Transceiver . . .2-60, 2-61, 2-62, 2-63, 2-63, 2-64
Hood.......................3-22
Hook Luggage
hook................2-51
Horn .......................2-37
I
Ignition Switch Push-Button Ignition Switch ........5-12
Imageviewer...................4-19
Immobilizer system ................5-15
Important vehicle information label .......9-11
In-cabin microfilter ................8-19
Increasing fuel economy .............5-90
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)..................2-8,2-13
INFINITI vehicle immobilizer system . . .2-26, 5-15
INFINITI voice recognition system .......4-136
Inside automatic anti-glare mirror ........3-32
Instrument brightness control ..........2-35
Instrumentpanel...............0-6,2-2
Instrument panel dimmer switch ........2-35
Intelligent Brake Assist (IBA) system ......5-85
Intelligent cruise control (ICC) system Brake assist .................5-52
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide ............3-18
10-3

Warning signals...............3-18
Interiorlight....................2-58
iPod®Player ...............4-85,4-87
ISOFIX child restraints .............1-28
J
Jump starting ...............6-10,8-16
K
Key.........................3-2
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .........3-7
L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emissioncontrolinformationlabel.....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-66
Lane Departure Prevention (LDP) system . . .5-25
Lane Departure Warning (LDW) system ....5-25
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-28 License plate
Installing the license plate ..........9-13
Liftgate......................3-23
Liftgaterelease.................3-26
Light Air bag warning light .........1-66,2-12
Brake light (See stop light) .........8-27
Bulb check/instrument panel .........2-8
Bulbreplacement..............8-27
Charge warning light .............2-9
Foglights...................8-26
Foglightswitch ...............2-36
Headlight and turn signal switch ......2-31
Headlight control switch ..........2-32
Headlights..................8-26
Interiorlight..................2-58
Lightbulbs..................8-26
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light ..................2-11,2-24
Passenger air bag and status light .....1-57
Security indicator light ............2-14
Warning/indicator lights and audible
reminders ................2-8,2-13
Lights Maplights ..................2-59
Lock Child safety rear door lock ..........3-7
Door locks ...................3-5
Gloveboxlock................2-50
Liftgaterelease...............3-26
Power door locks ...............3-6
Loose fuel cap warning .............2-25
Lowfuelwarninglight ..........2-11,2-23
Low tire pressure warning light .........2-10Low windshield-washer fluid warning
light ....................2-11,2-24
Luggage hook
..................2-51
Luggage rack (see roof rack) ..........2-52
Luggage (See vehicle loading information) . .9-14
M
Maintenance General maintenance .............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-24
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-13
Maplights ....................2-59
Mappocket....................2-47
Memory Seat ...................3-34
Meters and gauges ................2-4
Instrument brightness control ........2-35
Mirror Automatic anti-glare inside mirror ......
3-32
Outside mirrors ...............3-32
Vanity mirror .................3-31
Mirrors ......................3-32
Moonroof ..................2-55,7-4
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-5
10-4

OilCapacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-10
Changing engine oil filter ..........8-11
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-6
Oneshotcall..............4- 113, 4-125
Outside mirrors .................3-32
Overheat Ifyourvehicleoverheats...........6-12
Owner’s manual order form ...........9-33
Owner’s manual/service manual order
information ....................9-33
P
Parking Parking brake operation ...........5-21
Parking/parking on hills ...........5-93
Phone, Bluetooth® hands-free
system .................4- 109, 4-123
Power Power door locks ...............3-6
Power outlet ..............2-44,2-46
Power rear windows .............2-54
Power steering fluid .............8-12
Power steering system ...........5-94
Rear power windows ............2-54
Power inverter switch ..............2-44
Power outlet ................2-44,2-46
Power steering ..................5-94
Power steering fluid ...............8-12 Precautions
Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-8
Precautions on booster
seats...........1-26,1-33,1-40,1-45
Precautions on child
restraints .........1-26,1-33,1-40,1-45
Precautions on seat belt usage .......1-16
Precautions on supplemental restraint
system ....................1-48
Precautions when starting and driving ....5-4
Pre-tensioner seat belt system .........1-64
Push starting ...................6-12
R
Radio Car phone or CB radio ...........4-109
FM/AM/SAT radio with compact disc (CD)
player .....................4-68
Steering wheel audio control switch ....4-95
Rainsensor....................2-29
Readiness for inspection maintenance
(I/M) test .....................9-32
Rear power windows ..............2-54
Rear sonar system off switch ..........2-42
RearView Monitor ................4-21
Rear window and outside mirror defroster
switch .......................2-31
Rear window wiper and washer switches . . .2-30
Recorders Eventdata..................9-32
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10 Remote Start
...............3-20,5-17
Reporting safety defects (US only) .......9-31
Roadside assistance program ..........6-2
Roof rack .....................2-52
S
Safety Child

safety rear door lock ..........3-7
Child seat belts .....1-26,1-33,1-40,1-45
Reporting safety defects (US only) .....9-31
Seat adjustment Front power seat adjustment .........1-3
Secondrowbenchseats........1-5,1-7
Seatbackpockets................2-47
Seat belt Child safety ..................1-24
Infants and small children ..........1-25
Injured Person ................1-19
Largerchildren................1-25
Precautions on seat belt usage .......1-16
Pregnant women ...............1-19
Pre-tensioner seat belt system .......1-64
Seatbeltextenders .............1-23
Seatbeltmaintenance............1-24
Seatbelts...................1-16
Three-point type with retractor .......1-20
Seat belt extenders ...............1-23
Seatbeltwarninglight..........1-19,2-12
Seats 2nd row bench seat adjustment ....1-5,1-7
Adjustment ...................1-2
Armrests....................1-8
Automatic drive positioner ..........3-34
Frontseats...................1-2
10-5
