2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges................................2-4
Speedometer and odometer.....................2-4
Tachometer....................................2-6
Engine coolant temperature gauge...............2-6
Fuel gauge....................................2-7
Warning lights, indicator lights and audible
reminders.........................................2-8
Checking lights................................2-8
Warning lights.................................2-9
Indicator lights................................2-13
Audible reminders.............................2-15
Vehicle Information Display........................2-16
How to use the vehicle information display.......2-16
Startup display................................2-17
Settings......................................2-17
Vehicle information display warnings and
indicators.....................................2-25
Security systems.................................2-30
Vehicle security system.........................2-30
INFINITI vehicle immobilizer system..............2-31
Wiper and washer switch.........................2-32
Switch operation..............................2-32Rain-sensing auto wiper system
(if so equipped)...............................2-34
Rear switch operation..........................2-35
Rear window and outside mirror defroster switch.....2-36
Headlight and turn signal switch....................2-36
Xenon headlights..............................2-36
Headlight control switch........................2-37
Daytime running light system....................2-39
Instrument brightness control...................2-40
Turn signal switch.............................2-40
Fog light switch...............................2-41
Horn............................................2-41
Heated seat switches (if so equipped)..............2-42
Heated 2nd row seat switches (if so equipped)......2-43
Climate controlled seat switches (if so equipped)....2-44
Heated steering wheel switch (if so equipped).......
2-45
Front and rear sonar system off switch
(if so equipped)..................................2-45
Warning systems switch (if so equipped)............2-46
Vehicle Dynamic Control (VDC) off switch...........2-47
Power inverter switch (if so equipped)..............2-47
Power outlets....................................2-48
12v outlets...................................2-48

120v outlet (if so equipped)....................2-49
E-call (SOS) switch (if so equipped)................2-50
Extended storage switch..........................2-50
Storage.........................................2-51
Map pockets..................................2-51
Seatback pockets.............................2-51
Glove box....................................2-52
Console box..................................2-52
Storage trays.................................2-53
Sunglasses holder.............................2-54
Cup holders..................................2-54
Luggage hooks................................2-56
Cargo area storage bin.........................2-57
Roof rack (if so equipped)......................2-57
Windows........................................2-58
Power windows...............................2-58
Moonroof........................................2-61
Power moonroof...............................2-61Dual panel moonroof (if so equipped)...............2-62
Power moonroof...............................2-62
Interior lights.....................................2-65
Console light (if so equipped)...................2-65
Map lights....................................2-66
Personal Lights................................2-66
Luggage compartment light.....................2-66
Homelink® universal transceiver (if so equipped).....2-67
Programming HomeLink®......................2-67
Programming HomeLink® for Canadian
customers and gate openers....................2-69
Operating the HomeLink® universal
transceiver....................................2-69
Programming trouble-diagnosis.................2-69
Clearing the programmed information............2-70
Reprogramming a single HomeLink® button......2-70
If your vehicle is stolen.........................2-70

1. Vent (P. 4-47)
2. Headlight/fog light/turn signal switch
(P. 2-40)
3. Instrument brightness control (P. 2-36)
4. Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-49)
Horn (P. 2-41)
6. Back-up Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-58)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-32)
Rear wiper and washer switch
(P. 2-32)
9. Rear window and outside mirror
defroster switch (P. 2-36)
10. Center display (P. 4-4)
Navigation system* (if so equipped)
(P. 4-11)
11. Automatic heater and air conditioning
controls (P. 4-48)
12. Front passenger supplemental air bag
(P. 1-56)
13. Glove box (P. 2-52)
LII2408
INSTRUMENT PANEL
2-2Instruments and controls

14. Center multi-function control buttons
(P. 4-5, 4-12)
15. Power outlet (P. 2-48)
16. Shift lever (P. 5-18)
17. Audio system controls (P. 4-56)
Front passenger air bag status light
(P. 2-13)
18. Hazard warning flasher switch (P. 6-2)
19. Push-button ignition switch (P. 5-13)
20. Cruise control main/set switches
(if so equipped) (P. 5-74)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-76)
21. Dynamic Driver Assistance switch
(if so equipped) (P. 5-95)
22. Tilt steering wheel control (P. 3-29)
23. Bluetooth® Hands-Free Phone System
(P. 4-113, 4-127)
24. Steering wheel switch for audio control
(P. 4-99)
25. Hood release (P. 3-21)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
Heated steering wheel switch
(if so equipped) (P. 2-45)
Headlight aiming control (P. 2-36)Warning Systems switch
(if so equipped) (P. 2-46)
Power inverter switch (if so equipped)
(P. 2-47)
Liftgate release switch (P. 3-22)
Power liftgate main switch (P. 3-22)
Front and rear sonar system switch
(if so equipped) (P. 5-140)
26. Control panel and Vehicle information
display switches (P. 4-14, 2-16)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Instruments and controls2-3

1. Tachometer
2. Warning and indicator lights
3. Vehicle information display
4. Speedometer
5. Fuel gauge
6. OdometerTwin trip odometer
7. Engine coolant temperature gauge
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located below the vehicle information display.
LIC2254
METERS AND GAUGES
2-4Instruments and controls

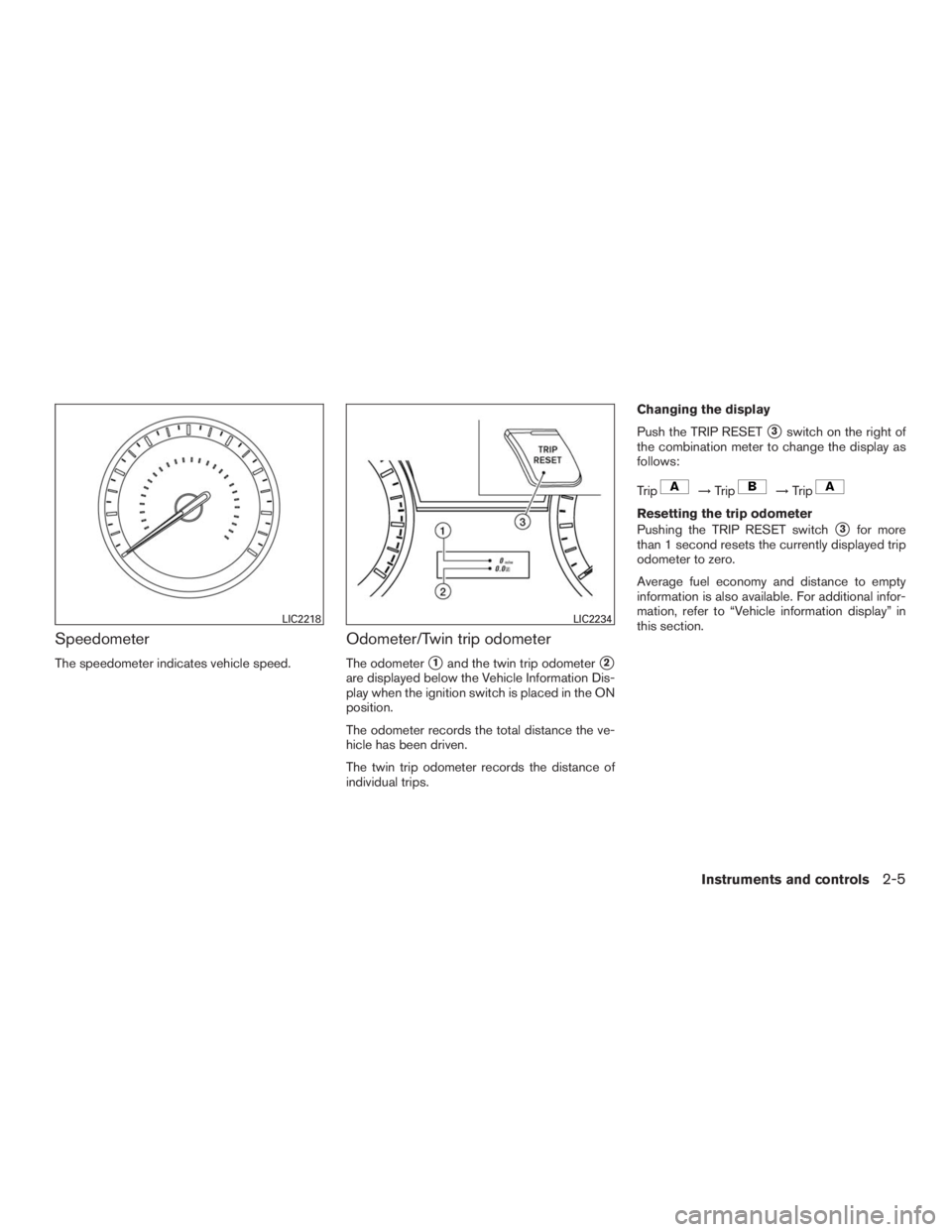

Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer
The odometer1and the twin trip odometer2
are displayed below the Vehicle Information Dis-
play when the ignition switch is placed in the ON
position.
The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.Changing the display
Push the TRIP RESET
3switch on the right of
the combination meter to change the display as
follows:
Trip
→Trip→Trip
Resetting the trip odometer
Pushing the TRIP RESET switch
3for more
than 1 second resets the currently displayed trip
odometer to zero.
Average fuel economy and distance to empty
information is also available. For additional infor-
mation, refer to “Vehicle information display” in
this section.
LIC2218LIC2234
Instruments and controls2-5

TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (RPM) . Do not rev the engine
into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tempera-
ture. The engine coolant temperature is within the
normal range
1when the gauge needle points
within the zone shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates coolant tempera-
ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
temperature. If the gauge is over the nor-
mal range, stop the vehicle as soon as
safely possible. If the engine is over-
heated, continued operation of the vehicle
may seriously damage the engine. For ad-
ditional information, refer to “If your ve-
hicle overheats” in the “In case of emer-
gency” section of this manual for
immediate action required.
LIC2219LIC2220
2-6Instruments and controls

FUEL GAUGE
The gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to 0 (Empty) after the
ignition switch is placed in the OFF position.
The low fuel warning light comes on when the
amount of fuel in the tank is getting low.
Refill the fuel tank before the gauge regis-
ters 0 (Empty) .The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
CAUTION
●If the vehicle runs out of fuel, theMalfunction Indicator Light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips. the
light
should turn off. If the light remains on
after a few driving trips, have the vehicle
inspected. It is recommended that you
visit an INFINITI retailer for this service.
●For additional information, refer to
“Malfunction Indicator Light (MIL)” in
this section.
LIC2222
Instruments and controls2-7

orAnti-lock Braking System (ABS)
warning lightSeat belt warning light and chimeSecurity indicator light
orBrake warning lightSupplemental air bag warning lightSide light and headlight indicator light (green)
Charge warning lightContinuously Variable Transmission (CVT)
position indicator lightSlip indicator light
Forward Emergency Braking (FEB) system
warning light (if so equipped)Front fog light indicator light (green)Turn signal/hazard indicator lights
Low tire pressure warning lightFront passenger air bag status lightVehicle Dynamic Control (VDC) OFF indicator
light
Master warning lightHigh beam indicator light (blue)
Power steering warning lightMalfunction Indicator Light (MIL)
CHECKING LIGHTS
With all doors closed, apply the parking brake,
fasten the seat belts and place the ignition switch
in the ON position without starting the engine.
The following lights (if so equipped) will come on:
,or,
The following lights (if so equipped) come on
briefly and then go off:
or,,,,
If any light fails to come on or operate in a way
other than described, it may indicate a burned-
out bulb and/or a system malfunction. Have thesystem checked. It is recommended you visit an
INFINITI retailer for this service.
Some indicators and warnings are also displayed
in the vehicle information display between the
speedometer and tachometer. For additional in-
formation, refer to “Vehicle information display” in
this section.
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS
2-8Instruments and controls
