INFINITI QX60 2016 Owner's Manual

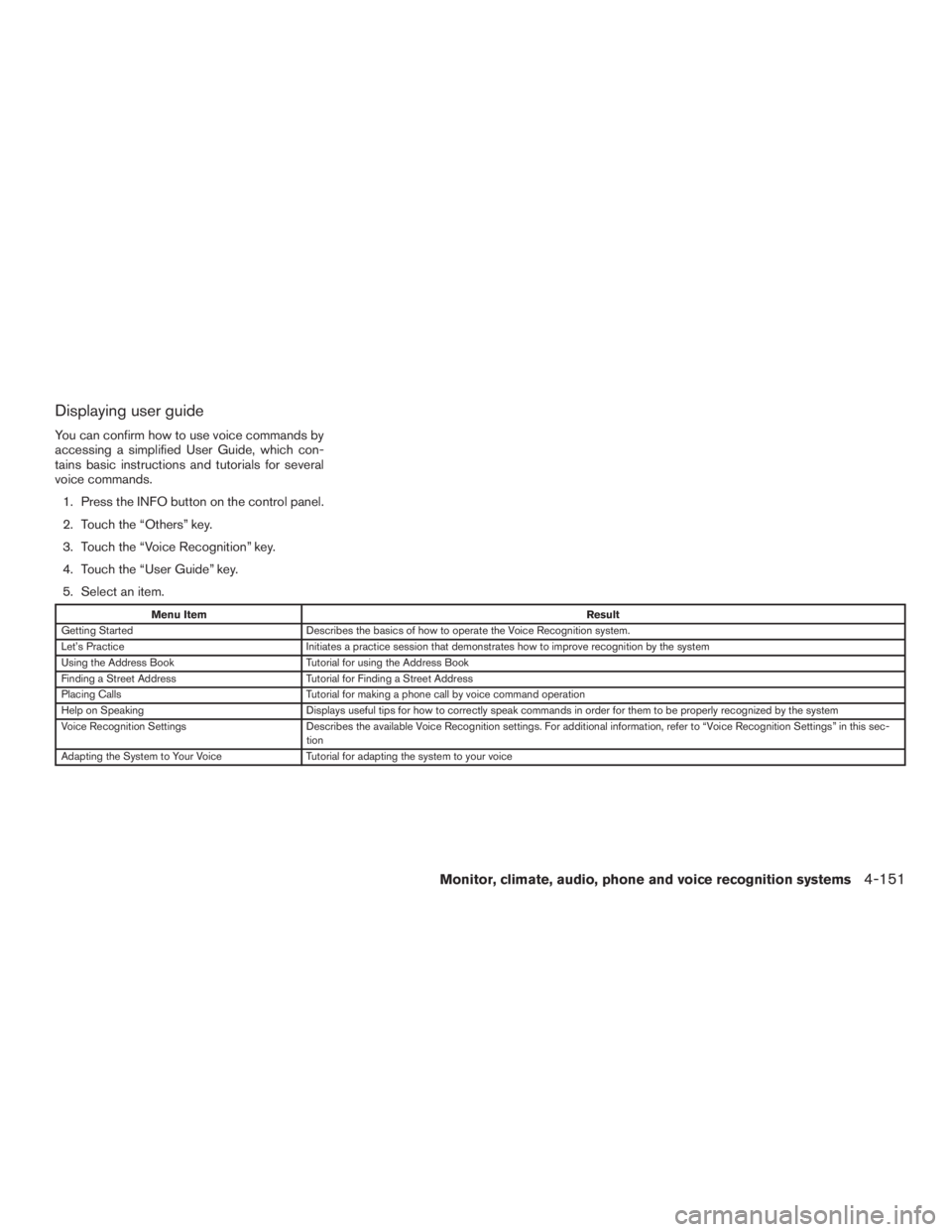

Displaying user guide
You can confirm how to use voice commands by
accessing a simplified User Guide, which con-
tains basic instructions and tutorials for several
voice commands.
1. Press the INFO button on the control panel.
2. Touch the “Others” key.
3. Touch the “Voice Recognition” key.
4. Touch the “User Guide” key.
5. Select an item.
Menu ItemResult
Getting Started Describes the basics of how to operate the Voice Recognition system.
Let’s Practice Initiates a practice session that demonstrates how to improve recognition by the system
Using the Address Book Tutorial for using the Address Book
Finding a Street Address Tutorial for Finding a Street Address
Placing Calls Tutorial for making a phone call by voice command operation
Help on Speaking Displays useful tips for how to correctly speak commands in order for them to be properly recognized by the system
Voice Recognition Settings Describes the available Voice Recognition settings. For additional information, refer to “Voice Recognition Settings” in this sec-
tion
Adapting the System to Your Voice Tutorial for adapting the system to your voice
Monitor, climate, audio, phone and voice recognition systems4-151

USING THE SYSTEM
Initialization
When the ignition switch is placed in the ON
position, INFINITI Voice Recognition is initialized,
which takes a few seconds. When completed,
the system is ready to accept voice commands. If
the
switch is pressed before the initializa-
tion completes, the display will show the mes-
sage: “System not ready” or a beep sounds.
Before starting
To get the best performance from INFINITI Voice
Recognition, observe the following:
●Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.) , which may prevent the system
from recognizing the voice commands cor-
rectly.
●When the climate control is in the AUTO
mode, the fan speed decreases automati-
cally for easy recognition.
●Wait until a tone sounds before speaking a
command.
●Speak in a natural voice without pausing
between words.
Giving voice commands
1. Press and release thebutton located
on the steering wheel.2. A list of commands appears on the screen,
and the system announces, “Please say a
command from the displayed list or say Help
to show all commands.”
3. After the tone sounds and the icon on the
screen changes from
to, speak
a command.
4. Once a command is recognized, the system
will announce the recognized command and
perform the requested action.
If the command is not recognized, the sys-
tem repeats the announcement. Repeat the
command in a clear voice after the tone.
LHA2479LHA1345
4-152Monitor, climate, audio, phone and voice recognition systems

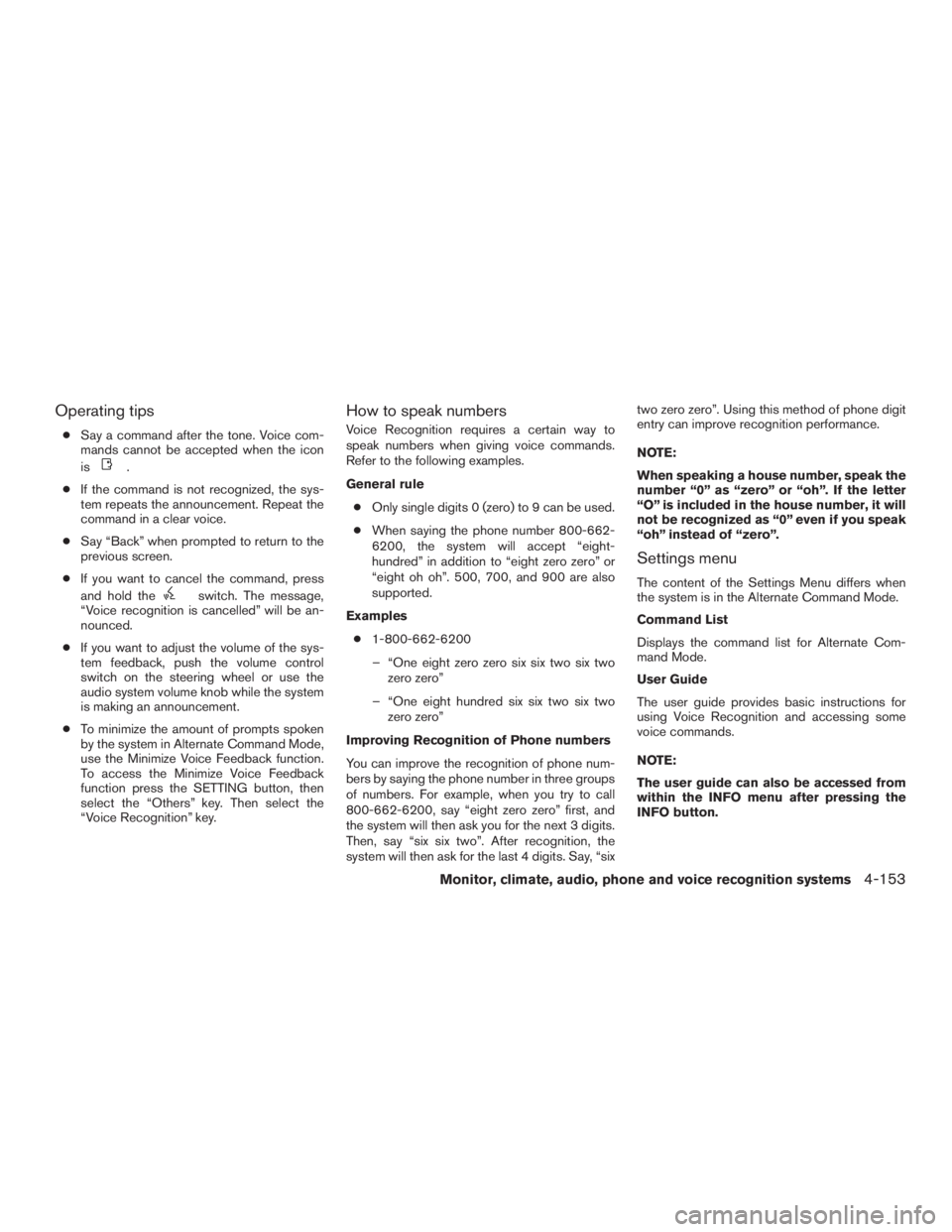

Operating tips
●Say a command after the tone. Voice com-
mands cannot be accepted when the icon
is
.
●If the command is not recognized, the sys-
tem repeats the announcement. Repeat the
command in a clear voice.
●Say “Back” when prompted to return to the
previous screen.
●If you want to cancel the command, press
and hold the
switch. The message,
“Voice recognition is cancelled” will be an-
nounced.
●If you want to adjust the volume of the sys-
tem feedback, push the volume control
switch on the steering wheel or use the
audio system volume knob while the system
is making an announcement.
●To minimize the amount of prompts spoken
by the system in Alternate Command Mode,
use the Minimize Voice Feedback function.
To access the Minimize Voice Feedback
function press the SETTING button, then
select the “Others” key. Then select the
“Voice Recognition” key.
How to speak numbers
Voice Recognition requires a certain way to
speak numbers when giving voice commands.
Refer to the following examples.
General rule
●Only single digits 0 (zero) to 9 can be used.
●When saying the phone number 800-662-
6200, the system will accept “eight-
hundred” in addition to “eight zero zero” or
“eight oh oh”. 500, 700, and 900 are also
supported.
Examples
●1-800-662-6200
– “One eight zero zero six six two six two
zero zero”
– “One eight hundred six six two six two
zero zero”
Improving Recognition of Phone numbers
You can improve the recognition of phone num-
bers by saying the phone number in three groups
of numbers. For example, when you try to call
800-662-6200, say “eight zero zero” first, and
the system will then ask you for the next 3 digits.
Then, say “six six two”. After recognition, the
system will then ask for the last 4 digits. Say, “sixtwo zero zero”. Using this method of phone digit
entry can improve recognition performance.
NOTE:
When speaking a house number, speak the
number “0” as “zero” or “oh”. If the letter
“O” is included in the house number, it will
not be recognized as “0” even if you speak
“oh” instead of “zero”.
Settings menu
The content of the Settings Menu differs when
the system is in the Alternate Command Mode.
Command List
Displays the command list for Alternate Com-
mand Mode.
User Guide
The user guide provides basic instructions for
using Voice Recognition and accessing some
voice commands.
NOTE:
The user guide can also be accessed from
within the INFO menu after pressing the
INFO button.
Monitor, climate, audio, phone and voice recognition systems4-153

Speaker Adaptation
Starts a system training procedure to learn the
specific sounds of your voice. For additional in-
formation, refer to “Speaker adaptation function”
in this section.
Alternate Command Mode
For advanced operation, an Alternate Command
Mode is provided. This setting enables control of
the audio system as well as additional commands
for the Phone and Navigation systems. With this
setting active, the system does not announce or
display the available commands at each step.
When this mode is activated, the Voice Recogni-
tion Settings will change to show more options.
Minimize Voice Feedback
Reduces the amount of the information spoken
for each voice instruction.
SPEAKER ADAPTATION FUNCTION
The Voice Recognition system has a function to
learn the user’s voice for better voice recognition
performance. The system can memorize the
voices of up to three persons.
Having the system learn the user’s voice
1.Press the SETTING button on the control panel.
2. Touch the “Others” key.
3. Touch the “Voice Recognition” key.
4. Touch the “Speaker Adaptation” key.
5. Select the user whose voice is to be memo-
rized by the system.6. Select a category to be learned by the sys-
tem from the following list:
●Phone
●Navigation
●Information
●Audio
●Help
The voice commands in the category are
displayed.
7. Select a voice command to train.
The Voice Recognition system starts.
8. The system requests that you repeat a com-
mand after a tone. This command is also
displayed on the screen.
9. After the tone sounds and the icon on the
screen changes from
to, speak
the command that the system requested.
10. When the system has recognized the voice
command, the voice of the user is learned.
Press the
switch or the BACK button to
return to the previous screen.
If the system has learned the command correctly, the
voice command indicator on the screen turns on.
LHA1341
4-154Monitor, climate, audio, phone and voice recognition systems

Speaker Adaptation function settings
Edit Name
Edit the user name using the keypad displayed on
the screen.
Reset Result
Resets the user’s voice that the Voice Recogni-
tion system has learned.
Continuous Learning
When this item is turned to ON, you can have the
system learn the voice commands in succession,
without selecting commands one by one.
TROUBLESHOOTING GUIDE
The system should respond correctly to all voice
commands without difficulty. If problems are en-
countered, follow the solutions given in this guide
for the appropriate error.
Where the solutions are listed by number, try
each solution in turn, starting with number one,
until the problem is resolved.
Symptom/error message Solution
Displays “COMMAND NOT RECOG-
NIZED” or the system fails to interpret
the command correctly.1. Ensure that the command format is valid, refer to “Standard Mode command list” or “Alternate Command Mode command list” in this
section.
2. Speak clearly using your normal speech pattern and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.
The system consistently selects the
wrong voicetag in the phonebook.1. Ensure that the voicetag requested matches what was originally stored. For additional information, refer to “Bluetooth® Hands-Free
Phone System with Navigation System” in this section.
2. Replace one of the voicetags being confused with a different voicetag.
Monitor, climate, audio, phone and voice recognition systems4-155

5 Starting and driving
Precautions when starting and driving................5-4
Exhaust gas (carbon monoxide)..................5-4
Three-way catalyst..............................5-4
Tire Pressure Monitoring System (TPMS)..........5-5
On-pavement and off-road driving
precautions....................................5-9
Avoiding collision and rollover . ...................5-9
Off-road recovery...............................5-9
Rapid air pressure loss.........................5-10
Drinking alcohol/drugs and driving...............5-10
Driving safety precautions......................5-11
Intelligent All-Wheel Drive (AWD) driving
safety precautions (if so equipped)..............5-12
Push-Button Ignition Switch.......................5-13
Operating range...............................5-14
Push-button ignition switch positions . . ..........5-14
Emergency engine shut off.....................5-15
INFINITI Intelligent Key battery discharge.........5-15
INFINITI Vehicle Immobilizer System.............5-16
Before starting the engine.........................5-16
Starting the engine...............................5-17
Remote start (if so equipped)...................5-17
Driving the vehicle................................5-18Continuously Variable Transmission (CVT)........5-18
Parking brake....................................5-22
INFINITI Drive Mode Selector......................5-23
Standard mode................................5-23
Sport mode...................................5-23
Snow mode...................................5-23
ECO mode...................................5-24
Lane Departure Warning (LDW) (if so equipped).....5-26
LDW system operation.........................5-27
How to enable/disable the LDW system.........5-28
LDW system limitations........................5-29
System temporarily unavailable..................5-30
System maintenance...........................5-30
Lane Departure Prevention (LDP) (if so equipped)....5-31
LDP system operation
..........................5-32
How to enable/disable the LDP system..........5-33
LDP system limitations.........................5-34
System temporarily unavailable..................5-35
System maintenance...........................5-36
Blind Spot Warning (BSW) (if so equipped).........5-37
BSW system operation........................5-39
How to enable/disable the BSW system.........5-40
BSW system limitations........................5-40

BSW driving situations.........................5-41
System temporarily unavailable..................5-45
System maintenance...........................5-45
Blind Spot Intervention® (BSI) (if so equipped)......5-46
BSI system operation..........................5-48
How to enable/disable the BSI system...........5-50
BSI system limitations..........................5-50
BSI driving situations..........................5-52
System temporarily unavailable..................5-56
System malfunction............................5-56
System maintenance...........................5-57
Back-up Collision Intervention (BCI)
(if so equipped)..................................5-58
BCI system operation..........................5-60
Turning the BCI system on/off...................5-62
BCI system limitations.........................5-63
System temporarily not available.................5-64
System malfunction............................5-65
System maintenance...........................5-65
Rear Cross Traffic Alert (RCTA) (if so equipped).....5-66
RCTA system operation........................5-67
How to enable/disable the RCTA system.........5-68
RCTA system limitations........................5-69System temporarily unavailable..................5-72
System maintenance...........................5-73
Cruise control (if so equipped).....................5-74
Precautions on cruise control ...................5-74
Cruise control operations.......................5-75
Intelligent Cruise Control (ICC) (if so equipped)......5-76
ICC system operation..........................5-77
The ICC switch...............................5-79
ICC system limitations.........................5-84
System temporarily unavailable..................5-87
System maintenance...........................5-89
Conventional (fixed speed) cruise control
mode........................................5-89
Preview Function..............................5-93
Distance Control Assist (DCA) (if so equipped)......5-95
DCA system operation.........................5-95
How to enable/disable the DCA system..........5-98
DCA system limitations.........................5-99
DCA driving situations........................5-101
System temporarily unavailable.................5-103
System maintenance..........................5-105
Forward Emergency Braking (FEB)
(if so equipped).................................5-106

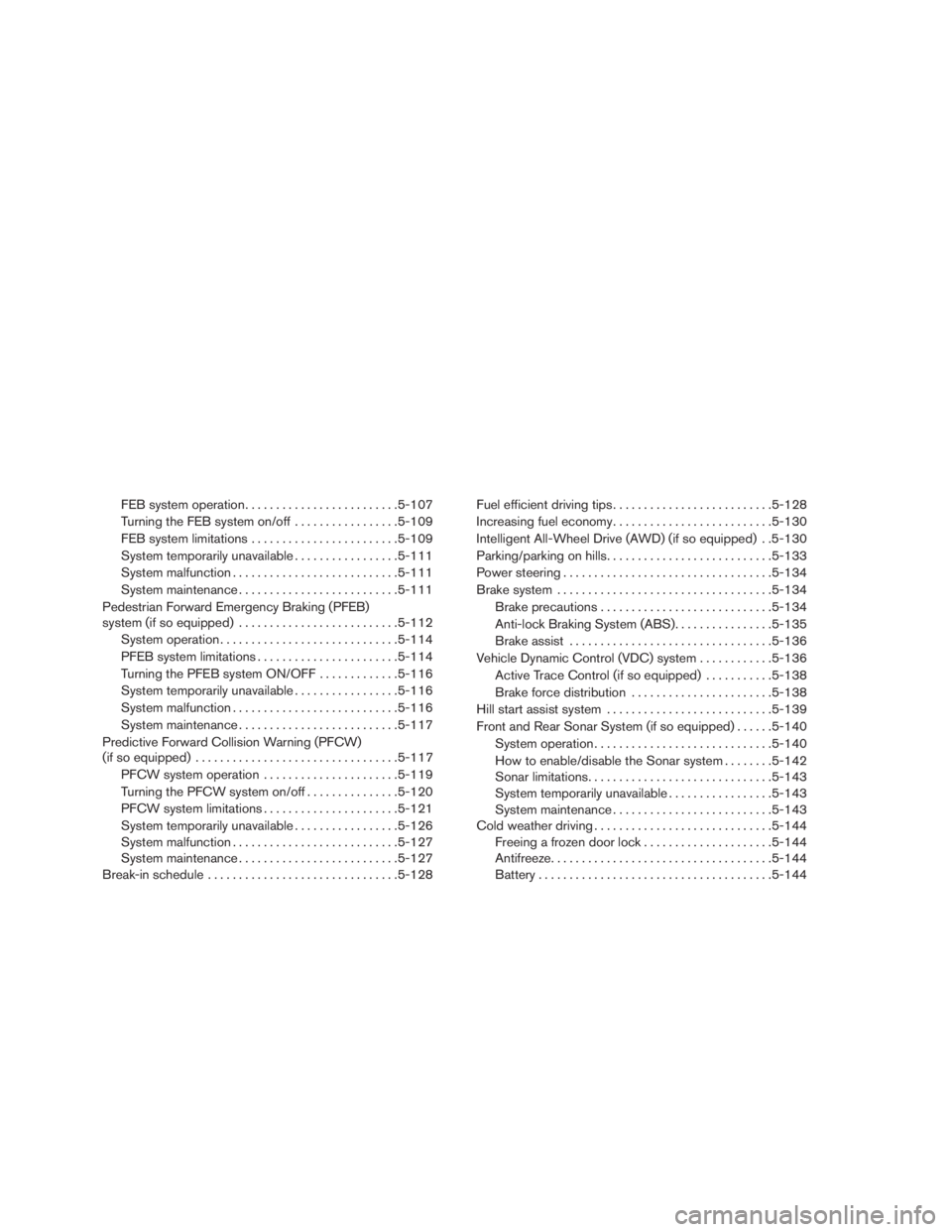

FEB system operation.........................5-107
Turning the FEB system on/off . ................5-109
FEB system limitations........................5-109
System temporarily unavailable.................5-111
System malfunction...........................5-111
System maintenance..........................5-111
Pedestrian Forward Emergency Braking (PFEB)
system (if so equipped)..........................5-112
System operation.............................5-114
PFEB system limitations.......................5-114
Turning the PFEB system ON/OFF.............5-116
System temporarily unavailable.................5-116
System malfunction...........................5-116
System maintenance..........................5-117
Predictive Forward Collision Warning (PFCW)
(if so equipped).................................5-117
PFCW system operation......................5-119
Turning the PFCW system on/off...............5-120
PFCW system limitations......................5-121
System temporarily unavailable.................5-126
System malfunction...........................5-127
System maintenance..........................5-127
Break-in schedule...............................5-128Fuel efficient driving tips..........................5-128
Increasing fuel economy..........................5-130
Intelligent All-Wheel Drive (AWD) (if so equipped) . .5-130
Parking/parking on hills...........................5-133
Power steering..................................5-134
Brake system...................................5-134
Brake precautions............................5-134
Anti-lock Braking System (ABS)................5-135
Brake assist.................................5-136
Vehicle Dynamic Control (VDC) system............5-136
Active Trace Control (if so equipped)...........5-138
Brake force distribution.......................5-138
Hill start assist system...........................5-139
Front and Rear Sonar System (if so equipped)......5-140
System operation.............................5-140
How to enable/disable the Sonar system ........5-142
Sonar limitations..............................5-143
System temporarily unavailable.................5-143
System maintenance..........................5-143
Cold weather driving.............................5-144
Freeing a frozen door lock.....................5-144
Antifreeze....................................5-144
Battery......................................5-144

Draining of coolant water......................5-144
Tire equipment...............................5-144
Special winter equipment......................5-145Driving on snow or ice........................5-145
Engine block heater (if so equipped)............5-145

WARNING
●Do not leave children or adults who
would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation of
the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or col-
lision, unsecured cargo could cause
personal injury.
EXHAUST GAS (carbon monoxide)
WARNING
●Do not breathe exhaust gases; they
contain colorless and odorless carbon
monoxide. Carbon monoxide is danger-
ous. It can cause unconsciousness or
death.●If you suspect that exhaust fumes are
entering the vehicle, drive with all win-
dows fully open, and have the vehicle
inspected immediately.
●Do not run the engine in closed spaces
such as a garage.
●Do not park the vehicle with the engine
running for any extended length of time.
●Keep the rear vent windows, liftgates,
doors and trunk lids (if so equipped)
closed while driving, otherwise exhaust
gases could be drawn into the passen-
ger compartment. If you must drive with
one of these open, follow these
precautions:
1. Open all the windows.
2. Set the
air recirculation but-
ton to off and the fan control dial to
high to circulate the air.
●If electrical wiring or other cable con-
nections must pass to a trailer through
the seal on the liftgate or the body,
follow the manufacturer’s recommen-
dation to prevent carbon monoxide en-
try into the vehicle.●The exhaust system and body should be
inspected by a qualified mechanic
whenever:
a. The vehicle is raised for service.
b. You suspect that exhaust fumes are
entering into the passenger
compartment.
c. You notice a change in the sound of
the exhaust system.
d. You have had an accident involving
damage to the exhaust system, un-
derbody, or rear of the vehicle.
THREE-WAY CATALYST
The three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the three-way catalyst are burned at
high temperatures to help reduce pollutants.
PRECAUTIONS WHEN STARTING
AND DRIVING
5-4Starting and driving
