ignition INFINITI QX60 2016 Quick Reference Guide

3
Tire Pressure Monitoring System (TPMS) with Tire Inflation Indicator
A Tire Pressure Low – Add Air warning message
will appear in the vehicle information display 1
and the low tire pressure warning light 2 will
illuminate when one or more tires are low in
pressure and air is needed.
• The tire pressures should be checked when
the tires are cold. The tires are considered cold
after the vehicle has been parked for 3 hours or
more or driven less than 1 mi (1.6 km) at
moderate speeds.
When adding air to an under-inflated tire, the TPMS
with Tire Inflation Indicator provides visual and
audible signals to help you inflate the tire to the
recommended COLD tire pressure.
To use the Tire Inflation Indicator:
1. Move the shift lever to the P (PARK)

position and apply the parking brake.
2. Place the ignition switch in the ON position. Do not start the engine.
3.


Add air to the under-inflated tire, and within a few seconds, the hazard\
warning lights will
start flashing.
4.


When the designated tire pressure is reached, the horn will beep once an\
d the hazard
warning flashers will stop flashing.
5. Repeat this procedure for any additional under-inflated tires.
After tire pressures are adjusted, drive the vehicle at speeds above 16 \
mph (25 km/h).
The Tire Pressure Low – Add Air warning message and low tire pressure warning light 2
will extinguish.
When the low tire pressure warning light 2 flashes for approximately 1 minute and
then remains on, the TPMS is not functioning properly. Have the system c\
hecked. It is
recommended you visit an Infiniti retailer for this service.
Tire pressure rises and falls depending on the heat caused by the vehicl\
e’s operation and
the outside temperature. Low outside temperature can lower the temperatu\
re of the air
inside the tire, which can cause a lower tire inflation pressure. This m\
ay cause the low tire
pressure warning light
2 to illuminate. If the warning light illuminates, check the tire
pressure in your tires.
• Check the tire pressure (including the spare tire) often and always pr\
ior to long
distance trips.
The Tire and Loading Information label contains valuable information. Re\
fer to the
“Technical and consumer information (section 9)” of your Owner’\
s Manual for the location
of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
1
2
essential information
2460934_16b_Infiniti_QX60_QRG_031716_b.indd 33/17/16 2:16 PM

6
Start from any Control Panel screen
Press
Press
Press
Press
Around View® Monitor (AVM) with Moving Object Detection (MOD)
(if so equipped)
With the ignition switch in the ON position, the
Around View® Monitor is activated by pressing the
CAMERA button 1, located on the control panel,
or by moving the shift lever to the R (REVERSE)
position. The control panel displays various views
of the position of the vehicle.
When the shift lever is in the P (PARK) , N (NEUTRAL) or D (DRIVE) position and the CAMERA
button 1 is pressed, the following views will display in order:
1
Front-wide view Front view & bird’s-eye viewFront view & front-side view
When the shift lever is in the R (REVERSE)
position and the CAMERA button 1 is pressed,
the following views will display in order:
Rear view & bird’s-eye view
Press
PressPress Rear view & front-side view
Rear-wide view
first drive features
2460934_16b_Infiniti_QX60_QRG_031716_b.indd 63/17/16 2:17 PM

10
first drive features
Infiniti Intelligent Key System
The Infiniti Intelligent Key system allows you to lock or
unlock your vehicle, open your liftgate and remotely start
the engine. It is important to make sure the Intelligent Key
is with you (that is, in your pocket or purse).
LOCKING AND UNLOCKING YOUR VEHICLE
The operating range of the Intelligent Key is within
31.5 in (80 cm) from each request switch.
To lock the vehicle, push either door handle request switch 1 once
or press the
button 2 on the key fob.
To unlock the vehicle, perform one of the following procedures:
•


Push either door handle request switch 1 once; the
corresponding door will unlock. Push the door handle request
switch
1 again within 1 minute; all other doors will unlock, or
• Press the button 3 on the key fob to unlock the driver’s side
door. Press the
button 3 again; all other doors will unlock.
REMOTE ENGINE START* (if so equipped)
The remote engine start system must be enabled in the vehicle
settings within the vehicle information display.
The remote engine start operating range is approximately 200 ft (60 m)\
from the vehicle.
The effective operating range may be shorter due to environmental condit\
ions or obstacles
between you and the vehicle.
For the remote engine start to function, the vehicle must be in the P (PARK) position with
the ignition off and all the doors closed and locked.
To start your vehicle remotely:
1. Press the button 2.
2.


Within 5 seconds, press and hold the remote engine start button 6
for at least 2 seconds.
The engine will start, and the parking lights will turn on.
Automatic climate control will begin heating or cooling the vehicle depe\
nding on the last
used mode.
The engine will run for 10 minutes and then turn off.
Repeat steps 1 and 2 to extend the time for an additional 10-minute peri\
od.
• After two remote starts, the ignition switch must be cycled before the r\
emote start can be
used again.
To start driving, depress the brake pedal and press the ignition switch \
START/STOP button.
*Laws in some communities may restrict the use of remote starters. Check\
local regulations before using this feature.
6
2
3
4
5
1
2460934_16b_Infiniti_QX60_QRG_031716_b.indd 103/17/16 2:17 PM

11
Power Liftgate
When the liftgate is closed and locked, the liftgate
will open automatically by:
• Pushing the power liftgate switch 1 on the
instrument panel.
• Pushing the liftgate opener switch 2; the
liftgate must be unlocked, or you must have the
Intelligent Key with you (that is, in your pocket
or purse).
• Pressing

the
button 3 on the Infiniti
Intelligent Key for longer than 1 second.
The power liftgate operation can be turned on
or off by the power liftgate main switch 4 on
the instrument panel.
• When the power liftgate main switch 4 is
pushed to the OFF position, power operation is not
available using the liftgate close switch
5 on the
liftgate or the liftgate opener switch 2.
For more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
LIFTGATE RELEASE
To open the rear liftgate, press the button 4 for longer than 1 second.
To close the rear liftgate, press the button 4 again for longer than 1 second.
PANIC ALARM
The Intelligent Key can also be used to activate the panic alarm by pres\
sing and holding
the
button 5 for longer than 1 second. Once activated, the panic alarm and headlight\
s
will stay on for a period of time.
INTELLIGENT KEY BATTERY DISCHARGE
If the battery of the Intelligent Key is discharged or environmental con\
ditions interfere
with the Intelligent Key operation, start the engine
according to the following procedure:
1. Move the shift lever to the P (PARK)

position.
2. Firmly apply the foot brake.
3.


Touch the ignition switch with the Intelligent Key,
and a chime will sound.
4.


Within 10 seconds after the chime sounds, push
the ignition switch while depressing the brake pedal and the engine will\
start.
For more information, refer to the “Pre-driving checks and adjustments (section 3)”, the “Starting and driving (section 5)” and
the “Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
41
2
5
3
2460934_16b_Infiniti_QX60_QRG_031716_b.indd 113/17/16 2:17 PM

13

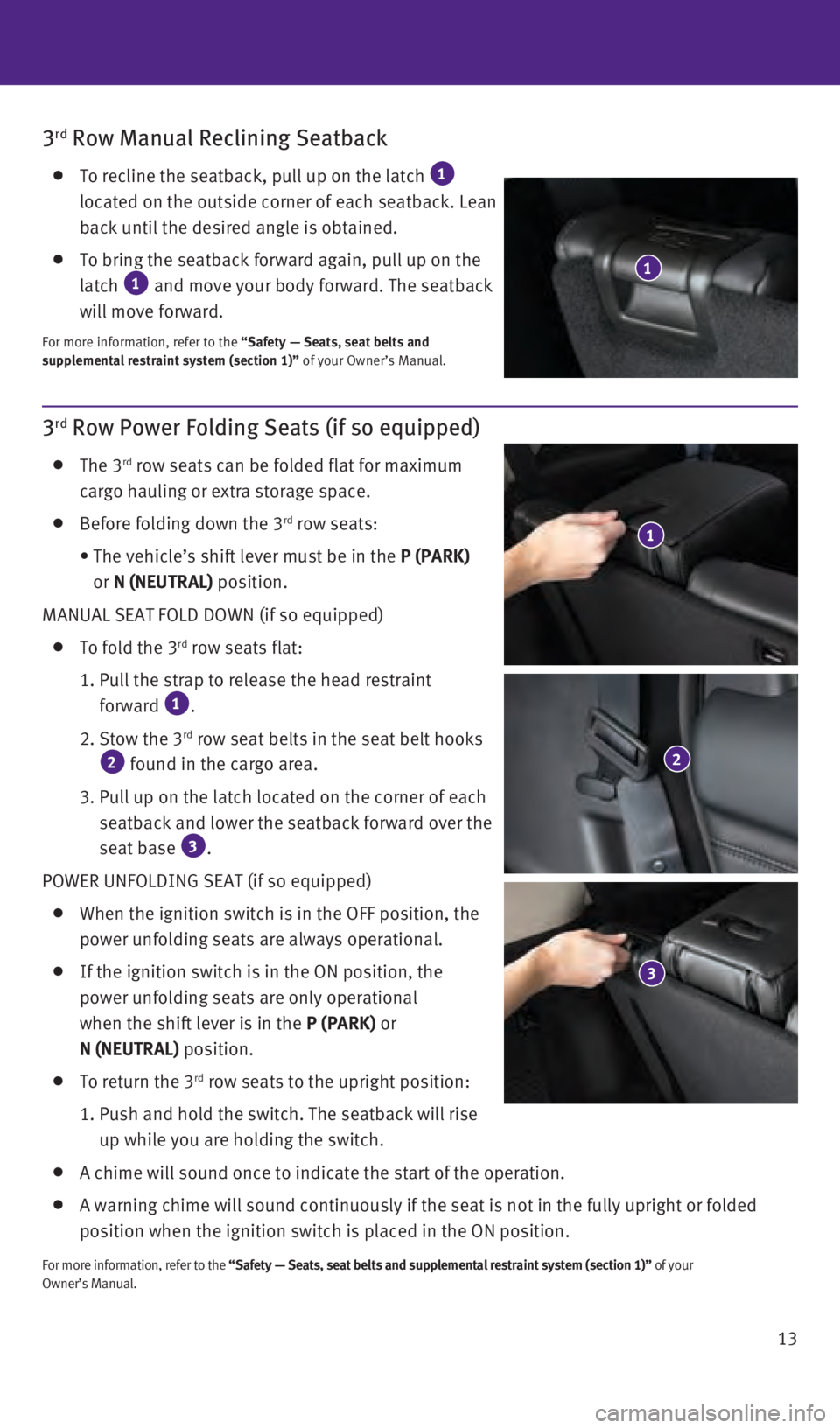

3rd Row Manual Reclining Seatback
To recline the seatback, pull up on the latch 1
located on the outside corner of each seatback. Lean
back until the desired angle is obtained.
To bring the seatback forward again, pull up on the
latch 1 and move your body forward. The seatback
will move forward.
For more information, refer to the “Safety — Seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.
1
3rd Row Power Folding Seats (if so equipped)
The 3rd row seats can be folded flat for maximum
cargo hauling or extra storage space.
Before folding down the 3rd row seats:
• The vehicle’s shift lever must be in the P (PARK)


or N (NEUTRAL) position.
MANUAL SEAT FOLD DOWN (if so equipped)
To fold the 3rd row seats flat:
1. Pull the strap to release the head restraint
forward 1.
2. Stow the 3rd row seat belts in the seat belt hooks 2 found in the cargo area.
3. Pull up on the latch located on the corner of each
seatback and lower the seatback forward over the
seat base
3.
POWER UNFOLDING SEAT (if so equipped)
When the ignition switch is in the OFF position, the
power unfolding seats are always operational.
If the ignition switch is in the ON position, the
power unfolding seats are only operational
when the shift lever is in the
P (PARK) or
N (NEUTRAL) position.
To return the 3rd row seats to the upright position:
1. Push and hold the switch. The seatback will rise
up while you are holding the switch.
A chime will sound once to indicate the start of the operation.
A warning chime will sound continuously if the seat is not in the fully \
upright or folded
position when the ignition switch is placed in the ON position.
For more information, refer to the “Safety — Seats, seat belts and supplemental restraint system (se\
ction 1)” of your
Owner’s Manual.
1
2
3
2460934_16b_Infiniti_QX60_QRG_031716_b.indd 133/17/16 2:19 PM

14
Automatic Drive Positioner (if so equipped)
Two positions for the driver’s seat, steering column
and outside mirrors can be stored in the automatic
drive positioner
1 memory.
Follow this procedure to set the memory positions:
• Push the ignition switch to the ON or ACC position.
(The vehicle should be stopped while setting
the memory.)
• Adjust the driver’s seat, steering column and
outside mirrors to the desired positions using the
adjusting switches for each feature.
• Push the SET
switch, and within 5 seconds push the memory switch (1 or 2).
• The indicator light for the memory switch you select will illuminate for\
approximately 5
seconds and a chime will sound when the memory is stored.
• The driver’s seat, steering column and outside mirror positions are n\
ow set to
your preferences.
These memorized positions can also be linked to your Infiniti Intelligen\
t Key.
To link a memorized position to your Infiniti Intelligent Key, press the\
unlock button on the
key fob after completing the previous step.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
Outside Mirror Control Switch
To select the right or left side mirror, move the control switch 1 right or left.
Adjust each mirror to the desired position using the control switch 2.
To fold the outside rearview mirrors, push the control switch 3 to the position. To
unfold the outside rearview mirrors, push the control switch 3 to the position.
REVERSE TILT-DOWN FEATURE (if so equipped)
The reverse tilt-down feature will turn both outside
mirror surfaces downward to provide better rear
visibility close to the vehicle.
1. Apply the brake.
2. Push the ignition switch to the ON position.
3.


Move the shift lever to the R (REVERSE)
position.
4.


The outside mirror surfaces will move downward.
(The mirror control switch 1 must be out of the
center [neutral] position.)
The outside mirror surfaces will return to their original positions when\
one of the following
conditions has occurred:
• The shift lever is moved to any position other than R (REVERSE)

.
• The outside mirror control switch 1 is set to the center (neutral) position.
• The ignition switch is placed in the OFF position.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
21
3
1
first drive features
2460934_16b_Infiniti_QX60_QRG_031716_b.indd 143/17/16 2:19 PM

15
Headlight Control Switch
HEADLIGHT CONTROL
Turn the headlight control switch to the
position 1 to turn on the front parking, tail, license
plate and instrument panel lights. Turn the switch to
the
position 2 to turn on the headlights.
AUTOLIGHT SYSTEM
The autolight system will automatically turn the headlights on when it i\
s dark and off when
it is light. The system will keep the headlights on for a period of time\
after you turn the
ignition off and all doors are closed.
To activate the autolight system, turn the headlight control switch to t\
he AUTO position 3
then push the ignition switch to ON. To deactivate the autolight system,\
turn the headlight
control switch to the OFF,
position 1 or position 2.
HIGH BEAM SELECT
With the headlights ON (either in the AUTO or
position), push the headlight control switch forward
to select the high beam function. The blue indicator
light
will illuminate in the instrument panel. Pull
the headlight switch back to the original position to
select the low beam. The blue indicator light
will extinguish.
Pull and release the headlight control switch 5
to flash the headlight high beams on and off.
FOG LIGHT SWITCH
The headlights must be on and the low beams
selected for the fog lights to operate.
Turn the switch (inside collar) to the position 6
to turn the fog lights on.
Turn the switch (inside collar) to the OFF position to
turn the fog lights off.
3
4
6
1
5
2
Starting/Stopping the Engine
It is important to make sure the Infiniti Intelligent
Key is with you (that is, in your pocket or purse).
Depress the brake pedal.
Press the ignition switch START/STOP button to
start the engine.
TURNING THE ENGINE OFF
Move the shift lever to the P (PARK) position and apply the parking brake.
Press the ignition switch START/STOP button to turn the engine off.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
2460934_16b_Infiniti_QX60_QRG_031716_b.indd 153/17/16 2:20 PM

22
Power Outlets
12V OUTLETS
The power outlets are for powering electrical
accessories such as cellular phones. They are rated
at 12V, 120W (10A) maximum.
To use a power outlet, open the cap.
The power outlets below the control panel 1,
inside the center console
2, and in the
cargo area
3 are powered only when the
ignition switch is in the ACC or ON position.
120V OUTLET (if so equipped)
The 120V outlet 4 is located on the back of the
center console.
To use the outlet for devices that require 120V
power, place the ignition switch in the ON position
and push the power inverter switch
5.
The switch will illuminate when enabled.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
1
3
4
5
2
first drive features
To set conventional (fixed speed) cruise control mode:
While Intelligent Cruise Control is off, press the CRUISE ON/OFF button 1 on the steering
wheel and hold it down for more than 1.5 seconds. The CRUISE indicator light will illuminate.
Accelerate to the desired speed.
Push down on the COAST/SET switch on the steering wheel and release it. The SET indicator
light will illuminate. Cruise control will be set to the desired speed.
To switch between the two cruise control modes:
When one of the two cruise modes is in use, you must turn the system off\
, and then turn it
on again to select the other cruise control mode.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
2460934_16b_Infiniti_QX60_QRG_031716_b.indd 223/17/16 2:22 PM

24 SETTINGS
The setting mode allows you to change the information displayed in the v\
ehicle
information display:
Driver Assistance (if so equipped) Main Menu Selection Body Color Maintenance Alarms
Vehicle Settings Language Unit Welcome Effects
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
Vehicle Information Display
The vehicle information display 1 displays items such as:
Vehicle settings
Trip computer information
Drive system warnings and settings (if so equipped)
Cruise control system
Intelligent Cruise Control (ICC) system
(if so equipped) information
Intelligent Key operation information
Indicators and warnings
Tire pressure information
USING THE VEHICLE INFORMATION DISPLAY
The vehicle information display modes can be changed
using the
button 2 and ENTER button 3 located on
the steering wheel.
1.


Press

the
button 2 on the steering wheel to
enter the vehicle information display menu items.
2.


Press

the
button 4 on the steering wheel to navigate through the items in the vehicle
information display.
3.


Press

the ENTER button
3 on the steering wheel to change or select an item in the vehicle
information display.
4. Press the button 5 on the steering wheel to go back to the previous menu.
START-UP DISPLAY
When the ignition switch is placed in the ON or ACC position, the screen\
s that display in the
vehicle information display include:
Active system status (if so equipped)
Trip computer
Tire pressure information
Fuel economy
Warnings (displays when a warning is present)
RESETTING THE TRIP COMPUTER
1.


Press
the
button 2 on the steering wheel until
you reach the trip computer mode 6.
2. Press

the
button 2 on the steering wheel again for more than 1.5 seconds to reset
average fuel consumption, average speed, distance to empty and journey t\
ime.
1
system guide
3
2
4
5
6
2460934_16b_Infiniti_QX60_QRG_031716_b.indd 243/17/16 2:22 PM
