Page 205 of 629
MOD system limitations........................ 4-46
System maintenance ........................... 4-47
Vents ........................................... 4-47
Heater and air conditioner (automatic) ..............4-48
Automatic operation ........................... 4-49
Manual operation .............................. 4-50
Operating tips ................................. 4-50
CLIMATE setting screen ........................ 4-51
Rear automatic air conditioning system. . .........4-53
Servicing air conditioner ........................... 4-56
Audio system .................................... 4-56
Audio operation precautions ....................4-56
Names and functions of audio control
buttons ....................................... 4-70
Antenna ...................................... 4-72
Audio main operation .......................... 4-72
Radio ........................................ 4-74
Compact Disc (CD) player .....................4-78
USB (Universal Serial Bus) connection port ......4-79
iPod® player .................................. 4-82
USB/iPod® Charging Ports ....................4-85
Bluetooth® streaming audio ....................4-86Digital Versatile Disc (DVD) player
(if so equipped)
............................... 4-89
Auxiliary (AUX) devices ......................... 4-90
Audio settings ................................. 4-91
Disc/USB memory device care and cleaning ......4-95
Mobile entertainment system (MES)
(if so equipped) .................................. 4-95
Precautions ................................... 4-96
Technical information .......................... 4-96
Connecting rear media interface ................4-104
Remote controller and headphones .............4-105
Activating rear displays ........................ 4-109
Operations on rear displays ....................4-110
Settings and information ....................... 4-111
Controlling
the rear system on the front
display ...................................... 4-113
Operating tips ................................ 4-114
Care and maintenance ........................ 4-115
Car phone or CB radio ........................... 4-115
Bluetooth® Hands-Free Phone System ............4-116
Regulatory information ........................ 4-118
Phone ....................................... 4-119
Page 263 of 629
●Sampling frequency — Sampling frequency
is the rate at which the samples of a signal
are converted from analog to digital (A/D
conversion) per second.
● Multisession — Multisession is one of the
methods for writing data to media. Writing
data once to the media is called a single
session, and writing more than once is called
a multisession.
● ID3/WMA Tag — The ID3/WMA tag is the
part of the encoded MP3 or WMA file that
contains information about the digital music
file such as song title, artist, album title,
encoding bit rate, and track time duration,
etc. ID3 tag information is displayed on the
Album/Artist/Track title line on the display.
* Windows® and Windows Media® are regis-
tered trademarks or trademarks of Microsoft Cor-
peration in the United States of America and/or
other countries.
Playback order:
ARoot folder
BFolder
CAudio file●
The folder names of folders not containing
compressed audio files are not shown on the
display.
● If there is a file in the top level of a disc/USB,
the root folder is displayed.
● The playback order is the order in which the
files were written by the writing software, so
the files might not play in the desired order.
● The music playback order of compressed
audio files is as illustrated.
NAA984
4-60Monitor, climate, audio, phone and voice recognition systems
Page 265 of 629
Windows Media Player:
This product is protected by certain intellectual
property rights of Microsoft. Use or distribution of
such technology outside of this product is pro-
hibited without a license from Microsoft.
USB/iPod® connection port
The USB/iPod® connection port is located in the
center console and consists of the USB connec-
tors.
1USB/iPod® connection portConnect to play media from an iPod®,
iPhone®, or a USB memory device. When
using Infiniti InTouch
TMApps with an
iPhone®, connect via a USB cable. Refer to
the device manufacturer’s owner informa-
tion regarding the proper use and care of the
device.
WARNING
Do not connect, disconnect or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.
CAUTION
● Do not force the USB device into the
USB port. Inserting the USB device
tilted or upside down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.
● Do not grab the USB port cover (if so
equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.
● Do not leave the USB cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
This vehicle is not equipped with a USB device.
USB devices should be purchased separately as
necessary.
This system cannot be used to format a USB
devices. To format a USB device, use a personal
computer.
LHA4259
4-62Monitor, climate, audio, phone and voice recognition systems
Page 266 of 629
In some jurisdictions, the USB device for the front
seats plays only sound without images for regu-
latory reasons, even when the vehicle is parked.
This system supports various USB memory de-
vices, USB hard drives and iPod® players. Some
USB devices may not be supported by this sys-
tem.● Partitioned USB devices may not play cor-
rectly.
● Some characters used in other languages
(Chinese, Japanese, etc.) may not appear
properly in the display. Using English lan-
guage characters with a USB device is rec-
ommended.
General notes for USB use:
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device. Notes for iPod® use:
“Made for iPod®” and “Made for iPhone®” mean
that an electronic accessory has been designed
to connect specifically to iPod® or iPhone®,
respectively, and has been certified by the devel-
oper to meet Apple performance standards.
Apple is not responsible for the operation of this
device or its compliance with safety and regula-
tory standards. Please note that the use of this
accessory with iPod® or iPhone® may affect
wireless performance.
Apple, the Apple logo, iPhone®, iPod®, iPod
classic®, iPod nano®, and iPod® touch are
trademarks of Apple Inc., registered in the U.S.
and other countries. Lightning is a trademark of
Apple Inc. App Store is a service mark of Apple
Inc.
● Improperly plugging in the iPod® may cause
a check-mark to be displayed on and off
(flickering) . Always make sure that the
iPod® is connected properly.
● An iPod nano® (1st generation) may remain
in fast forward or rewind mode if it is con-
nected during a seek operation. In this case,
please manually reset the iPod®. ●
An iPod nano® (2nd generation) will con-
tinue to fast forward or rewind if it is discon-
nected during a seek operation.
● An incorrect song title may appear when the
Play Mode is changed while using an iPod
nano® (2nd generation) .
● Audiobooks may not play in the same order
as they appear on an iPod®.
● Large video files cause slow responses in an
iPod®. The vehicle display may momentarily
black out, but will soon recover.
● If an iPod® automatically selects large video
files while in the shuffle mode, the vehicle
display may momentarily black out, but will
soon recover.
Monitor, climate, audio, phone and voice recognition systems4-63
Page 267 of 629

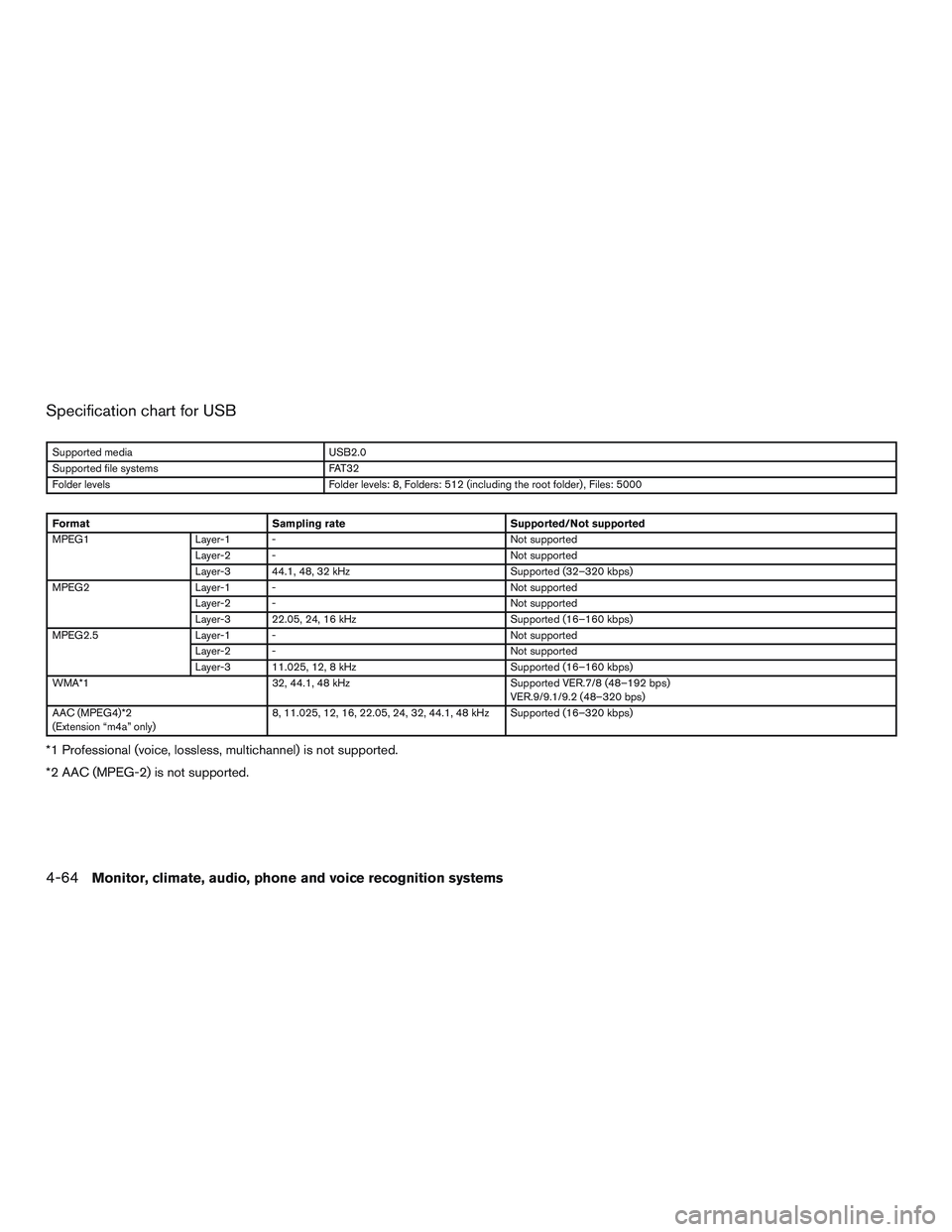

Specification chart for USB
Supported mediaUSB2.0
Supported file systems FAT32
Folder levels Folder levels: 8, Folders: 512 (including the root folder) , Files: 5000
FormatSampling rate Supported/Not supported
MPEG1 Layer-1 - Not supported
Layer-2 - Not supported
Layer-3 44.1, 48, 32 kHz Supported (32–320 kbps)
MPEG2 Layer-1 - Not supported
Layer-2 - Not supported
Layer-3 22.05, 24, 16 kHz Supported (16–160 kbps)
MPEG2.5 Layer-1 - Not supported
Layer-2 - Not supported
Layer-3 11.025, 12, 8 kHz Supported (16–160 kbps)
WMA*1 32, 44.1, 48 kHz Supported VER.7/8 (48–192 bps)
VER.9/9.1/9.2 (48–320 bps)
AAC (MPEG4)*2
(Extension “m4a” only) 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 kHz Supported (16–320 kbps)
*1 Professional (voice, lossless, multichannel) is not supported.
*2 AAC (MPEG-2) is not supported.
4-64Monitor, climate, audio, phone and voice recognition systems
Page 275 of 629
iPod®● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
CD ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number (if
playing compressed audio files) .
DVD (if so equipped) ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the title number.
USB ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number.
Bluetooth® Audio ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number.(back) switch
Press the
(back) switch to return to the
previous screen or cancel the current selection.
NOTE:
You are unable to operate the display of the
Infiniti InTouch
TMusing the buttons on the
steering switch whenever the meter shows
the setting display.
ANTENNA
The vehicle is equipped with a shark fin antenna
and an antenna pattern is printed inside the rear
window.
CAUTION
● Do not place metalized film near the
rear window glass or attach any metal
parts to it. This may cause poor recep-
tion or noise.
● When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with a
dampened soft cloth.
AUDIO MAIN OPERATION
Turning audio system on/off
The ignition switch must be in the ACC or ON
position to turn on the audio system. Push the
VOL/ON•OFF knob to turn on the last audio
source which was playing immediately before the
system was turned off. To turn off the audio
system, push the VOL/ON•OFFknob again.
Displaying Audio screen
Push theAUDIObutton on the control panel to
display the current audio screen.
Selecting audio source
1. Turn on the audio source menu screen by touching the “Source” key on the upper left
corner of the audio screen.
2. Select an item from the audio source menu screen.
● Pushing the RADIO,DISC,MEDIA or
SOURCE button on the steering switch can
also change the audio source. For additional
information, refer to “Main audio buttons” in
this section.
4-72Monitor, climate, audio, phone and voice recognition systems
Page 282 of 629
For CDs without compressed audio files
ModeScreen display
Disc Repeat
Disc
1 Track Repeat
1 Track
Disc Random
Disc
For CDs with compressed audio files
Mode Screen display
Disc Repeat
Disc
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
Disc Random
Disc
1 Folder Random
1 Folder
CD player operation
Loading
Insert the CD into the slot with the label side
facing up. The CD will be guided automatically
into the slot and starts playing.
After loading the CD, the CD screen will appear
on the display.
Activation and playing
The CD mode can be selected from the source
list or by pushing the DISC button with a CD
loaded to play the CD. For additional information,
refer to “Selecting audio source” and “Main audio
buttons” in this section. If the system has been turned off while the CD
was playing, pushing the VOL/ON•OFF knob will
start the Audio system set to the CD screen.
Selecting track/folder
Touch the “Track” key or “Folder” key in the CD
menu and select a preferred track or folder from
the list.
Push the SEEK•CAT•TRACK button to move to
the next or previous track.
For CDs with compressed audio files, turn the
TUNE/FOLDER AUDIO button to move to the
next or previous folder. For additional information,
refer to “Main audio buttons” in this section.
Fast-forwarding
Push and hold the SEEK•CAT•TRACK button to
fast-forward the track. Release the SEEK•CAT-
•TRACK button to play the track at normal speed.
Scanning
Touch the “Scan” key on the display or push the
SCAN button to scan the tracks in the CD. While
scanning, the CD will play the first 10 seconds of
each track and move on to the next track. Pushing
the “Scan” key again within the 10 seconds will
stop scanning.
Changing play mode
Touch the “Play Mode” key or the play mode
icon
orto select the play mode.
Pushing the RPT RDM button can also change
the play mode.
Ejecting CD
Push the
button to eject the CD. If the
CD is ejected and left unremoved, it will be re-
loaded into the slot to protect the CD.
USB (Universal Serial Bus)
CONNECTION PORT
Connecting USB memory device
WARNING
Do not connect, disconnect or operate the
USB device while driving. Doing so can be
a distraction. If distracted, you could lose
control of your vehicle and cause an acci-
dent or serious injury.
CAUTION
● Do not force the USB device into the
USB port. Inserting the USB device
tilted or upside down into the port may
damage the port. Make sure that the
USB device is connected correctly to the
USB port.
Monitor, climate, audio, phone and voice recognition systems4-79
Page 283 of 629
●Do not grab the USB port cover (if so
equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.
● Do not leave the USB cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
Two USB connection ports are located on the
center console box. For additional information,
refer to “USB/iPod® connection port” in this
section.
When compatible storage devices are plugged
into the jack, compatible audio files on the stor-
age devices can be played through the vehicle’s
audio system.
How to view USB operation screen
1“Source” key
Touch to switch to the source list screen. For
additional information, refer to “Selecting au-
dio source” in this section.
2Play time
The play time of the track is displayed.
3Track information
Track information such as the song title, art-
ist name and folder name is displayed.
JVH1505M
4-80Monitor, climate, audio, phone and voice recognition systems
Page 284 of 629
4Audio source indicator
Indicates which of the two USB memory
devices is selected.
5Album artwork
An image of the CD cover is displayed when
available.
6“USB1” key/“USB2” key
Touch to switch to the other connected USB
memory device.
7Track number
This indicates the track number and the total
number of tracks.
8“” key/“” key
Touch to play or pause the track.
9USB menu
USB menu items are displayed. Touch an
icon to display the list or to change the
setting.
● “Folder/Track” key
● “Artists” key
● “Albums” key
● “Previous List” key
● “Scan” key
● “Play Mode” key
10Play mode indicator
This indicates the current play mode. Touch
to change the play mode.
Mode Screen display
All Track Repeat
All
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
All Random
All
1 Folder Random
1 Folder
11Folder number
This indicates the folder, artist or album num-
ber and the total number of folders/lists.
USB memory device player operation
Activation and playing
USB memory device mode can also be activated
from the audio source list and the audio source
bar by the touch panel operation or by pushing
the MEDIA button. For additional information,
refer to “Selecting audio source” and “Main audio
buttons” in this section.
To play the USB memory device, touch the
“
” key and, to pause the USB memory, touch the “
” key on the USB operation
screen.
Monitor, climate, audio, phone and voice recognition systems4-81
Page 285 of 629
Selecting play list
Select a play list by touching an icon on the USB
menu.● Folder/Track (List)
● Artist (List)
● Album (List)
● Previous (List)
Skipping tracks/folders
Push the SEEK•CAT•TRACK button to skip to
the next or previous track.
To skip to the next or previous folder, turn the
TUNE/FOLDER AUDIO button.
Fast-forwarding
Push and hold the SEEK•CAT•TRACK button
to fast-forward the track. Release the
SEEK•CAT•TRACK button to play the track at
normal speed.
Scanning
Touch the “Scan” key on the display or push the
SCAN button to scan the tracks in the USB
memory device. While scanning, the USB
memory device will play the first 10 seconds of
each track and move on to the next track. Touch-
ing the “Scan” key again within the 10 seconds
will stop scanning. Changing play mode
Touch the “Play Mode” key on the display to
select the play mode.
Only one of the two connected USB memory
devices can be operated by the voice recognition
system.
iPod® PLAYER
Connecting iPod®
WARNING
Do not connect, disconnect or operate the
iPod® while driving. Doing so can be a
distraction. If distracted, you could lose
control of your vehicle and cause an acci-
dent or serious injury.
CAUTION
●
Do not force the iPod® device into the
USB port. Inserting the iPod® cable
tilted or upside down into the port may
damage the port. Make sure that the
iPod® cable is connected correctly to
the USB port.
● Do not grab the USB port cover (if so
equipped) when pulling the iPod®
cable out of the port. This could damage
the port and the cover. ●
Do not leave the iPod® cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
Two USB (iPod®) connection ports are located
on the center console box. For additional infor-
mation, refer to “USB/iPod® connection port” in
this section.
The battery of the iPod® will be charged while
the device is connected to the vehicle if the
iPod® supports USB connection charging.
Depending on the model and firmware version of
the iPod®, the display on the iPod® shows a
INFINITI or Accessory Attached screen when the
connection is completed. When the iPod® is
connected to the vehicle, the iPod® music library
can only be operated using the vehicle audio
controls.
Compatibility:
Made for ● iPod touch® (5th generation)
● iPod touch® (4th generation)
● iPod touch® (3rd generation)
● iPod touch® (2nd generation)
4-82Monitor, climate, audio, phone and voice recognition systems
