INFINITI QX60 2018 Owner's Manual

Push the switch again to turn the heated
steering wheel system off manually. The in-
dicator light will go off.
NOTE:
If the surface temperature of the steering
wheel is above 68°F (20°C) when the switch
is turned on, the system will not heat the
steering wheel. This is not a malfunction.

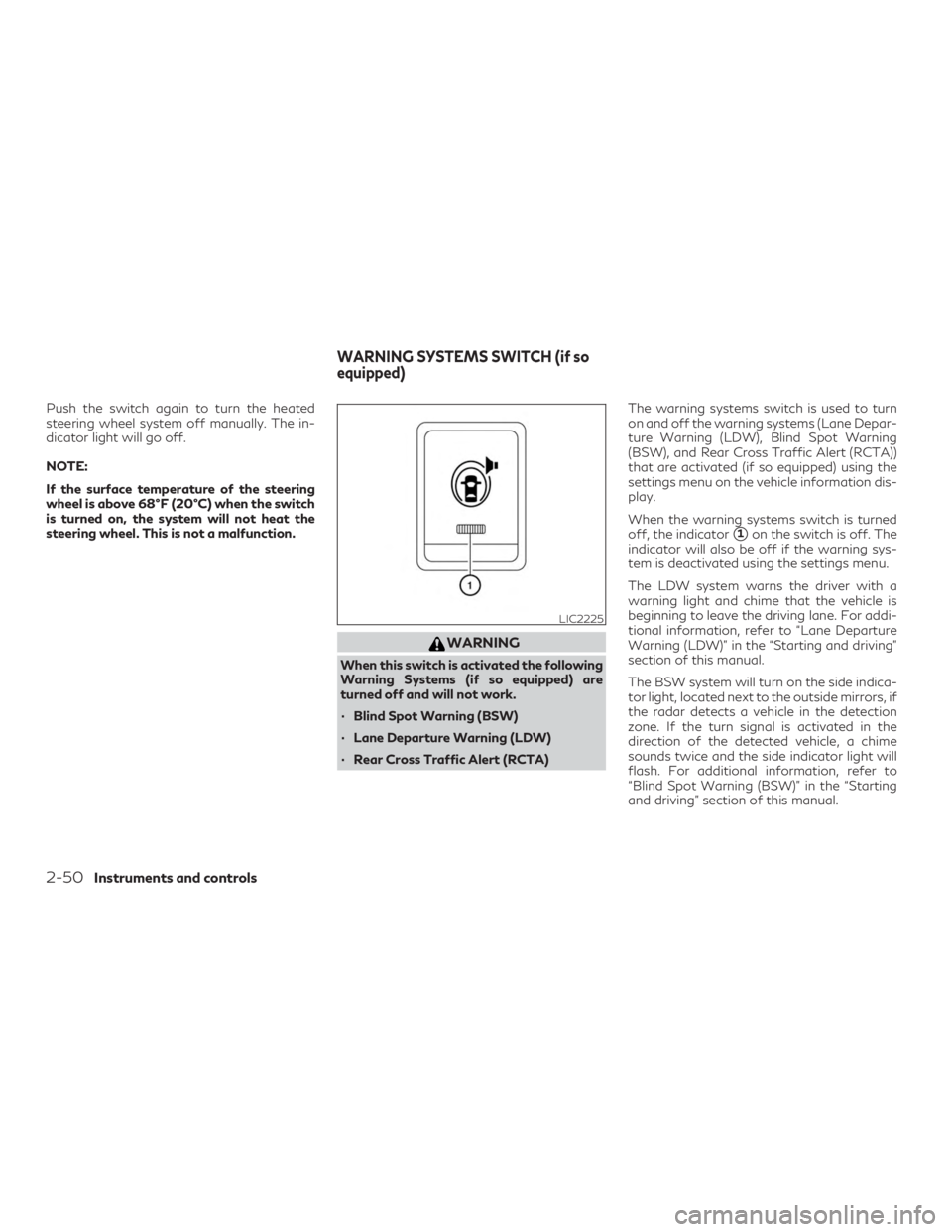

WARNING
When this switch is activated the following
Warning Systems (if so equipped) are
turned off and will not work.
∙ Blind Spot Warning (BSW)
∙ Lane Departure Warning (LDW)
∙ Rear Cross Traffic Alert (RCTA)The warning systems switch is used to turn
on and off the warning systems (Lane Depar-
ture Warning (LDW), Blind Spot Warning
(BSW), and Rear Cross Traffic Alert (RCTA))
that are activated (if so equipped) using the
settings menu on the vehicle information dis-
play.
When the warning systems switch is turned
off, the indicator
1on the switch is off. The
indicator will also be off if the warning sys-
tem is deactivated using the settings menu.
The LDW system warns the driver with a
warning light and chime that the vehicle is
beginning to leave the driving lane. For addi-
tional information, refer to “Lane Departure
Warning (LDW)” in the “Starting and driving”
section of this manual.
The BSW system will turn on the side indica-
tor light, located next to the outside mirrors, if
the radar detects a vehicle in the detection
zone. If the turn signal is activated in the
direction of the detected vehicle, a chime
sounds twice and the side indicator light will
flash. For additional information, refer to
“Blind Spot Warning (BSW)” in the “Starting
and driving” section of this manual.
LIC2225
WARNING SYSTEMS SWITCH (if so
equipped)
2-50Instruments and controls

The RCTA system can help alert the driver of
an approaching vehicle when the driver is
backing out of a parking space. If the system
detects an approaching vehicle from either
side, the system chimes (once) and the side
BSW/RCTA indicator light flashes on the
side the vehicle is approaching from. For ad-
ditional information, refer to “Rear Cross
Traffic Alert (RCTA)” in the “Starting and driv-
ing” section of this manual.The vehicle should be driven with the VDC
system on for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will be
reduced even if the accelerator is depressed
to the floor. If maximum engine power is
needed to free a stuck vehicle, turn the VDC
system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator will come
on. Push the VDC OFF switch again or restart
the engine to turn on the system. For addi-
tional information, refer to “Vehicle Dynamic
Control (VDC) system” in the “Starting and
driving” section of this manual.
LIC3344
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH
Instruments and controls2-51

The rear door alert system functions under
certain conditions to indicate there may be an
object or passenger in the rear seat(s). Check
the seat(s) before exiting the vehicle.
The rear door alert system is initially disabled.
The driver can enable the system using the
vehicle information display. For additional in-
formation, refer to “Vehicle information dis-
play warnings and indicators” in this section.
When the system is enabled:∙ The system is activated when a rear door is opened and closed approximately
10 minutes before the vehicle is started.
When the vehicle is started and the sys-
tem is activated, a visual message ap-
pears in the vehicle information display.
For additional information, refer to “Rear
Door Alert is activated” in this section.
∙ If a rear door is opened and closed but the vehicle is not started within approxi-
mately 10 minutes, the system will not be
activated. A rear door must be opened
and closed and the car started within
10 minutes for the system to activate.
When the rear door alert system is activated
and a driver exits the vehicle after arriving at a
destination: ∙ When the driver puts the vehicle in the P
(Park) position, a message appears in the
vehicle information display for a driver to
“Dismiss Message” or “Disable Alert” if
desired.
∙ With the system enabled, when the driver exits the vehicle, an audible alert (horn
sound) will occur unless a rear door is
opened and closed within a short time to
deactivate the alert.
∙ If the doors are locked before the alert is deactivated by opening a rear door, the
horn will sound.
∙ If the system is activated but the rear liftgate is opened before opening a rear
door, the horn will be delayed until after
the liftgate is closed.
∙ If the audible horn alert occurs, a mes- sage will also appear in the vehicle infor-
mation display that states, “Check Back
Seat for All Articles”.WARNING
• If the driver selects “Disable Alert”, no au-
dible alert will be provided regardless of
rear door open/close status.
• There may be times when there is an object
or passenger in the rear seat(s) but the au-
dible alert does not sound. For example,
this may occur if the engine is turned off
and then on again in a short period of time
during a trip, or if rear seat passengers en-
ter or exit the vehicle during a trip.
• The system does not directly detect ob-
jects or passengers in the rear seat(s). In-
stead, it can detect when a rear door is
opened and closed, indicating that there
may be something in the rear seat(s).
NOTE:
There may be times when the horn sounds
but there are no objects or passengers in the
rear seat(s).
For additional information, refer to “Rear
Door Alert is activated” in this section.
REAR DOOR ALERT
2-52Instruments and controls

To use the outlets for devices that require
120v power, place the ignition in the ON
position and push the power inverter switch.
The switch will illuminate when enabled.
CAUTION
∙ Use power outlets with the engine run-ning to avoid discharging the vehicle
battery.
∙ Do not attempt to use this while driving.
∙ Do not use double adapters or more than one electrical accessory, doing so could
significantly drain the battery of your
vehicle.
The E-call (SOS) system switch is used in
combination with an Infiniti InTouch™ Ser-
vices subscription to call for assistance in
case of an emergency.
Pushing the switch will (with a paid subscrip-
tion) reach a Response Specialist that will
provide assistance based on the situation de-
scribed by the vehicle’s occupant. For addi-
tional information, or to enroll your vehicle,
refer to www.InfinitiUSA.com/intouch or call
855–444–7244.
LIC2231LIC3376
POWER INVERTER SWITCH (if so
equipped) E-CALL (SOS) SWITCH (if so
equipped)
Instruments and controls2-53

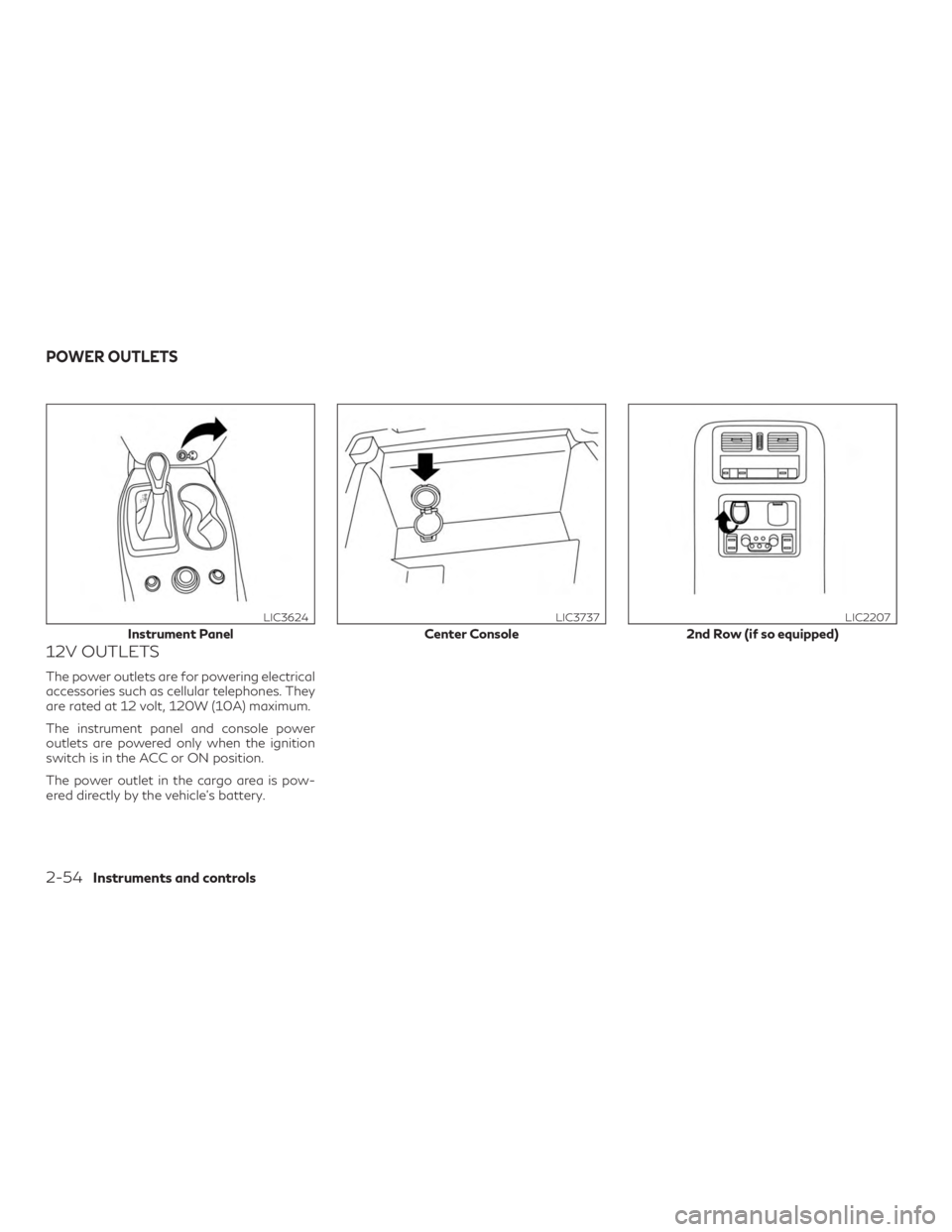

12V OUTLETS
The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.
The instrument panel and console power
outlets are powered only when the ignition
switch is in the ACC or ON position.
The power outlet in the cargo area is pow-
ered directly by the vehicle’s battery.
Instrument Panel
LIC3624
Center Console
LIC3737
2nd Row (if so equipped)
LIC2207
POWER OUTLETS
2-54Instruments and controls

CAUTION
∙ The outlet and plug may be hot during orimmediately after use.
∙ Only certain power outlets are designed for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended that
you visit an INFINITI retailer for addi-
tional information.
∙ Do not use with accessories that exceed a 12 volt, 120W (10A) power draw. ∙ Do not use double adapters or more than
one electrical accessory.
∙ Use power outlets with the engine run- ning to avoid discharging the vehicle
battery.
∙ Avoid using power outlets when the air conditioner, headlights or rear window
defroster is on.
∙ Before inserting or disconnecting a plug, be sure the electrical accessory being
used is turned OFF.
∙ Push the plug in as far as it will go. If good contact is not made, the plug may over-
heat or the internal temperature fuse
may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other liquid to
contact the outlet.
120V OUTLET (if so equipped)
CAUTION
∙ The outlet and plug may be hot during orimmediately after use.
∙ Use power outlets with the engine run- ning to avoid discharging the vehicle
battery.
∙ Do not use accessories that exceed a 120V, 150W power draw. Do not use
double adaptors or more than one elec-
trical accessory.
Cargo Area
LIC2236
2nd Row
LIC2215
Instruments and controls2-55

∙ Avoid using power outlets when the airconditioner, headlights or rear window
defroster is on.
∙ Before inserting or disconnecting a plug, be sure the electrical accessory being
used is turned OFF.
∙ Push the plug in as far as it will go. If good contact is not made, the plug may over-
heat or the internal temperature fuse
may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other liquid to
contact the outlet.
The extended storage switch is pulled out
when in transit from the factory to the re-
tailer. It is located in the fuse panel to the left
of the steering wheel on the instrument
panel. If any electrical equipment does not
operate, ensure the extended storage switch
is pushed fully in place, as shown.
LDI2758
Pulled position
LIC3266
EXTENDED STORAGE SWITCH
2-56Instruments and controls

FRONT-DOOR POCKETSSEATBACK POCKETS
The seatback pockets may be located on the
back of the driver’s and/or passenger’s seats.
The pockets can be used to store maps.
Pushed position
LIC3268LIC3546LIC1328
STORAGE
Instruments and controls2-57

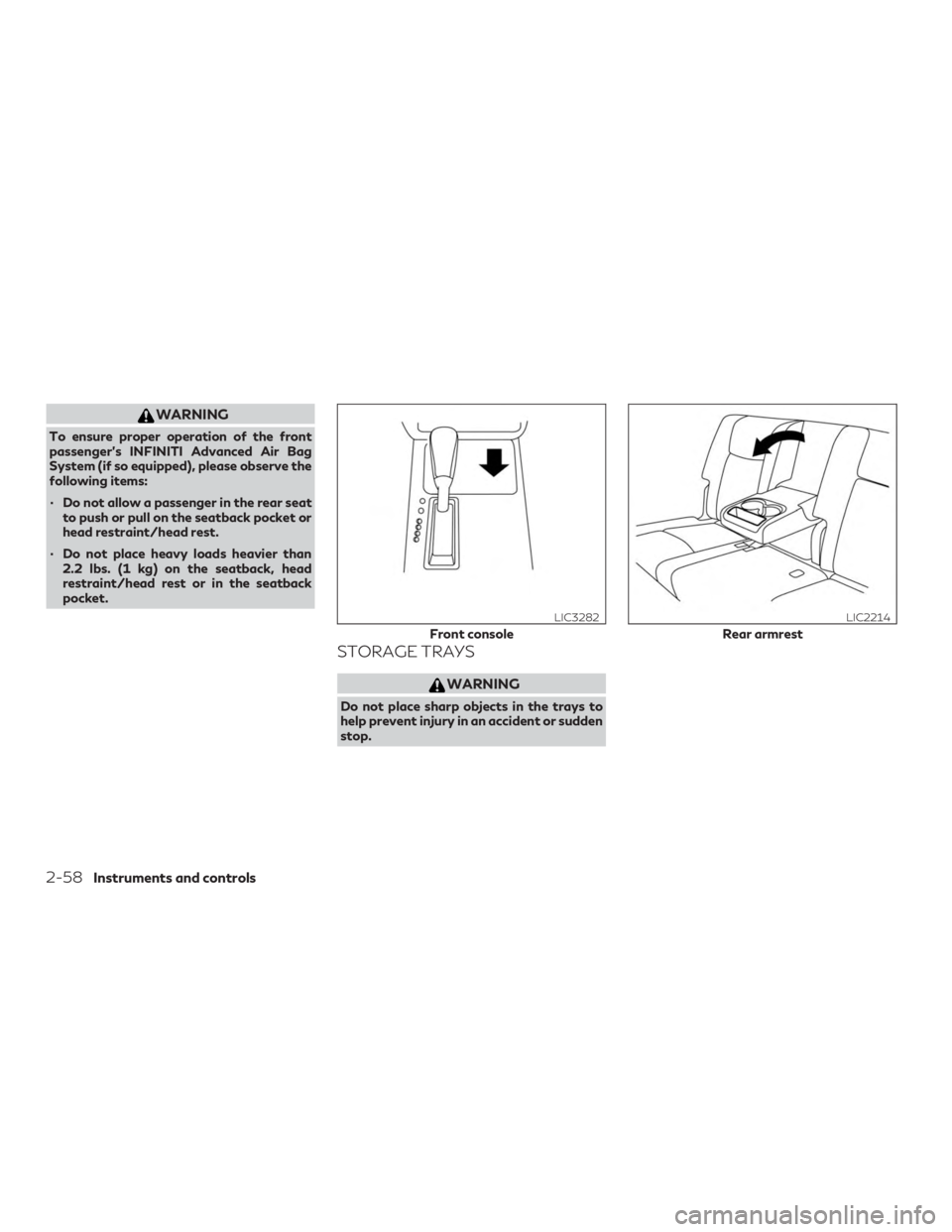

WARNING
To ensure proper operation of the front
passenger’s INFINITI Advanced Air Bag
System (if so equipped), please observe the
following items:
∙ Do not allow a passenger in the rear seatto push or pull on the seatback pocket or
head restraint/head rest.
∙ Do not place heavy loads heavier than 2.2 lbs. (1 kg) on the seatback, head
restraint/head rest or in the seatback
pocket.
STORAGE TRAYS
WARNING
Do not place sharp objects in the trays to
help prevent injury in an accident or sudden
stop.
Front console
LIC3282
Rear armrest
LIC2214
2-58Instruments and controls

GLOVE BOX
Open the glove box by pulling the handle. Use
the master key when locking
1or unlocking
2the glove box.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a sud-
den stop.
CONSOLE BOX
Upper half
Pull up on the driver’s side latch to open the
upper half of the console box.
The upper half of the console box may be
used for storage of cellular phones. An access
hole is provided at the front of the upper half
of the console box for a phone or iPod® cord
routing to the power outlet.
Lower half
Pull up on the passenger’s side latch to open
the lower half of the console box. A power
outlet is located inside the console box and
there is storage for compact discs.
LIC2243WIC1120LIC0702
Instruments and controls2-59
