XENON HEADLIGHTS
WARNING
cHIGH VOLTAGE
∙ When xenon headlights are on, they pro-duce a high voltage. To prevent an elec-
tric shock, never attempt to modify or
disassemble. Always have your xenon
headlights replaced by a certified service
technician. It is recommended that you
visit an INFINITI retailer for this service.
∙ Xenon headlights provide considerably more light than conventional headlights.
If they are not correctly aimed, they
might temporarily blind an oncoming
driver or the driver ahead of you and
cause a serious accident. If headlights are
not aimed correctly, immediately take
your vehicle to a certified service techni-
cian and have the headlights adjusted
correctly.
When the xenon headlight is initially turned
on, its brightness or color varies slightly.
However, the color and brightness will soon
stabilize. ∙
The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for ex-
ample, when the vehicle stops at a traffic
signal).
∙ If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above signs
appear, it is recommended that you visit
an INFINITI retailer for service.
HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to theposition,
and the front parking, tail, license plate,
and instrument panel lights will come on.
2Rotate the switch to theposition,
and the headlights will come on and all
the other lights remain on.
CAUTION
Use the headlights with the engine running
to avoid discharging the vehicle battery.
SIC3267
HEADLIGHT AND TURN SIGNAL
SWITCH
2-40Instruments and controls

Autolight system
The autolight system allows the headlights to
turn on and off automatically. The autolight
system can:∙ Turn on the headlights, front parking, tail, license plate and instrument panel lights
automatically when it is dark.
∙ Turn off all the lights (except daylight running lights) when it is light.
∙ Keep all the lights on for a period of time after you place the ignition switch in the
OFF position and all doors are closed. NOTE:
Autolight activation sensitivity and the time
delay for autolight shutoff can be adjusted.
For additional information, refer to “Vehicle
information display” in this section.
To turn on the autolight system:
1. Turn the headlight switch to the AUTO position
1.
2. Turn the ignition switch to the ON posi- tion.
3. The autolight system automatically turns the headlights on and off.
Initially, if the ignition switch is placed in the
OFF position and a door is opened and left
open, the headlights remain on for a period of
time. If another door is opened while the
headlights are on, then the timer is reset.
To turn the autolight system off, turn the
switch to the OFF,
,orposition. Be sure you do not put anything on top of the
autolight sensor located in the top side
1of
the instrument panel. The autolight sensor
controls the autolight; if it is covered, the
autolight sensor reacts as if it is dark out and
the headlights will illuminate. If this occurs
while parked with the engine off and the ig-
nition switch placed in the ON position, your
vehicle’s battery could become discharged.
SIC3268LIC2237
Instruments and controls2-41

Headlight beam select
1To select the high beam function, push
the lever forward. The high beam lights
come on and the
light illuminates.
2Pull the lever back to select the low
beam.
3Pulling and releasing the lever flashes the
headlight high beams on and off.
High Beam Assist (if so equipped)
The High Beam Assist system will operate
when the vehicle is driven at speeds of ap-
proximately 25 mph (40 km/h) and above. If
an oncoming vehicle or leading vehicle ap-
pears in front of your vehicle when the head-
light high beam is on, the headlight will be
switched to the low beam automatically.
WARNING
∙ The High Beam Assist system is a conve- nience but it is not a substitute for safe
driving operation. The driver should re-
main alert at all times, ensure safe driving
practices and switch the high beams and
low beam manually when necessary.
∙ The high beam or low beam may not switch automatically under the following
conditions. Switch the high beam and low
beam manually.
– During bad weather (rain, fog, snow, wind, etc.).
– When a light source similar to a head- light or tail light is in the vicinity of the
vehicle. – When the headlights of the oncoming
vehicle or the leading vehicle are
turned off, when the color of the light
is affected due to foreign materials on
the lights, or when the light beam is
out of position.
– When there is a sudden, continuous change in brightness.
– When driving on a road that passes over rolling hills, or a road that has
level differences.
– When driving on a road with many curves.
– When a sign or mirror-like surface is reflecting intense light towards the
front of the vehicle.
– When the container, etc. being towed by a leading vehicle is reflecting in-
tense light.
– When a headlight on your vehicle is damaged or dirty.
– When the vehicle is leaning at an angle due to a punctured tire, being towed,
etc.
SIC3269
2-42Instruments and controls

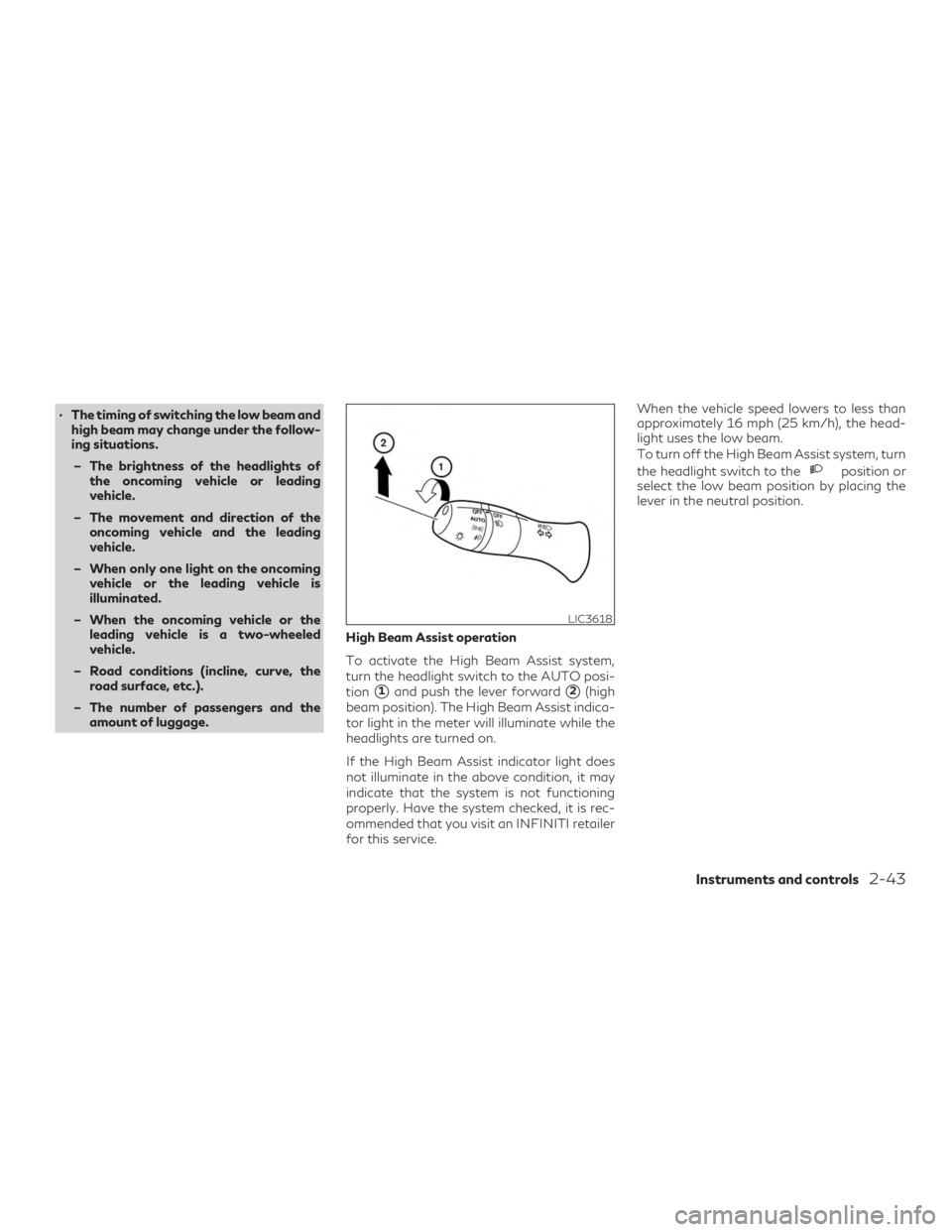

∙ The timing of switching the low beam andhigh beam may change under the follow-
ing situations.
– The brightness of the headlights of the oncoming vehicle or leading
vehicle.
– The movement and direction of the oncoming vehicle and the leading
vehicle.
– When only one light on the oncoming vehicle or the leading vehicle is
illuminated.
– When the oncoming vehicle or the leading vehicle is a two-wheeled
vehicle.
– Road conditions (incline, curve, the road surface, etc.).
– The number of passengers and the amount of luggage. High Beam Assist operation
To activate the High Beam Assist system,
turn the headlight switch to the AUTO posi-
tion
1and push the lever forward2(high
beam position). The High Beam Assist indica-
tor light in the meter will illuminate while the
headlights are turned on.
If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked, it is rec-
ommended that you visit an INFINITI retailer
for this service. When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.
To turn off the High Beam Assist system, turn
the headlight switch to the
position or
select the low beam position by placing the
lever in the neutral position.
LIC3618
Instruments and controls2-43

Ambient image sensor maintenance
The ambient image sensor
1for the High
Beam Assist system is located in front of the
inside mirror. To maintain the proper opera-
tion of the High Beam Assist system and
prevent a system malfunction, be sure to ob-
serve the following:
∙ Always keep the windshield clean.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the ambient image sensor. ∙ Do not strike or damage the areas around
the ambient image sensor. Do not touch
the sensor lens that is located on the
ambient image sensor.
If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
Battery saver system
If the ignition switch is placed in the OFF
position while the headlight switch is in
the
orposition, the headlights
will turn off after a period of time.
NOTE:
The Battery Saver system may be disabled.
For additional information, refer to “Vehicle
information display” in this section.
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM
The LED portion of the headlights automati-
cally illuminate at 100% intensity when the
engine is started and the parking brake re-
leased. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the OFF position. When you turn
the headlight switch to the
position for
full illumination, the LED lights switch from
LED DRL system to the park function.
If the parking brake is applied before the
engine is started, the LED DRL system does
not illuminate. The LED DRL system illumi-
nates when the parking brake is released. The
LED DRL system will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is neces-
sary at dusk to turn on your headlights.
Failure to do so could cause an accident in-
juring yourself and others.
LIC3638
2-44Instruments and controls

INSTRUMENT BRIGHTNESS
CONTROL
Press the “+” buttonAto increase the bright-
ness of instrument panel lights.
Press the “-” button
Bto decrease the
brightness of instrument panel lights.
TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signal cancels automati-
cally.
Lane change signal
2Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, to signal a lane change. Hold
the lever until the lane change is com-
pleted. Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, and release the lever. The turn
signal will automatically flash three
times.
Choose the appropriate method to signal a
lane change based on road and traffic condi-
tions.
LIC2235SIC3271
Instruments and controls2-45

FOG LIGHT SWITCH
To turn the fog lights on, rotate the headlight
switch to the
position, then rotate the
fog light switch to the
position.
To turn the fog lights on with the headlight
switch in the AUTO position, the headlights
must be on, then rotate the fog light switch to
the
position.
To turn the fog lights off, rotate the fog light
switch to the OFF position.
The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high
beam headlights are selected. To sound the horn, push near the horn icon on
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
injury.
WARNING
Do not use or allow occupants to use the
climate controlled seats if you or the occu-
pants can not monitor seat temperatures or
have an inability to feel pain in those body
parts in contact with the seat. Use of the
climate controlled seats by such people
could result in serious injury.
CAUTION
∙ The battery could run down if the climate
control seat is operated while the engine
is not running.
SIC3272LIC2227SIC4334
HORN CLIMATE CONTROLLED SEAT
SWITCHES (if so equipped)
2-46Instruments and controls

∙ Do not use the climate control seat forextended periods or when no one is using
the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket, cushion,
seat cover, etc. Otherwise, the seat may
become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or similar
objects. This may result in damage to the
climate controlled seat.
∙ Any liquid spilled on the seat should be removed immediately with a dry cloth
∙ The climate controlled seat has an air fil- ter. Do not operate the climate controlled
seat without an air filter. This may result
in damage to the system.
∙ When cleaning the seat, never use gaso- line, benzine, thinner, or any similar
materials.
∙ If any malfunctions are found or the cli- mate controlled seat does not operate,
turn the switch off and have the system
checked. It is recommended that you visit
an INFINITI retailer for this service. The climate controlled seat warms up or
cools down the front seat by blowing warm
or cool air from under the surface of the seat.
The climate control switch is located on the
center console.
The climate controlled seat can be operated
as follows:
1. Start the engine.
2. Turn the control knob
Ato the heat side
1or the cool side2. The indicator light
Bon the control knob will illuminate.
3. Adjust the desired amount of air using the control knob. The climate controlled
seat blower remains on low speed for
approximately 60 seconds after turning
the switch on or selecting the desired
temperature.
4. When the vehicle’s interior is warmed or cooled, or before you leave the vehicle,
be sure to turn the control knob to the
OFF (center) position. The indicator light
Bon the control knob goes off with the
switch in the OFF (center) position.
To check the air filter for the climate con-
trolled seat, it is recommended that you con-
tact an INFINITI retailer.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in serious
injury.
CAUTION
∙ The battery could run down if the seat heater is operated while the engine is not
running.
SSS0911
HEATED SEAT SWITCHES (if so
equipped)
Instruments and controls2-47

∙ Do not use the seat heater for extendedperiods or when no one is using the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket, cushion,
seat cover, etc. Otherwise, the seat may
become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.
∙ Any liquid spilled on the heated seat should be removed immediately with a
dry cloth.
∙ When cleaning the seat, never use gaso- line, benzine, thinner, or any similar
materials.
∙ If any malfunctions are found or the heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service.
The front seats are warmed by built-in heat-
ers. The switches are located on the center
console and can be operated independently
of each other. 1. Start the engine. 2. Turn the control knobAto the right1
and select the desired heat range.
∙ For high heat, turn the knob to the right
1.
∙ For low heat, turn the knob to the left
2.
∙ The indicator light
Bwill illuminate
when the heater is on.
3. To turn off the heater, return the knob to the OFF position
3. Make sure that the
indicator light turns off.
The heater is controlled by a control
module, automatically turning the heater
on and off.
The indicator light will remain on as long
as the switch is on.
When the seat is warmed, or before you
leave the vehicle, be sure to turn the
switch off.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in serious
injury.
CAUTION
∙ The battery could run down if the seat heater is operated while the engine is not
running.
LIC3037
HEATED 2ND ROW SEAT SWITCHES
(if so equipped)
2-48Instruments and controls

∙ Do not use the seat heater for extendedperiods or when no one is using the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket, cushion,
seat cover, etc. Otherwise, the seat may
become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.
∙ Any liquid spilled on the heated seat should be removed immediately with a
dry cloth.
∙ When cleaning the seat, never use gaso- line, benzine, thinner, or any similar
materials.
∙ If any malfunctions are found or the heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service.
The rear seats are warmed by built-in heat-
ers. The switches are located on the rear of
the front center console and can be operated
independently of each other. 1. Start the engine. 2. Push the LO or HI position of the switch,
as desired. The indicator light in the
switch will illuminate.
The heater is controlled by a thermostat,
automatically turning the heater on and
off. The indicator light will remain on as
long as the switch is on.
3. When the seat is warmed or before you leave the vehicle, be sure to turn the
switch off.
The heated steering wheel system is de-
signed to operate only when the surface tem-
perature of the steering wheel is below 68°F
(20°C).
Push the heated steering wheel switch to
warm the steering wheel after the engine
starts. The indicator light will come on.
If the surface temperature of the steering
wheel is below 68°F (20°C), the system will
heat the steering wheel and cycle off and on
to maintain a temperature above 68°F
(20°C). The indicator light will remain on as
long as the system is on.
LIC0421
HEATED STEERING WHEEL SWITCH
(if so equipped)
Instruments and controls2-49
