INFINITI QX60 2018 User Guide

0 Illustrated table of contents
Air bags, seat belts and child restraints........... 0-2
Exterior front ................................... 0-3
Exterior rear .................................... 0-4
Passenger compartment ......................... 0-5 Instrument panel
................................ 0-6
Engine compartment check locations ............. 0-8
Warning and indicator lights ..................... 0-9

1. Folding 3rd row bench (P. 1-2)
2. Folding 2nd row bench (P. 1-2)
3. Roof-mounted curtain side-impactand rollover supplemental air bag
(P. 1-50)
4. Head restraints/headrests (P.1-12)
5. Front seat belt with pretensioner(s)
and shoulder height adjuster (P. 1-17,
1-50)
6. Supplemental air bags (P.1-50)
7. Occupant classification sensor
(weight sensor) (P.1-50)
8. Front seats (P. 1-2)
9. Front seat-mounted side-impact
supplemental air bag (P. 1-50)
10. LATCH (Lower Anchors and Tethers
for CHildren) (P. 1-28)
11. 2nd row seat top tether strap anchor
(located on bottom of seatback)
(P. 1-28)
12. 3rd row bench seat top tether strap
anchor (located on bottom of seat-
back) (P. 1-28)
Refer to the page number indicated in paren-
theses for operating details.
LII2420
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1. Engine hood (P. 3-23)
2. Wiper and washer switch (P. 2-35)Wiper blades (P. 8-17)
3. Windshield (P. 8-17)
4. Power windows (P. 2-64)
5. Door locks (P. 3-4) INFINITI Intelligent Key (P. 3-7)
Remote engine start (if so equipped)
(P. 3-20)
Keys (P. 3-2)
6. Mirrors (P. 3-36) Side camera (if so equipped)
(P. 4-11)
7. Tire pressure (P. 8-28) Flat tire (P. 6-3)
Tire chains (P. 8-28)
8. Replacing bulbs (P. 8-24) Headlight and turn signal switch
(P. 2-40)
Daytime running lights system
(P. 2-40)
9. Fog light switch (P. 2-40)
10. Sonar sensors (P. 5-140)
11. Front camera (if so equipped)
(P. 4-11)
See the page number indicated in parenthe-
ses for operating details.
LII2497
EXTERIOR FRONT
Illustrated table of contents0-3

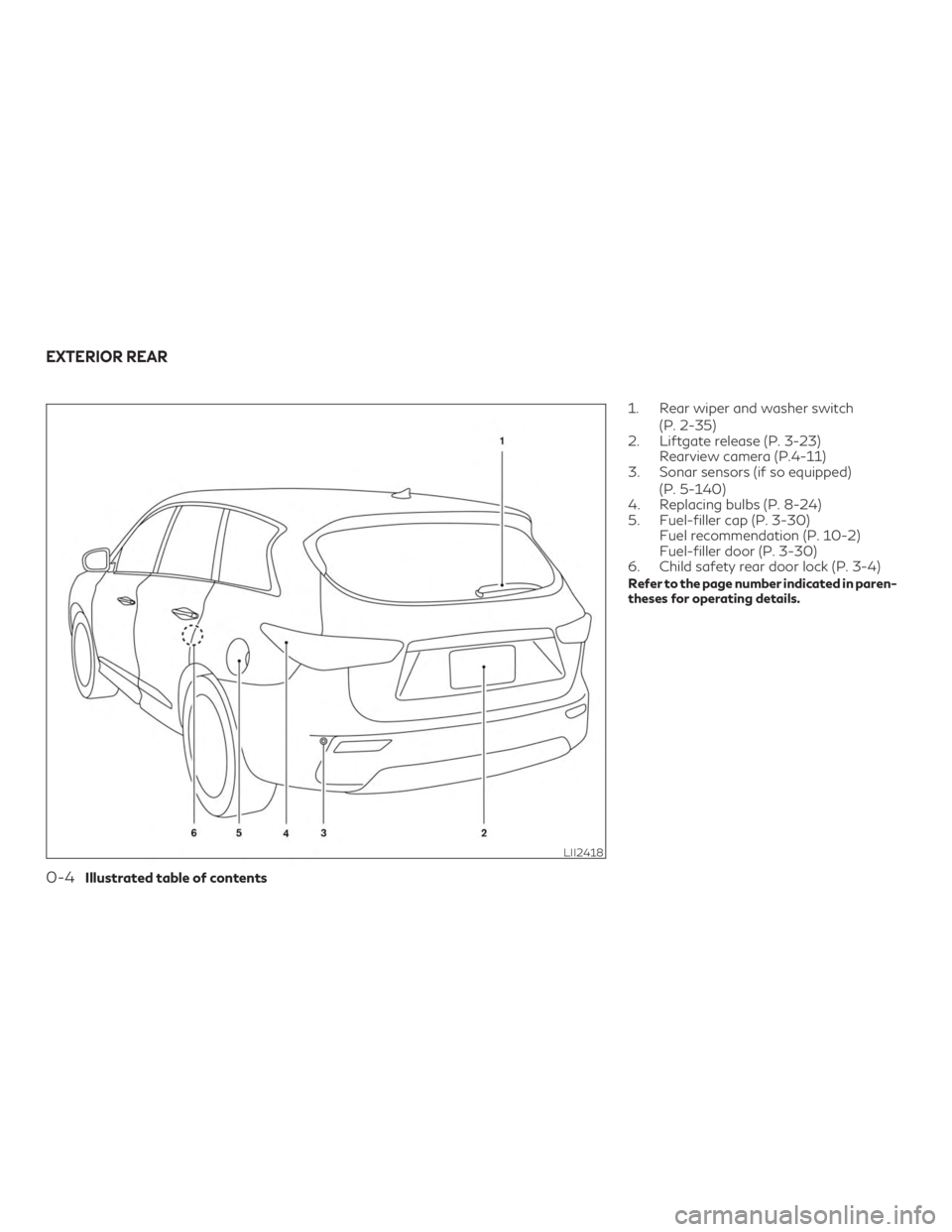

1. Rear wiper and washer switch(P. 2-35)
2. Liftgate release (P. 3-23) Rearview camera (P.4-11)
3. Sonar sensors (if so equipped)
(P. 5-140)
4. Replacing bulbs (P. 8-24)
5. Fuel-filler cap (P. 3-30) Fuel recommendation (P. 10-2)
Fuel-filler door (P. 3-30)
6. Child safety rear door lock (P. 3-4)
Refer to the page number indicated in paren-
theses for operating details.
LII2418
EXTERIOR REAR
0-4Illustrated table of contents

1. Power moonroof (P. 2-67, 2-68)Panoramic sunshade (if so equipped)
(P. 2-68)
2. Console box (P. 2-57)
3. Map lights (P. 2-72)
4. Sun visors (P. 3-34)
5. Glove box (P. 2-57)
6. Cup holders (P. 2-57)
7. Luggage hooks (P. 2-57)
Refer to the page number indicated in paren-
theses for operating details.
LII2419
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Vent (P. 4-33)
2. Headlight/fog light/turn signalswitch (P. 2-45)
3. Instrument brightness control
(P. 2-40)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-50) Horn (P. 2-46)
6. Backup Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-59)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
9. Rear window and outside mirror
defroster switch (P. 2-39)
10. Center display* Navigation system* (if so equipped)
11. Automatic heater and air condition-
ing controls (P. 4-34)
12. Front passenger supplemental air
bag (P. 1-57)
13. Glove box (P. 2-59)
14. Center multi-function control
buttons*
15. Power outlet (P. 2-54)
LII2544
INSTRUMENT PANEL
0-6Illustrated table of contents

16. Shift lever (P. 5-19)
17. Audio system controls*Front passenger air bag status light
(P. 1-50)
18. Hazard warning flasher switch
(P. 6-2)
19. Push-button ignition switch
(P. 5-13)
20. Cruise control main/set switches
(if so equipped) (P. 5-76)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-78)
21. Dynamic Driver Assistance switch
(if so equipped) (P. 5-98)
22. Tilt and telescopic steering wheel
control (P. 3-33)
23. Bluetooth® Hands-Free Phone
System*
24. Steering wheel switch for audio
control* 25. Hood release (P. 3-23)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-51)
Heated steering wheel switch
(if so equipped) (P. 2-49)
Warning Systems switch
(if so equipped) (P. 2-50)
Power inverter switch (if so
equipped) (P. 2-53)
Liftgate release switch (P. 3-23)
Power liftgate main switch
(if so equipped) (P. 3-23)
26. Control panel and vehicle informa-
tion display switches (P. 2-17)
*: Refer to the separate Infiniti InTouchTM
Owner’s Manual (if so equipped).
Refer to the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

VQ35DD engine
1. Power steering fluid reservoir(P. 8-9)
2. Engine coolant reservoir (P. 8-4)
3. Drive belt location (P. 8-15)
4. Fuse box (P. 8-20)
5. Engine oil filler cap (P. 8-6)
6. Brake fluid reservoir (P. 8-10)
7. Air cleaner (P. 8-16)
8. Fuse box (P. 8-20)
9. Fuse/Fusible link box (P. 8-20)
10. Battery (P. 8-12)
11. Engine oil dipstick (P. 8-6)
12. Radiator cap (P. 8-4)
13. Windshield-washer fluid reservoir
(P. 8-11)
Refer to the page number indicated in paren-
theses for operating details.
LDI3131
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warninglight Name Page
or
Anti-lock Braking
System (ABS)
warning light 2-9
or
Brake warning
light
2-9
Charge warning
light2-10
Forward Emer-
gency Braking
(FEB) with Pedes-
trian Detection
system warning
light (if so
equipped)2-10
Low tire pressure
warning light
2-10
Warning
light Name Page
Master warning
light 2-12
Power steering
warning light2-12
Seat belt warning
light and chime2-12
Supplemental air
bag warning light2-13
Indicator
light Name Page
Continuously Vari-
able Transmission
(CVT) position in-
dicator light 2-13
Front fog light in-
dicator light
(green)
2-13
Indicator
light Name Page
Front passenger
air bag status light 2-13
High beam assist
indicator light
(green) (if so
equipped)2-13
High beam indica-
tor light (blue)
2-13
Malfunction Indi-
cator Light (MIL)2-14
Security indicator
light2-14
Side light and
headlight indicator
light (green)2-14
Slip indicator light 2-15
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9
