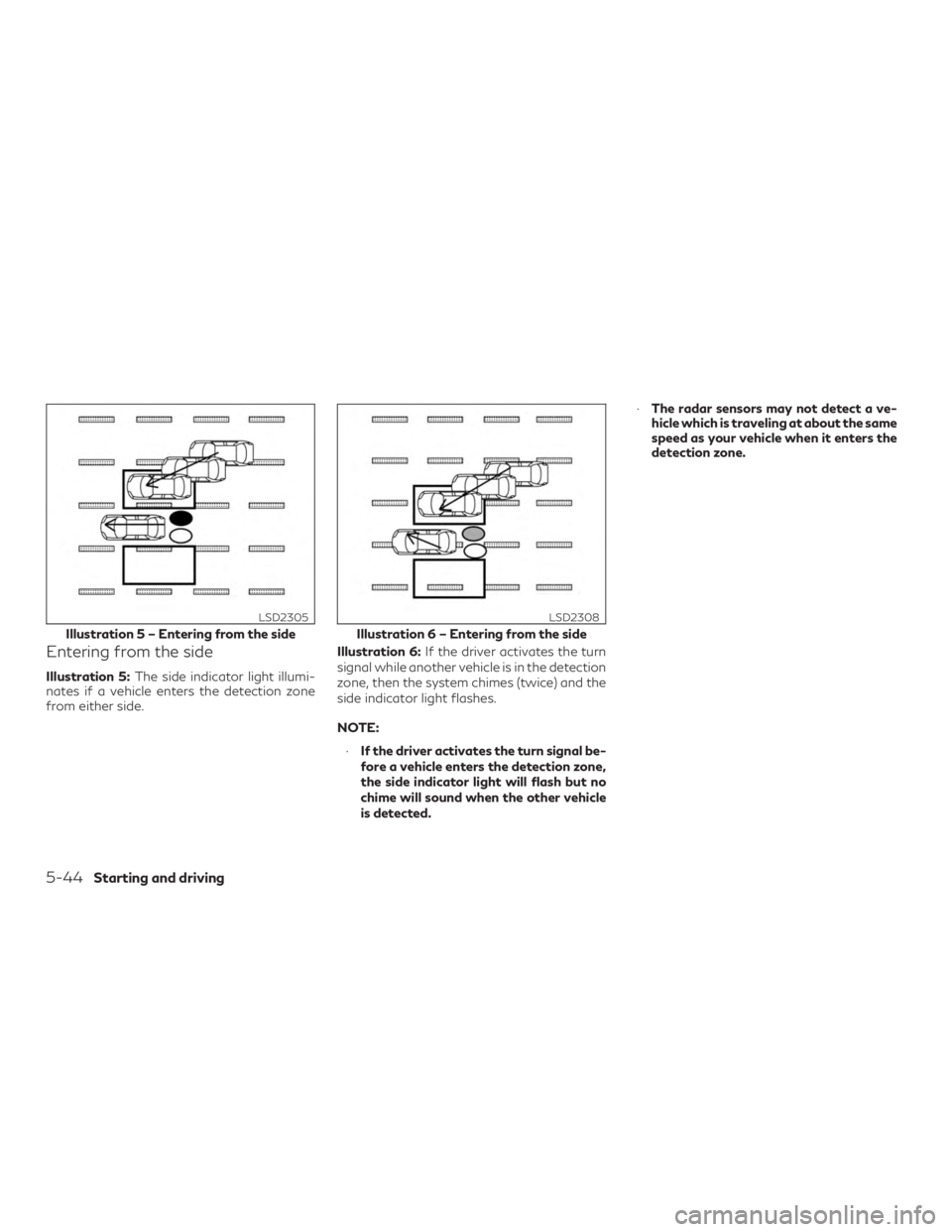

Entering from the side
Illustration 5:The side indicator light illumi-
nates if a vehicle enters the detection zone
from either side. Illustration 6:
If the driver activates the turn
signal while another vehicle is in the detection
zone, then the system chimes (twice) and the
side indicator light flashes.
NOTE:
∙ If the driver activates the turn signal be-
fore a vehicle enters the detection zone,
the side indicator light will flash but no
chime will sound when the other vehicle
is detected. ∙
The radar sensors may not detect a ve-
hicle which is traveling at about the same
speed as your vehicle when it enters the
detection zone.
Illustration 5 – Entering from the side
LSD2305
Illustration 6 – Entering from the side
LSD2308
5-44Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the system
will be deactivated automatically. The “Un-
available: Side Radar Obstruction” warning
message will appear and the BSW/RCTA in-
dicator (white) will blink
Ain the vehicle in-
formation display.
The system is not available until the condi-
tions no longer exist.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
When the above conditions no longer exist,
the system will resume automatically.
LSD2634
Starting and driving5-45

Malfunction
If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message with the BSW/RCTA indi-
cator (orange) will appear in the vehicle infor-
mation display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
This device complies with part 15 of the FCC
Rules. (FCC Number UR8100261)
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
NOTE:
The manufacturer is not responsible for any
radio or TV interference caused by unau-
thorized modifications to this equipment.
Such modifications could void the user’s au-
thority to operate the equipment.
LSD2221
5-46Starting and driving

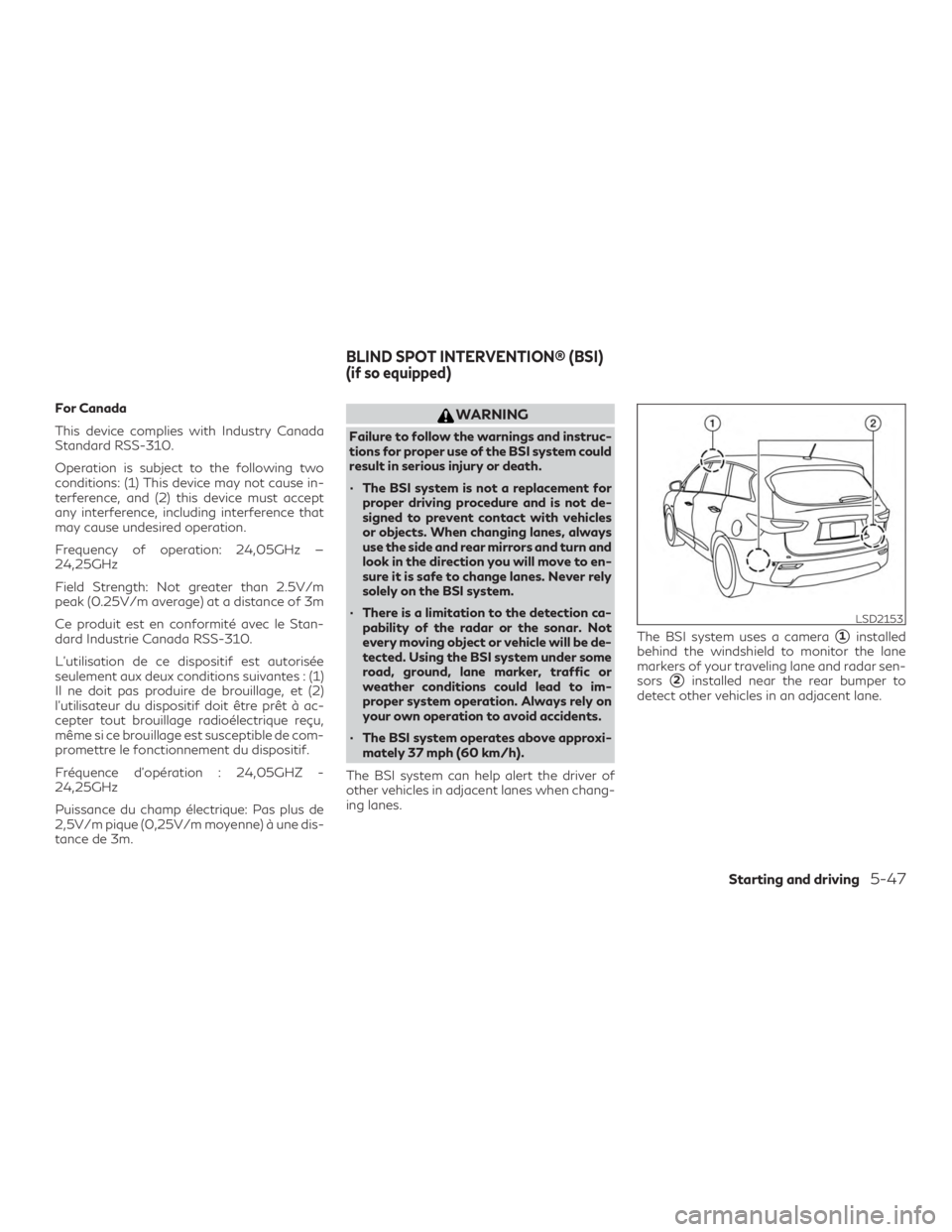

For Canada
This device complies with Industry Canada
Standard RSS-310.
Operation is subject to the following two
conditions: (1) This device may not cause in-
terference, and (2) this device must accept
any interference, including interference that
may cause undesired operation.
Frequency of operation: 24,05GHz —
24,25GHz
Field Strength: Not greater than 2.5V/m
peak (0.25V/m average) at a distance of 3m
Ce produit est en conformité avec le Stan-
dard Industrie Canada RSS-310.
L’utilisation de ce dispositif est autorisée
seulement aux deux conditions suivantes : (1)
Il ne doit pas produire de brouillage, et (2)
l’utilisateur du dispositif doit être prêt à ac-
cepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de com-
promettre le fonctionnement du dispositif.
Fréquence d’opération : 24,05GHZ -
24,25GHz
Puissance du champ électrique: Pas plus de
2,5V/m pique (0,25V/m moyenne) à une dis-
tance de 3m.WARNING
Failure to follow the warnings and instruc-
tions for proper use of the BSI system could
result in serious injury or death.
∙ The BSI system is not a replacement forproper driving procedure and is not de-
signed to prevent contact with vehicles
or objects. When changing lanes, always
use the side and rear mirrors and turn and
look in the direction you will move to en-
sure it is safe to change lanes. Never rely
solely on the BSI system.
∙ There is a limitation to the detection ca- pability of the radar or the sonar. Not
every moving object or vehicle will be de-
tected. Using the BSI system under some
road, ground, lane marker, traffic or
weather conditions could lead to im-
proper system operation. Always rely on
your own operation to avoid accidents.
∙ The BSI system operates above approxi- mately 37 mph (60 km/h).
The BSI system can help alert the driver of
other vehicles in adjacent lanes when chang-
ing lanes. The BSI system uses a camera
1installed
behind the windshield to monitor the lane
markers of your traveling lane and radar sen-
sors
2installed near the rear bumper to
detect other vehicles in an adjacent lane.
LSD2153
BLIND SPOT INTERVENTION® (BSI)
(if so equipped)
Starting and driving5-47

The BSI system operates above approxi-
mately 37 mph (60 km/h). If the system de-
tects a vehicle in the detection zone and your
vehicle is approaching the lane marker, the
BSI system provides an audible warning
(three times), flashes the BSW indicator light
and slightly applies the brakes for a short
period of time on one side to help return the
vehicle back to the traveling lane. The BSI
system provides an audible warning and
turns on or flashes the BSW indicator light
even if the BSW system is off.
Detection zone
SSD1030
LSD2634
5-48Starting and driving

BSI SYSTEM OPERATION
If the radar sensors detect vehicles in the
detection zone, the BSW indicator light lo-
cated near the outside mirrors illuminates. If
your vehicle is approaching a lane marker, the
system chimes a sound (three times) and the
BSW indicator light flashes. Then the system
applies the brakes on one side of the vehicle
for a moment to help return the vehicle back
to the center of the lane. BSI operates re-
gardless of turn signal usage.
NOTE:
Warning and brake control will only be acti-
vated if the BSW indicator light is already
illuminated when your vehicle approaches a
lane marker. If another vehicle comes into
the detection zone after your vehicle has
crossed a lane marker, no warning or brake
control will be activated. For additional in-
formation, refer to “BSI driving situations”
in this section. The BSI system is typically
activated earlier than the Lane Departure
Prevention (LDP) system when your vehicle
is approaching a lane marker.The BSI system turns on when the dynamic
driver assistance switch on the steering
wheel is pushed when the “Blind Spot Inter-
vention” is enabled in the “Driver Assistance”
menu on the vehicle information display. The
BSI ON indicator light on the instrument
panel illuminates when the BSI system is
turned on.
The BSI system provides a chime and turns on
or flashes the BSW indicator light even if the
BSW system is off.
Starting and driving5-49

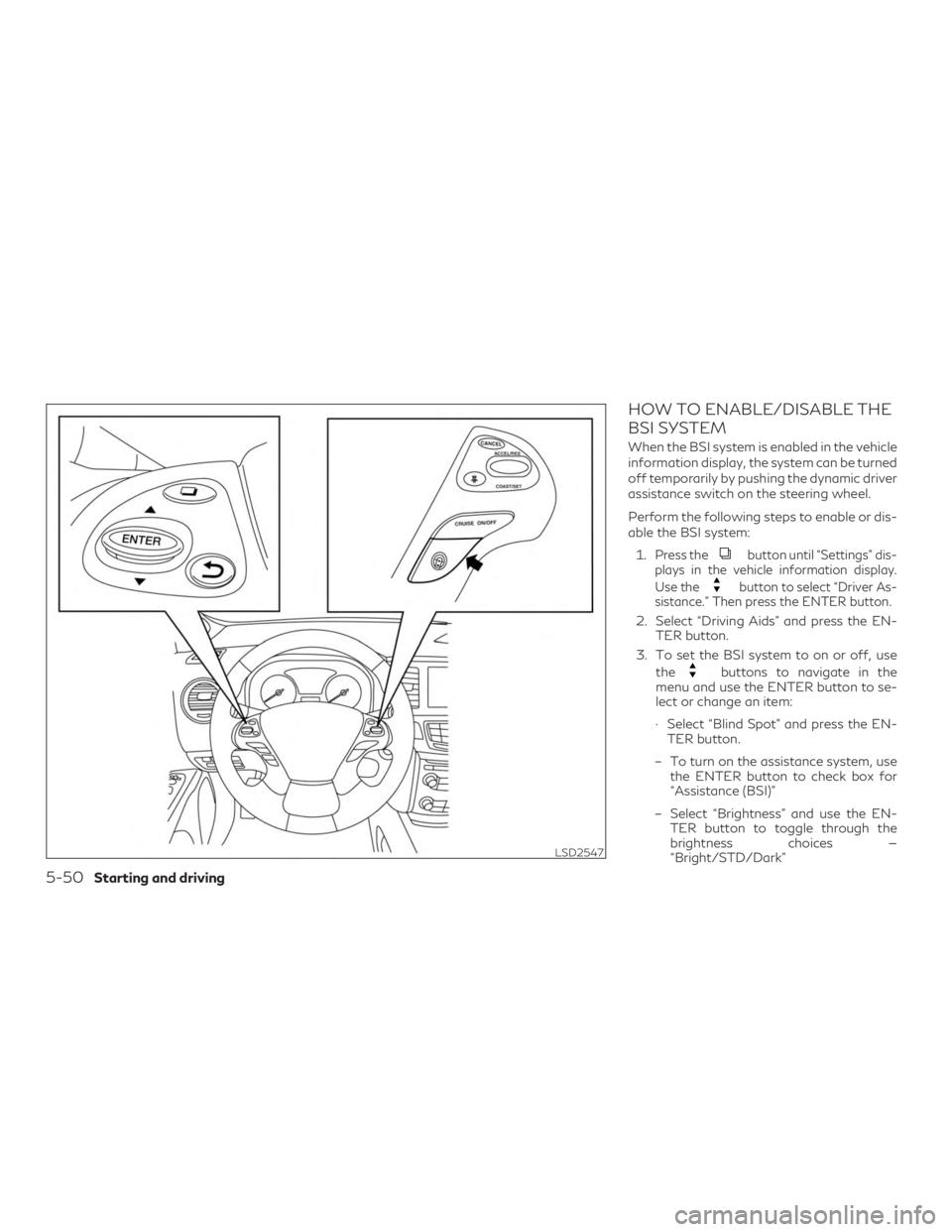

HOW TO ENABLE/DISABLE THE
BSI SYSTEM
When the BSI system is enabled in the vehicle
information display, the system can be turned
off temporarily by pushing the dynamic driver
assistance switch on the steering wheel.
Perform the following steps to enable or dis-
able the BSI system:1.
Press thebutton until “Settings” dis-
plays in the vehicle information display.
Use the
button to select “Driver As-
sistance.” Then press the ENTER button.
2. Select “Driving Aids” and press the EN- TER button.
3. To set the BSI system to on or off, use the
buttons to navigate in the
menu and use the ENTER button to se-
lect or change an item:
∙ Select “Blind Spot” and press the EN- TER button.
– To turn on the assistance system, use the ENTER button to check box for
“Assistance (BSI)”
– Select “Brightness” and use the EN- TER button to toggle through the
brightness choices —
“Bright/STD/Dark”
LSD2547
5-50Starting and driving

BSI SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the BSI system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death.
∙ The radar sensors may not be able to de-tect and activate BSI when certain ob-
jects are present such as:
– Pedestrians, bicycles, or animals.
– Vehicles such as motorcycles, low height vehicles, or high ground clear-
ance vehicles.
– Oncoming vehicles.
– Vehicles remaining in the detection zone when you accelerate from a stop.
For additional information, refer to
“BSI driving situations” in this section.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle. For additional
information, refer to “BSI driving situ-
ations” in this section. – A vehicle approaching rapidly from
behind. For additional information,
refer to “BSI driving situations” in this
section.
– A vehicle which your vehicle overtakes rapidly. For additional information,
refer to “BSI driving situations” in this
section.
– A vehicle that passes through the de- tection zone quickly.
∙ The radar sensors’ detection zone is de- signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an ad-
jacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.
∙ The radar sensors are designed to ignore most stationary objects; however, ob-
jects such as guardrails, walls, foliage and
parked vehicles may occasionally be de-
tected. This is a normal driving condition.
∙ Severe weather or road spray conditions may reduce the ability of the radar to de-
tect other vehicles. ∙ The camera may not detect lane markers
in the following situations and the BSI
system may not operate properly.
– On roads where there are multiple parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-
standard lane markers; lane markers
covered with water, dirt, snow, etc.
– On roads where discontinued lane markers are still detectable.
– On roads where there are sharp curves.
– On roads where there are sharply con- trasting objects, such as shadows,
snow, water, wheel ruts, seams or
lines remaining after road repairs.
– On roads where the traveling lane merges or separates.
– When the vehicle’s traveling direction does not align with the lane markers.
– When traveling close to the vehicle in front of you, which obstructs the lane
camera unit detection range.
Starting and driving5-51

– When rain, snow or dirt adheres to thewindshield in front of a lane camera
unit.
– When the headlights are not bright due to dirt on the lens or if aiming is
not adjusted properly.
– When strong light enters a lane cam- era unit. (For example: light directly
shines on the front of the vehicle at
sunrise or sunset.)
– When a sudden change in brightness occurs. (For example: when the vehicle
enters or exits a tunnel or under a
bridge.)
∙ Do not use the BSI system under the fol- lowing conditions because the system
may not function properly.
– During bad weather (for example: rain, fog, snow, etc.).
– When driving on slippery roads, such as on ice or snow, etc.
– When driving on winding or uneven roads.
– When there is a lane closure due to road repairs.
– When driving in a makeshift lane. – When driving on roads where the lane
width is too narrow.
– When driving with a tire that is not within normal tire conditions (e.g. tire
wear, low tire pressure, installation of
spare tire, tire chains, nonstandard
wheels).
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
∙ Do not use the BSI systems when towing a trailer.
∙ Excessive noise (e.g. audio system vol- ume, open vehicle window) will interfere
with the chime sound, and it may not be
heard.
BSI DRIVING SITUATIONS
Another vehicle approaching from
behind
Illustration 1: The Blind Spot Warning indica-
tor light illuminates if a vehicle enters the
detection zone from behind in an adjacent
lane.
Illustration 1 – Approaching from behind
SSD1026
5-52Starting and driving

However, if the overtaking vehicle is traveling
much faster than your vehicle, the indicator
light may not illuminate before the detected
vehicle is beside your vehicle. Always use the
side and rear mirrors and turn and look in the
direction your vehicle will move to ensure it is
safe to change lanes.Illustration 2: If the driver activates the turn
signal then the system chimes a sound (twice)
and the Blind Spot Warning indicator light
flashes.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the BSW
indicator light will flash but no chime will
sound when the other vehicle is detected.Illustration 3: If the BSI system is on and your
vehicle is approaching a lane marker and a
vehicle is in the detection zone, the system
chimes a sound (three times), and the BSW
indicator light flashes. Then the BSI system
slightly applies the brakes on one side to help
return the vehicle back to the center of the
driving lane.
Illustration 2 – Approaching from behind
SSD1031
Illustration 3 – Approaching from behind
LSD2048
Starting and driving5-53
