NOTE:
Illustration 4: If you accelerate from a stop
with a vehicle in the detection zone, the
other vehicle may not be detected.Overtaking another vehicle
Illustration 5: The BSW indicator light illumi-
nates if you overtake a vehicle and that ve-
hicle stays in the detection zone for approxi-
mately 3 seconds.
The radar sensors may not detect slower
moving vehicles if they are passed quickly.Illustration 6: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the system chimes a sound (twice)
and the BSW indicator light flashes.
Illustration 4 – Accelerate from a stop
SSD1032
Illustration 5 – Overtaking another vehicle
SSD1033
Illustration 6 – Overtaking another vehicle
SSD1034
5-54Starting and driving

Illustration 7: If the BSI system is on and your
vehicle approaches a lane marker while an-
other vehicle is in the detection zone the sys-
tem chimes a sound (three times) and the
BSW indicator light flashes. Then, the BSI
system slightly applies the brakes on the ap-
propriate side to help return the vehicle back
to the center of the driving lane.NOTE:
Illustration 8: When overtaking several ve-
hicles in a row, the vehicles after the first
vehicle may not be detected if they are trav-
eling close together.
Illustration 7 – Overtaking another vehicle
LSD2072
Illustration 8 – Overtaking several vehicles
SSD1036
Starting and driving5-55

Entering from the side
Illustration 9: The BSW indicator light illumi-
nates if a vehicle enters the detection zone
from either side.
NOTE:
The radar sensors may not detect a vehicle
which is traveling at about the same speed as
your vehicle when it enters the detection
zone.Illustration 10: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the BSW indicator light flashes
and a chime will sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the BSW
indicator light will flash but no chime will
sound when another vehicle is detected.
Illustration 11: If the BSI system is on and
your vehicle approaches the lane marker
while another vehicle is in the detection zone,
the BSW indicator light flashes and a chime
will sound three times. Then, the BSI system
slightly applies the brakes on the appropriate
side to help return the vehicle back to the
center of the driving lane.
Illustration 9 – Entering from the side
LSD2050
Illustration 10 – Entering from the side
SSD1038
Illustration 11 – Entering from the side
SSD1094
5-56Starting and driving

NOTE:∙ Illustration 12: The BSI system will not
operate if your vehicle is on a lane marker
when another vehicle enters the detec-
tion zone. In this case, only the BSW sys-
tem operates.
∙ BSI braking will not operate or will stop
operating and only a warning chime will
sound under the following conditions:
– When the brake pedal is depressed.
– When the vehicle is accelerated dur-
ing BSI system operation. –
When steering quickly.
– When the ICC, DCA, PFCW or FEB
with Pedestrian Detection warnings
sound.
– When the hazard warning flashers
are operated.
– When driving on a curve at a high
speed.
SYSTEM TEMPORARILY
UNAVAILABLE
When any of the following messages appear
on the vehicle information display, a chime
will sound and the BSI system will be turned
off automatically.
∙ “Unavailable: Road is slippery”: When the VDC system (except traction
control system function) or ABS oper-
ates.
∙ “Unavailable: VDC OFF”: When the VDC system is turned off.
∙ “Unavailable: Snow mode active”: When the drive mode select switch is
turned to the SNOW mode. ∙ “Unavailable: High Cabin Temp.”:
When the camera detects that the inte-
rior temperature is high (over approxi-
mately 104°F [40°C]).
∙ “Unavailable: Side Radar Obstruction”: When side radar blockage is detected.
Turn off the BSI system and turn it on again
when the above conditions no longer exist.
SYSTEM MALFUNCTION
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound
and the BSI system warning light (orange) will
illuminate.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the warning
light (orange) continues to illuminate, have
the system checked. It is recommended that
you visit an INFINITI retailer for this service.
Illustration 12 – Entering from the side
LSD2051
Starting and driving5-57

SYSTEM MAINTENANCE
The lane camera unit1for the BSI system is
located above the inside mirror. The two ra-
dar sensors
2for the BSI system are located
near the rear bumper. To keep the proper
operation of the BSI system and prevent a
system malfunction, be sure to observe the
following:
∙ Always keep the windshield and the area near the radar sensors clean. ∙ The radar sensors may be blocked by
temporary ambient conditions such as
splashing water, mist or fog. The blocked
condition may also be caused by objects
such as ice, frost or dirt obstructing the
radar sensors. Check for and remove ob-
jects obstructing the area around the ra-
dar sensors.
∙ Do not attach stickers (including trans- parent material), install accessories or
apply additional paint near the camera
unit or radar sensors.
∙ Do not place reflective materials, such as white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability
of detecting the lane markers.
∙ Do not strike or damage the area around the radar sensors. Do not touch the cam-
era lens or remove the screw located on
the camera unit. It is recommended that
you visit an INFINITI retailer if the camera
unit and/or area around the radar sen-
sors is damaged due to a collision.
Radio frequency statement
For USA
This device complies with part 15 of the FCC
Rules. (FCC Number UR8100261) Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
NOTE:
The manufacturer is not responsible for any
radio or TV interference caused by unau-
thorized modifications to this equipment.
Such modifications could void the user’s au-
thority to operate the equipment.
For Canada
This device complies with Industry Canada
Standard RSS-310.
Operation is subject to the following two
conditions: (1) This device may not cause in-
terference, and (2) this device must accept
any interference, including interference that
may cause undesired operation.
Frequency of operation: 24,05GHz —
24,25GHz
Field Strength: Not greater than 2.5V/m
peak (0.25V/m average) at a distance of 3m
Ce produit est en conformité avec le Stan-
dard Industrie Canada RSS-310.
LSD2153
5-58Starting and driving

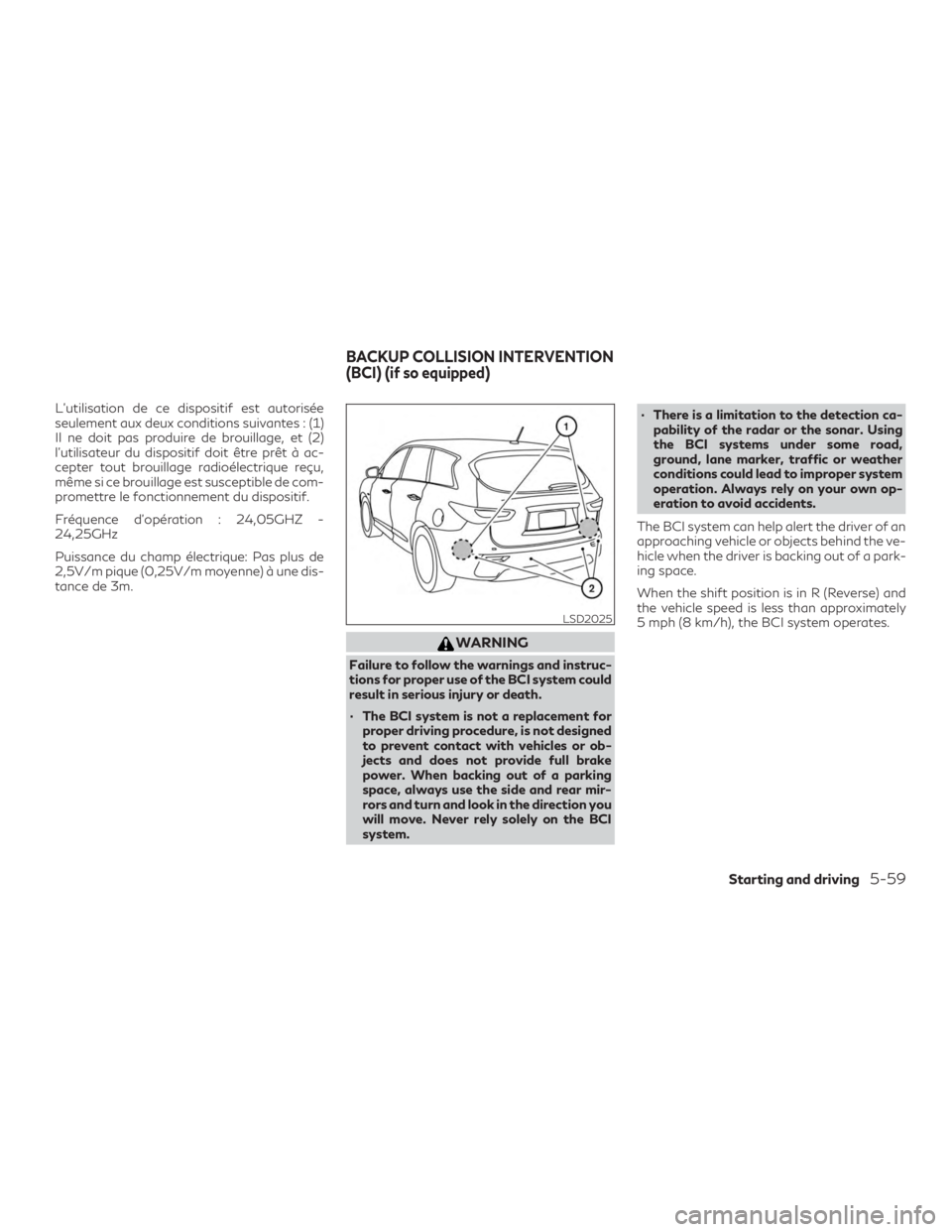

L’utilisation de ce dispositif est autorisée
seulement aux deux conditions suivantes : (1)
Il ne doit pas produire de brouillage, et (2)
l’utilisateur du dispositif doit être prêt à ac-
cepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de com-
promettre le fonctionnement du dispositif.
Fréquence d’opération : 24,05GHZ -
24,25GHz
Puissance du champ électrique: Pas plus de
2,5V/m pique (0,25V/m moyenne) à une dis-
tance de 3m.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the BCI system could
result in serious injury or death.
∙ The BCI system is not a replacement forproper driving procedure, is not designed
to prevent contact with vehicles or ob-
jects and does not provide full brake
power. When backing out of a parking
space, always use the side and rear mir-
rors and turn and look in the direction you
will move. Never rely solely on the BCI
system. ∙ There is a limitation to the detection ca-
pability of the radar or the sonar. Using
the BCI systems under some road,
ground, lane marker, traffic or weather
conditions could lead to improper system
operation. Always rely on your own op-
eration to avoid accidents.
The BCI system can help alert the driver of an
approaching vehicle or objects behind the ve-
hicle when the driver is backing out of a park-
ing space.
When the shift position is in R (Reverse) and
the vehicle speed is less than approximately
5 mph (8 km/h), the BCI system operates.
LSD2025
BACKUP COLLISION INTERVENTION
(BCI) (if so equipped)
Starting and driving5-59

The BCI system uses radar sensors1in-
stalled on both sides near the rear bumper to
detect an approaching vehicle and sonar sen-
sors to detect objects in the rear.
The radar sensors
1detect an approaching
vehicle from up to approximately 49 ft (15 m)
away. The sonar sensors
2detect stationary
objects behind the vehicle up to approxi-
mately 4.9 ft (1.5 m)
3. If the radar detects a vehicle approaching
from the side or the sonar detects close sta-
tionary objects behind the vehicle, the system
gives visual and audible warnings. If the driver
does not apply the brakes, the system auto-
matically applies the brake for a moment
when the vehicle is moving backwards. After
the automatic brake application, the driver
must depress the brake pedal to maintain
brake pressure. If the driver’s foot is on the
accelerator pedal, the system pushes the ac-
celerator upward before applying the brake.
If you continue to press the accelerator, the
system will not engage the brake.
LSD2026LSD2042
5-60Starting and driving

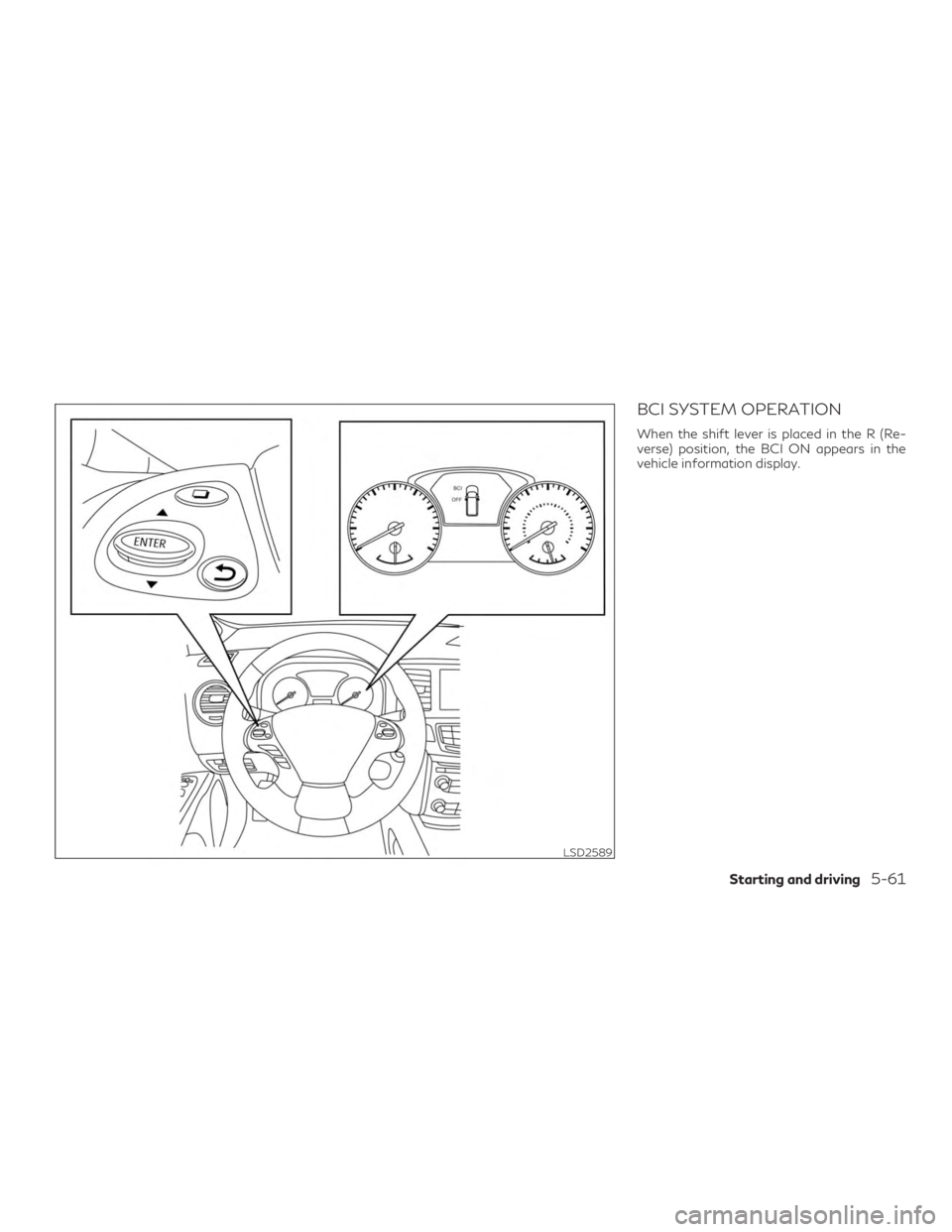

BCI SYSTEM OPERATION
When the shift lever is placed in the R (Re-
verse) position, the BCI ON appears in the
vehicle information display.
LSD2589
Starting and driving5-61

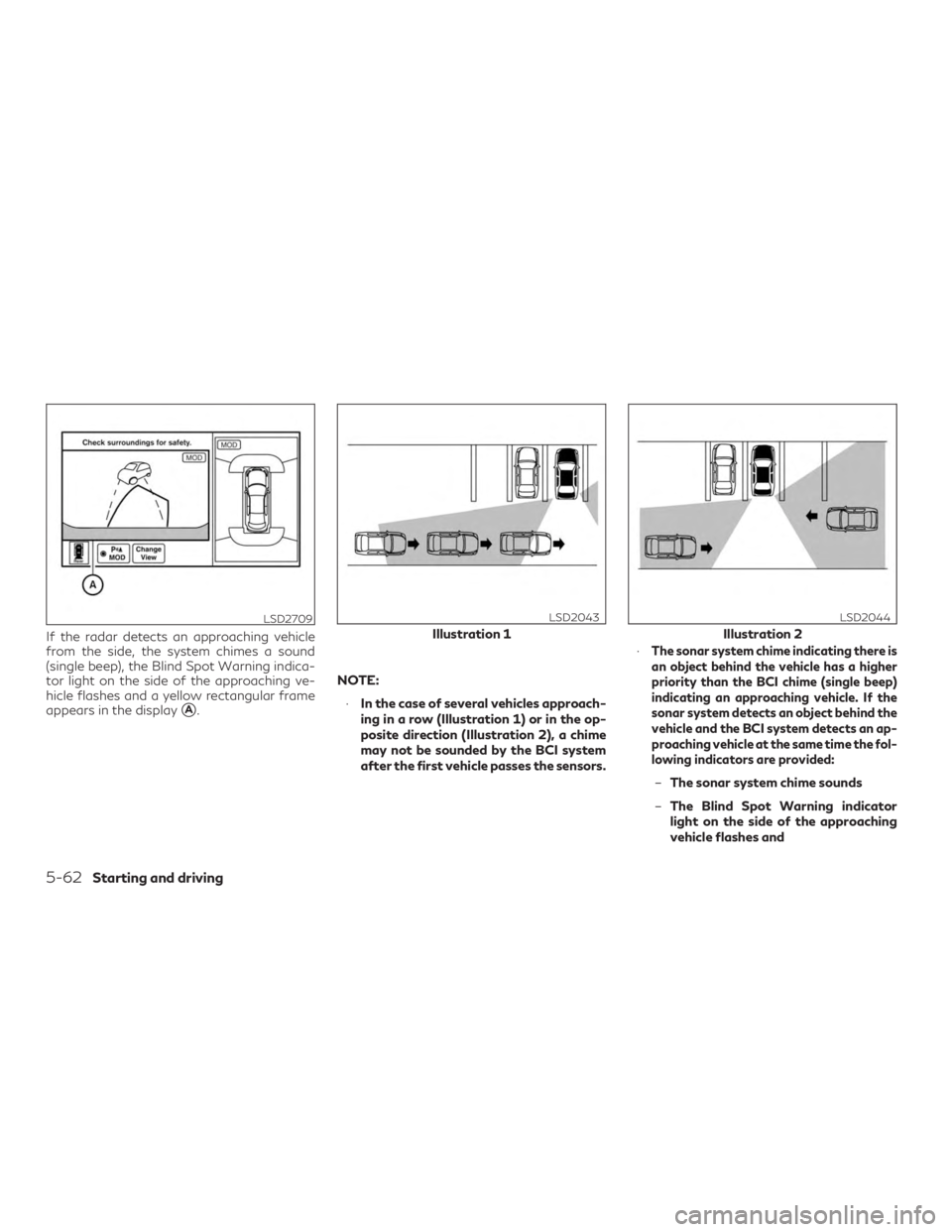

If the radar detects an approaching vehicle
from the side, the system chimes a sound
(single beep), the Blind Spot Warning indica-
tor light on the side of the approaching ve-
hicle flashes and a yellow rectangular frame
appears in the display
A.NOTE:
∙ In the case of several vehicles approach-
ing in a row (Illustration 1) or in the op-
posite direction (Illustration 2), a chime
may not be sounded by the BCI system
after the first vehicle passes the sensors. ∙
The sonar system chime indicating there is
an object behind the vehicle has a higher
priority than the BCI chime (single beep)
indicating an approaching vehicle. If the
sonar system detects an object behind the
vehicle and the BCI system detects an ap-
proaching vehicle at the same time the fol-
lowing indicators are provided:
–
The sonar system chime sounds
– The Blind Spot Warning indicator
light on the side of the approaching
vehicle flashes and
LSD2709
Illustration 1
LSD2043
Illustration 2
LSD2044
5-62Starting and driving

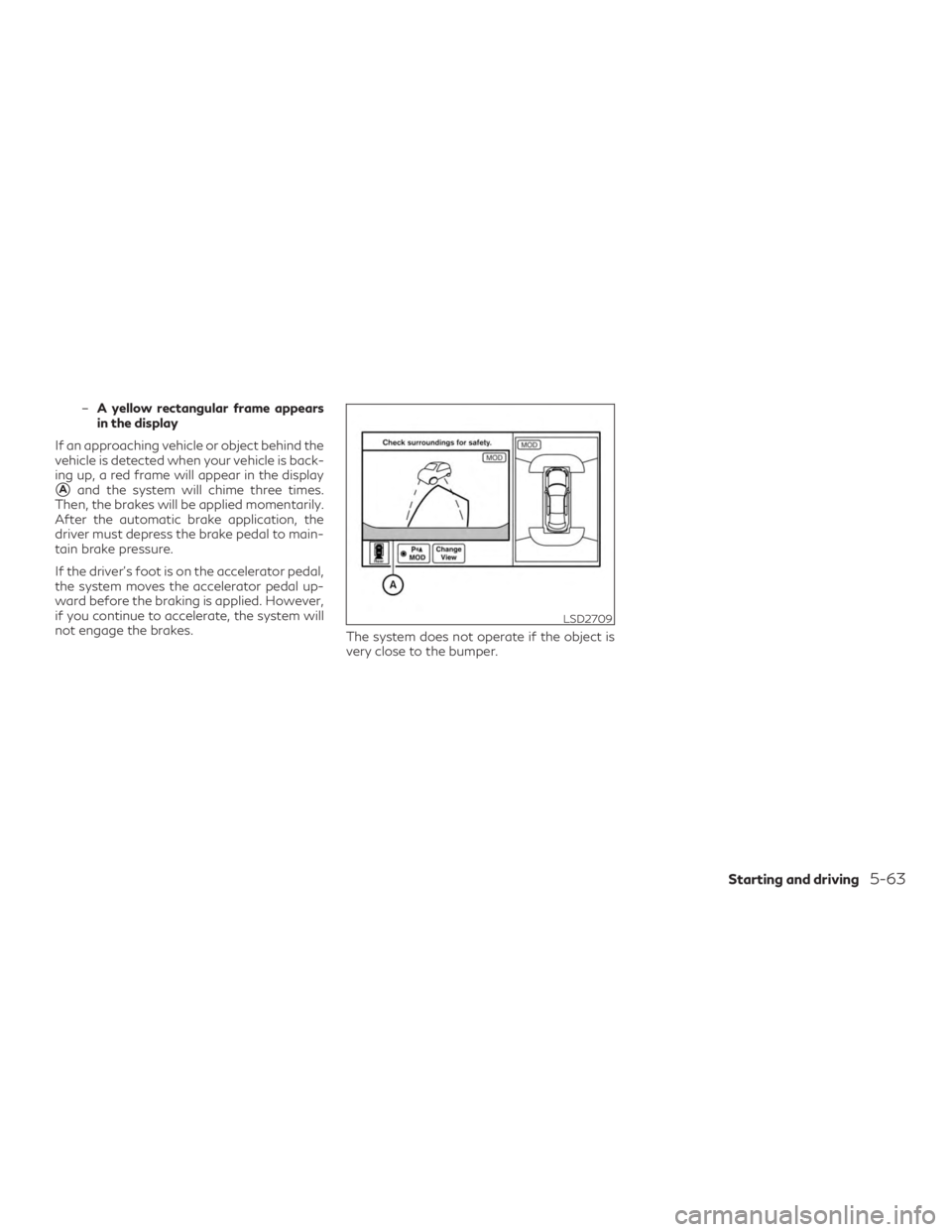

–A yellow rectangular frame appears
in the display
If an approaching vehicle or object behind the
vehicle is detected when your vehicle is back-
ing up, a red frame will appear in the display
Aand the system will chime three times.
Then, the brakes will be applied momentarily.
After the automatic brake application, the
driver must depress the brake pedal to main-
tain brake pressure.
If the driver’s foot is on the accelerator pedal,
the system moves the accelerator pedal up-
ward before the braking is applied. However,
if you continue to accelerate, the system will
not engage the brakes. The system does not operate if the object is
very close to the bumper.
LSD2709
Starting and driving5-63
