Illustration C
LSD2266
5-124Starting and driving

Illustration D
LSD2313
Starting and driving5-125

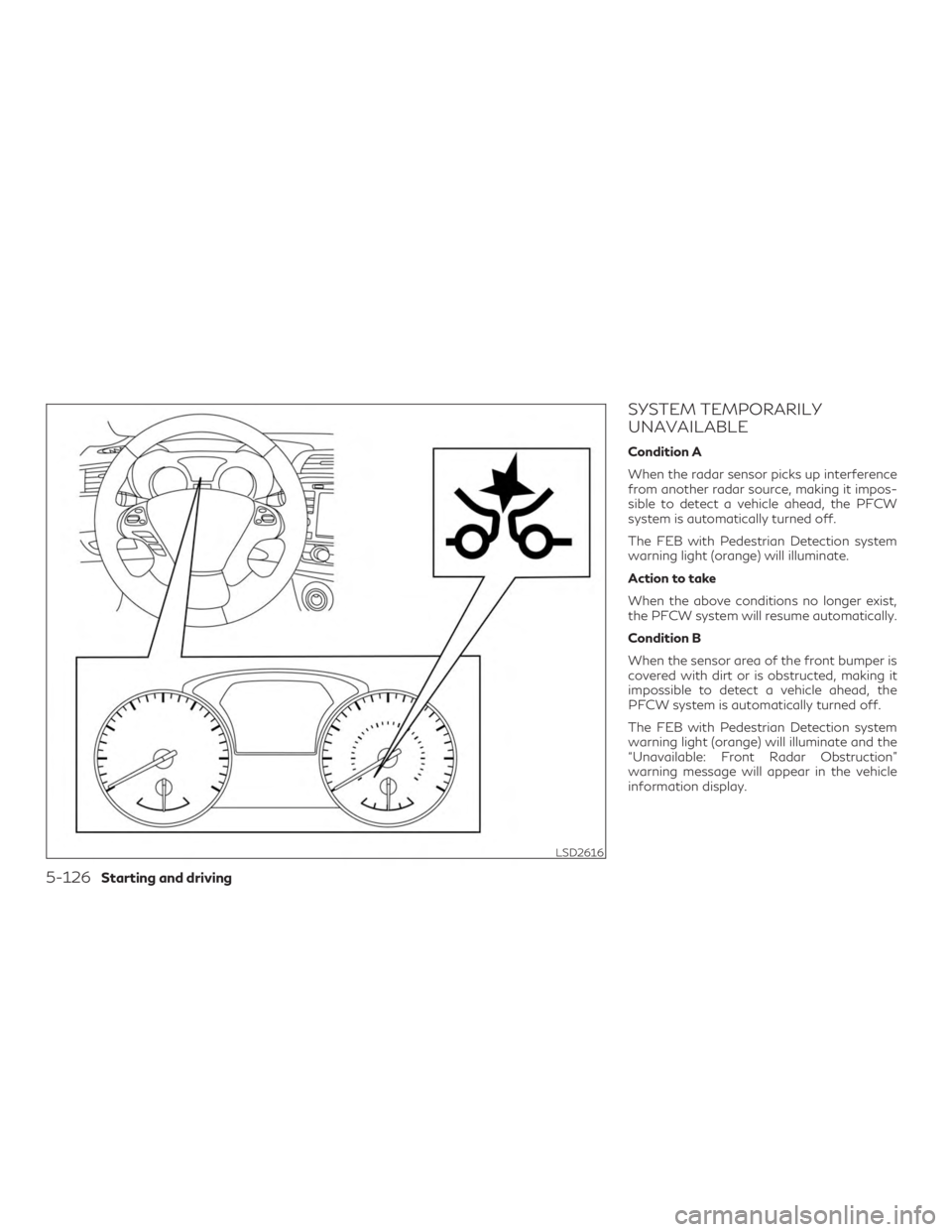

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A
When the radar sensor picks up interference
from another radar source, making it impos-
sible to detect a vehicle ahead, the PFCW
system is automatically turned off.
The FEB with Pedestrian Detection system
warning light (orange) will illuminate.
Action to take
When the above conditions no longer exist,
the PFCW system will resume automatically.
Condition B
When the sensor area of the front bumper is
covered with dirt or is obstructed, making it
impossible to detect a vehicle ahead, the
PFCW system is automatically turned off.
The FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
“Unavailable: Front Radar Obstruction”
warning message will appear in the vehicle
information display.
LSD2616
5-126Starting and driving

Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar cover on the lower grille
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the PFCW system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the PFCW system malfunctions, it will be
turned off automatically, a chime will sound,
the FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
warning message [Malfunction] will appear
in the vehicle information display.Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the PFCW sys-
tem checked. It is recommended that you visit
an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The sensorAis located behind the lower
grille of the front bumper.
To keep the system operating properly, be
sure to observe the following:
∙ Always keep the sensor area of the front bumper clean.
∙ Do not strike or damage the areas around the sensor.
∙ Do not cover or attach stickers or similar objects on the front bumper near the sen-
sor area. This could cause failure or mal-
function.
LSD2702
Starting and driving5-127

∙ Do not attach metallic objects near thesensor area (brush guard, etc.). This could
cause failure or malfunction.
∙ Do not alter, remove or paint the front bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.
For USA
FCC ID: OAYARS3–B
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment. For Canada
IC: 4135A-ARS3B
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1)
This device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Droit applicable : Canada 310
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1)
L’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en comprom-
ettre le fonctionnement.CAUTION
During the first 1,200 miles (2,000 km),
follow these recommendations to obtain
maximum engine performance and ensure
the future reliability and economy of your
new vehicle. Failure to follow these recom-
mendations may result in shortened engine
life and reduced engine performance.
∙ Avoid driving for long periods at constant speed, either fast or slow, and do not run
the engine over 4,000 RPM.
∙ Do not accelerate at full throttle in any gear.
∙ Avoid quick starts.
∙ Avoid hard braking as much as possible.
∙ Do not tow a trailer for the first 500 miles (805 kilometers). Your engine,
axle or other parts could be damaged.
BREAK-IN SCHEDULE
5-128Starting and driving

Follow these easy-to-use Fuel Efficient Driv-
ing Tips to help you achieve the most fuel
economy from your vehicle.1. Use Smooth Accelerator and Brake
Pedal Application
∙ Avoid rapid starts and stops.
∙ Use smooth, gentle accelerator and brake application whenever possible.
∙ Maintain constant speed while com- muting and coast whenever possible.
2. Maintain Constant Speed
∙ Look ahead to try and anticipate and minimize stops.
∙ Synchronizing your speed with traffic lights allows you to reduce your num-
ber of stops.
∙ Maintaining a steady speed can mini- mize red light stops and improve fuel
efficiency.
3. Use Air Conditioning (A/C) at Higher
Vehicle Speeds
∙ Below 40 mph (64 km/h), it is more efficient to open windows to cool the
vehicle due to reduced engine load. ∙ Above 40 mph (64 km/h), it is more
efficient to use A/C to cool the vehicle
due to increased aerodynamic drag.
∙ Recirculating the cool air in the cabin when the A/C is on reduces cooling
load.
4. Drive at Economical Speeds and Dis-
tances
∙ Observing the speed limit and not ex- ceeding 60 mph (97 km/h) (where le-
gally allowed) can improve fuel effi-
ciency due to reduced aerodynamic
drag.
∙ Maintaining a safe following distance behind other vehicles reduces unnec-
essary braking.
∙ Safely monitoring traffic to anticipate changes in speed permits reduced
braking and smooth acceleration
changes.
∙ Select a gear range suitable to road conditions.
5. Use Cruise Control
∙ Using cruise control during highway driving helps maintain a steady speed. ∙ Cruise control is particularly effective
in providing fuel savings when driving
on flat terrains.
6. Plan for the Shortest Route
∙ Utilize a map or navigation system to determine the best route to save time.
7. Avoid Idling
∙ Shutting off your engine when safe for stops exceeding 30–60 seconds saves
fuel and reduces emissions.
8. Buy an Automated Pass for Toll Roads
∙ Automated passes permit drivers to use special lanes to maintain cruising
speed through the toll and avoid stop-
ping and starting.
9. Winter Warm Up
∙ Limit idling time to minimize impact to fuel economy.
∙ Vehicles typically need no more than 30 seconds of idling at start-up to ef-
fectively circulate the engine oil before
driving.
∙ Your vehicle will reach its ideal operat- ing temperature more quickly while
driving versus idling.
FUEL EFFICIENT DRIVING TIPS
Starting and driving5-129

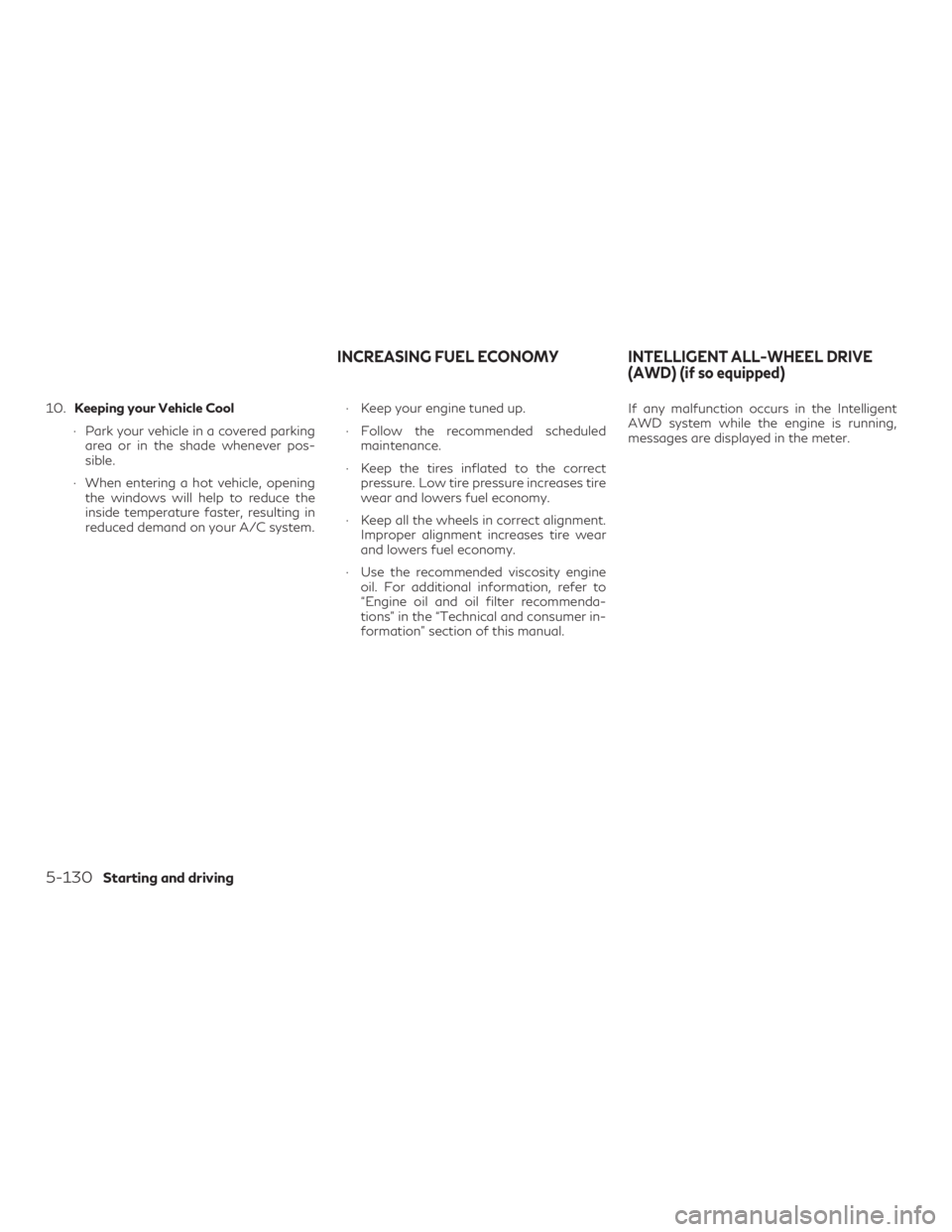

10.Keeping your Vehicle Cool
∙ Park your vehicle in a covered parking area or in the shade whenever pos-
sible.
∙ When entering a hot vehicle, opening the windows will help to reduce the
inside temperature faster, resulting in
reduced demand on your A/C system. ∙ Keep your engine tuned up.
∙ Follow the recommended scheduled
maintenance.
∙ Keep the tires inflated to the correct pressure. Low tire pressure increases tire
wear and lowers fuel economy.
∙ Keep all the wheels in correct alignment. Improper alignment increases tire wear
and lowers fuel economy.
∙ Use the recommended viscosity engine oil. For additional information, refer to
“Engine oil and oil filter recommenda-
tions” in the “Technical and consumer in-
formation” section of this manual. If any malfunction occurs in the Intelligent
AWD system while the engine is running,
messages are displayed in the meter.
INCREASING FUEL ECONOMY INTELLIGENT ALL-WHEEL DRIVE
(AWD) (if so equipped)
5-130Starting and driving

If the AWD error warning message is dis-
played, there may be a malfunction in the
Intelligent AWD system. Reduce vehicle
speed and have your vehicle checked as soon
as possible. It is recommended that you visit
an INFINITI retailer for this service.The AWD high temperature message may be
displayed while trying to free a stuck vehicle
due to increased oil temperature. The driving
mode may change to 2-wheel drive. If this
message is displayed, stop the vehicle with
the engine idling, as soon as it is safe to do so.
Then if the message turns off, you can con-
tinue driving.The tire size message may be displayed if
there is a large difference between the diam-
eters of front and rear wheels. Pull off the
road in a safe area, with the engine idling.
Check that all tire sizes are the same, that the
tire pressure is correct and that the tires are
not excessively worn.
If any warning messages continue to be dis-
played, have your vehicle checked as soon as
possible. It is recommended that you visit an
INFINITI retailer for this service.
LSD2082LSD2083LSD2084
Starting and driving5-131

WARNING
∙ Do not drive beyond the performance ca-pability of the tires. Accelerating quickly,
sharp steering maneuvers or sudden
braking may cause loss of control, even
with Intelligent AWD engaged.
∙ For AWD equipped vehicles, do not at- tempt to raise two wheels off the ground
and shift the transmission to any drive or
reverse position with the engine running.
Doing so may result in drivetrain damage
or unexpected vehicle movement which
could result in serious personal injury or
vehicle damage.
∙ Do not attempt to test an AWD equipped vehicle on a 2-wheel dynamometer (such
as the dynamometers used by some
states for emissions testing) or similar
equipment even if the other two wheels
are raised off the ground. Make sure that
you inform the test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer. Us-
ing the wrong test equipment may result
in drivetrain damage or unexpected ve-
hicle movement which could result in se-
rious personal injury or vehicle damage.
CAUTION
∙ Do not operate the engine on a free rollerwhen any of the wheels are raised.
∙ If you use the free roller, rotate four wheels with the same speed without rais-
ing any wheels.
∙ If an AWD warning message is displayed while driving there may be a malfunction
in the AWD system. Reduce the vehicle
speed immediately and have your vehicle
checked as soon as possible. It is recom-
mended that you visit an INFINITI re-
tailer for this service.
∙ The powertrain may be damaged if you continue driving when the AWD tem-
perature or tire size incorrect messages
are displayed
∙ If the AWD high temperature message is displayed while you are driving, pull off
the road in a safe area, and idle the en-
gine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning message
turns off, you can drive again. ∙ If the tire size incorrect message is dis-
played while you are driving, pull off the
road in a safe area with the engine idling.
Check that all tire sizes are the same, that
the tire pressure is correct and that the
tires are not excessively worn.
∙ If a warning message continues to be dis- played after the above operations, have
your vehicle checked as soon as possible.
It is recommended that you visit an
INFINITI retailer for this service.
5-132Starting and driving

WARNING
∙ Do not stop or park the vehicle over flam-mable materials such as dry grass, waste
paper or rags. They may ignite and cause
a fire.
∙ Safe parking procedures require that both the parking brake be set and the
transmission placed into P (Park). Failure
to do so could cause the vehicle to move
unexpectedly or roll away and result in an
accident. Make sure the shift lever has
been pushed as far forward as it can go
and cannot be moved without depressing
the foot brake pedal. ∙ Never leave the engine running while the
vehicle is unattended.
∙ To help avoid risk of injury or death through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets. 1. Firmly apply the parking brake.
2. Move the shift lever to the P (Park) po-
sition.
3. To help prevent the vehicle from rolling into traffic when parked on an incline, it
is a good practice to turn the wheels as
illustrated.
∙ HEADED DOWNHILL WITH CURB
A:
Turn the wheels into the curb and move
the vehicle forward until the curb side
wheel gently touches the curb.
∙ HEADED UPHILL WITH CURB
B:
Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.
∙ HEADED UPHILL OR DOWNHILL, NO CURB
C:
Turn the wheels toward the side of the
road so the vehicle will move away from
the center of the road if it moves.
4. Place the ignition switch in the LOCK position.
WSD0050
PARKING/PARKING ON HILLS
Starting and driving5-133
