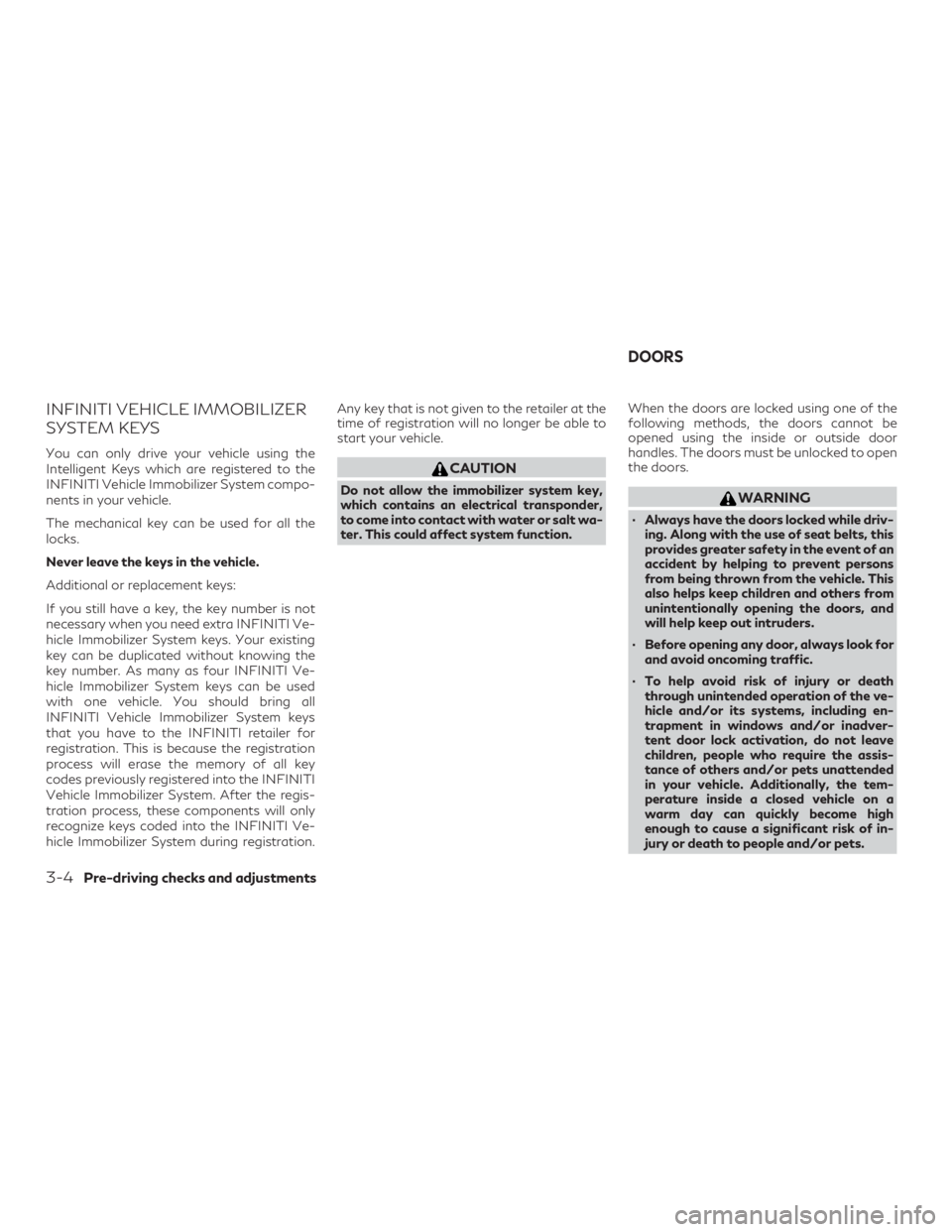

INFINITI VEHICLE IMMOBILIZER
SYSTEM KEYS
You can only drive your vehicle using the
Intelligent Keys which are registered to the
INFINITI Vehicle Immobilizer System compo-
nents in your vehicle.
The mechanical key can be used for all the
locks.
Never leave the keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra INFINITI Ve-
hicle Immobilizer System keys. Your existing
key can be duplicated without knowing the
key number. As many as four INFINITI Ve-
hicle Immobilizer System keys can be used
with one vehicle. You should bring all
INFINITI Vehicle Immobilizer System keys
that you have to the INFINITI retailer for
registration. This is because the registration
process will erase the memory of all key
codes previously registered into the INFINITI
Vehicle Immobilizer System. After the regis-
tration process, these components will only
recognize keys coded into the INFINITI Ve-
hicle Immobilizer System during registration.Any key that is not given to the retailer at the
time of registration will no longer be able to
start your vehicle.CAUTION
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt wa-
ter. This could affect system function.
When the doors are locked using one of the
following methods, the doors cannot be
opened using the inside or outside door
handles. The doors must be unlocked to open
the doors.WARNING
∙ Always have the doors locked while driv-
ing. Along with the use of seat belts, this
provides greater safety in the event of an
accident by helping to prevent persons
from being thrown from the vehicle. This
also helps keep children and others from
unintentionally opening the doors, and
will help keep out intruders.
∙ Before opening any door, always look for and avoid oncoming traffic.
∙ To help avoid risk of injury or death through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows and/or inadver-
tent door lock activation, do not leave
children, people who require the assis-
tance of others and/or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of in-
jury or death to people and/or pets.
DOORS
3-4Pre-driving checks and adjustments

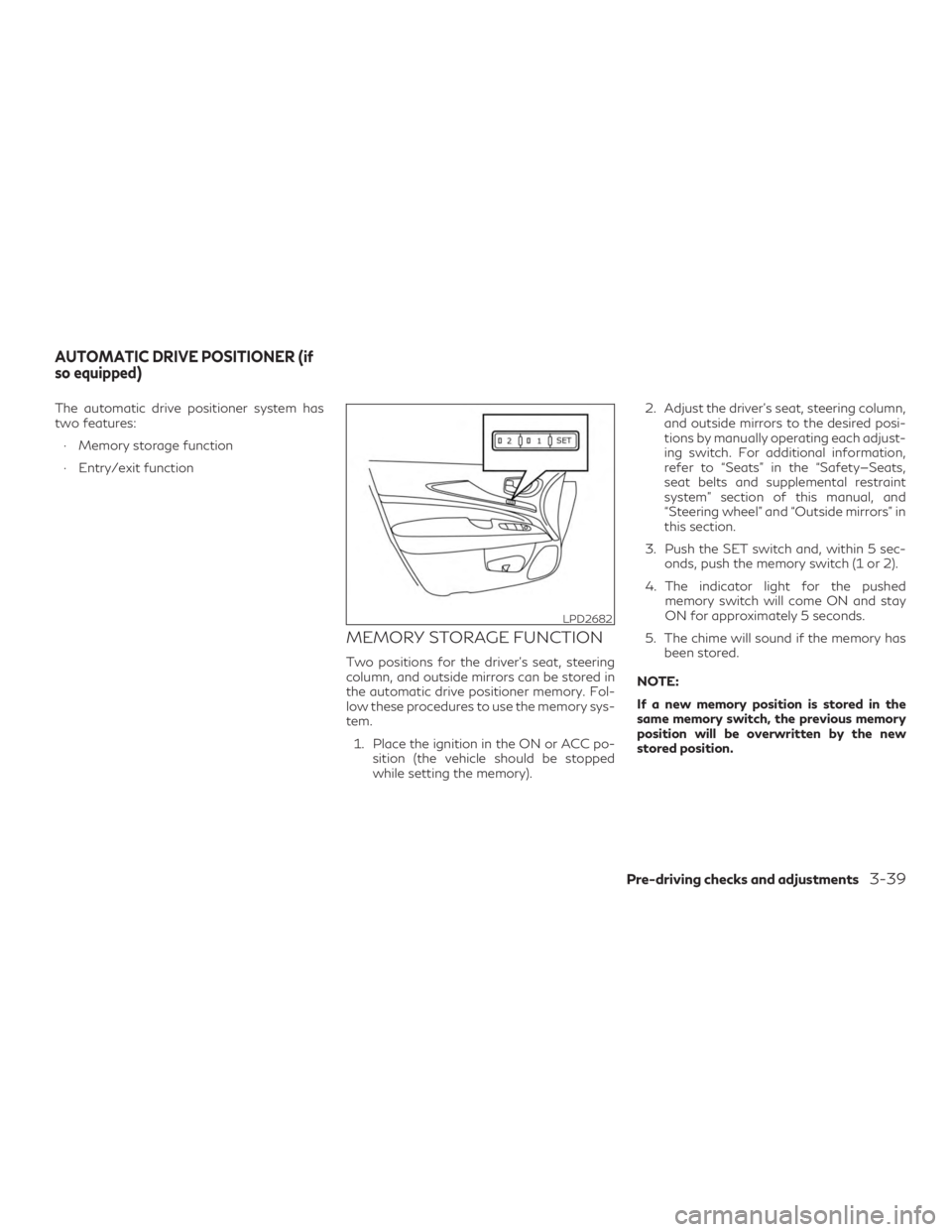

The automatic drive positioner system has
two features:∙ Memory storage function
∙ Entry/exit function
MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering
column, and outside mirrors can be stored in
the automatic drive positioner memory. Fol-
low these procedures to use the memory sys-
tem. 1. Place the ignition in the ON or ACC po- sition (the vehicle should be stopped
while setting the memory). 2. Adjust the driver’s seat, steering column,
and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information,
refer to “Seats” in the “Safety—Seats,
seat belts and supplemental restraint
system” section of this manual, and
“Steering wheel” and “Outside mirrors” in
this section.
3. Push the SET switch and, within 5 sec- onds, push the memory switch (1 or 2).
4. The indicator light for the pushed memory switch will come ON and stay
ON for approximately 5 seconds.
5. The chime will sound if the memory has been stored.
NOTE:
If a new memory position is stored in the
same memory switch, the previous memory
position will be overwritten by the new
stored position.
LPD2682
AUTOMATIC DRIVE POSITIONER (if
so equipped)
Pre-driving checks and adjustments3-39

Confirming memory storage
Push the SET switch.∙ If a memory position has been stored in the switch (1 or 2) then the indicator light
for the respective switch will stay ON for
approximately 5 seconds.
Linking a key fob to a stored
memory position
Each key fob can be linked to a stored
memory position (memory switch 1 or 2) with
the following procedure.
1. Follow steps 1-3 in the “Memory storage function” section for storing the memory
position.
2. The indicator light for the pushed memory switch will come ON. While the
indicator light is ON for 5 seconds, press
the
button on the key fob. The
hazard lights will flash twice. The indica-
tor light of the linked memory switch will
blink and click twice. After the indicator
light goes off, the key fob is linked to that
memory setting. Once it is linked, when the ignition switch is
placed in the OFF position, pressing
the
button on the key fob will move the
driver’s seat, steering wheel and outside mir-
rors to the linked memory switch position.
NOTE:
If a new memory position is stored in the
linked memory switch, then the key fob will
link the new position and overwrites the pre-
vious position.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s
seat and automatic operation steering col-
umn will automatically move when the shift
lever is in the P (Park) position. This allows the
driver to get into and out of the driver’s seat
more easily.
The driver’s seat will slide backward and the
steering column will move up:
∙ When the driver’s door is opened with the ignition switch placed in the OFF posi-
tion.
∙ When the ignition switch is changed from ACC to OFF with the driver’s door open. The driver’s seat and steering wheel will re-
turn to the previous position:
∙ When the ignition switch is changed from ACC or ON while the shift lever is in the P
(Park) position.
The entry/exit function can be adjusted or
canceled through the vehicle settings in the
vehicle information display by performing the
following: ∙ Switch the Exit Seat Slide from ON to OFF.
∙ Switch the Exit Steering UP from ON to OFF.
Restarting the entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the stored memory positions will
be lost and some of the functions will be
restricted:
1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch
in the OFF position.
The entry/exit function should now work
properly.
3-40Pre-driving checks and adjustments

SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.∙ Climate control system
∙ Navigation system (if so equipped)
∙ Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available.
To engage the memorized settings, perform
the following: 1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key. 3. Place the ignition switch in the ON posi-
tion. The settings linked to the Intelligent
Key will start.
For additional information on using the Cli-
mate control system, refer to “Heater and air
conditioner (automatic)” in the “Monitor, cli-
mate, audio, phone and voice recognition
systems” section of this manual.
For additional information, refer to the
INFINITI InTouch™ Owner’s Manual or the
“Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions: ∙ When the vehicle speed is above 0 mph (0 km/h) or 4 mph (7km/h) for some
limited functions such as linking a key fob
to the meter when the power source is
turned on from off or during the exit
function.
∙ When any of the memory switches are pushed while the automatic drive posi-
tioner is operating. ∙ When the adjusting switch for the driver’s
seat and steering column is turned on
while the automatic drive positioner is
operating.
∙ When the seat has already been moved to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shift lever is moved from P (Park) to any other position.
