NOTE:
The wiper with speed feature may be dis-
abled. For additional information, refer to
“Vehicle information display” in this section.
RAIN-SENSING AUTO WIPER
SYSTEM (if so equipped)
CAUTION
∙ Do not touch the rain sensor and aroundit when the wiper switch is in the AUTO
position and the ignition switch is in the
ON position. The wipers may operate un-
expectedly and cause an injury or may
damage a wiper. ∙ The rain-sensing auto wipers are in-
tended for use during rain. If the switch is
left in the AUTO position, the wipers may
operate unexpectedly when dirt, finger-
prints, oil film or insects are stuck on or
around the sensor. The wipers may also
operate when exhaust gas or moisture
affect the rain sensor.
∙ When the windshield glass is coated with water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is small.
∙ Be sure to turn off the rain-sensing auto wiper system when you use a car wash.
∙ The rain-sensing auto wipers may not operate if rain does not hit the rain sensor
even if it is raining.
∙ Using Genuine NISSAN wiper blades is recommended for proper operation of
the rain-sensing auto wiper system. For
additional information, refer to “Wind-
shield wiper blades” in the “Maintenance
and do-it-yourself” section of this
manual.
LIC2901
2-36Instruments and controls

The rain-sensing auto wiper system can au-
tomatically turn on the wipers and adjust the
wiper speed depending on the rainfall and the
vehicle speed by using the rain sensor located
on the upper part of the windshield.
To set the rain-sensing auto wiper system,
place the lever in the AUTO position
1. The
wiper will sweep once while the ignition
switch is in the ON position.
The rain sensor sensitivity level can be ad-
justed by turning the knob toward the front
2(High) or toward the rear3(Low).
– High — High sensitive operation
– Low — Low sensitive operation
To turn the rain-sensing auto wiper system
off, rotate the lever to the OFF position, or
rotate the lever to the LO or HI position.
NOTE:
The Rain Sensor may be disabled. For addi-
tional information, refer to “How to use the
vehicle information display” in this section.
REAR SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the rear window and
obscure your vision which may lead to an
accident. Warm the rear window with the
defogger before you wash the rear window.
CAUTION
∙ Do not operate the washer continuously for more than 30 seconds. ∙ Do not operate the washer if the
windshield-washer fluid reservoir is
empty.
∙ Do not fill the windshield-washer fluid reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-washer
fluid concentrates may permanently
stain the grille if spilled while filling the
windshield-washer fluid reservoir.
∙ Pre-mix windshield-washer fluid concen- trates with water to the manufacturer’s
recommended levels before pouring the
fluid into the windshield-washer fluid
reservoir. Do not use the windshield-
washer fluid reservoir to mix the
windshield-washer fluid concentrate and
water.
If the rear window wiper operation is inter-
rupted by snow, etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to OFF and remove the
snow, etc. on and around the wiper arms.
After about 1 minute, turn the switch on
again to operate the wiper.
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF po-
sition to operate the wiper.
LIC3129
Instruments and controls2-37

1Intermittent (INT) — intermittent opera-
tion (not adjustable)
2Low (ON) — continuous low speed op-
eration
Push the switch forward
3to operate the
washer. The wiper will also operate several
times.
To defog the rear window glass and outside
mirrors, start the engine and push the rear
window defogger switch on. The rear win-
dow defogger indicator light on the switch
comes on. Push the switch again to turn the
defogger off.
The rear window defogger automatically
turns off after approximately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defogger.
NOTE:
The top and bottom few rows of wires on the
rear window are not part of the rear window
defogger system. These wires make up the
antenna for the audio system.
LIC2923
REAR WINDOW AND OUTSIDE
MIRROR DEFOGGER SWITCH
2-38Instruments and controls

XENON HEADLIGHTS
WARNING
cHIGH VOLTAGE
∙ When xenon headlights are on, they pro-duce a high voltage. To prevent an elec-
tric shock, never attempt to modify or
disassemble. Always have your xenon
headlights replaced by a certified service
technician. It is recommended that you
visit an INFINITI retailer for this service.
∙ Xenon headlights provide considerably more light than conventional headlights.
If they are not correctly aimed, they
might temporarily blind an oncoming
driver or the driver ahead of you and
cause a serious accident. If headlights are
not aimed correctly, immediately take
your vehicle to a certified service techni-
cian and have the headlights adjusted
correctly.
When the xenon headlight is initially turned
on, its brightness or color varies slightly.
However, the color and brightness will soon
stabilize. ∙
The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for ex-
ample, when the vehicle stops at a traffic
signal).
∙ If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above signs
appear, it is recommended that you visit
an INFINITI retailer for service.
HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to theposition,
and the side, tail, license plate, and in-
strument panel lights will come on.
2Rotate the switch to theposition,
and the headlights will come on and all
the other lights remain on.
CAUTION
Use the headlights with the engine running
to avoid discharging the vehicle battery.
SIC3267
HEADLIGHT AND TURN SIGNAL
SWITCH
Instruments and controls2-39

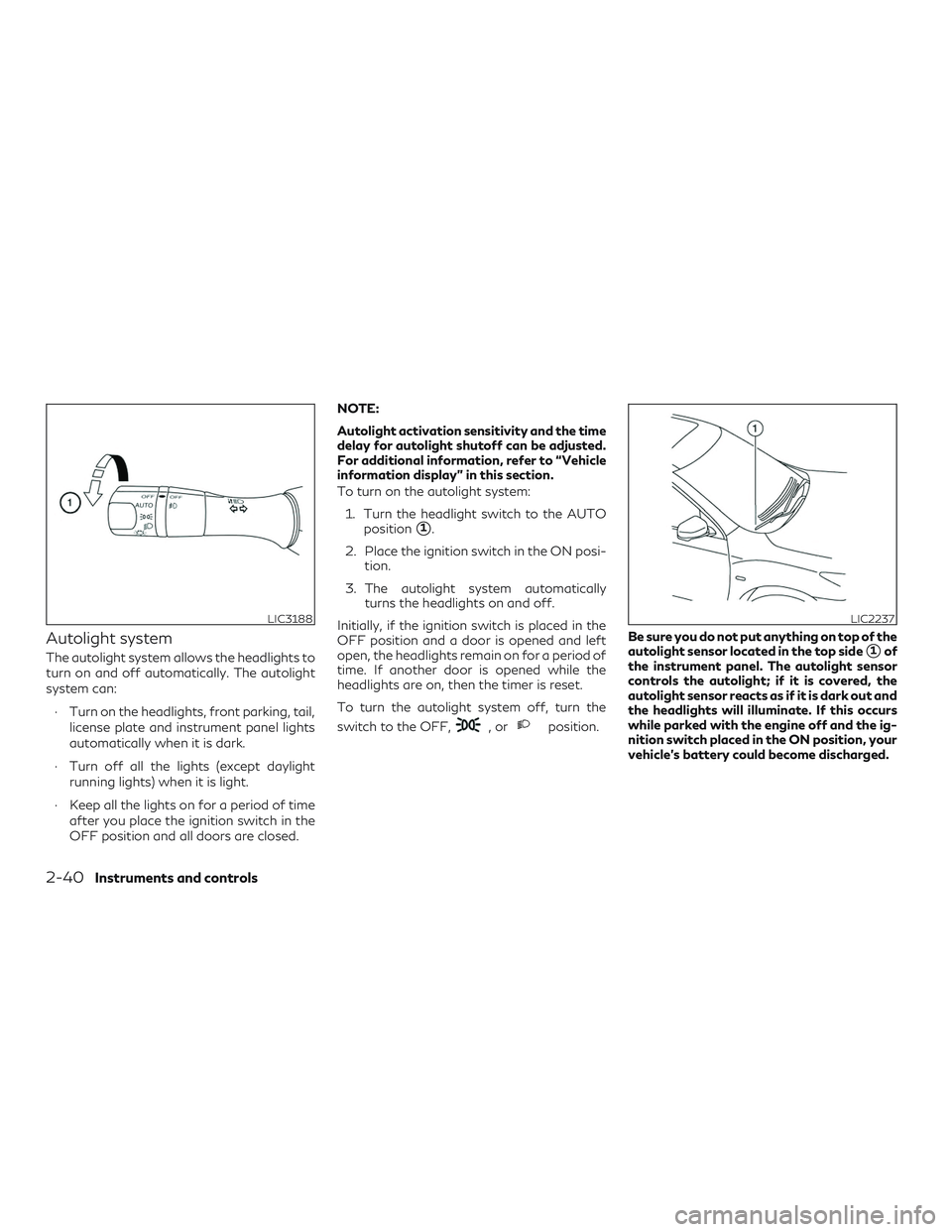

Autolight system
The autolight system allows the headlights to
turn on and off automatically. The autolight
system can:∙ Turn on the headlights, front parking, tail, license plate and instrument panel lights
automatically when it is dark.
∙ Turn off all the lights (except daylight running lights) when it is light.
∙ Keep all the lights on for a period of time after you place the ignition switch in the
OFF position and all doors are closed. NOTE:
Autolight activation sensitivity and the time
delay for autolight shutoff can be adjusted.
For additional information, refer to “Vehicle
information display” in this section.
To turn on the autolight system:
1. Turn the headlight switch to the AUTO position
1.
2. Place the ignition switch in the ON posi- tion.
3. The autolight system automatically turns the headlights on and off.
Initially, if the ignition switch is placed in the
OFF position and a door is opened and left
open, the headlights remain on for a period of
time. If another door is opened while the
headlights are on, then the timer is reset.
To turn the autolight system off, turn the
switch to the OFF,
,orposition. Be sure you do not put anything on top of the
autolight sensor located in the top side
1of
the instrument panel. The autolight sensor
controls the autolight; if it is covered, the
autolight sensor reacts as if it is dark out and
the headlights will illuminate. If this occurs
while parked with the engine off and the ig-
nition switch placed in the ON position, your
vehicle’s battery could become discharged.
LIC3188LIC2237
2-40Instruments and controls

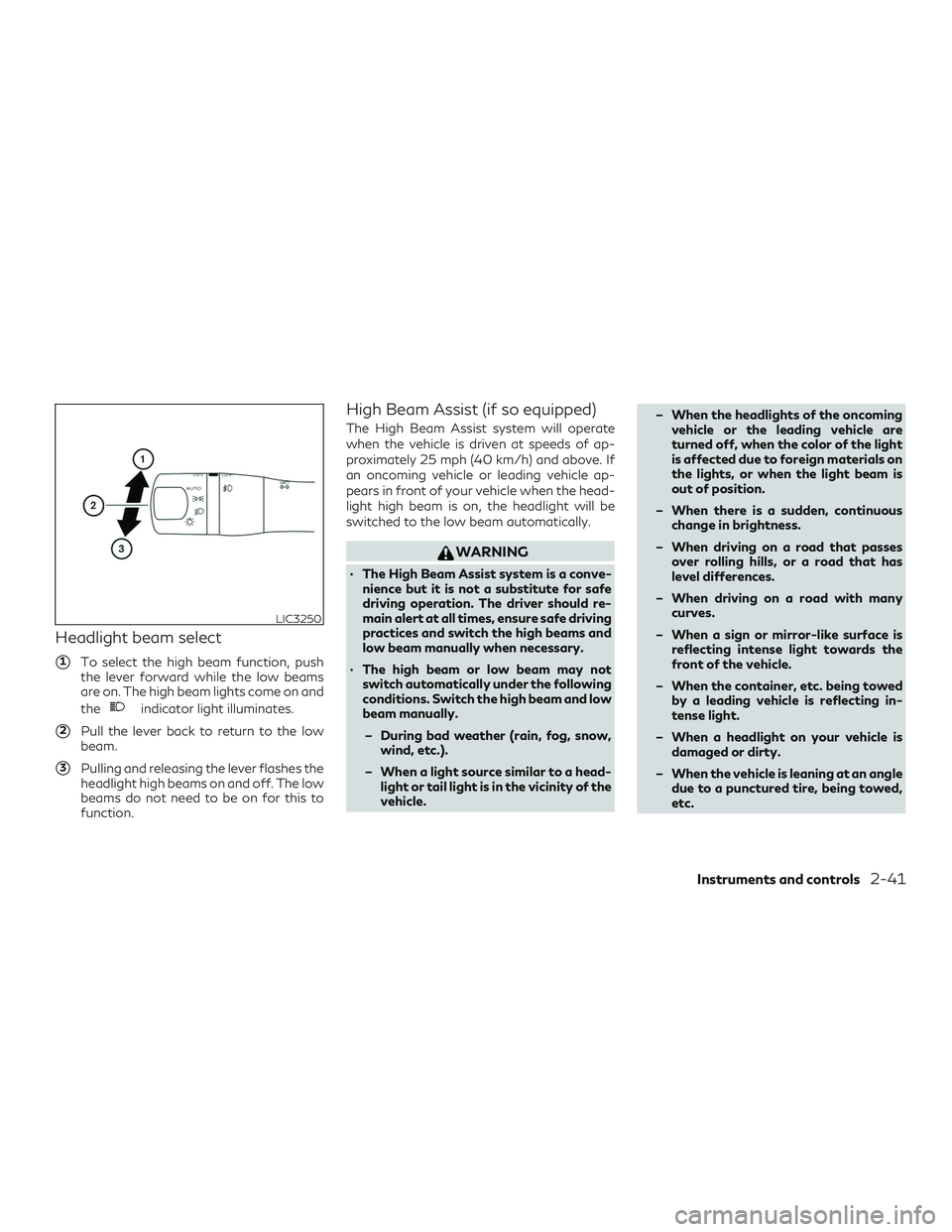

Headlight beam select
1To select the high beam function, push
the lever forward while the low beams
are on. The high beam lights come on and
the
indicator light illuminates.
2Pull the lever back to return to the low
beam.
3Pulling and releasing the lever flashes the
headlight high beams on and off. The low
beams do not need to be on for this to
function.
High Beam Assist (if so equipped)
The High Beam Assist system will operate
when the vehicle is driven at speeds of ap-
proximately 25 mph (40 km/h) and above. If
an oncoming vehicle or leading vehicle ap-
pears in front of your vehicle when the head-
light high beam is on, the headlight will be
switched to the low beam automatically.
WARNING
∙ The High Beam Assist system is a conve- nience but it is not a substitute for safe
driving operation. The driver should re-
main alert at all times, ensure safe driving
practices and switch the high beams and
low beam manually when necessary.
∙ The high beam or low beam may not switch automatically under the following
conditions. Switch the high beam and low
beam manually.
– During bad weather (rain, fog, snow, wind, etc.).
– When a light source similar to a head- light or tail light is in the vicinity of the
vehicle. – When the headlights of the oncoming
vehicle or the leading vehicle are
turned off, when the color of the light
is affected due to foreign materials on
the lights, or when the light beam is
out of position.
– When there is a sudden, continuous change in brightness.
– When driving on a road that passes over rolling hills, or a road that has
level differences.
– When driving on a road with many curves.
– When a sign or mirror-like surface is reflecting intense light towards the
front of the vehicle.
– When the container, etc. being towed by a leading vehicle is reflecting in-
tense light.
– When a headlight on your vehicle is damaged or dirty.
– When the vehicle is leaning at an angle due to a punctured tire, being towed,
etc.
LIC3250
Instruments and controls2-41

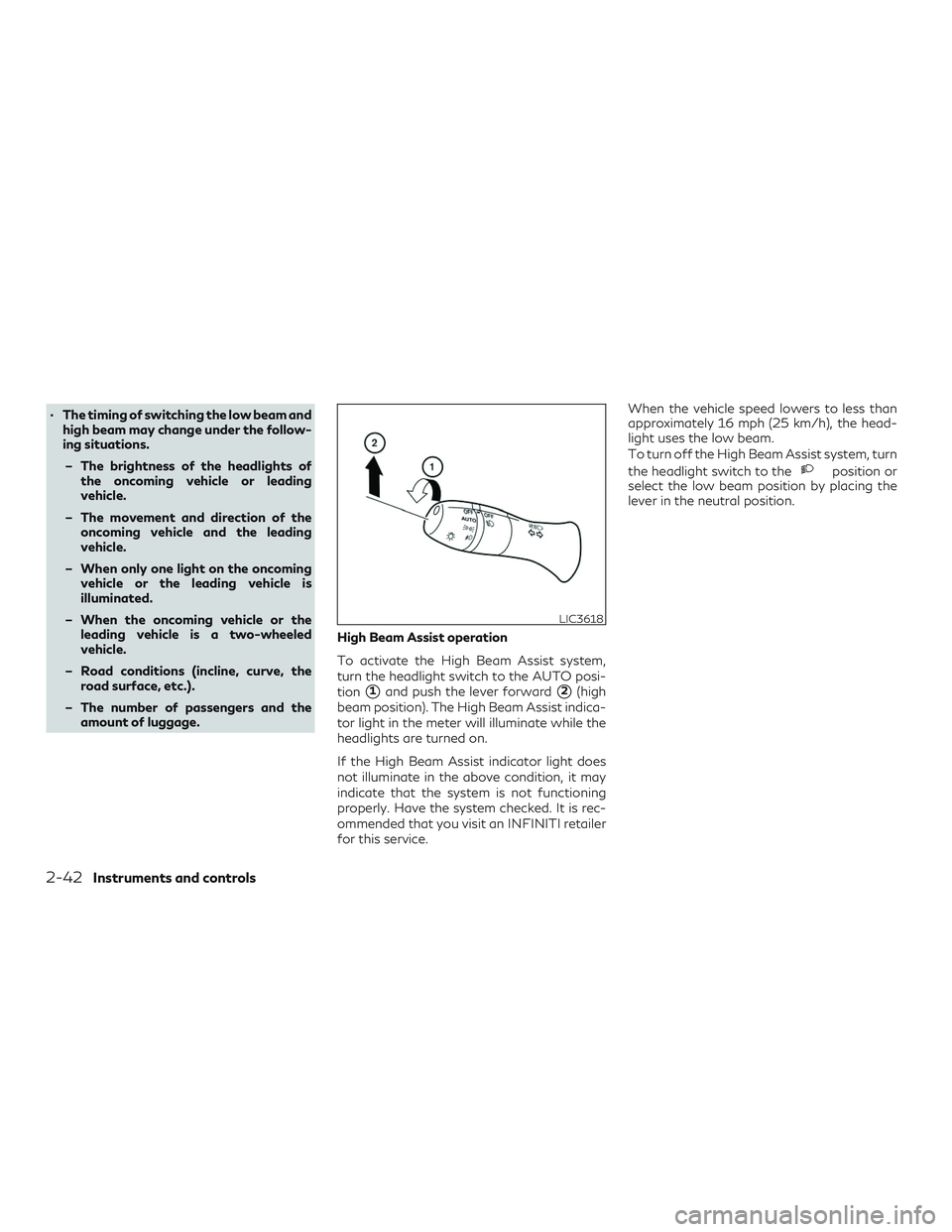

∙ The timing of switching the low beam andhigh beam may change under the follow-
ing situations.
– The brightness of the headlights of the oncoming vehicle or leading
vehicle.
– The movement and direction of the oncoming vehicle and the leading
vehicle.
– When only one light on the oncoming vehicle or the leading vehicle is
illuminated.
– When the oncoming vehicle or the leading vehicle is a two-wheeled
vehicle.
– Road conditions (incline, curve, the road surface, etc.).
– The number of passengers and the amount of luggage. High Beam Assist operation
To activate the High Beam Assist system,
turn the headlight switch to the AUTO posi-
tion
1and push the lever forward2(high
beam position). The High Beam Assist indica-
tor light in the meter will illuminate while the
headlights are turned on.
If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service. When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.
To turn off the High Beam Assist system, turn
the headlight switch to the
position or
select the low beam position by placing the
lever in the neutral position.
LIC3618
2-42Instruments and controls

Ambient image sensor maintenance
The ambient image sensor
1for the High
Beam Assist system is located in front of the
inside mirror. To maintain the proper opera-
tion of the High Beam Assist system and
prevent a system malfunction, be sure to ob-
serve the following:
∙ Always keep the windshield clean.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the ambient image sensor. ∙ Do not strike or damage the areas around
the ambient image sensor. Do not touch
the sensor lens that is located on the
ambient image sensor.
If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
Battery saver system
The battery saver system automatically turns
off the ignition after a period of time when
the ignition switch is left in the ACC or ON
position.
The battery saver system automatically turns
off the following lights after a period of time
when the ignition switch is placed in the OFF
position and the doors are closed:
∙ Headlights, when the headlight switch is in the
orposition
∙
Interior lights, when left in the ON position
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
DAYTIME RUNNING LIGHT
SYSTEM
The daytime running lights automatically illu-
minate when the engine is started with the
parking brake released. The daytime running
lights operate with the headlight switch in the
OFF position or in the
position. Turn
the headlight switch to the
position for
full illumination when driving at night.
If the parking brake is applied before the
engine is started, the daytime running lights
do not illuminate. The daytime running lights
illuminate when the parking brake is released.
The daytime running lights will remain on until
the ignition switch is placed in the OFF posi-
tion or headlight switch is turned to the
position.
WARNING
When the daytime running light system is
active, tail lights on your vehicle are not on.
It is necessary at dusk to turn on your head-
lights. Failure to do so could cause an acci-
dent injuring yourself and others.
LIC3638
Instruments and controls2-43

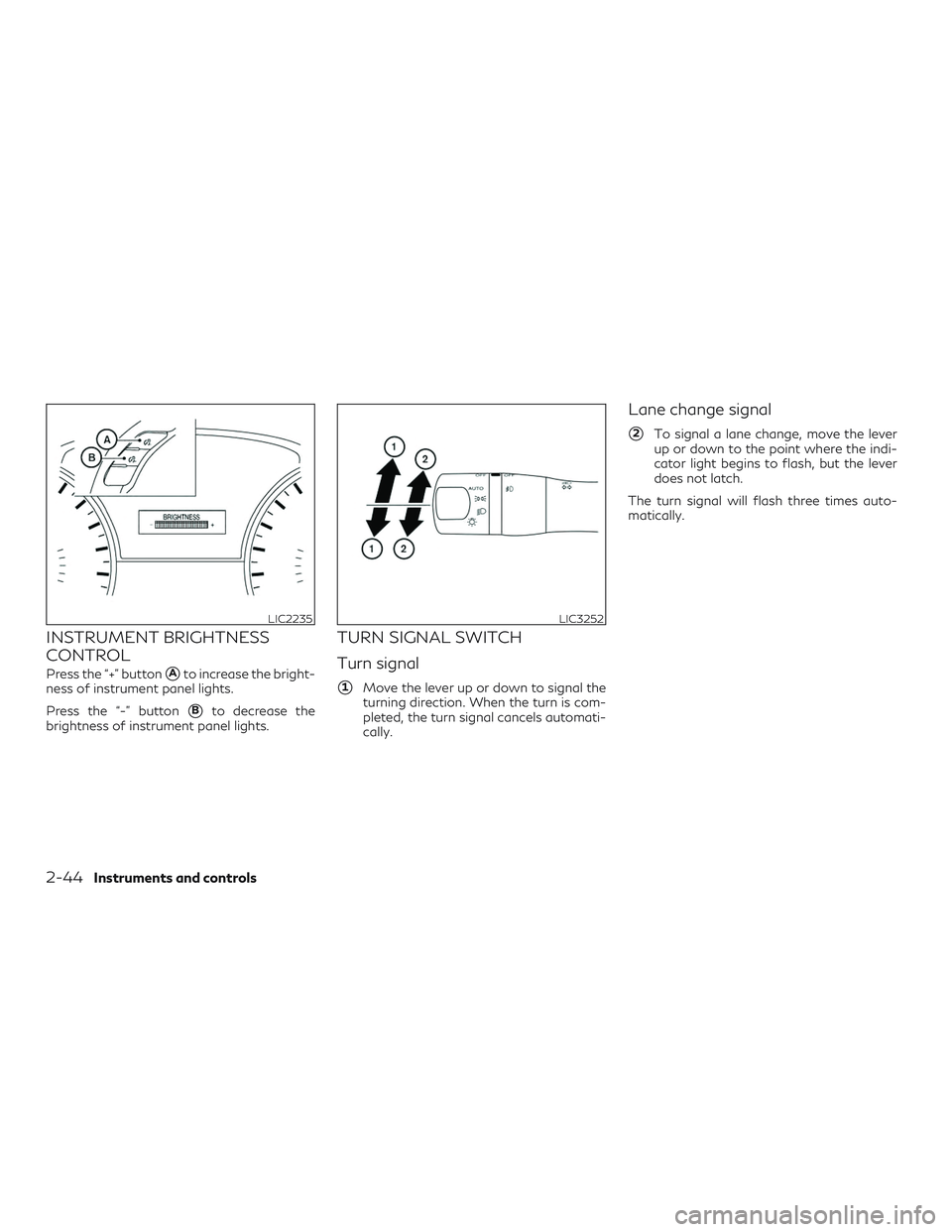

INSTRUMENT BRIGHTNESS
CONTROL
Press the “+” buttonAto increase the bright-
ness of instrument panel lights.
Press the “-” button
Bto decrease the
brightness of instrument panel lights.
TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signal cancels automati-
cally.
Lane change signal
2To signal a lane change, move the lever
up or down to the point where the indi-
cator light begins to flash, but the lever
does not latch.
The turn signal will flash three times auto-
matically.
LIC2235LIC3252
2-44Instruments and controls

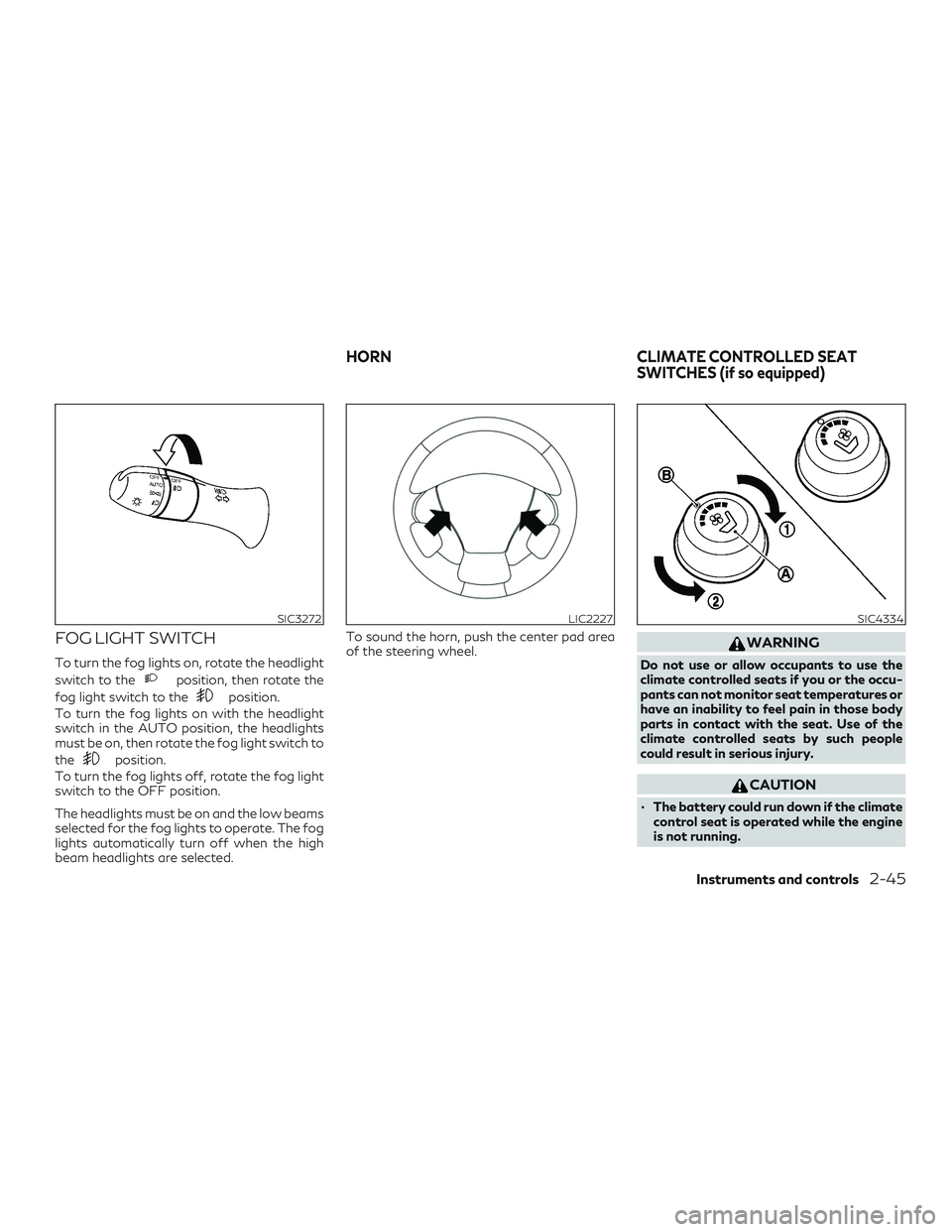

FOG LIGHT SWITCH
To turn the fog lights on, rotate the headlight
switch to the
position, then rotate the
fog light switch to the
position.
To turn the fog lights on with the headlight
switch in the AUTO position, the headlights
must be on, then rotate the fog light switch to
the
position.
To turn the fog lights off, rotate the fog light
switch to the OFF position.
The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high
beam headlights are selected. To sound the horn, push the center pad area
of the steering wheel.
WARNING
Do not use or allow occupants to use the
climate controlled seats if you or the occu-
pants can not monitor seat temperatures or
have an inability to feel pain in those body
parts in contact with the seat. Use of the
climate controlled seats by such people
could result in serious injury.
CAUTION
∙ The battery could run down if the climate
control seat is operated while the engine
is not running.
SIC3272LIC2227SIC4334
HORN CLIMATE CONTROLLED SEAT
SWITCHES (if so equipped)
Instruments and controls2-45
