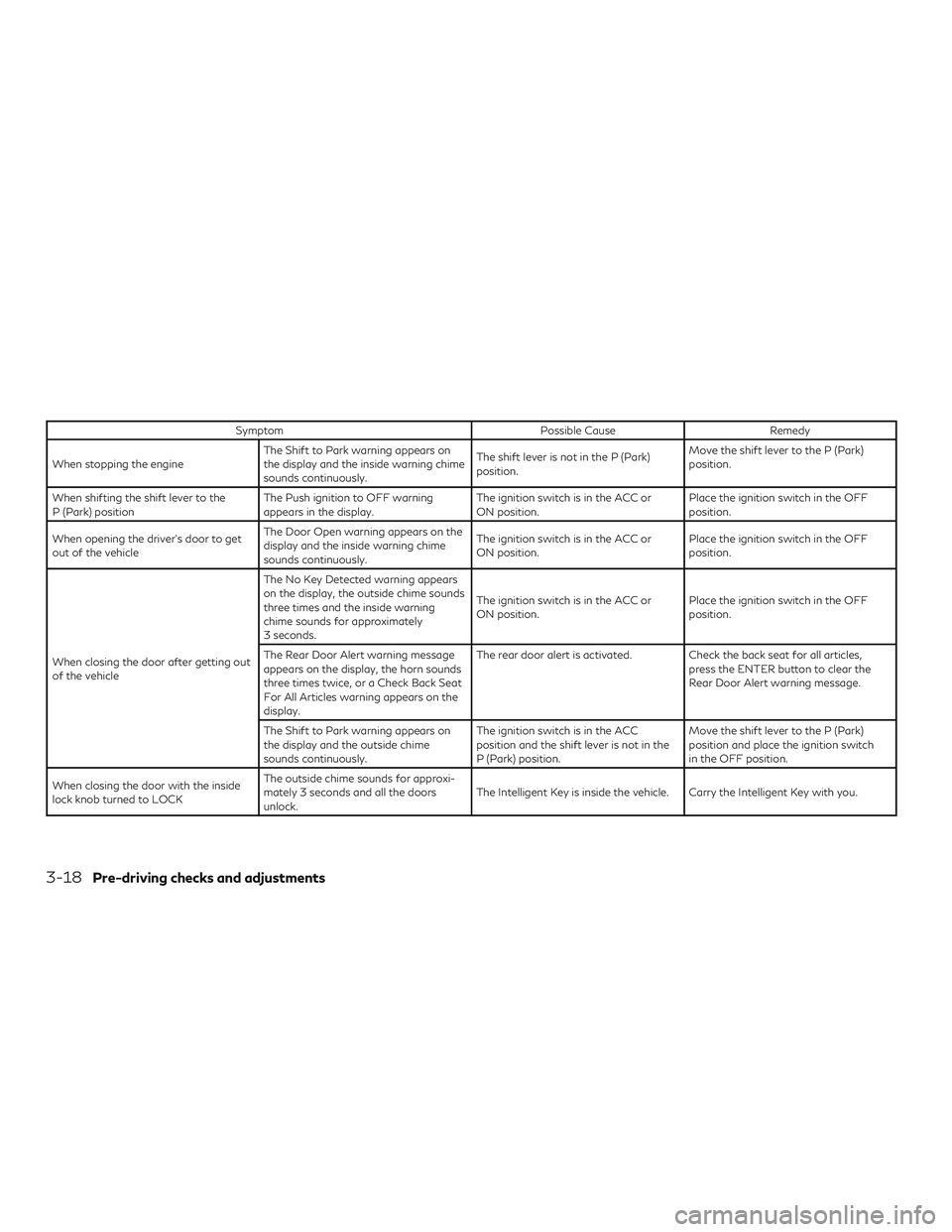

SymptomPossible CauseRemedy
When stopping the engine The Shift to Park warning appears on
the display and the inside warning chime
sounds continuously. The shift lever is not in the P (Park)
position.Move the shift lever to the P (Park)
position.
When shifting the shift lever to the
P (Park) position The Push ignition to OFF warning
appears in the display. The ignition switch is in the ACC or
ON position.Place the ignition switch in the OFF
position.
When opening the driver’s door to get
out of the vehicle The Door Open warning appears on the
display and the inside warning chime
sounds continuously. The ignition switch is in the ACC or
ON position.
Place the ignition switch in the OFF
position.
When closing the door after getting out
of the vehicle The No Key Detected warning appears
on the display, the outside chime sounds
three times and the inside warning
chime sounds for approximately
3 seconds.
The ignition switch is in the ACC or
ON position.
Place the ignition switch in the OFF
position.
The Rear Door Alert warning message
appears on the display, the horn sounds
three times twice, or a Check Back Seat
For All Articles warning appears on the
display. The rear door alert is activated.
Check the back seat for all articles,
press the ENTER button to clear the
Rear Door Alert warning message.
The Shift to Park warning appears on
the display and the outside chime
sounds continuously. The ignition switch is in the ACC
position and the shift lever is not in the
P (Park) position.Move the shift lever to the P (Park)
position and place the ignition switch
in the OFF position.
When closing the door with the inside
lock knob turned to LOCK The outside chime sounds for approxi-
mately 3 seconds and all the doors
unlock.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
3-18Pre-driving checks and adjustments

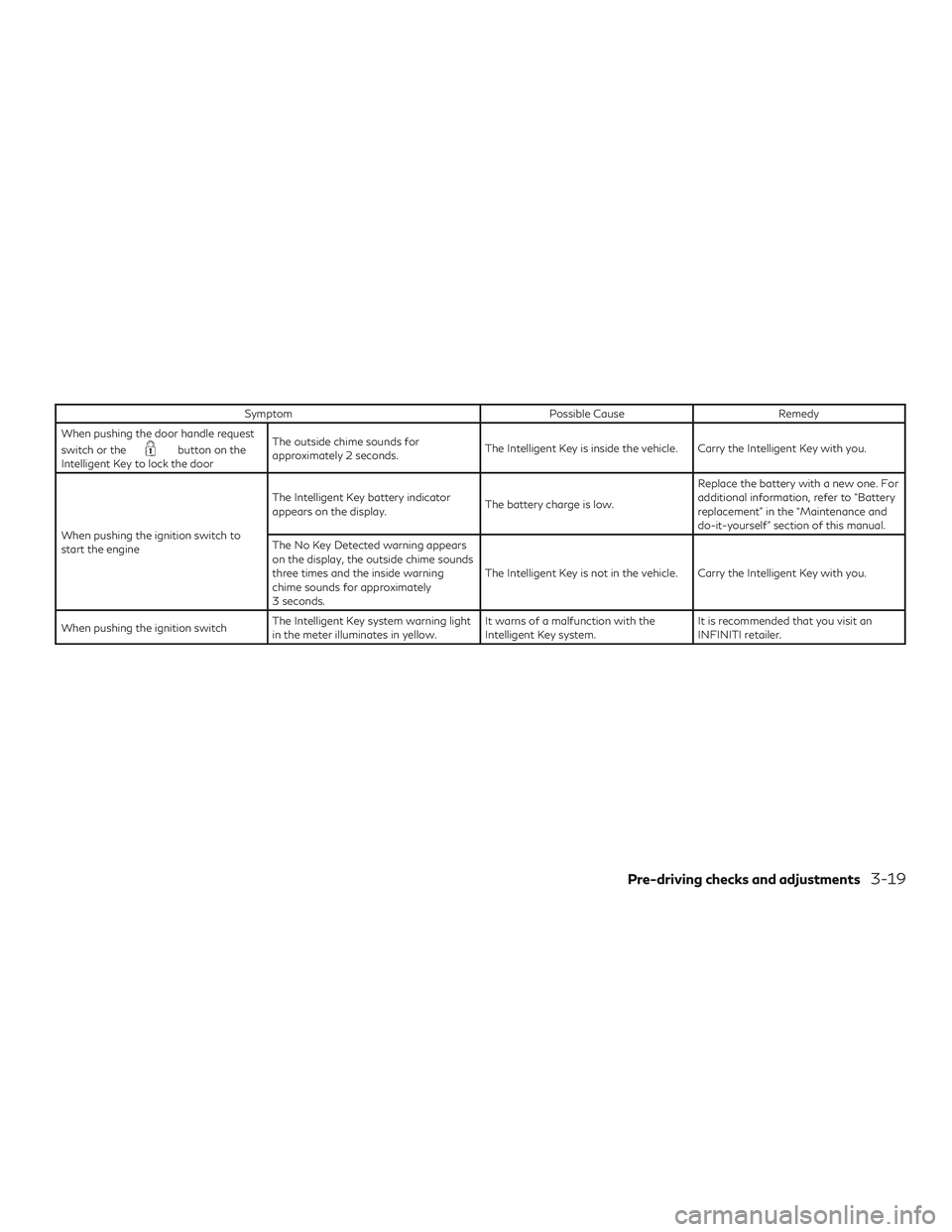

SymptomPossible CauseRemedy
When pushing the door handle request
switchorthe
buttononthe
Intelligent Key to lock the door The outside chime sounds for
approximately 2 seconds.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the ignition switch to
start the engine The Intelligent Key battery indicator
appears on the display.
The battery charge is low.Replace the battery with a new one. For
additional information, refer to “Battery
replacement” in the “Maintenance and
do-it-yourself” section of this manual.
The No Key Detected warning appears
on the display, the outside chime sounds
three times and the inside warning
chime sounds for approximately
3 seconds. The Intelligent Key is not in the vehicle. Carry the Intelligent Key with you.
When pushing the ignition switch The Intelligent Key system warning light
in the meter illuminates in yellow. It warns of a malfunction with the
Intelligent Key system.It is recommended that you visit an
INFINITI retailer.
Pre-driving checks and adjustments3-19

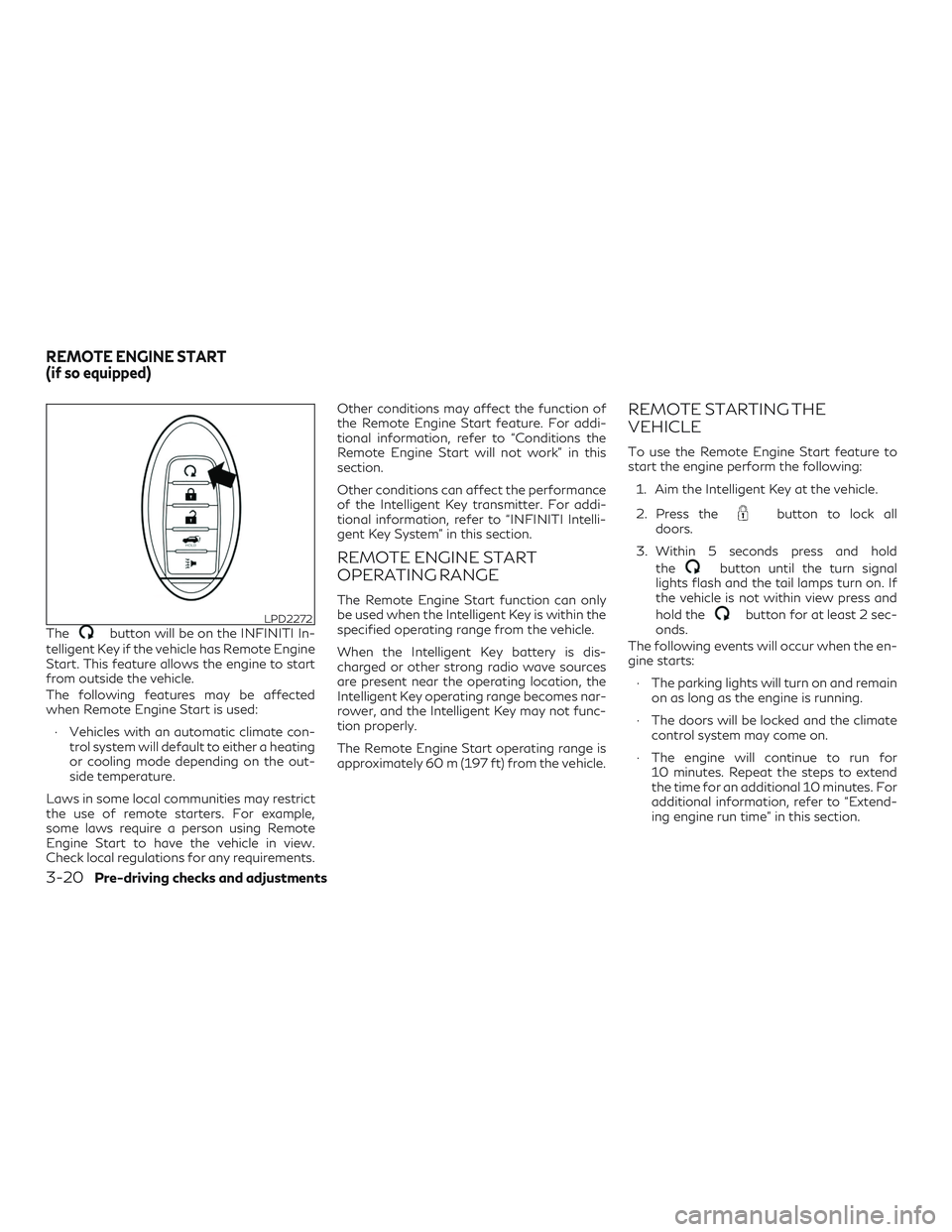

Thebutton will be on the INFINITI In-
telligent Key if the vehicle has Remote Engine
Start. This feature allows the engine to start
from outside the vehicle.
The following features may be affected
when Remote Engine Start is used:
∙ Vehicles with an automatic climate con- trol system will default to either a heating
or cooling mode depending on the out-
side temperature.
Laws in some local communities may restrict
the use of remote starters. For example,
some laws require a person using Remote
Engine Start to have the vehicle in view.
Check local regulations for any requirements. Other conditions may affect the function of
the Remote Engine Start feature. For addi-
tional information, refer to “Conditions the
Remote Engine Start will not work” in this
section.
Other conditions can affect the performance
of the Intelligent Key transmitter. For addi-
tional information, refer to “INFINITI Intelli-
gent Key System” in this section.
REMOTE ENGINE START
OPERATING RANGE
The Remote Engine Start function can only
be used when the Intelligent Key is within the
specified operating range from the vehicle.
When the Intelligent Key battery is dis-
charged or other strong radio wave sources
are present near the operating location, the
Intelligent Key operating range becomes nar-
rower, and the Intelligent Key may not func-
tion properly.
The Remote Engine Start operating range is
approximately 60 m (197 ft) from the vehicle.
REMOTE STARTING THE
VEHICLE
To use the Remote Engine Start feature to
start the engine perform the following:
1. Aim the Intelligent Key at the vehicle.
2. Press the
button to lock all
doors.
3. Within 5 seconds press and hold the
button until the turn signal
lights flash and the tail lamps turn on. If
the vehicle is not within view press and
hold the
button for at least 2 sec-
onds.
The following events will occur when the en-
gine starts:
∙ The parking lights will turn on and remain on as long as the engine is running.
∙ The doors will be locked and the climate control system may come on.
∙ The engine will continue to run for 10 minutes. Repeat the steps to extend
the time for an additional 10 minutes. For
additional information, refer to “Extend-
ing engine run time” in this section.LPD2272
REMOTE ENGINE START
(if so equipped)
3-20Pre-driving checks and adjustments

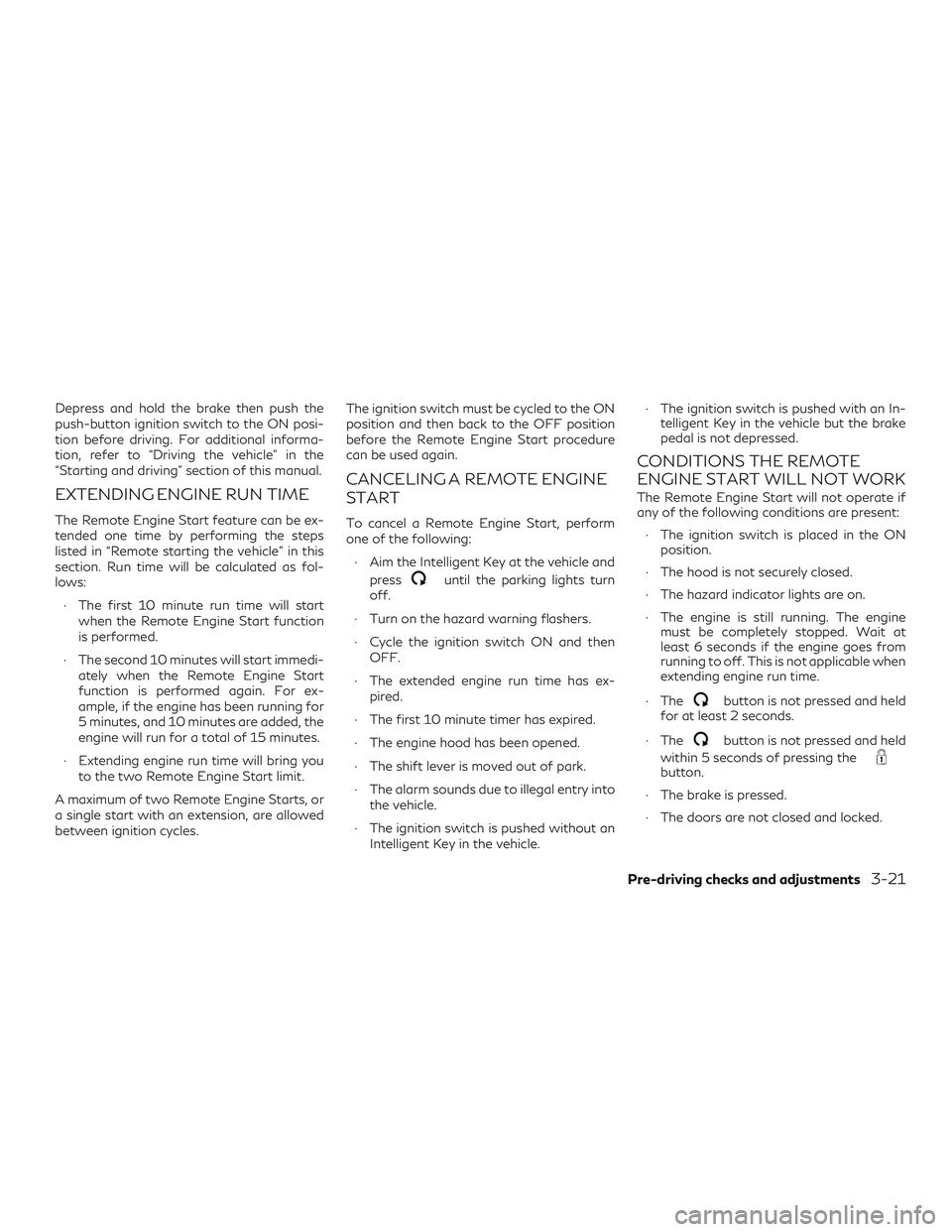

Depress and hold the brake then push the
push-button ignition switch to the ON posi-
tion before driving. For additional informa-
tion, refer to “Driving the vehicle” in the
“Starting and driving” section of this manual.
EXTENDING ENGINE RUN TIME
The Remote Engine Start feature can be ex-
tended one time by performing the steps
listed in “Remote starting the vehicle” in this
section. Run time will be calculated as fol-
lows:∙ The first 10 minute run time will start when the Remote Engine Start function
is performed.
∙ The second 10 minutes will start immedi- ately when the Remote Engine Start
function is performed again. For ex-
ample, if the engine has been running for
5 minutes, and 10 minutes are added, the
engine will run for a total of 15 minutes.
∙ Extending engine run time will bring you to the two Remote Engine Start limit.
A maximum of two Remote Engine Starts, or
a single start with an extension, are allowed
between ignition cycles. The ignition switch must be cycled to the ON
position and then back to the OFF position
before the Remote Engine Start procedure
can be used again.
CANCELING A REMOTE ENGINE
START
To cancel a Remote Engine Start, perform
one of the following:
∙ Aim the Intelligent Key at the vehicle and press
until the parking lights turn
off.
∙ Turn on the hazard warning flashers.
∙ Cycle the ignition switch ON and then OFF.
∙ The extended engine run time has ex- pired.
∙ The first 10 minute timer has expired.
∙ The engine hood has been opened.
∙ The shift lever is moved out of park.
∙ The alarm sounds due to illegal entry into the vehicle.
∙ The ignition switch is pushed without an Intelligent Key in the vehicle. ∙ The ignition switch is pushed with an In-
telligent Key in the vehicle but the brake
pedal is not depressed.
CONDITIONS THE REMOTE
ENGINE START WILL NOT WORK
The Remote Engine Start will not operate if
any of the following conditions are present:
∙ The ignition switch is placed in the ON position.
∙ The hood is not securely closed.
∙ The hazard indicator lights are on.
∙ The engine is still running. The engine must be completely stopped. Wait at
least 6 seconds if the engine goes from
running to off. This is not applicable when
extending engine run time.
∙ The
button is not pressed and held
for at least 2 seconds.
∙ The
button is not pressed and held
within 5 seconds of pressing the
button.
∙ The brake is pressed.
∙ The doors are not closed and locked.
Pre-driving checks and adjustments3-21

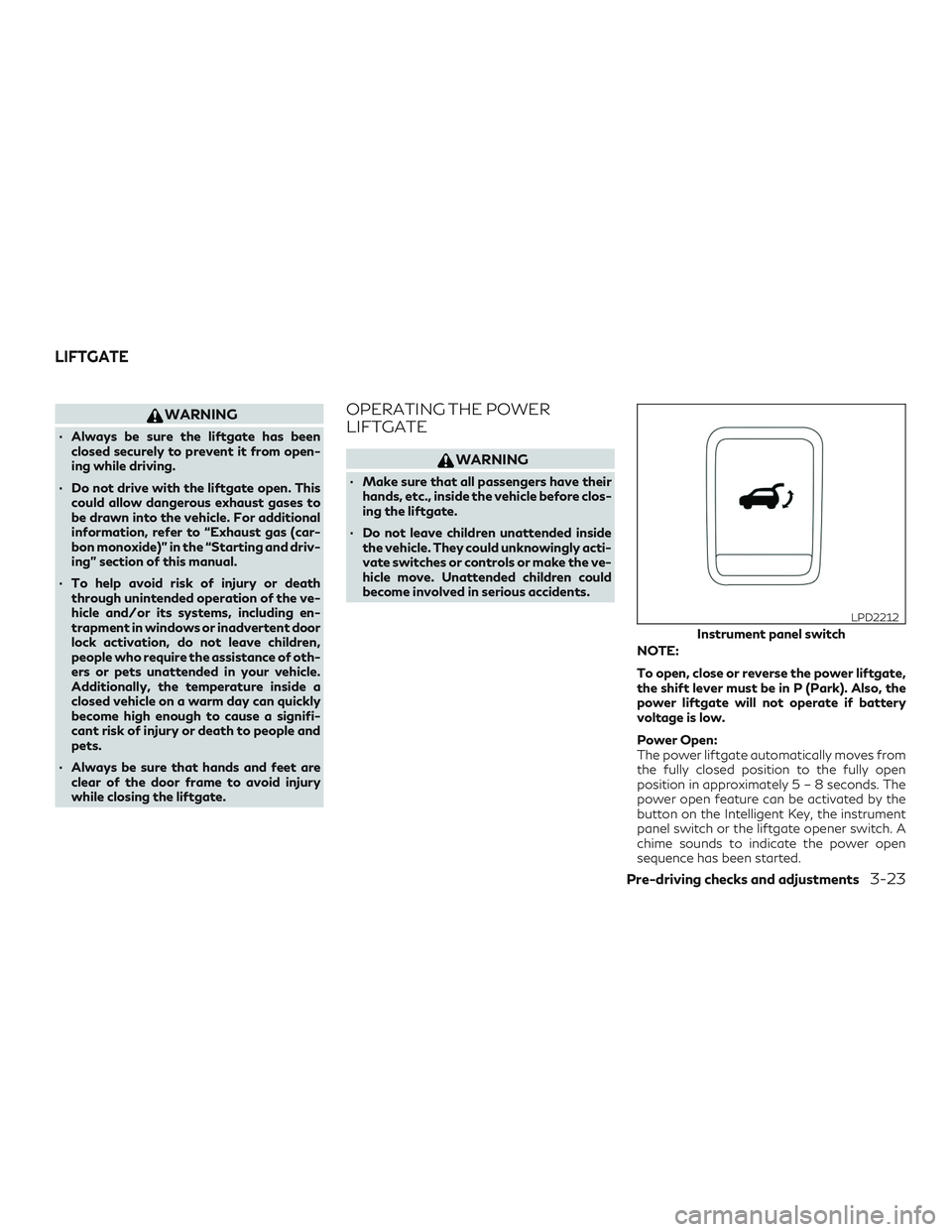

WARNING
∙ Always be sure the liftgate has beenclosed securely to prevent it from open-
ing while driving.
∙ Do not drive with the liftgate open. This could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, refer to “Exhaust gas (car-
bon monoxide)” in the “Starting and driv-
ing” section of this manual.
∙ To help avoid risk of injury or death through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent door
lock activation, do not leave children,
people who require the assistance of oth-
ers or pets unattended in your vehicle.
Additionally, the temperature inside a
closed vehicle on a warm day can quickly
become high enough to cause a signifi-
cant risk of injury or death to people and
pets.
∙ Always be sure that hands and feet are clear of the door frame to avoid injury
while closing the liftgate.
OPERATING THE POWER
LIFTGATE
WARNING
∙ Make sure that all passengers have theirhands, etc., inside the vehicle before clos-
ing the liftgate.
∙ Do not leave children unattended inside the vehicle. They could unknowingly acti-
vate switches or controls or make the ve-
hicle move. Unattended children could
become involved in serious accidents.
NOTE:
To open, close or reverse the power liftgate,
the shift lever must be in P (Park). Also, the
power liftgate will not operate if battery
voltage is low.
Power Open:
The power liftgate automatically moves from
the fully closed position to the fully open
position in approximately5–8seconds. The
power open feature can be activated by the
button on the Intelligent Key, the instrument
panel switch or the liftgate opener switch. A
chime sounds to indicate the power open
sequence has been started.
Instrument panel switch
LPD2212
LIFTGATE
Pre-driving checks and adjustments3-23

Power liftgate release
If the liftgate cannot be opened with the
instrument panel switch, liftgate opener
switch or key fob due to a discharged battery,
follow these steps:1. Remove the cover
Aon the inside of the
liftgate.
2. Move the lever
Bas illustrated to open
the liftgate.
It is recommended that you visit an INFINITI
retailer as soon as possible for repair.
LIFTGATE POSITION SETTING
The liftgate can be set to open to a specific
height by performing the following: 1. Open the liftgate using the request switch or the Intelligent Key.
2. Pull the liftgate down to the desired po- sition and hold the liftgate (the liftgate
will have some resistance when being
manually adjusted).
3. While holding the liftgate in position, push and hold the liftgate switch
located on the liftgate for approximately
5 seconds or until three beeps are heard.
The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat Steps 1-3 for setting the position of
the liftgate.
OPENING THE FUEL-FILLER
DOOR
The fuel-filler door automatically unlocks
when the driver’s door is unlocked.
1. Unlock the fuel-filler door using one of the following operations:
∙ Unlock the driver’s door with the key fob.
∙ Push the power door lock switch to the unlock position.
∙ Push the door handle request switch (with the key fob in range).
SPA2778WPD0454
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-29

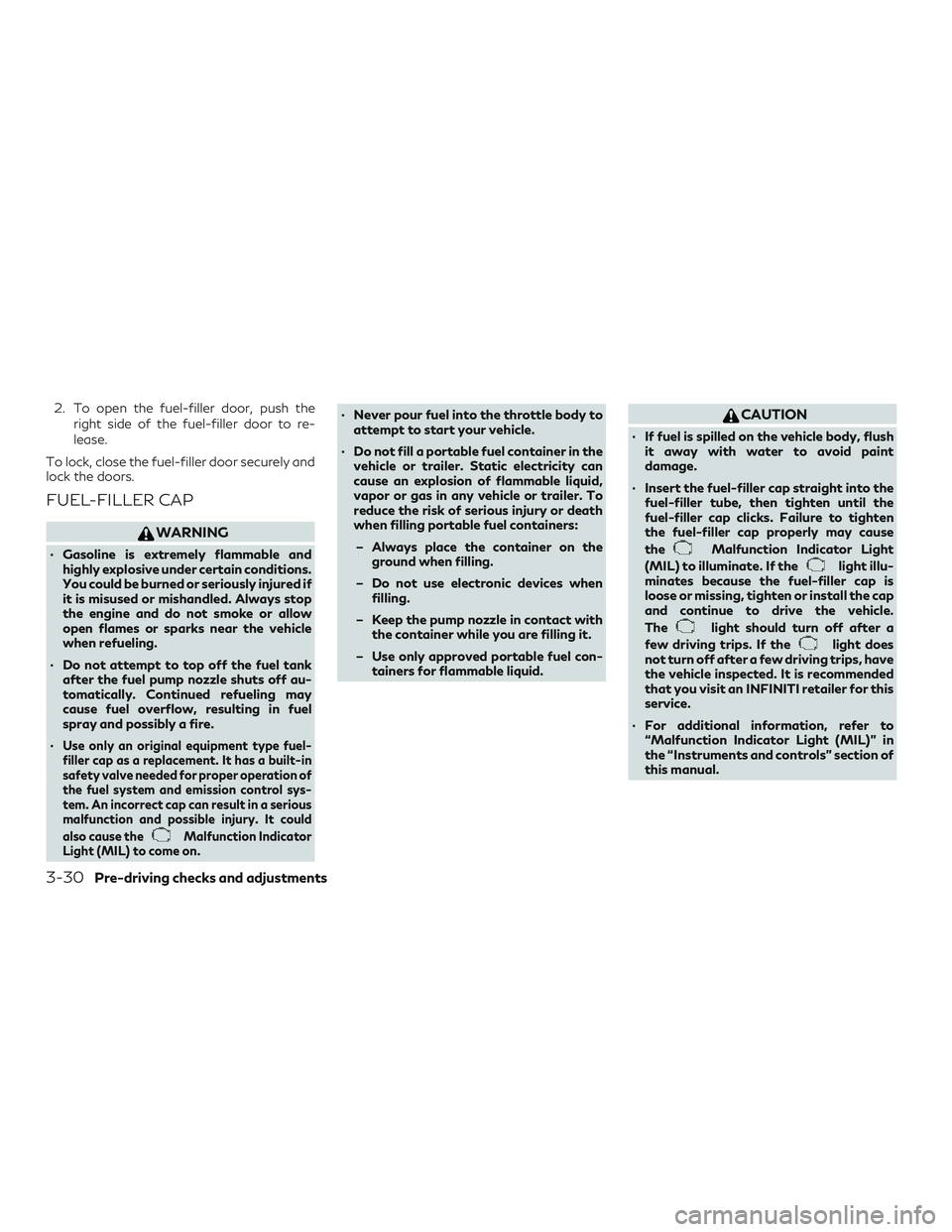

2. To open the fuel-filler door, push theright side of the fuel-filler door to re-
lease.
To lock, close the fuel-filler door securely and
lock the doors.
FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain conditions.
You could be burned or seriously injured if
it is misused or mishandled. Always stop
the engine and do not smoke or allow
open flames or sparks near the vehicle
when refueling.
∙ Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
∙
Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the
Malfunction Indicator
Light (MIL) to come on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle.
∙ Do not fill a portable fuel container in the vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel con- tainers for flammable liquid.CAUTION
∙ If fuel is spilled on the vehicle body, flushit away with water to avoid paint
damage.
∙ Insert the fuel-filler cap straight into the fuel-filler tube, then tighten until the
fuel-filler cap clicks. Failure to tighten
the fuel-filler cap properly may cause
the
Malfunction Indicator Light
(MIL) to illuminate. If the
light illu-
minates because the fuel-filler cap is
loose or missing, tighten or install the cap
and continue to drive the vehicle.
The
light should turn off after a
few driving trips. If the
light does
not turn off after a few driving trips, have
the vehicle inspected. It is recommended
that you visit an INFINITI retailer for this
service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
the “Instruments and controls” section of
this manual.
3-30Pre-driving checks and adjustments

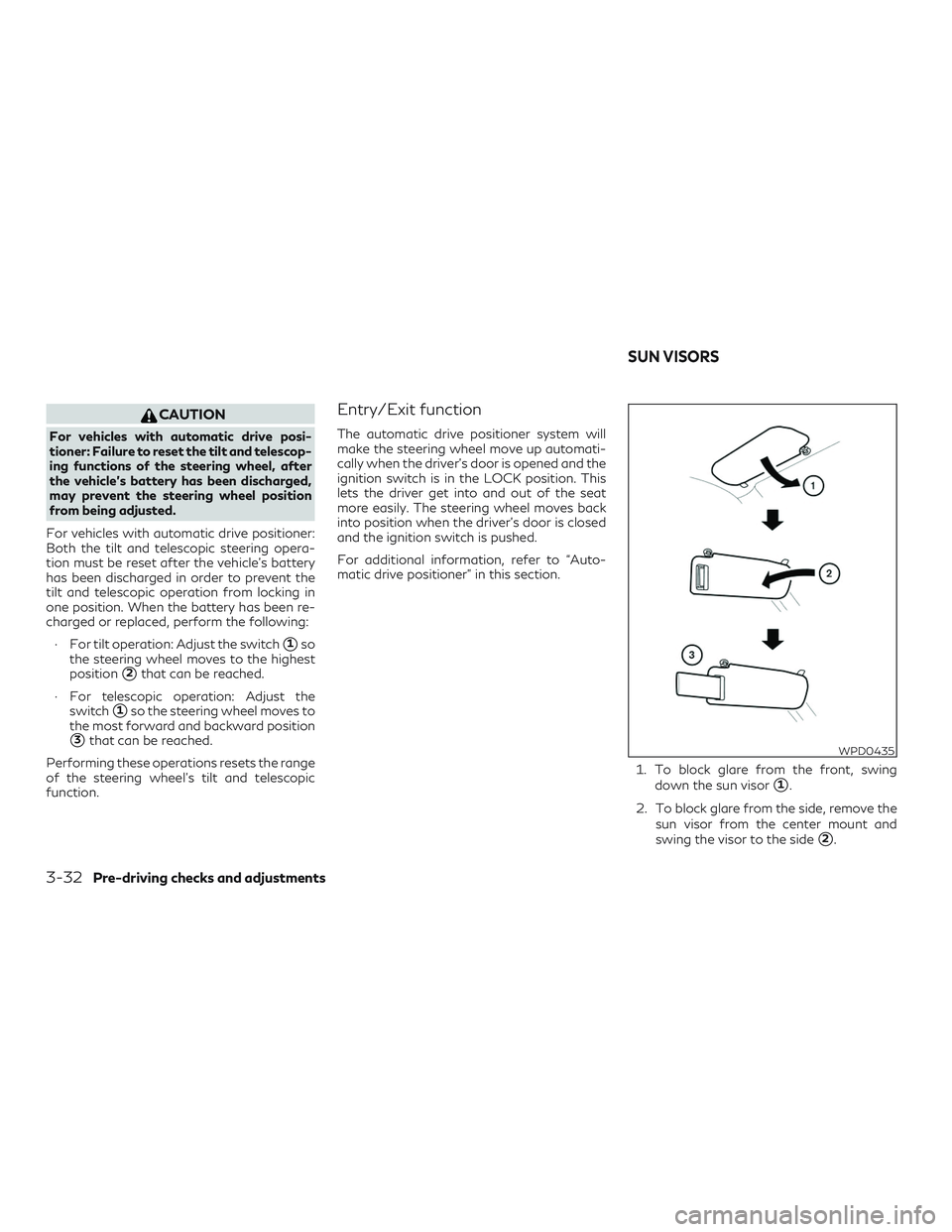

CAUTION
For vehicles with automatic drive posi-
tioner: Failure to reset the tilt and telescop-
ing functions of the steering wheel, after
the vehicle’s battery has been discharged,
may prevent the steering wheel position
from being adjusted.
For vehicles with automatic drive positioner:
Both the tilt and telescopic steering opera-
tion must be reset after the vehicle’s battery
has been discharged in order to prevent the
tilt and telescopic operation from locking in
one position. When the battery has been re-
charged or replaced, perform the following: ∙ For tilt operation: Adjust the switch
1so
the steering wheel moves to the highest
position
2that can be reached.
∙ For telescopic operation: Adjust the switch
1so the steering wheel moves to
the most forward and backward position
3that can be reached.
Performing these operations resets the range
of the steering wheel’s tilt and telescopic
function.
Entry/Exit function
The automatic drive positioner system will
make the steering wheel move up automati-
cally when the driver’s door is opened and the
ignition switch is in the LOCK position. This
lets the driver get into and out of the seat
more easily. The steering wheel moves back
into position when the driver’s door is closed
and the ignition switch is pushed.
For additional information, refer to “Auto-
matic drive positioner” in this section.
1. To block glare from the front, swingdown the sun visor
1.
2. To block glare from the side, remove the sun visor from the center mount and
swing the visor to the side
2.
WPD0435
SUN VISORS
3-32Pre-driving checks and adjustments

SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.∙ Climate control system
∙ Navigation system (if so equipped)
∙ Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available.
To engage the memorized settings, perform
the following: 1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key. 3. Place the ignition switch in the ON posi-
tion. The settings linked to the Intelligent
Key will start.
For additional information on using the Cli-
mate control system, refer to “Heater and air
conditioner (automatic)” in the “Monitor, cli-
mate, audio, phone and voice recognition
systems” section of this manual.
For additional information, refer to the
INFINITI InTouch™ Owner’s Manual or the
“Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions: ∙ When the vehicle speed is above 0 mph (0 km/h) or 4 mph (7km/h) for some
limited functions such as linking a key fob
to the meter when the power source is
turned on from off or during the exit
function.
∙ When any of the memory switches are pushed while the automatic drive posi-
tioner is operating. ∙ When the adjusting switch for the driver’s
seat and steering column is turned on
while the automatic drive positioner is
operating.
∙ When the seat has already been moved to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shift lever is moved from P (Park) to any other position.
Pre-driving checks and adjustments3-39

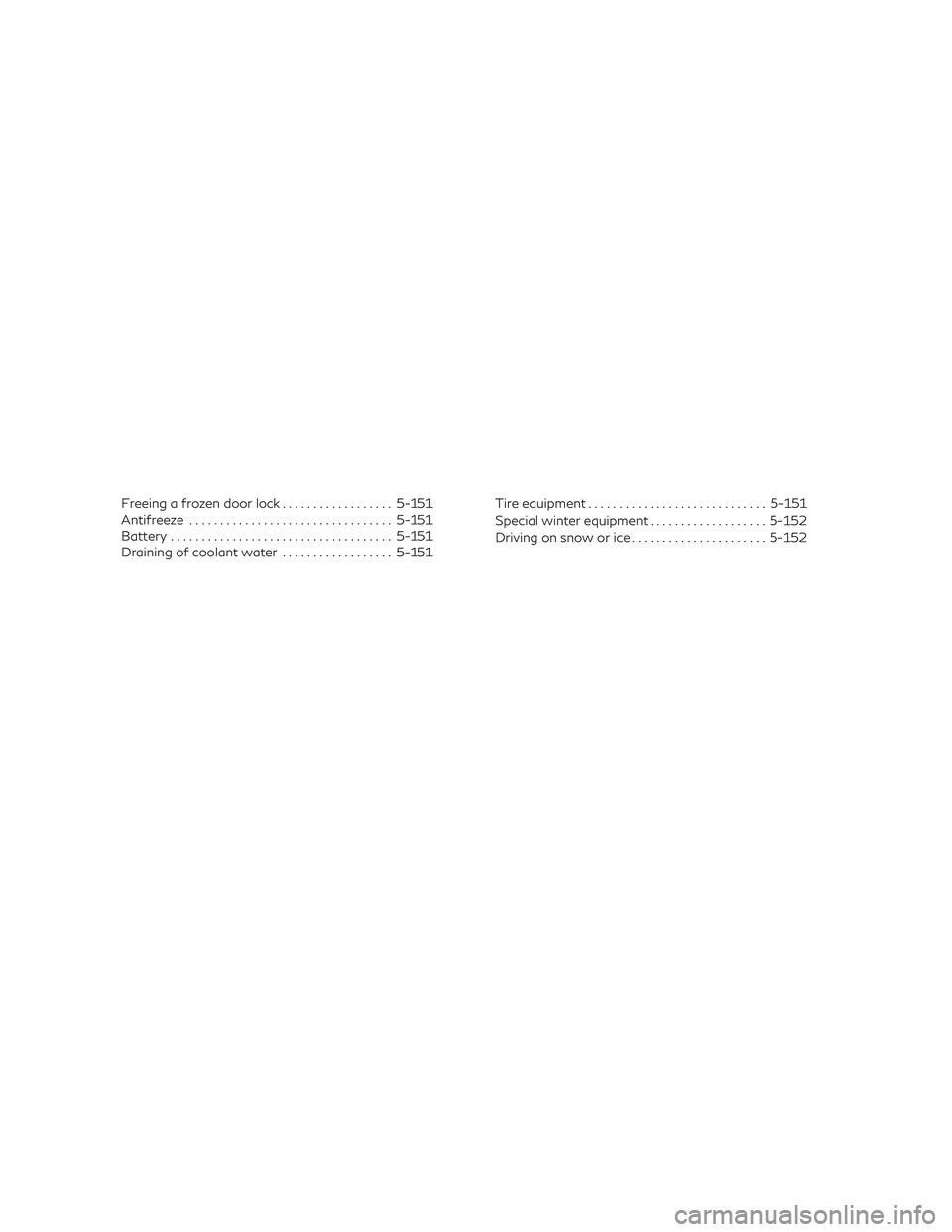

Freeing a frozen door lock..................5-151
Antifreeze ................................. 5-151
Battery .................................... 5-151
Draining of coolant water ..................5-151Tire equipment
............................. 5-151
Special winter equipment ...................5-152
Driving on snow or ice ...................... 5-152
