The wheel nuts must be kept tightened to
specifications at all times. It is recommended
that wheel nuts be tightened to specification
at each tire rotation interval.
WARNING
∙ After rotating the tires, check and adjustthe tire pressure.
∙ Retighten the wheel nuts when the ve- hicle has been driven for 1,000 km
(600 miles) (also in cases of a flat tire,
etc.).
∙ Do not include the spare tire in the tire rotation.
∙ Incorrect tire selection, fitting, care or maintenance can affect vehicle safety
with risk of accident and injury.
∙ If in doubt, consult an INFINITI retailer or the tire manufacturer.
∙ Improperly inflated tires can fail sud- denly and cause an accident.
∙ Before taking a long trip, or whenever you heavily load your vehicle, use a tire
pressure gauge to ensure that the tire
pressures are at the specified level.
Tire wear and damage
1. Wear indicator
2. Location mark
WARNING
∙ Tires should be periodically inspected forwear, cracking, bulging or objects caught
in the tread. If excessive wear, cracks,
bulging or deep cuts are found, the tire(s)
should be replaced.
∙ The original tires have built-in tread wear indicators. When the wear indicators are
visible, the tire(s) should be replaced.
∙ Tires degrade with age and use. Have tires, including the spare, over 6 years old
checked by a qualified technician because
some tire damage may not be obvious.
Replace the tires as necessary to prevent
tire failure and possible personal injury.
∙ Improper service of the spare tire may result in serious personal injury. If it is
necessary to repair the spare tire, con-
tact an INFINITI retailer.
Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carrying
capacity as originally equipped. For addi-
tional information, refer to “Wheels and tires”
in the “Technical and consumer information”
section of this manual.
WDI0259
8-36Maintenance and do-it-yourself

WARNING
∙ The use of tires other than those recom-mended or the mixed use of tires of dif-
ferent brands, construction (bias, bias-
belted or radial), or tread patterns can
adversely affect the ride, braking, han-
dling, VDC system, ground clearance,
body-to-tire clearance, tire chain clear-
ance, speedometer calibration, headlight
aim and bumper height. Some of these
effects may lead to accidents and could
result in serious personal injury.
∙ If the wheels are changed for any reason, always replace with wheels which have
the same off-set dimension. Wheels of a
different off-set could cause premature
tire wear, degrade vehicle handling char-
acteristics, affect the VDC system
and/or interference with the brake discs.
Such interference can lead to decreased
braking efficiency and/or early brake
pad wear. For additional information on
wheel off-set dimensions, refer to
“Wheels and tires” in the “Technical and
consumer information” section of this
manual. ∙ When replacing a wheel without the
TPMS such as the spare tire, the TPMS
will not function and the low tire pressure
warning light will flash for approximately
one minute. The light will remain on after
one minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you visit
an INFINITI retailer for this service.
∙ Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
∙ The TPMS sensor may be damaged if it is not handled correctly. Be careful when
handling the TPMS sensor.
∙ When replacing the TPMS sensor, the ID registration may be required. Contact an
INFINITI retailer for ID registration.
∙ Do not use a valve stem cap that is not specified by INFINITI. The valve stem cap
may become stuck.
∙ Be sure that the valve stem caps are cor- rectly fitted. Otherwise the valve may be
clogged up with dirt and cause a malfunc-
tion or loss of pressure. ∙ Do not install a damaged or deformed
wheel or tire even if it has been repaired.
Such wheels or tires could have structural
damage and could fail without warning.
∙ The use of retread tires is not recommended.
Wheel balance
Unbalanced wheels may affect vehicle han-
dling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required.
Care of wheels
∙ Wash the wheels when washing the ve-
hicle to maintain their appearance.
∙ Clean the inner side of the wheels when the wheel is changed or the underside of
the vehicle is washed.
∙ Do not use abrasive cleaners when washing the wheels.
∙ Inspect wheel rims regularly for dents or corrosion. Such damage may cause loss
of pressure or poor seal at the tire bead.
Maintenance and do-it-yourself8-37

∙ INFINITI recommends waxing the roadwheels to protect against road salt in
areas where it is used during winter.

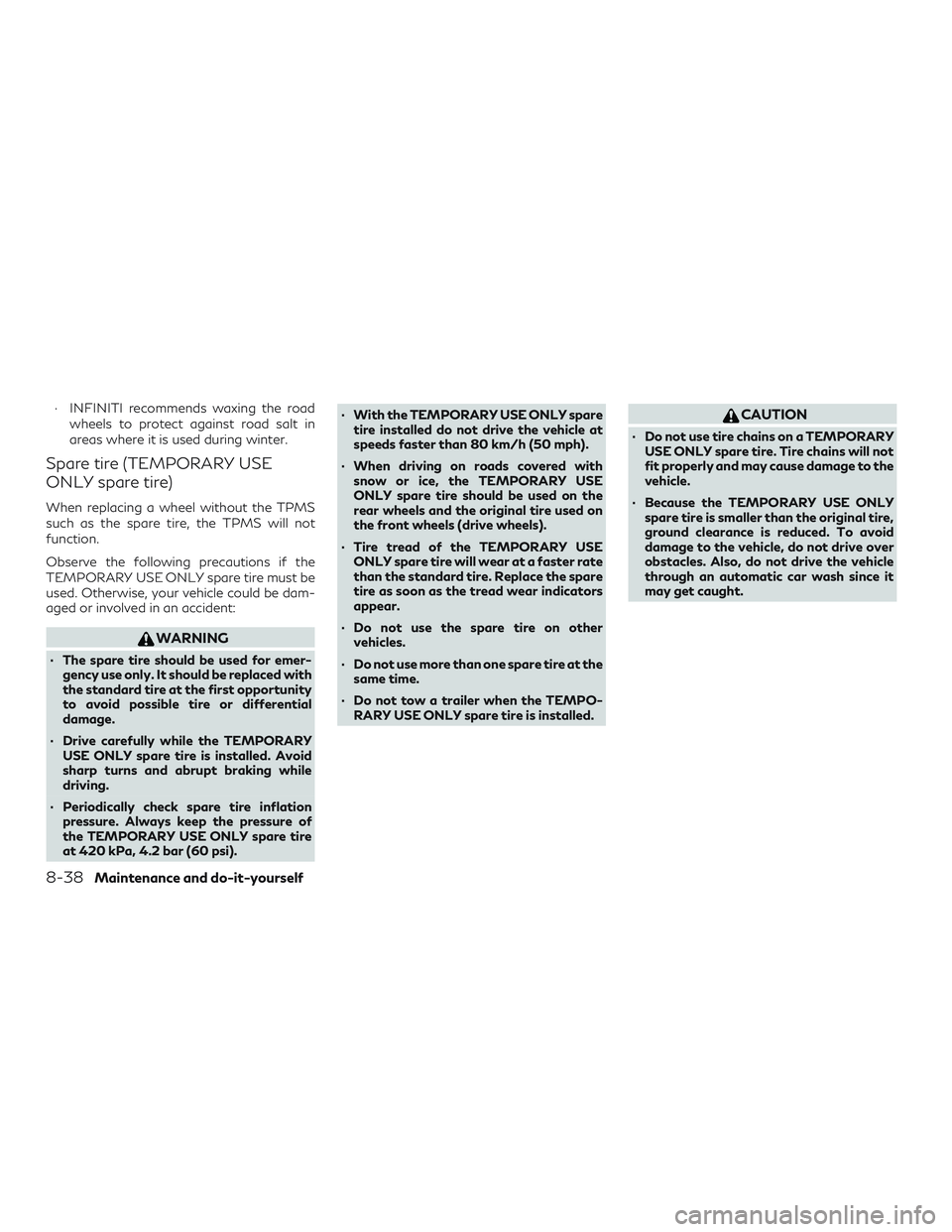

Spare tire (TEMPORARY USE
ONLY spare tire)
When replacing a wheel without the TPMS
such as the spare tire, the TPMS will not
function.
Observe the following precautions if the
TEMPORARY USE ONLY spare tire must be
used. Otherwise, your vehicle could be dam-
aged or involved in an accident:
WARNING
∙ The spare tire should be used for emer-gency use only. It should be replaced with
the standard tire at the first opportunity
to avoid possible tire or differential
damage.
∙ Drive carefully while the TEMPORARY USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving.
∙ Periodically check spare tire inflation pressure. Always keep the pressure of
the TEMPORARY USE ONLY spare tire
at 420 kPa, 4.2 bar (60 psi). ∙ With the TEMPORARY USE ONLY spare
tire installed do not drive the vehicle at
speeds faster than 80 km/h (50 mph).
∙ When driving on roads covered with snow or ice, the TEMPORARY USE
ONLY spare tire should be used on the
rear wheels and the original tire used on
the front wheels (drive wheels).
∙ Tire tread of the TEMPORARY USE ONLY spare tire will wear at a faster rate
than the standard tire. Replace the spare
tire as soon as the tread wear indicators
appear.
∙ Do not use the spare tire on other vehicles.
∙ Do not use more than one spare tire at the same time.
∙ Do not tow a trailer when the TEMPO- RARY USE ONLY spare tire is installed.
CAUTION
∙ Do not use tire chains on a TEMPORARYUSE ONLY spare tire. Tire chains will not
fit properly and may cause damage to the
vehicle.
∙ Because the TEMPORARY USE ONLY spare tire is smaller than the original tire,
ground clearance is reduced. To avoid
damage to the vehicle, do not drive over
obstacles. Also, do not drive the vehicle
through an automatic car wash since it
may get caught.
8-38Maintenance and do-it-yourself

9 Technical and consumer information
Recommended fluids/lubricants and capacities....9-2
Fuel Information ..............................9-4
Recommended SAE viscosity number ..........9-4

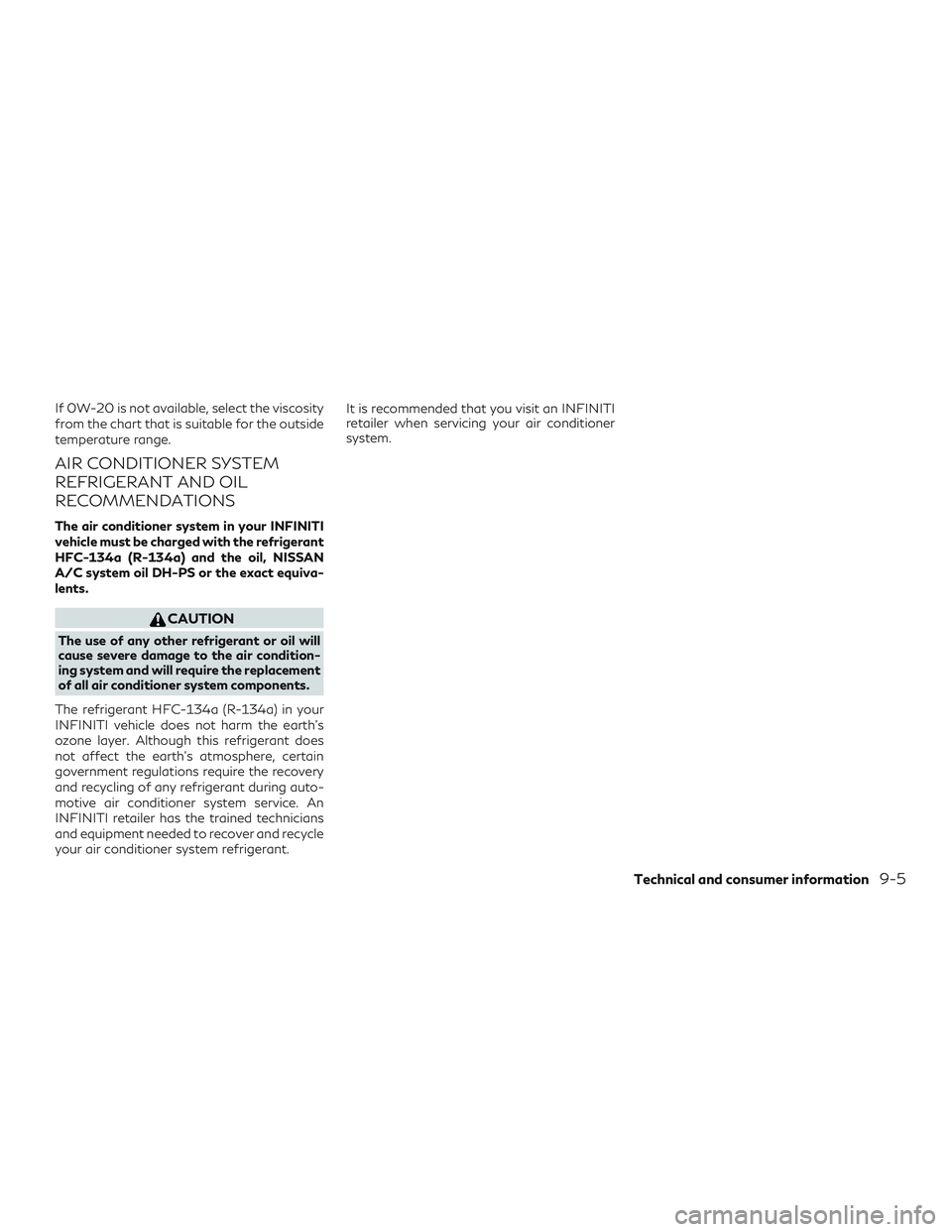

Air conditioner system refrigerant and
oil recommendations ..........................9-5
Specifications ....................................9-6
Engine ........................................9-6

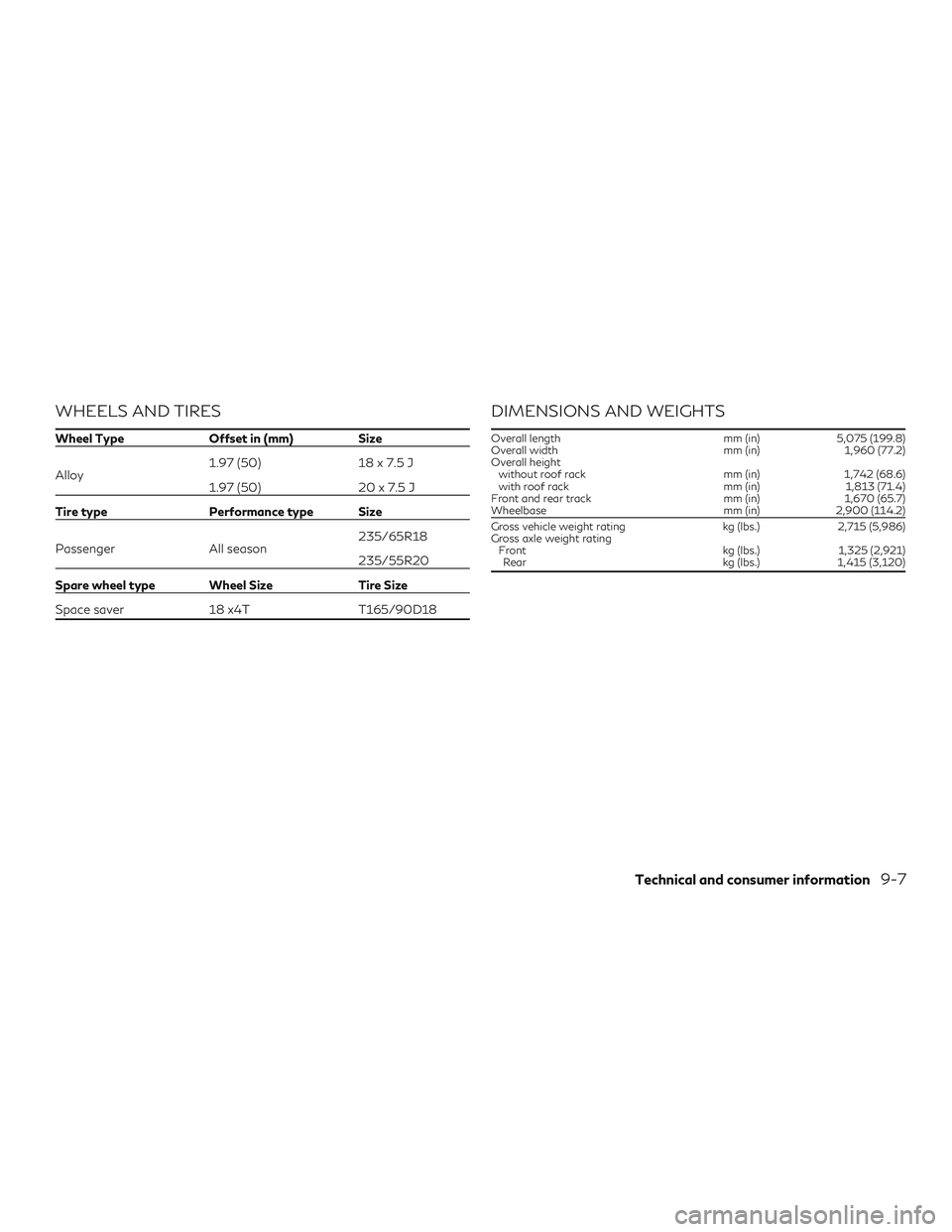

Wheels and tires ..............................9-7
Dimensions and weights .......................9-7
When traveling or registering in another
country ..........................................9-8
Vehicle identification .............................9-8
Vehicle Identification Number (VIN) plate ......9-8
Vehicle identification number
(chassis number) ..............................9-8 Engine serial number
..........................9-9
Certification plate
(For Gulf standard models) ....................9-9
Tire placard ................................. 9-10
Air conditioner specification label ............9-10
Installing front license plate .....................9-10
Vehicle loading information .....................9-12
Terms ...................................... 9-12
Vehicle load capacity ........................ 9-12
Securing the load ............................ 9-14
Loading tips ................................ 9-15
Measurement of weights ....................9-15
Uniform tire quality grading .....................9-15

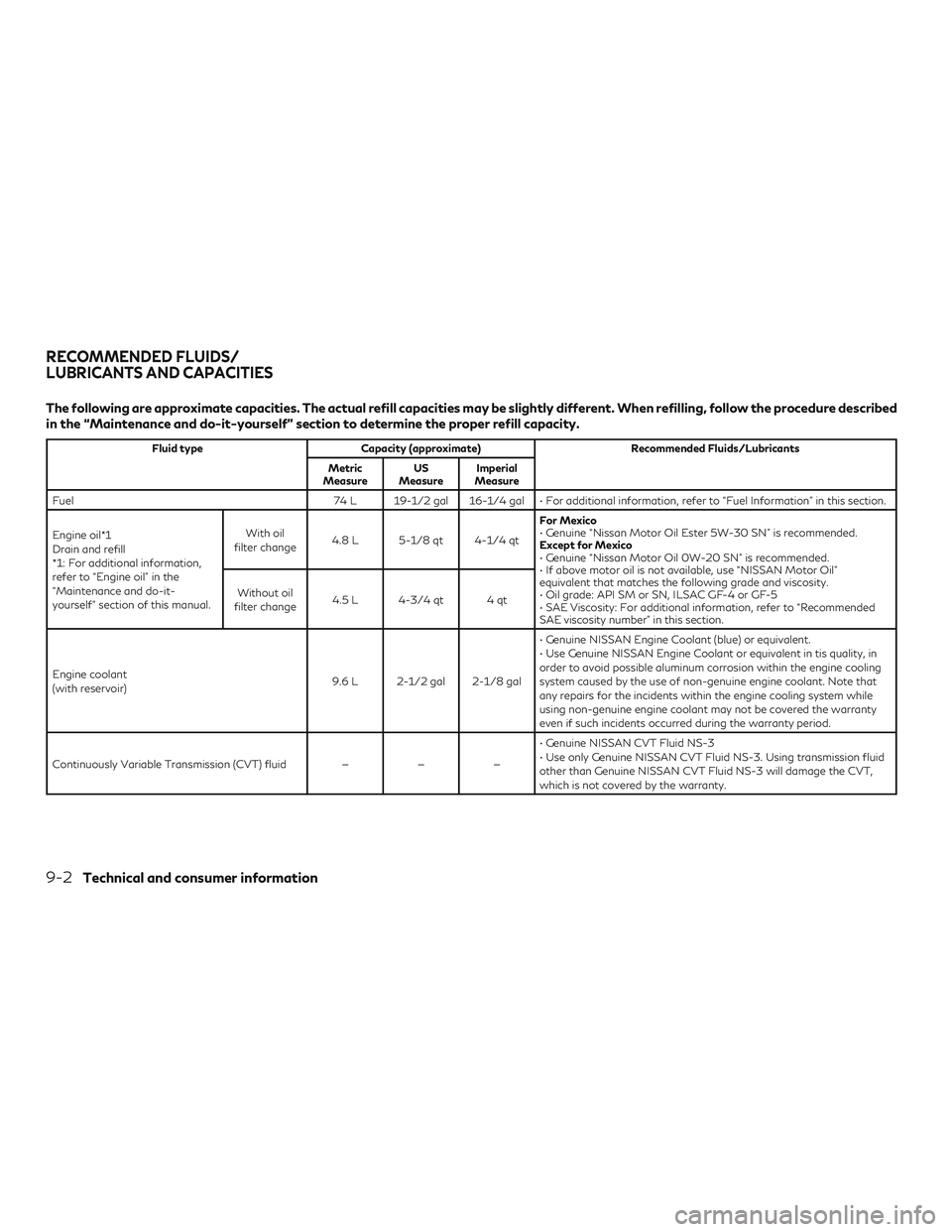

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure described
in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Fluid typeCapacity (approximate) Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Fuel 74 L 19-1/2 gal 16-1/4 gal • For additional information, refer to “Fuel Information” in this section.
Engine oil*1
Drain and refill
*1: For additional information,
refer to “Engine oil” in the
“Maintenance and do-it-
yourself” section of this manual. With oil
filter change 4.8 L 5-1/8 qt 4-1/4 qt For Mexico
• Genuine “Nissan Motor Oil Ester 5W-30 SN” is recommended.
Except for Mexico
• Genuine “Nissan Motor Oil 0W-20 SN” is recommended.
• If above motor oil is not available, use “NISSAN Motor Oil”
equivalent that matches the following grade and viscosity.
• Oil grade: API SM or SN, ILSAC GF-4 or GF-5
• SAE Viscosity: For additional information, refer to “Recommended
SAE viscosity number” in this section.
Without oil
filter change 4.5 L 4-3/4 qt 4 qt
Engine coolant
(with reservoir) 9.6 L 2-1/2 gal 2-1/8 gal• Genuine NISSAN Engine Coolant (blue) or equivalent.
• Use Genuine NISSAN Engine Coolant or equivalent in tis quality, in
order to avoid possible aluminum corrosion within the engine cooling
system caused by the use of non-genuine engine coolant. Note that
any repairs for the incidents within the engine cooling system while
using non-genuine engine coolant may not be covered the warranty
even if such incidents occurred during the warranty period.
Continuously Variable Transmission (CVT) fluid ———• Genuine NISSAN CVT Fluid NS-3
• Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid
other than Genuine NISSAN CVT Fluid NS-3 will damage the CVT,
which is not covered by the warranty.
RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES
9-2Technical and consumer information

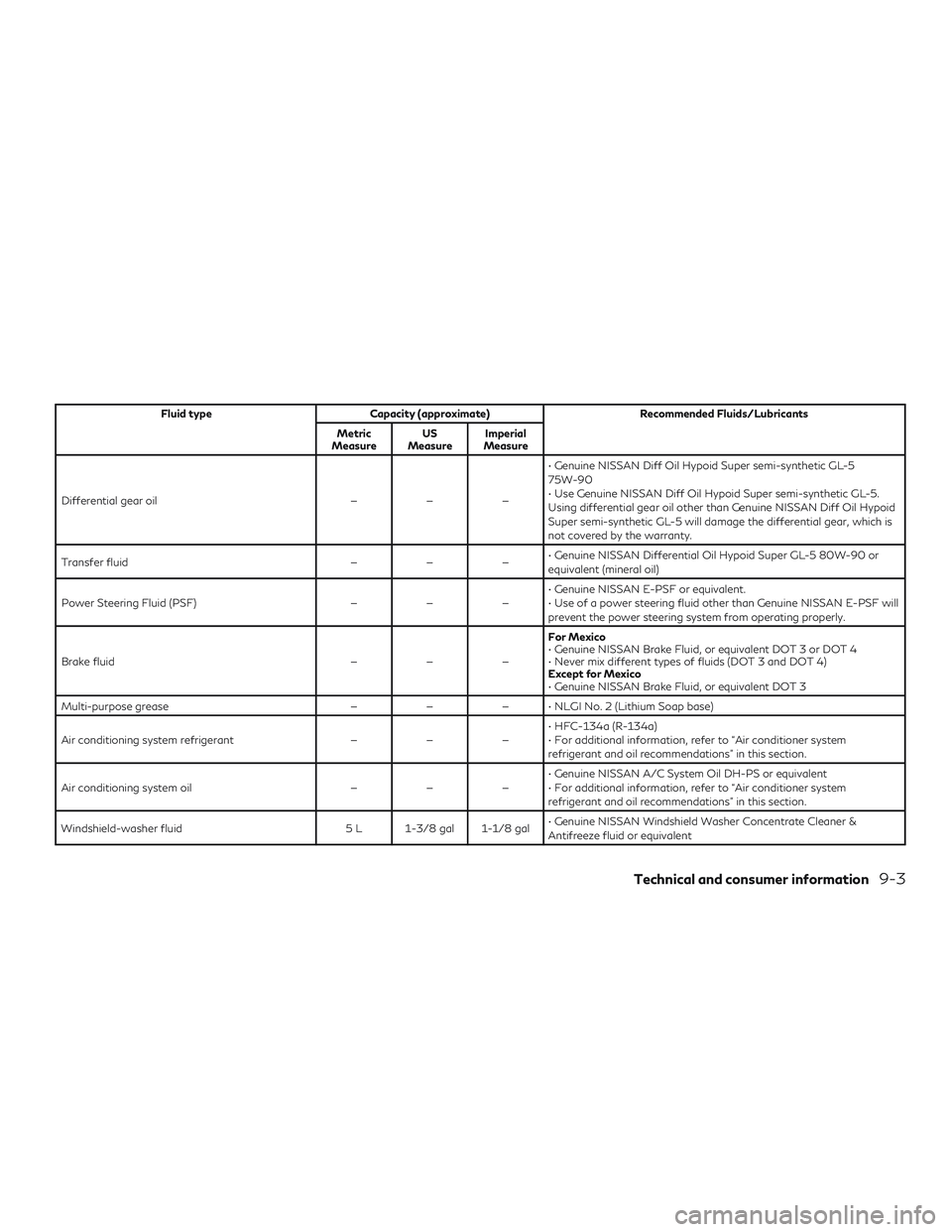

Fluid typeCapacity (approximate) Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Differential gear oil ———• Genuine NISSAN Diff Oil Hypoid Super semi-synthetic GL-5
75W-90
• Use Genuine NISSAN Diff Oil Hypoid Super semi-synthetic GL-5.
Using differential gear oil other than Genuine NISSAN Diff Oil Hypoid
Super semi-synthetic GL-5 will damage the differential gear, which is
not covered by the warranty.
Transfer fluid ———• Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or
equivalent (mineral oil)
Power Steering Fluid (PSF) ———• Genuine NISSAN E-PSF or equivalent.
• Use of a power steering fluid other than Genuine NISSAN E-PSF will
prevent the power steering system from operating properly.
Brake fluid ———For Mexico
• Genuine NISSAN Brake Fluid, or equivalent DOT 3 or DOT 4
• Never mix different types of fluids (DOT 3 and DOT 4)
Except for Mexico
• Genuine NISSAN Brake Fluid, or equivalent DOT 3
Multi-purpose grease ——— • NLGI No. 2 (Lithium Soap base)
Air conditioning system refrigerant ———• HFC-134a (R-134a)
• For additional information, refer to “Air conditioner system
refrigerant and oil recommendations” in this section.
Air conditioning system oil ———• Genuine NISSAN A/C System Oil DH-PS or equivalent
• For additional information, refer to “Air conditioner system
refrigerant and oil recommendations” in this section.
Windshield-washer fluid 5 L 1-3/8 gal 1-1/8 gal• Genuine NISSAN Windshield Washer Concentrate Cleaner &
Antifreeze fluid or equivalent
Technical and consumer information9-3

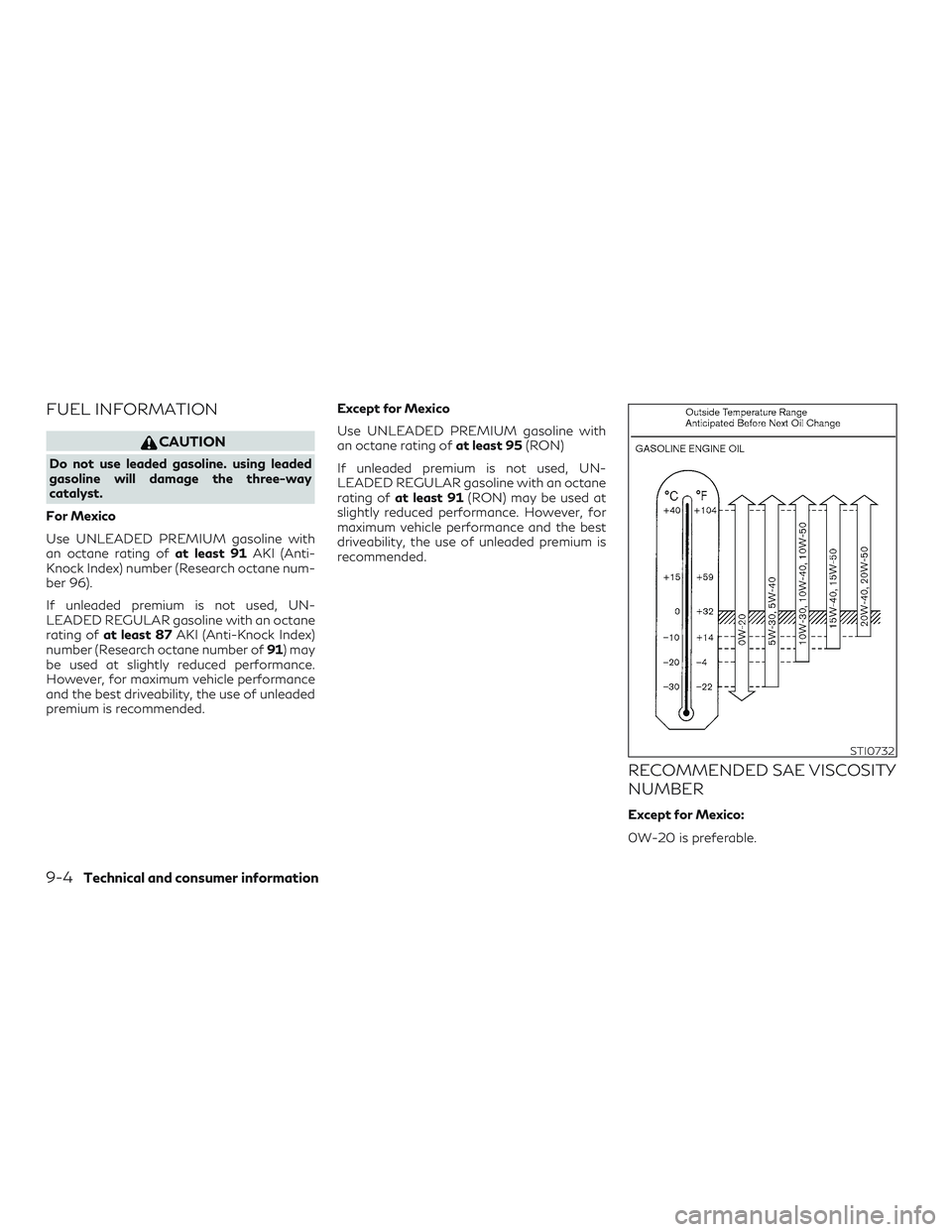

FUEL INFORMATION
CAUTION
Do not use leaded gasoline. using leaded
gasoline will damage the three-way
catalyst.
For Mexico
Use UNLEADED PREMIUM gasoline with
an octane rating of at least 91AKI (Anti-
Knock Index) number (Research octane num-
ber 96).
If unleaded premium is not used, UN-
LEADED REGULAR gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index)
number (Research octane number of 91) may
be used at slightly reduced performance.
However, for maximum vehicle performance
and the best driveability, the use of unleaded
premium is recommended. Except for Mexico
Use UNLEADED PREMIUM gasoline with
an octane rating of
at least 95(RON)
If unleaded premium is not used, UN-
LEADED REGULAR gasoline with an octane
rating of at least 91 (RON) may be used at
slightly reduced performance. However, for
maximum vehicle performance and the best
driveability, the use of unleaded premium is
recommended.
RECOMMENDED SAE VISCOSITY
NUMBER
Except for Mexico:
0W-20 is preferable.
STI0732
9-4Technical and consumer information

If 0W-20 is not available, select the viscosity
from the chart that is suitable for the outside
temperature range.
AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS
The air conditioner system in your INFINITI
vehicle must be charged with the refrigerant
HFC-134a (R-134a) and the oil, NISSAN
A/C system oil DH-PS or the exact equiva-
lents.
CAUTION
The use of any other refrigerant or oil will
cause severe damage to the air condition-
ing system and will require the replacement
of all air conditioner system components.
The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle does not harm the earth’s
ozone layer. Although this refrigerant does
not affect the earth’s atmosphere, certain
government regulations require the recovery
and recycling of any refrigerant during auto-
motive air conditioner system service. An
INFINITI retailer has the trained technicians
and equipment needed to recover and recycle
your air conditioner system refrigerant. It is recommended that you visit an INFINITI
retailer when servicing your air conditioner
system.
Technical and consumer information9-5

ENGINE
ModelVQ35DE/VQ35DD
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 6-cylinder, V-block, Slanted at 60°
Bore x Stroke mm (in) 95.5 x 81.4 (3.760 x 3.205)
Displacement cm
3(cu in) 3,498 (213.45)
Firing order 1–2–3–4–5–6
Idle speed
No adjustment is necessary.
CVT (in “N” position)
Ignition timing (degree B.T.D.C. at idle speed)
CO%atidle
Spark plug
FXE22HR-11
Spark plug gap (Nominal) mm (in) 1.1 (0.043)
Camshaft operation Timing chain
Maximum vehicle speed (for Gulf Standard Models) km/h (mph) 190 (118)
Maximum vehicle speed:
Gulf Standard regulation requires automobile manufacturers to indicate the maximum vehicle speed for applicable models. The maximum vehicle speed, listed above,
is the measured speed under certain testing conditions. The actual value may differ according to the vehicle usage and road and environmental conditions.
INFINITI recommends you to ALWAYS observe posted speed limits and never drive too fast for conditions.
SPECIFICATIONS
9-6Technical and consumer information

WHEELS AND TIRES
Wheel TypeOffset in (mm)Size
Alloy 1.97 (50)
18 x 7.5 J
1.97 (50) 20 x 7.5 J
Tire type Performance type Size
Passenger All season235/65R18
235/55R20
Spare wheel type Wheel Size Tire Size
Space saver 18 x4TT165/90D18
DIMENSIONS AND WEIGHTS
Overall length mm (in)5,075 (199.8)
Overall width mm (in)1,960 (77.2)
Overall height without roof rack mm (in)1,742 (68.6)
with roof rack mm (in)1,813 (71.4)
Front and rear track mm (in)1,670 (65.7)
Wheelbase mm (in)2,900 (114.2)
Gross vehicle weight rating kg (lbs.)2,715 (5,986)
Gross axle weight rating Front kg (lbs.)1,325 (2,921)
Rear kg (lbs.)1,415 (3,120)
Technical and consumer information9-7
