When planning to drive your INFINITI ve-
hicle in another country,you should first find
out if the fuel available is suitable for your
vehicle's engine.
Using fuel with an octane rating that is too
low may cause engine damage. All gasoline
vehicles must be operated with unleaded
gasoline. Therefore, avoid taking your vehicle
to areas where appropriate fuel is not avail-
able.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into another
country, state, province or district and reg-
istered, its modifications, transportation,
and registration are the responsibility of the
user. INFINITI is not responsible for any in-
convenience that may result.
VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE
The VIN plate is located as shown. This num-
ber is the identification for your vehicle and is
used in the vehicle registration.
The VIN number is also available through the
center display screen. For additional informa-
tion, refer to your “INFINITI InTouch™ Own-
er’s Manual”.
VEHICLE IDENTIFICATION
NUMBER (chassis number)
The vehicle identification number is located
as shown.
TI1050MLTI2028
WHEN TRAVELING OR
REGISTERING IN ANOTHER
COUNTRY VEHICLE IDENTIFICATION
9-8Technical and consumer information

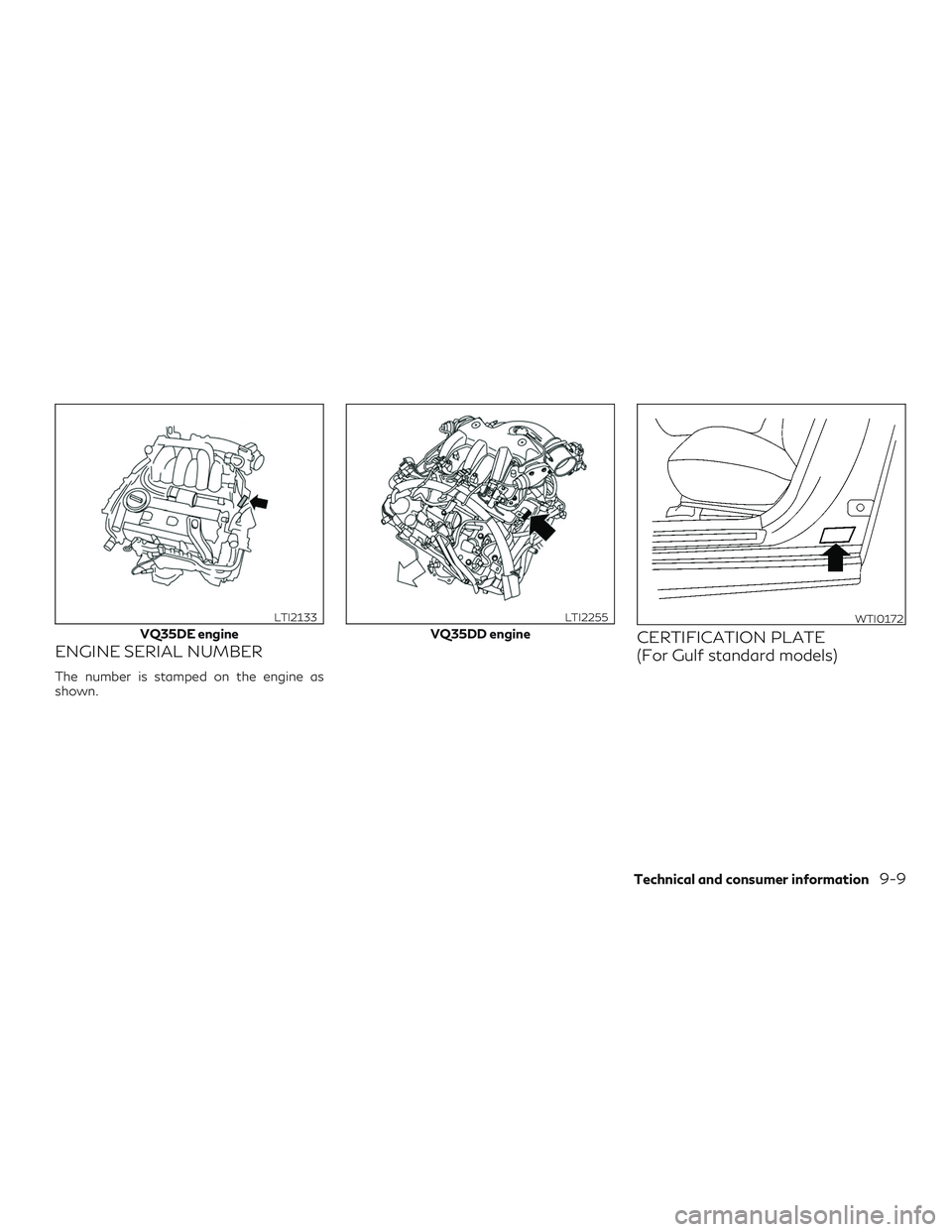

ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
CERTIFICATION PLATE
(For Gulf standard models)VQ35DE engine
LTI2133
VQ35DD engine
LTI2255WTI0172
Technical and consumer information9-9

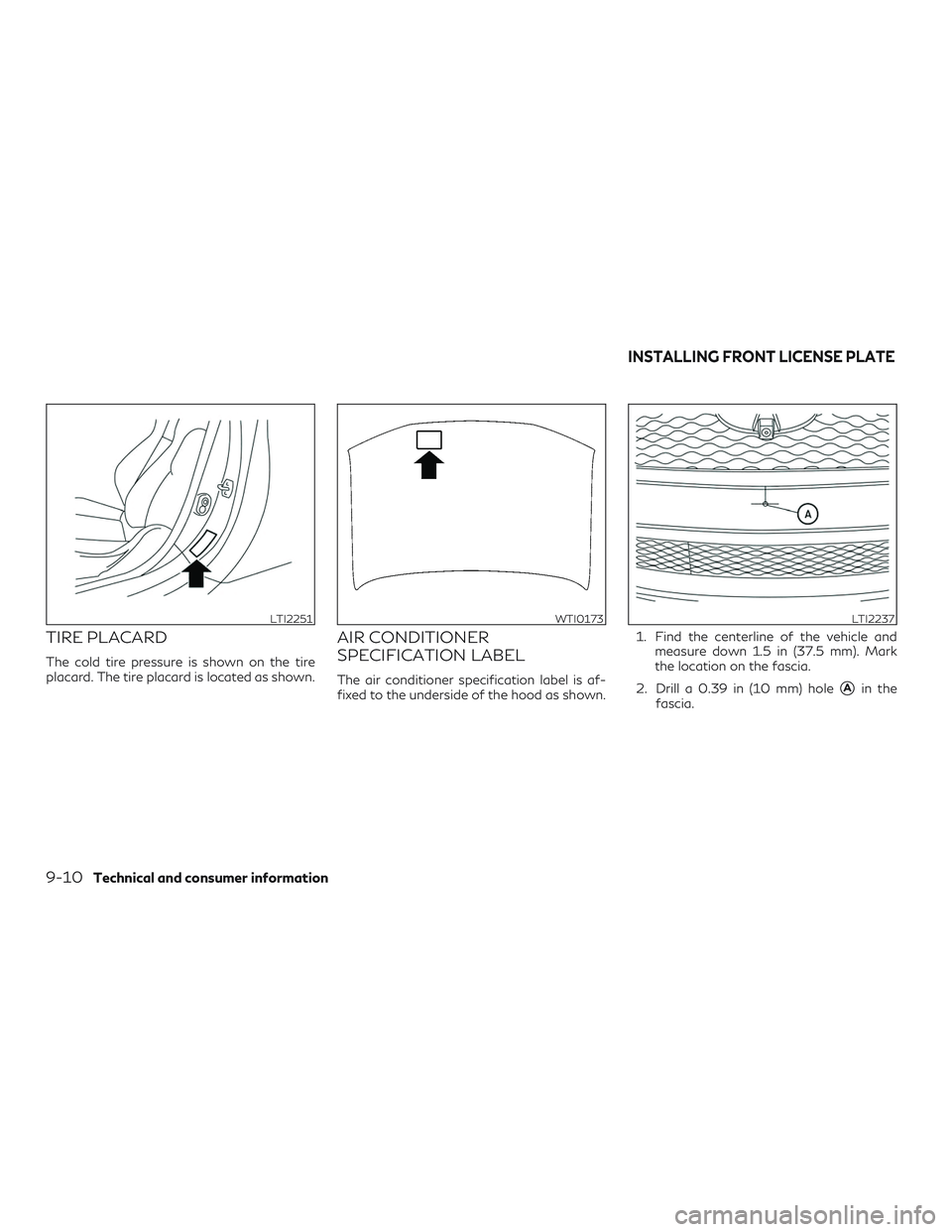

TIRE PLACARD
The cold tire pressure is shown on the tire
placard. The tire placard is located as shown.
AIR CONDITIONER
SPECIFICATION LABEL
The air conditioner specification label is af-
fixed to the underside of the hood as shown.1. Find the centerline of the vehicle and
measure down 1.5 in (37.5 mm). Mark
the location on the fascia.
2. Drill a 0.39 in (10 mm) holeAin the
fascia.
LTI2251WTI0173LTI2237
INSTALLING FRONT LICENSE PLATE
9-10Technical and consumer information

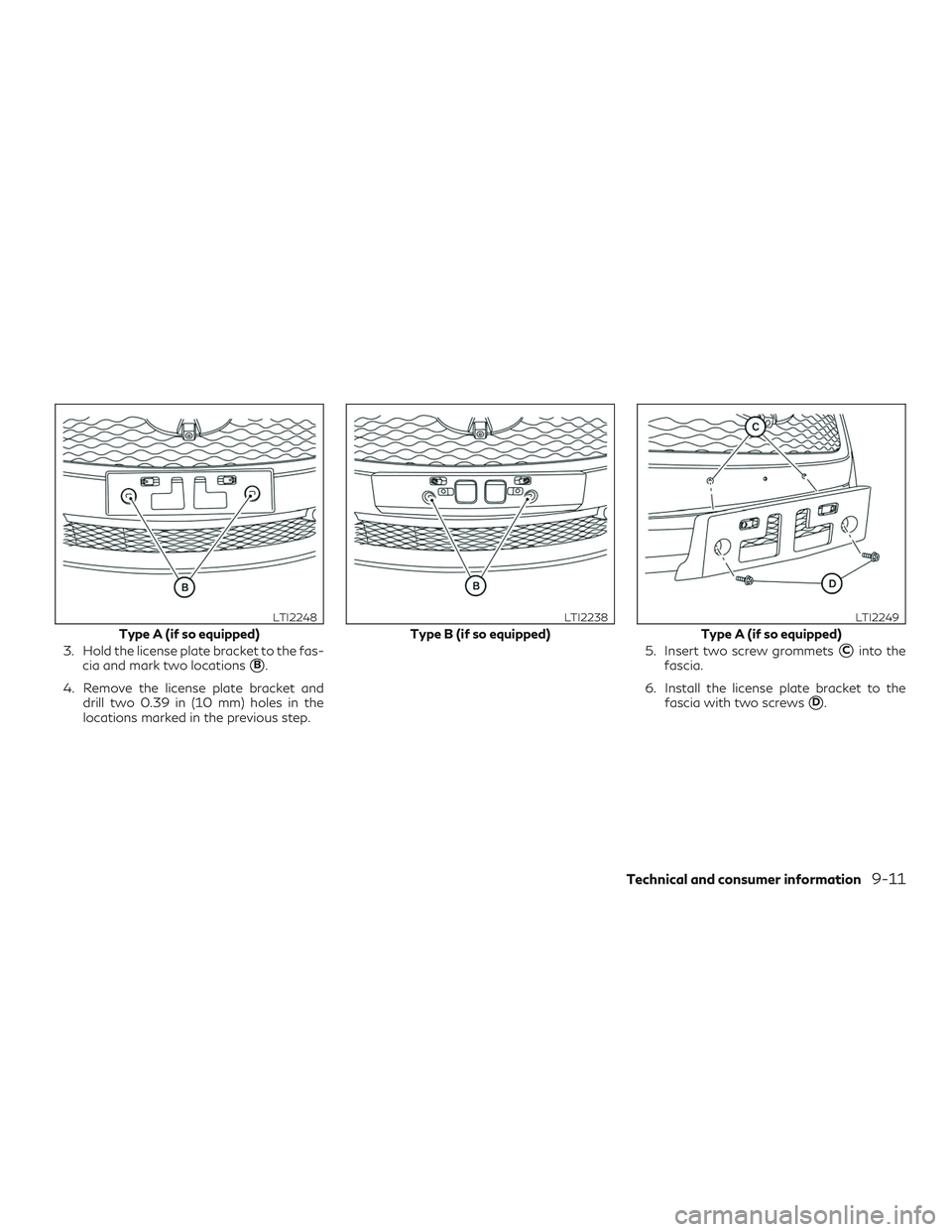

3. Hold the license plate bracket to the fas-cia and mark two locations
B.
4. Remove the license plate bracket and drill two 0.39 in (10 mm) holes in the
locations marked in the previous step. 5. Insert two screw grommetsCinto the
fascia.
6. Install the license plate bracket to the fascia with two screws
D.
Type A (if so equipped)
LTI2248
Type B (if so equipped)
LTI2238
Type A (if so equipped)
LTI2249
Technical and consumer information9-11

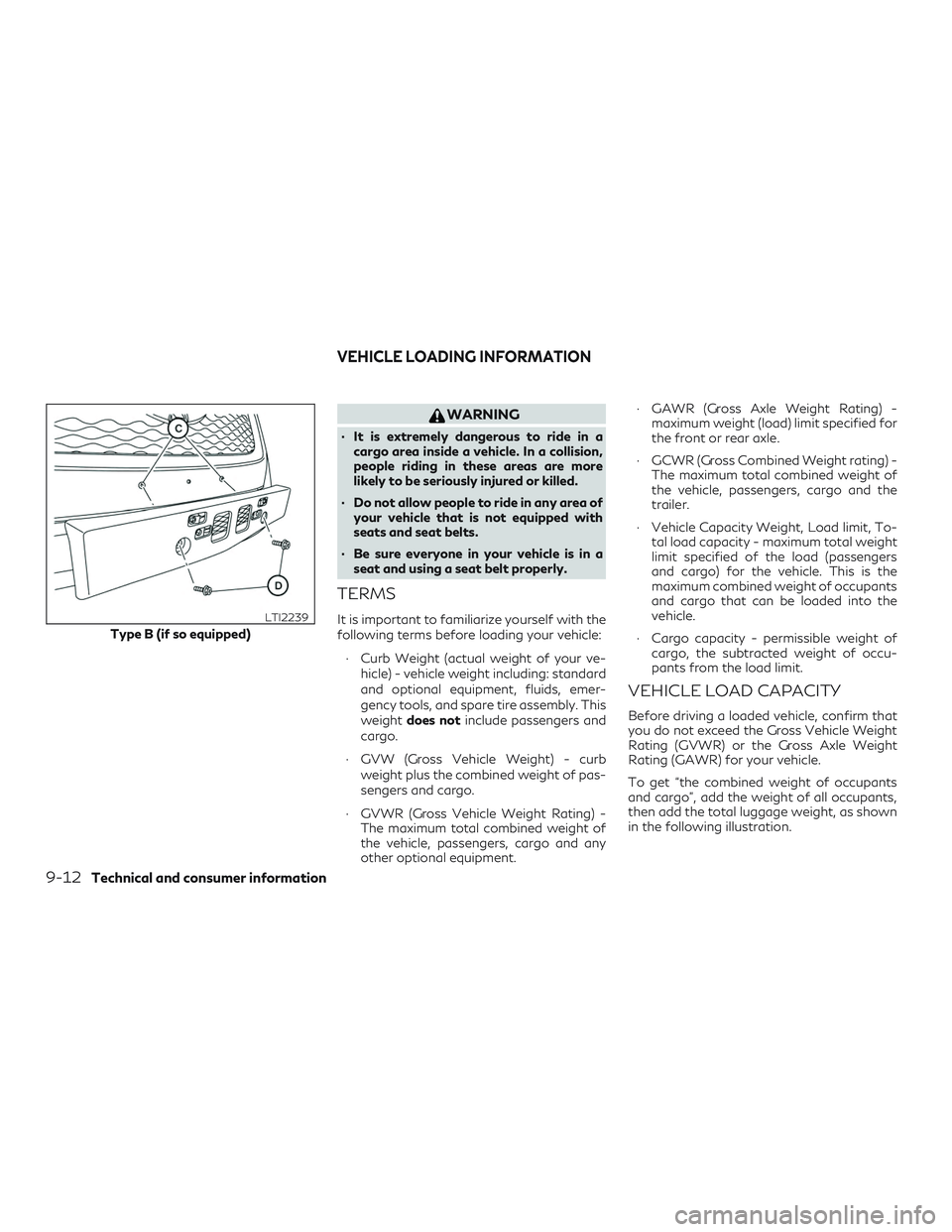

WARNING
∙ It is extremely dangerous to ride in acargo area inside a vehicle. In a collision,
people riding in these areas are more
likely to be seriously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped with
seats and seat belts.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt properly.
TERMS
It is important to familiarize yourself with the
following terms before loading your vehicle:
∙ Curb Weight (actual weight of your ve- hicle) - vehicle weight including: standard
and optional equipment, fluids, emer-
gency tools, and spare tire assembly. This
weight does not include passengers and
cargo.
∙ GVW (Gross Vehicle Weight) - curb weight plus the combined weight of pas-
sengers and cargo.
∙ GVWR (Gross Vehicle Weight Rating) - The maximum total combined weight of
the vehicle, passengers, cargo and any
other optional equipment. ∙ GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit specified for
the front or rear axle.
∙ GCWR (Gross Combined Weight rating) - The maximum total combined weight of
the vehicle, passengers, cargo and the
trailer.
∙ Vehicle Capacity Weight, Load limit, To- tal load capacity - maximum total weight
limit specified of the load (passengers
and cargo) for the vehicle. This is the
maximum combined weight of occupants
and cargo that can be loaded into the
vehicle.
∙ Cargo capacity - permissible weight of cargo, the subtracted weight of occu-
pants from the load limit.
VEHICLE LOAD CAPACITY
Before driving a loaded vehicle, confirm that
you do not exceed the Gross Vehicle Weight
Rating (GVWR) or the Gross Axle Weight
Rating (GAWR) for your vehicle.
To get “the combined weight of occupants
and cargo”, add the weight of all occupants,
then add the total luggage weight, as shown
in the following illustration.
Type B (if so equipped)
LTI2239
VEHICLE LOADING INFORMATION
9-12Technical and consumer information

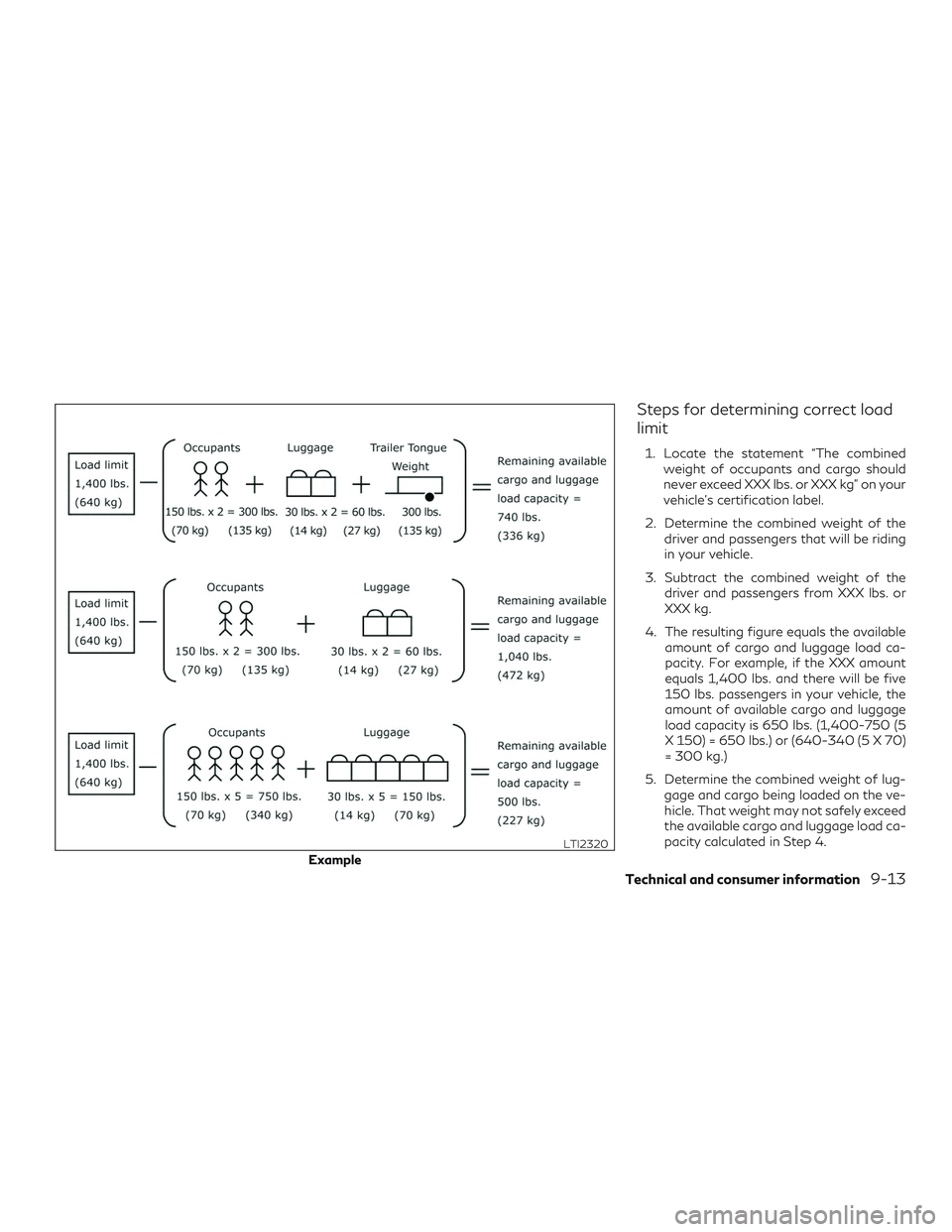

Steps for determining correct load
limit
1. Locate the statement “The combinedweight of occupants and cargo should
never exceed XXX lbs. or XXX kg” on your
vehicle’s certification label.
2. Determine the combined weight of the driver and passengers that will be riding
in your vehicle.
3. Subtract the combined weight of the driver and passengers from XXX lbs. or
XXX kg.
4. The resulting figure equals the available amount of cargo and luggage load ca-
pacity. For example, if the XXX amount
equals 1,400 lbs. and there will be five
150 lbs. passengers in your vehicle, the
amount of available cargo and luggage
load capacity is 650 lbs. (1,400-750 (5
X 150) = 650 lbs.) or (640-340 (5 X 70)
= 300 kg.)
5. Determine the combined weight of lug- gage and cargo being loaded on the ve-
hicle. That weight may not safely exceed
the available cargo and luggage load ca-
pacity calculated in Step 4.
Example
LTI2320
Technical and consumer information9-13

6. If your vehicle will be towing a trailer,load from your trailer will be transferred
to your vehicle. Consult this manual to
determine how this reduces the available
cargo and luggage load capacity of your
vehicle.
Before driving a loaded vehicle, confirm that
you do not exceed the Gross Vehicle Weight
Rating (GVWR) or the Gross Axle Weight
Rating (GAWR) for your vehicle. For addi-
tional information, refer to “Measurement of
weights” in this section.
Also check tires for proper inflation pres-
sures. For additional information, refer to
“Tire placard” in the “Maintenance and do-it-
yourself” section of this manual.

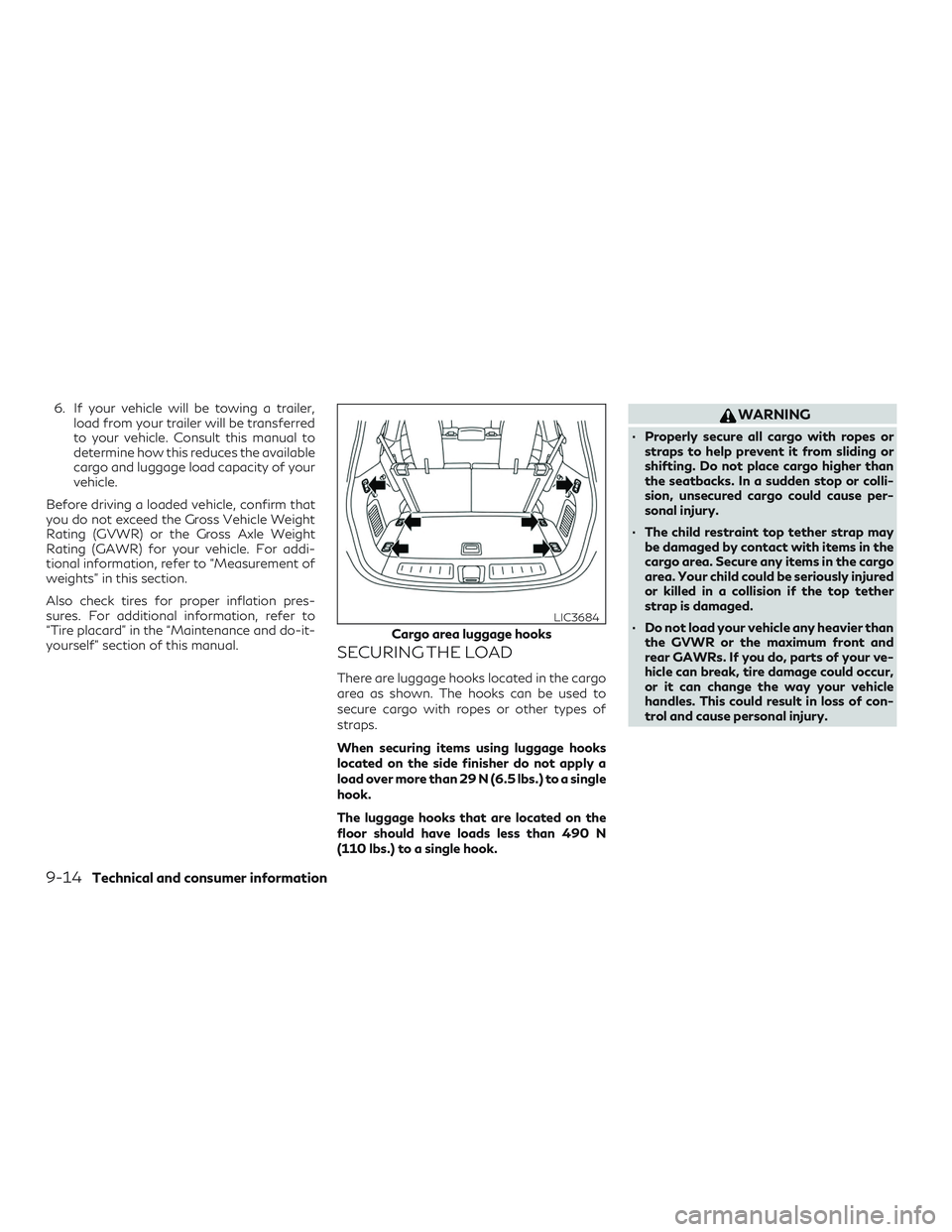

SECURING THE LOAD
There are luggage hooks located in the cargo
area as shown. The hooks can be used to
secure cargo with ropes or other types of
straps.
When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 29 N (6.5 lbs.) to a single
hook.
The luggage hooks that are located on the
floor should have loads less than 490 N
(110 lbs.) to a single hook.
WARNING
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
∙ The child restraint top tether strap may be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.
∙ Do not load your vehicle any heavier than the GVWR or the maximum front and
rear GAWRs. If you do, parts of your ve-
hicle can break, tire damage could occur,
or it can change the way your vehicle
handles. This could result in loss of con-
trol and cause personal injury.
Cargo area luggage hooks
LIC3684
9-14Technical and consumer information

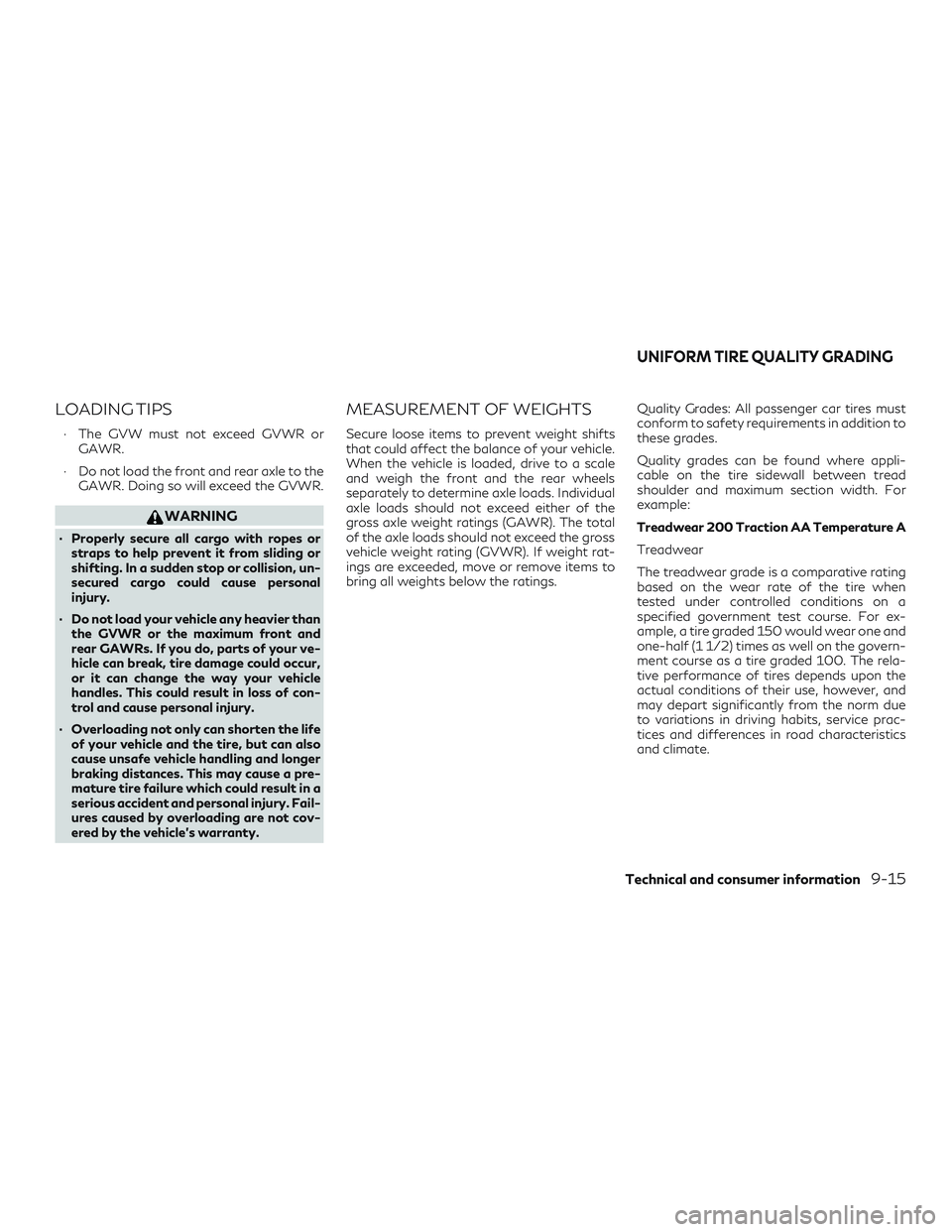

LOADING TIPS
∙ The GVW must not exceed GVWR orGAWR.
∙ Do not load the front and rear axle to the GAWR. Doing so will exceed the GVWR.
WARNING
∙ Properly secure all cargo with ropes orstraps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal
injury.
∙ Do not load your vehicle any heavier than the GVWR or the maximum front and
rear GAWRs. If you do, parts of your ve-
hicle can break, tire damage could occur,
or it can change the way your vehicle
handles. This could result in loss of con-
trol and cause personal injury.
∙ Overloading not only can shorten the life of your vehicle and the tire, but can also
cause unsafe vehicle handling and longer
braking distances. This may cause a pre-
mature tire failure which could result in a
serious accident and personal injury. Fail-
ures caused by overloading are not cov-
ered by the vehicle’s warranty.
MEASUREMENT OF WEIGHTS
Secure loose items to prevent weight shifts
that could affect the balance of your vehicle.
When the vehicle is loaded, drive to a scale
and weigh the front and the rear wheels
separately to determine axle loads. Individual
axle loads should not exceed either of the
gross axle weight ratings (GAWR). The total
of the axle loads should not exceed the gross
vehicle weight rating (GVWR). If weight rat-
ings are exceeded, move or remove items to
bring all weights below the ratings. Quality Grades: All passenger car tires must
conform to safety requirements in addition to
these grades.
Quality grades can be found where appli-
cable on the tire sidewall between tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one and
one-half (1 1/2) times as well on the govern-
ment course as a tire graded 100. The rela-
tive performance of tires depends upon the
actual conditions of their use, however, and
may depart significantly from the norm due
to variations in driving habits, service prac-
tices and differences in road characteristics
and climate.
UNIFORM TIRE QUALITY GRADING
Technical and consumer information9-15

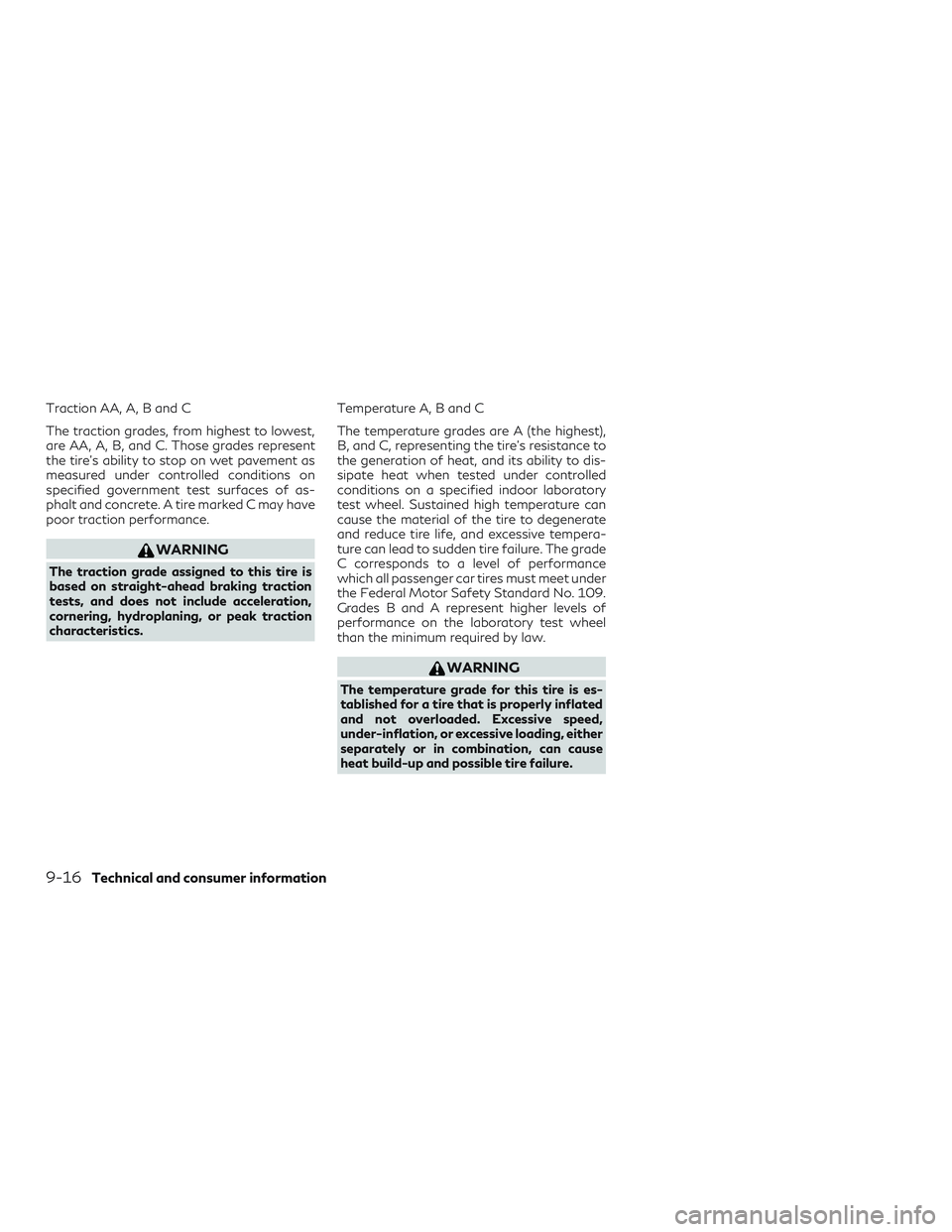

Traction AA, A, B and C
The traction grades, from highest to lowest,
are AA, A, B, and C. Those grades represent
the tire’s ability to stop on wet pavement as
measured under controlled conditions on
specified government test surfaces of as-
phalt and concrete. A tire marked C may have
poor traction performance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.Temperature A, B and C
The temperature grades are A (the highest),
B, and C, representing the tire’s resistance to
the generation of heat, and its ability to dis-
sipate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature can
cause the material of the tire to degenerate
and reduce tire life, and excessive tempera-
ture can lead to sudden tire failure. The grade
C corresponds to a level of performance
which all passenger car tires must meet under
the Federal Motor Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, either
separately or in combination, can cause
heat build-up and possible tire failure.
9-16Technical and consumer information

10 Index
2nd row bench seat adjustment....1-5,1-7
A
Air bag (See supplemental restraint
system).....................1-47
Air bag system Front (See supplemental front impact
airbagsystem)..............1-54
Air bag warning labels ............1-65
Airbagwarninglight.........1-65,2-13
Air bag warning light,
supplemental ..............1-65,2-13
Air cleaner ...................8-20
Air cleaner housing filter ..........8-20
Air conditioner Air conditioner operation ........4-34
Air conditioner specification label . . .9-10
Air conditioner system refrigerant
and oil recommendations .........9-5
Filter ....................8-20
Heater and air conditioner (automatic)
(if so equipped) ..............4-33
Heater and air conditioner controls . .4-34
Servicing air conditioner .........4-42
Alarm system (See
vehicle security system) ...........2-32
Anchor point locations ............1-31
Antenna ....................4-42
Antifreeze ..................5-151
Anti-lock brake warning light .........2-9
Anti-lock Braking System (ABS) .....5-141Armrests.....................1-8
Around View® Monitor
............4-3
Audible reminders ...............2-15
Autolight switch ...............2-40
Automatic Automatic drive positioner . . .3-37, 3-39
Automatic power window switch . . .2-64
Automatic anti-glare inside mirror .....3-33
Automatic door locks .............3-6
Automatic drive positioner .....3-37,3-39
B
Backup Collision Intervention (BCI) ....5-60
Battery ................5- 151, 8-16
Charge warning light ...........2-10
Battery replacement .............8-25
INFINITI Intelligent Key .........8-26
Keyfob...................8-25
Before starting the engine ..........5-17
Belt (See drive belt) ..............8-18
Blind Spot Intervention® (BSI) .......5-48
Blind Spot Warning (BSW) .........5-38
Boosterseats.................1-43
Brake Anti-lock Braking System (ABS) . . .5-141
Brake booster ...............8-23
Brakefluid.................8-14
Brakelight(Seestoplight) .......8-29
Brakepedal ............8-22,8-23
Brake system ...............5-141
Brakewarninglight ............2-9 Brake wear indicators
......2-15,8-23
Parking brake check ...........8-22
Parking brake operation .........5-23
Self-adjusting brakes ..........8-23
Brakeassist .................5-142
Brakefluid...................8-14
Brake system .................5-141
Break-in schedule ..............5-132
Brightness control Instrument panel .............2-44
Bulb check/instrument panel .........2-8
Bulb replacement ...............8-29
C
C

apacities and recommended
fuel/lubricants .................9-2
Cargoareastoragebin ...........2-61
Cargolight................... 2-73
Cargo (See vehicle loading information). .9-12
Car phone or CB radio ............4-42
Check engine indicator light (See
malfunction indicator lamp) .........2-14
Check tire pressure ..............2-28
Child restraints .....1-19,1-20,1-26,1-28
LATCH (Lower Anchors and Tethers
for CHildren) System ...........1-28
Precautions on child
restraints ......1-26,1-33,1-38,1-43
Top tether strap anchor point
locations..................1-31
Child restraint with top tether strap ....1-30
