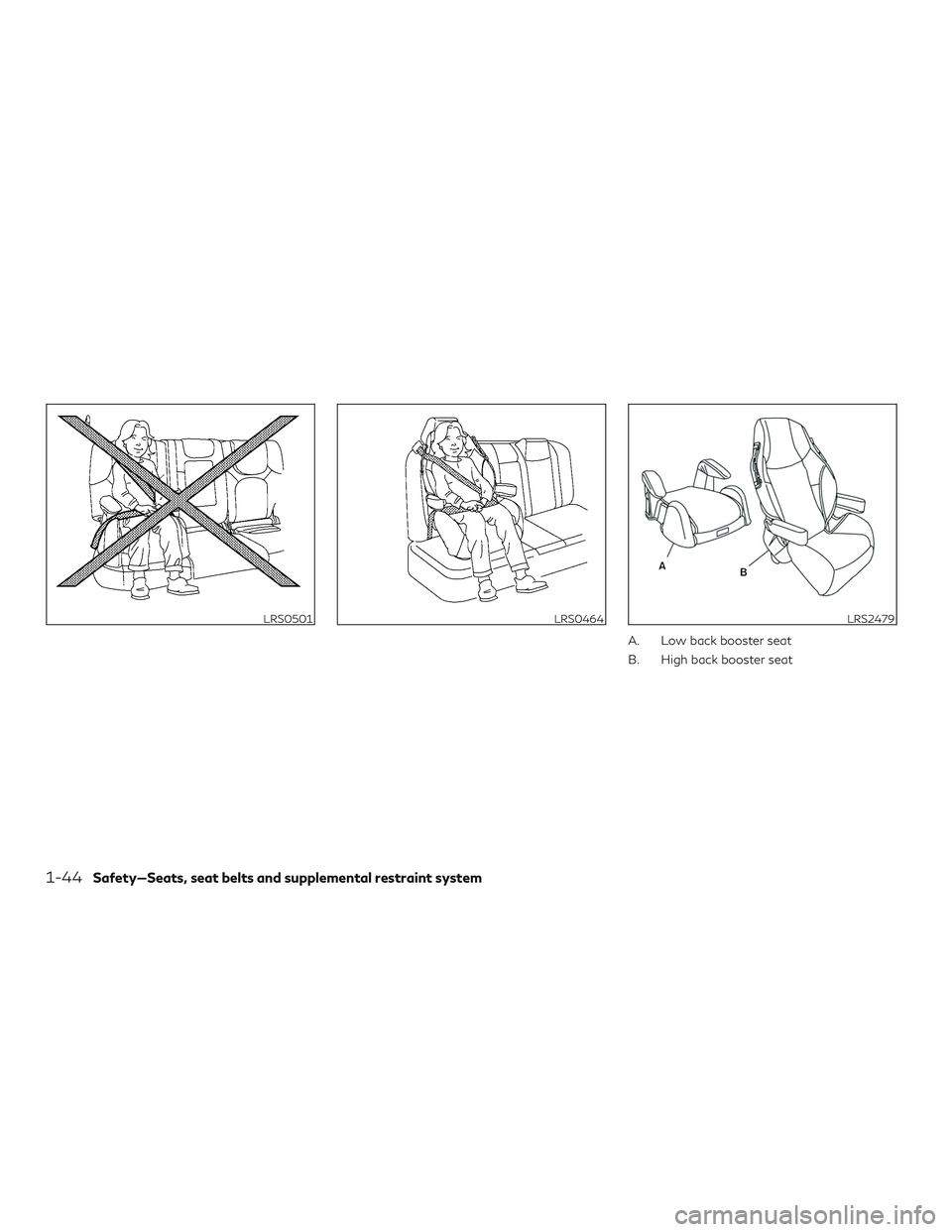

A. Low back booster seat
B. High back booster seat
LRS0501LRS0464LRS2479
1-44Safety—Seats, seat belts and supplemental restraint system

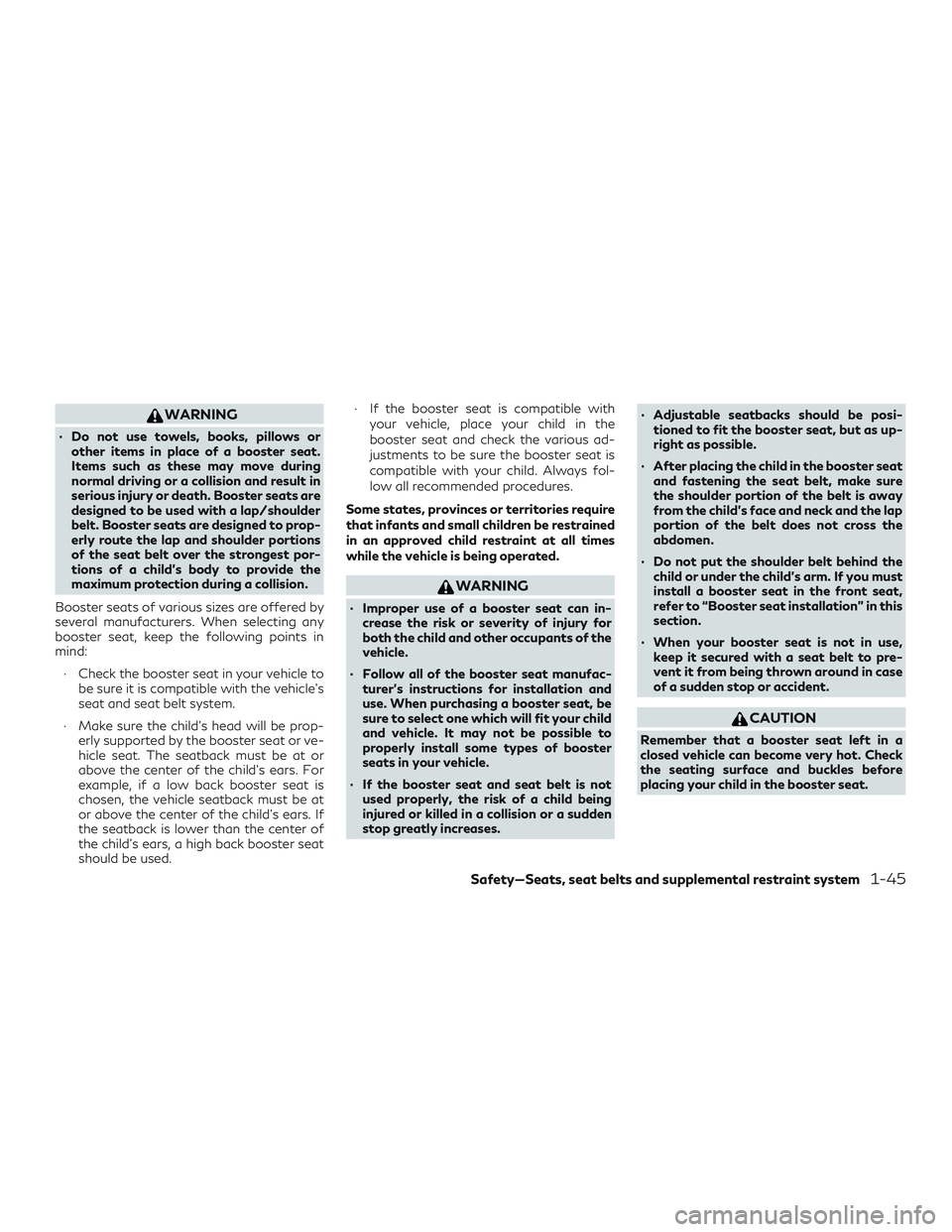

WARNING
∙ Do not use towels, books, pillows orother items in place of a booster seat.
Items such as these may move during
normal driving or a collision and result in
serious injury or death. Booster seats are
designed to be used with a lap/shoulder
belt. Booster seats are designed to prop-
erly route the lap and shoulder portions
of the seat belt over the strongest por-
tions of a child’s body to provide the
maximum protection during a collision.
Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in
mind: ∙ Check the booster seat in your vehicle to be sure it is compatible with the vehicle’s
seat and seat belt system.
∙ Make sure the child’s head will be prop- erly supported by the booster seat or ve-
hicle seat. The seatback must be at or
above the center of the child’s ears. For
example, if a low back booster seat is
chosen, the vehicle seatback must be at
or above the center of the child’s ears. If
the seatback is lower than the center of
the child’s ears, a high back booster seat
should be used. ∙ If the booster seat is compatible with
your vehicle, place your child in the
booster seat and check the various ad-
justments to be sure the booster seat is
compatible with your child. Always fol-
low all recommended procedures.
Some states, provinces or territories require
that infants and small children be restrained
in an approved child restraint at all times
while the vehicle is being operated.
WARNING
∙ Improper use of a booster seat can in- crease the risk or severity of injury for
both the child and other occupants of the
vehicle.
∙ Follow all of the booster seat manufac- turer’s instructions for installation and
use. When purchasing a booster seat, be
sure to select one which will fit your child
and vehicle. It may not be possible to
properly install some types of booster
seats in your vehicle.
∙ If the booster seat and seat belt is not used properly, the risk of a child being
injured or killed in a collision or a sudden
stop greatly increases. ∙ Adjustable seatbacks should be posi-
tioned to fit the booster seat, but as up-
right as possible.
∙ After placing the child in the booster seat and fastening the seat belt, make sure
the shoulder portion of the belt is away
from the child’s face and neck and the lap
portion of the belt does not cross the
abdomen.
∙ Do not put the shoulder belt behind the child or under the child’s arm. If you must
install a booster seat in the front seat,
refer to “Booster seat installation” in this
section.
∙ When your booster seat is not in use, keep it secured with a seat belt to pre-
vent it from being thrown around in case
of a sudden stop or accident.
CAUTION
Remember that a booster seat left in a
closed vehicle can become very hot. Check
the seating surface and buckles before
placing your child in the booster seat.
Safety—Seats, seat belts and supplemental restraint system1-45

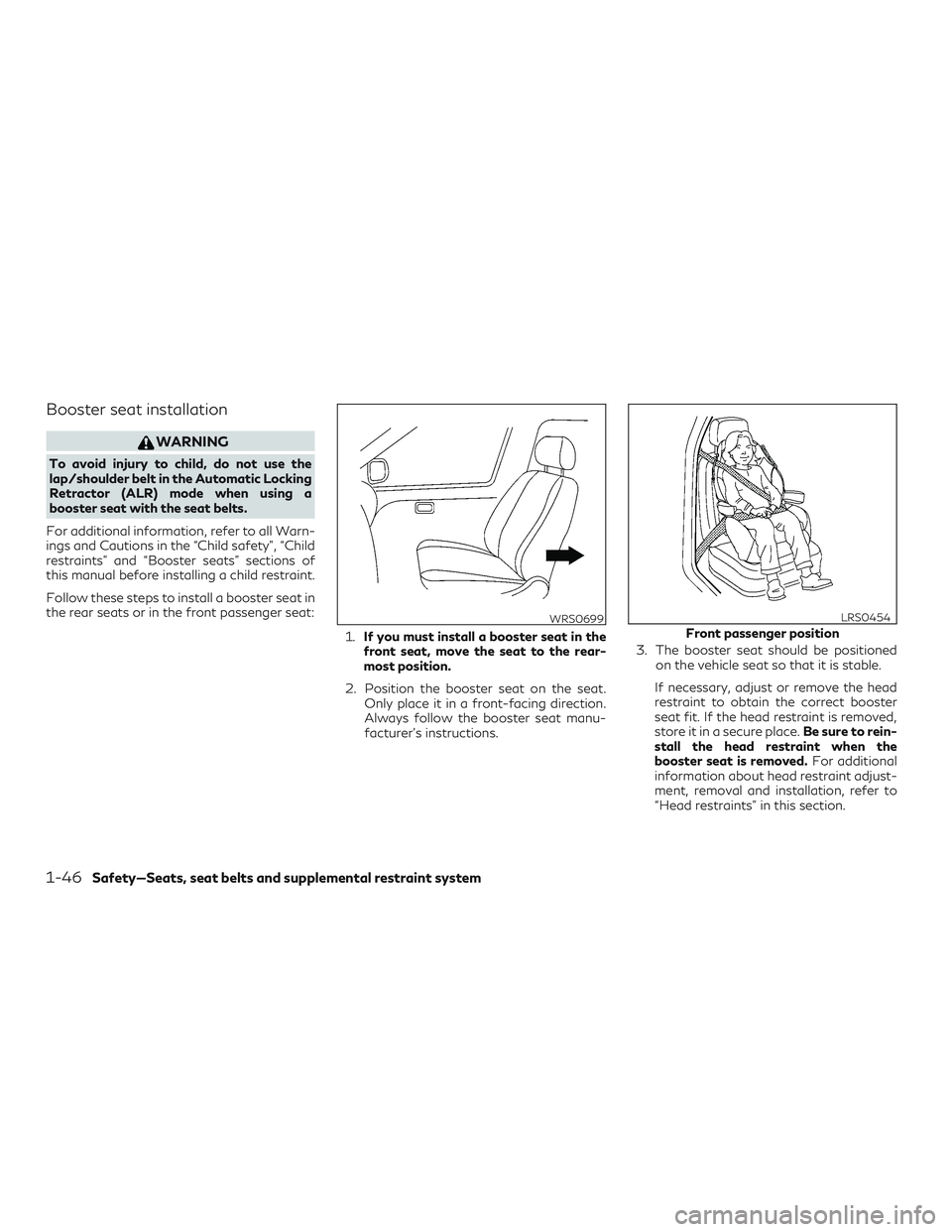

Booster seat installation
WARNING
To avoid injury to child, do not use the
lap/shoulder belt in the Automatic Locking
Retractor (ALR) mode when using a
booster seat with the seat belts.
For additional information, refer to all Warn-
ings and Cautions in the “Child safety”, “Child
restraints” and “Booster seats” sections of
this manual before installing a child restraint.
Follow these steps to install a booster seat in
the rear seats or in the front passenger seat:
1.If you must install a booster seat in the
front seat, move the seat to the rear-
most position.
2. Position the booster seat on the seat. Only place it in a front-facing direction.
Always follow the booster seat manu-
facturer’s instructions. 3. The booster seat should be positioned
on the vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint to obtain the correct booster
seat fit. If the head restraint is removed,
store it in a secure place. Be sure to rein-
stall the head restraint when the
booster seat is removed. For additional
information about head restraint adjust-
ment, removal and installation, refer to
“Head restraints” in this section.
WRS0699Front passenger position
LRS0454
1-46Safety—Seats, seat belts and supplemental restraint system

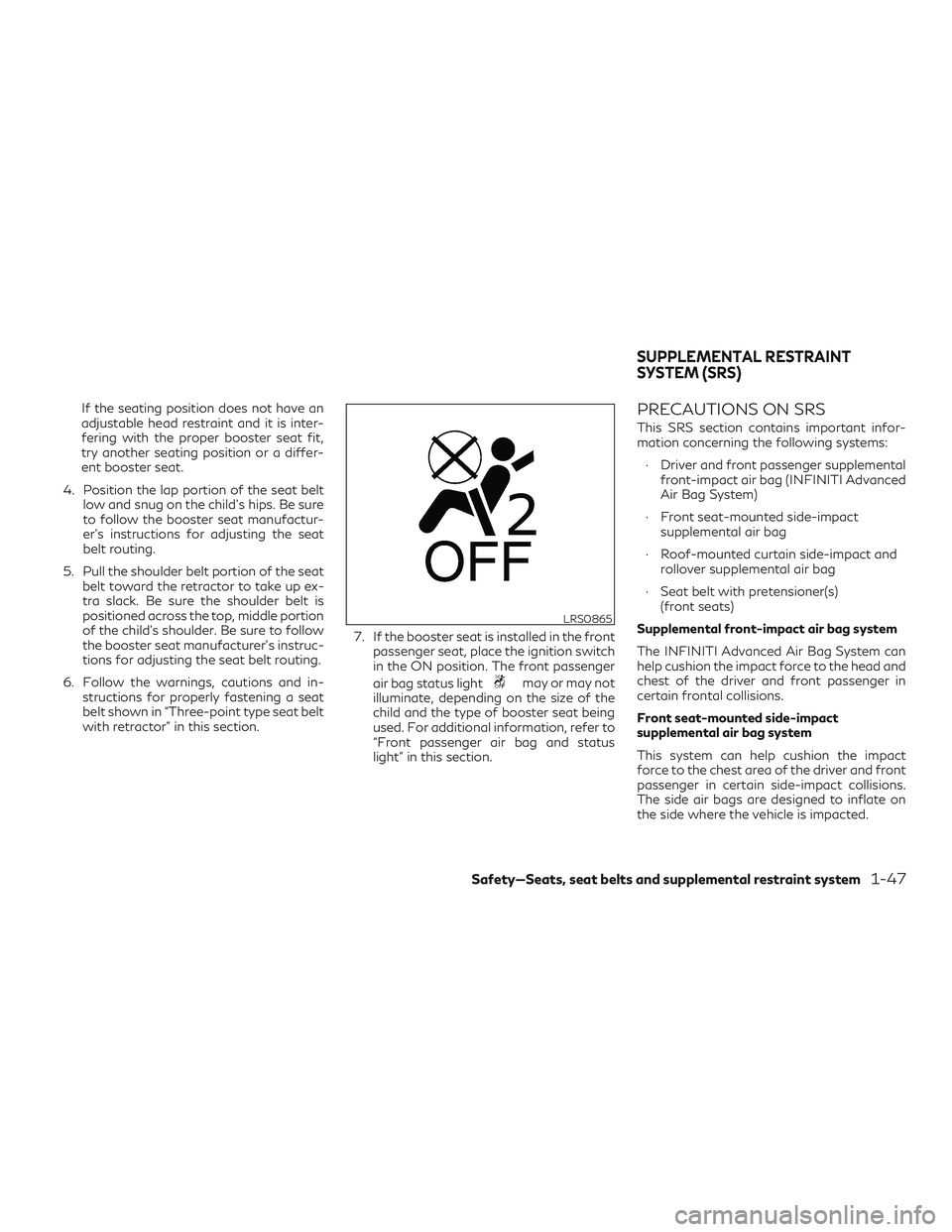

If the seating position does not have an
adjustable head restraint and it is inter-
fering with the proper booster seat fit,
try another seating position or a differ-
ent booster seat.
4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure
to follow the booster seat manufactur-
er’s instructions for adjusting the seat
belt routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up ex-
tra slack. Be sure the shoulder belt is
positioned across the top, middle portion
of the child’s shoulder. Be sure to follow
the booster seat manufacturer’s instruc-
tions for adjusting the seat belt routing.
6. Follow the warnings, cautions and in- structions for properly fastening a seat
belt shown in “Three-point type seat belt
with retractor” in this section. 7. If the booster seat is installed in the front
passenger seat, place the ignition switch
in the ON position. The front passenger
air bag status light
may or may not
illuminate, depending on the size of the
child and the type of booster seat being
used. For additional information, refer to
“Front passenger air bag and status
light” in this section.
PRECAUTIONS ON SRS
This SRS section contains important infor-
mation concerning the following systems:
∙ Driver and front passenger supplemental front-impact air bag (INFINITI Advanced
Air Bag System)
∙ Front seat-mounted side-impact supplemental air bag
∙ Roof-mounted curtain side-impact and rollover supplemental air bag
∙ Seat belt with pretensioner(s) (front seats)
Supplemental front-impact air bag system
The INFINITI Advanced Air Bag System can
help cushion the impact force to the head and
chest of the driver and front passenger in
certain frontal collisions.
Front seat-mounted side-impact
supplemental air bag system
This system can help cushion the impact
force to the chest area of the driver and front
passenger in certain side-impact collisions.
The side air bags are designed to inflate on
the side where the vehicle is impacted.
LRS0865
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
Safety—Seats, seat belts and supplemental restraint system1-47

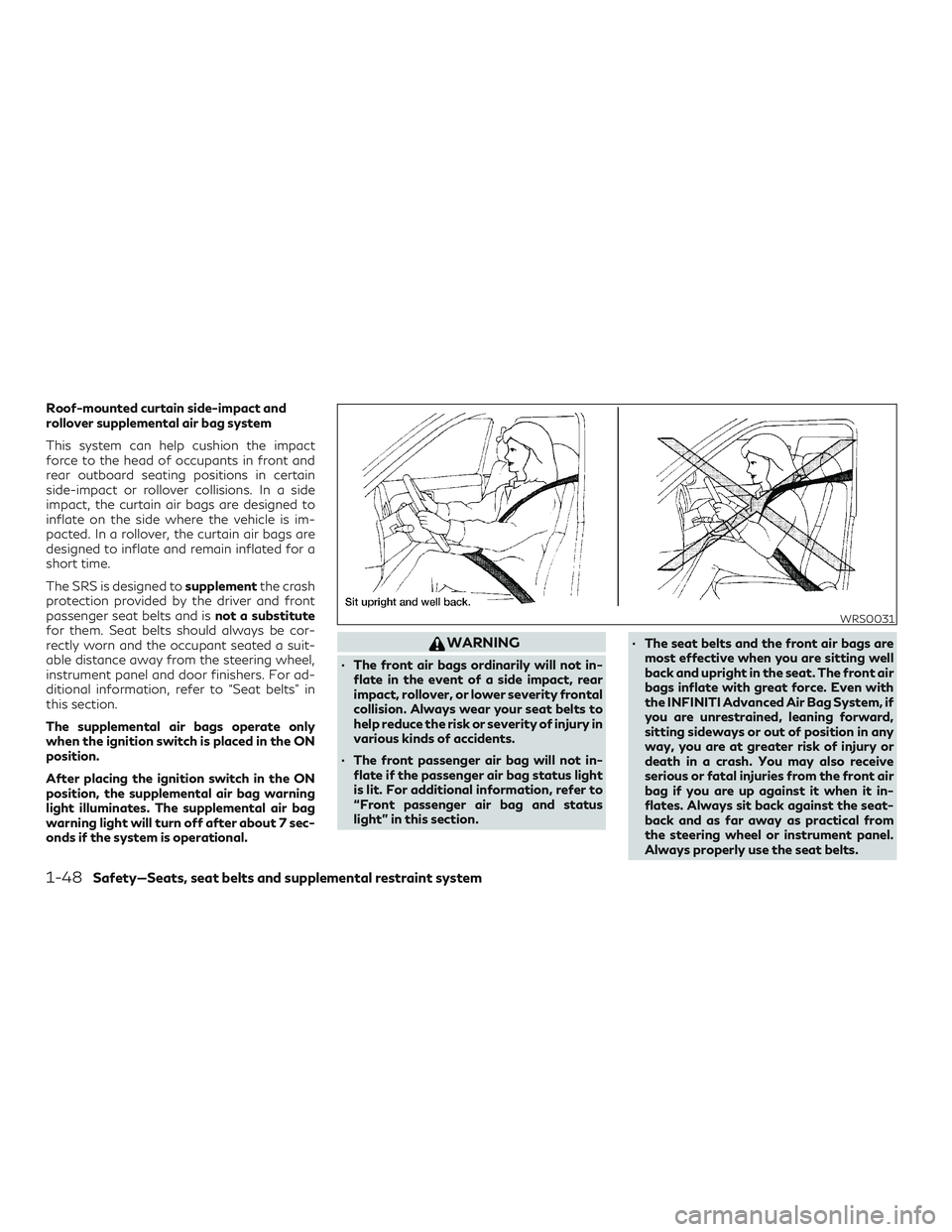

Roof-mounted curtain side-impact and
rollover supplemental air bag system
This system can help cushion the impact
force to the head of occupants in front and
rear outboard seating positions in certain
side-impact or rollover collisions. In a side
impact, the curtain air bags are designed to
inflate on the side where the vehicle is im-
pacted. In a rollover, the curtain air bags are
designed to inflate and remain inflated for a
short time.
The SRS is designed tosupplementthe crash
protection provided by the driver and front
passenger seat belts and is not a substitute
for them. Seat belts should always be cor-
rectly worn and the occupant seated a suit-
able distance away from the steering wheel,
instrument panel and door finishers. For ad-
ditional information, refer to “Seat belts” in
this section.
The supplemental air bags operate only
when the ignition switch is placed in the ON
position.
After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.
WARNING
∙ The front air bags ordinarily will not in- flate in the event of a side impact, rear
impact, rollover, or lower severity frontal
collision. Always wear your seat belts to
help reduce the risk or severity of injury in
various kinds of accidents.
∙ The front passenger air bag will not in- flate if the passenger air bag status light
is lit. For additional information, refer to
“Front passenger air bag and status
light” in this section. ∙ The seat belts and the front air bags are
most effective when you are sitting well
back and upright in the seat. The front air
bags inflate with great force. Even with
the INFINITI Advanced Air Bag System, if
you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, you are at greater risk of injury or
death in a crash. You may also receive
serious or fatal injuries from the front air
bag if you are up against it when it in-
flates. Always sit back against the seat-
back and as far away as practical from
the steering wheel or instrument panel.
Always properly use the seat belts.
WRS0031
1-48Safety—Seats, seat belts and supplemental restraint system

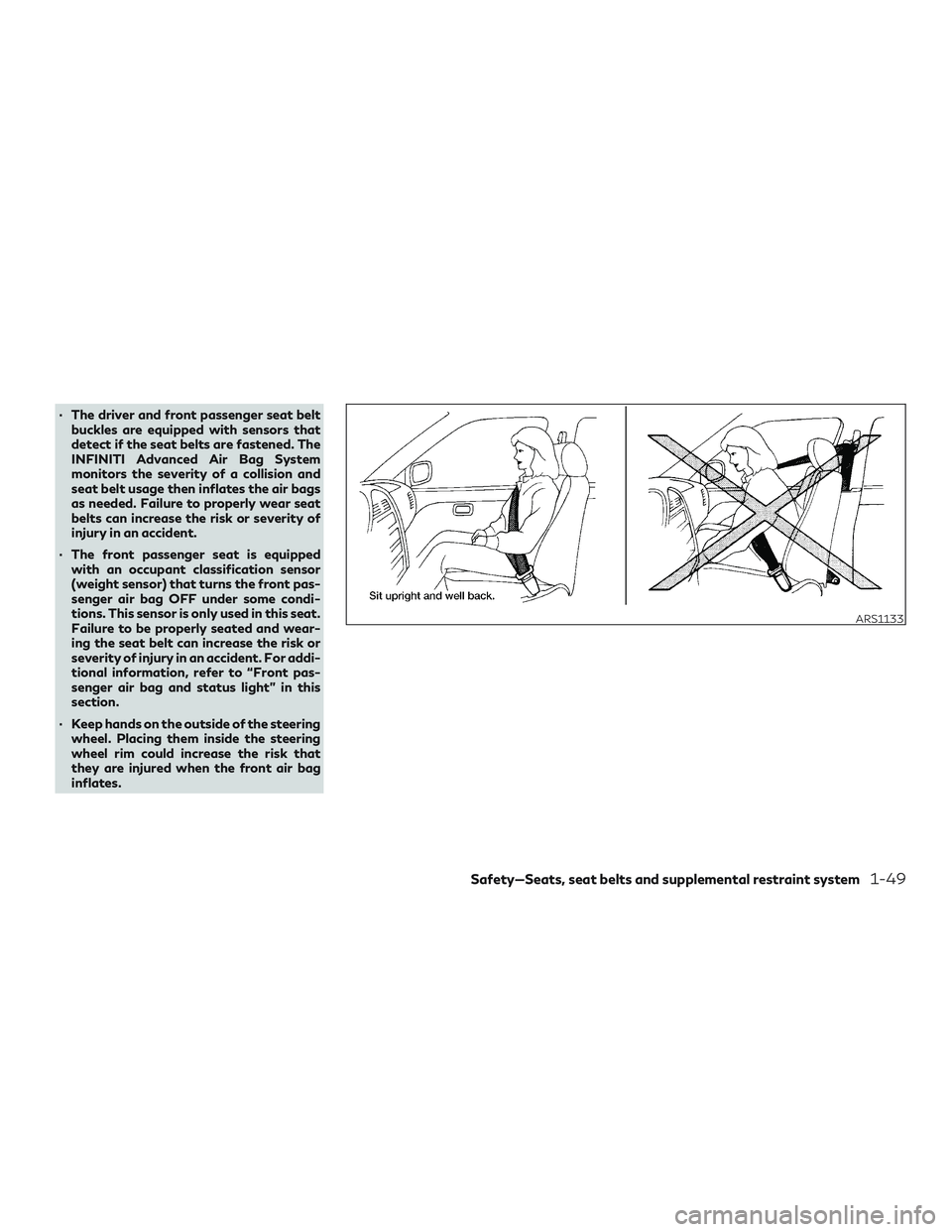

∙ The driver and front passenger seat beltbuckles are equipped with sensors that
detect if the seat belts are fastened. The
INFINITI Advanced Air Bag System
monitors the severity of a collision and
seat belt usage then inflates the air bags
as needed. Failure to properly wear seat
belts can increase the risk or severity of
injury in an accident.
∙ The front passenger seat is equipped with an occupant classification sensor
(weight sensor) that turns the front pas-
senger air bag OFF under some condi-
tions. This sensor is only used in this seat.
Failure to be properly seated and wear-
ing the seat belt can increase the risk or
severity of injury in an accident. For addi-
tional information, refer to “Front pas-
senger air bag and status light” in this
section.
∙ Keep hands on the outside of the steering wheel. Placing them inside the steering
wheel rim could increase the risk that
they are injured when the front air bag
inflates.
ARS1133
Safety—Seats, seat belts and supplemental restraint system1-49

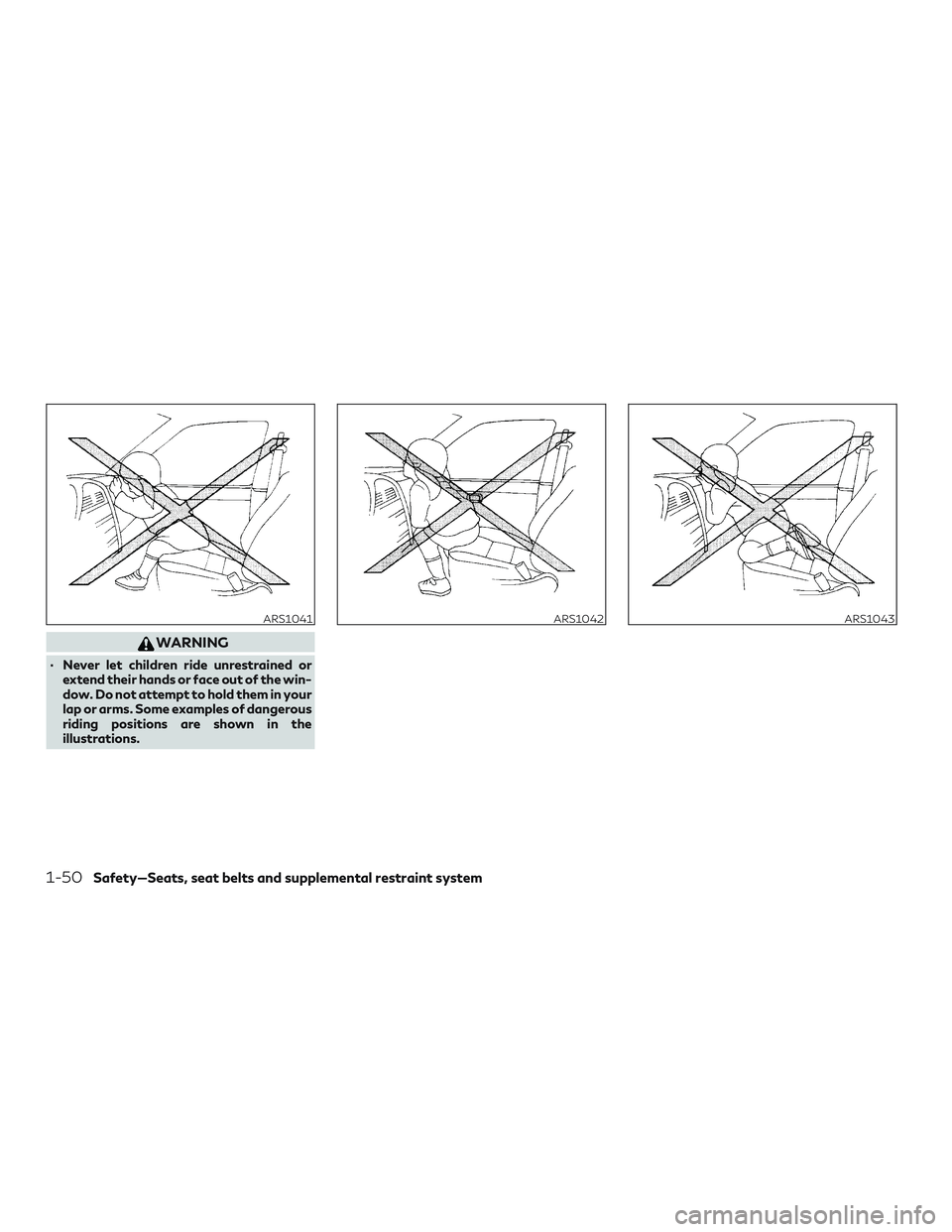

WARNING
∙ Never let children ride unrestrained orextend their hands or face out of the win-
dow. Do not attempt to hold them in your
lap or arms. Some examples of dangerous
riding positions are shown in the
illustrations.
ARS1041ARS1042ARS1043
1-50Safety—Seats, seat belts and supplemental restraint system

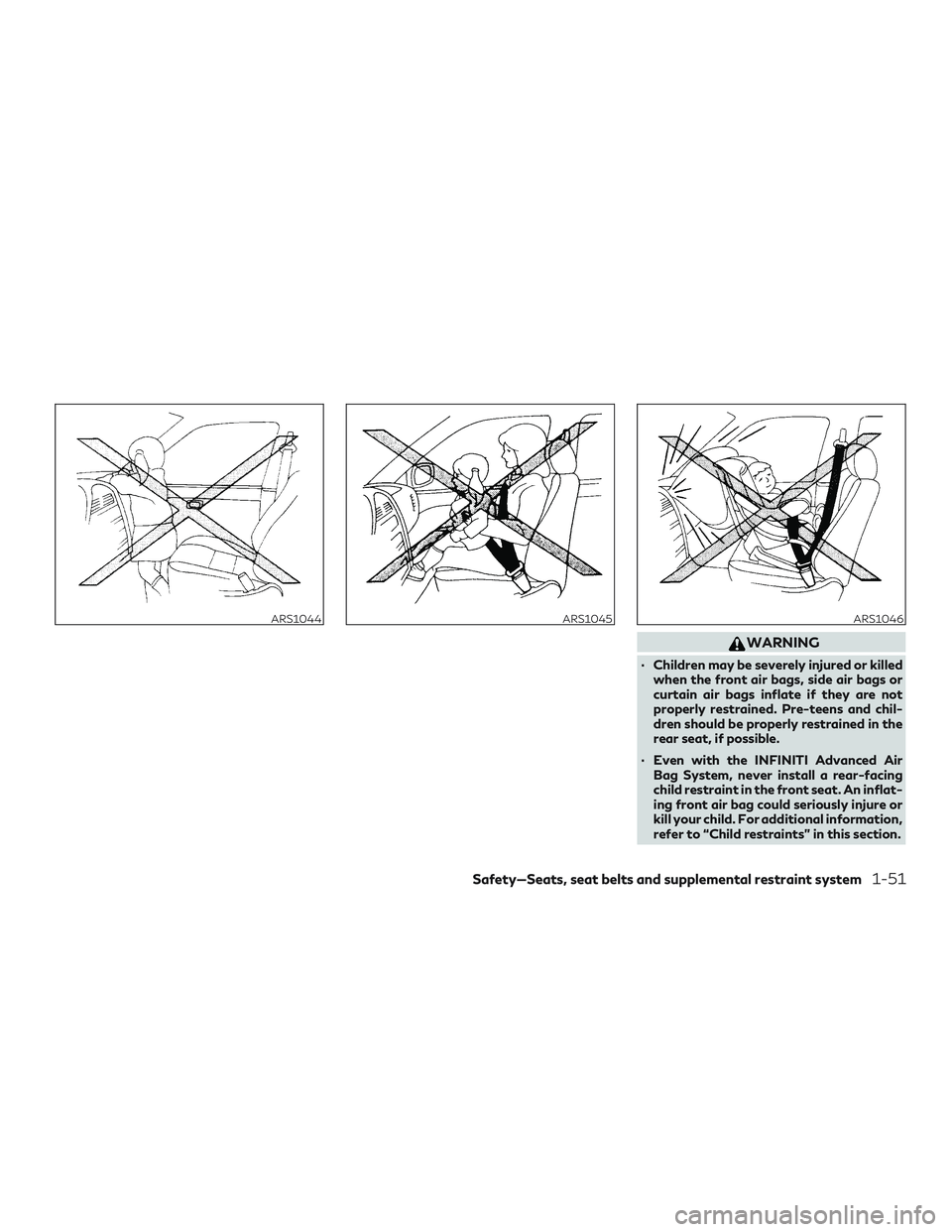

WARNING
∙ Children may be severely injured or killedwhen the front air bags, side air bags or
curtain air bags inflate if they are not
properly restrained. Pre-teens and chil-
dren should be properly restrained in the
rear seat, if possible.
∙ Even with the INFINITI Advanced Air Bag System, never install a rear-facing
child restraint in the front seat. An inflat-
ing front air bag could seriously injure or
kill your child. For additional information,
refer to “Child restraints” in this section.
ARS1044ARS1045ARS1046
Safety—Seats, seat belts and supplemental restraint system1-51

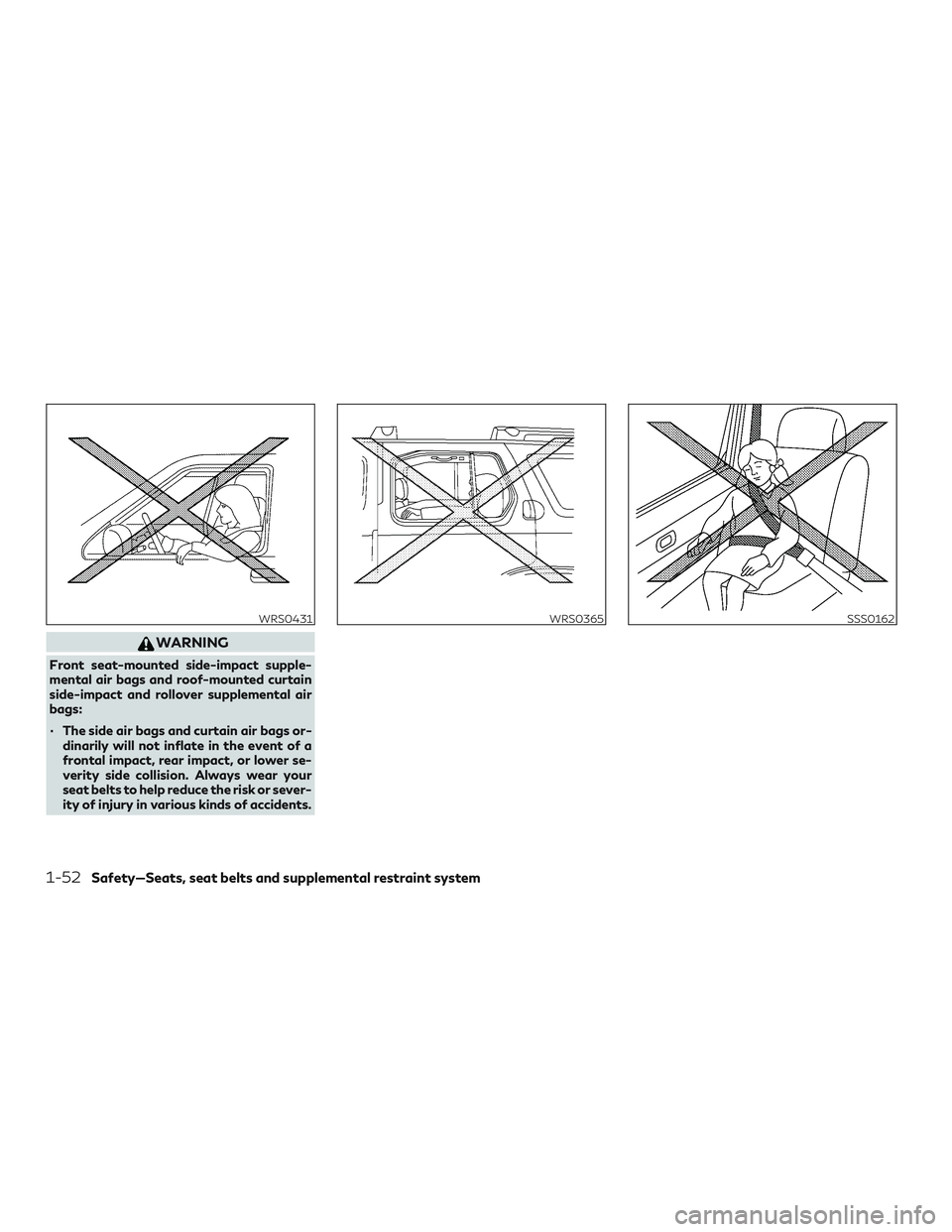

WARNING
Front seat-mounted side-impact supple-
mental air bags and roof-mounted curtain
side-impact and rollover supplemental air
bags:
∙ The side air bags and curtain air bags or-dinarily will not inflate in the event of a
frontal impact, rear impact, or lower se-
verity side collision. Always wear your
seat belts to help reduce the risk or sever-
ity of injury in various kinds of accidents.
WRS0431WRS0365SSS0162
1-52Safety—Seats, seat belts and supplemental restraint system

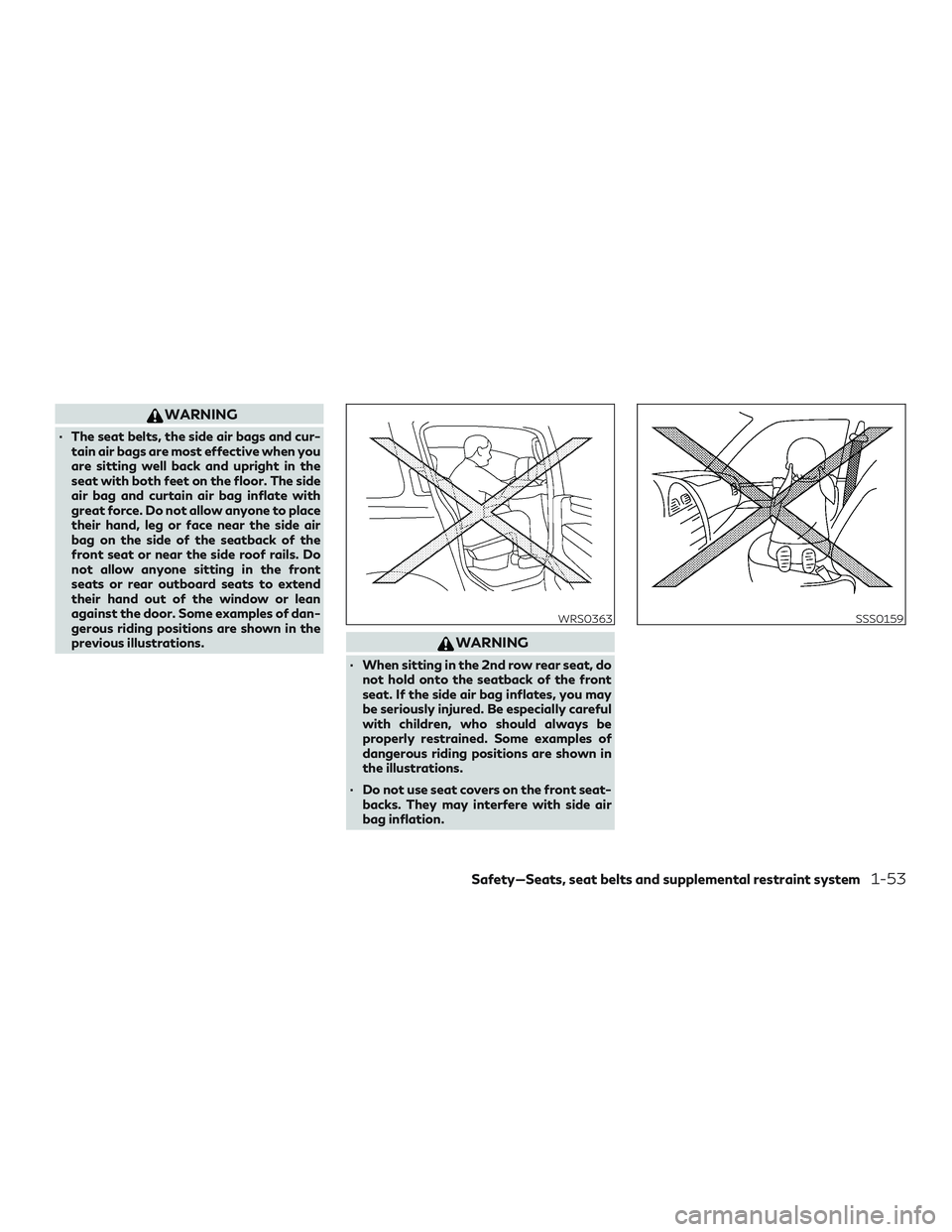

WARNING
∙ The seat belts, the side air bags and cur-tain air bags are most effective when you
are sitting well back and upright in the
seat with both feet on the floor. The side
air bag and curtain air bag inflate with
great force. Do not allow anyone to place
their hand, leg or face near the side air
bag on the side of the seatback of the
front seat or near the side roof rails. Do
not allow anyone sitting in the front
seats or rear outboard seats to extend
their hand out of the window or lean
against the door. Some examples of dan-
gerous riding positions are shown in the
previous illustrations.
WARNING
∙ When sitting in the 2nd row rear seat, donot hold onto the seatback of the front
seat. If the side air bag inflates, you may
be seriously injured. Be especially careful
with children, who should always be
properly restrained. Some examples of
dangerous riding positions are shown in
the illustrations.
∙ Do not use seat covers on the front seat- backs. They may interfere with side air
bag inflation.
WRS0363SSS0159
Safety—Seats, seat belts and supplemental restraint system1-53
