climate settings INFINITI QX60 2018 Owners Manual

2 Instruments and controls
Instrument panel.................................2-2
Meters and gauges ...............................2-4
Speedometer and odometer ...................2-4
Tachometer ...................................2-6
Engine coolant temperature gauge .............2-6
Fuel gauge ....................................2-7
Warning lights, indicator lights and audible
reminders ........................................2-8
Checking lights ................................2-8
Warning lights ................................2-9
Indicator lights .............................. 2-13
Audible reminders ............................ 2-15
Vehicle information display .....................2-16
How to use the vehicle information
display ....................................... 2-17
Startup display ............................... 2-17
Resetting the trip computer ...................2-17
Settings ...................................... 2-17
Vehicle information display warnings
and indicators ............................... 2-26
Security systems ............................... 2-32
Vehicle security system ......................2-32
INFINITI Vehicle Immobilizer System .........2-33 Wiper and washer switch
.......................2-35
Switch operation ............................ 2-35
Rain-sensing auto wiper system
(if so equipped) .............................. 2-36
Rear switch operation ....................... 2-37
Rear window and outside mirror defogger
switch ......................................... 2-38
Headlight and turn signal switch ................2-39
Xenon headlights ............................ 2-39
Headlight control switch .....................2-39
Daytime running light system ................2-43
Instrument brightness control ................2-44
Turn signal switch ........................... 2-44
Fog light switch ............................. 2-45
Horn ........................................... 2-45
Climate controlled seat switches
(if so equipped) ................................. 2-45
Heated seat switches (if so equipped) ...........2-46
Heated

2nd row seat switches (if so equipped) . . 2-47
Heated steering wheel switch (if so equipped) . . . 2-48
Vehicle Dynamic Control (VDC) OFF switch .....2-49
Rear Door Alert (if so equipped) .................2-50
Warning systems switch (if so equipped) .........2-51

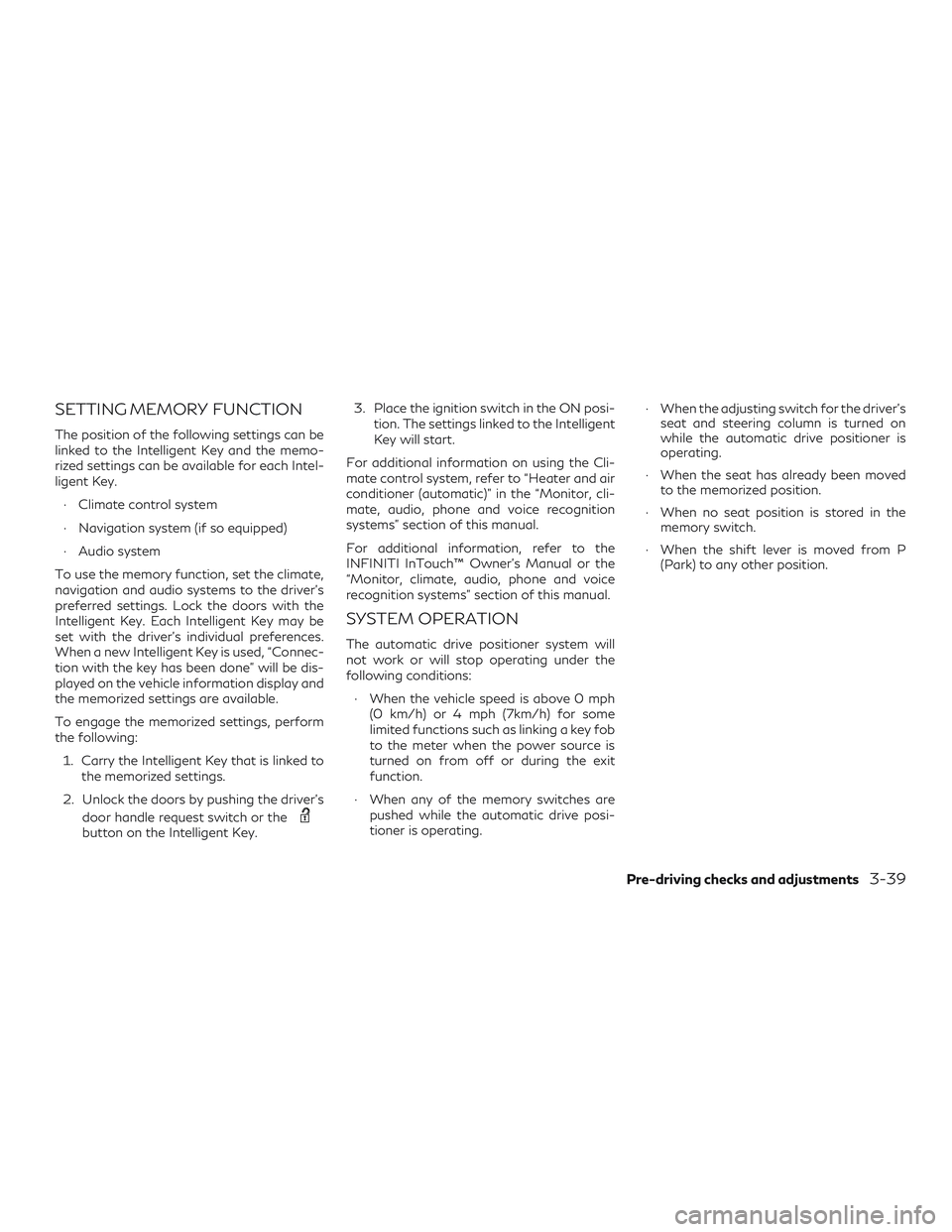

SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.∙ Climate control system
∙ Navigation system (if so equipped)
∙ Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available.
To engage the memorized settings, perform
the following: 1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key. 3. Place the ignition switch in the ON posi-
tion. The settings linked to the Intelligent
Key will start.
For additional information on using the Cli-
mate control system, refer to “Heater and air
conditioner (automatic)” in the “Monitor, cli-
mate, audio, phone and voice recognition
systems” section of this manual.
For additional information, refer to the
INFINITI InTouch™ Owner’s Manual or the
“Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions: ∙ When the vehicle speed is above 0 mph (0 km/h) or 4 mph (7km/h) for some
limited functions such as linking a key fob
to the meter when the power source is
turned on from off or during the exit
function.
∙ When any of the memory switches are pushed while the automatic drive posi-
tioner is operating. ∙ When the adjusting switch for the driver’s
seat and steering column is turned on
while the automatic drive positioner is
operating.
∙ When the seat has already been moved to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shift lever is moved from P (Park) to any other position.
Pre-driving checks and adjustments3-39

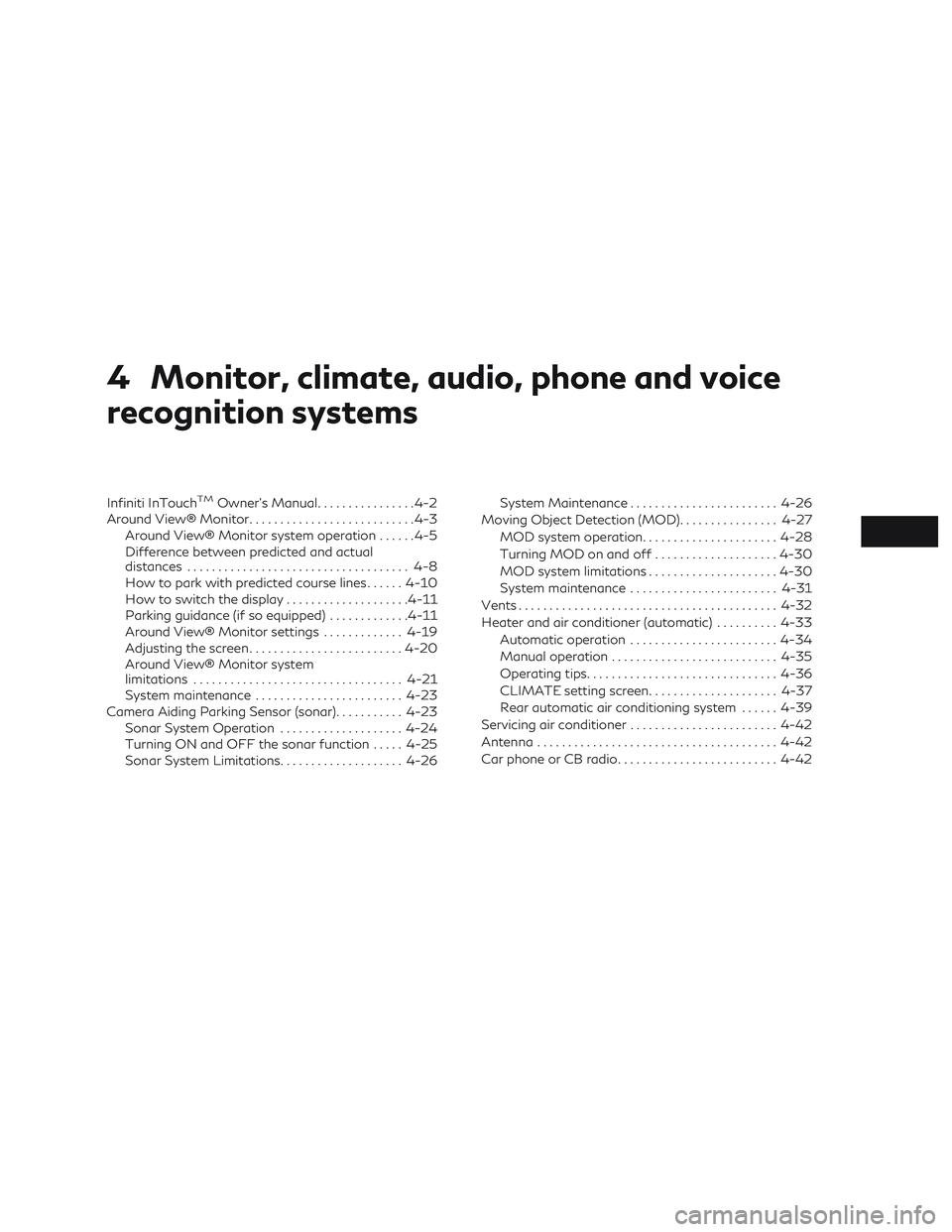

4 Monitor, climate, audio, phone and voice
recognition systems
Infiniti InTouchTMOwner’s Manual................4-2
Around View® Monitor ...........................4-3
Around View® Monitor system operation ......4-5
Difference between predicted and actual
distances .................................... 4-8
How to park with predicted course lines ......4-10
How to switch the display ....................4-11
Parking guidance (if so equipped) .............4-11
Around View® Monitor settings .............4-19
Adjusting the screen ......................... 4-20
Around View® Monitor system
limitations .................................. 4-21
System maintenance ........................ 4-23
Camera Aiding Parking Sensor (sonar) ...........4-23
Sonar System Operation ....................4-24
Turning ON and OFF the sonar function .....4-25
Sonar System Limitations ....................4-26System Maintenance
........................ 4-26
Moving Object Detection (MOD) ................4-27
MOD system operation ......................4-28
Turning MOD on and off ....................4-30
MOD system limitations .....................4-30
System maintenance ........................ 4-31
Vents .......................................... 4-32
Heater and air conditioner (automatic) ..........4-33
Automatic operation ........................ 4-34
Manual operation ........................... 4-35
Operating tips ............................... 4-36
CLIMATE setting screen .....................4-37
Rear automatic air conditioning system ......4-39
Servicing air conditioner ........................ 4-42
Antenna ....................................... 4-42
Car phone or CB radio .......................... 4-42

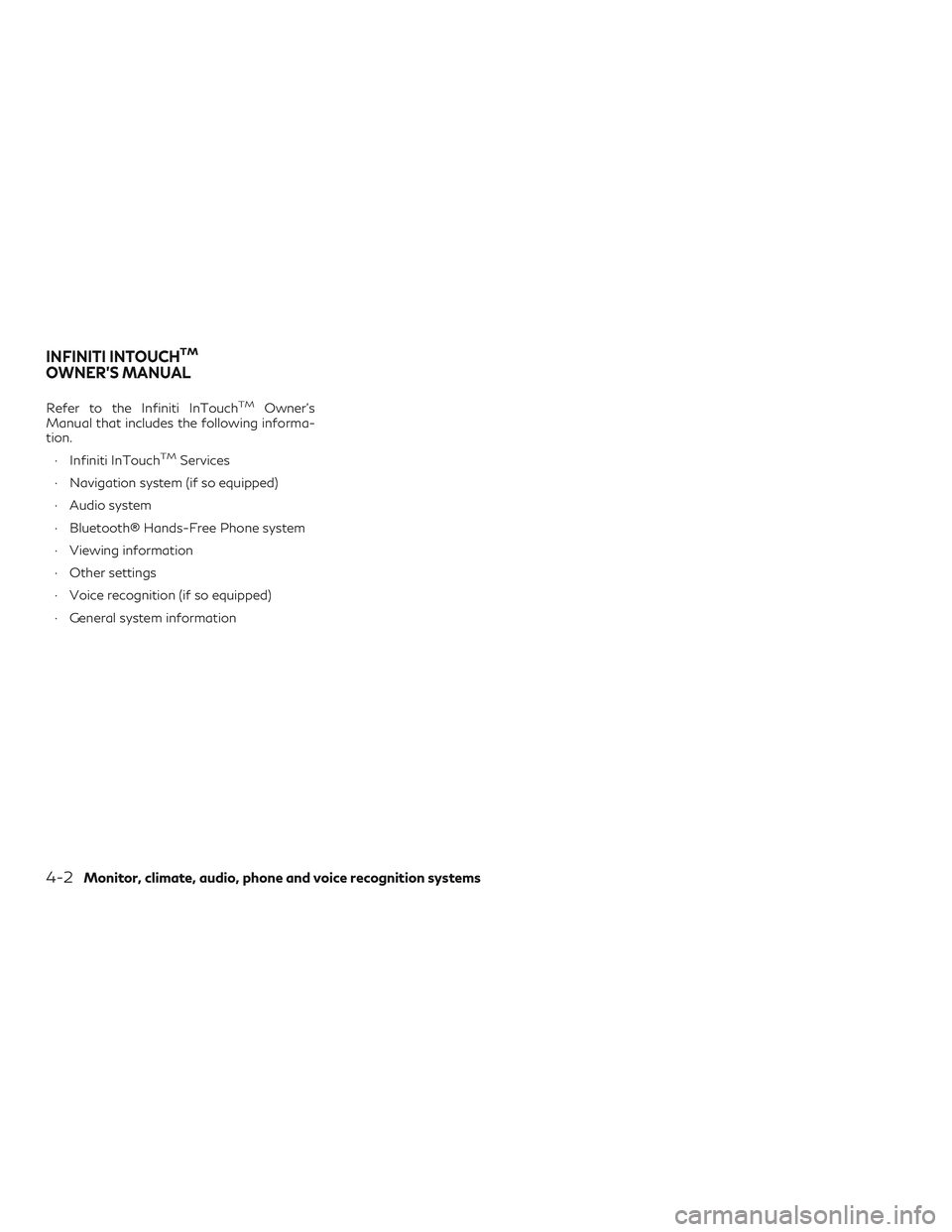

Refer to the Infiniti InTouchTMOwner’s
Manual that includes the following informa-
tion.
∙ Infiniti InTouch
TMServices
∙ Navigation system (if so equipped)
∙ Audio system
∙ Bluetooth® Hands-Free Phone system
∙ Viewing information
∙ Other settings
∙ Voice recognition (if so equipped)
∙ General system information
INFINITI INTOUCHTM
OWNER’S MANUAL
4-2Monitor, climate, audio, phone and voice recognition systems

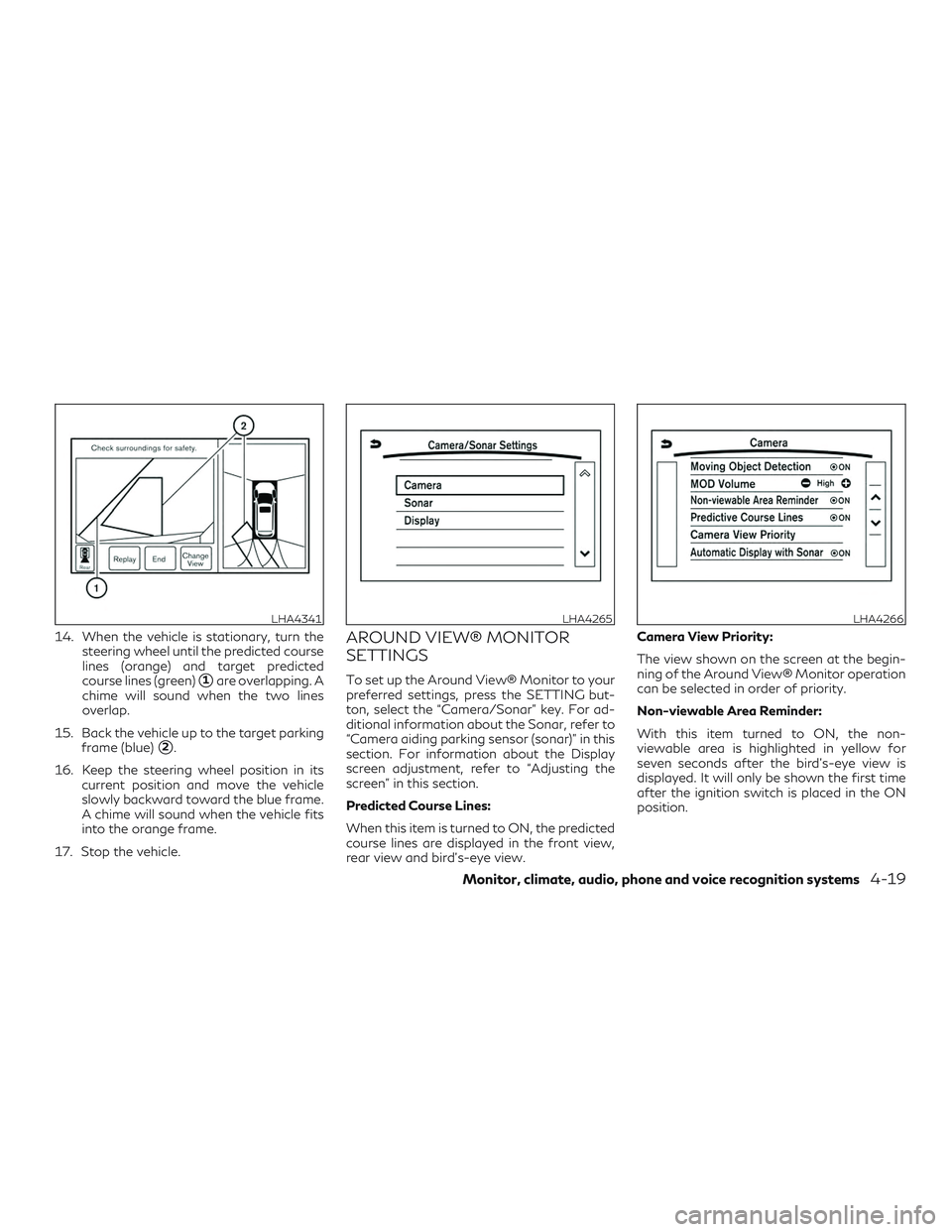

14. When the vehicle is stationary, turn thesteering wheel until the predicted course
lines (orange) and target predicted
course lines (green)
1are overlapping. A
chime will sound when the two lines
overlap.
15. Back the vehicle up to the target parking frame (blue)
2.
16. Keep the steering wheel position in its current position and move the vehicle
slowly backward toward the blue frame.
A chime will sound when the vehicle fits
into the orange frame.
17. Stop the vehicle.
AROUND VIEW® MONITOR
SETTINGS
To set up the Around View® Monitor to your
preferred settings, press the SETTING but-
ton, select the “Camera/Sonar” key. For ad-
ditional information about the Sonar, refer to
“Camera aiding parking sensor (sonar)” in this
section. For information about the Display
screen adjustment, refer to “Adjusting the
screen” in this section.
Predicted Course Lines:
When this item is turned to ON, the predicted
course lines are displayed in the front view,
rear view and bird’s-eye view. Camera View Priority:
The view shown on the screen at the begin-
ning of the Around View® Monitor operation
can be selected in order of priority.
Non-viewable Area Reminder:
With this item turned to ON, the non-
viewable area is highlighted in yellow for
seven seconds after the bird’s-eye view is
displayed. It will only be shown the first time
after the ignition switch is placed in the ON
position.
LHA4341LHA4265LHA4266
Monitor, climate, audio, phone and voice recognition systems4-19

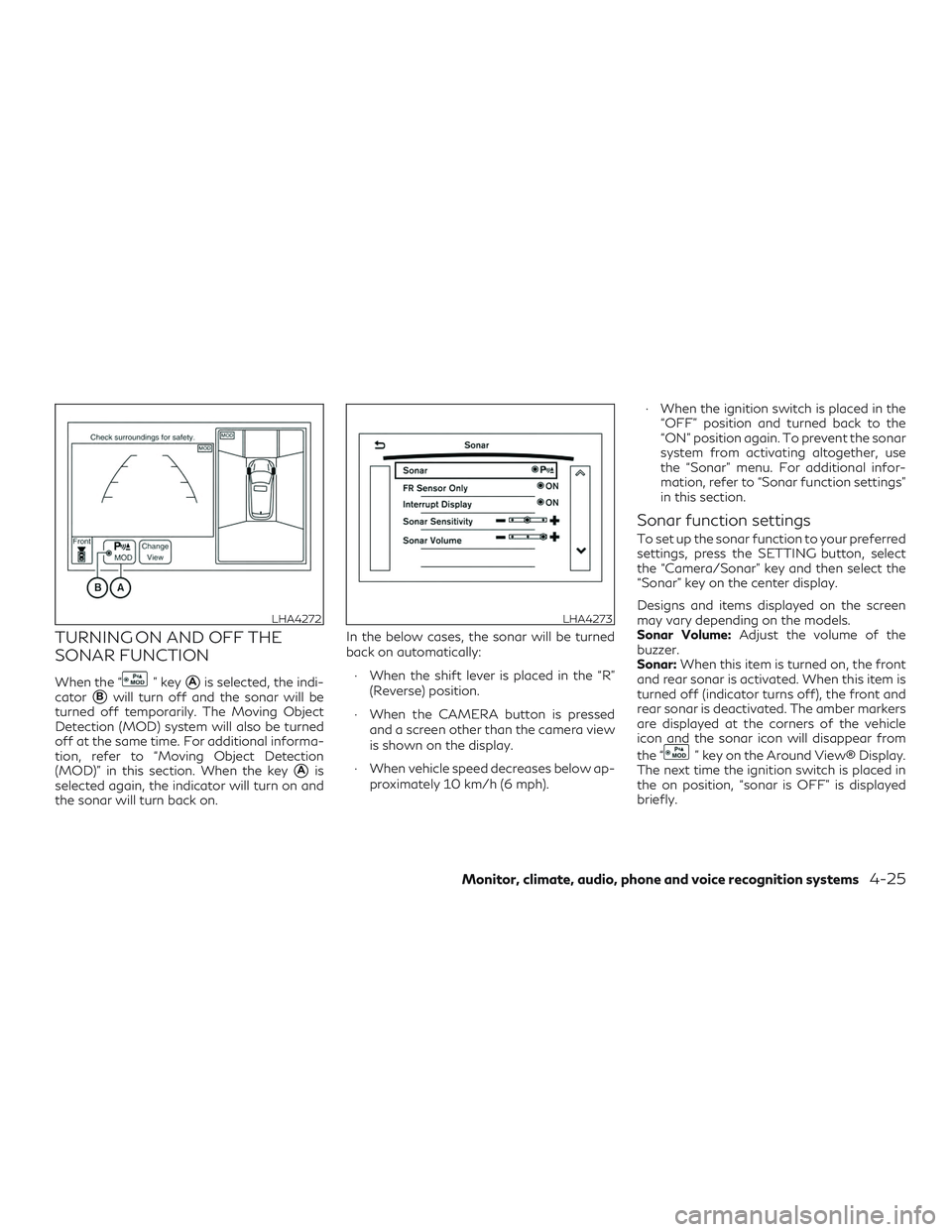

TURNING ON AND OFF THE
SONAR FUNCTION
When the “” keyAis selected, the indi-
cator
Bwill turn off and the sonar will be
turned off temporarily. The Moving Object
Detection (MOD) system will also be turned
off at the same time. For additional informa-
tion, refer to “Moving Object Detection
(MOD)” in this section. When the key
Ais
selected again, the indicator will turn on and
the sonar will turn back on. In the below cases, the sonar will be turned
back on automatically:
∙ When the shift lever is placed in the “R” (Reverse) position.
∙ When the CAMERA button is pressed and a screen other than the camera view
is shown on the display.
∙ When vehicle speed decreases below ap- proximately 10 km/h (6 mph). ∙ When the ignition switch is placed in the
“OFF” position and turned back to the
“ON” position again. To prevent the sonar
system from activating altogether, use
the “Sonar” menu. For additional infor-
mation, refer to “Sonar function settings”
in this section.
Sonar function settings
To set up the sonar function to your preferred
settings, press the SETTING button, select
the “Camera/Sonar” key and then select the
“Sonar” key on the center display.
Designs and items displayed on the screen
may vary depending on the models.
Sonar Volume: Adjust the volume of the
buzzer.
Sonar: When this item is turned on, the front
and rear sonar is activated. When this item is
turned off (indicator turns off), the front and
rear sonar is deactivated. The amber markers
are displayed at the corners of the vehicle
icon and the sonar icon will disappear from
the “
” key on the Around View® Display.
The next time the ignition switch is placed in
the on position, “sonar is OFF” is displayed
briefly.
LHA4272LHA4273
Monitor, climate, audio, phone and voice recognition systems4-25

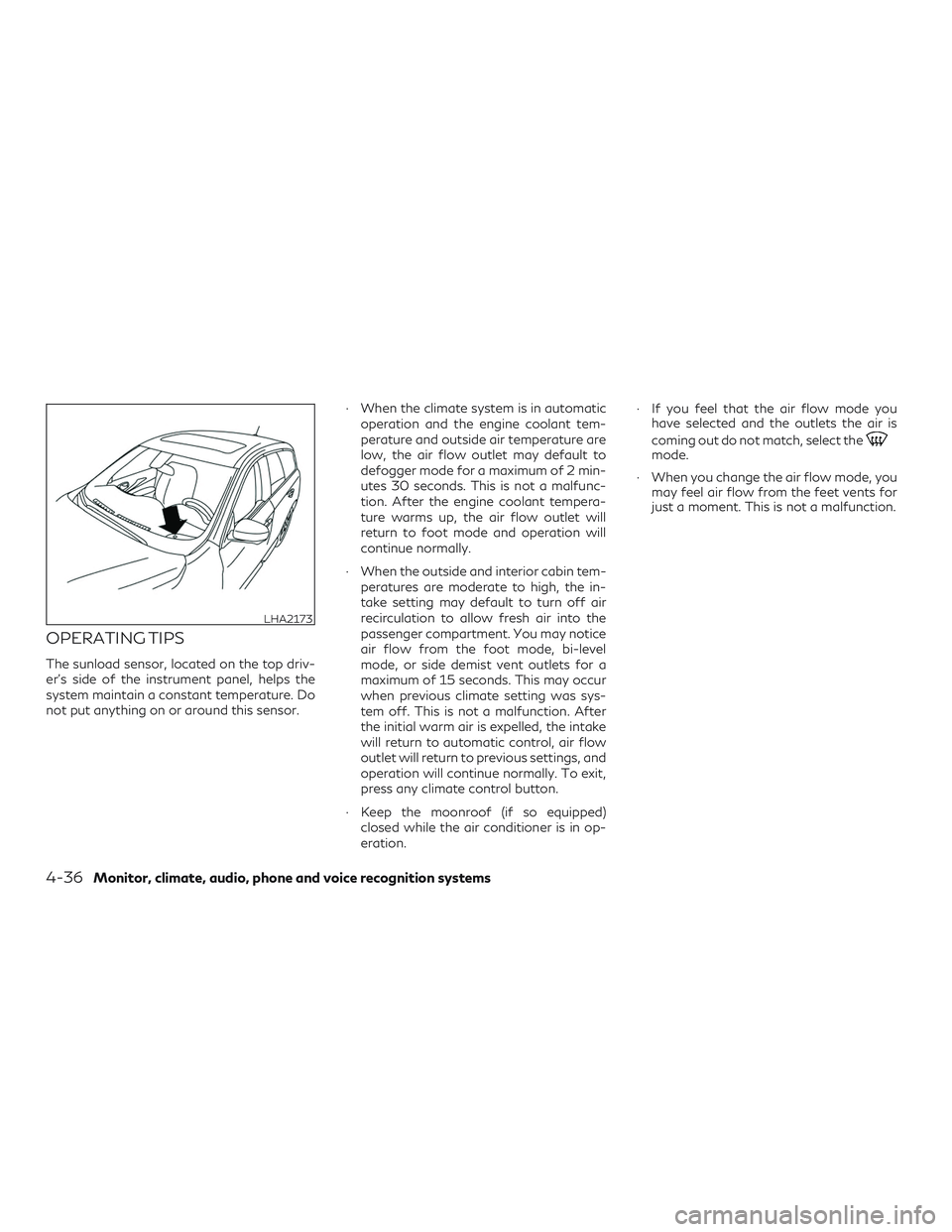

OPERATING TIPS
The sunload sensor, located on the top driv-
er’s side of the instrument panel, helps the
system maintain a constant temperature. Do
not put anything on or around this sensor.∙ When the climate system is in automatic
operation and the engine coolant tem-
perature and outside air temperature are
low, the air flow outlet may default to
defogger mode for a maximum of 2 min-
utes 30 seconds. This is not a malfunc-
tion. After the engine coolant tempera-
ture warms up, the air flow outlet will
return to foot mode and operation will
continue normally.
∙ When the outside and interior cabin tem- peratures are moderate to high, the in-
take setting may default to turn off air
recirculation to allow fresh air into the
passenger compartment. You may notice
air flow from the foot mode, bi-level
mode, or side demist vent outlets for a
maximum of 15 seconds. This may occur
when previous climate setting was sys-
tem off. This is not a malfunction. After
the initial warm air is expelled, the intake
will return to automatic control, air flow
outlet will return to previous settings, and
operation will continue normally. To exit,
press any climate control button.
∙ Keep the moonroof (if so equipped) closed while the air conditioner is in op-
eration. ∙ If you feel that the air flow mode you
have selected and the outlets the air is
coming out do not match, select the
mode.
∙ When you change the air flow mode, you may feel air flow from the feet vents for
just a moment. This is not a malfunction.
LHA2173
4-36Monitor, climate, audio, phone and voice recognition systems

CLIMATE SETTING SCREEN
Climate control settings can be changed on
the screen.
Press the CLIMATE button on the control
panel and turn the display to the Climate
mode.
Heating (A/C off)
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.1. Press the CLIMATE button. 2. If the CLIMATE screen is displayed and
the A/C indicator is on, touch the A/C
key to turn the A/C off.
3. Press the temperature control button to set the desired temperature.
∙ The temperature of the passenger com- partment will be maintained automati-
cally. Air flow distribution and fan speed
are also controlled automatically.
∙ Do not set the temperature lower than the outside air temperature or the system
may not work properly.
∙ This procedure is not recommended if windows fog up.
When the outside temperature decreases to
approximately 0°C (32°F), the A/C function
does not activate even if the “A/C” indicator
light illuminates.
Dual control mode setting
Press the DUAL button on the control panel
to activate dual climate control functions. Or, you can individually set the driver and
front passenger side temperature using each
temperature control button.
1. Press the CLIMATE button.
2. By touching the “DUAL” key, or when the passenger side temperature control but-
ton or manual air control button is
pressed, the “DUAL” indicator on the
screen will illuminate.
3. To turn off the passenger side tempera- ture control, touch the “DUAL” key and
the “DUAL” indicator will turn off.
∙ The Dual control mode cannot be acti- vated when the air conditioner is in the
front defogging mode.
Advanced Climate Control System
(ACCS) (if so equipped)
The Advanced Climate Control System
(ACCS) keeps the air inside of the vehicle
clean, using the ion control and the automatic
air intake control with exhaust gas detecting
sensor.
LHA4431
Monitor, climate, audio, phone and voice recognition systems4-37
