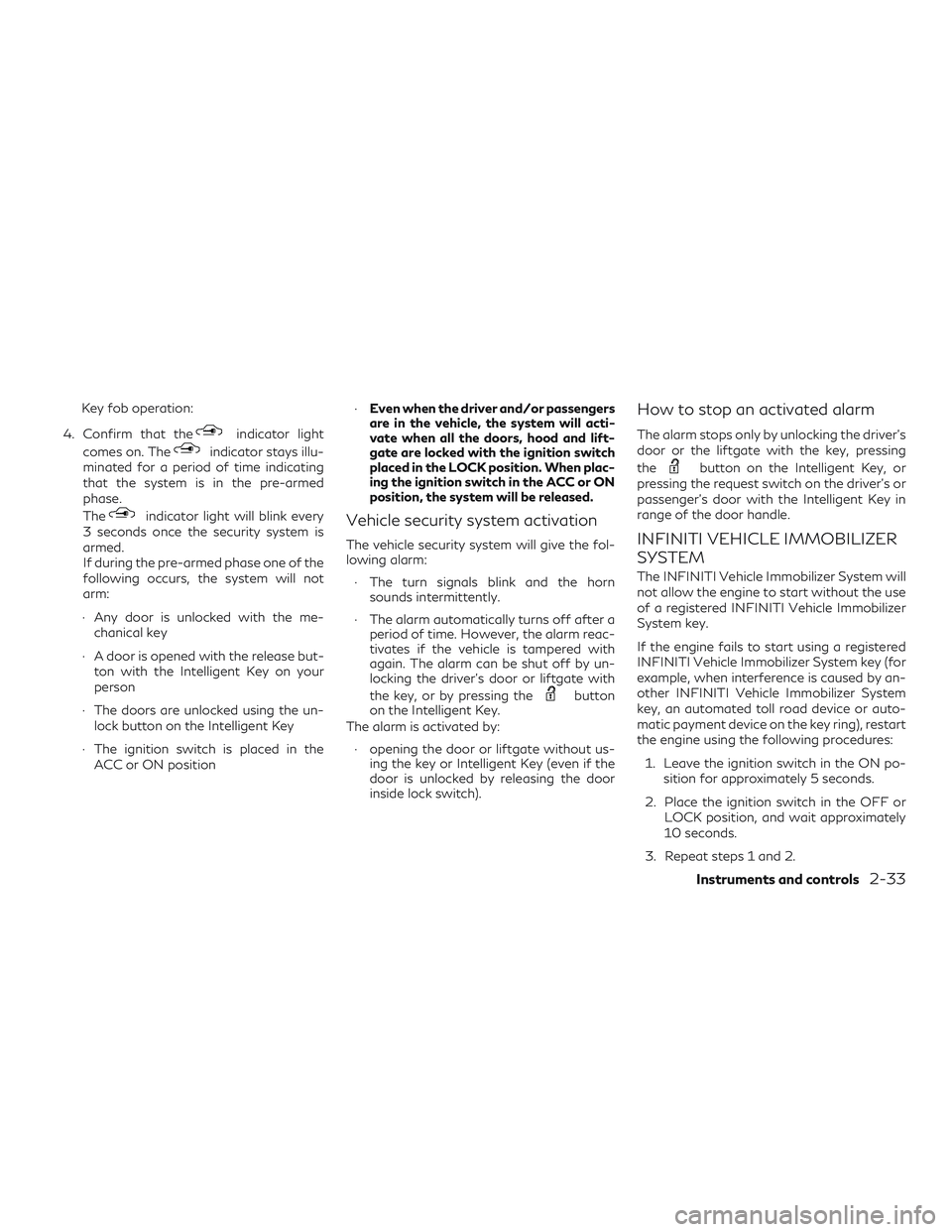

Key fob operation:
4. Confirm that the
indicator light
comes on. The
indicator stays illu-
minated for a period of time indicating
that the system is in the pre-armed
phase.
The
indicator light will blink every
3 seconds once the security system is
armed.
If during the pre-armed phase one of the
following occurs, the system will not
arm:
∙ Any door is unlocked with the me- chanical key
∙ A door is opened with the release but- ton with the Intelligent Key on your
person
∙ The doors are unlocked using the un- lock button on the Intelligent Key
∙ The ignition switch is placed in the ACC or ON position ∙
Even when the driver and/or passengers
are in the vehicle, the system will acti-
vate when all the doors, hood and lift-
gate are locked with the ignition switch
placed in the LOCK position. When plac-
ing the ignition switch in the ACC or ON
position, the system will be released.Vehicle security system activation
The vehicle security system will give the fol-
lowing alarm:
∙ The turn signals blink and the horn sounds intermittently.
∙ The alarm automatically turns off after a period of time. However, the alarm reac-
tivates if the vehicle is tampered with
again. The alarm can be shut off by un-
locking the driver’s door or liftgate with
the key, or by pressing the
button
on the Intelligent Key.
The alarm is activated by:
∙ opening the door or liftgate without us- ing the key or Intelligent Key (even if the
door is unlocked by releasing the door
inside lock switch).
How to stop an activated alarm
The alarm stops only by unlocking the driver’s
door or the liftgate with the key, pressing
the
button on the Intelligent Key, or
pressing the request switch on the driver’s or
passenger’s door with the Intelligent Key in
range of the door handle.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will
not allow the engine to start without the use
of a registered INFINITI Vehicle Immobilizer
System key.
If the engine fails to start using a registered
INFINITI Vehicle Immobilizer System key (for
example, when interference is caused by an-
other INFINITI Vehicle Immobilizer System
key, an automated toll road device or auto-
matic payment device on the key ring), restart
the engine using the following procedures:
1. Leave the ignition switch in the ON po- sition for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position, and wait approximately
10 seconds.
3. Repeat steps 1 and 2.
Instruments and controls2-33

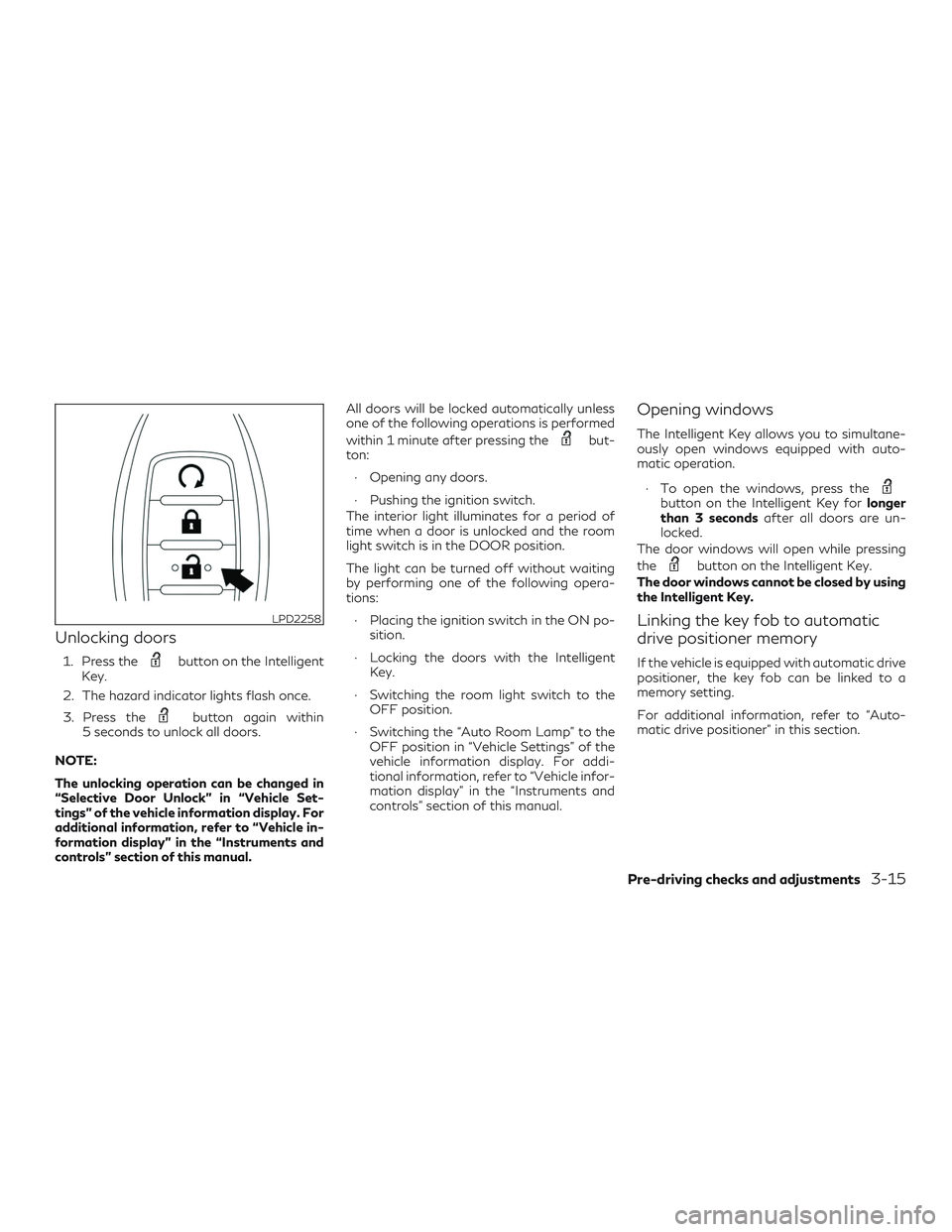

Unlocking doors
1. Press thebutton on the Intelligent
Key.
2. The hazard indicator lights flash once.
3. Press the
button again within
5 seconds to unlock all doors.
NOTE:
The unlocking operation can be changed in
“Selective Door Unlock” in “Vehicle Set-
tings” of the vehicle information display. For
additional information, refer to “Vehicle in-
formation display” in the “Instruments and
controls” section of this manual. All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pressing the
but-
ton:
∙ Opening any doors.
∙ Pushing the ignition switch.
The interior light illuminates for a period of
time when a door is unlocked and the room
light switch is in the DOOR position.
The light can be turned off without waiting
by performing one of the following opera-
tions:
∙ Placing the ignition switch in the ON po- sition.
∙ Locking the doors with the Intelligent Key.
∙ Switching the room light switch to the OFF position.
∙ Switching the “Auto Room Lamp” to the OFF position in “Vehicle Settings” of the
vehicle information display. For addi-
tional information, refer to “Vehicle infor-
mation display” in the “Instruments and
controls” section of this manual.
Opening windows
The Intelligent Key allows you to simultane-
ously open windows equipped with auto-
matic operation.
∙ To open the windows, press the
button on the Intelligent Key for longer
than 3 seconds after all doors are un-
locked.
The door windows will open while pressing
the
button on the Intelligent Key.
The door windows cannot be closed by using
the Intelligent Key.
Linking the key fob to automatic
drive positioner memory
If the vehicle is equipped with automatic drive
positioner, the key fob can be linked to a
memory setting.
For additional information, refer to “Auto-
matic drive positioner” in this section.
LPD2258
Pre-driving checks and adjustments3-15

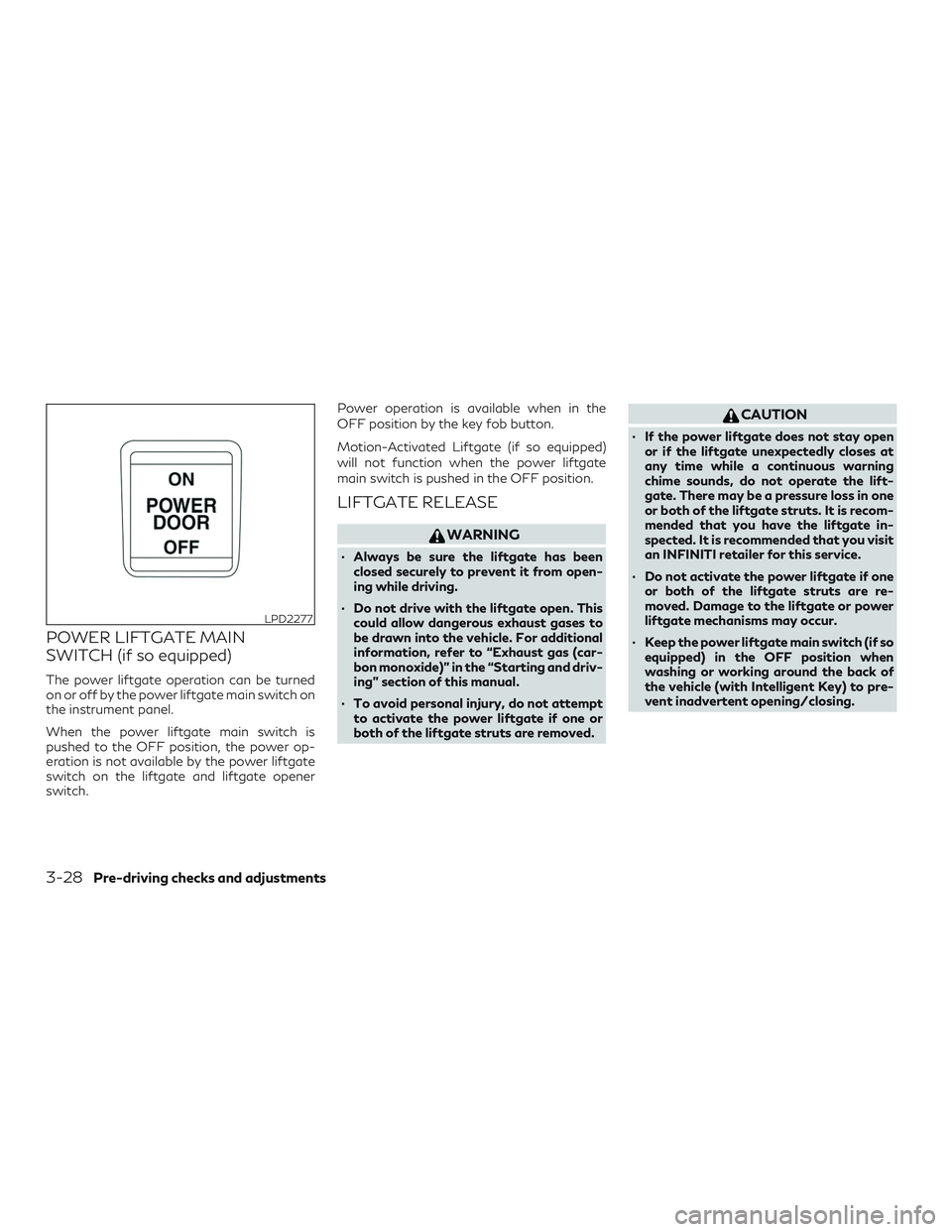

POWER LIFTGATE MAIN
SWITCH (if so equipped)
The power liftgate operation can be turned
on or off by the power liftgate main switch on
the instrument panel.
When the power liftgate main switch is
pushed to the OFF position, the power op-
eration is not available by the power liftgate
switch on the liftgate and liftgate opener
switch.Power operation is available when in the
OFF position by the key fob button.
Motion-Activated Liftgate (if so equipped)
will not function when the power liftgate
main switch is pushed in the OFF position.
LIFTGATE RELEASE
WARNING
∙ Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.
∙ Do not drive with the liftgate open. This could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, refer to “Exhaust gas (car-
bon monoxide)” in the “Starting and driv-
ing” section of this manual.
∙ To avoid personal injury, do not attempt to activate the power liftgate if one or
both of the liftgate struts are removed.
CAUTION
∙ If the power liftgate does not stay openor if the liftgate unexpectedly closes at
any time while a continuous warning
chime sounds, do not operate the lift-
gate. There may be a pressure loss in one
or both of the liftgate struts. It is recom-
mended that you have the liftgate in-
spected. It is recommended that you visit
an INFINITI retailer for this service.
∙ Do not activate the power liftgate if one or both of the liftgate struts are re-
moved. Damage to the liftgate or power
liftgate mechanisms may occur.
∙ Keep the power liftgate main switch (if so equipped) in the OFF position when
washing or working around the back of
the vehicle (with Intelligent Key) to pre-
vent inadvertent opening/closing.
LPD2277
3-28Pre-driving checks and adjustments

Power liftgate release
If the liftgate cannot be opened with the
instrument panel switch, liftgate opener
switch or key fob due to a discharged battery,
follow these steps:1. Remove the cover
Aon the inside of the
liftgate.
2. Move the lever
Bas illustrated to open
the liftgate.
It is recommended that you visit an INFINITI
retailer as soon as possible for repair.
LIFTGATE POSITION SETTING
The liftgate can be set to open to a specific
height by performing the following: 1. Open the liftgate using the request switch or the Intelligent Key.
2. Pull the liftgate down to the desired po- sition and hold the liftgate (the liftgate
will have some resistance when being
manually adjusted).
3. While holding the liftgate in position, push and hold the liftgate switch
located on the liftgate for approximately
5 seconds or until three beeps are heard.
The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat Steps 1-3 for setting the position of
the liftgate.
OPENING THE FUEL-FILLER
DOOR
The fuel-filler door automatically unlocks
when the driver’s door is unlocked.
1. Unlock the fuel-filler door using one of the following operations:
∙ Unlock the driver’s door with the key fob.
∙ Push the power door lock switch to the unlock position.
∙ Push the door handle request switch (with the key fob in range).
SPA2778WPD0454
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-29

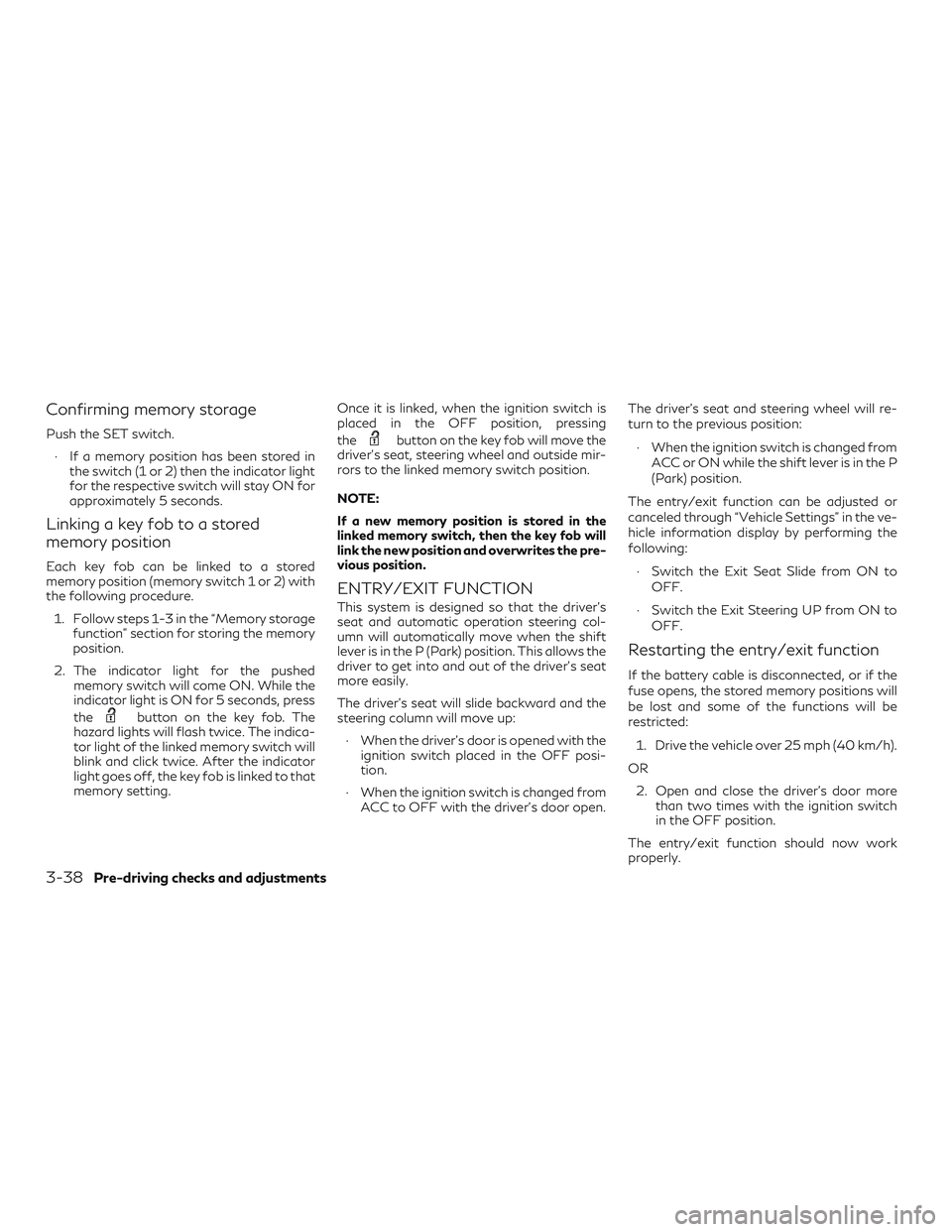

Confirming memory storage
Push the SET switch.∙ If a memory position has been stored in the switch (1 or 2) then the indicator light
for the respective switch will stay ON for
approximately 5 seconds.
Linking a key fob to a stored
memory position
Each key fob can be linked to a stored
memory position (memory switch 1 or 2) with
the following procedure.
1. Follow steps 1-3 in the “Memory storage function” section for storing the memory
position.
2. The indicator light for the pushed memory switch will come ON. While the
indicator light is ON for 5 seconds, press
the
button on the key fob. The
hazard lights will flash twice. The indica-
tor light of the linked memory switch will
blink and click twice. After the indicator
light goes off, the key fob is linked to that
memory setting. Once it is linked, when the ignition switch is
placed in the OFF position, pressing
the
button on the key fob will move the
driver’s seat, steering wheel and outside mir-
rors to the linked memory switch position.
NOTE:
If a new memory position is stored in the
linked memory switch, then the key fob will
link the new position and overwrites the pre-
vious position.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s
seat and automatic operation steering col-
umn will automatically move when the shift
lever is in the P (Park) position. This allows the
driver to get into and out of the driver’s seat
more easily.
The driver’s seat will slide backward and the
steering column will move up:
∙ When the driver’s door is opened with the ignition switch placed in the OFF posi-
tion.
∙ When the ignition switch is changed from ACC to OFF with the driver’s door open. The driver’s seat and steering wheel will re-
turn to the previous position:
∙ When the ignition switch is changed from ACC or ON while the shift lever is in the P
(Park) position.
The entry/exit function can be adjusted or
canceled through “Vehicle Settings” in the ve-
hicle information display by performing the
following: ∙ Switch the Exit Seat Slide from ON to OFF.
∙ Switch the Exit Steering UP from ON to OFF.
Restarting the entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the stored memory positions will
be lost and some of the functions will be
restricted:
1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch
in the OFF position.
The entry/exit function should now work
properly.
3-38Pre-driving checks and adjustments

SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.∙ Climate control system
∙ Navigation system (if so equipped)
∙ Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available.
To engage the memorized settings, perform
the following: 1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key. 3. Place the ignition switch in the ON posi-
tion. The settings linked to the Intelligent
Key will start.
For additional information on using the Cli-
mate control system, refer to “Heater and air
conditioner (automatic)” in the “Monitor, cli-
mate, audio, phone and voice recognition
systems” section of this manual.
For additional information, refer to the
INFINITI InTouch™ Owner’s Manual or the
“Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions: ∙ When the vehicle speed is above 0 mph (0 km/h) or 4 mph (7km/h) for some
limited functions such as linking a key fob
to the meter when the power source is
turned on from off or during the exit
function.
∙ When any of the memory switches are pushed while the automatic drive posi-
tioner is operating. ∙ When the adjusting switch for the driver’s
seat and steering column is turned on
while the automatic drive positioner is
operating.
∙ When the seat has already been moved to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shift lever is moved from P (Park) to any other position.
Pre-driving checks and adjustments3-39

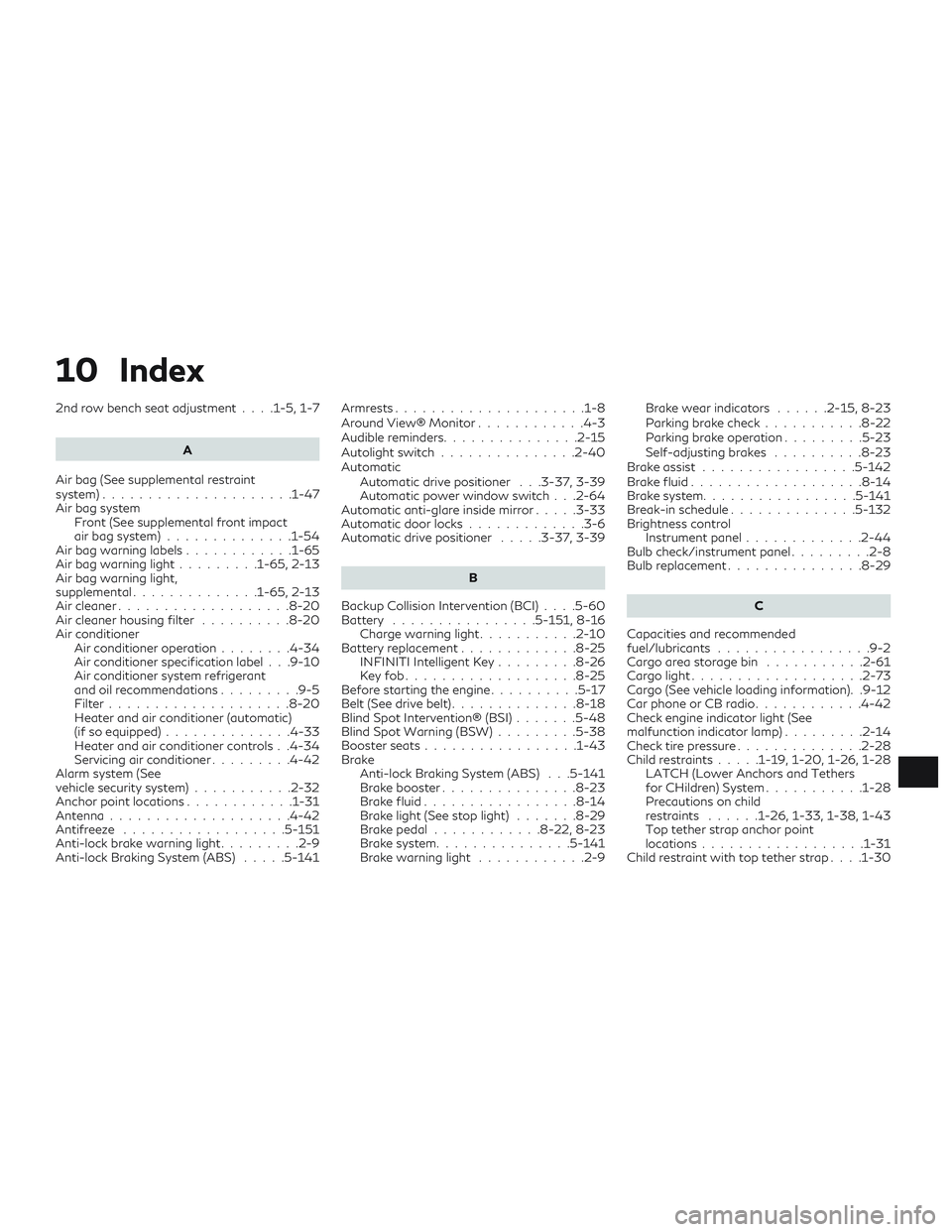

10 Index
2nd row bench seat adjustment....1-5,1-7
A
Air bag (See supplemental restraint
system).....................1-47
Air bag system Front (See supplemental front impact
airbagsystem)..............1-54
Air bag warning labels ............1-65
Airbagwarninglight.........1-65,2-13
Air bag warning light,
supplemental ..............1-65,2-13
Air cleaner ...................8-20
Air cleaner housing filter ..........8-20
Air conditioner Air conditioner operation ........4-34
Air conditioner specification label . . .9-10
Air conditioner system refrigerant
and oil recommendations .........9-5
Filter ....................8-20
Heater and air conditioner (automatic)
(if so equipped) ..............4-33
Heater and air conditioner controls . .4-34
Servicing air conditioner .........4-42
Alarm system (See
vehicle security system) ...........2-32
Anchor point locations ............1-31
Antenna ....................4-42
Antifreeze ..................5-151
Anti-lock brake warning light .........2-9
Anti-lock Braking System (ABS) .....5-141Armrests.....................1-8
Around View® Monitor
............4-3
Audible reminders ...............2-15
Autolight switch ...............2-40
Automatic Automatic drive positioner . . .3-37, 3-39
Automatic power window switch . . .2-64
Automatic anti-glare inside mirror .....3-33
Automatic door locks .............3-6
Automatic drive positioner .....3-37,3-39
B
Backup Collision Intervention (BCI) ....5-60
Battery ................5- 151, 8-16
Charge warning light ...........2-10
Battery replacement .............8-25
INFINITI Intelligent Key .........8-26
Keyfob...................8-25
Before starting the engine ..........5-17
Belt (See drive belt) ..............8-18
Blind Spot Intervention® (BSI) .......5-48
Blind Spot Warning (BSW) .........5-38
Boosterseats.................1-43
Brake Anti-lock Braking System (ABS) . . .5-141
Brake booster ...............8-23
Brakefluid.................8-14
Brakelight(Seestoplight) .......8-29
Brakepedal ............8-22,8-23
Brake system ...............5-141
Brakewarninglight ............2-9 Brake wear indicators
......2-15,8-23
Parking brake check ...........8-22
Parking brake operation .........5-23
Self-adjusting brakes ..........8-23
Brakeassist .................5-142
Brakefluid...................8-14
Brake system .................5-141
Break-in schedule ..............5-132
Brightness control Instrument panel .............2-44
Bulb check/instrument panel .........2-8
Bulb replacement ...............8-29
C
C

apacities and recommended
fuel/lubricants .................9-2
Cargoareastoragebin ...........2-61
Cargolight................... 2-73
Cargo (See vehicle loading information). .9-12
Car phone or CB radio ............4-42
Check engine indicator light (See
malfunction indicator lamp) .........2-14
Check tire pressure ..............2-28
Child restraints .....1-19,1-20,1-26,1-28
LATCH (Lower Anchors and Tethers
for CHildren) System ...........1-28
Precautions on child
restraints ......1-26,1-33,1-38,1-43
Top tether strap anchor point
locations..................1-31
Child restraint with top tether strap ....1-30

Fusiblelinks...................8-24G
Garage door opener, HomeLink® Universal
Transceiver....2-73,2-74,2-75,2-76,2-77
Gascap.....................3-30
Gauge Engine coolant temperature gauge ....2-6
Fuel gauge ..................2-7
Odometer ...................2-5
Speedometer .................2-5
Tachometer .................2-6
Trip odometer ................2-5
General maintenance ..............8-2
Glovebox....................2-57
Gloveboxlock.................2-57
H
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-39
Headlight control switch ...........2-39
Headlights ...................8-28
Head restraints .................1-11
Heated 2nd row seat switches .......2-47
Heated rear seats ...............2-47
Heated seats ..................2-46
Heated seat switches .............2-46
Heated steering wheel ............2-48
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-33
Heater and air conditioner controls. . .4-34 Heater operation
.............4-35
Heater and air conditioner (automatic) . . .4-33
Hill start assist system ............5-146
HomeLink® Universal
Transceiver....2-73,2-74,2-75,2-76,2-77
Hood .......................3-22
Hook Luggage hook ...............2-61
Horn.......................2-45
I
Ignition switch Push-button ignition switch .......5-13
Immobilizer system ..............5-16
In-cabin microfilter ..............8-20
Increasing fuel economy ..........5-133
Indicator lights and audible reminders
(See warning/indicator lights and
audible reminders) ............2-9,2-13
INFINITI Drive Mode Selector ........5-24
INFINITI Intelligent Key System .....3-2,3-7
Infiniti InTouch™ Owner's Manual ......4-2
INFINITI Vehicle Immobilizer
System...............2-33,3-4,5-16
Inside automatic anti-glare mirror .....3-33
Instrument brightness control ........2-44
Instrument panel .............0-6,2-2
Instrument panel dimmer switch ......2-44
Intelligent All-Wheel Drive (AWD) .....5-133
Intelligent Cruise Control (ICC) .......5-78
Intelligent Key system Key operating range ............3-8
Key operation ...............3-10
Mechanicalkey ...............3-3 Remote keyless entry operation
.....3-14
Troubleshooting guide ..........3-17
Warningsignals ..............3-17
Interiorlight...................2-71
ISOFIX child restraints ............1-28
J
Jump starting ..............6-11, 8-18
K
K

ey.........................3-2
Key fob battery replacement ........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .......3-14
L
Labels Air conditioner specification label ....9-10
Engine serial number ............9-9
Vehicle identification number (VIN) . . .9-8
Vehicle identification number (VIN)
plate......................9-8
Warning labels (for SRS) .........1-65
Lane Departure Prevention (LDP)
system ..............5-27,5-32,5-35
Lane Departure Warning (LDW)
system ..............5-27,5-32,5-35
LATCH (Lower Anchors and Tethers
for CHildren) System .............1-28
10-3
