length INFINITI QX60 2018 Owners Manual

shoulder. Release the adjustment button to
lock the shoulder belt anchor into position.
WARNING
∙ After adjustment, release the adjust-ment button and try to move the shoul-
der belt anchor up and down to make sure
it is securely fixed in position.
∙ The shoulder belt anchor height should be adjusted to the position best for you.
Failure to do so may reduce the effective-
ness of the entire restraint system and
increase the chance or severity of injury
in an accident.
∙ The shoulder belt should rest on the middle of the shoulder. It must not rest
against the neck.
∙ Be sure that the seat belt is not twisted in any way.
∙ Be sure that the shoulder belt anchor is secured by trying to move the shoulder
belt anchor up and down after
adjustment.
Seat belt hook
When the seat belt is not in use and when
folding down the rear seats, hook the rear
seat belts on the seat belt hooks.
SEAT BELT EXTENDERS
If, because of body size or driving position, it
is not possible to properly fit the lap/shoulder
belt and fasten it, an extender that is compat-
ible with the installed seat belts is available
for purchase. The extender adds approxi-
mately 200 mm (8 in) of length and may be
used for either the driver or front passenger
seating position. Seat belt extenders are available for the:
∙ Driver and front passenger seating posi- tion
∙ 2nd and 3rd row seating position
It is recommended that you visit an INFINITI
retailer for assistance with purchasing an ex-
tender if an extender is required.
WARNING
∙ Only INFINITI seat belt extenders, made by the same company which made the
original equipment seat belts, should be
used with INFINITI seat belts.
∙ Adults and children who can use the stan- dard seat belt should not use an extender.
Such unnecessary use could result in seri-
ous personal injury in the event of an
accident.
∙ Never use seat belt extenders to install child restraints. If the child restraint is
not secured properly, the child could be
seriously injured or killed in a collision or a
sudden stop.
3rd row shown; 2nd row similar
LRS2157
Safety—Seats, seat belts and supplemental restraint system1-25

While positioned at the rear of the vehicle
(center) at arms’ length distance away, begin
making the forward kicking motion. Kick the
foot under the rear bumper then immediately
return the foot back to standing position. The
kicking motion should be straight, smooth
and consistent. Your leg does not need to
touch the bumper surface but be within
3/4 inch (2 cm) to 4 inches (10 cm) of the
bumper surface. After your kick motion is
completed step back to allow the liftgate to
open/close. The liftgate should begin moving
within 1–2 seconds after the kick. This time is
needed to verify the Intelligent Key and to
validate the kick motion. Kicking again withinthis time frame (1–2 seconds) could cause the
liftgate to reverse or stop.
WARNING
Prevent unintentional liftgate opening/
closing. There may be conditions when
opening/closing the liftgate is not desired.
Keep the Intelligent Key out of the range of
the liftgate (3 ft or 1 m), when washing or
working around the back of the vehicle.
CAUTION
Interference or malfunction can be caused
by parking in close proximity to radio or
satellite towers.

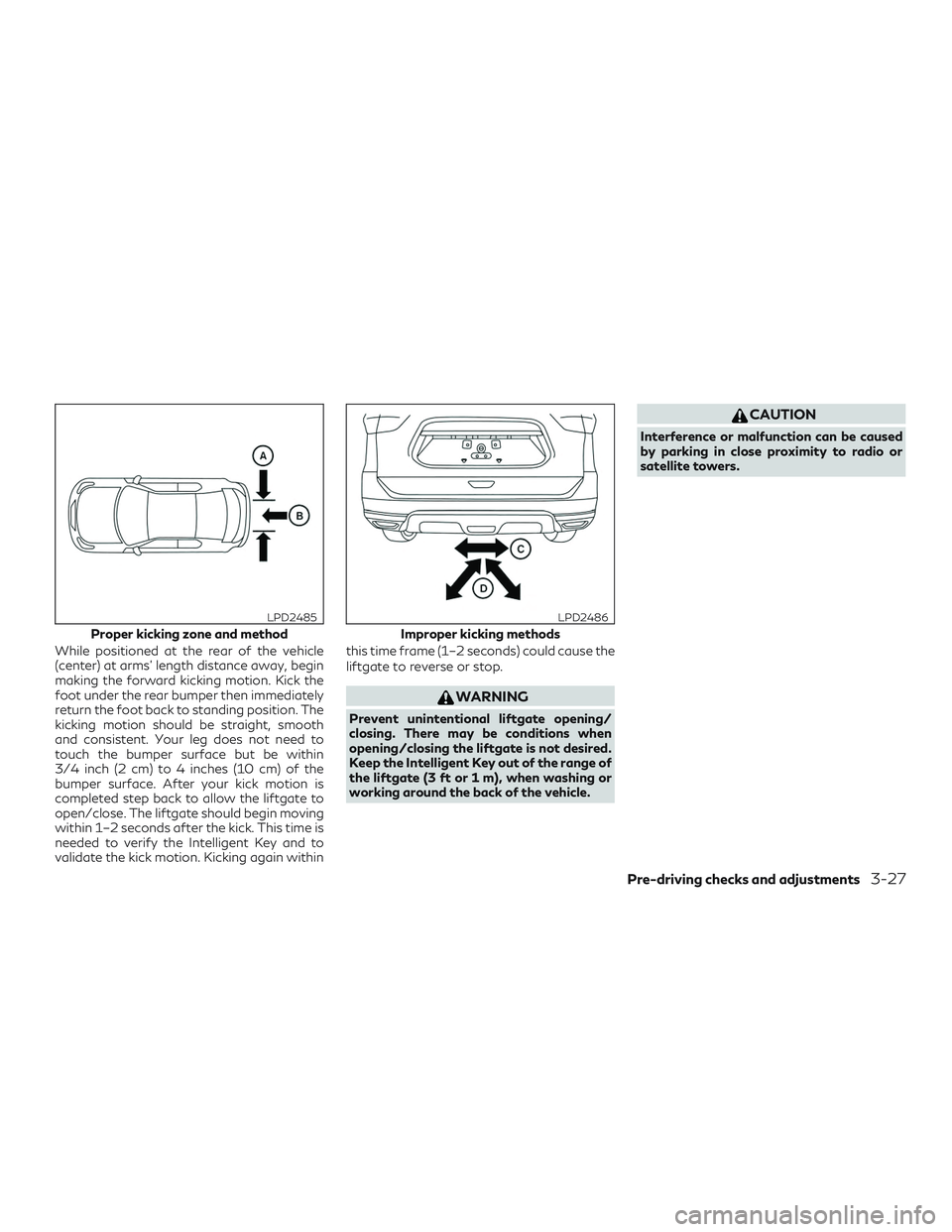

Proper kicking zone and method
LPD2485
Improper kicking methods
LPD2486
Pre-driving checks and adjustments3-27

WARNING
∙ Do not leave children or adults whowould normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acciden-
tally injure themselves or others through
inadvertent operation of the vehicle.
Also, on hot, sunny days, temperatures in
a closed vehicle could quickly become
high enough to cause severe or possibly
fatal injuries to people or animals.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.

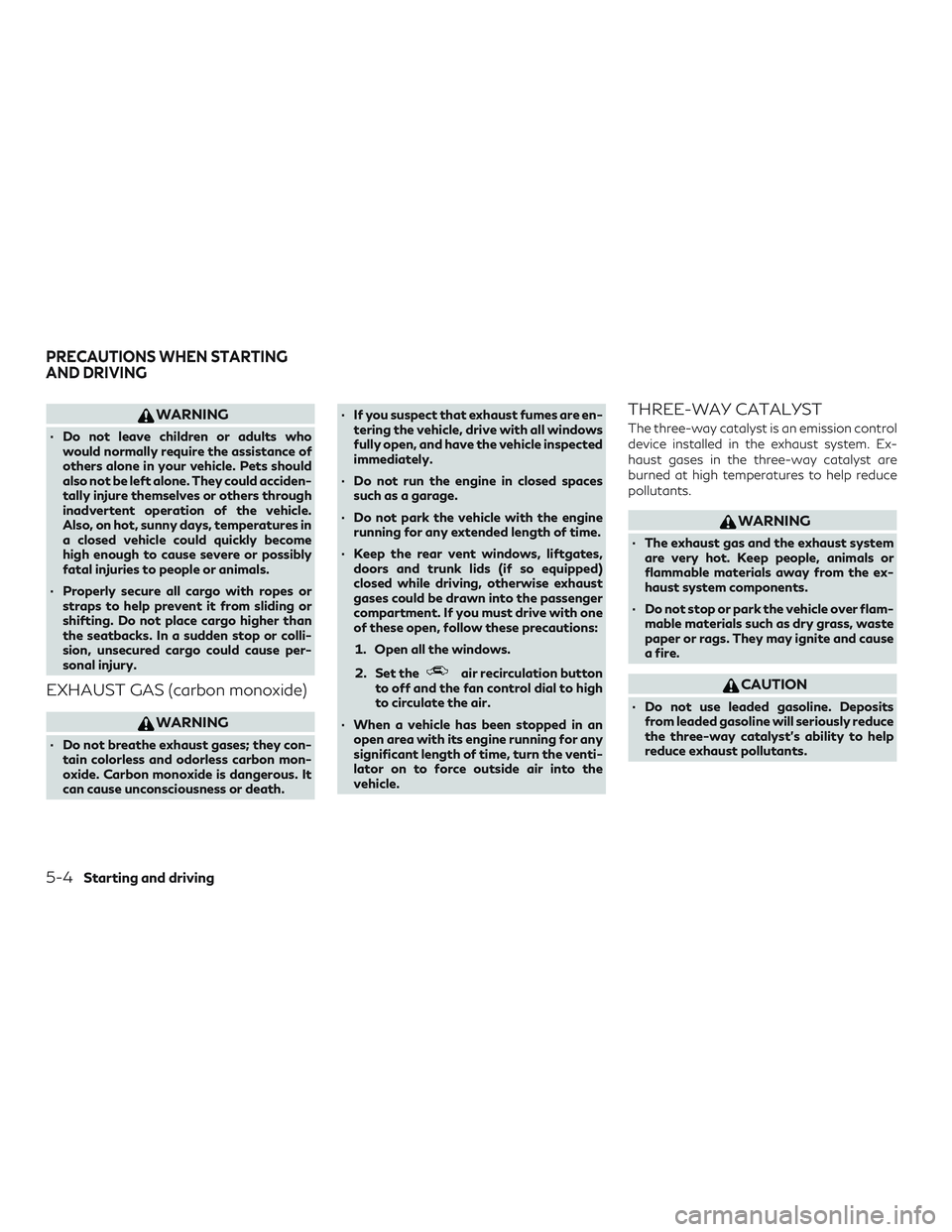

EXHAUST GAS (carbon monoxide)
WARNING
∙ Do not breathe exhaust gases; they con-tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous. It
can cause unconsciousness or death. ∙ If you suspect that exhaust fumes are en-
tering the vehicle, drive with all windows
fully open, and have the vehicle inspected
immediately.
∙ Do not run the engine in closed spaces such as a garage.
∙ Do not park the vehicle with the engine running for any extended length of time.
∙ Keep the rear vent windows, liftgates, doors and trunk lids (if so equipped)
closed while driving, otherwise exhaust
gases could be drawn into the passenger
compartment. If you must drive with one
of these open, follow these precautions:
1. Open all the windows.
2. Set the
air recirculation button
to off and the fan control dial to high
to circulate the air.
∙ When a vehicle has been stopped in an open area with its engine running for any
significant length of time, turn the venti-
lator on to force outside air into the
vehicle.
THREE-WAY CATALYST
The three-way catalyst is an emission control
device installed in the exhaust system. Ex-
haust gases in the three-way catalyst are
burned at high temperatures to help reduce
pollutants.
WARNING
∙ The exhaust gas and the exhaust systemare very hot. Keep people, animals or
flammable materials away from the ex-
haust system components.
∙ Do not stop or park the vehicle over flam- mable materials such as dry grass, waste
paper or rags. They may ignite and cause
a fire.
CAUTION
∙ Do not use leaded gasoline. Depositsfrom leaded gasoline will seriously reduce
the three-way catalyst’s ability to help
reduce exhaust pollutants.
PRECAUTIONS WHEN STARTING
AND DRIVING
5-4Starting and driving

WHEELS AND TIRES
Wheel TypeOffset in (mm)Size
Alloy 1.97 (50)
18 x 7.5 J
1.97 (50) 20 x 7.5 J
Tire type Performance type Size
Passenger All season235/65R18
235/55R20
Spare wheel type Wheel Size Tire Size
Space saver 18 x4TT165/90D18
DIMENSIONS AND WEIGHTS
Overall length mm (in)5,075 (199.8)
Overall width mm (in)1,960 (77.2)
Overall height without roof rack mm (in)1,742 (68.6)
with roof rack mm (in)1,813 (71.4)
Front and rear track mm (in)1,670 (65.7)
Wheelbase mm (in)2,900 (114.2)
Gross vehicle weight rating kg (lbs.)2,715 (5,986)
Gross axle weight rating Front kg (lbs.)1,325 (2,921)
Rear kg (lbs.)1,415 (3,120)
Technical and consumer information9-7
