INFINITI QX60 2019 User Guide

1. Engine hood (P. 3-22)
2. Wiper and washer switch (P. 2-35)Wiper blades (P. 8-17)
3. Windshield (P. 8-17)
4. Power windows (P. 2-63)
5. Door locks (P. 3-5) INFINITI Intelligent Key (P. 3-7)
Remote Engine Start (if so equipped)
(P. 3-19)
Keys (P. 3-2)
6. Mirrors (P. 3-34) Side camera (if so equipped)
(P. 4-11)
7. Tire pressure (P. 8-27) Flat tire (P. 6-3)
Tire chains (P. 8-27)
8. Replacing bulbs (P. 8-24) Headlight and turn signal switch
(P. 2-39)
LED Daytime Running Lights (DRL)
system (P. 2-39)
9. Fog light switch (P. 2-39)
10. Sonar sensors (if so equipped)
(P. 5-140)
11. Front camera (if so equipped)
(P. 4-11)
See the page number indicated in parenthe-
ses for operating details.
LII2497
EXTERIOR FRONT
Illustrated table of contents0-3

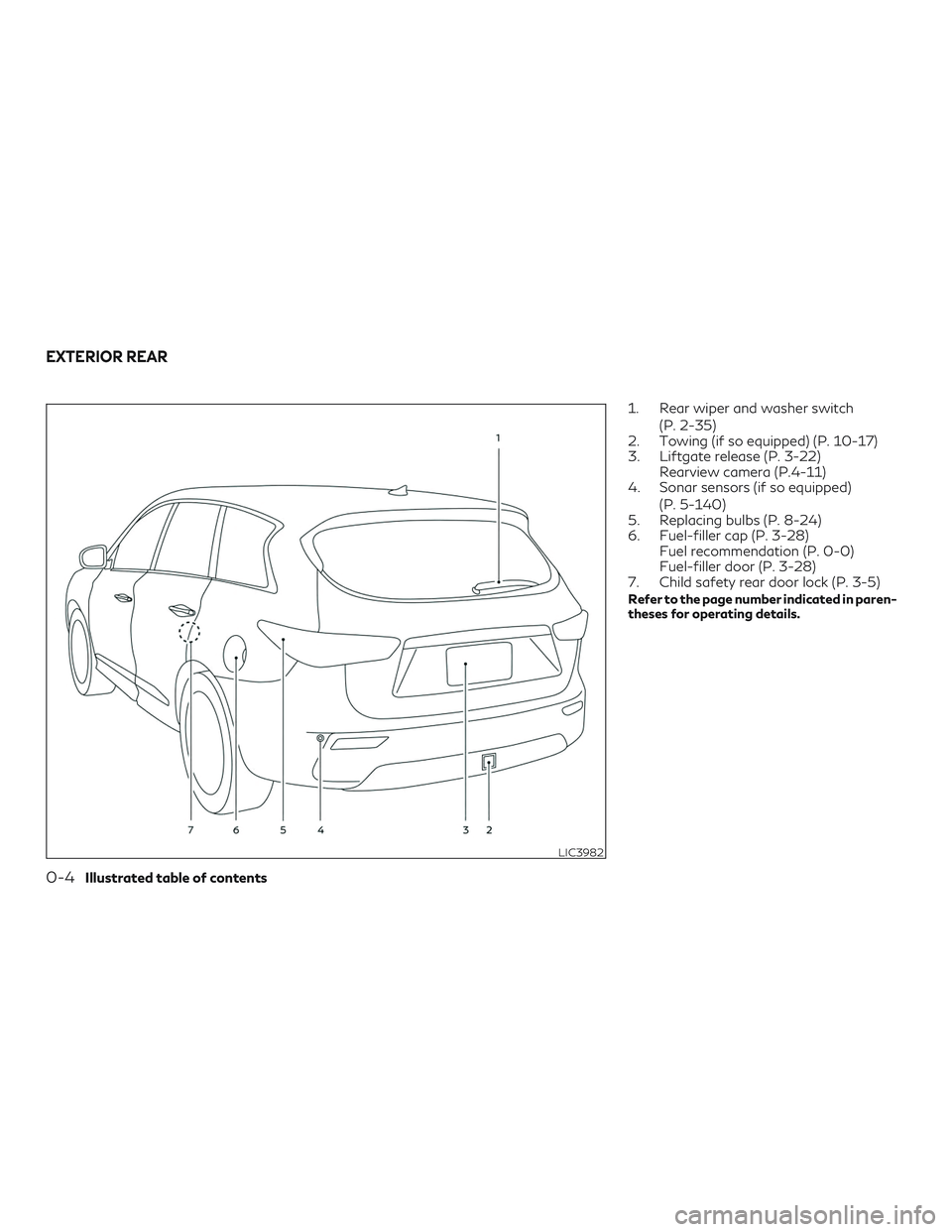

1. Rear wiper and washer switch(P. 2-35)
2. Towing (if so equipped) (P. 10-17)
3. Liftgate release (P. 3-22) Rearview camera (P.4-11)
4. Sonar sensors (if so equipped)
(P. 5-140)
5. Replacing bulbs (P. 8-24)
6. Fuel-filler cap (P. 3-28) Fuel recommendation (P. 0-0)
Fuel-filler door (P. 3-28)
7. Child safety rear door lock (P. 3-5)
Refer to the page number indicated in paren-
theses for operating details.
LIC3982
EXTERIOR REAR
0-4Illustrated table of contents

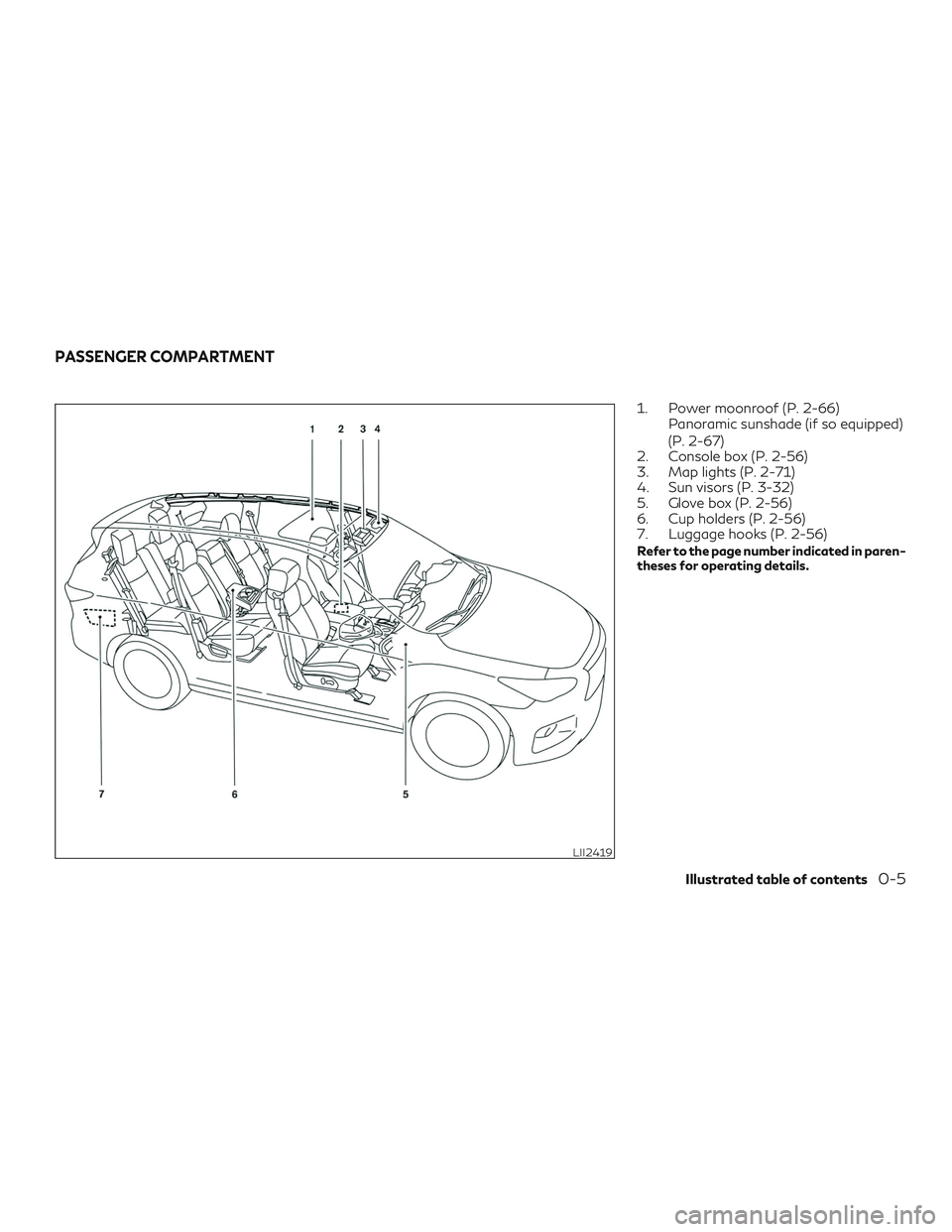

1. Power moonroof (P. 2-66)Panoramic sunshade (if so equipped)
(P. 2-67)
2. Console box (P. 2-56)
3. Map lights (P. 2-71)
4. Sun visors (P. 3-32)
5. Glove box (P. 2-56)
6. Cup holders (P. 2-56)
7. Luggage hooks (P. 2-56)
Refer to the page number indicated in paren-
theses for operating details.
LII2419
PASSENGER COMPARTMENT
Illustrated table of contents0-5

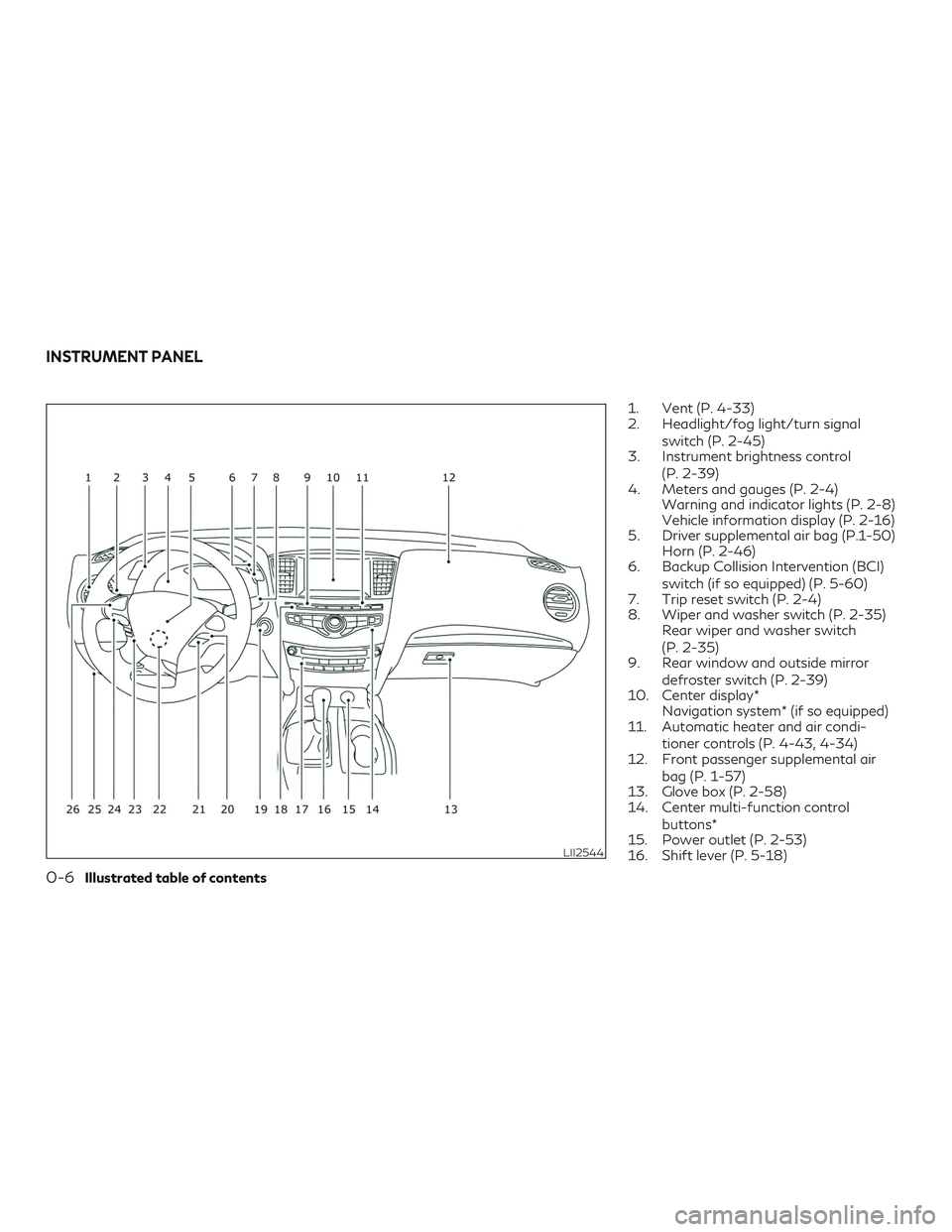

1. Vent (P. 4-33)
2. Headlight/fog light/turn signalswitch (P. 2-45)
3. Instrument brightness control
(P. 2-39)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-50) Horn (P. 2-46)
6. Backup Collision Intervention (BCI)
switch (if so equipped) (P. 5-60)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
9. Rear window and outside mirror
defroster switch (P. 2-39)
10. Center display* Navigation system* (if so equipped)
11. Automatic heater and air condi-
tioner controls (P. 4-43, 4-34)
12. Front passenger supplemental air
bag (P. 1-57)
13. Glove box (P. 2-58)
14. Center multi-function control
buttons*
15. Power outlet (P. 2-53)
16. Shift lever (P. 5-18)
LII2544
INSTRUMENT PANEL
0-6Illustrated table of contents

17. Audio system controls*Front passenger air bag status light
(P. 1-50)
18. Hazard warning flasher switch
(P. 6-2)
19. Push-button ignition switch
(P. 5-13)
20. Cruise control switches
(if so equipped) (P. 5-76)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-78)
21. Dynamic driver assistance switch (if
so equipped) (P. 5-32, 5-48, 5-98)
22. Tilt and telescopic steering wheel
control (P. 3-31)
23. Bluetooth® Hands-Free Phone
System*
24. Steering wheel switch for audio
control* 25. Hood release (P. 3-22)
Vehicle Dynamic Control (VDC)
OFF switch (P. 2-51)
Heated steering wheel switch
(if so equipped) (P. 2-49)
Warning systems switch
(if so equipped) (P. 2-50)
Power inverter switch
(if so equipped) (P. 2-52)
Power liftgate switch (P. 3-22)
26. Control panel and vehicle informa-
tion display switches (P. 2-17)
*: Refer to the separate INFINITI InTouchTM
Owner’s Manual (if so equipped).
Refer to the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

VQ35DD engine
1. Power steering fluid reservoir(P. 8-9)
2. Engine coolant reservoir (P. 8-4)
3. Drive belt location (P. 8-15)
4. Fuse box (P. 8-20)
5. Engine oil filler cap (P. 8-6)
6. Brake fluid reservoir (P. 8-10)
7. Air cleaner (P. 8-16)
8. Fuse box (P. 8-20)
9. Fuse/Fusible link box (P. 8-20)
10. Battery (P. 8-12)
11. Engine oil dipstick (P. 8-6)
12. Radiator cap (P. 8-4)
13. Windshield-washer fluid reservoir
(P. 8-11)
Refer to the page number indicated in paren-
theses for operating details.
LDI3238
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

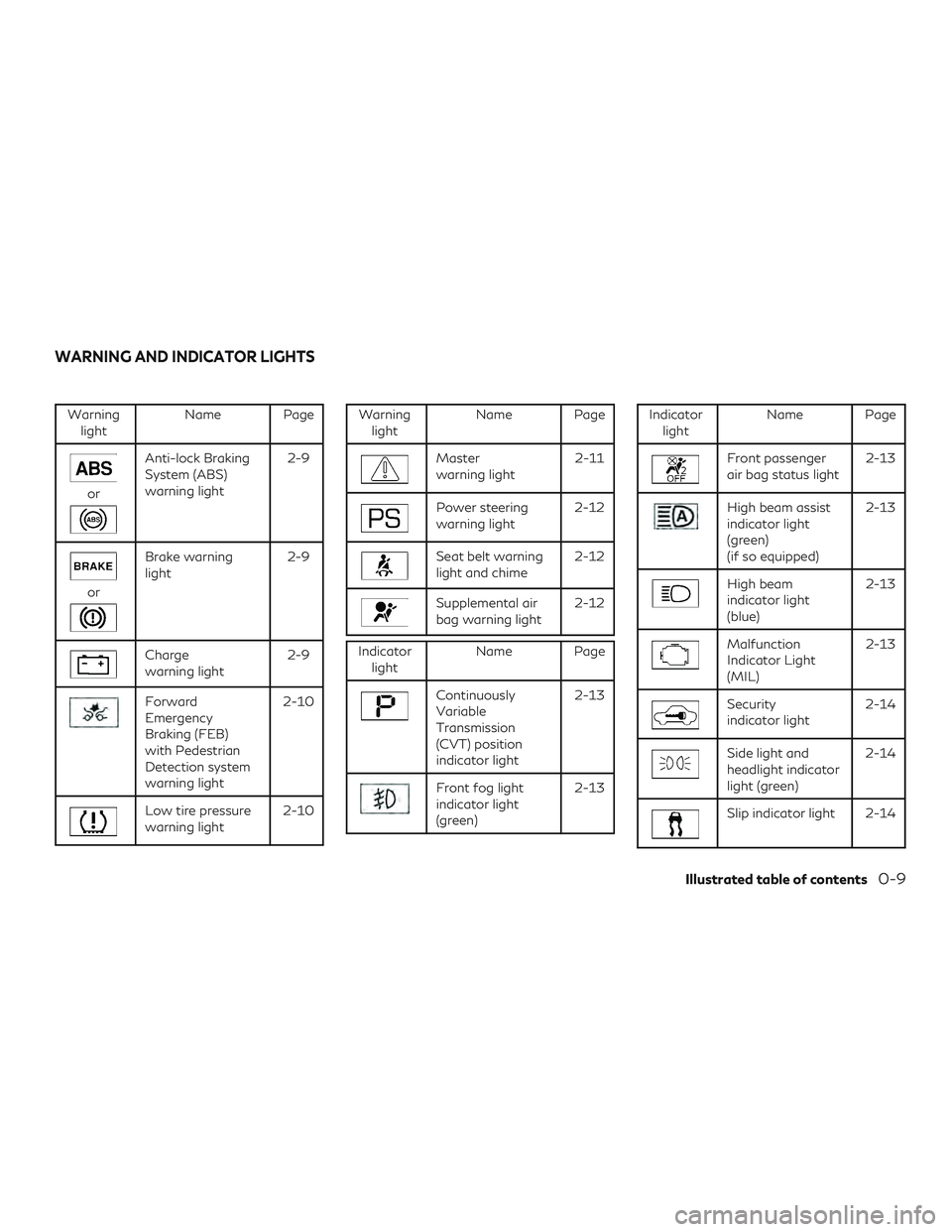

Warninglight Name Page
or
Anti-lock Braking
System (ABS)
warning light 2-9
or
Brake warning
light
2-9
Charge
warning light2-9
Forward
Emergency
Braking (FEB)
with Pedestrian
Detection system
warning light2-10
Low tire pressure
warning light
2-10
Warning
light Name Page
Master
warning light 2-11
Power steering
warning light2-12
Seat belt warning
light and chime2-12
Supplemental air
bag warning light2-12
Indicator
light Name Page
Continuously
Variable
Transmission
(CVT) position
indicator light 2-13
Front fog light
indicator light
(green)
2-13
Indicator
light Name Page
Front passenger
air bag status light 2-13
High beam assist
indicator light
(green)
(if so equipped)2-13
High beam
indicator light
(blue)
2-13
Malfunction
Indicator Light
(MIL)2-13
Security
indicator light
2-14
Side light and
headlight indicator
light (green)2-14
Slip indicator light 2-14
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9

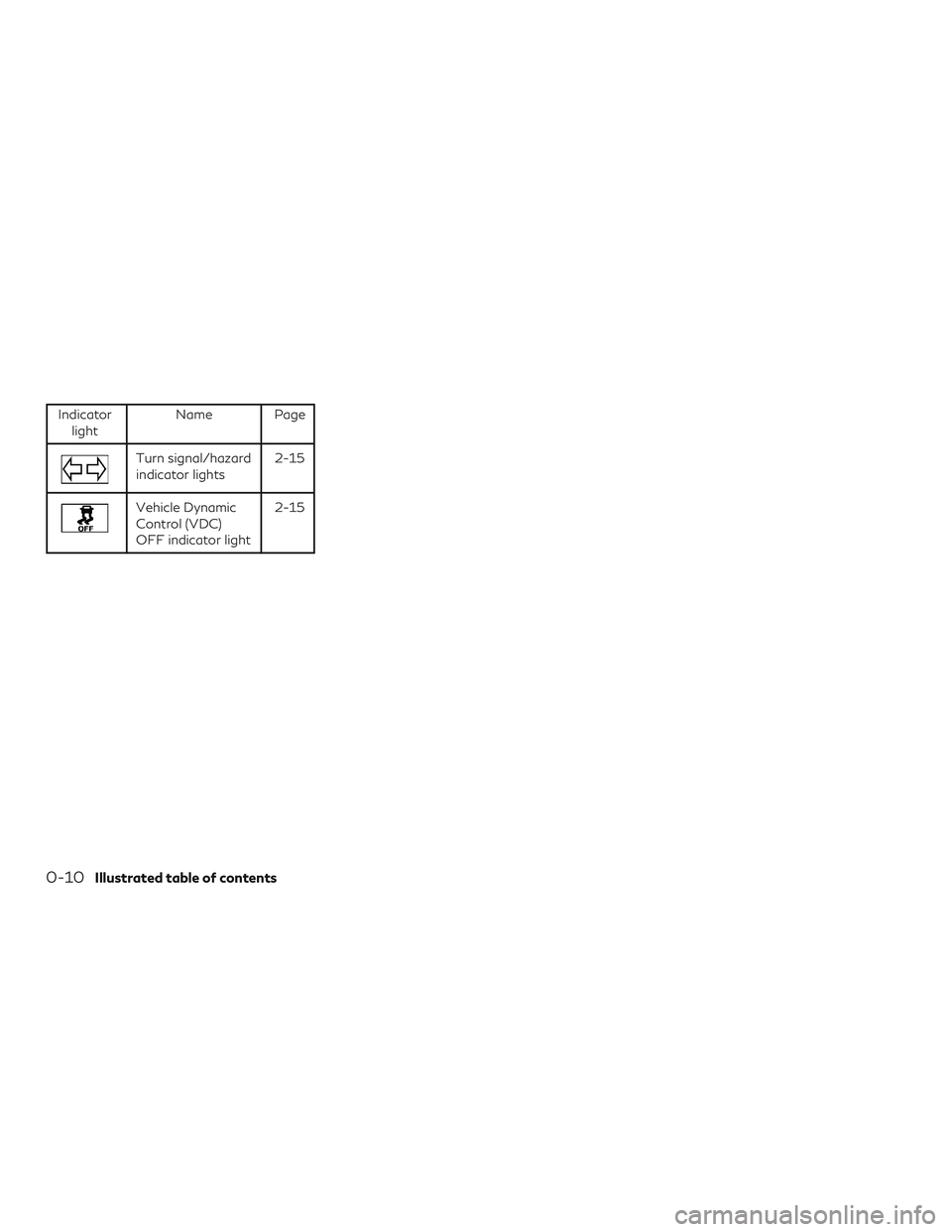

Indicatorlight Name Page
Turn signal/hazard
indicator lights 2-15
Vehicle Dynamic
Control (VDC)
OFF indicator light2-15
0-10Illustrated table of contents

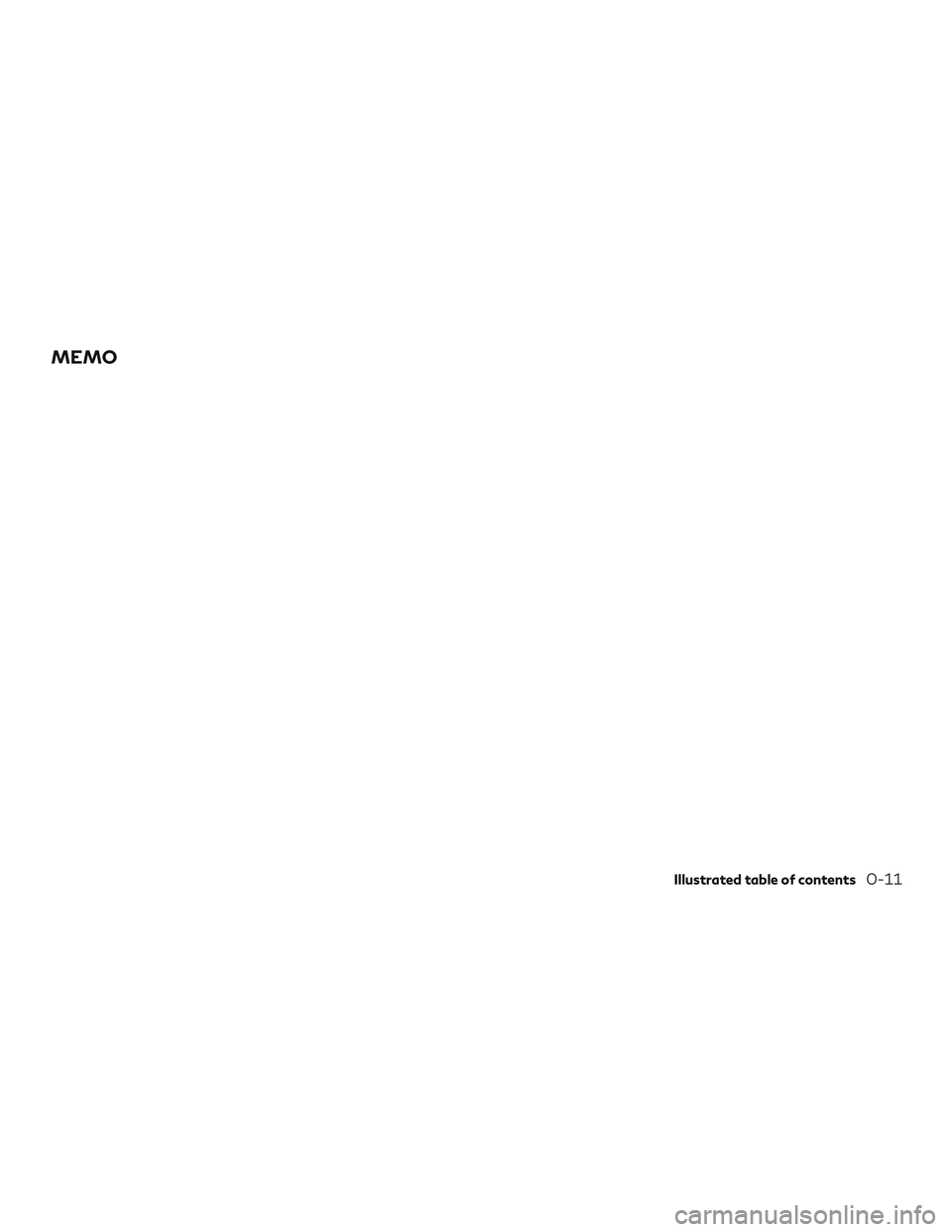

MEMO
Illustrated table of contents0-11

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front power seat adjustment ..................1-3
2nd row bench seat adjustment ................1-5
3rd row bench seat adjustment ................1-8
Armrests ......................................1-8
Flexible seating ...............................1-8
Head restraints/headrests .......................1-12
Adjustable head restraint/headrest
components ................................. 1-13
Non-adjustable head restraint/headrest
components ................................. 1-13
Remove ...................................... 1-13
Removable (without Dual Head
Restraint/Headrest Rear Seat Mobile
Entertainment System (MES) only) ............1-14
Install ........................................ 1-14
Adjust ....................................... 1-15
Folding head restraint/headrest ..............1-16
Seat belts ....................................... 1-17
Precautions on seat belt usage ...............1-17
Seat belt warning light ......................1-20
Pregnant women ............................ 1-20
Injured persons .............................. 1-20Pre-crash seat belts with comfort
function (front seats) (if so equipped)
.........1-20
Three-point type seat belt with retractor ......1-21
Seat belt extenders ........................... 1-25
Seat belt maintenance ........................ 1-25
Child safety .................................... 1-26
Infants ....................................... 1-27
Small children ................................ 1-27
Larger children ............................... 1-27
Child restraints ................................. 1-28
Precautions on child restraints ...............1-28
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-30
Rear-facing child restraint installation
using LATCH ............................... 1-33
Rear-facing child restraint installation
using the seat belts .......................... 1-35
Forward-facing child restraint installation
using LATCH ............................... 1-38
Forward-facing child restraint installation
using the

seat belts ........................... 1-41
Booster seats ................................ 1-47
Supplemental Restraint System (SRS) ...........1-50
