Power operation to return the 3rd row seats
to a seating position (if so equipped):1. Push and hold the corresponding switch
Elocated on the right and left side in the
cargo area.
A beep sounds once and the seatback will be
returned automatically.
A beep sounds twice when the seatback is
fully returned to the seating position. If the control unit detects any obstacle or
malfunctions while in the power operation, a
beep sounds for 4 seconds and the seatback
will return to the folded position automati-
cally. Check if there are any obstacles caught
that prevent seats from returning to the
folded position. It is recommended that you
visit an INFINITI retailer if the beep still
sounds.
CAUTION
When operating the 3rd row power seat-
back return, make sure that the vehicle is
stopped and the transmission is in the P
(Park) position.
WARNING
∙ When the seat is returned to the normal
seating position, the head
restraints/headrests must be returned
to the upright position to properly pro-
tect vehicle occupants.
∙ Never allow anyone to ride in the cargo area or on the 3rd row seats when they
are in the fold-down position. In a colli-
sion, people riding in these areas are more
likely to be seriously injured or killed. ∙ Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.
∙ Do not fold down the 3rd row seats when occupants are in the 3rd row seat area or
any luggage is on the 3rd row seats.
– Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet to
get caught or pinched in the seat.
∙ Properly secure all cargo to help prevent it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a sud-
den stop or collision, unsecured cargo
could cause personal injury.
LRS2623
Safety—Seats, seat belts and supplemental restraint system1-11
Page 32 of 540
WARNING
Head restraints/headrests supplement the
other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be ad-
justed properly, as specified in this section.
Check the adjustment after someone else
uses the seat. Do not attach anything to the
head restraint/headrest stalks or remove
the head restraint/headrest. Do not use
the seat if the head restraint/headrest has
been removed. If the head restraint/
headrest was removed, reinstall and prop-
erly adjust the head restraint/headrest be-
fore an occupant uses the seating position.
Failure to follow these instructions can re-
duce the effectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision.The illustration shows the seating positions
equipped with head restraints/headrests.
Indicates the seating position is equipped
with a head restraint.
Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest (if
applicable).
∙ Your vehicle is equipped with a head restraint/headrest that may be inte-
grated, adjustable or non-adjustable. ∙ Adjustable head restraints/headrests
have multiple notches along the stalk(s)
to lock them in a desired adjustment po-
sition.
∙ The non-adjustable head restraints/headrests have a single lock-
ing notch to secure them to the seat
frame.
∙ Proper Adjustment: – For the adjustable type, align the headrestraint/headrest so the center of
your ear is approximately level with
the center of the head
restraint/headrest.
– If your ear position is still higher than the recommended alignment, place
the head restraint/headrest at the
highest position.
∙ If the head restraint/headrest has been removed, ensure that it is reinstalled and
locked in place before riding in that des-
ignated seating position.
LRS2308
HEAD RESTRAINTS/HEADRESTS
1-12Safety—Seats, seat belts and supplemental restraint system
Page 33 of 540
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
REMOVE
Use the following procedure to remove the
head restraint/headrest:1. Pull the head restraint/headrest up to the highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest prop- erly in a secure place so it is not loose in
the vehicle.
LRS2300LRS2299LRS2302
Safety—Seats, seat belts and supplemental restraint system1-13
Page 34 of 540
5. Reinstall and properly adjust the headrestraint/headrest before an occupant
uses the seating position.
REMOVABLE (without Dual Head
Restraint/Headrest Rear Seat
Mobile Entertainment System
(MES) only)
CAUTION
Do not remove head restraint/headrest
from vehicles equipped with Dual Head
Restraint/Headrest Rear Seat Mobile En-
tertainment System (MES). Removal may
damage the system wiring.
INSTALL
1. Align the head restraint/headrest stalkswith the holes in the seat. Make sure that
the head restraint/headrest is facing the
correct direction. The stalk with the
notch (notches)
1must be installed in
the hole with the lock knob
2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/ headrest before an occupant uses the
seating position.
LRS2302LRS2303
1-14Safety—Seats, seat belts and supplemental restraint system
Page 35 of 540
ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears. If
your ear position is still higher than the rec-
ommended alignment, place the head
restraint/headrest at the highest position.For non-adjustable head restraint/headrest
Make sure the head restraint/headrest is po-
sitioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
Raise
To raise the head restraint/headrest, pull it
up.
Make sure the head restraint/headrest is po-
sitioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
WRS0134LRS2351LRS2305
Safety—Seats, seat belts and supplemental restraint system1-15
Page 36 of 540
Lower
To lower, push and hold the lock knob and
push the head restraint/headrest down.
Make sure the head restraint/headrest is po-
sitioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
FOLDING HEAD RESTRAINT/
HEADREST
To fold the head restraint/headrest, pull the
strap located on the rear of the head
restraint/headrest.
If the head restraint/headrest has been
folded, make sure that it is returned to the
upright position.
Make sure the head restraint/headrest is po-
sitioned so the lock knobs are engaged in the
notches before riding in that designated
seating position.
WARNING
When the seat is returned to the normal
seating position, the head restraint/
headrest must be returned to the upright
position to properly protect vehicle
occupants.
LRS2306LRS2307
1-16Safety—Seats, seat belts and supplemental restraint system
Page 37 of 540

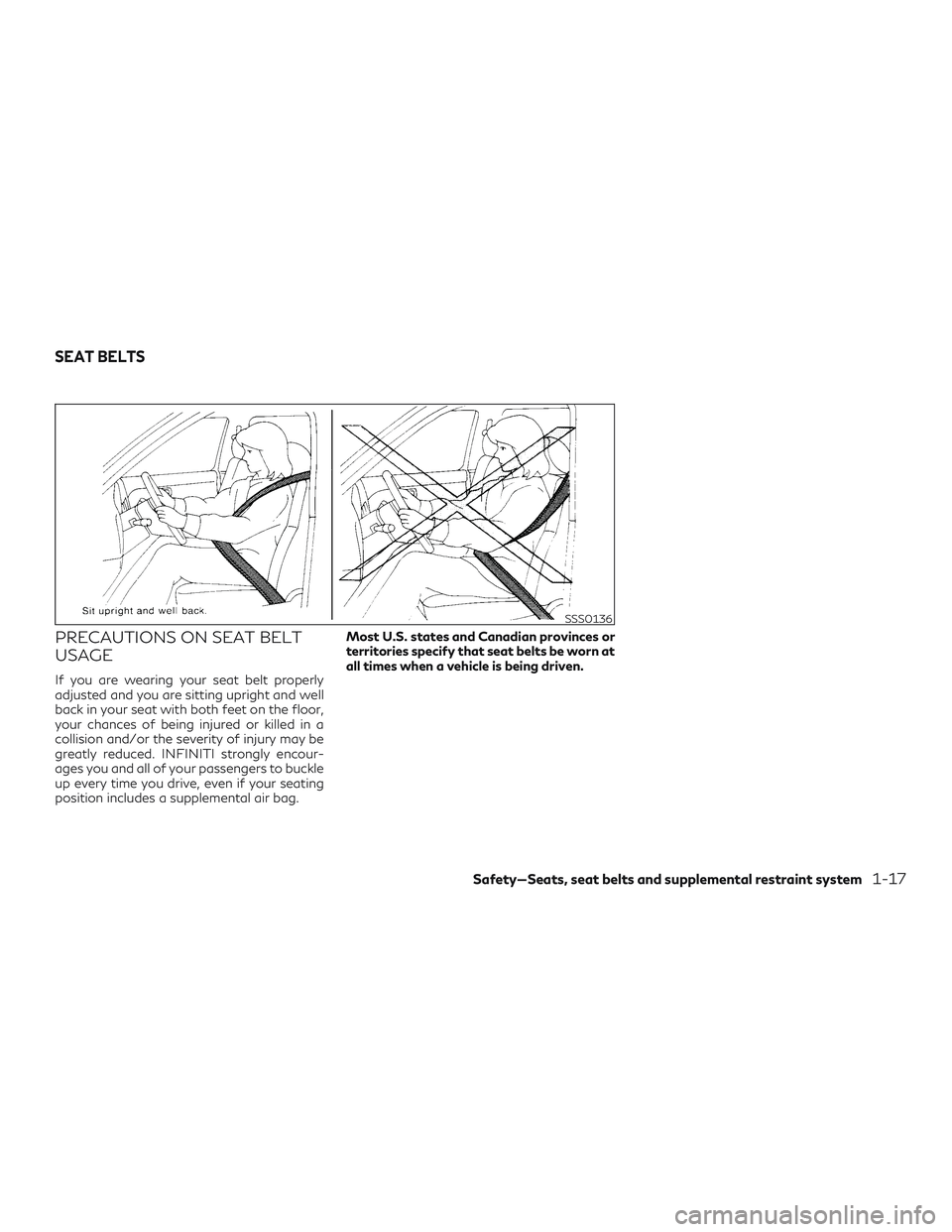

PRECAUTIONS ON SEAT BELT
USAGE
If you are wearing your seat belt properly
adjusted and you are sitting upright and well
back in your seat with both feet on the floor,
your chances of being injured or killed in a
collision and/or the severity of injury may be
greatly reduced. INFINITI strongly encour-
ages you and all of your passengers to buckle
up every time you drive, even if your seating
position includes a supplemental air bag.Most U.S. states and Canadian provinces or
territories specify that seat belts be worn at
all times when a vehicle is being driven.
SSS0136
SEAT BELTS
Safety—Seats, seat belts and supplemental restraint system1-17
Page 38 of 540

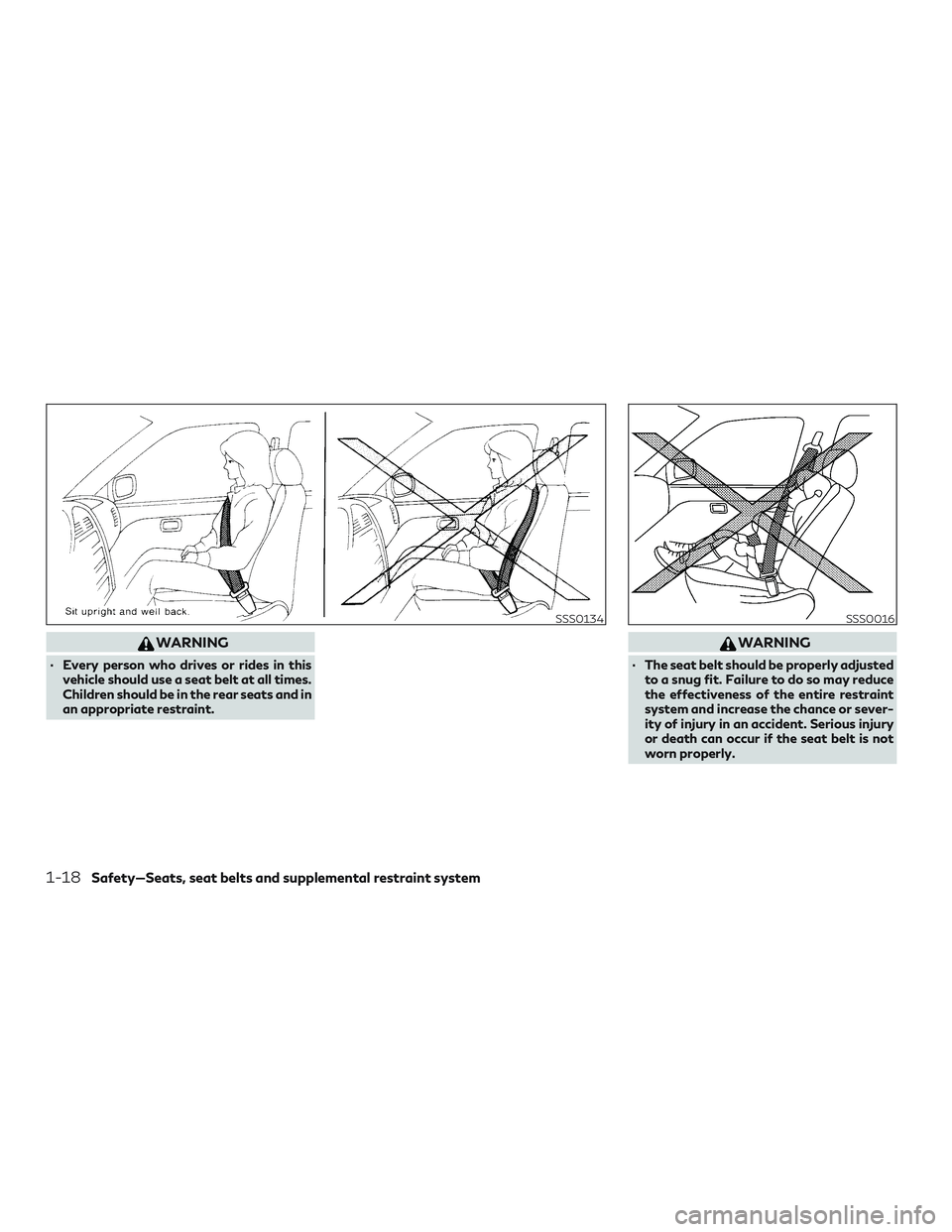

WARNING
∙ Every person who drives or rides in thisvehicle should use a seat belt at all times.
Children should be in the rear seats and in
an appropriate restraint.
WARNING
∙ The seat belt should be properly adjustedto a snug fit. Failure to do so may reduce
the effectiveness of the entire restraint
system and increase the chance or sever-
ity of injury in an accident. Serious injury
or death can occur if the seat belt is not
worn properly.
SSS0134SSS0016
1-18Safety—Seats, seat belts and supplemental restraint system
Page 39 of 540

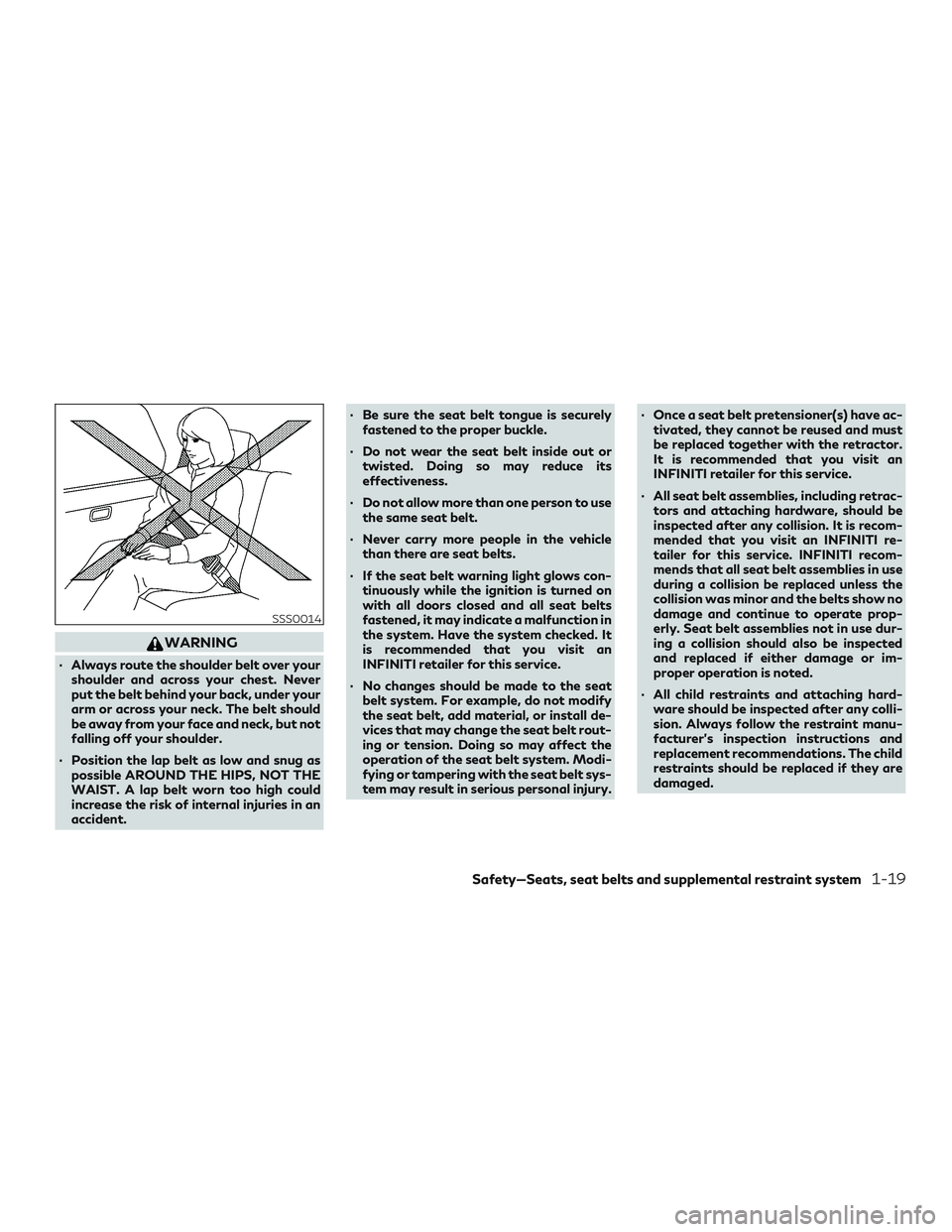

WARNING
∙ Always route the shoulder belt over yourshoulder and across your chest. Never
put the belt behind your back, under your
arm or across your neck. The belt should
be away from your face and neck, but not
falling off your shoulder.
∙ Position the lap belt as low and snug as possible AROUND THE HIPS, NOT THE
WAIST. A lap belt worn too high could
increase the risk of internal injuries in an
accident. ∙ Be sure the seat belt tongue is securely
fastened to the proper buckle.
∙ Do not wear the seat belt inside out or twisted. Doing so may reduce its
effectiveness.
∙ Do not allow more than one person to use the same seat belt.
∙ Never carry more people in the vehicle than there are seat belts.
∙ If the seat belt warning light glows con- tinuously while the ignition is turned on
with all doors closed and all seat belts
fastened, it may indicate a malfunction in
the system. Have the system checked. It
is recommended that you visit an
INFINITI retailer for this service.
∙ No changes should be made to the seat belt system. For example, do not modify
the seat belt, add material, or install de-
vices that may change the seat belt rout-
ing or tension. Doing so may affect the
operation of the seat belt system. Modi-
fying or tampering with the seat belt sys-
tem may result in serious personal injury. ∙ Once a seat belt pretensioner(s) have ac-
tivated, they cannot be reused and must
be replaced together with the retractor.
It is recommended that you visit an
INFINITI retailer for this service.
∙ All seat belt assemblies, including retrac- tors and attaching hardware, should be
inspected after any collision. It is recom-
mended that you visit an INFINITI re-
tailer for this service. INFINITI recom-
mends that all seat belt assemblies in use
during a collision be replaced unless the
collision was minor and the belts show no
damage and continue to operate prop-
erly. Seat belt assemblies not in use dur-
ing a collision should also be inspected
and replaced if either damage or im-
proper operation is noted.
∙ All child restraints and attaching hard- ware should be inspected after any colli-
sion. Always follow the restraint manu-
facturer’s inspection instructions and
replacement recommendations. The child
restraints should be replaced if they are
damaged.
SSS0014
Safety—Seats, seat belts and supplemental restraint system1-19
Page 40 of 540
SEAT BELT WARNING LIGHT
Both the driver’s and passenger’s front seats
are equipped with a seat belt warning light.
The warning light, located on the instrument
panel, will show the status of the driver and
passenger seat belt.
NOTE:
The front passenger seat belt warning light
will not light up if the seat is not occupied.
For additional information, refer to “Warning
lights, indicator lights and audible reminders”
in the “Instruments and controls” section of
this manual.
PREGNANT WOMEN
INFINITI recommends that pregnant women
use seat belts. The seat belt should be worn
snug and always position the lap belt as low
as possible around the hips, not the waist.
Place the shoulder belt over your shoulder
and across your chest. Never run the
lap/shoulder belt over your abdominal area.
Contact your doctor for specific recommen-
dations.
INJURED PERSONS
INFINITI recommends that injured persons
use seat belts. Check with your doctor for
specific recommendations.
PRE-CRASH SEAT BELTS WITH
COMFORT FUNCTION
(front seats) (if so equipped)
The pre-crash seat belt tightens the seat belt
with a motor to help restrain front seat occu-
pants. This helps reduce the risk of injury in a
collision.
The motor retracts the seat belt under the
following emergency conditions:∙ During emergency braking.
∙ During sudden steering maneuvers. ∙ Activation of the Forward Emergency
Braking (FEB) with Pedestrian Detection
system (if so equipped). For additional
information, refer to “Forward Emer-
gency Braking (FEB) with Pedestrian De-
tection system” in the “Starting and driv-
ing” section of this manual.
∙ In the event of certain types of rollover collisions.
The pre-crash seat belt will not be active
when: ∙ The seat belt is not fastened.
∙ The vehicle speed is under 10 mph (15 km/h) during emergency braking.
∙ The vehicle speed is under 19 mph (30 km/h) during sudden steering ma-
neuvers.
The pre-crash seat belt will not be active
when the brake pedal is not depressed except
when sudden steering maneuvers occur and
the Forward Emergency Braking (FEB) with
Pedestrian Detection system (if so equipped)
activates.
The motor also retracts the seat belt when
the seat belt is fastened or unfastened. When
the seat belt is fastened, the motor tightens
the seat belt for a snug fit. When the seat belt
LRS0786
1-20Safety—Seats, seat belts and supplemental restraint system
