NOTE:
The approach warning chime may sound and
the system display may blink when ICC sen-
sor detects vehicles in other lanes
Aor ob-
jects on the side of the roadA. This may
cause the DCA system to operate inappro-
priately. The ICC sensor may detect these
objects when the vehicle is driven on winding
roads, narrow roads, hilly roads or when en-
tering or exiting a curve. In these cases you
will have to manually control the proper dis-
tance ahead of your vehicle.
Also, the sensor sensitivity can be affected
by vehicle operation (steering maneuver or
driving position in the lane) or traffic or ve-
hicle condition (for example, if a vehicle is
being driven with some damage).
SYSTEM TEMPORARILY
UNAVAILABLE
Under the following conditions, the DCA sys-
tem will not operate and the DCA cancella-
tion message will pop up:
∙ When the Drive Mode Selector switch is placed in the SNOW mode (To use the
DCA system, turn off the Drive Mode
Selector switch, then turn on the dynamic
driver assistance switch.)
For additional information about the
SNOW mode on the Drive Mode Selec-
tor switch, refer to “Snow mode” in this
section. ∙ When the VDC system is off (To use the
DCA system, turn on the VDC, then push
the dynamic driver assistance switch.)
For additional information about the
VDC system, refer to “Vehicle Dynamic
Control (VDC) system” in this section.
∙ When ABS or VDC (including the TCS) is operating
When the Conventional (fixed speed) cruise
control mode is operating, the DCA system
will not operate. (To use the DCA system,
turn the Conventional [fixed speed] cruise
control mode off, then push the dynamic
driver assistance switch.)
For additional information about the Con-
ventional (fixed speed) cruise control mode,
refer to “Intelligent Cruise Control (ICC)” in
this section.
When the engine is turned off, the system is
automatically turned off.
SSD0284ALSD2080
5-106Starting and driving

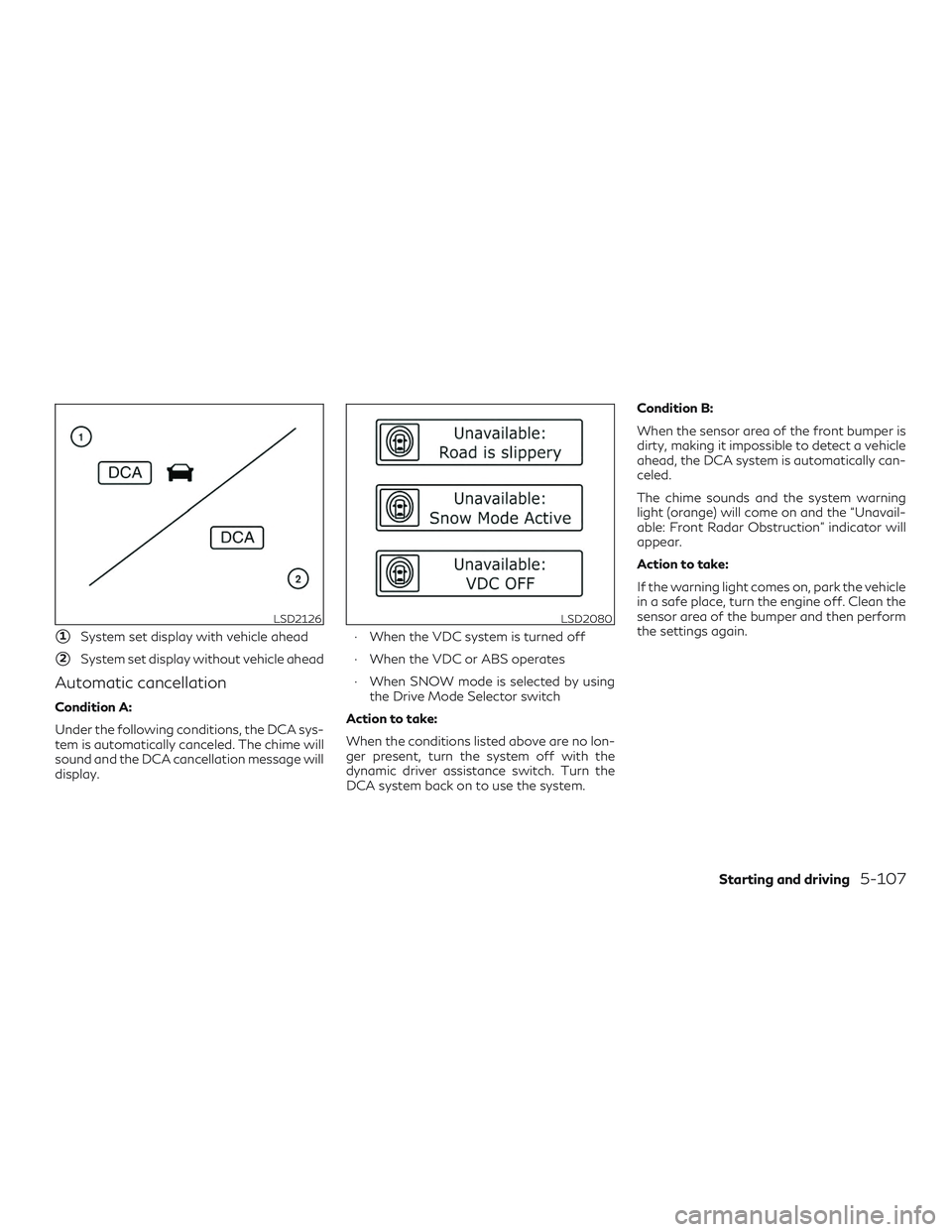

1System set display with vehicle ahead
2System set display without vehicle ahead
Automatic cancellation
Condition A:
Under the following conditions, the DCA sys-
tem is automatically canceled. The chime will
sound and the DCA cancellation message will
display.∙ When the VDC system is turned off
∙ When the VDC or ABS operates
∙ When SNOW mode is selected by using
the Drive Mode Selector switch
Action to take:
When the conditions listed above are no lon-
ger present, turn the system off with the
dynamic driver assistance switch. Turn the
DCA system back on to use the system. Condition B:
When the sensor area of the front bumper is
dirty, making it impossible to detect a vehicle
ahead, the DCA system is automatically can-
celed.
The chime sounds and the system warning
light (orange) will come on and the “Unavail-
able: Front Radar Obstruction” indicator will
appear.
Action to take:
If the warning light comes on, park the vehicle
in a safe place, turn the engine off. Clean the
sensor area of the bumper and then perform
the settings again.
LSD2126LSD2080
Starting and driving5-107

Condition C:
When the DCA system is not operating prop-
erly, the chime sounds and the system warn-
ing light (“DCA” orange) will come on.
Action to take:
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, and turn on the DCA system
again.If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal conditions,
have the vehicle checked. It is recommended
that you visit an INFINITI retailer for this
service.
SYSTEM MAINTENANCE
The sensor for the DCA system is common
with ICC and is located behind the front bum-
per.
For additional information, refer to “Intelli-
gent Cruise Control (ICC)” in this section.
For USA
FCC ID: OAYARS3–B
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.For Canada
IC: 4135A-ARS3B
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1)
This device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Droit applicable : Canada 310
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1)
L’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en comprom-
ettre le fonctionnement.

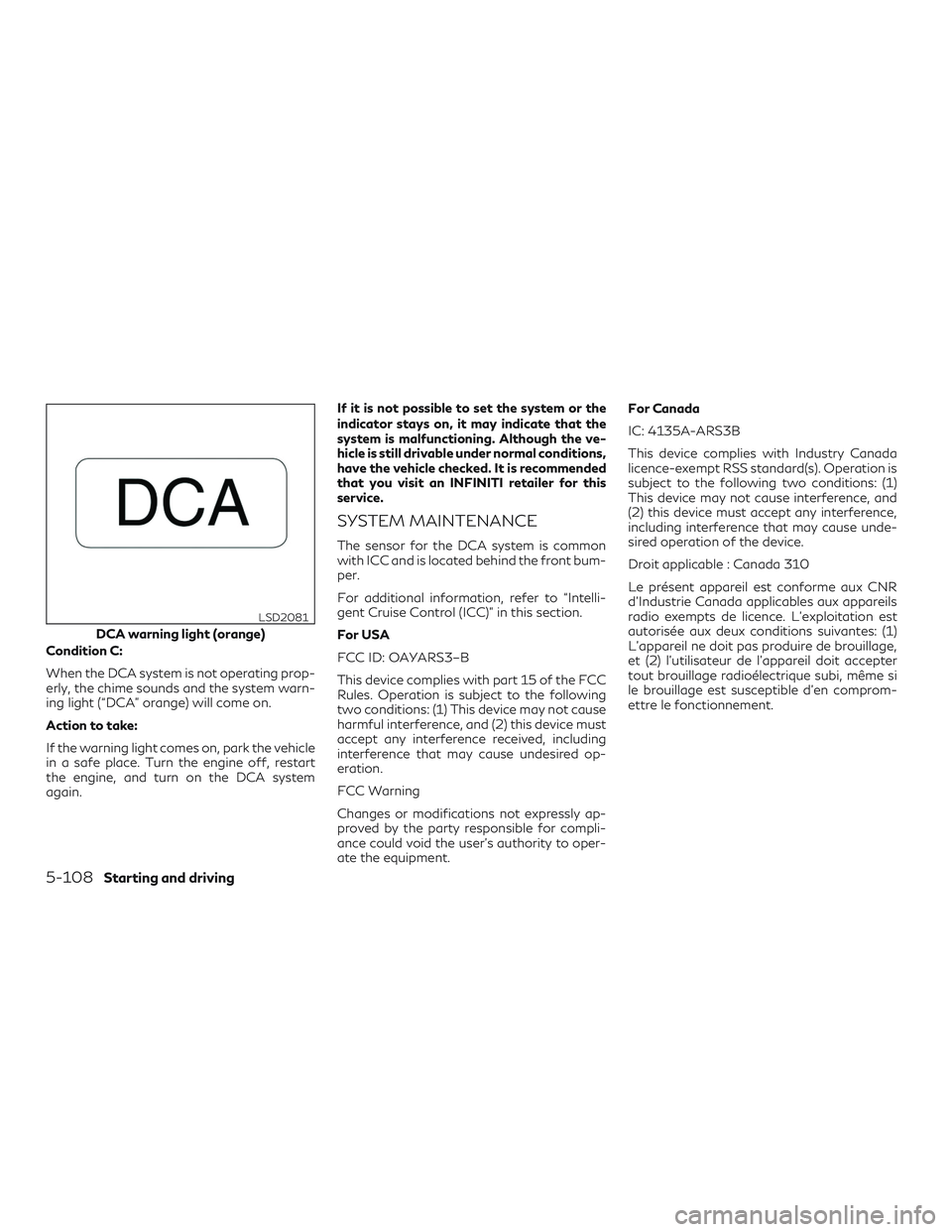

DCA warning light (orange)
LSD2081
5-108Starting and driving

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the FEB with Pedes-
trian Detection system could result in seri-
ous injury or death.
∙ The FEB with Pedestrian Detection sys-tem is a supplemental aid to the driver. It
is not a replacement for the driver’s at-
tention to traffic conditions or responsi-
bility to drive safely. It cannot prevent
accidents due to carelessness or danger-
ous driving techniques.
∙ The FEB with Pedestrian Detection sys- tem does not function in all driving, traf-
fic, weather and road conditions.
The FEB with Pedestrian Detection system
can assist the driver when there is a risk of a
forward collision with the vehicle ahead in the
traveling lane or with a pedestrian. The FEB with Pedestrian Detection system
uses a radar sensor
Alocated behind the
lower grille of the front bumper to measure
the distance to the vehicle ahead in the same
lane. For pedestrians, the FEB with Pedes-
trian Detection system uses a camera
Bin-
stalled behind the windshield in addition to
the radar sensor.
LSD2703
FORWARD EMERGENCY BRAKING
(FEB) WITH PEDESTRIAN
DETECTION SYSTEM
Starting and driving5-109

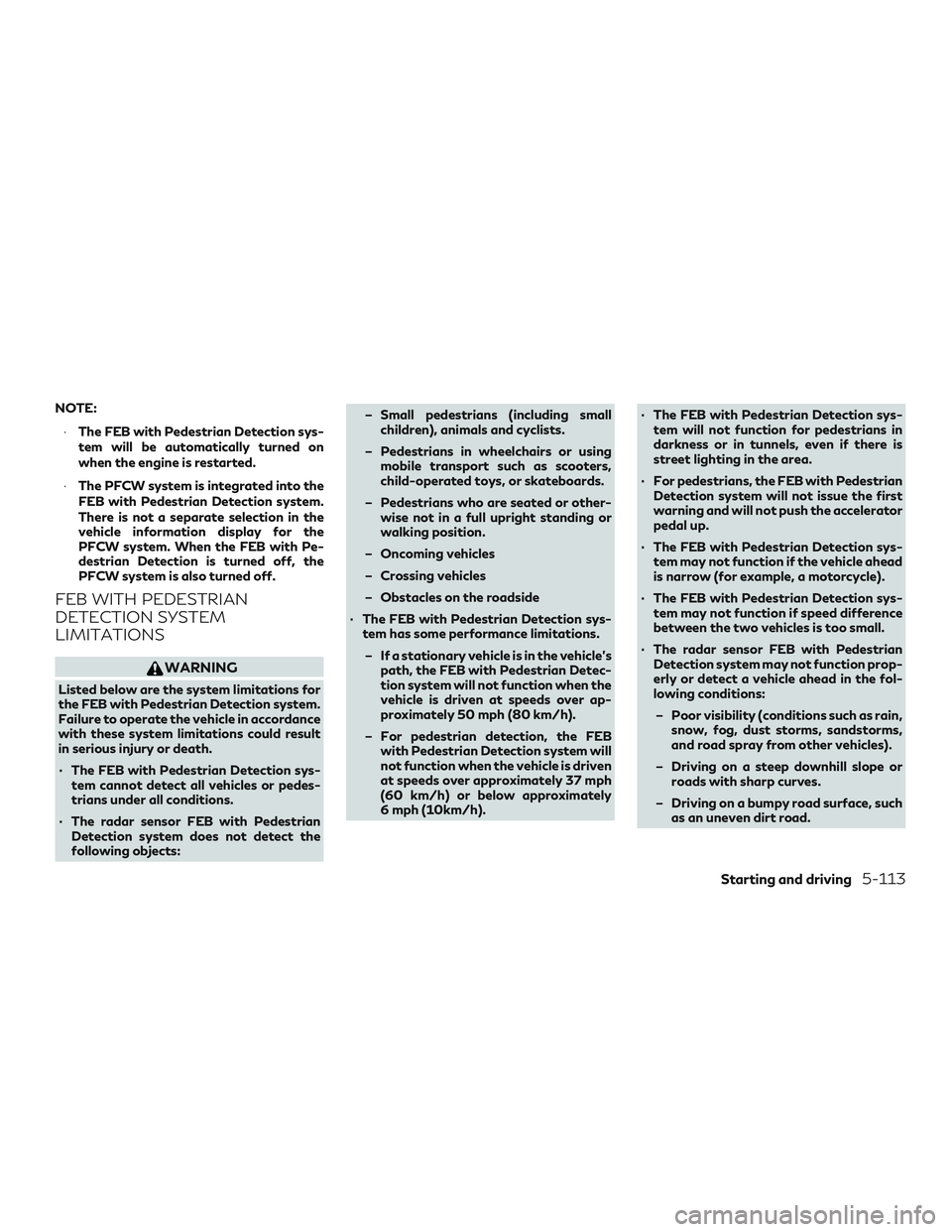

NOTE:∙ The FEB with Pedestrian Detection sys-
tem will be automatically turned on
when the engine is restarted.
∙ The PFCW system is integrated into the
FEB with Pedestrian Detection system.
There is not a separate selection in the
vehicle information display for the
PFCW system. When the FEB with Pe-
destrian Detection is turned off, the
PFCW system is also turned off.
FEB WITH PEDESTRIAN
DETECTION SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accordance
with these system limitations could result
in serious injury or death.
∙ The FEB with Pedestrian Detection sys-
tem cannot detect all vehicles or pedes-
trians under all conditions.
∙ The radar sensor FEB with Pedestrian Detection system does not detect the
following objects: – Small pedestrians (including small
children), animals and cyclists.
– Pedestrians in wheelchairs or using mobile transport such as scooters,
child-operated toys, or skateboards.
– Pedestrians who are seated or other- wise not in a full upright standing or
walking position.
– Oncoming vehicles
– Crossing vehicles
– Obstacles on the roadside
∙ The FEB with Pedestrian Detection sys- tem has some performance limitations.
– If a stationary vehicle is in the vehicle’s path, the FEB with Pedestrian Detec-
tion system will not function when the
vehicle is driven at speeds over ap-
proximately 50 mph (80 km/h).
– For pedestrian detection, the FEB with Pedestrian Detection system will
not function when the vehicle is driven
at speeds over approximately 37 mph
(60 km/h) or below approximately
6 mph (10km/h). ∙ The FEB with Pedestrian Detection sys-
tem will not function for pedestrians in
darkness or in tunnels, even if there is
street lighting in the area.
∙ For pedestrians, the FEB with Pedestrian Detection system will not issue the first
warning and will not push the accelerator
pedal up.
∙ The FEB with Pedestrian Detection sys- tem may not function if the vehicle ahead
is narrow (for example, a motorcycle).
∙ The FEB with Pedestrian Detection sys- tem may not function if speed difference
between the two vehicles is too small.
∙ The radar sensor FEB with Pedestrian Detection system may not function prop-
erly or detect a vehicle ahead in the fol-
lowing conditions:
– Poor visibility (conditions such as rain, snow, fog, dust storms, sandstorms,
and road spray from other vehicles).
– Driving on a steep downhill slope or roads with sharp curves.
– Driving on a bumpy road surface, such as an uneven dirt road.
Starting and driving5-113

– If dirt, ice, snow or other material iscovering the radar sensor area.
– Interference by other radar sources.
– The camera area of windshield is fogged up, or covered with dirt, water
drops, ice, snow, etc.
– Strong light (for example, sunlight or high beams from oncoming vehicles)
enters the front camera. Strong light
causes the area around the pedestrian
to be cast in a shadow, making it diffi-
cult to see.
– A sudden change in brightness occurs. (For example, when the vehicle enters
or exits a tunnel or a shaded area or
lightning flashes.)
– The poor contrast of a person to the background, such as having clothing
color or pattern which is similar to the
background.
– The pedestrian’s profile is partially obscured or unidentifiable due to the
pedestrian transporting luggage,
wearing bulky or very loose-fitting
clothing or accessories. ∙ The system performance may degrade in
the following conditions:
– The vehicle is driven on a slippery road.
– The vehicle is driven on a slope.
– Excessively heavy baggage is loaded in the rear seat or the trunk room of
your vehicle.
∙ The system is designed to automatically check the sensor’s (radar and camera)
functionality, within certain limitations.
The system may not detect blockage of
sensor areas covered by ice, snow or
stickers, for example. In these cases, the
system may not be able to warn the
driver properly. Be sure that you check,
clean and clear sensor areas regularly.
∙ In some road and traffic conditions, the FEB with Pedestrian Detection system
may unexpectedly apply partial braking.
When acceleration is necessary, depress
the accelerator pedal to override the
system.
∙ Excessive noise will interfere with the warning chime sound, and the chime may
not be heard.
5-114Starting and driving

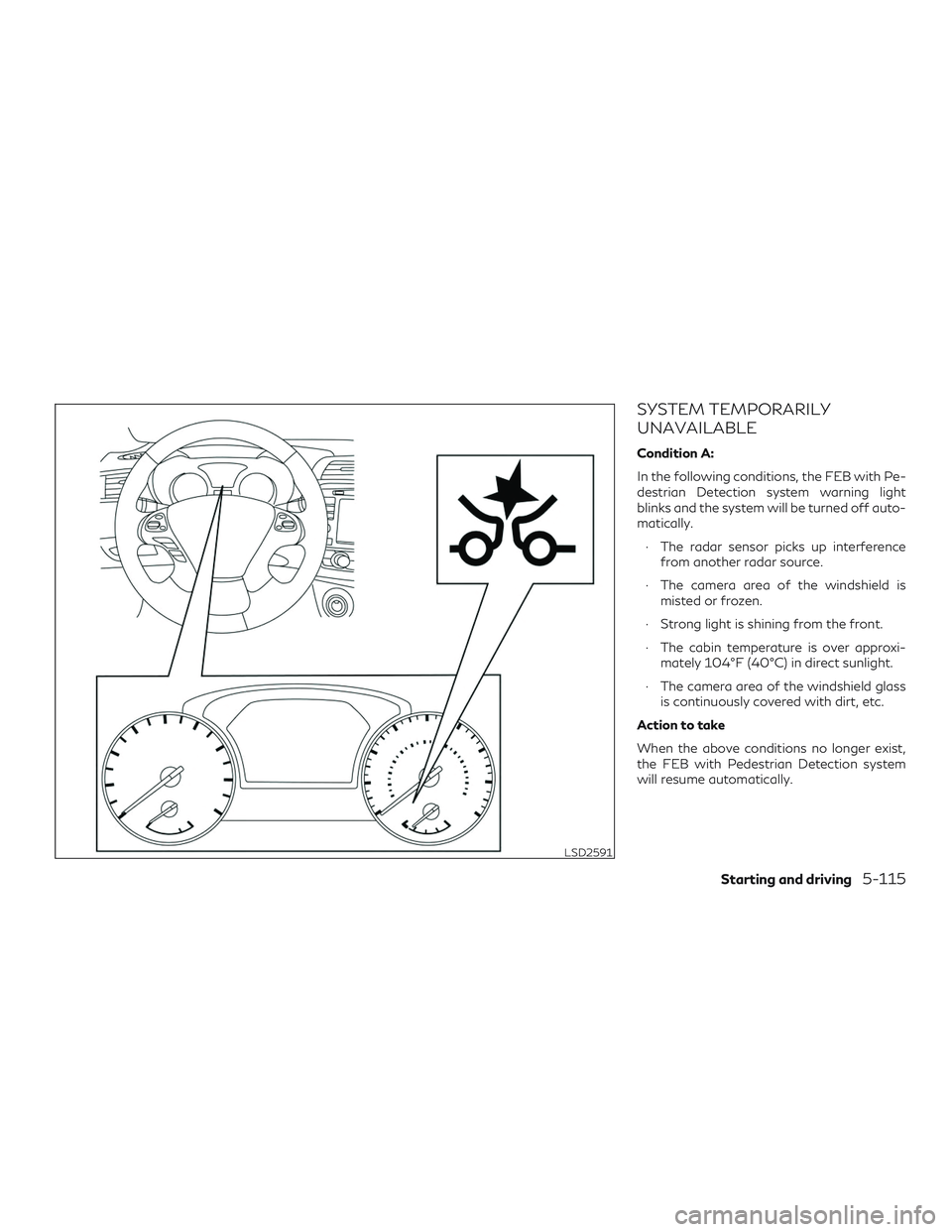

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
In the following conditions, the FEB with Pe-
destrian Detection system warning light
blinks and the system will be turned off auto-
matically.∙ The radar sensor picks up interference from another radar source.
∙ The camera area of the windshield is misted or frozen.
∙ Strong light is shining from the front.
∙ The cabin temperature is over approxi- mately 104°F (40°C) in direct sunlight.
∙ The camera area of the windshield glass is continuously covered with dirt, etc.
Action to take
When the above conditions no longer exist,
the FEB with Pedestrian Detection system
will resume automatically.
LSD2591
Starting and driving5-115

NOTE:
When the inside of the windshield or camera
area is misted or frozen, it will take a period
of time to remove it after A/C turns ON. If
dirt appears on this area, have it checked. It
is recommended that you visit an INFINITI
retailer for this service.
Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate and the system will be turned off
automatically and the “Unavailable: Front
Radar Obstruction” warning message will ap-
pear in the vehicle information display.∙ The sensor area of the front bumper is covered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar sensor area of the front
bumper or the camera area of the windshield
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the FEB with Pedestrian Detection system
checked. It is recommended that you visit an
INFINITI retailer for this service. NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system will also
stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system will also
stop working.
SYSTEM MAINTENANCE
The radar sensorAis located behind the
lower grille of the front bumper. The camera
Bis located on the upper side of the wind-
shield.
To keep the FEB with Pedestrian Detection
system operating properly, be sure to ob-
serve the following:
∙ Always keep sensor areas of the front bumper and windshield clean.
∙ Do not strike or damage the areas around the sensors (ex. Bumper, windshield).
LSD2703
5-116Starting and driving

∙ Do not cover or attach stickers, or installany accessory near the sensors. This
could block sensor signals, and/or cause
failure or malfunction.
∙ Do not attach metallic objects near the radar sensor (brush guard, etc.). This
could cause failure or malfunction.
∙ Do not place reflective materials, such as white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s detection
capability.
∙ Do not alter, remove or paint the front bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.
Radio frequency statement
For USA
FCC ID: OAYARS3–B
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration. FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
For Canada
IC: 4135A-ARS3B
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1)
This device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Droit applicable : Canada 310
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1)
L’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en comprom-
ettre le fonctionnement.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the PFCW system
could result in serious injury or death.
∙ The PFCW system can help warn the
driver before a collision occurs but will
not avoid a collision. It is the driver’s re-
sponsibility to stay alert, drive safely and
be in control of the vehicle at all times.
The PFCW system can help alert the driver
when there is a sudden braking of a second
vehicle traveling in front of the vehicle ahead
in the same lane.
PREDICTIVE FORWARD COLLISION
WARNING (PFCW)
Starting and driving5-117

The PFCW system uses a radar sensorA
located behind the lower grille of the front
bumper to measure the distance to the ve-
hicle ahead in the same lane.
LSD2702
LSD2612
5-118Starting and driving
