brake sensor INFINITI QX60 2019 Owners Manual

VEHICLE INFORMATION
DISPLAY WARNINGS AND
INDICATORS
1. No Key Detected
2. Key ID Incorrect
3. Key Battery Low
4.
I-Key System Error: See Owner’s Manual
5. Key Registration Complete
6. Push brake and start switch to drive
7. Push Ignition to OFF
8. Shift to Park
9. Engine start operation for Intelligent Keysystem (if I-Key battery level is low)
10. Release Parking Brake
11. Low Fuel
12. Loose Fuel Cap
13. Low Oil Pressure: See Owner’s Manual
14. Low Washer Fluid
15. Tire Pressure Low - Add Air
16. TPMS Error: See Owner’s Manual 17. AWD Error: See Owner’s Manual
(if so equipped)
18. AWD High Temp. Stop vehicle (if so equipped)
19. Tire Size Incorrect: See Owner’s Manual (if so equipped)
20. Door Open
21. Liftgate Open
22. Timer Alert – Have a break?
23. Low Outside Temperature
24. Power will turn off to save the battery
25. Turn off the lights
26. Parking Sensor Error: See Owner’s Manual
27. Predictive Forward Collision Warning (PFCW) indicator
28. Lane Departure Warning (LDW)/Lane Departure Prevention (LDP) indicator
(if so equipped)
29. Blind Spot Warning (BSW) and Rear Cross Traffic Alert (RCTA)
(if so equipped) indicator
30. Malfunction: See Owner’s Manual (if so equipped) 31. Intelligent Cruise Control (ICC)
indicators (if so equipped)
32. Cruise control indicators (if so equipped)
33. INFINITI Drive Mode Selector indicators
34. Unavailable: Road is slippery (if so equipped)
35. Unavailable: Snow Mode Active (if so equipped)
36. Unavailable: VDC OFF (if so equipped)
37. Unavailable: High Cabin Temp. (if so equipped)
38. Unavailable: Side Radar Obstruction (if so equipped)
39. Unavailable: High Accelerator Temp. (if so equipped)
40. Unavailable: Front Radar Obstruction (if so equipped)
41. BCI OFF (if so equipped)
42. Shipping Mode On Push Storage Fuse
43. CVT Error: See Owner’s Manual
44. Rear Door Alert is activated
45. Check Back Seat For All Articles
2-26Instruments and controls

∙ Do not strike or damage the areas aroundthe ambient image sensor. Do not touch
the sensor lens that is located on the
ambient image sensor.
If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
Battery saver system
If the ignition switch is placed in the OFF
position while the headlight switch is in
the
orposition, the headlights
will turn off after a period of time.
NOTE:
The Battery Saver system may be disabled.
For additional information, refer to “Vehicle
information display” in this section.
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM
The LED portion of the headlights automati-
cally illuminate at 100% intensity when the
engine is started and the parking brake re-
leased. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the OFF position. When you turn
the headlight switch to the
position for
full illumination, the LED lights switch from
LED DRL system to the park function.
If the parking brake is applied before the
engine is started, the LED DRL system does
not illuminate. The LED DRL system illumi-
nates when the parking brake is released. The
LED DRL system will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is neces-
sary at dusk to turn on your headlights.
Failure to do so could cause an accident in-
juring yourself and others.
INSTRUMENT BRIGHTNESS
CONTROL
Press the “+” buttonAto increase the bright-
ness of instrument panel lights.
Press the “-” button
Bto decrease the
brightness of instrument panel lights.
LIC2235
2-44Instruments and controls

Interrupt Display:When this item is turned to
“ON” the display screen will interrupt the cur-
rent view in the display to see the surrounding
area of the vehicle.
Sonar Sensitivity: Adjust the sensitivity level
of the sonar higher (right) or lower (left).
Sonar Volume:
Adjust the volume of the buzzer.
SONAR SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the sonar function. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ Inclement weather or ultrasonic sources such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem, including reduced performance or a
false activation.
∙ The system is not designed to prevent contact with small or moving objects.
∙ The system will not detect small objects below the bumper, and may not detect
objects close to the bumper or on the
ground. ∙ The system may not detect the following
objects:
– Fluffy objects such as snow, cloth, cotton, grass or wool.
– Thin objects such as rope, wire or chain.
– Wedge-shaped objects.
∙ If your vehicle sustains damage to the bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system vol-
ume or an open vehicle window) will inter-
fere with the tone and it may not be heard.
System temporarily unavailable
When the amber markers are displayed at the
corners of the vehicle icon and the function
cannot be activated from the Camera setting
menu (the setting items are grayed out), the
sonar system may be malfunctioning.
SYSTEM MAINTENANCE
CAUTION
Keep the surface of the sonar sensors (lo-
cated on the front and rear bumper fascia)
free from accumulations of snow, ice and
dirt. Do not scratch the surface of the sonar
sensors when cleaning. If the sensors are
covered, the accuracy of the sonar function
will be diminished.
Monitor, climate, audio, phone and voice recognition systems4-27

Vehicle set-up:1. Park the vehicle in a safe and level place.
2. Apply the parking brake and place the shift lever in the P (Park) position.
3. Place the ignition switch in the ON posi- tion. Do not start the engine.
Operation: 1. Add air to the tire.
2. After a few seconds, the hazard indica- tors will start flashing.
3. When the designated pressure is reached, the horn beeps once and the
hazard indicators stop flashing.
4. Perform the above steps for each tire. ∙ If the tire is over-inflated more thanapproximately 4 psi (30 kPa), the horn
beeps and the hazard indicators flash
three times. To correct the pressure,
push the core of the valve stem on the
tire briefly to release pressure. When
the pressure reaches the designated
pressure, the horn beeps once.
∙ If the hazard indicator does not flash within approximately 15 seconds after
starting to inflate the tire, it indicates
that the TPMS with Tire Inflation Indi-
cator is not operating. ∙ The TPMS will not activate the TPMS
with Tire Inflation Indicator under the
following conditions:
– If there is interference from an exter- nal device or transmitter.
– The air pressure from the inflation de- vice is not sufficient to inflate the tire.
– There is a malfunction in the TPMS.
– There is a malfunction in the horn or hazard indicators.
– The identification code of the tire pressure sensor is not registered to
the system.
– The battery of the tire pressure sensor is low.
∙ If the TPMS with Tire Inflation Indica- tor does not operate due to TPMS
interference, move the vehicle about
3 ft (1 m) backward or forward and try
again.
If the TPMS with Tire Inflation Indicator is
not working, use a tire pressure gauge.ON-PAVEMENT AND OFF-ROAD
DRIVING PRECAUTIONS
Utility vehicles have a significantly higher
rollover rate than other types of vehicles.
They have higher ground clearance than pas-
senger cars to make them capable of per-
forming in a variety of on-pavement and off-
road applications. This gives them a higher
center of gravity than ordinary vehicles. An
advantage of higher ground clearance is a
better view of the road, allowing you to an-
ticipate problems. However, they are not de-
signed for cornering at the same speeds as
conventional 2-Wheel Drive vehicles any
more than low-slung sports cars are de-
signed to perform satisfactorily under off-
road conditions. If at all possible, avoid sharp
turns at high speeds. As with other vehicles of
this type, failure to operate this vehicle cor-
rectly may result in loss of control or vehicle
rollover. In a rollover crash, an unbelted per-
son is significantly more likely to die than a
person wearing a seat belt.
For additional information, refer to “Driving
safety precautions” in this section.
5-8Starting and driving

BSI SYSTEM OPERATION
If the radar sensors detect vehicles in the
detection zone, the side indicator light lo-
cated near the outside mirrors illuminates. If
your vehicle is approaching a lane marker, the
system chimes a sound (three times) and the
side indicator light flashes. Then the system
applies the brakes on one side of the vehicle
for a moment to help return the vehicle back
to the center of the lane. BSI operates re-
gardless of turn signal usage.
NOTE:
Warning and brake control will only be acti-
vated if the side indicator light is already
illuminated when your vehicle approaches a
lane marker. If another vehicle comes into
the detection zone after your vehicle has
crossed a lane marker, no warning or brake
control will be activated. For additional in-
formation, refer to “BSI driving situations”
in this section. The BSI system is typically
activated earlier than the Lane Departure
Prevention (LDP) system when your vehicle
is approaching a lane marker.The BSI system turns on when the dynamic
driver assistance switch on the steering
wheel is pushed when the “Blind Spot Inter-
vention” is enabled in the “Driver Assistance”
menu on the vehicle information display. The
BSI ON indicator light
Aon the instrument
panel illuminates when the BSI system is
turned on.
The BSI system provides a chime and turns on
or flashes the side indicator light even if the
BSW system is off.
5-50Starting and driving

Overtaking another vehicle
Illustration 5: The side indicator light illumi-
nates if you overtake a vehicle and that ve-
hicle stays in the detection zone for approxi-
mately 3 seconds.
The radar sensors may not detect slower
moving vehicles if they are passed quickly.Illustration 6: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the system chimes a sound (twice)
and the side indicator light flashes.
Illustration 7: If the BSI system is on and your
vehicle approaches a lane marker while an-
other vehicle is in the detection zone the sys-
tem chimes a sound (three times) and the side
indicator light flashes. Then, the BSI system
slightly applies the brakes on the appropriate
side to help return the vehicle back to the
center of the driving lane.
Illustration 5 – Overtaking another vehicle
SSD1033
Illustration 6 – Overtaking another vehicle
SSD1034
Illustration 7 – Overtaking another vehicle
LSD2072
Starting and driving5-55

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the BCI system could
result in serious injury or death.
∙ The BCI system is not a replacement forproper driving procedure, is not designed
to prevent contact with vehicles or ob-
jects and does not provide full brake
power. When backing out of a parking
space, always use the side and rear mir-
rors and turn and look in the direction you
will move. Never rely solely on the BCI
system. ∙ There is a limitation to the detection ca-
pability of the radar or the sonar. Using
the BCI systems under some road,
ground, lane marker, traffic or weather
conditions could lead to improper system
operation. Always rely on your own op-
eration to avoid accidents.
The BCI system can help alert the driver of an
approaching vehicle or objects behind the ve-
hicle when the driver is backing out of a park-
ing space.
When the shift position is in R (Reverse) and
the vehicle speed is less than approximately
5 mph (8 km/h), the BCI system operates. The BCI system uses radar sensors
1in-
stalled on both sides near the rear bumper to
detect an approaching vehicle and sonar sen-
sors
2to detect objects in the rear.
The radar sensors
1detect an approaching
vehicle from up to approximately 49 ft (15 m)
away. The sonar sensors
2detect stationary
objects behind the vehicle up to approxi-
mately 4.9 ft (1.5 m)
3.
LSD2025LSD2026
BACKUP COLLISION INTERVENTION
(BCI) (if so equipped)
5-60Starting and driving

– IllustrationD: When an approaching
vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration
E: When the angle
formed by your vehicle and approach-
ing vehicle is small.
∙ The following conditions may reduce the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/dirt build up on the vehicle
∙ Do not attach stickers (including trans- parent material), install accessories or
apply additional paint near the radar sen-
sors. These conditions may reduce the
ability of the radar to detect other
vehicles.
∙ The sonar sensors detect stationary ob- jects behind the vehicle. The sonar sensor
may not detect:
– Small or moving objects
– Wedge-shaped objects
– Objects close to the bumper (less than approximately 1 ft [30 cm]) – Thin objects such as rope, wire and
chain, etc.
∙ The brake engagement by the BCI system is not as effective on a slope as it is on flat
ground. When on a steep slope the sys-
tem may not function properly.
∙ Do not use the BCI system under the fol- lowing conditions because the system
may not function properly:
– When driving with a tire that is not within normal tire conditions (e.g., tire
wear, low tire pressure, installation of
spare tire, tire chains, non-standard
wheels).
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
∙ Do not use the BCI system when towing a trailer.
∙ Excessive noise (e.g., audio system vol- ume, open vehicle window) will interfere
with the chime sound, and it may not be
heard.
SYSTEM TEMPORARILY NOT
AVAILABLE
If the following messages appear on the ve-
hicle information display, a chime will sound
and the BCI system will be turned off auto-
matically:
∙ “Unavailable: High Accelerator Temp.”: If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 104°F [40°C]) and then
started, the BCI system may be deacti-
vated automatically and the “Unavailable:
High Accelerator Temp” message will ap-
pear in the vehicle information display for
a period of time.
When the interior temperature is re-
duced, turn off the BCI system and turn it
on again.
∙ “Unavailable: Side Radar Obstruction”: When side radar blockage is detected.
When the blockage is removed, turn off
the BCI system and turn it on again.
5-66Starting and driving

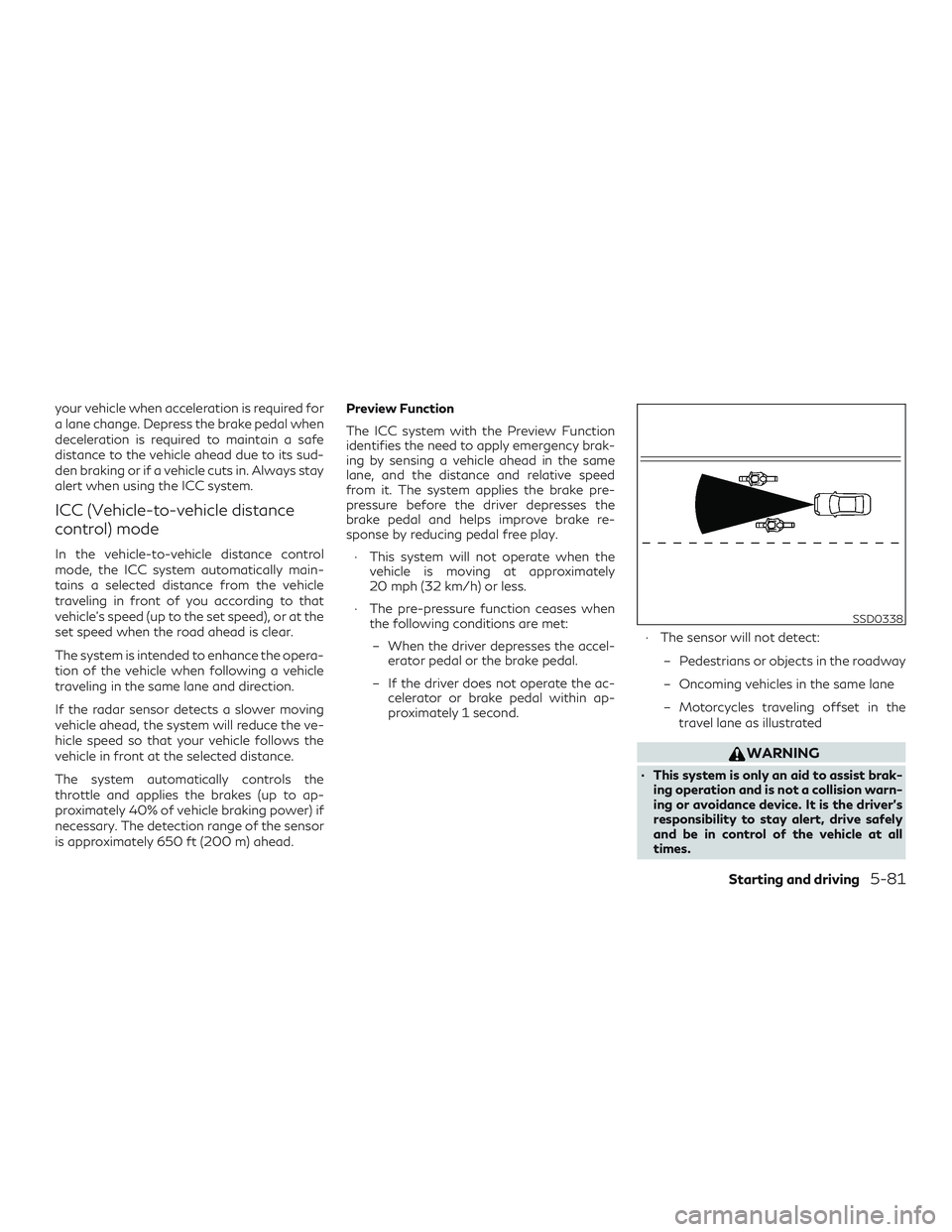

your vehicle when acceleration is required for
a lane change. Depress the brake pedal when
deceleration is required to maintain a safe
distance to the vehicle ahead due to its sud-
den braking or if a vehicle cuts in. Always stay
alert when using the ICC system.
ICC (Vehicle-to-vehicle distance
control) mode
In the vehicle-to-vehicle distance control
mode, the ICC system automatically main-
tains a selected distance from the vehicle
traveling in front of you according to that
vehicle’s speed (up to the set speed), or at the
set speed when the road ahead is clear.
The system is intended to enhance the opera-
tion of the vehicle when following a vehicle
traveling in the same lane and direction.
If the radar sensor detects a slower moving
vehicle ahead, the system will reduce the ve-
hicle speed so that your vehicle follows the
vehicle in front at the selected distance.
The system automatically controls the
throttle and applies the brakes (up to ap-
proximately 40% of vehicle braking power) if
necessary. The detection range of the sensor
is approximately 650 ft (200 m) ahead.Preview Function
The ICC system with the Preview Function
identifies the need to apply emergency brak-
ing by sensing a vehicle ahead in the same
lane, and the distance and relative speed
from it. The system applies the brake pre-
pressure before the driver depresses the
brake pedal and helps improve brake re-
sponse by reducing pedal free play.
∙ This system will not operate when the vehicle is moving at approximately
20 mph (32 km/h) or less.
∙ The pre-pressure function ceases when the following conditions are met:
– When the driver depresses the accel- erator pedal or the brake pedal.
– If the driver does not operate the ac- celerator or brake pedal within ap-
proximately 1 second. ∙ The sensor will not detect:
– Pedestrians or objects in the roadway
– Oncoming vehicles in the same lane
– Motorcycles traveling offset in thetravel lane as illustrated
WARNING
∙ This system is only an aid to assist brak-ing operation and is not a collision warn-
ing or avoidance device. It is the driver’s
responsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
SSD0338
Starting and driving5-81

∙ As there is a performance limit to the Pre-view Function, never rely solely on this
system. This system does not correct
careless, inattentive or absentminded
driving, or overcome poor visibility in
rain, fog, or other bad weather. Reduce
vehicle speed by depressing the brake
pedal, in order to maintain a safe distance
between vehicles.
∙ The system may not detect the vehicle in front of you in certain road or weather
conditions. The Preview Function may
not operate properly under the following
conditions. The vehicle is still driveable
under normal conditions and the Brake
Assist will operate.
– When rain or snow adhere to the bum- per around the distance sensor.
– Vehicle position in the lane may cause the sensor to temporarily not detect a
vehicle in the same lane or may detect
objects or vehicles in other lanes.
Conventional (fixed speed) cruise
control mode
This mode allows driving at a speed between
20 to 90 mph (32 to 144 km/h) without
keeping your foot on the accelerator pedal.
WARNING
∙ In the conventional (fixed speed) cruisecontrol mode, a warning chime does not
sound to warn you if you are too close to
the vehicle ahead, as neither the presence
of the vehicle ahead nor the vehicle-to-
vehicle distance is detected.
∙ Pay special attention to the distance be- tween your vehicle and the vehicle ahead
of you or a collision could occur.
∙ Always confirm the setting in the Intelli- gent Cruise Control system display.
∙ Do not use the conventional (fixed speed) cruise control mode when driving under
the following conditions:
– When it is not possible to keep the ve- hicle at a set speed
– In heavy traffic or in traffic that varies in speed
– On winding or hilly roads
– On slippery roads (rain, snow, ice, etc.)
– In very windy areas
∙ Doing so could cause a loss of vehicle con- trol and result in an accident.
THE ICC SWITCH
The system is operated by the CRUISE
ON/OFF switch and four control switches,
all mounted on the steering wheel.
1. ACCEL/RES switch:
Resumes set speed or increases speed
incrementally.
2. COAST/SET switch:
Sets desired cruise speed or reduces
speed incrementally.
LSD2056
5-82Starting and driving
