engine INFINITI QX60 2023 Owners Manual

The vehicle identification number is located
as shown.ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABEL
The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certifica-
tion label is affixed as shown. This label con-
tains valuable vehicle information, such as:
(GVWR), (GAWR), month and year of manu-
facture, (VIN), etc. Review it carefully.
LTI2684
Type B (if so equipped)
LTI2255WTI0172
Technical and consumer information10-11

WARNING
Overloading or improper loading of a
trailer and its cargo can adversely affect
vehicle handling, braking and performance
and may lead to accidents.
CAUTION
• Do not tow a trailer or haul a heavy load
for the first 500 miles (805 km). Your
engine, axle or other parts could be
damaged.
• For the first 500 miles (805 km) that you
tow a trailer, do not drive over 50 mph
(80 km/h) and do not make starts at full
throttle. This helps the engine and other
parts of your vehicle wear in at the
heavier loads.
NOTE:
Tow hitches are available as an accessory for
this vehicle. Please visit an INFINITI retailer
for additional equipment required for this
accessory.
Your new vehicle was designed to be used
primarily to carry passengers and cargo. Re-
member that towing a trailer places addi-
tional loads on your vehicle's engine, drive
train, steering, braking and other systems.
An INFINITI Towing Guide (U.S. only) is avail-
able on the website at www.InfinitiUSA.com.
This guide includes information on trailer
towing capability and the special equipment
required for proper towing.
MAXIMUM LOAD LIMITS
Maximum trailer loads
Never allow the total trailer load to exceed
the value specified in the following Towing
Load/Specification Chart found in this sec-
tion. The total trailer load equals trailer
weight plus its cargo weight.
• When towing a trailer load of 3,500 lbs.
(1,587 kg) or more, trailers with a brake
system MUST be used.
The maximum Gross Combined Weight Rat-
ing (GCWR) should not exceed the value
specified in the following Towing Load/
Specification Chart. The GCWR equals the combined weight of
the towing vehicle (including passengers and
cargo) plus the total trailer load. Towing
loads greater than these or using improper
towing equipment could adversely affect ve-
hicle handling, braking and performance.
The ability of your vehicle to tow a trailer is
not only related to the maximum trailer loads,
but also the places you plan to tow. Tow
weights appropriate for level highway driving
may have to be reduced for low traction situ-
ations (for example, on slippery boat ramps).
LTI2582
TOWING A TRAILER
10-20Technical and consumer information

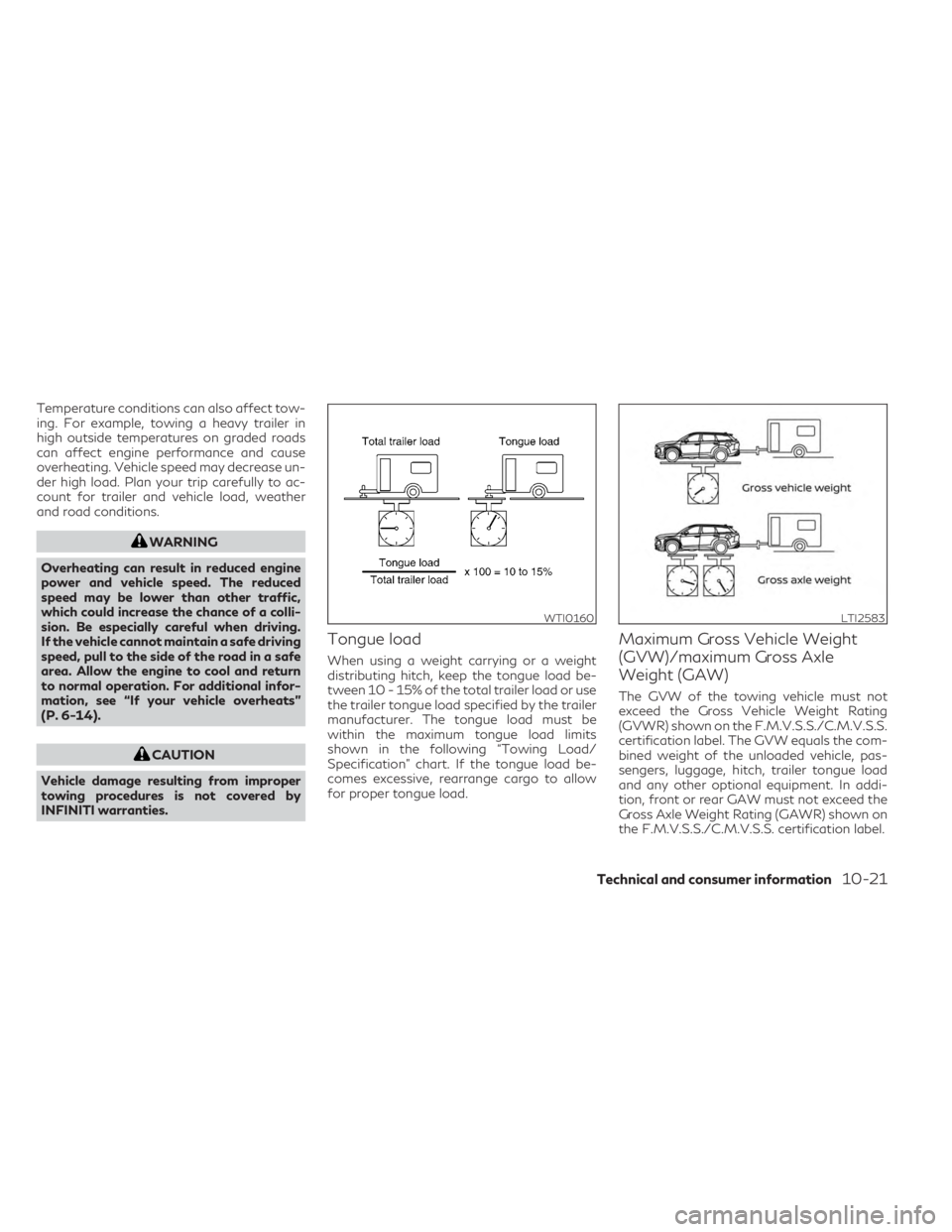

Temperature conditions can also affect tow-
ing. For example, towing a heavy trailer in
high outside temperatures on graded roads
can affect engine performance and cause
overheating. Vehicle speed may decrease un-
der high load. Plan your trip carefully to ac-
count for trailer and vehicle load, weather
and road conditions.
WARNING
Overheating can result in reduced engine
power and vehicle speed. The reduced
speed may be lower than other traffic,
which could increase the chance of a colli-
sion. Be especially careful when driving.
If the vehicle cannot maintain a safe driving
speed, pull to the side of the road in a safe
area. Allow the engine to cool and return
to normal operation. For additional infor-
mation, see “If your vehicle overheats”
(P. 6-14).
CAUTION
Vehicle damage resulting from improper
towing procedures is not covered by
INFINITI warranties.
Tongue load
When using a weight carrying or a weight
distributing hitch, keep the tongue load be-
tween 10 - 15% of the total trailer load or use
the trailer tongue load specified by the trailer
manufacturer. The tongue load must be
within the maximum tongue load limits
shown in the following “Towing Load/
Specification” chart. If the tongue load be-
comes excessive, rearrange cargo to allow
for proper tongue load.
Maximum Gross Vehicle Weight
(GVW)/maximum Gross Axle
Weight (GAW)
The GVW of the towing vehicle must not
exceed the Gross Vehicle Weight Rating
(GVWR) shown on the F.M.V.S.S./C.M.V.S.S.
certification label. The GVW equals the com-
bined weight of the unloaded vehicle, pas-
sengers, luggage, hitch, trailer tongue load
and any other optional equipment. In addi-
tion, front or rear GAW must not exceed the
Gross Axle Weight Rating (GAWR) shown on
the F.M.V.S.S./C.M.V.S.S. certification label.
WTI0160LTI2583
Technical and consumer information10-21

• Lock the trailer hitch coupler with a pin orlock to prevent the coupler from inadver-
tently becoming unlatched.
• Avoid abrupt starts, acceleration or stops.
• Avoid sharp turns or lane changes.
• Always drive your vehicle at a moderate speed.
• When backing up, hold the bottom of the steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you push the park button to engage the P
(Park) position before blocking the wheels
and applying the parking brake, transmis-
sion damage could occur. 1. Apply and hold the brake pedal.
2. Have someone place blocks on the down-
hill side of the vehicle and trailer wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the blocks
absorb the vehicle load.
4. Apply the parking brake.
5. Push the park button to engage the P (Park) position.
6. Turn off the engine.
To drive away:
1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer are clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks. • While going downhill, the weight of the
trailer pushing on the tow vehicle may de-
crease overall stability. Therefore, to main-
tain adequate control, reduce your speed
and shift to a lower gear. Avoid long or
repeated use of the brakes when descend-
ing a hill, as this reduces their effectiveness
and could cause overheating. Shifting to a
lower gear instead provides “engine brak-
ing” and reduces the need to brake as
frequently.
• If the engine coolant temperature rises to a high temperature, see “If your vehicle over-
heats” (P. 6-14).
• Trailer towing requires more fuel than nor- mal circumstances.
• Avoid towing a trailer for your vehicle's first 500 miles (805 km).
•For the first 500 miles (805 km) that you do
tow, do not drive over 50 mph (80 km/h).
• Have your vehicle serviced more often than at intervals specified in the recommended
maintenance schedule in the “Maintenance
and schedules” section of this manual.
• When making a turn, your trailer wheels will be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
Technical and consumer information10-29

• Crosswinds and rough roads will adverselyaffect vehicle/trailer handling, possibly
causing vehicle sway. When being passed
by larger vehicles, be prepared for possible
changes in crosswinds that could affect
vehicle handling.
Do the following if the trailer begins to sway:
1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions al-
low. This combination will help stabilize
the vehicle.
– Do not correct trailer sway by steering or applying the brakes.
2. When the trailer sway stops, gently apply the brakes and pull to the side of the road
in a safe area.
3. Try to rearrange the trailer load so it is balanced. For additional information, see
“Pre-towing tips” (P. 10-28).
• Be careful when passing other vehicles. Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember, the length of the trailer
must also pass the other vehicle before you
can safely change lanes. • Downshift the transmission to a lower gear
for engine braking when driving down
steep or long hills. This will help slow the
vehicle without applying the brakes.
• Avoid holding the brake pedal down too long or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
• Increase your following distance to allow for greater stopping distances while tow-
ing a trailer. Anticipate stops and brake
gradually.
• INFINITI recommends that the cruise con- trol not be used while towing a trailer.
• Some states or provinces have specific regulations and speed limits for vehicles
that are towing trailers. Obey the local
speed limits.
• Check your hitch, trailer wiring harness connections, and trailer wheel lug nuts af-
ter 50 miles (80 km) of travel and at every
break.
• When launching a boat, don't allow the water level to go over the exhaust tail pipe
or rear bumper.
• Make sure you disconnect the trailer lights before backing the trailer into the water or
the trailer lights may burn out. When towing a trailer, differential gear oil,
transfer fluid and transmission oil/fluid
should be changed more frequently. For ad-
ditional information, see the “Maintenance
and schedules” section of this manual.
FLAT TOWING FOR ALL–WHEEL
DRIVE VEHICLE (if so equipped)
Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when towing
a vehicle behind a recreational vehicle, such
as a motor home.
CAUTION
• Failure to follow these guidelines can re-
sult in severe transmission damage.
• Never flat tow your All-wheel drive
(AWD) vehicle.
• DO NOT tow your All-wheel drive
(AWD) vehicle with any wheels on the
ground. Doing so may cause serious and
expensive damage to the powertrain.
• For emergency towing procedures, see
“Towing recommended by INFINITI”
(P. 6-16).
10-30Technical and consumer information

WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a two
wheel dynamometer (such as the dyna-
mometers used by some states for emis-
sions testing), or similar equipment. Make
sure you inform the test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer. Us-
ing the wrong test equipment may result in
transmission damage or unexpected ve-
hicle movement which could result in seri-
ous vehicle damage or personal injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready con-
dition” for an Inspection/Maintenance (I/M)
test of the emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving pat-
terns. Usually, the ready condition can be
obtained by ordinary usage of the vehicle. If a powertrain system component is repaired
or the battery is disconnected, the vehicle
may be reset to a “not ready” condition. Be-
fore taking the I/M test, check the vehicle's
inspection/maintenance test readiness con-
dition. Place the ignition switch in the ON
position without starting the engine. If the
Malfunction Indicator Light (MIL) comes on
steady for 20 seconds and then blinks for
10 seconds , the I/M test condition is “not
ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready”. It is
recommended that you visit an INFINITI re-
tailer to set the “ready condition” or to pre-
pare the vehicle for testing.
This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an EDR
is to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle's systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety sys-
tems for a short period of time, typically 30
seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were
operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
• Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which
crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-
trivial crash situation occurs; no data are re-
corded by the EDR under normal driving con-
ditions and no personal data (e.g., name,
gender, age, and crash location) are recorded.
However, other parties, such as law enforce-
ment, could combine the EDR data with the
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)
10-34Technical and consumer information

11 Index
A
Active Brake Limited Slip (ABLS)
system....................5-167Active Ride Control.............5-171Active Trace Control............5-170Aiming control, headlights.........2-82Air bag (See supplemental restraint
system).................... .1-54Air bag system
Front (See supplemental front impact air
bag system)
............... .1-62Air bag warning labels............1-74Air bag warning light.........1-75, 2-16Air bag warning light,
supplemental............ .1-75, 2-16Air cleaner.................. .8-17Air cleaner housing filter..........8-17Air conditioner
Air conditioner operation........4-30Air conditioner specification label. .10-12Air conditioner system refrigerant
recommendations............ .10-7Air conditioner system refrigerant and oil
recommendations.............10-7Heater and air conditioner (automatic)
(if so equipped)............. .4-29Heater and air conditioner controls. .4-30Servicing air conditioner.........4-36Alarm system (See vehicle security
system).................... .2-71
Anchor point locations...........1-36Antenna................... .4-36Anti-lock brake warning light........2-17Anti-lock Braking System (ABS).....5-166Antifreeze..................5-184Armrests.................... .1-8Around View® Monitor...........4-10Autolight switch.............. .2-78Automatic
Automatic power window switch. .2-110Driving with automatic transmission. .5-18Automatic anti-glare inside
mirror................ .3-33, 3-34Automatic brake hold............5-27Automatic door locks............ .3-6
B
Battery............... .5-184, 8-13Charge warning light...........2-15Battery replacement............ .8-24INFINITI Intelligent Key.........8-24Key fob.................. .8-24Before starting the engine.........5-16Belt (See drive belt).............8-15Blind Spot Intervention® (BSI).......5-61Blind Spot Warning (BSW).........5-49Booster seats................ .1-51Brake
Anti-lock Braking System (ABS). . .5-166
Brake fluid................ .8-11Brake light (See stop light).......8-26Brake system...............5-165Brake warning light............2-14Brake wear indicators......2-22, 8-20Parking brake operation.........5-25Self-adjusting brakes..........8-20Brake Assist................ .5-167Brake fluid.................. .8-11Brake system................5-165Brakes.................... .8-20Break-in schedule..............5-159Brightness control
Instrument panel............ .2-83Bulb check/instrument panel........2-14Bulb replacement............. .8-26
C
C.M.V.S.S. certification label.......10-11Capacities and recommended
fuel/lubricants............... .10-2Car phone or CB radio...........4-37Cargo (See vehicle loading
information)................ .10-15Cargo area storage bin..........2-106Cargo light................. .2-115Chassis control...............5-170Check tire pressure..........2-41, 2-67Child restraint with top tether strap. . . .1-35

Child restraints.....1-25, 1-26, 1-28, 1-30LATCH (Lower Anchors and Tethers for
CHildren) System.............1-30Precautions on child
restraints...........1-39, 1-45, 1-51Top tether strap anchor point
locations.................. .1-36Child safety rear door lock...........3-6Cleaning exterior and interior......7-2, 7-4Climate-controlled seat switches......2-84Cold weather driving........... .5-184Console box................ .2-102Console light.................2-114Controls
Heater and air conditioner controls. . .4-30CoolantCapacities and recommended
fuel/lubricants
.............. .10-2Changing engine coolant..........8-5Checking engine coolant level.......8-5Engine coolant temperature gauge. . . .2-9Corrosion protection..............7-7Cruise control................ .5-83Cup holders.................2-104
D
Defroster switch
Rear window and outside mirror defroster
switch
................... .2-77Dimensions and weights...........10-9Dimmer switch for instrument panel. . . .2-83Door locks................... .3-4
Drive belt....................8-15Driver Attention Alert............5-156Driving
Cold weather driving..........5-184Driving with automatic transmission. .5-18Precautions when starting and
driving................ .5-4, 5-10Driving the vehicle...............5-18Dual panel moonroof............2-111
E
E-call (SOS) Button............. .2-92Eco Drive Report.............. .5-33Economy - fuel............... .5-161Emergency engine shutoff.......5-14, 6-3Emission control information label. . . .10-12Emission control system warranty. . . .10-32Engine
Before starting the engine........5-16Capacities and recommended
fuel/lubricants.............. .10-2Changing engine coolant..........8-5Changing engine oil.............8-6Changing engine oil filter..........8-6Checking engine coolant level.......8-5Checking engine oil level..........8-6Engine coolant temperature gauge. . . .2-9Engine cooling system...........8-4Engine oil.................. .8-6Engine oil and oil filter
recommendation..............10-6Engine oil pressure warning light. . . .2-15
Engine oil viscosity.............10-7Engine serial number...........10-11Engine specifications...........10-8Starting the engine............ .5-16Engine coolant temperature gauge. . . . .2-9Event Data recorders.......10-34, 10-35Exhaust gas (Carbon monoxide).......5-4Explanation of maintenance items......9-2Explanation of scheduled maintenance
items...................... .9-5Extended storage switch...........2-99
F
F.M.V.S.S. certification label........10-11Flashers (See hazard warning flasher
switch)..................... .6-2Flat tire...................6-3, 6-4Floor mat positioning aid...........7-6Fluid
Brake fluid................. .8-11Capacities and recommended
fuel/lubricants...............10-2Engine coolant............... .8-4Engine oil.................. .8-6Windshield-washer fluid.........8-11Forward Emergency Braking (FEB) with
Pedestrian Detection system. . .2-17, 5-128Front air bag system
(See supplemental restraint system). . . .1-62Front and rear sonar system........5-172Front power seat adjustment.........1-3Front seats................... .1-2
11-2

Front-door pocket.............2-100Fuel
Capacities and recommended
fuel/lubricants
.............. .10-2Fuel economy...............5-161Fuel gauge................ .2-10Fuel octane rating.............10-6Fuel recommendation...........10-4Fuel efficient driving tips..........5-160Fuel gauge.................. .2-10Fuel-filler door.................3-27Fuses..................... .8-20Fusible links..................8-21
G
Garage door opener, HomeLink® Universal
Transceiver. . . .2-116, 2-120, 2-121, 2-122Gauge
Engine coolant temperature gauge. . . .2-9Fuel gauge................ .2-10Odometer.................. .2-8Speedometer..............2-6, 2-7Tachometer................. .2-8Trip odometer................2-8General maintenance..............9-2Glove box.................. .2-101Glove box lock................2-101
H
Hazard warning flasher switch........6-2Head restraints................ .1-12
Head Up Display (HUD)...........2-89Headlight aiming control...........2-82Headlight and turn signal switch......2-77Headlight control switch...........2-77Headlights.................. .8-26Headlights, aiming control..........2-82Heated 2nd row seat switches.......2-86Heated mirrors................3-42Heated seat switches............2-85Heated seats................. .2-84Heated steering wheel switch........2-87Heater
Heater and air conditioner (automatic)
(if so equipped)
.............. .4-29Heater and air conditioner controls. . .4-30Heater operation..............4-31Heater and air conditioner (automatic). .4-29Hill start assist system...........5-171HomeLink® Universal
Transceiver. . . .2-116, 2-120, 2-121, 2-122Hood..................... .3-21Hook
Luggage hook............. .2-106Horn...................... .2-84
I
Idling Stop System..............5-178Ignition switch
Push-button ignition switch.......5-13Immobilizer system............. .5-15Important vehicle information label. . . .10-11In-cabin microfilter..............8-17
Increasing fuel economy..........5-161Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)
.................. .2-12INFINITI Drive Mode Selector.......5-29INFINITI Intelligent Key
System..............3-2, 3-6, 10-36INFINITI InTouch™ Owner's Manual. . . .4-2INFINITI Vehicle Immobilizer
System..............2-72, 3-3, 5-15Inside automatic anti-glare
mirror................. .3-33, 3-34Instrument brightness control........2-83Instrument panel.............0-6, 2-4Instrument panel dimmer switch......2-83Intelligent All-Wheel Drive (AWD).....5-161Intelligent Cruise Control (ICC)
(for vehicles with ProPILOT Assist). . . .5-97Intelligent Key system
Key operating range............ .3-8Key operation............... .3-9Mechanical key................3-3Remote keyless entry operation.....3-14Troubleshooting guide..........3-16Warning signals..............3-16Interior light................. .2-114ISOFIX child restraints............1-30
J
Jump starting............ .6-12, 8-14
11-3

K
Key........................3-2Key fob battery replacement........8-24Keyless entry
With Intelligent Key system
(See Intelligent Key system)
.......3-14
L
LabelTire and Loading Information label. .10-12LabelsAir conditioner specification label. . .10-12C.M.V.S.S. certification label......10-11Emission control information label. .10-12Engine serial number.......... .10-11F.M.V.S.S. certification label......10-11Tire and Loading Information label. .10-12Vehicle identification number (VIN). .10-10Vehicle identification number (VIN)
plate................... .10-10Warning labels (for SRS).........1-74Lane Departure Prevention (LDP).....5-43Lane Departure Warning (LDW)......5-36LATCH (Lower Anchors and Tethers for
CHildren) System...............1-30LED Daytime Running Lights (DRL)
system.................... .2-82License plate
Installing the license plate........10-13Liftgate.................... .3-21Liftgate release................3-25
Light
Air bag warning light........1-75, 2-16Brake light (See stop light)........8-26Bulb check/instrument panel.......2-14Bulb replacement............ .8-26Charge warning light...........2-15Console light.............. .2-114Exterior and Interior lights........8-26Headlight and turn signal switch.....2-77Headlight control switch.........2-77Headlights................ .8-26Interior light................2-114Light bulbs................ .8-26Low tire pressure warning light.....2-18Low windshield-washer fluid warning
light.................2-39, 2-62Personal lights..............2-115Warning/indicator lights and audible
reminders................. .2-12Lights..................... .8-26Map lights.................2-115Lock
Child safety rear door lock.........3-6Door locks................. .3-4Glove box lock..............2-101Liftgate release..............3-25Power door locks..............3-5Low fuel warning light........2-38, 2-62Low tire pressure warning light.......2-18Low windshield-washer fluid warning
light.................. .2-39, 2-62Luggage (See vehicle loading
information).................10-15Luggage hook................2-106
Luggage rack (see roof rack).......2-107
M
Maintenance
General maintenance........... .9-2Inside the vehicle.............. .9-3Maintenance precautions.........8-2Outside the vehicle.............9-2Seat belt maintenance...........1-25Under the hood and vehicle........9-4Maintenance requirements..........9-2Maintenance schedules........... .9-7Malfunction indicator light..........2-19Map lights.................. .2-115Memory seat.............3-43, 3-44Meters and gauges.............. .2-6Instrument brightness control......2-83Mirror
Automatic anti-glare inside
mirror
............... .3-33, 3-34Heated mirrors...............3-42Outside mirrors...............3-41Vanity mirror............... .3-33Mirror defroster................2-77Mirrors.................... .3-33Moonroof................2-112, 7-5Moving Object Detection (MOD)......4-23
O
Octane rating (See fuel octane rating). . .10-6Odometer................... .2-8
11-4
