4. Lower the vehicle slowly until the tiretouches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts se-
curely in the sequence illustrated (
OA,OB,
OC,OD,OE). Lower the vehicle completely.
WARNING
• Incorrect wheel nuts or improperly tight-
ened wheel nuts can cause the wheel to
become loose or come off. This could
cause an accident.
• Do not use oil or grease on the wheel
studs or nuts. This could cause the nuts
to become loose.
• Retighten the wheel nuts when the ve-
hicle has been driven for 621 miles
(1,000 km) (also in cases of a flat tire,
etc.).
As soon as possible, tighten the wheel nuts
to the specified torque with a torque wrench.
Wheel nut tightening torque: 83 ft-lb (113 N·m) The wheel nuts must be kept tightened to
specification at all times. It is recommended
that wheel nuts be tightened to specifica-
tions at each lubrication interval.
Adjust tire pressure to the COLD pressure.
COLD pressure: After vehicle has been
parked for 3 hours or more or driven less
than 1 mile (1.6 km).
COLD tire pressures are shown on the Tire
and Loading Information label affixed to the
driver side center pillar.
5. Securely store the flat tire, tools and jack-
ing equipment in the vehicle.
6. Close the liftgate.
WARNING
• Always make sure that the spare tire and
jacking equipment are properly secured
after use. Such items can become dan-
gerous projectiles in an accident or sud-
den stop.
• The spare tire is designed for emergency
use. For additional information, see
“Wheels and tires” (P. 8-28). To start your engine with a booster battery,
the instructions and precautions below must
be followed.
WARNING
• If done incorrectly, jump starting can
lead to a battery explosion, resulting in
severe injury or death. It could also dam-
age your vehicle.
• Explosive hydrogen gas is always pres-
ent in the vicinity of the battery. Keep all
sparks and flames away from the
battery.
• Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a corro-
sive sulfuric acid solution which can
cause severe burns. If the fluid should
come into contact with anything, imme-
diately flush the contacted area with
water.
• Keep battery out of the reach of children.
• The booster battery must be rated at 12
volts. Use of an improperly rated battery
can damage your vehicle.
JUMP STARTING
6-12In case of emergency

5. Start the engine of the booster vehicle andlet it run for a few minutes.
6. Keep the engine speed of the booster ve- hicle at about 2,000 rpm and start the
engine of the vehicle being jump started.
CAUTION
Do not keep the starter motor engaged for
more than 10 seconds. If the engine does
not start right away, place the ignition
switch in the OFF position and wait 3 to 4
seconds before trying again.
7. After starting the engine, carefully discon- nect the negative cable and then the posi-
tive cable.
CAUTION
Automatic transmission models cannot be
push-started. Attempting to do so may
cause transmission damage.WARNING
• Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
• To avoid the danger of being scalded,
never remove the radiator or coolant
reservoir cap while the engine is still hot.
When the radiator or coolant reservoir
cap is removed, pressurized hot water
will spurt out, possibly causing serious
injury.
• Do not open the hood if steam is coming
out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading
and the Low Oil Pressure: See Owner’s
Manual warning message appears in the ve-
hicle information display), or if you feel a lack
of engine power, detect abnormal noise, etc.
take the following steps:
1. Move the vehicle safely off the road, apply the parking brake.
2. Push the park button to shift to the P (Park) position.
Do not stop the engine.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
6-14In case of emergency

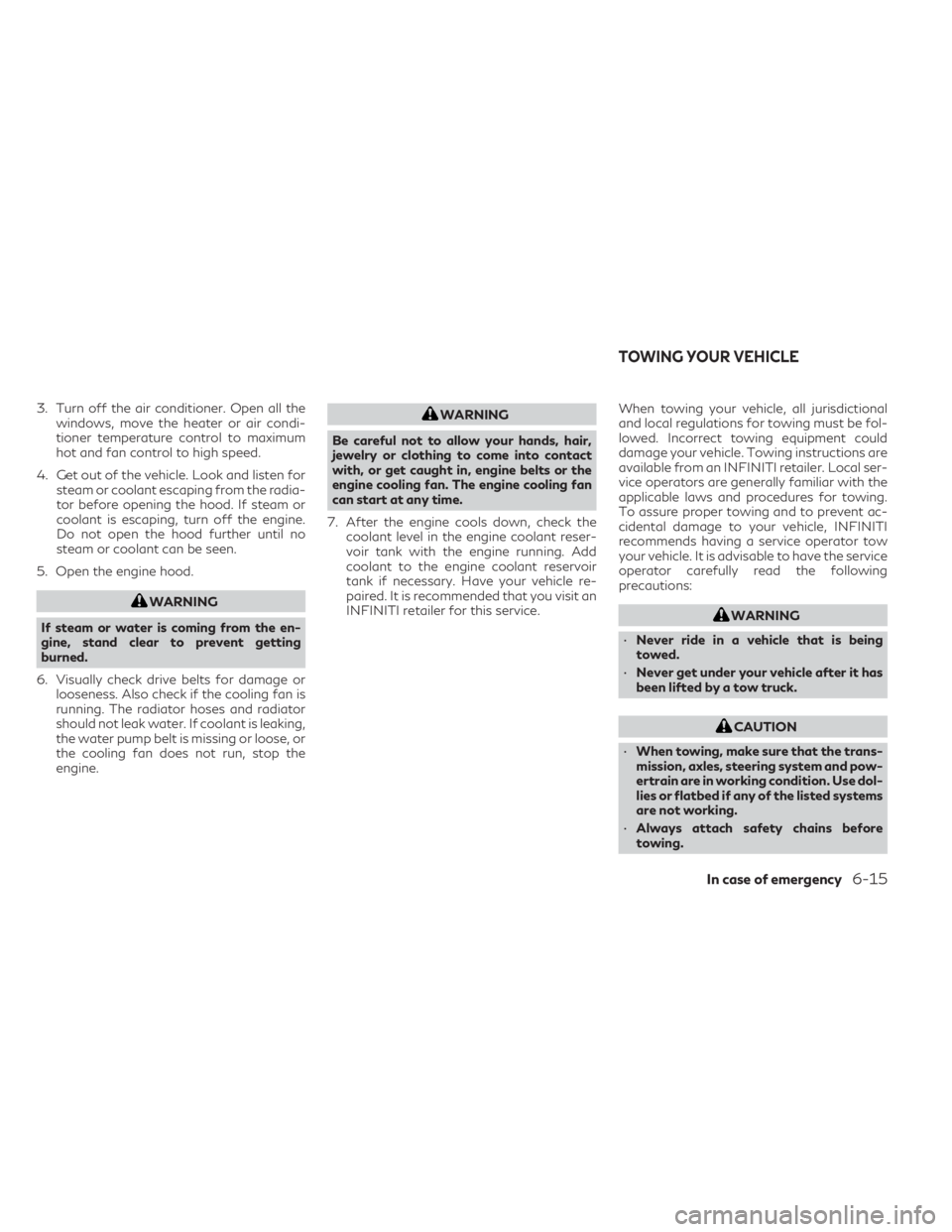

3. Turn off the air conditioner. Open all thewindows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radia-
tor before opening the hood. If steam or
coolant is escaping, turn off the engine.
Do not open the hood further until no
steam or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the en-
gine, stand clear to prevent getting
burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the water pump belt is missing or loose, or
the cooling fan does not run, stop the
engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.
7. After the engine cools down, check the coolant level in the engine coolant reser-
voir tank with the engine running. Add
coolant to the engine coolant reservoir
tank if necessary. Have your vehicle re-
paired. It is recommended that you visit an
INFINITI retailer for this service. When towing your vehicle, all jurisdictional
and local regulations for towing must be fol-
lowed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from an INFINITI retailer. Local ser-
vice operators are generally familiar with the
applicable laws and procedures for towing.
To assure proper towing and to prevent ac-
cidental damage to your vehicle, INFINITI
recommends having a service operator tow
your vehicle. It is advisable to have the service
operator carefully read the following
precautions:
WARNING
• Never ride in a vehicle that is being
towed.
• Never get under your vehicle after it has
been lifted by a tow truck.
CAUTION
• When towing, make sure that the trans-
mission, axles, steering system and pow-
ertrain are in working condition. Use dol-
lies or flatbed if any of the listed systems
are not working.
• Always attach safety chains before
towing.
TOWING YOUR VEHICLE
In case of emergency6-15

WARNING
• Operating the engine with the air cleaner
filter off can cause you or others to be
burned. The air cleaner filter not only
cleans the intake air, it also stops the
flame if the engine backfires. If the air
cleaner is not installed and the engine
backfires, you could be burned. Never
drive with the air cleaner filter off. Be
cautious working on the engine when the
air cleaner is off. •
Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result in
serious injury.
To remove the filter from the air cleaner, push
the tabs
OAand pull the cover upward.
The dry paper type filter element may be
cleaned and reused. Replace the air filter ac-
cording to the maintenance log shown in the
“Maintenance and schedules” section of this
manual.
When replacing the air filter, wipe the inside
of the air cleaner housing and the cover with
a damp cloth.
NOTE:
After installing a new air cleaner filter,
make sure the air cleaner cover is seated in
the housing and latch the clips
OA.
IN-CABIN MICROFILTER
The in-cabin microfilter restricts the entry of
airborne dust and pollen particles and re-
duces some objectionable outside odors. The
filter is located behind the glove box. See the
"Maintenance and schedules" section of this
manual for change intervals.
If replacement is required, it is recommended
that you visit an INFINITI retailer for this
service.
LDI3581
AIR CLEANER
Do-it-yourself8-17

• Lock the trailer hitch coupler with a pin orlock to prevent the coupler from inadver-
tently becoming unlatched.
• Avoid abrupt starts, acceleration or stops.
• Avoid sharp turns or lane changes.
• Always drive your vehicle at a moderate speed.
• When backing up, hold the bottom of the steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you push the park button to engage the P
(Park) position before blocking the wheels
and applying the parking brake, transmis-
sion damage could occur. 1. Apply and hold the brake pedal.
2. Have someone place blocks on the down-
hill side of the vehicle and trailer wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the blocks
absorb the vehicle load.
4. Apply the parking brake.
5. Push the park button to engage the P (Park) position.
6. Turn off the engine.
To drive away:
1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer are clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks. • While going downhill, the weight of the
trailer pushing on the tow vehicle may de-
crease overall stability. Therefore, to main-
tain adequate control, reduce your speed
and shift to a lower gear. Avoid long or
repeated use of the brakes when descend-
ing a hill, as this reduces their effectiveness
and could cause overheating. Shifting to a
lower gear instead provides “engine brak-
ing” and reduces the need to brake as
frequently.
• If the engine coolant temperature rises to a high temperature, see “If your vehicle over-
heats” (P. 6-14).
• Trailer towing requires more fuel than nor- mal circumstances.
• Avoid towing a trailer for your vehicle's first 500 miles (805 km).
•For the first 500 miles (805 km) that you do
tow, do not drive over 50 mph (80 km/h).
• Have your vehicle serviced more often than at intervals specified in the recommended
maintenance schedule in the “Maintenance
and schedules” section of this manual.
• When making a turn, your trailer wheels will be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
Technical and consumer information10-29

11 Index
A
Active Brake Limited Slip (ABLS)
system....................5-167Active Ride Control.............5-171Active Trace Control............5-170Aiming control, headlights.........2-82Air bag (See supplemental restraint
system).................... .1-54Air bag system
Front (See supplemental front impact air
bag system)
............... .1-62Air bag warning labels............1-74Air bag warning light.........1-75, 2-16Air bag warning light,
supplemental............ .1-75, 2-16Air cleaner.................. .8-17Air cleaner housing filter..........8-17Air conditioner
Air conditioner operation........4-30Air conditioner specification label. .10-12Air conditioner system refrigerant
recommendations............ .10-7Air conditioner system refrigerant and oil
recommendations.............10-7Heater and air conditioner (automatic)
(if so equipped)............. .4-29Heater and air conditioner controls. .4-30Servicing air conditioner.........4-36Alarm system (See vehicle security
system).................... .2-71
Anchor point locations...........1-36Antenna................... .4-36Anti-lock brake warning light........2-17Anti-lock Braking System (ABS).....5-166Antifreeze..................5-184Armrests.................... .1-8Around View® Monitor...........4-10Autolight switch.............. .2-78Automatic
Automatic power window switch. .2-110Driving with automatic transmission. .5-18Automatic anti-glare inside
mirror................ .3-33, 3-34Automatic brake hold............5-27Automatic door locks............ .3-6
B
Battery............... .5-184, 8-13Charge warning light...........2-15Battery replacement............ .8-24INFINITI Intelligent Key.........8-24Key fob.................. .8-24Before starting the engine.........5-16Belt (See drive belt).............8-15Blind Spot Intervention® (BSI).......5-61Blind Spot Warning (BSW).........5-49Booster seats................ .1-51Brake
Anti-lock Braking System (ABS). . .5-166
Brake fluid................ .8-11Brake light (See stop light).......8-26Brake system...............5-165Brake warning light............2-14Brake wear indicators......2-22, 8-20Parking brake operation.........5-25Self-adjusting brakes..........8-20Brake Assist................ .5-167Brake fluid.................. .8-11Brake system................5-165Brakes.................... .8-20Break-in schedule..............5-159Brightness control
Instrument panel............ .2-83Bulb check/instrument panel........2-14Bulb replacement............. .8-26
C
C.M.V.S.S. certification label.......10-11Capacities and recommended
fuel/lubricants............... .10-2Car phone or CB radio...........4-37Cargo (See vehicle loading
information)................ .10-15Cargo area storage bin..........2-106Cargo light................. .2-115Chassis control...............5-170Check tire pressure..........2-41, 2-67Child restraint with top tether strap. . . .1-35

Front-door pocket.............2-100Fuel
Capacities and recommended
fuel/lubricants
.............. .10-2Fuel economy...............5-161Fuel gauge................ .2-10Fuel octane rating.............10-6Fuel recommendation...........10-4Fuel efficient driving tips..........5-160Fuel gauge.................. .2-10Fuel-filler door.................3-27Fuses..................... .8-20Fusible links..................8-21
G
Garage door opener, HomeLink® Universal
Transceiver. . . .2-116, 2-120, 2-121, 2-122Gauge
Engine coolant temperature gauge. . . .2-9Fuel gauge................ .2-10Odometer.................. .2-8Speedometer..............2-6, 2-7Tachometer................. .2-8Trip odometer................2-8General maintenance..............9-2Glove box.................. .2-101Glove box lock................2-101
H
Hazard warning flasher switch........6-2Head restraints................ .1-12
Head Up Display (HUD)...........2-89Headlight aiming control...........2-82Headlight and turn signal switch......2-77Headlight control switch...........2-77Headlights.................. .8-26Headlights, aiming control..........2-82Heated 2nd row seat switches.......2-86Heated mirrors................3-42Heated seat switches............2-85Heated seats................. .2-84Heated steering wheel switch........2-87Heater
Heater and air conditioner (automatic)
(if so equipped)
.............. .4-29Heater and air conditioner controls. . .4-30Heater operation..............4-31Heater and air conditioner (automatic). .4-29Hill start assist system...........5-171HomeLink® Universal
Transceiver. . . .2-116, 2-120, 2-121, 2-122Hood..................... .3-21Hook
Luggage hook............. .2-106Horn...................... .2-84
I
Idling Stop System..............5-178Ignition switch
Push-button ignition switch.......5-13Immobilizer system............. .5-15Important vehicle information label. . . .10-11In-cabin microfilter..............8-17
Increasing fuel economy..........5-161Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)
.................. .2-12INFINITI Drive Mode Selector.......5-29INFINITI Intelligent Key
System..............3-2, 3-6, 10-36INFINITI InTouch™ Owner's Manual. . . .4-2INFINITI Vehicle Immobilizer
System..............2-72, 3-3, 5-15Inside automatic anti-glare
mirror................. .3-33, 3-34Instrument brightness control........2-83Instrument panel.............0-6, 2-4Instrument panel dimmer switch......2-83Intelligent All-Wheel Drive (AWD).....5-161Intelligent Cruise Control (ICC)
(for vehicles with ProPILOT Assist). . . .5-97Intelligent Key system
Key operating range............ .3-8Key operation............... .3-9Mechanical key................3-3Remote keyless entry operation.....3-14Troubleshooting guide..........3-16Warning signals..............3-16Interior light................. .2-114ISOFIX child restraints............1-30
J
Jump starting............ .6-12, 8-14
11-3

Seat belt extenders............1-24Seat belt maintenance...........1-25Seat belts.............. .1-17, 7-7Three-point type with retractor.....1-21Seat belt extenders..............1-24Seat belt warning light........1-20, 2-16Seat massage switch.............2-88Seatback pockets............. .2-101Seats
Adjustment................. .1-2Armrests.................. .1-8Front seats..................1-2Heated seats................2-84Seats/floor mats.............7-5, 7-7Security system
(INFINITI vehicle immobilizer system),
engine start
..........2-72, 3-3, 5-15Security systemsVehicle security system..........2-71Self-adjusting brakes............ .8-20Service manual order form.........10-36Servicing air conditioner...........4-36Smart Rear View Mirror...........3-34Spark plug replacement...........8-16Spark plugs.................. .8-16Specifications.................10-8Speedometer...............2-6, 2-7SRS warning label...............1-74Stability control...............5-168Standard maintenance.............9-9Starting
Before starting the engine........5-16Jump starting........... .6-12, 8-14
Precautions when starting and
driving................ .5-4, 5-10Push starting................6-14Starting the engine.............5-16Starting the engine............. .5-16Steering
Power steering system.........5-164Steering Assist switch
(for vehicles with ProPILOT Assist). . . .2-88Steering wheel............... .3-30Stop light................... .8-26Storage....................2-100Sun visors....................3-32Sunglasses case...............2-103Sunglasses holder..............2-103Sunroof................ .2-112, 7-5Supplemental air bag warning labels. . . .1-74Supplemental air bag warning
light.................. .1-75, 2-16Supplemental front impact air bag
system..................... .1-62Supplemental restraint system
Information and warning labels.....1-74Precautions on supplemental restraint
system................... .1-54Supplemental restraint system
(Supplemental air bag system).......1-54Switch
Autolight switch............. .2-78Automatic power window switch. . .2-110Hazard warning flasher switch......6-2Headlight aiming control.........2-82Headlight and turn signal switch.....2-77Headlight control switch.........2-77
Instrument brightness control......2-83Power door lock switch...........3-5Rear window and outside mirror defroster
switch................... .2-77Rear window wiper and washer
switches...................2-76Turn signal switch.............2-83
T
Tachometer.................. .2-8Temperature gauge
Engine coolant temperature gauge. . . .2-9Theft(INFINITI vehicle immobilizer system),
engine start
..........2-72, 3-3, 5-15Three-way catalyst.............. .5-4Tire
Flat tire................ .6-3, 6-4Spare tire...............6-5, 8-41Tire and Loading Information label. .10-12Tire chains................ .8-38Tire pressure................8-28Tire rotation................8-39Types of tires................8-37Uniform tire quality grading. . . . . .10-31Wheel/tire size...............10-9Wheels and tires..........8-28, 10-9Tire pressure
Low tire pressure warning light.....2-18Tire Pressure Monitoring System (TPMS). .5-5Top tether strap child restraint.......1-35
11-6
