For additional information about towing your
vehicle behind a Recreational Vehicle, see
“Flat towing for all-wheel drive vehicle”
(P. 10-30) or “Flat towing for front wheel
drive vehicle” (P. 10-31).

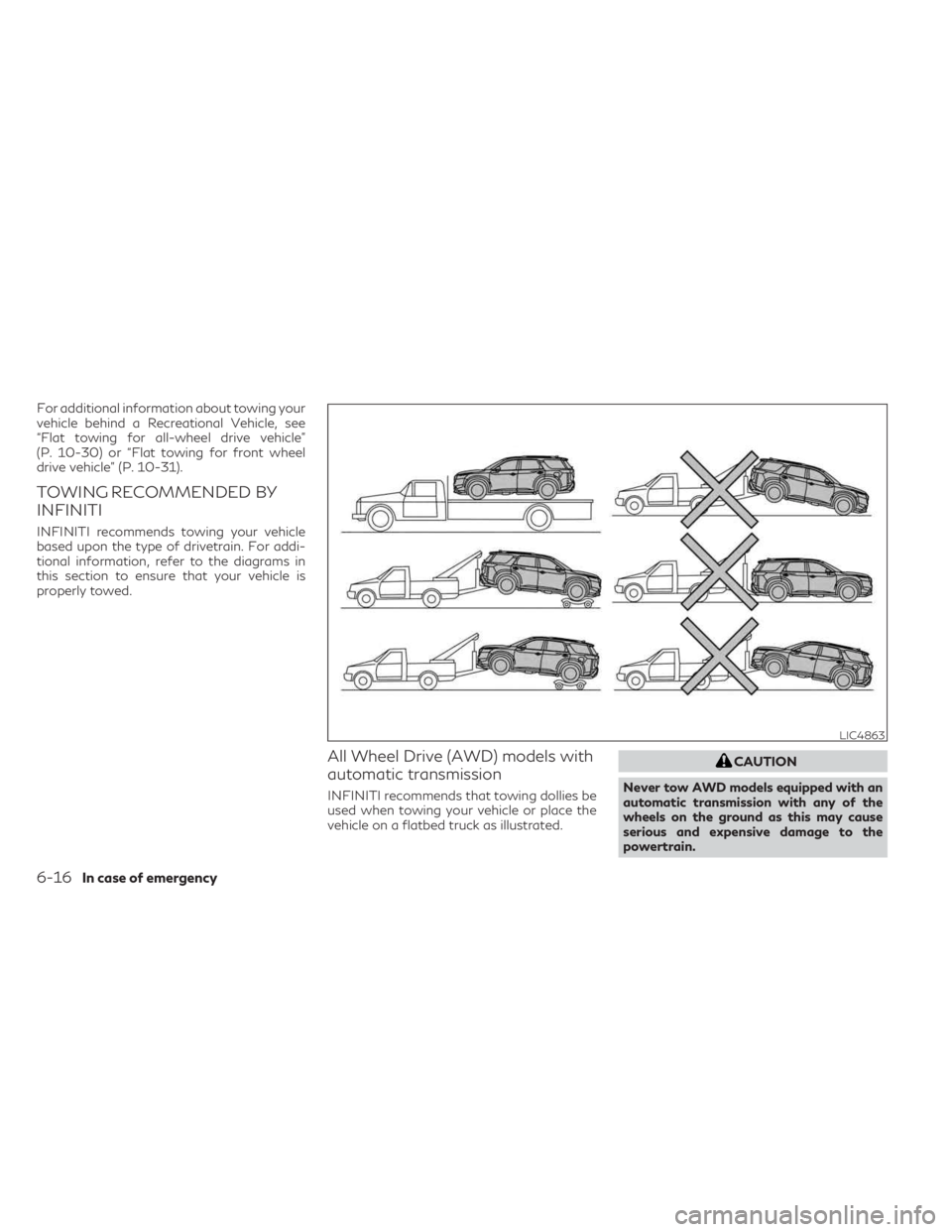

TOWING RECOMMENDED BY
INFINITI
INFINITI recommends towing your vehicle
based upon the type of drivetrain. For addi-
tional information, refer to the diagrams in
this section to ensure that your vehicle is
properly towed.
All Wheel Drive (AWD) models with
automatic transmission
INFINITI recommends that towing dollies be
used when towing your vehicle or place the
vehicle on a flatbed truck as illustrated.
CAUTION
Never tow AWD models equipped with an
automatic transmission with any of the
wheels on the ground as this may cause
serious and expensive damage to the
powertrain.
LIC4863
6-16In case of emergency

PASSENGER COMPARTMENT
WARNING
Never use a fuse of higher or lower amper-
age rating than that specified on the fuse
box diagram. This could damage the elec-
trical system or electronic control units or
cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the head- light switch are OFF.
2. Remove the fuse with the fuse puller. 3. If the fuse is open
OA, replace it with an
equivalent good fuse
OB.
4. If a new fuse also opens, have the electri- cal system checked and repaired. It is rec-
ommended that you visit an INFINITI re-
tailer for this service.
LDI3586LDI3200
